Pentair MasterTemp 200 460730 Heater Diagram & Part List
Find your parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (855) 767-7665 and we'll find it for you.
Having a problem? Pick one to see the parts that usually fix it (optional)
-
$679.99Notify me
-
Most common fix Pentair Tube Sheet Coil Sealing O-Ring Kit For MasterTemp and Max-E-Therm 175 and 200 Heaters | 6 Pack$34.99
-
$54.99
-
$71.99
-
$7.99Notify me
-
$479.99Notify me
-
$96.99
-
$32.99
-
$49.99Notify me
-
$11.99
-
Most common fix Pentair Thermal Regulator For MasterTemp and Max-E-Therm Heaters$69.99
-
$399.99
-
$67.99Notify me
-
$649.99Notify me
-
Most common fix Pentair Flameholder Kit For Max-E-Therm and MasterTemp Heaters$126.99Notify me
-
$151.99
-
Most common fix Pentair Back Side Panel For MasterTemp Heaters | Flue Stack Side$199.99Notify me
-
Most common fix Pentair Molded Manifold Side Panel For MasterTemp Heaters$279.99Notify me
-
Most common fix Pentair Molded Side Service Panel For MasterTemp Heaters$317.80Notify me
-
Most common fix Pentair Display Cover For MasterTemp Heaters$54.99
-
$89.99Notify me
-
$69.99
-
Most common fix Pentair Control Board with 6 Button Pad For MasterTemp and Max-E-Therm Heaters | 42002-0007S$499.99
-
$104.99
-
Most common fix Pentair Dual Voltage Transformer Kit For Max-E-Therm and MasterTemp Heaters | 115V/230V$75.99
-
$299.99
-
Most common fix Pentair Terminal Board For MasterTemp And Max-E-Therm$49.99Notify me
-
Most common fix Pentair Fireman's Switch Fuse 1.25 Amp MasterTemp Sta-Rite Max-E-Therm ETI 400 Gas Heaters$12.99
-
$81.99
-
Most common fix Pentair High Limit Switch for MasterTemp And Max-E-Therm Heaters$59.99
-
Most common fix Pentair Air Flow Switch For MasterTemp And Max-E-Therm Heaters$126.99
-
$54.99
No parts match.
Pinch or scroll to zoom, drag to move. Tap a dot to see the part.
Recently viewed

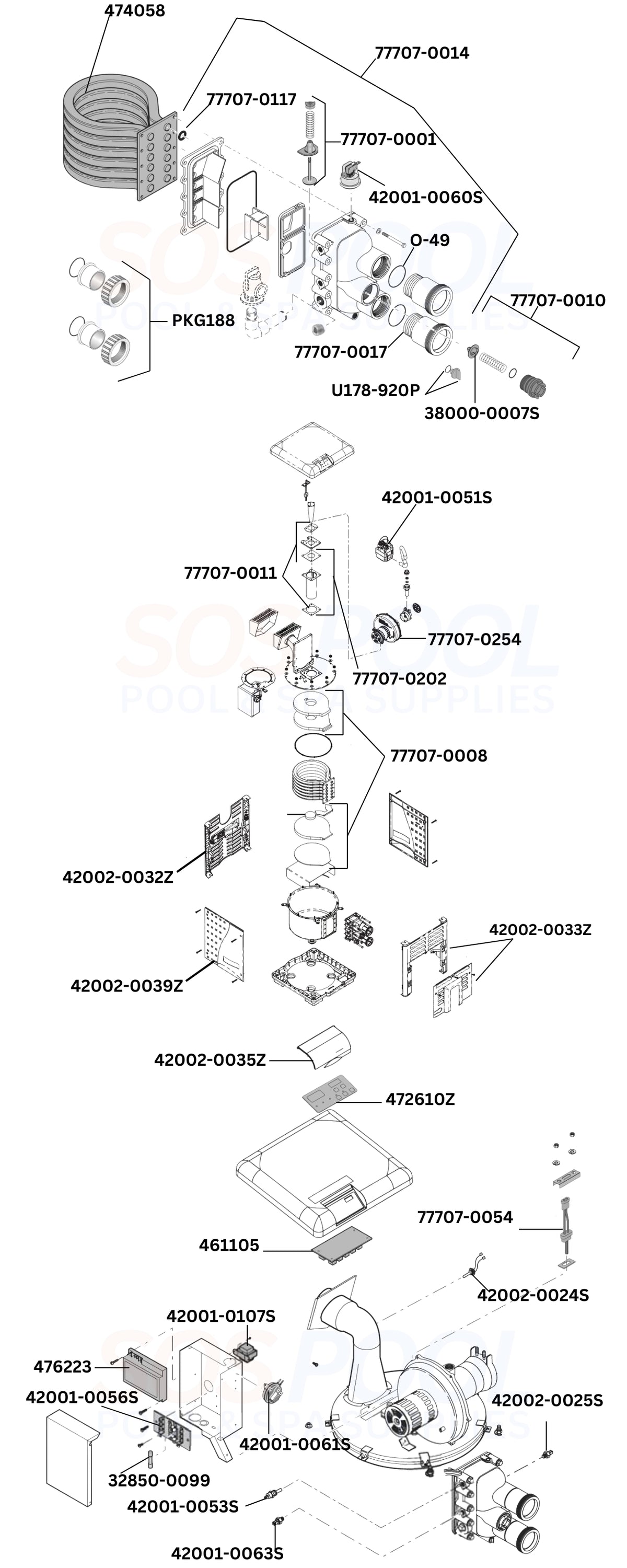

Pentair MasterTemp 200 460730 Heater Diagram & Part List with Clickable Links to Common Replacement Parts
Use the diagram above to pinpoint the part you need, then explore the list below to confirm specs, compatibility, and online availability for MasterTemp 200 heaters.
Maintain touchpad control with the 472610Z Switch Membrane Pad for MasterTemp and Max-E-Therm models.
Ensure proper temperature readings using the 42001-0053S Thermistor, compatible across multiple Pentair heaters.
Fix electrical issues with the 42001-0104S Wiring Harness Kit for both MasterTemp and Max-E-Therm systems.
Restore ignition with the 77707-0054 Igniter With Gasket Kit, designed for reliable startup performance.
Regulate fuel flow using the 42001-0051S Gas Control Valve Kit for safe and efficient operation.
The 77707-0202 Flameholder Kit enhances combustion stability across compatible models.
Restore heat transfer with the 474058 Tube Sheet Coil Assembly for 175 and 200 size heaters.
Get consistent airflow with the 77707-0254 Air Combustion Blower Kit for propane models.
Find diagrams and part listings to support accurate repairs for the Pentair MasterTemp 200 heater series online.
