Pentair Stack Flue Sensor for MasterTemp & Sta-Rite Max-E-Therm Gas Heaters | 42002-0024S

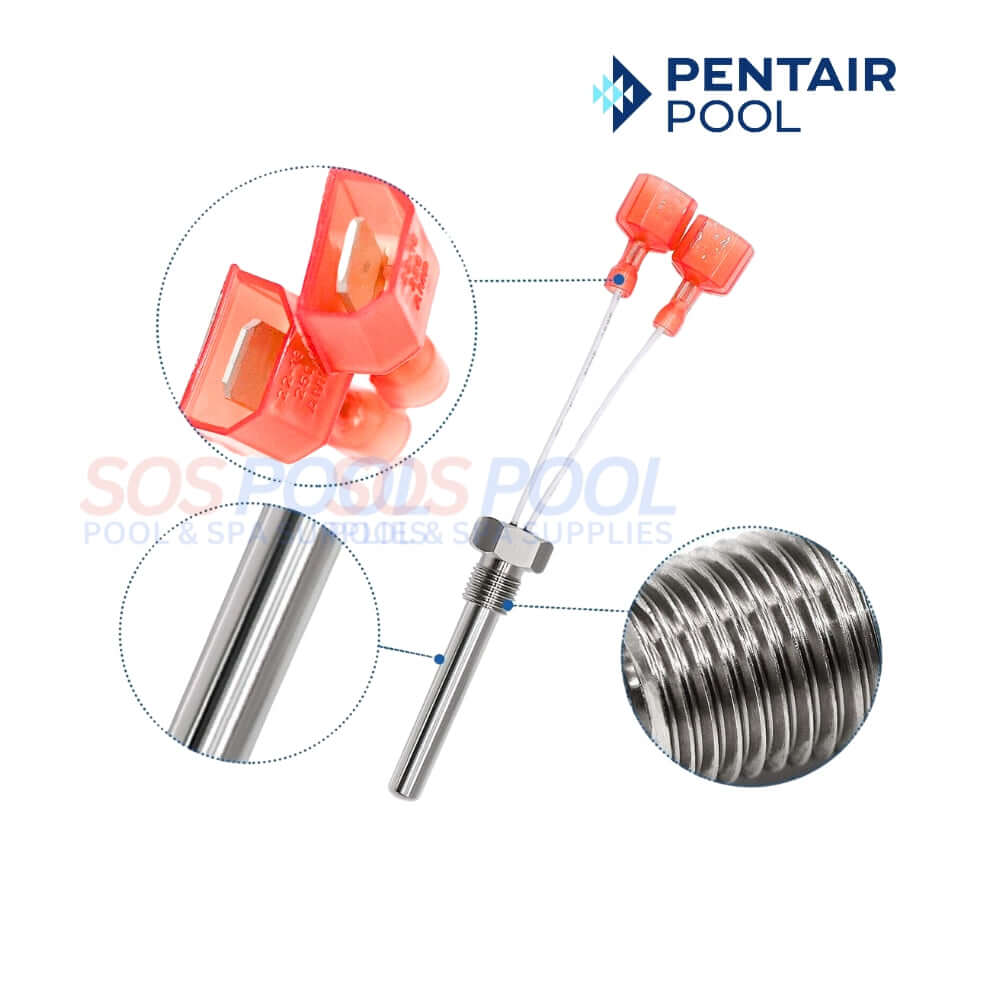

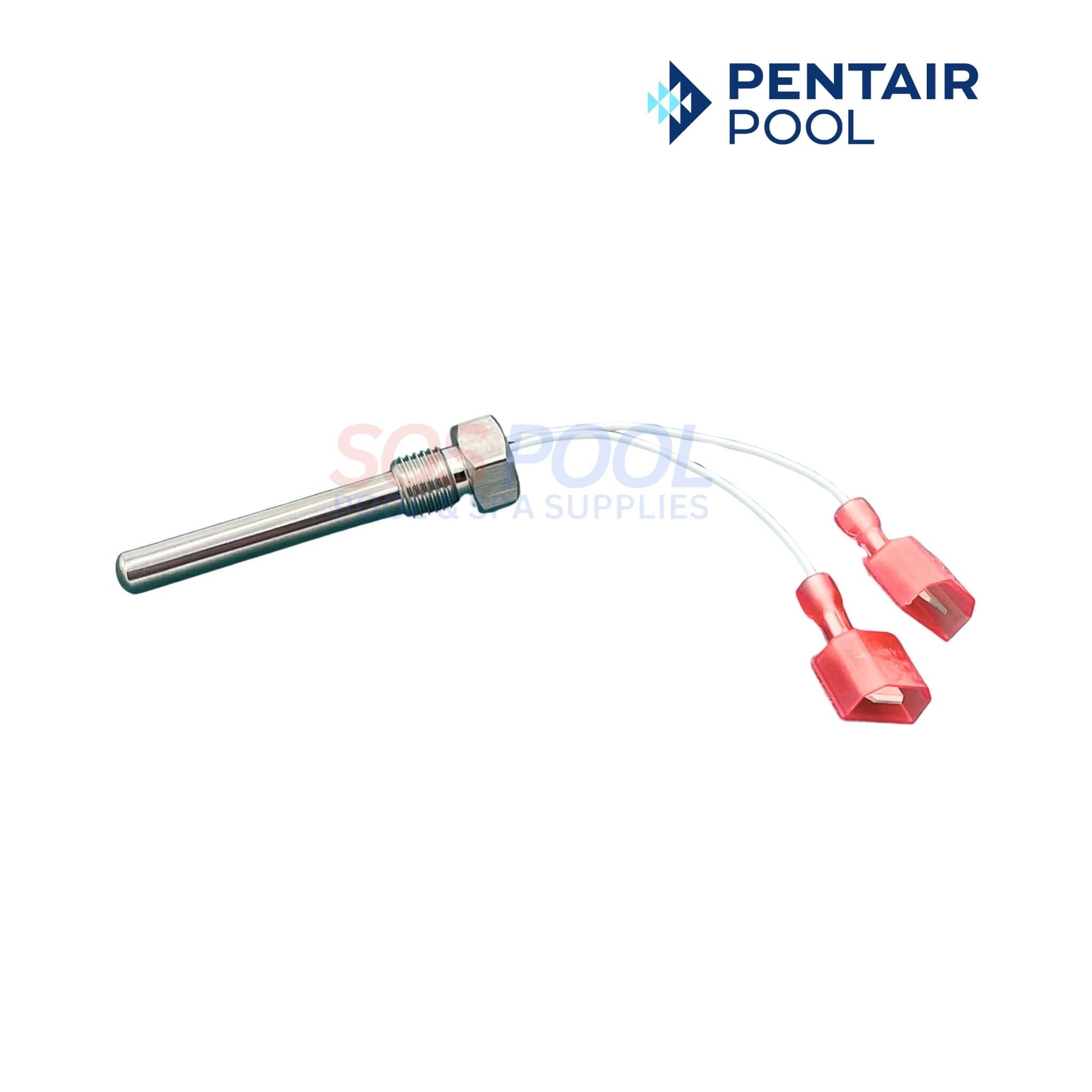

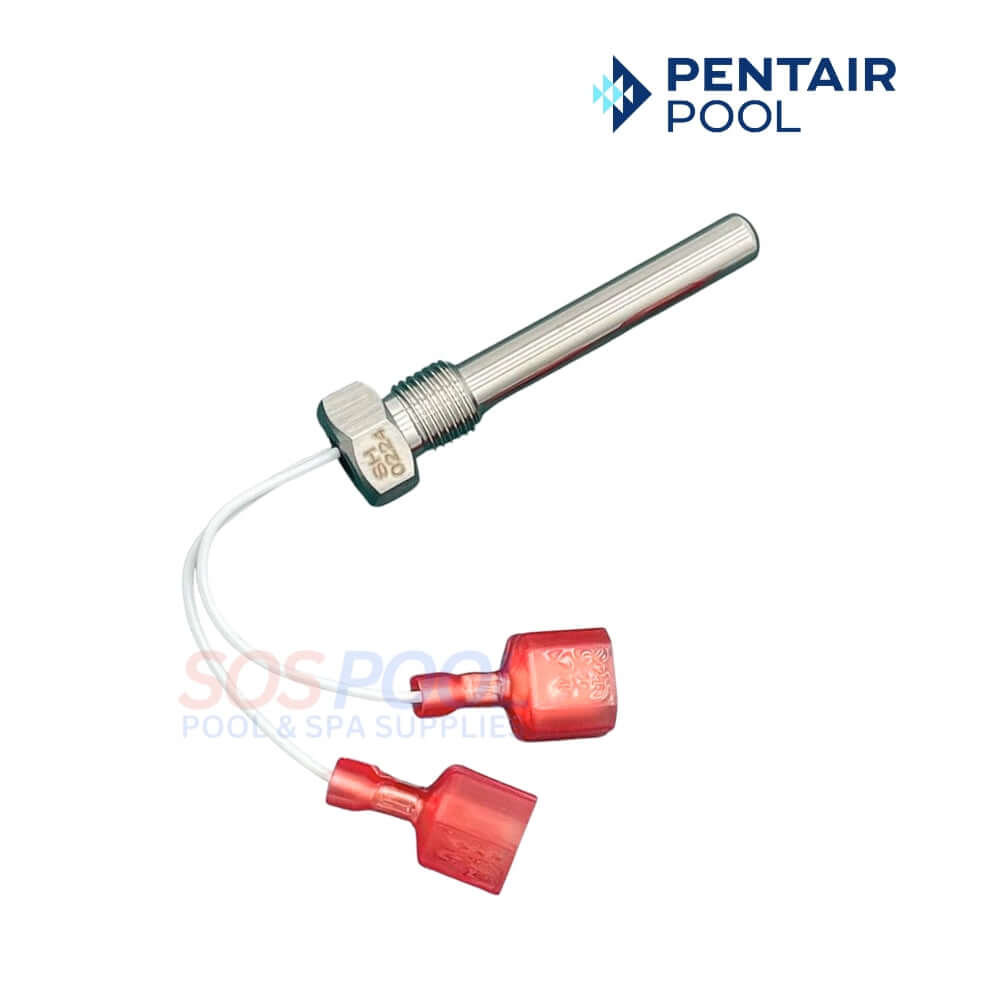

The OEM Pentair stack flue sensor (SFS), which shuts down the heater if the flue gas temperature reaches 480° F (249° C). The Stack Flue Sensor is designed to regulate the flue gas output, ensuring it does not exceed 500 degrees Fahrenheit. It is capable of operating in temperatures ranging from -20°C to 105°C. Additionally, it can resolve common error codes such as E-02, E-05, and E-06. The Stack Flue Sensor functions to limit the flue gas output to a maximum of 500 degrees Fahrenheit. It can operate within a temperature range of -20°C to 105°C and can resolve common error codes such as E-02, E-05, and E-06.

Highlights

• Automatic Shutdown Feature: The SFS protects the heater by shutting it down when flue gas temperatures reach 480° F, preventing overheating.
• Temperature Regulation: It is engineered to control the flue gas output, keeping it safely below 500 degrees Fahrenheit for optimal operation.
• Wide Operating Range: Capable of functioning in extreme temperatures, from as low as -20°C to as high as 105°C, the sensor offers versatile application.
• Error Code Resolution: The device is not just a safety measure; it also troubleshoots common error codes (E-02, E-05, E-06), ensuring continuous heater performance.

Compatibility

Compatible with most Pentair Sta-Rite Max-E-Therm and Pentair MasterTemp Pool Heaters, including but not limited to:

• Pentair Sta-Rite Max-E-Therm Pool and Spa Heater Electrical System Models: SR200, SR333, SR400


Note: This stack flue sensor may be compatible with your heater, please check owners manual to ensure compatibility.

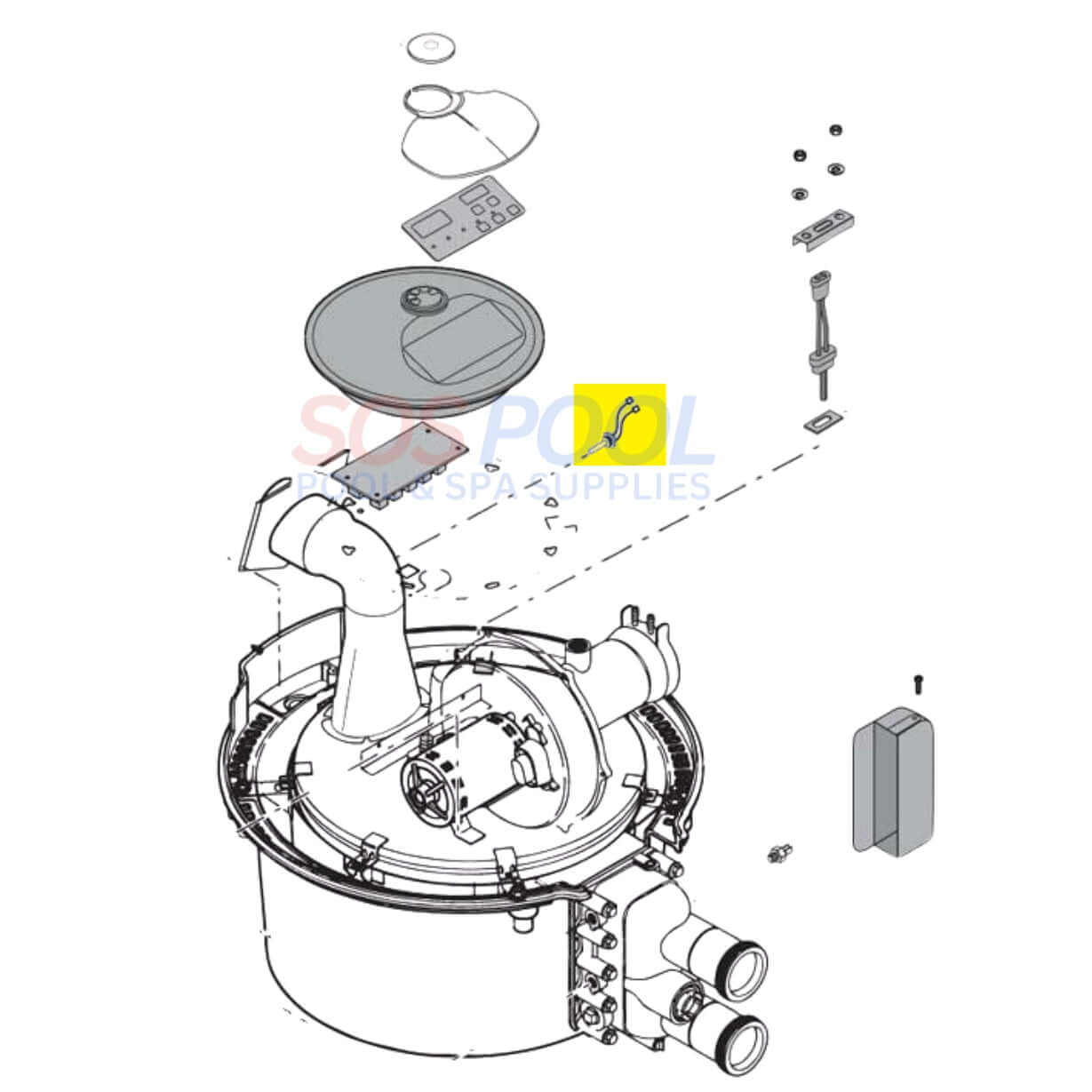

Diagram
