Pentair Manifold Kit for MasterTemp and Max-E-Therm 200 and 175 Heaters | 77707-0014
Fits these models (4)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

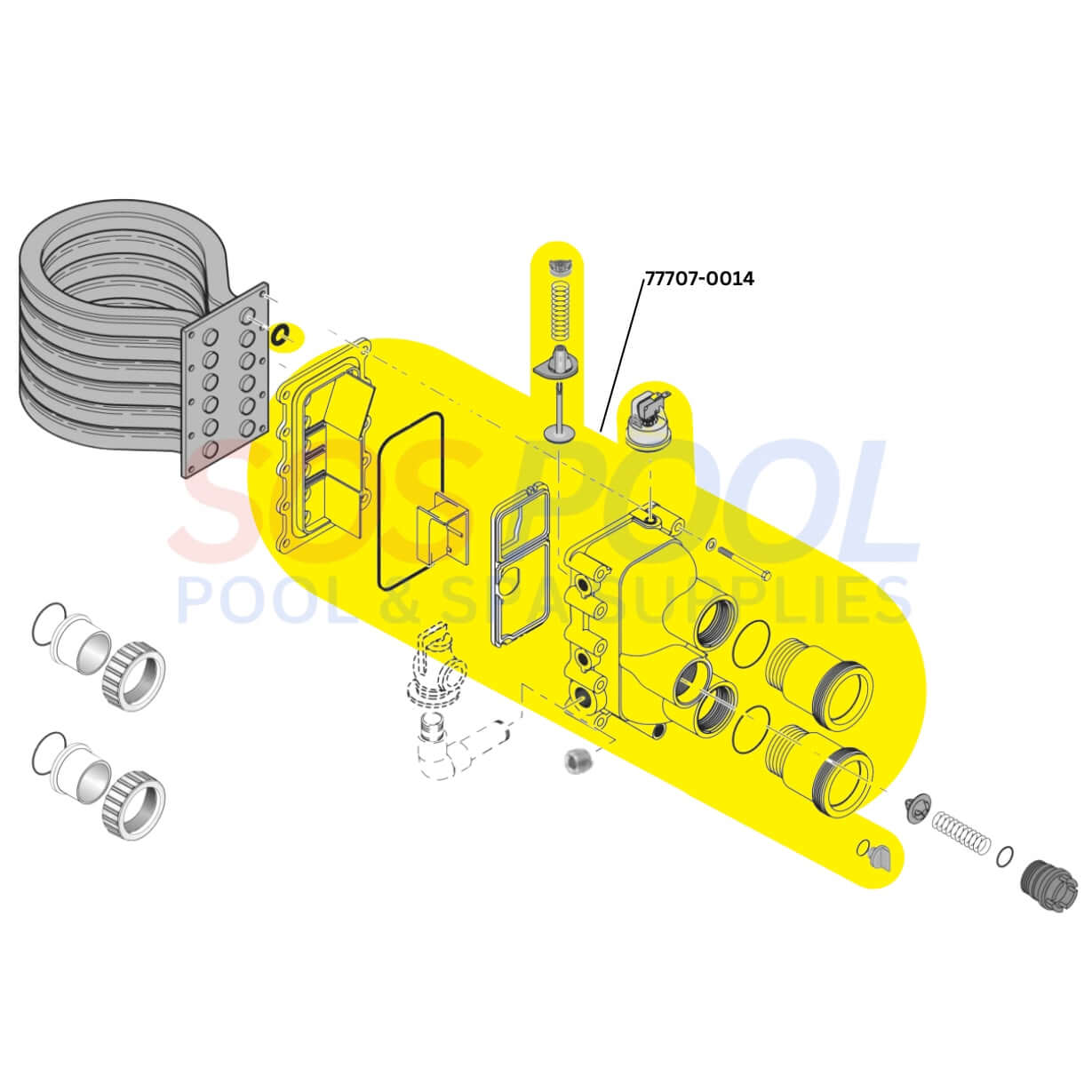

On the Pentair MasterTemp 200 460730 Heater diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 200 460730 Heater
$34.99

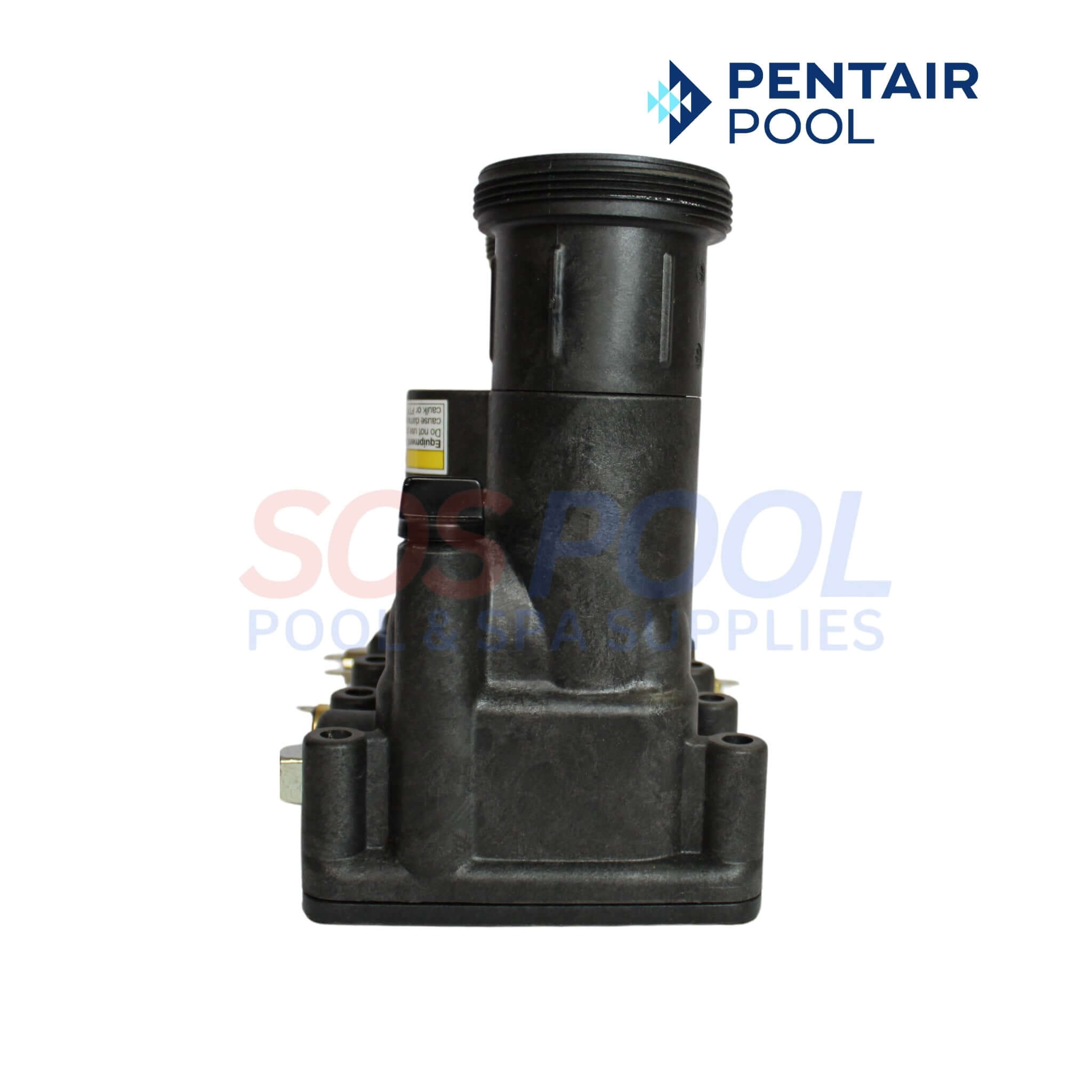

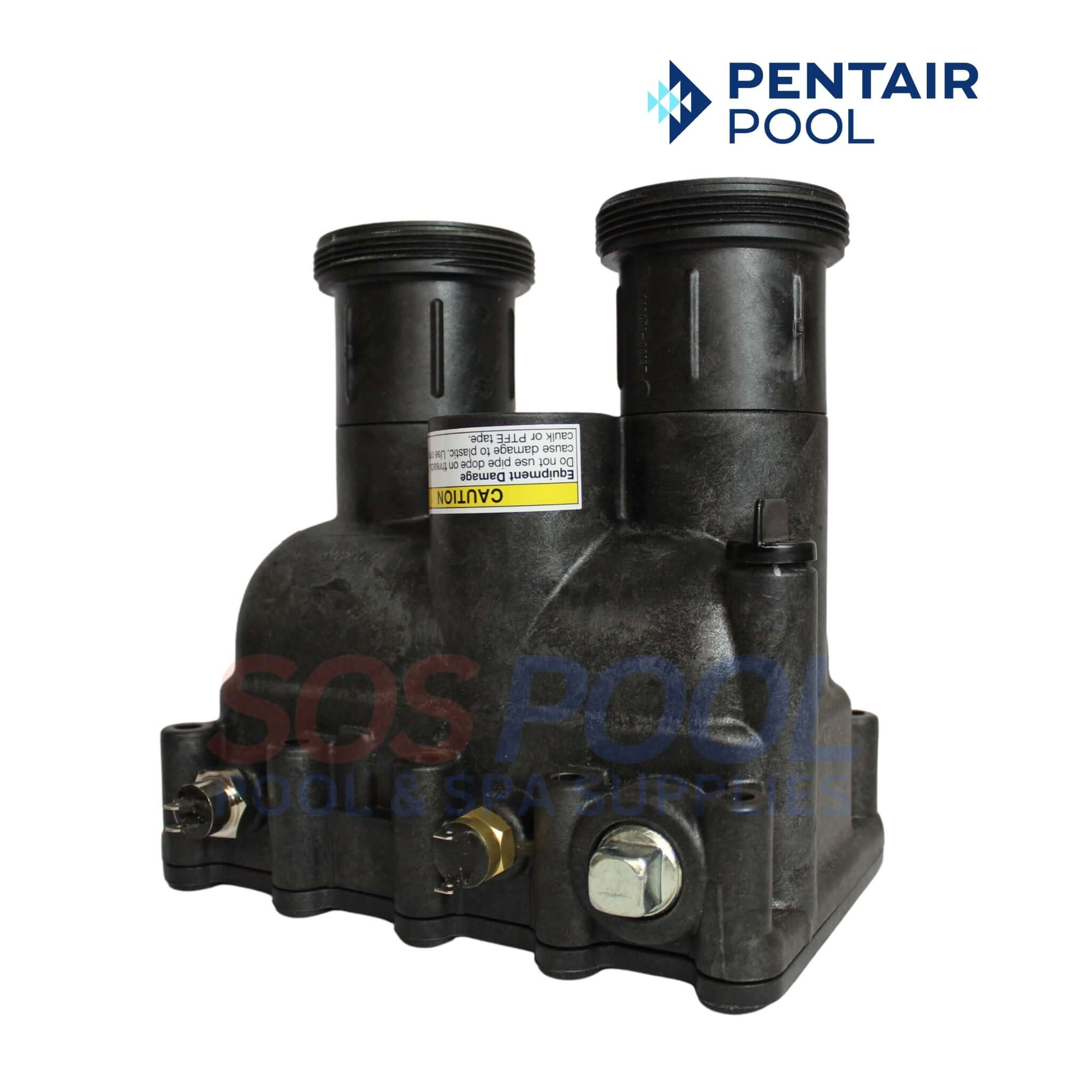

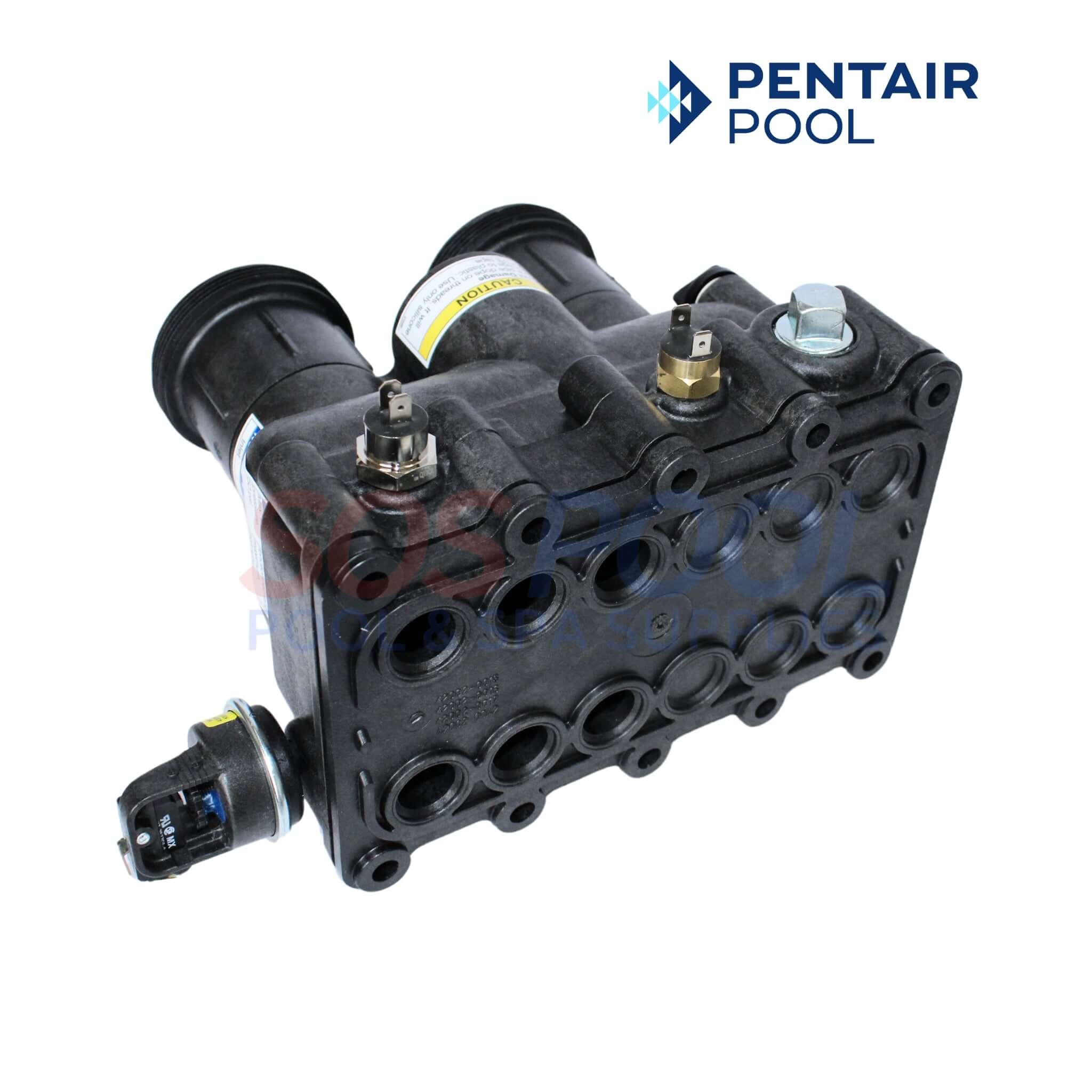

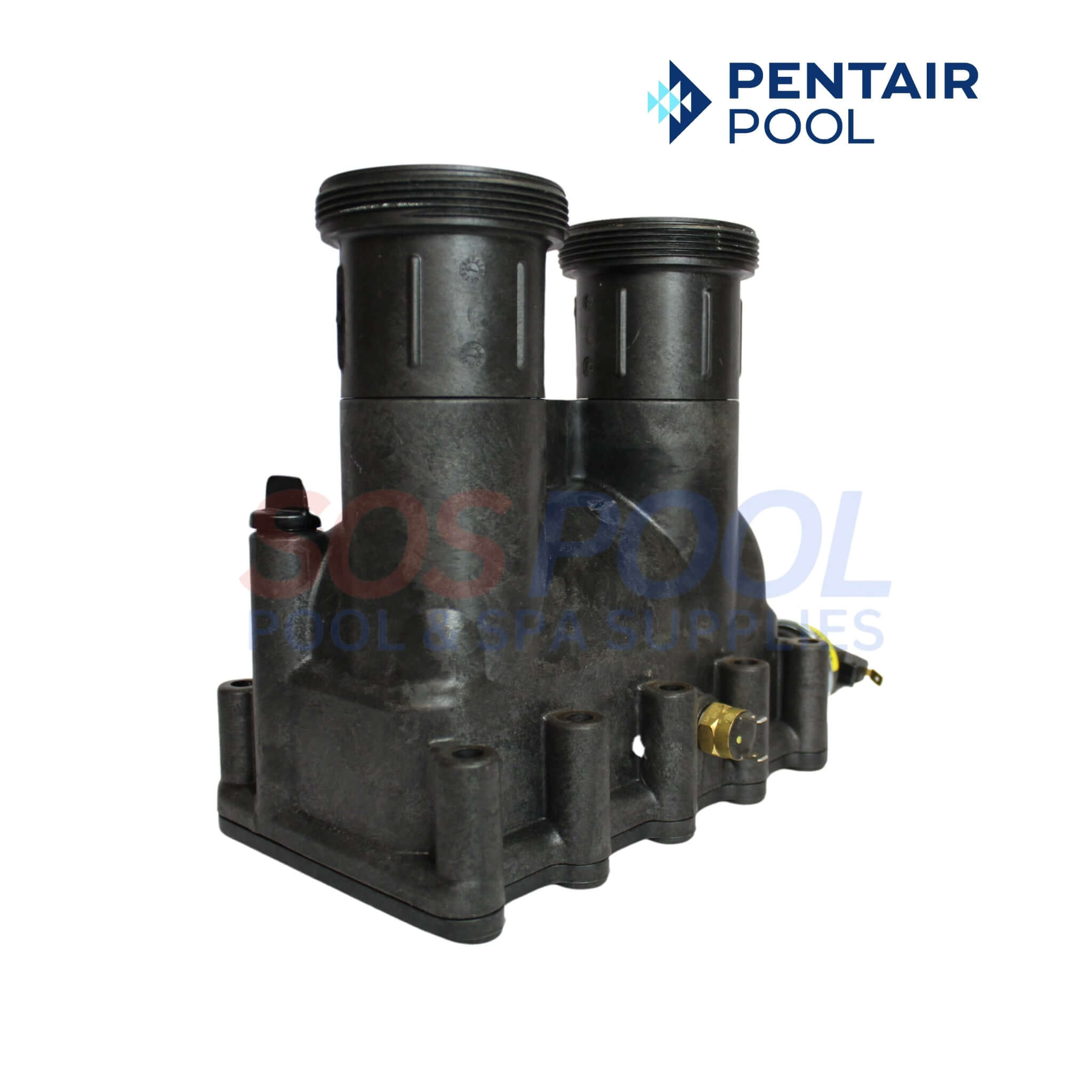

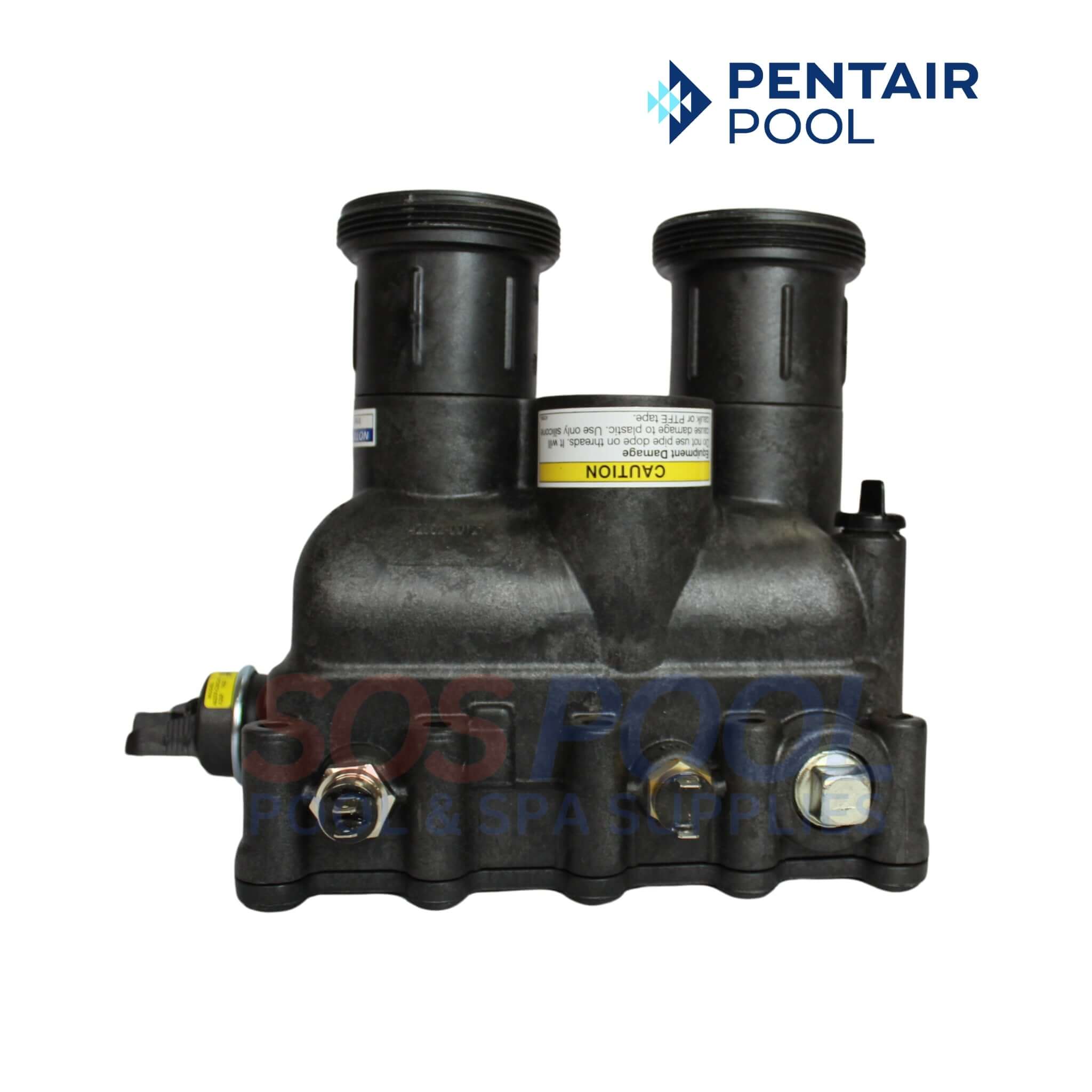

This manifold is a crucial component bolted to the side of the combustion chamber. It serves as a hub for inlet and outlet water connections and houses various important features, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.
- Central Hub for Connections: Serves as a crucial hub for inlet and outlet water connections, ensuring efficient water flow and system integration.
- Integrated Features: Houses essential components including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve, making it a multifunctional unit.
- Ensures System Efficiency: Plays a vital role in maintaining the efficiency and reliability of the heating system by regulating various operational parameters.
- Bolted Design: Securely bolted to the side of the combustion chamber, providing stability and ease of access for maintenance and inspection.
- Critical for Safety and Performance: Ensures the safe operation of the heating system by incorporating multiple safety switches and valves, protecting against overpressure and overheating.

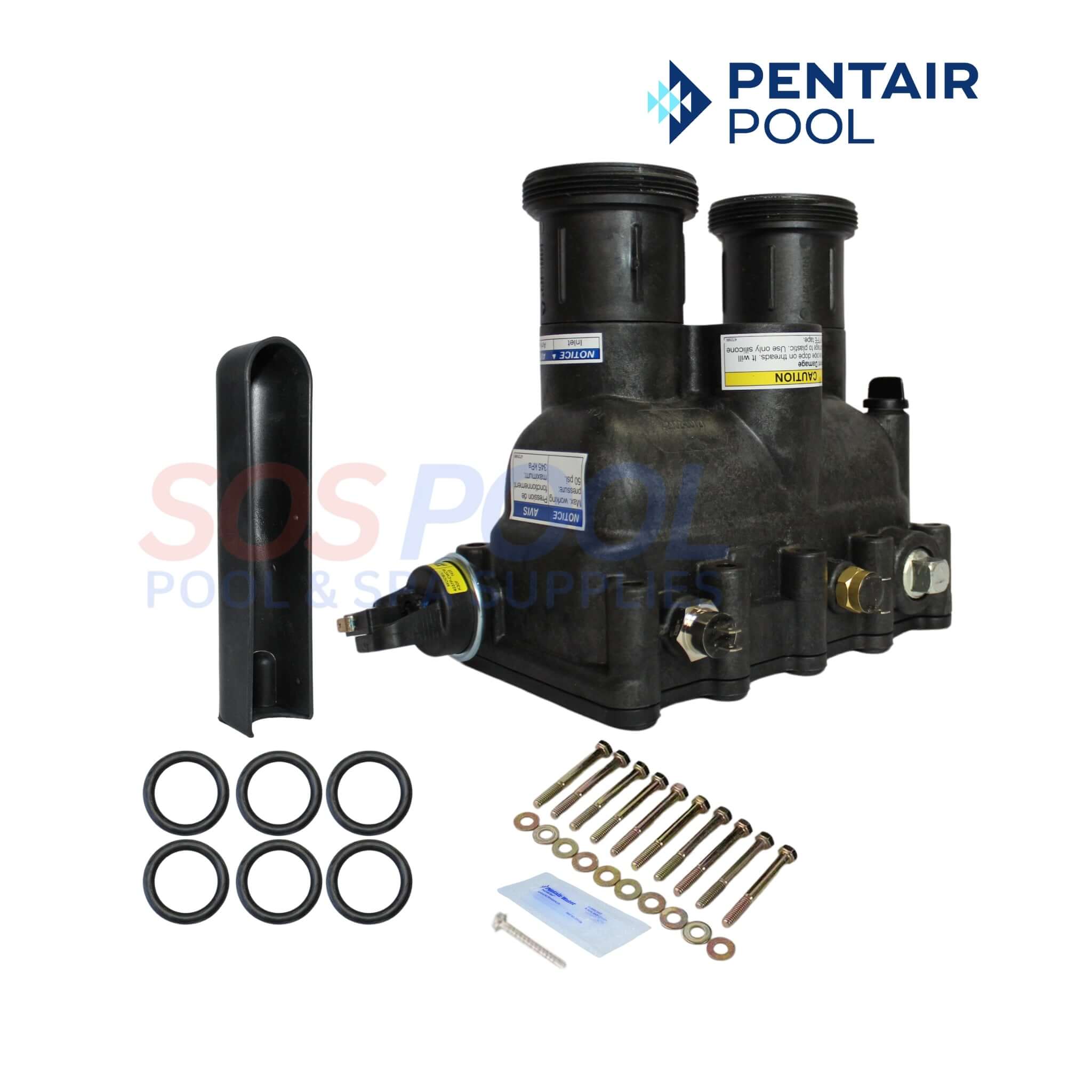

- (1) Pentair Manifold Kit
- (1) Pentair Small Lube and Sealant Package
- (1) Pentair Water Pressure Switch
- (1) Screw
- (6) Pentair Tube Sheet Coil O-Rings
- (10) Bolts
- (10) Washers
- Pentair MasterTemp Heaters Models: 175NA, 175LP, 200NA, and 200LP1
- Pentair Sta-Rite Max-E-Therm Heater Model: 200
