Pentair Tube Sheet Coil Assembly For MasterTemp and Max-E-Therm 175 and 200 Heaters | 474058
Fits these models (4)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

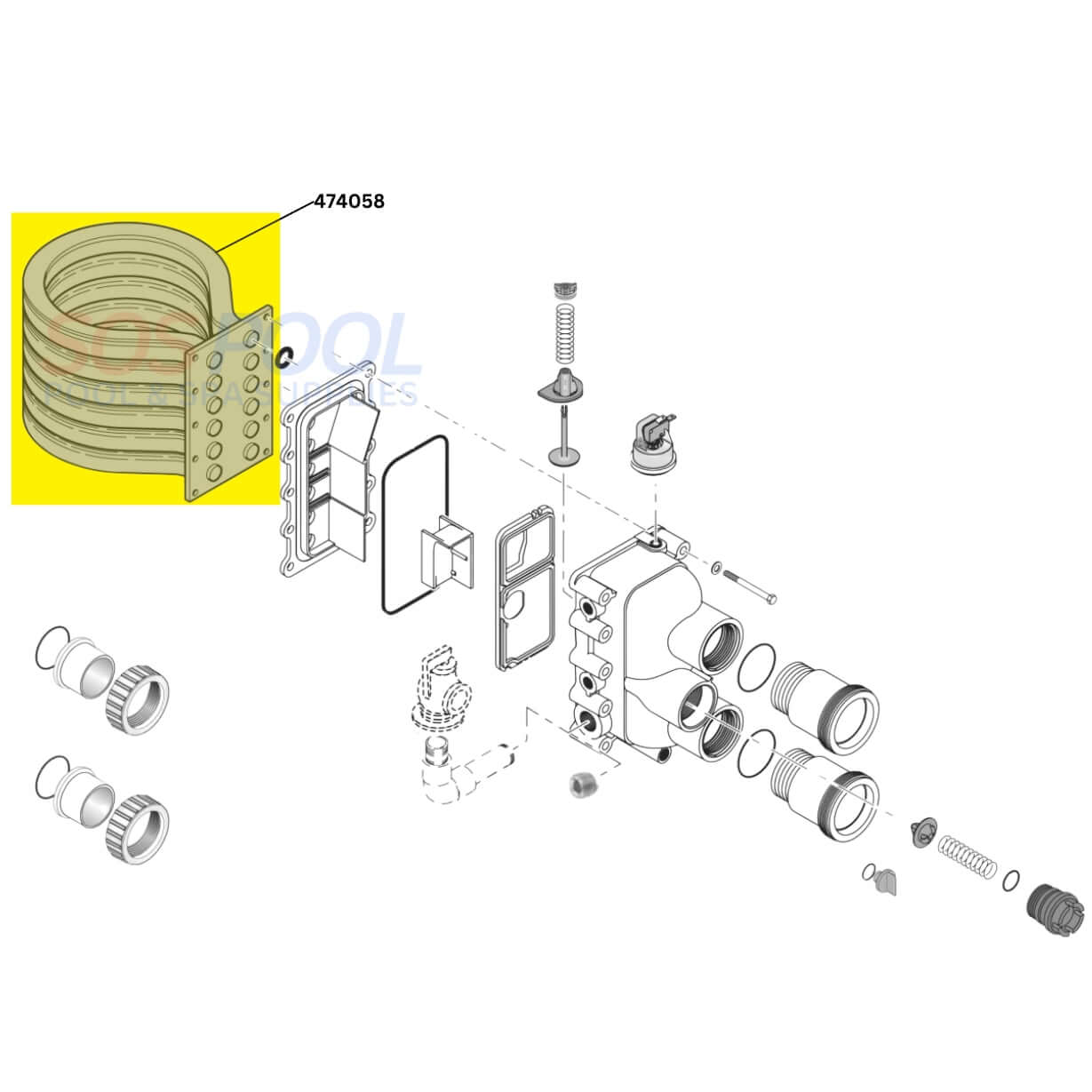

On the Pentair MasterTemp 200 460730 Heater diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 200 460730 Heater
$34.99
The Tube Sheet Coil Assembly Replacement Kit is a versatile solution designed for several Pentair heater models. Compatible with Pentair MasterTemp heater models 175NA, 175LP, 200NA, and 200LP1, as well as Pentair Sta-Rite Max-E-Therm heater model 200, this kit ensures a proper fit for various setups. It includes a coil sealing o-ring kit for added convenience. The assembly measures 18-1/2 inches in length, 10-1/2 inches in height, and 18-1/2 inches in width, making it a comprehensive replacement solution for your heater needs.
- Complete Replacement Solution: This kit includes a coil sealing o-ring kit for added convenience, ensuring a comprehensive and efficient replacement process.
- Proper Fit for Various Setups: Ensures a proper fit across a range of heater setups, enhancing operational flexibility and reliability.
- Optimal Dimensions: The assembly measures 18-1/2 inches in length, 10-1/2 inches in height, and 18-1/2 inches in width, making it a robust and fitting replacement.
- High-Quality Construction: Carefully crafted to meet the demanding conditions of pool and spa heater environments, providing long-lasting durability and performance.

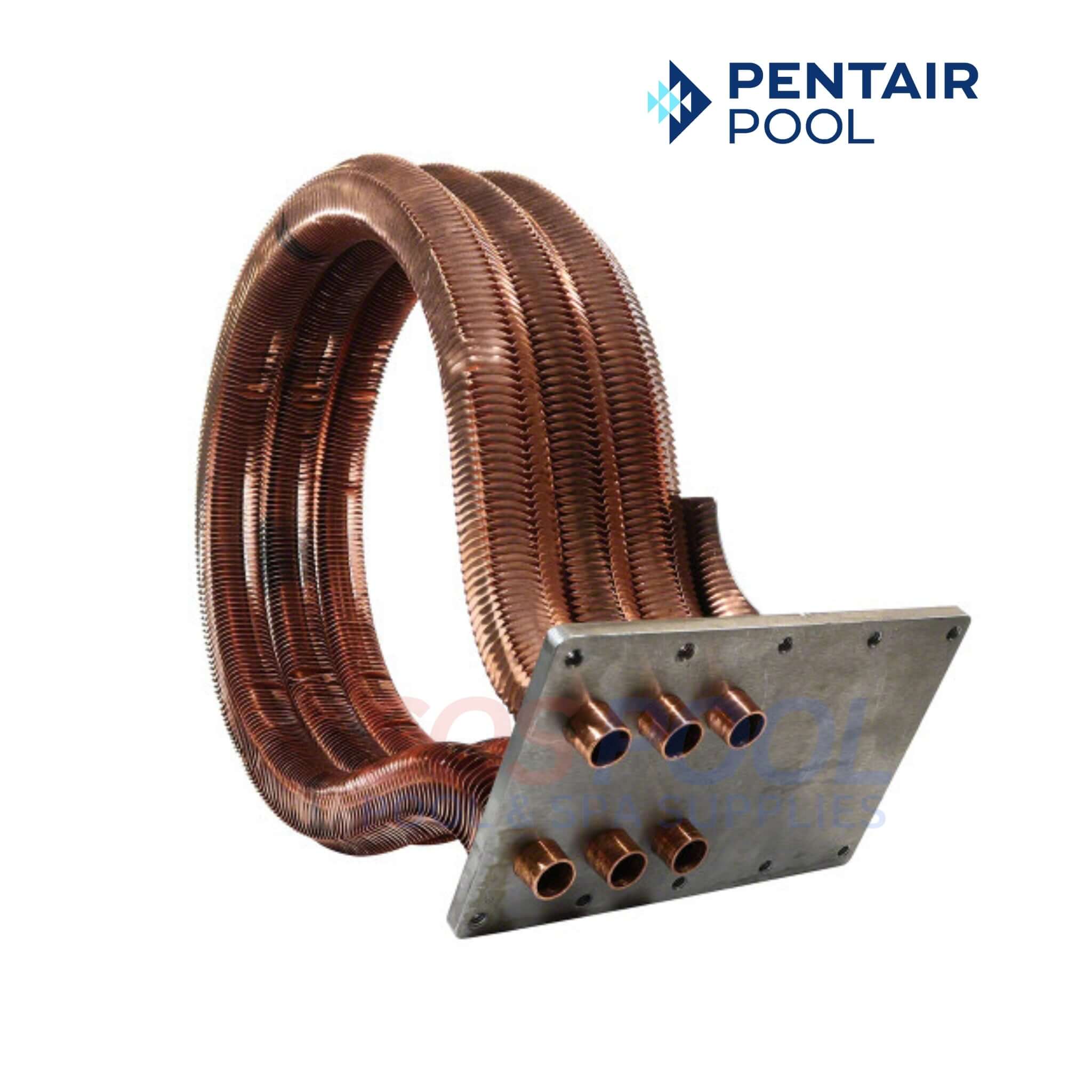

- (1) Pentair Tube Sheet Coil

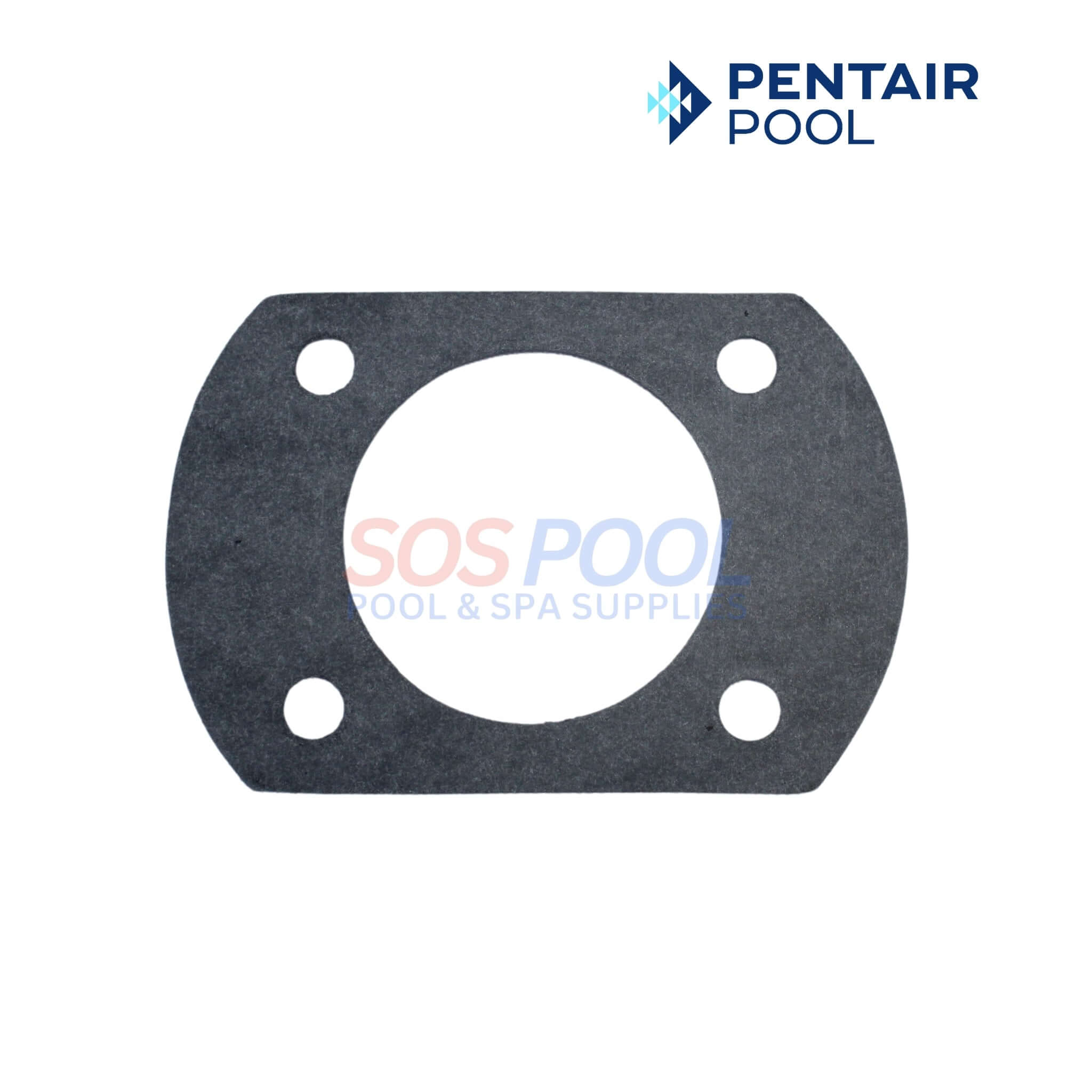

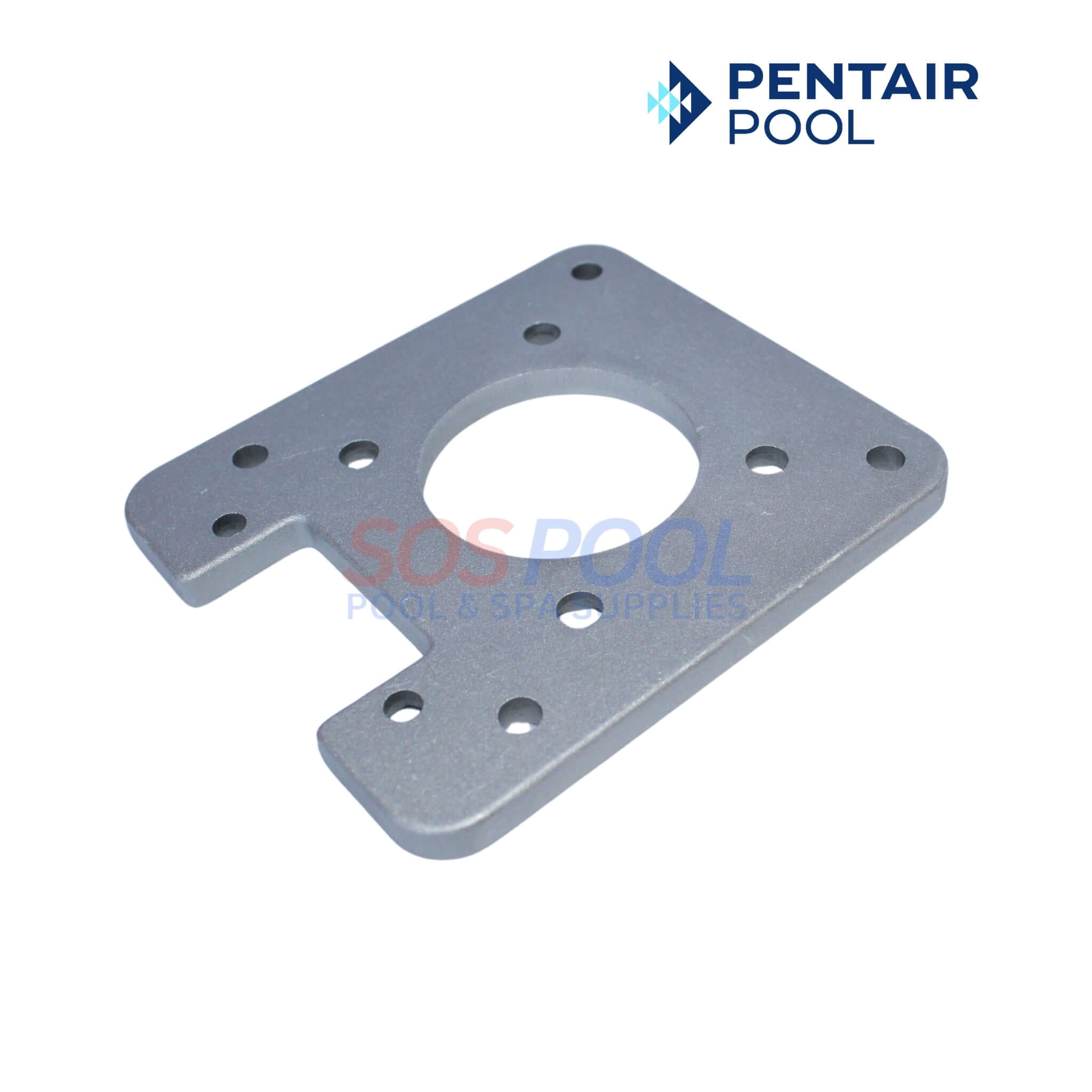

- (1) Pentair 77707-0011 Blower Adapter Plate Gasket Kit

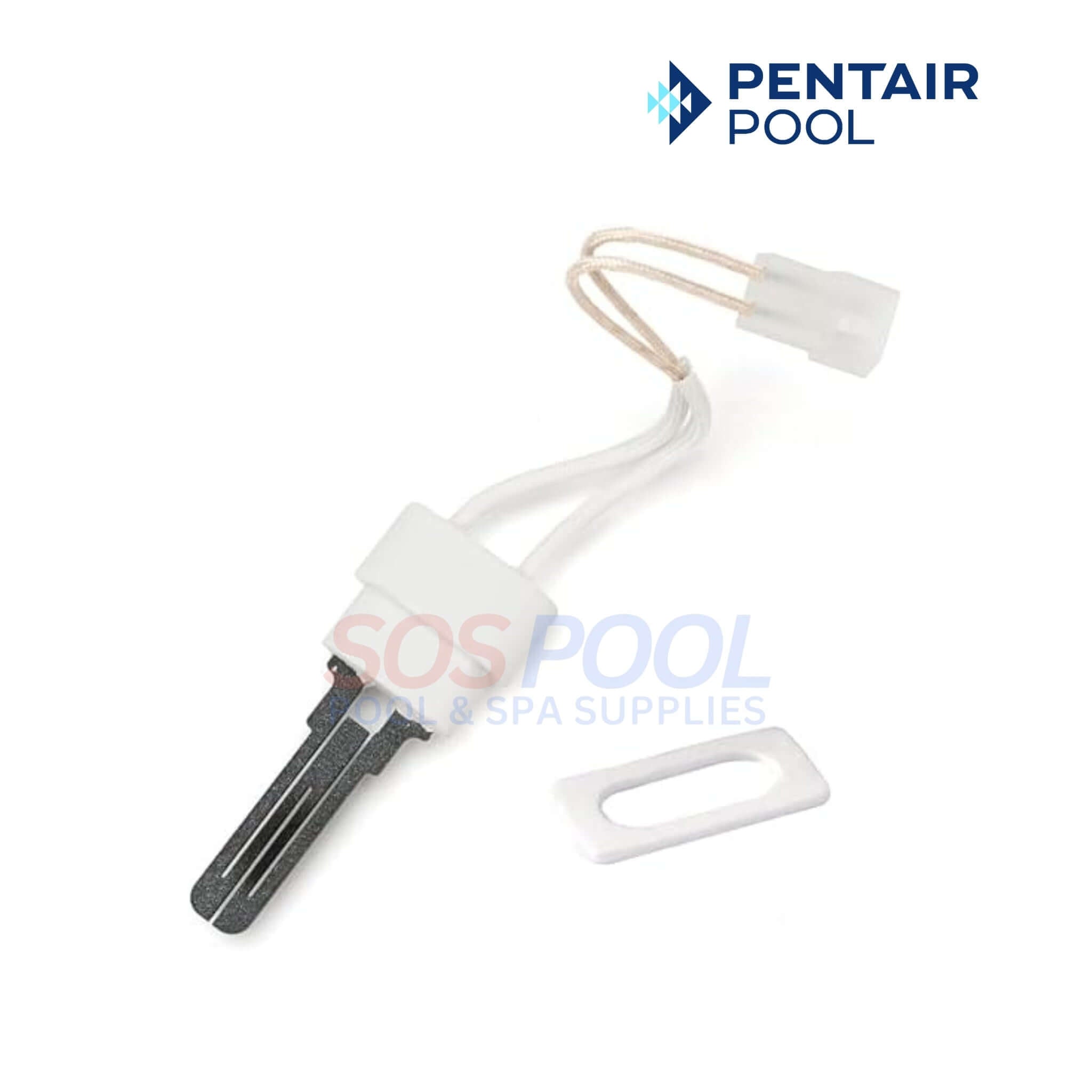

- (1) Pentair 77707-0054 Igniter and Gasket Kit

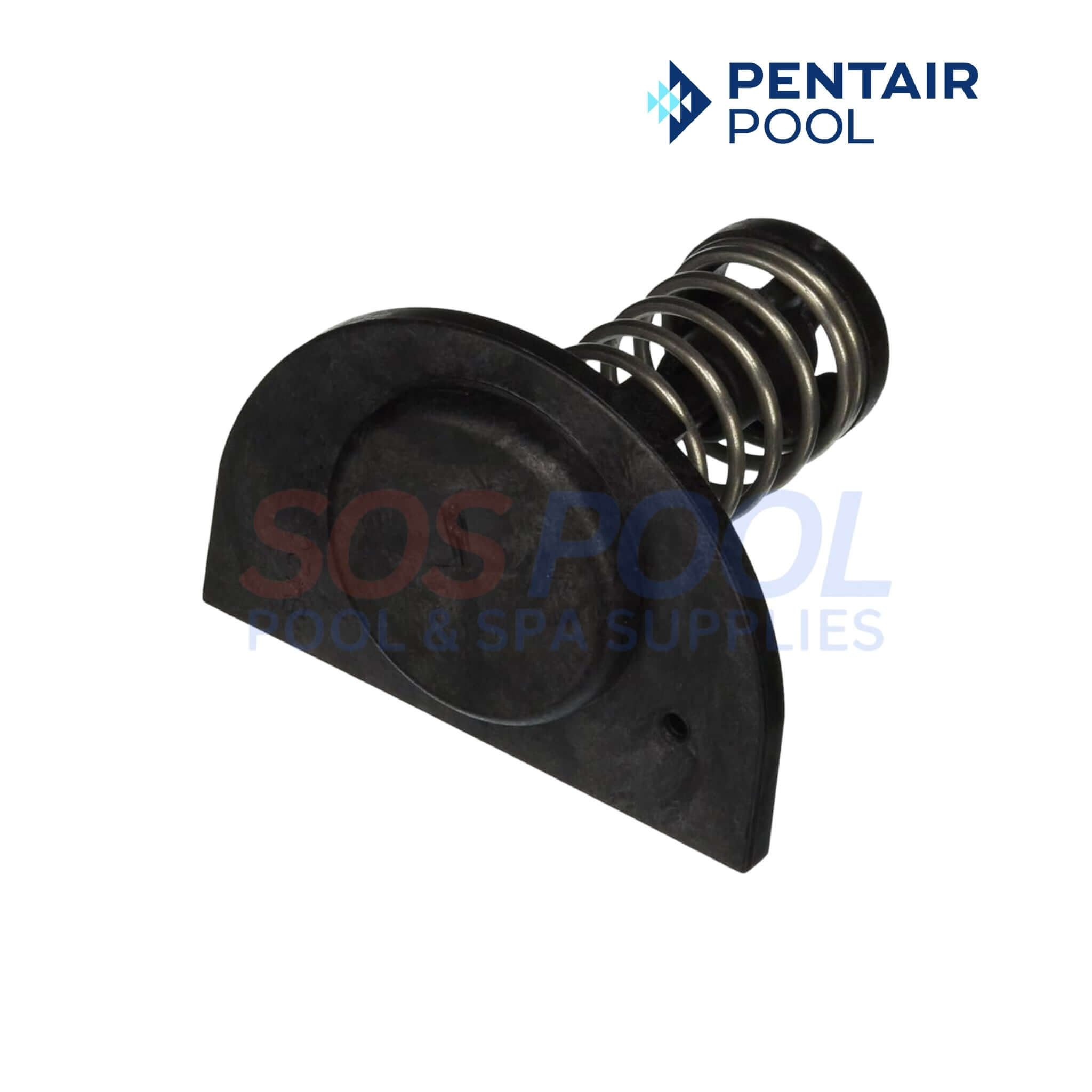

- (1) Pentair 77707-0001 Manifold Bypass Valve

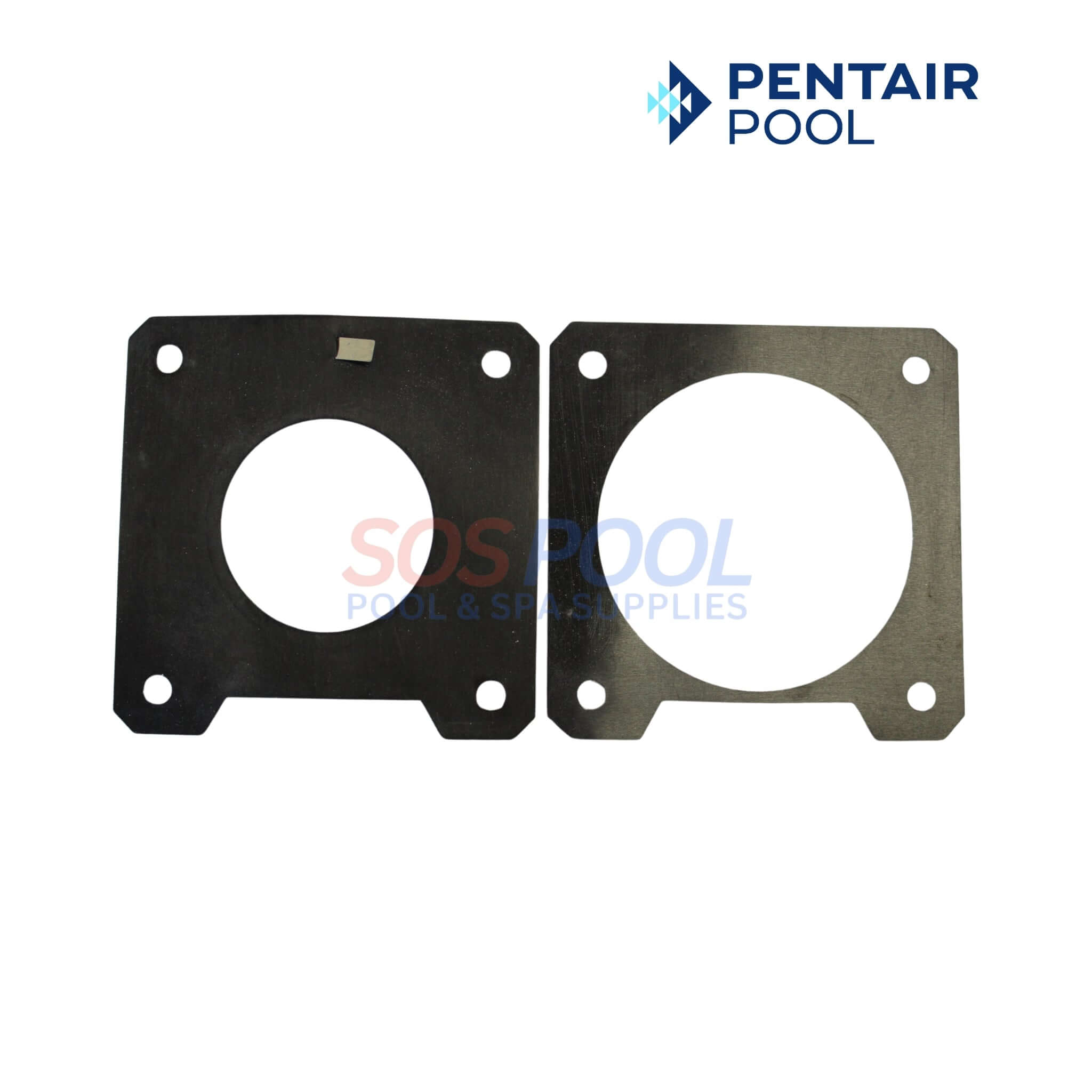

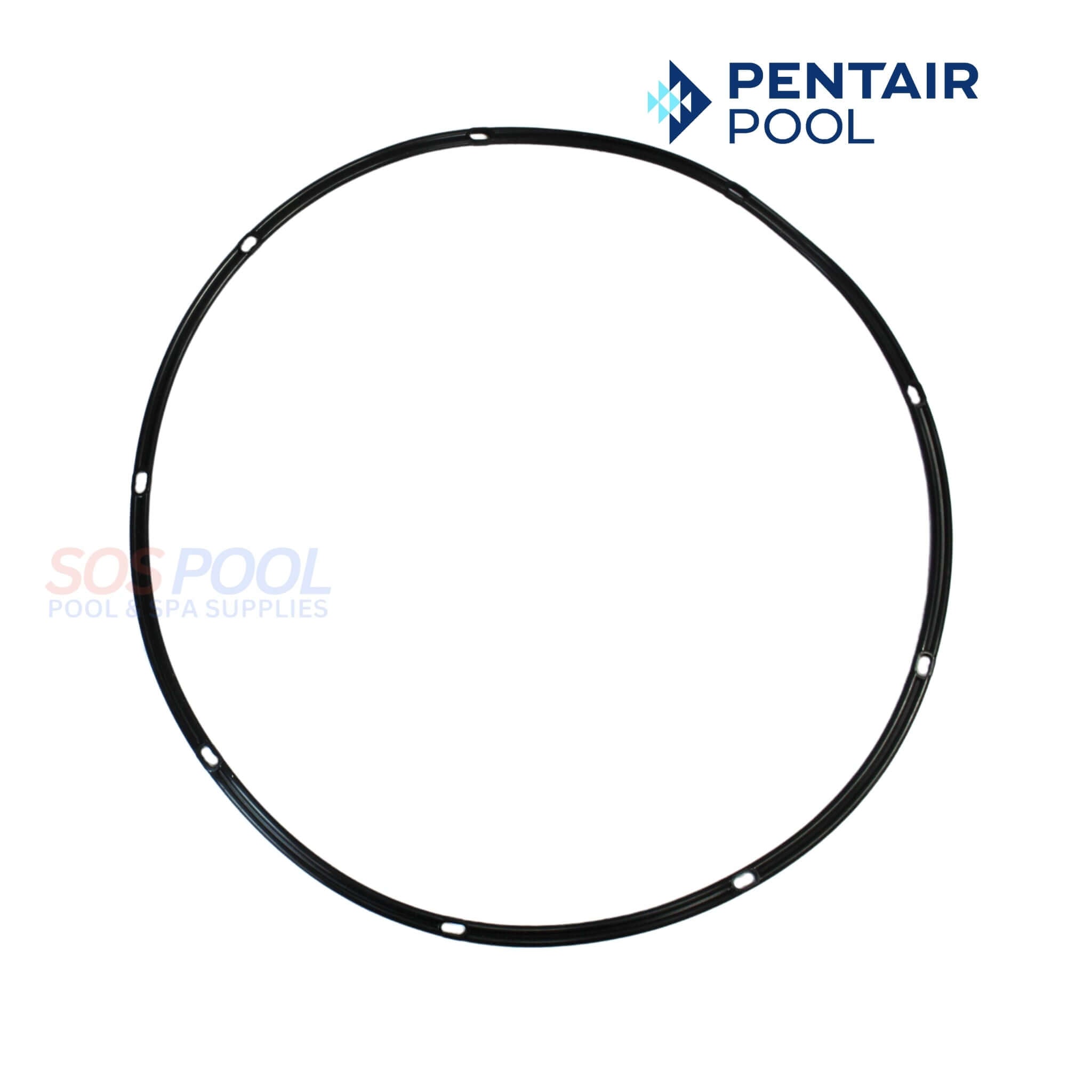

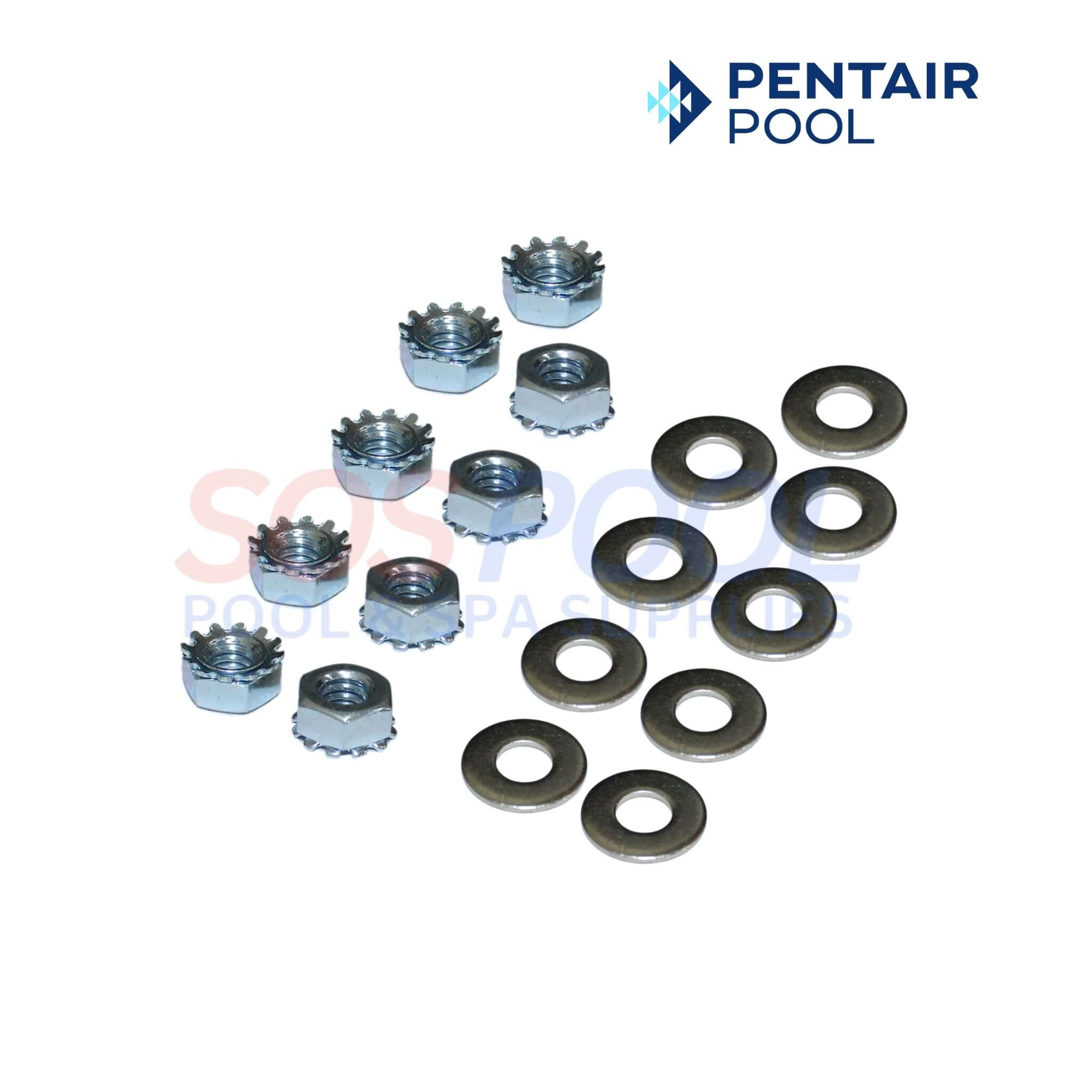

- (1) Pentair 474952 Combustion Chamber Gasket Kit (9 nuts and 9 washers)

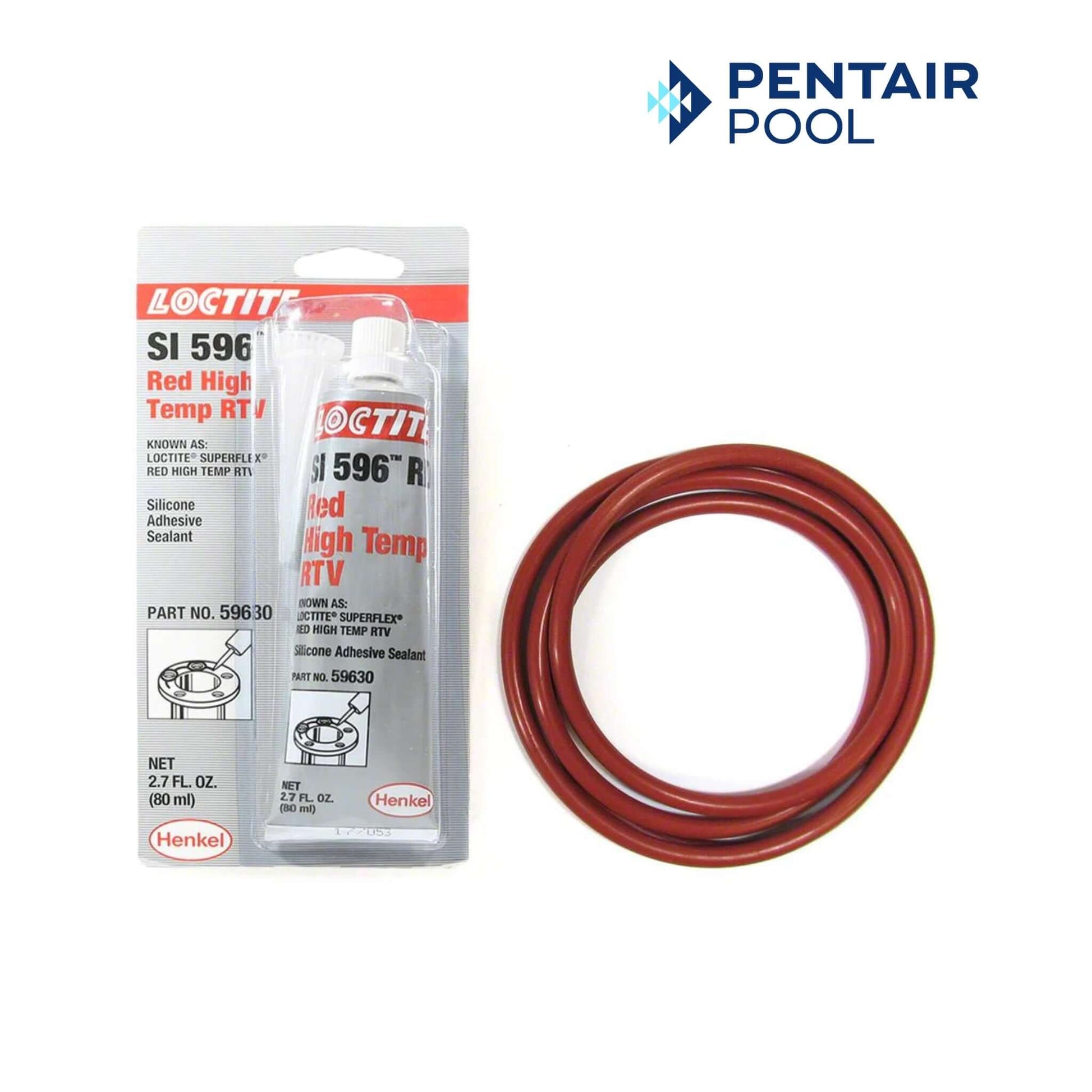

- (1) Pentair 474201 RTV Silicone and Combustion Chamber O-Ring Kit

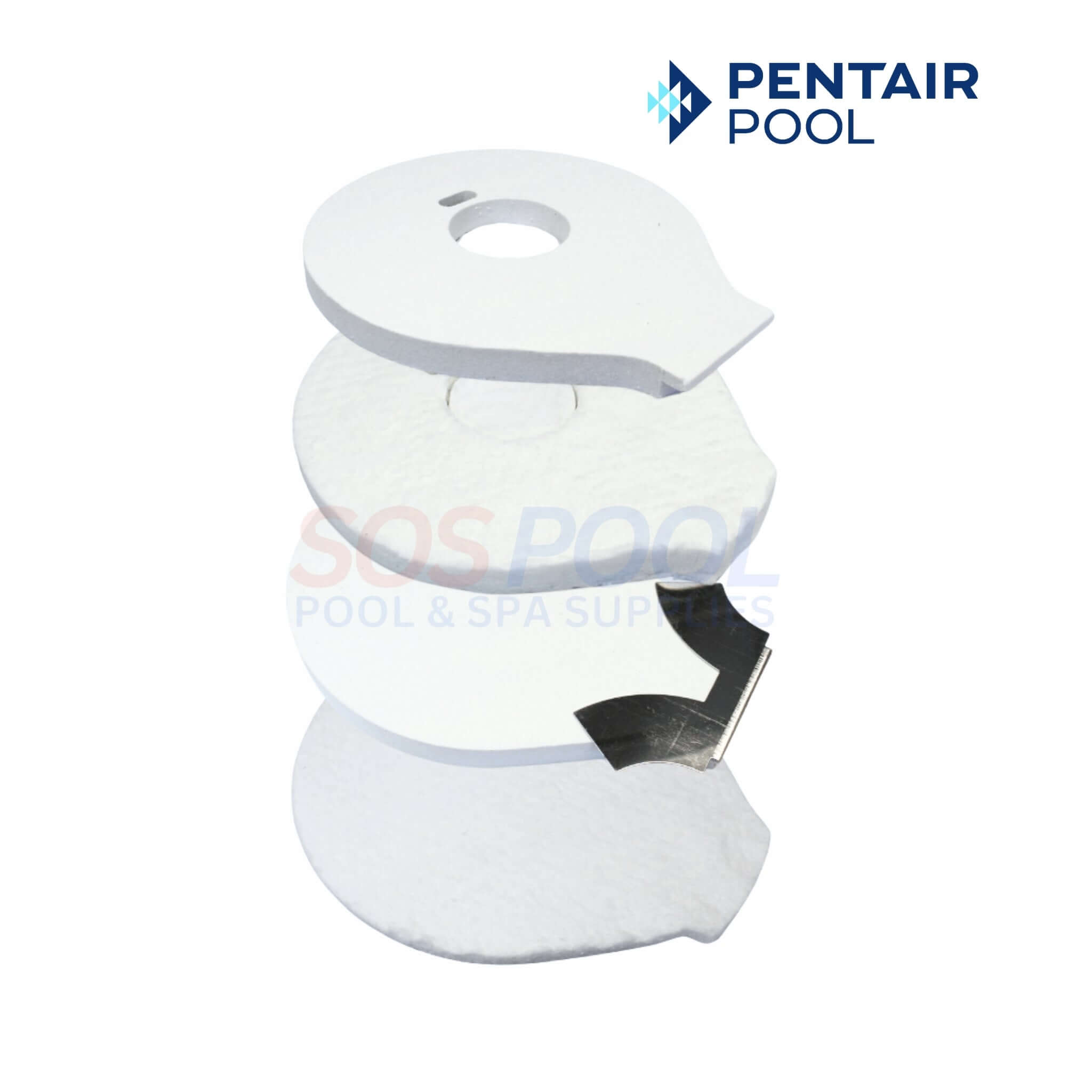

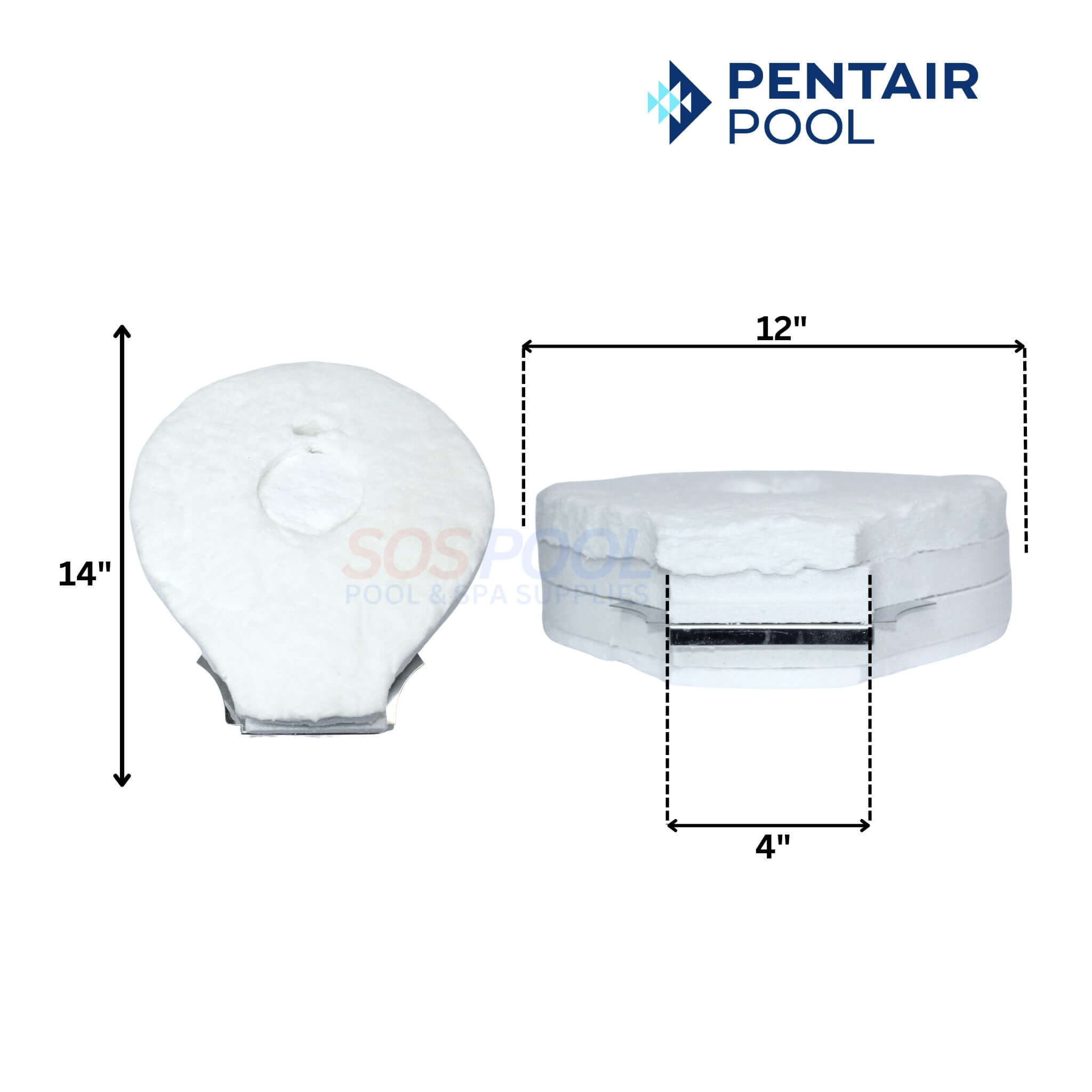

- (1) Pentair 77707-0008 Insulation Kit

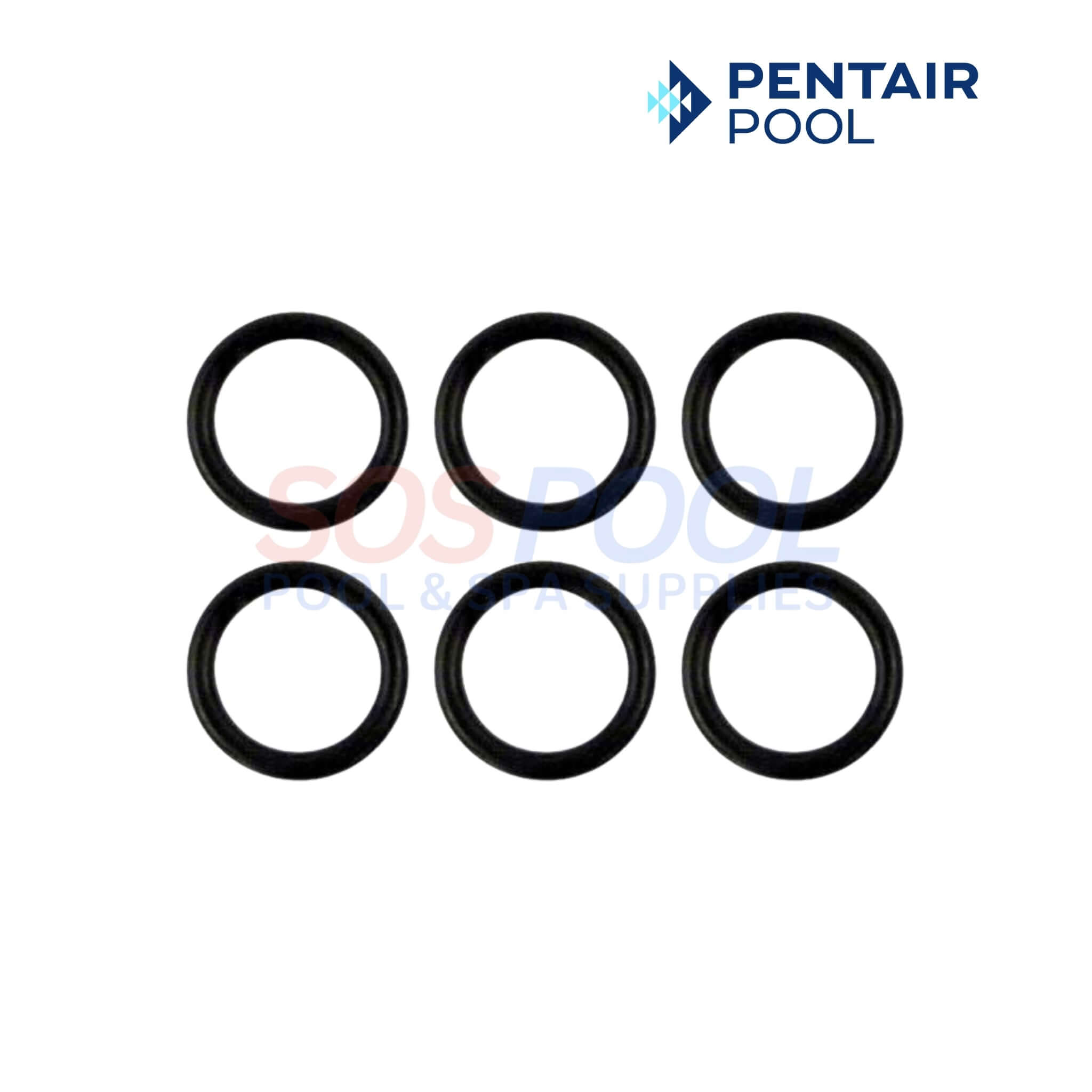

- (6) O-Rings
- Pentair MasterTemp Heaters Models: 175NA, 175LP, 200NA, and 200LP1
- Pentair Sta-Rite Max-E-Therm Heater Model: 200
Note: This tube coil may be compatible with your heater, please refer to your systems owners manual to ensure compatibility.
