Hayward TriStar Single Speed Pump Diagram & Part List
Having a problem? Pick one to see the parts that usually fix it (optional)
-
Most common fix Hayward Strainer Cover For TriStar and EcoStar$91.00
-
Most common fix Hayward Strainer Cover O-Ring For TriStar and EcoStar Pumps$22.40
-
Most common fix Hayward Strainer Basket For TriStar and EcoStar Pumps$28.70
-
Most common fix Hayward Pump Housing For Tristar & EcoStar$349.99
-
Most common fix Hayward Union Gasket For Hayward Pumps and Filters | 2 Pack$18.99
-
$8.99
-
Most common fix Hayward Diffuser For TriStar and EcoStar Pumps$59.53
-
Most common fix Hayward Impeller Ring For TriStar and EcoStar$13.99
-
Most common fix Hayward Housing O-Ring For TriStar and EcoStar Pumps$19.32
-
Most common fix Hayward Union Connector Kit$59.99
-
Most common fix Hayward Drain Plug & O-Ring For Pumps & Heaters$11.90Notify me
-

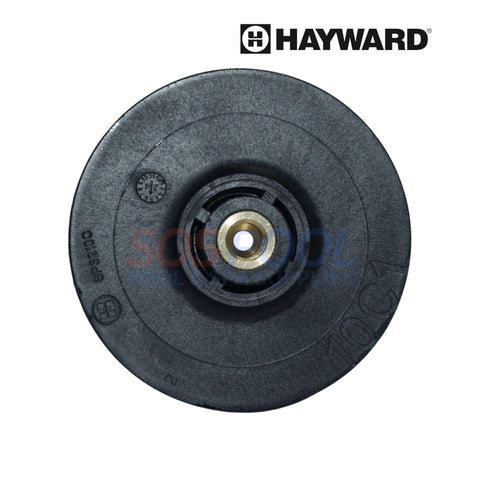

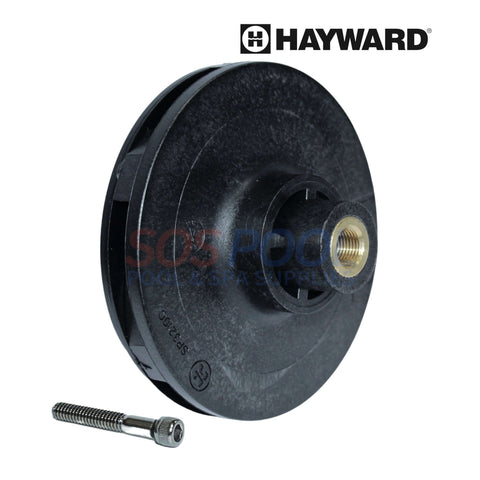

Most common fix Hayward Impeller With Screw For TriStar | 1HP$45.50
-
Most common fix Hayward Impeller With Screw For Tristar Pumps | 1.5HP - 2HP$65.88
-
Most common fix Hayward Impeller With Screw For TriStar & EcoStar | 2HP$72.34
-
Most common fix Hayward Seal Plate For TriStar and EcoStar Pumps$62.99
-
Most common fix U.S. Seal Premium Mechanical Shaft Seal | R0479400$19.99
No parts match.
Pinch or scroll to zoom, drag to move. Tap a dot to see the part.
View another parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (855) 767-7665 and we'll find it for you.
Recently viewed

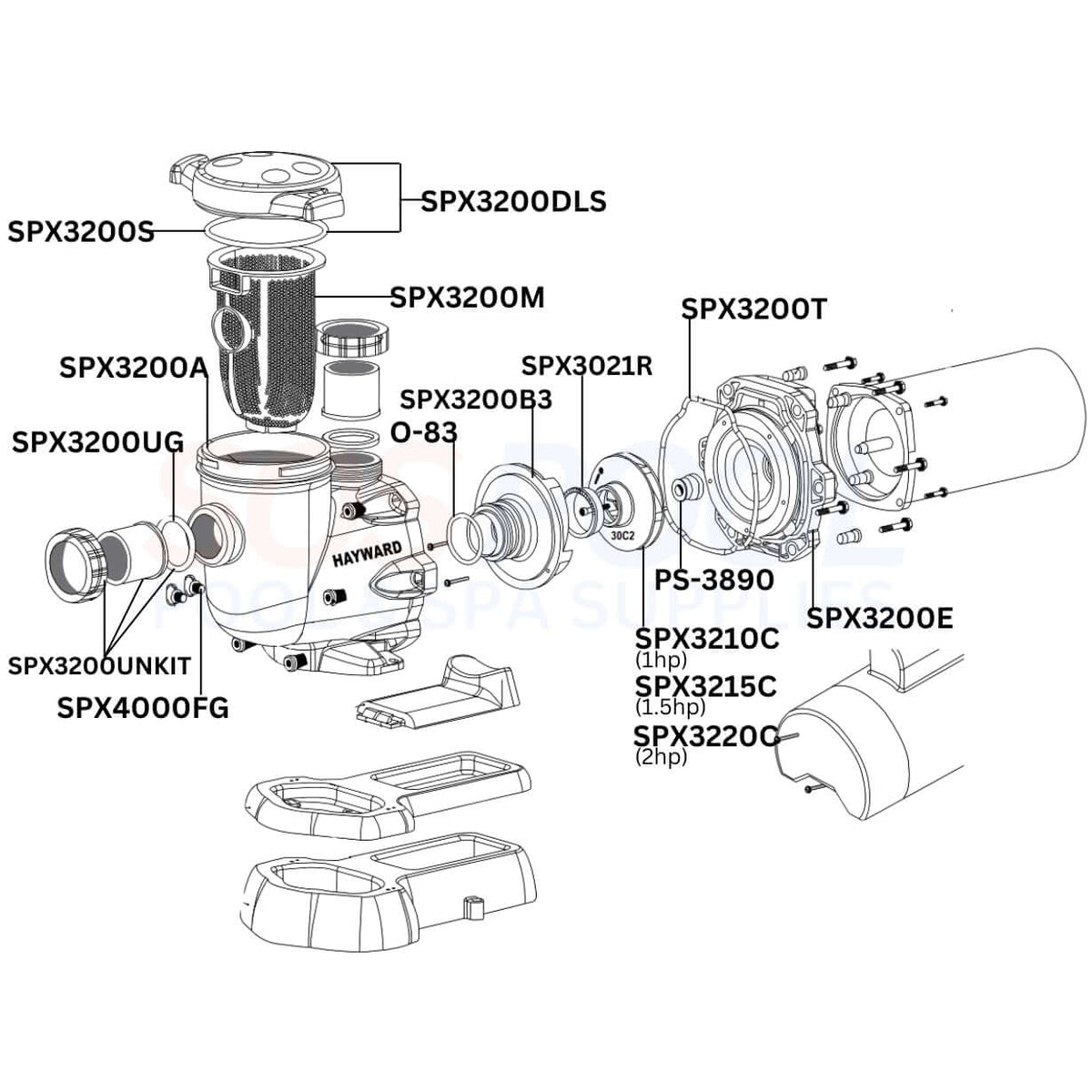

Hayward TriStar Single Speed Pump Diagram & Part List with Clickable Hotspots to Identify Impellers, Seal Plates, Baskets, and More
Use the interactive diagram above to locate and identify parts for your Hayward TriStar pump, then browse below to order online with fast shipping and complete compatibility details.
The SPX3200Z1 Impeller Screw is a small but essential part used to secure the impeller to the motor shaft in both TriStar and EcoStar models.

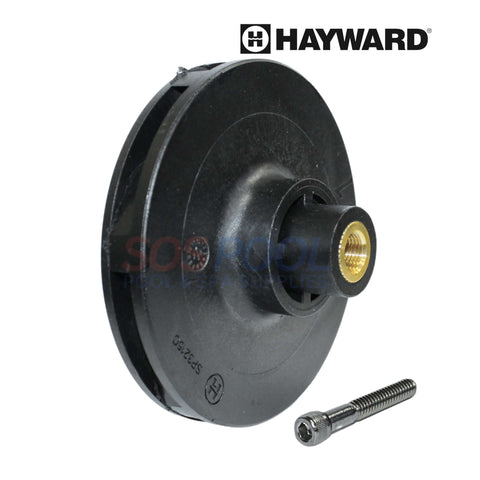

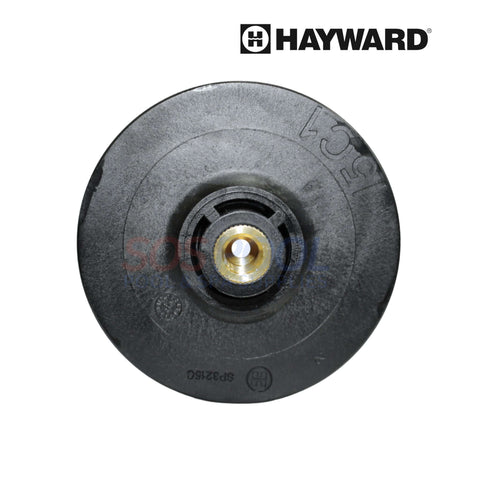

For 1.5HP to 2HP models, the SPX3215C Impeller with Screw ensures strong water flow and energy-efficient pump performance.
Maintain proper alignment with the SPX3200Z211 Spacer Kit, which includes internal support components for precise pump assembly.
The SPX3200E Seal Plate provides a tight seal between the motor and pump housing, helping to prevent leaks and maintain pressure.
Trap debris before it reaches the impeller with the SPX3200M Strainer Basket, a durable insert designed for both TriStar and EcoStar pumps.
All Hayward TriStar pump parts—including impellers, seal plates, screws, and baskets—are available online with free shipping and the best pricing at SOSPool.com.
