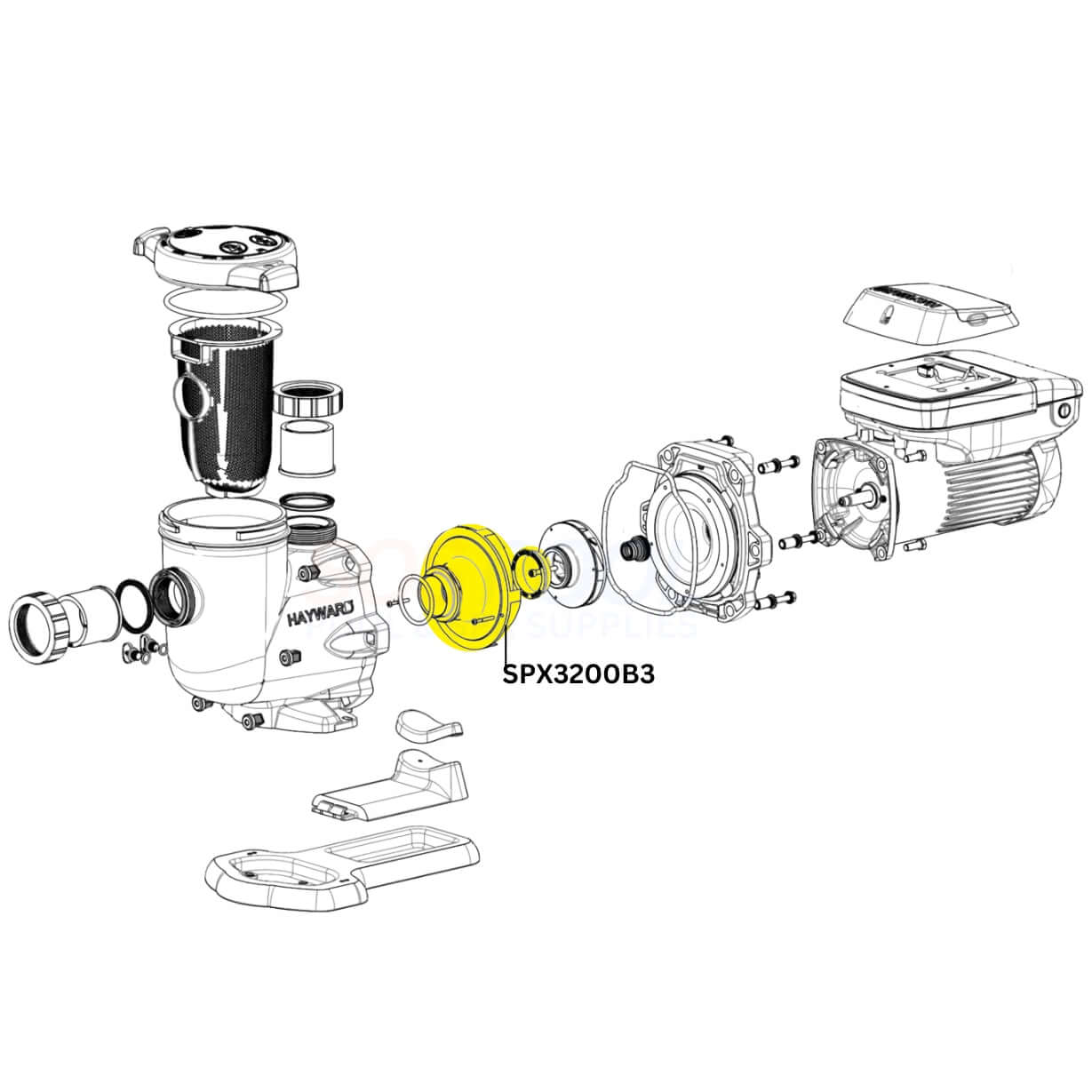

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

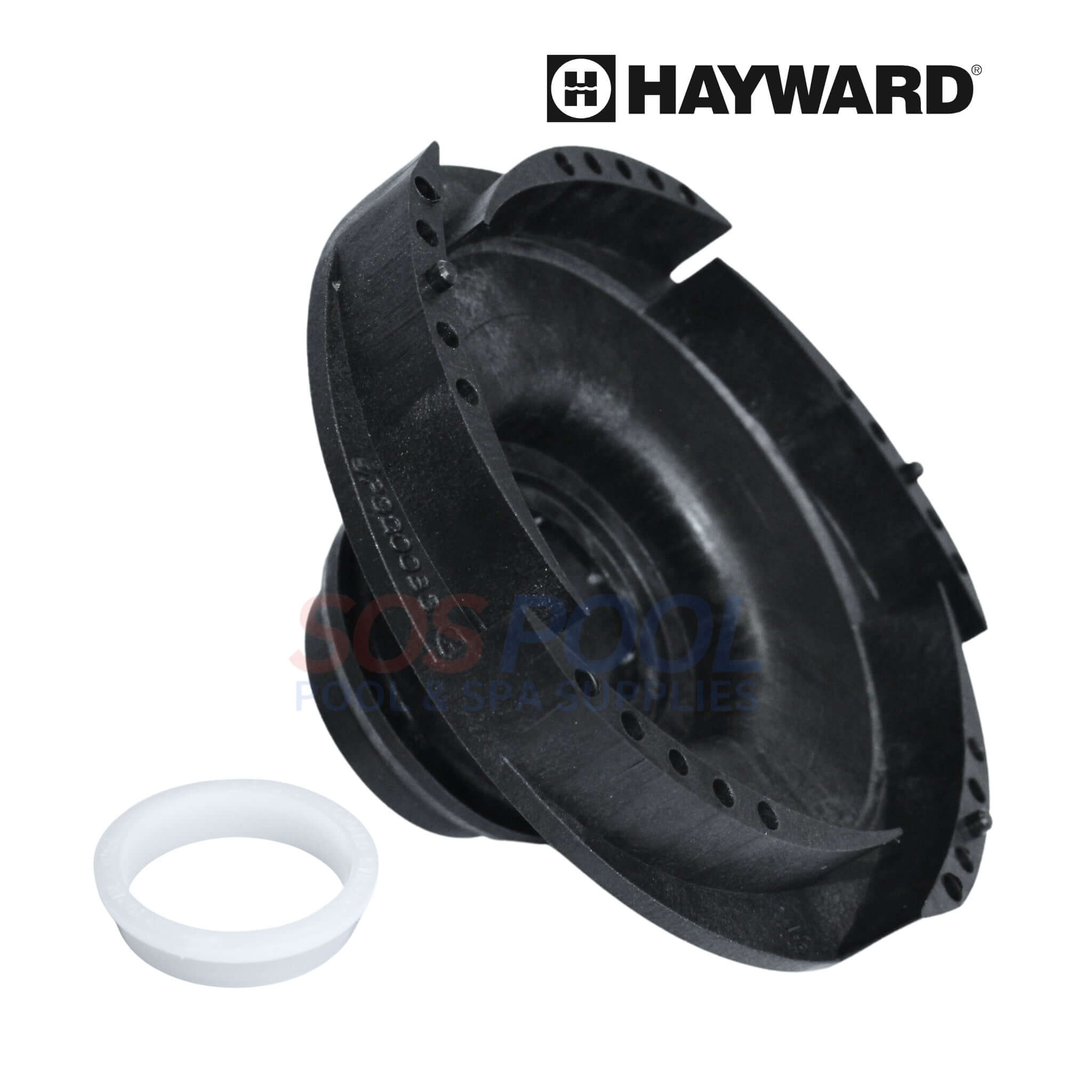

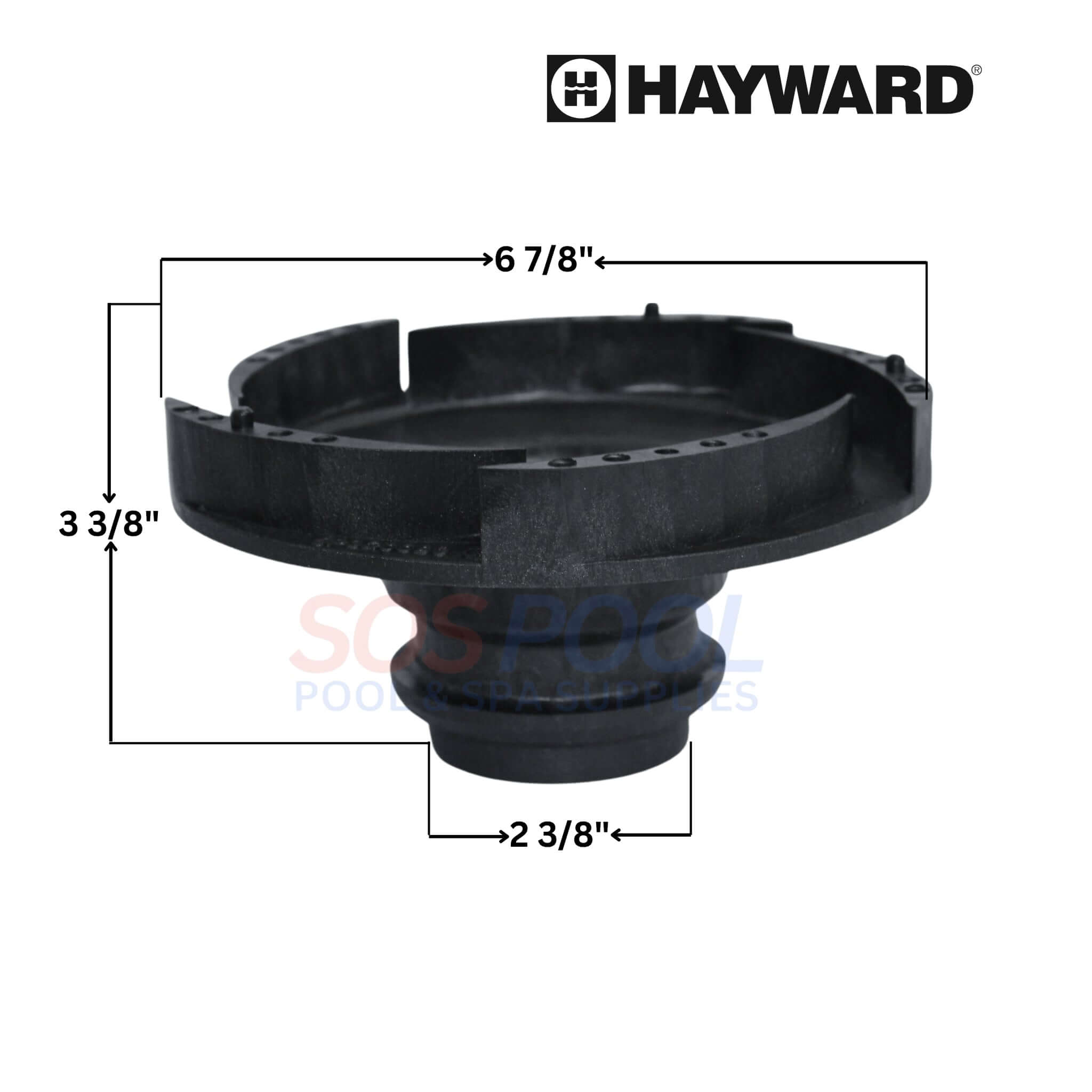

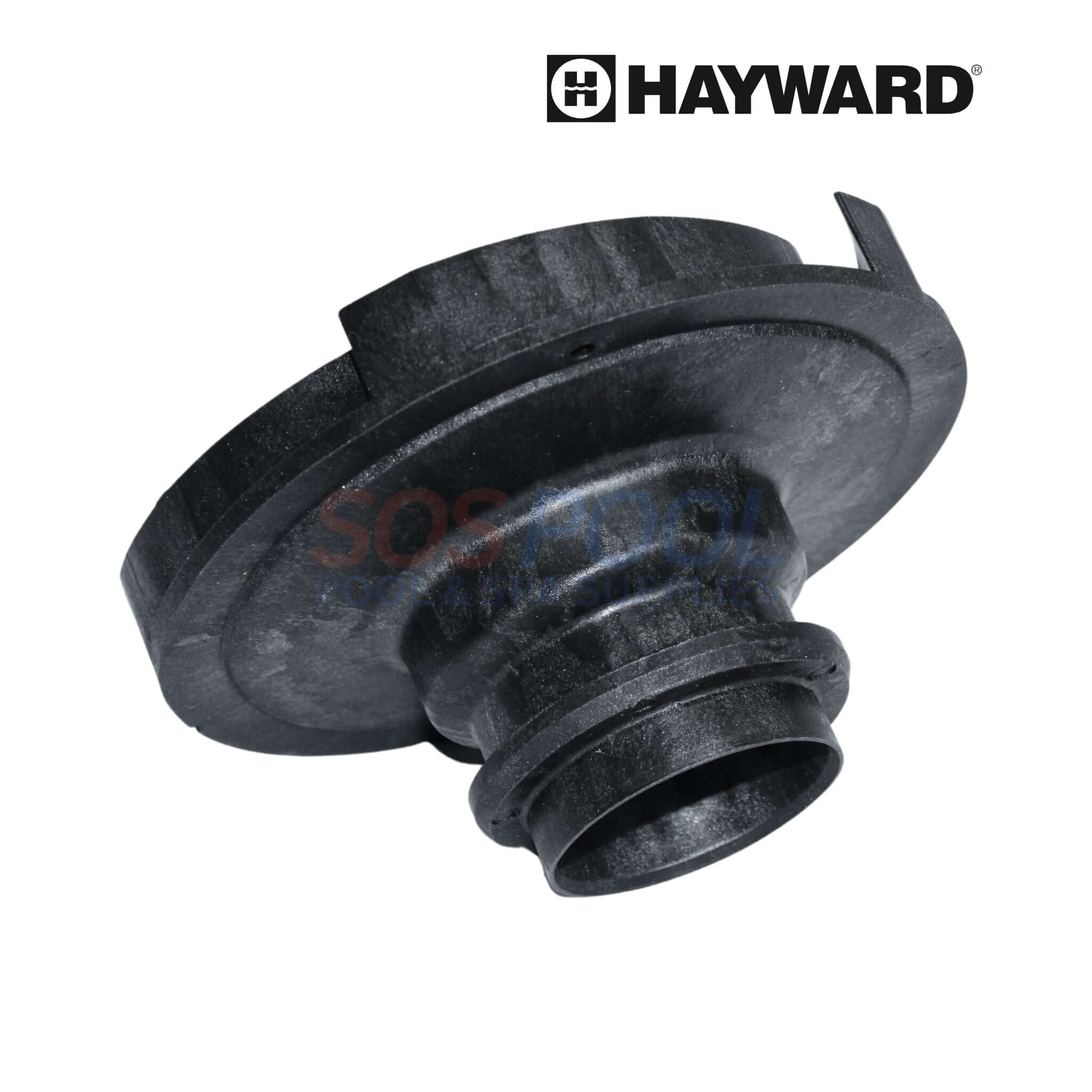

The OEM Hayward Diffuser SPX3200B3 is a high-quality replacement part designed for Hayward TriStar and EcoStar pool pumps. It is compatible with TriStar and EcoStar models. This diffuser is essential for optimizing water flow and pump efficiency, ensuring smooth and effective operation by directing water through the pump housing. Made from durable materials, it helps extend the lifespan of your pump by minimizing wear and tear. Proper maintenance with this diffuser ensures your pool pump operates at peak performance, maintaining the cleanliness and health of your pool.
-
Optimizes Water Flow: The Hayward Diffuser SPX3200B3 is designed to optimize water flow through TriStar and EcoStar pool pumps, ensuring smooth and effective operation.
-
High Compatibility: Compatible with Hayward TriStar and EcoStar models, this diffuser guarantees a perfect fit and reliable performance within these pump series.
-
Durable Construction: Made from high-quality materials, the diffuser is built to withstand regular use and harsh pool environments, helping to extend the lifespan of your pump.
-
Enhances Efficiency: By directing water efficiently through the pump housing, the diffuser enhances pump efficiency, contributing to peak performance and maintaining the cleanliness and health of your pool.
-
Essential Maintenance Part: Regular maintenance with this diffuser ensures your pool pump operates at its best, minimizing wear and tear and preventing potential issues that could affect pump performance.

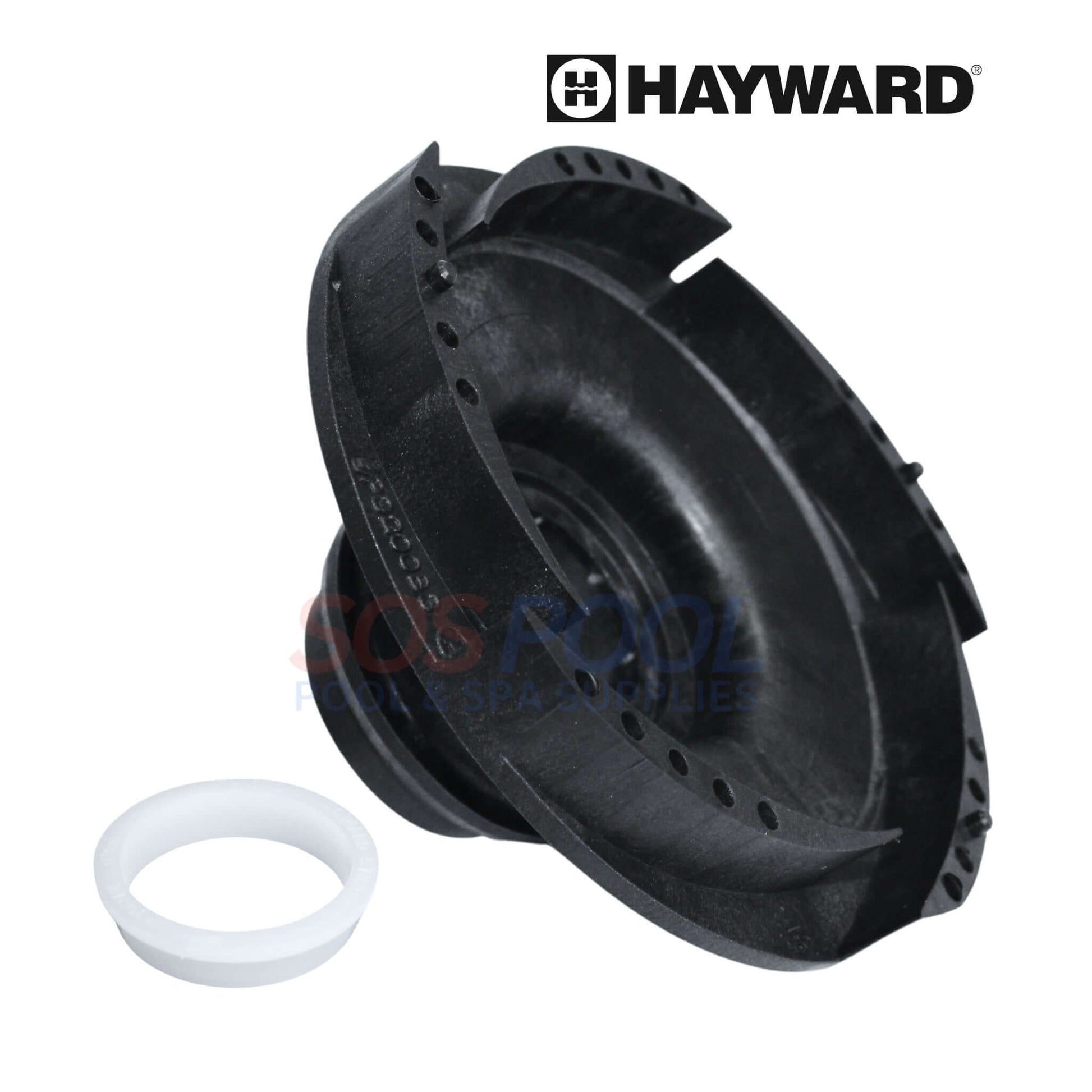

- (1) Diffuser
- (1) Impeller Ring
- Hayward TriStar VS Pump Models: 900 and 950
- Hayward Tristar Pump SP3200EE Series Models: SP3205EE, SP3207EE, SP3210EE, SP3215EE, SP3220EE, SP322063EEV, SP3230EE, SP3250EE, SP323063EE
- Hayward Tristar Pump SP3200X Series Models: SP3205X7, SP3207X10, SP3210X15, SP3215X20, SP3220X25, SP3225X30, SP36075EE, SP36120EE
- Hayward EcoStar Pump Models: SP3400VSPVR, SP3400VSP
Note: This diffuser may be compatible with your pump, please refer to your systems owners manual to ensure compatibility.
