Hayward EcoStar VS Variable Speed Pump Diagram & Part List
Having a problem? Pick one to see the parts that usually fix it (optional)
-

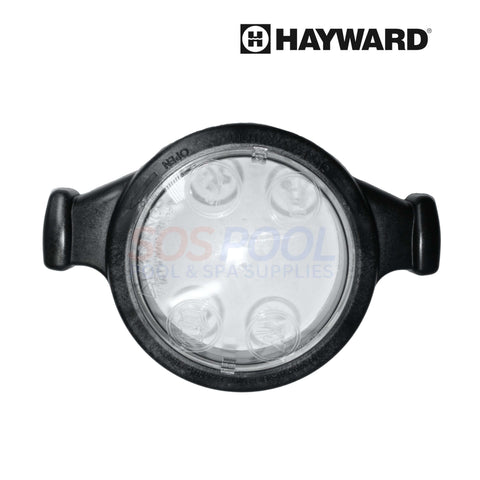

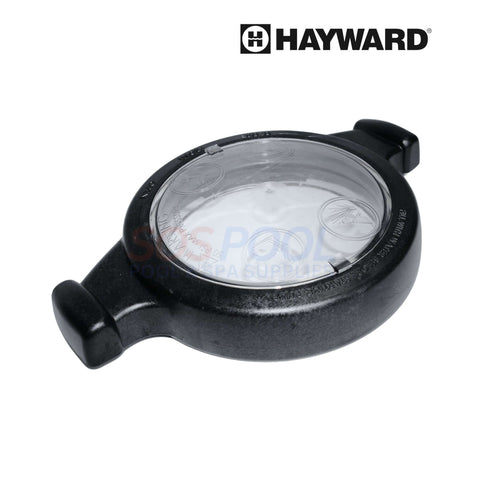

Most common fix Hayward Strainer Cover For TriStar and EcoStar$91.00
-

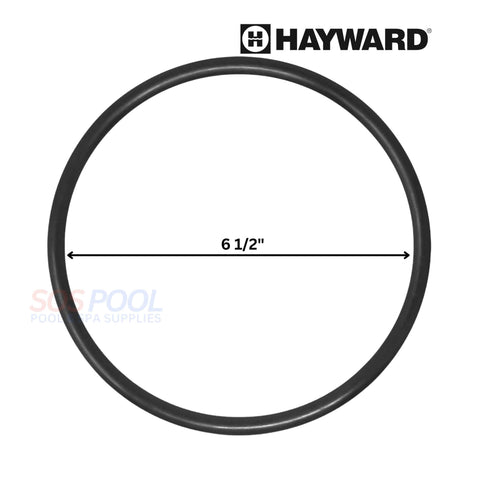

Most common fix Hayward Strainer Cover O-Ring For TriStar and EcoStar Pumps$22.40
-

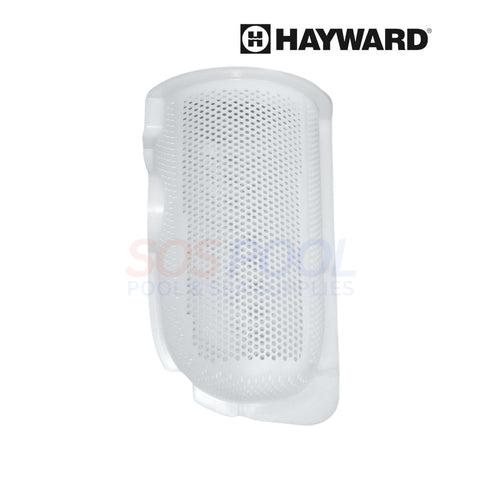

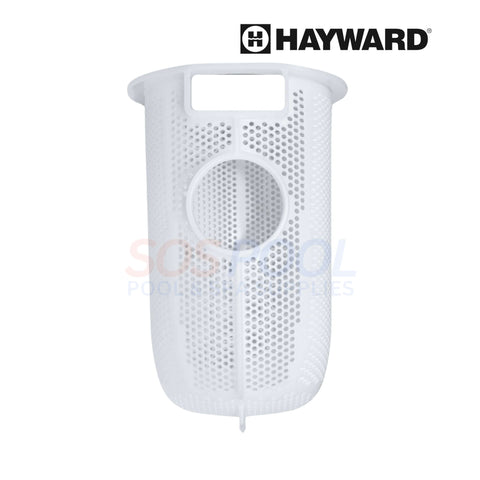

Most common fix Hayward Strainer Basket For TriStar and EcoStar Pumps$28.70
-

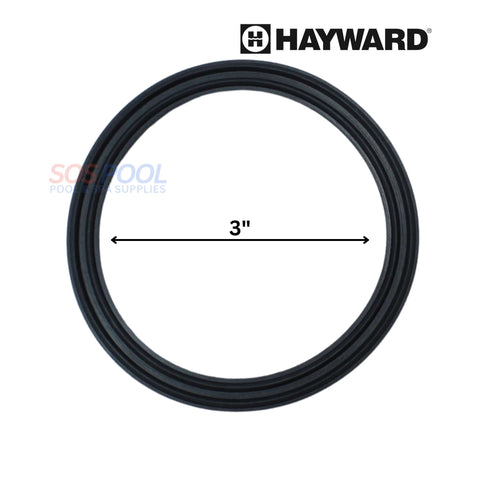

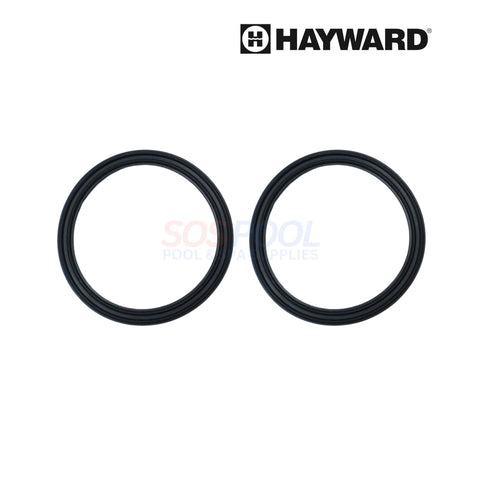

Most common fix Hayward Union Gasket For Hayward Pumps and Filters | 2 Pack$18.99
-
Most common fix Hayward Diffuser For TriStar and EcoStar Pumps$59.53
-

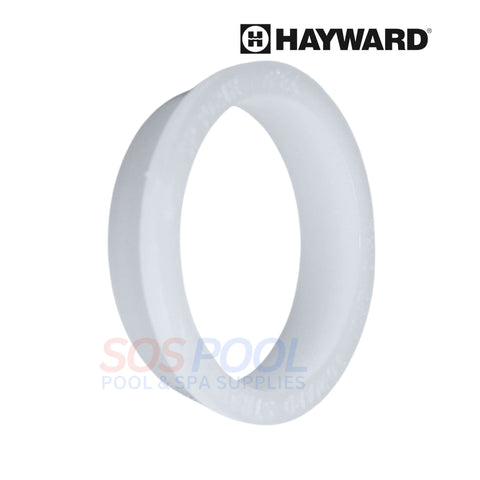

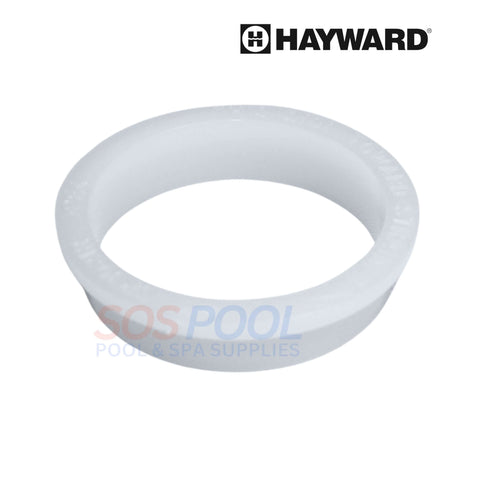

Most common fix Hayward Impeller Ring For TriStar and EcoStar$13.99
-

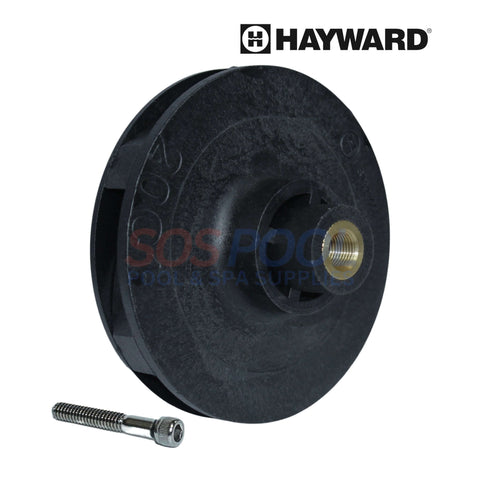

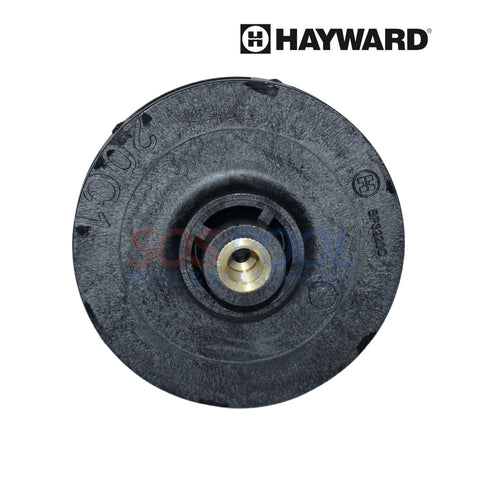

Most common fix Hayward Impeller With Screw For TriStar & EcoStar | 2HP$72.34
-
Most common fix Hayward Housing O-Ring For TriStar and EcoStar Pumps$19.32
-
Most common fix Hayward Seal Plate For TriStar and EcoStar Pumps$62.99
-

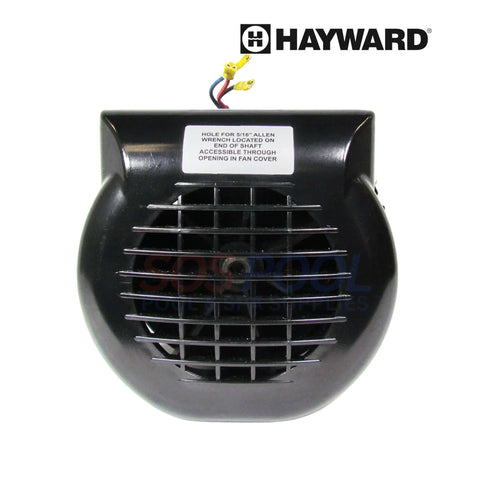

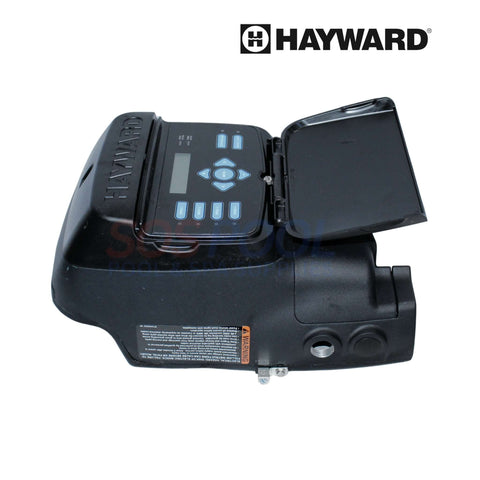

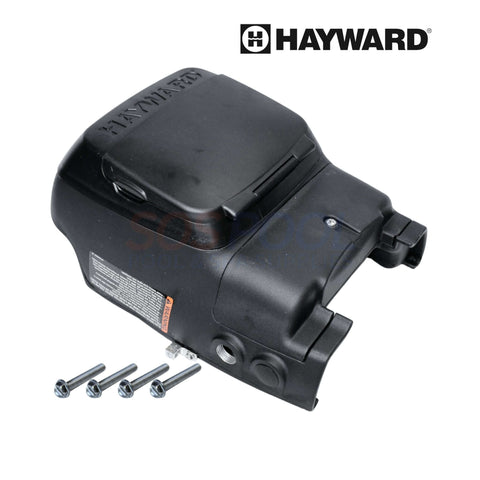

Most common fix Hayward Motor Drive For EcoStar and TriStar$1,398.42
-

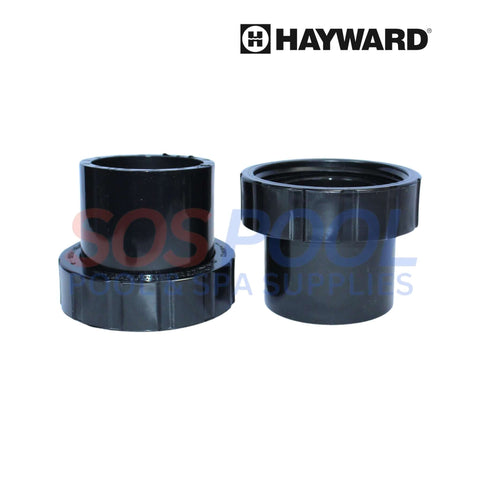

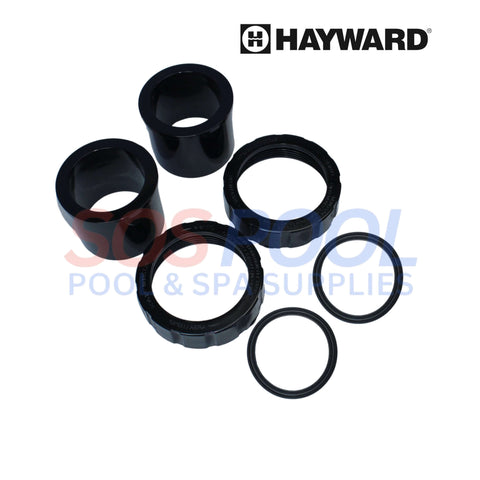

Most common fix Hayward Union Connector Kit$59.99
-
Most common fix Hayward Drain Plug & O-Ring For Pumps & Heaters$11.90Notify me
-

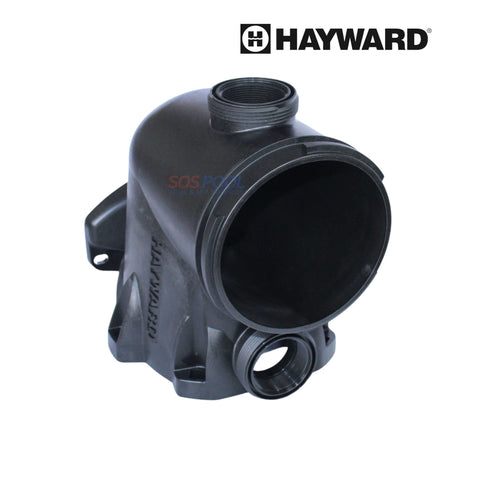

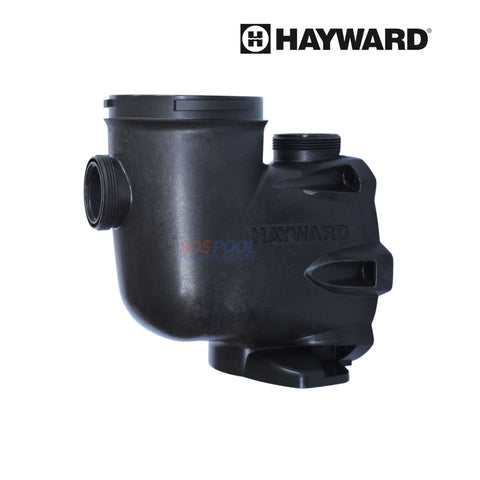

Most common fix Hayward Pump Housing For Tristar & EcoStar$349.99
-
$8.99
-
Most common fix Hayward Impeller Screw For TriStar and EcoStar$14.00
-
$31.99
-
Most common fix U.S. Seal Premium Mechanical Shaft Seal | R0479400$19.99
No parts match.
Pinch or scroll to zoom, drag to move. Tap a dot to see the part.
View another parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (855) 767-7665 and we'll find it for you.
Recently viewed

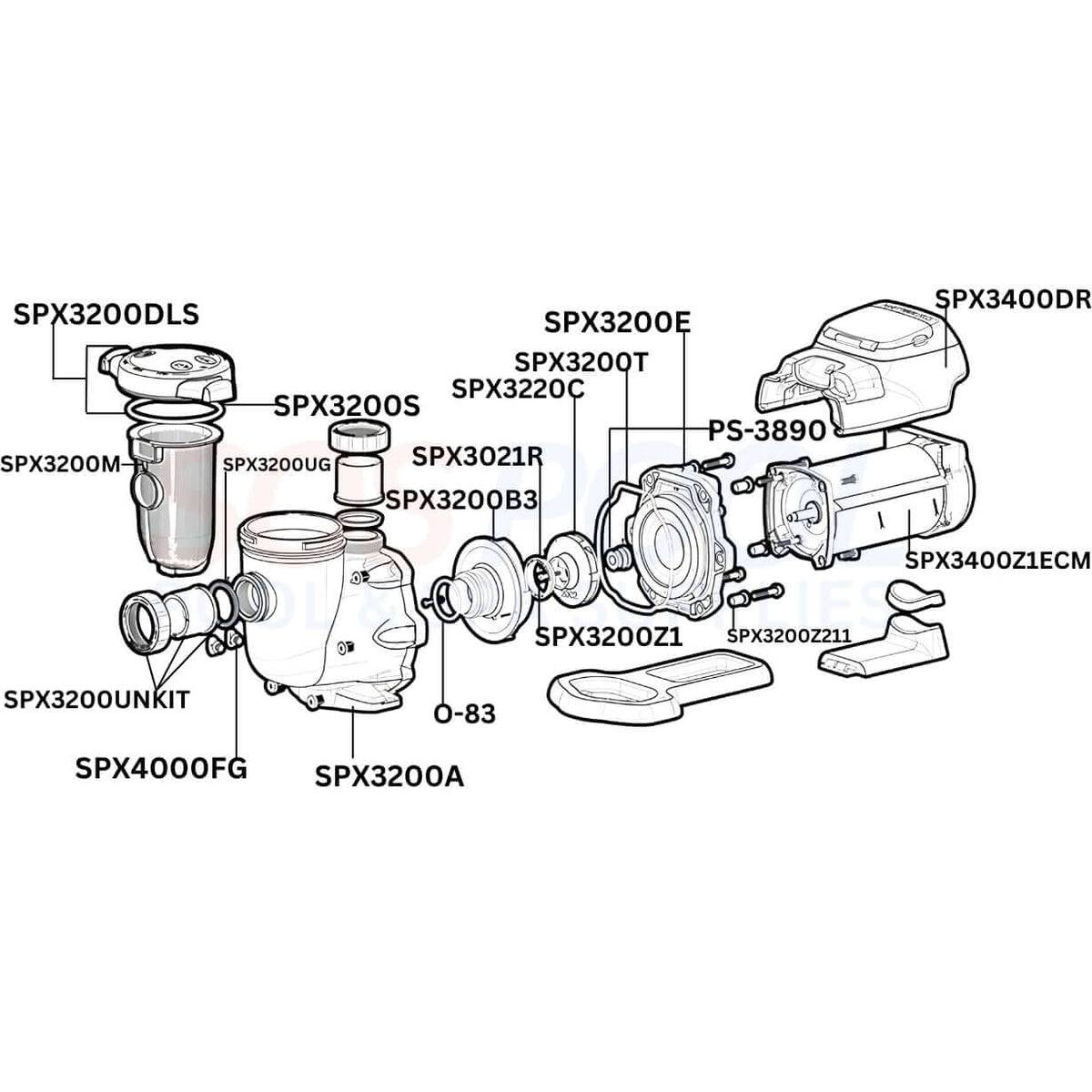

Hayward EcoStar VS Variable Speed Pump Diagram & Part List with Clickable Hotspots for Impellers, Seal Plates, Diffusers, and More
Use the interactive diagram above to identify key Hayward EcoStar or TriStar pump components, then review the listings below to order online with fast shipping and accurate compatibility.

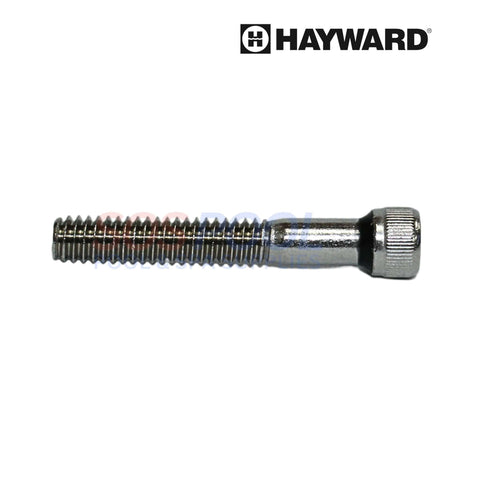

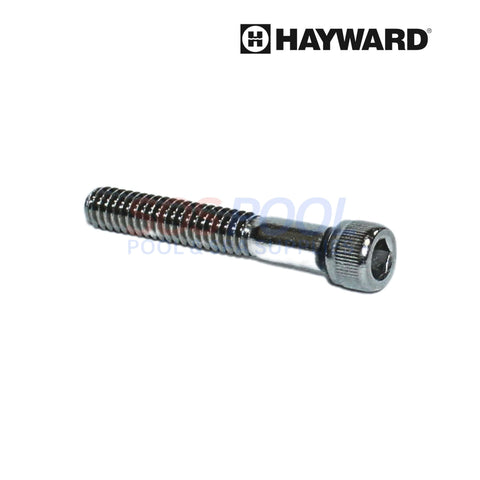

The SPX3200Z1 Impeller Screw secures the impeller to the motor shaft and is a required part when replacing or servicing internal pump components.

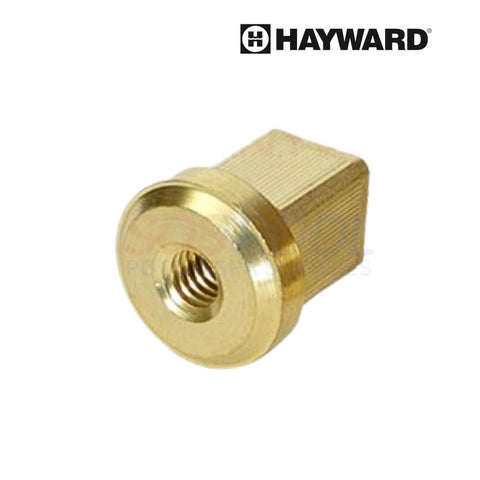

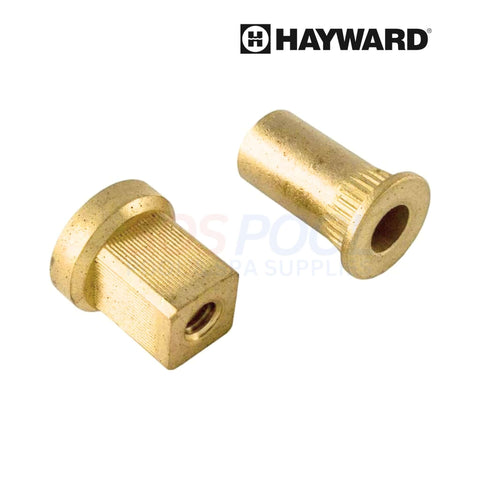

Maintain proper alignment and spacing with the SPX3200Z211 Spacer Kit, which includes the housing insert and seal plate spacers for both TriStar and EcoStar models.

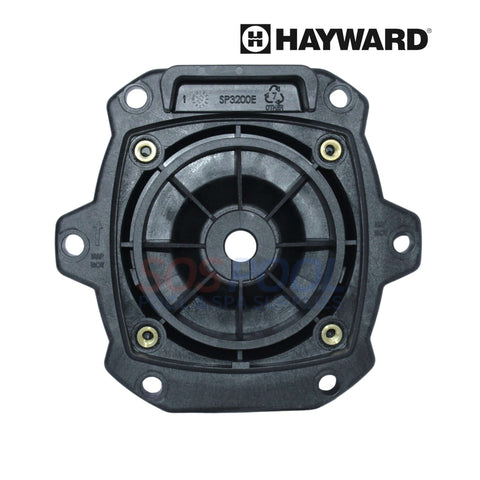

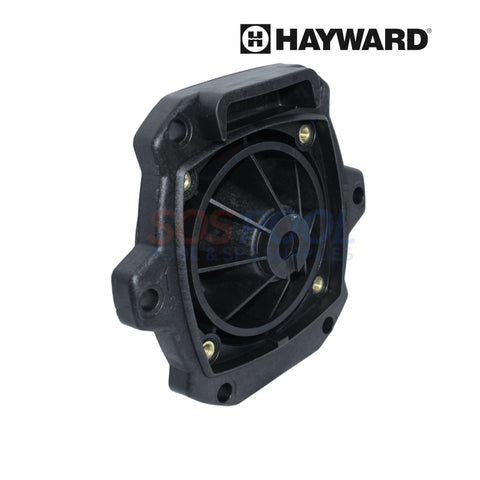

The SPX3200E Seal Plate forms a watertight seal between the pump housing and motor and fits a wide range of Hayward VS pumps.

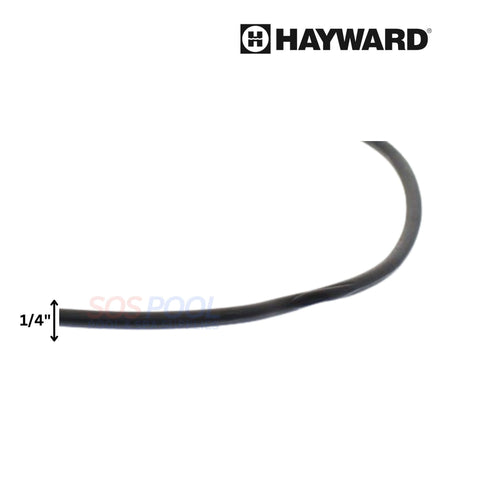

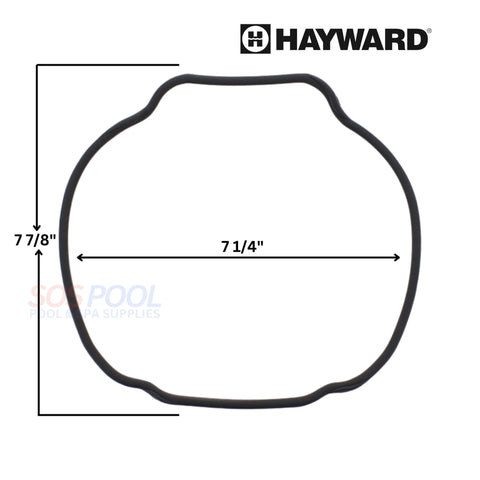

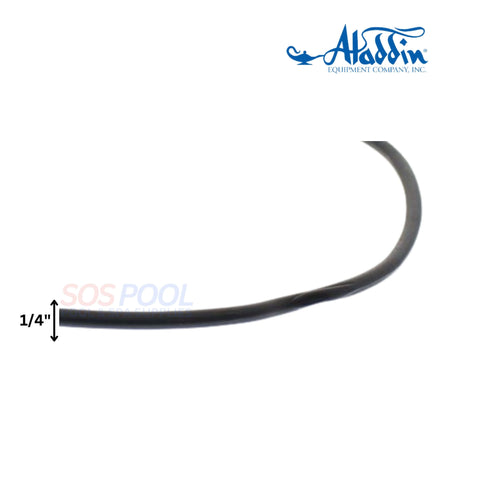

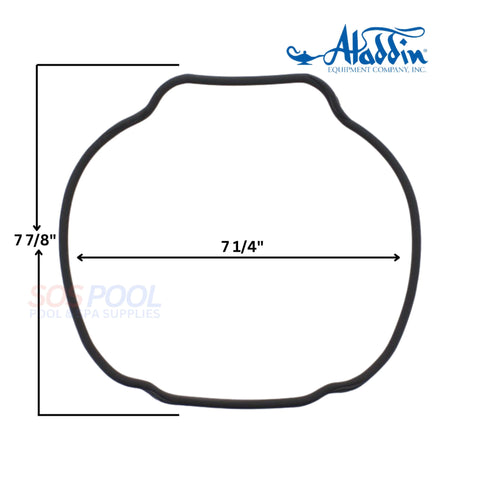

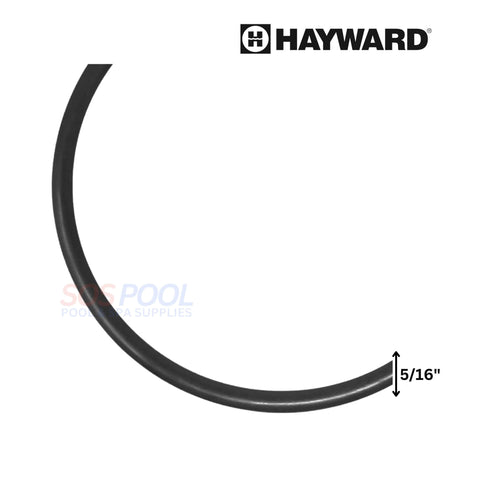

Prevent leaks and maintain suction with the SPX3200T Housing O-Ring, a critical gasket for ensuring airtight performance between the housing and seal plate.

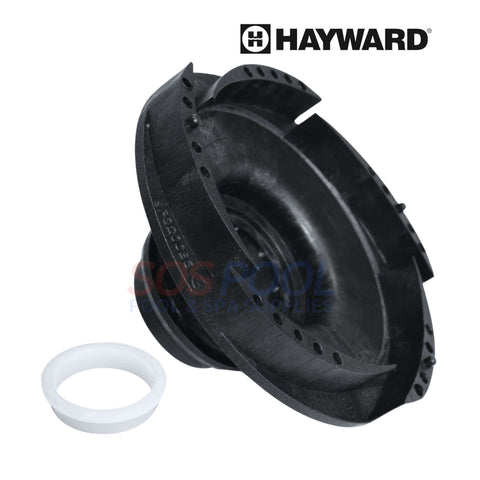

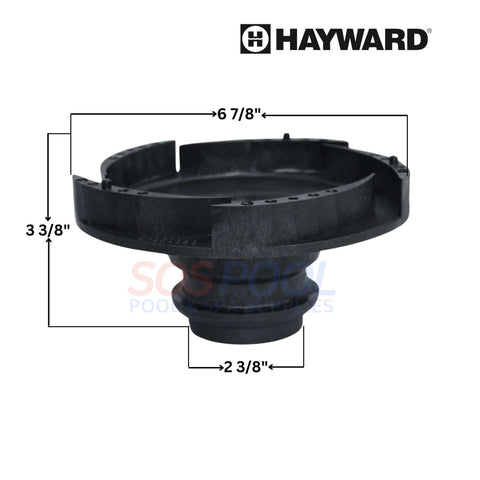

Optimize water flow with the SPX3200B3 Diffuser, designed to direct water efficiently through the pump chamber for maximum hydraulic performance.
All EcoStar VS and TriStar pump parts—including diffusers, spacers, O-rings, seal plates, and more—are in stock online with free shipping and the best pricing at SOSPool.com.
