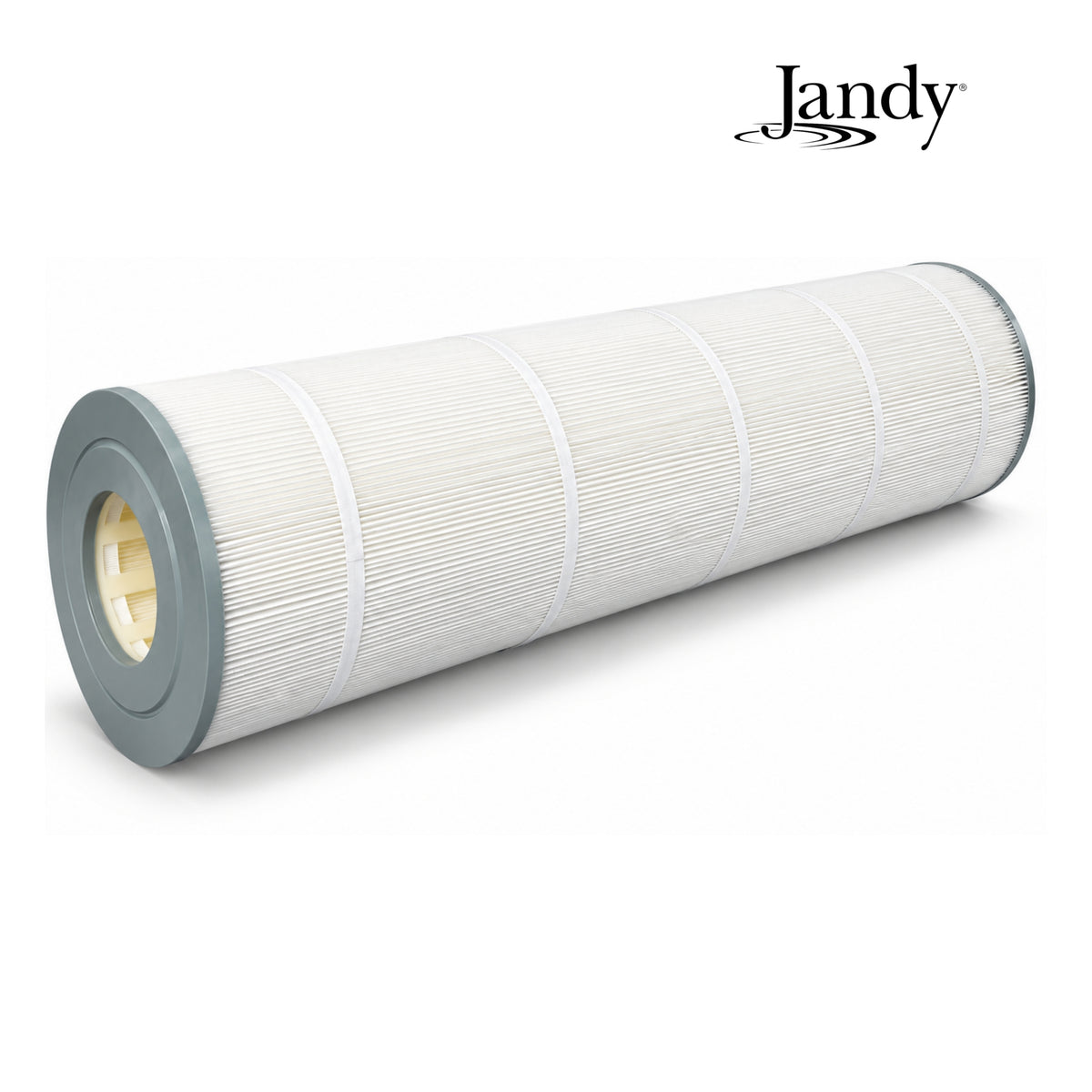

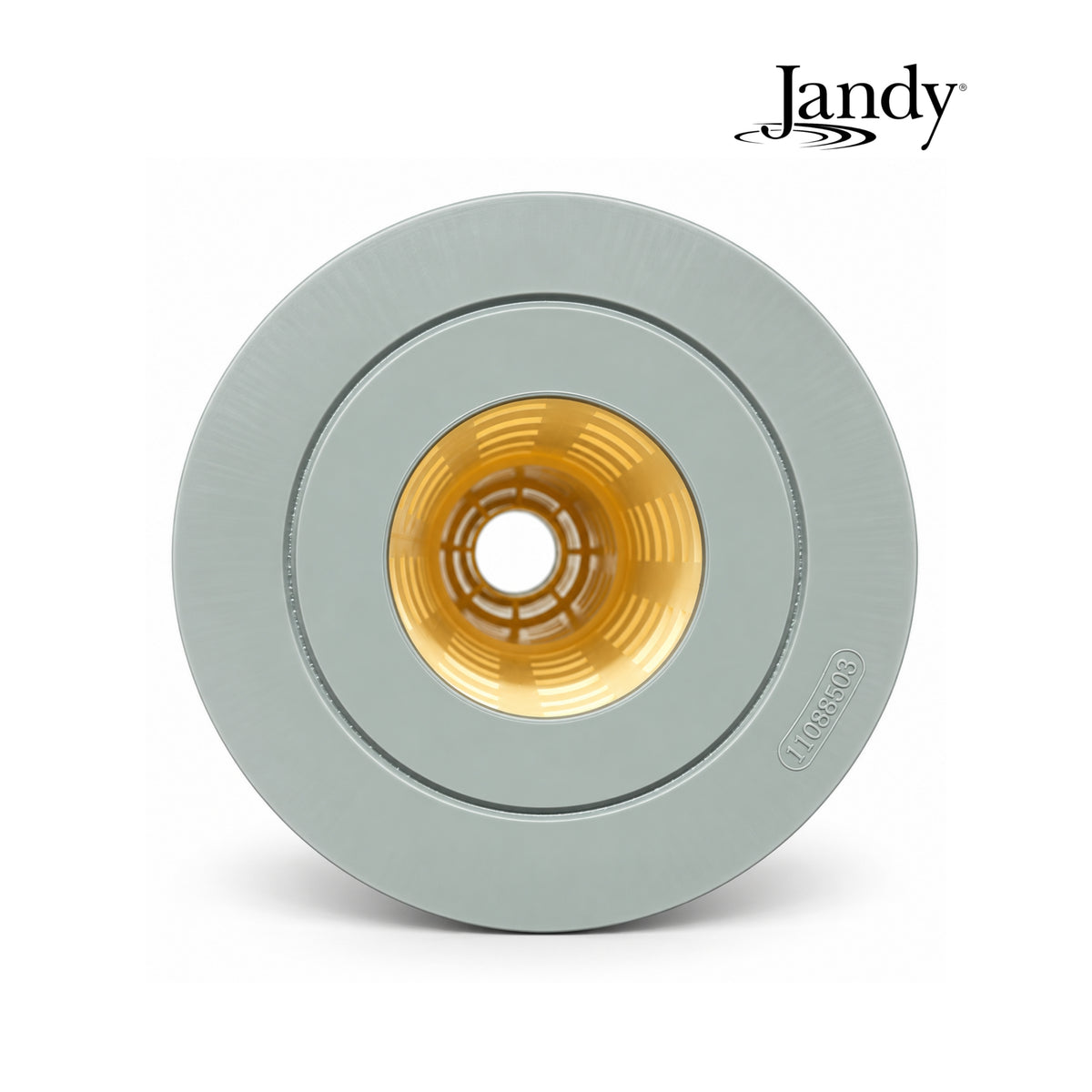

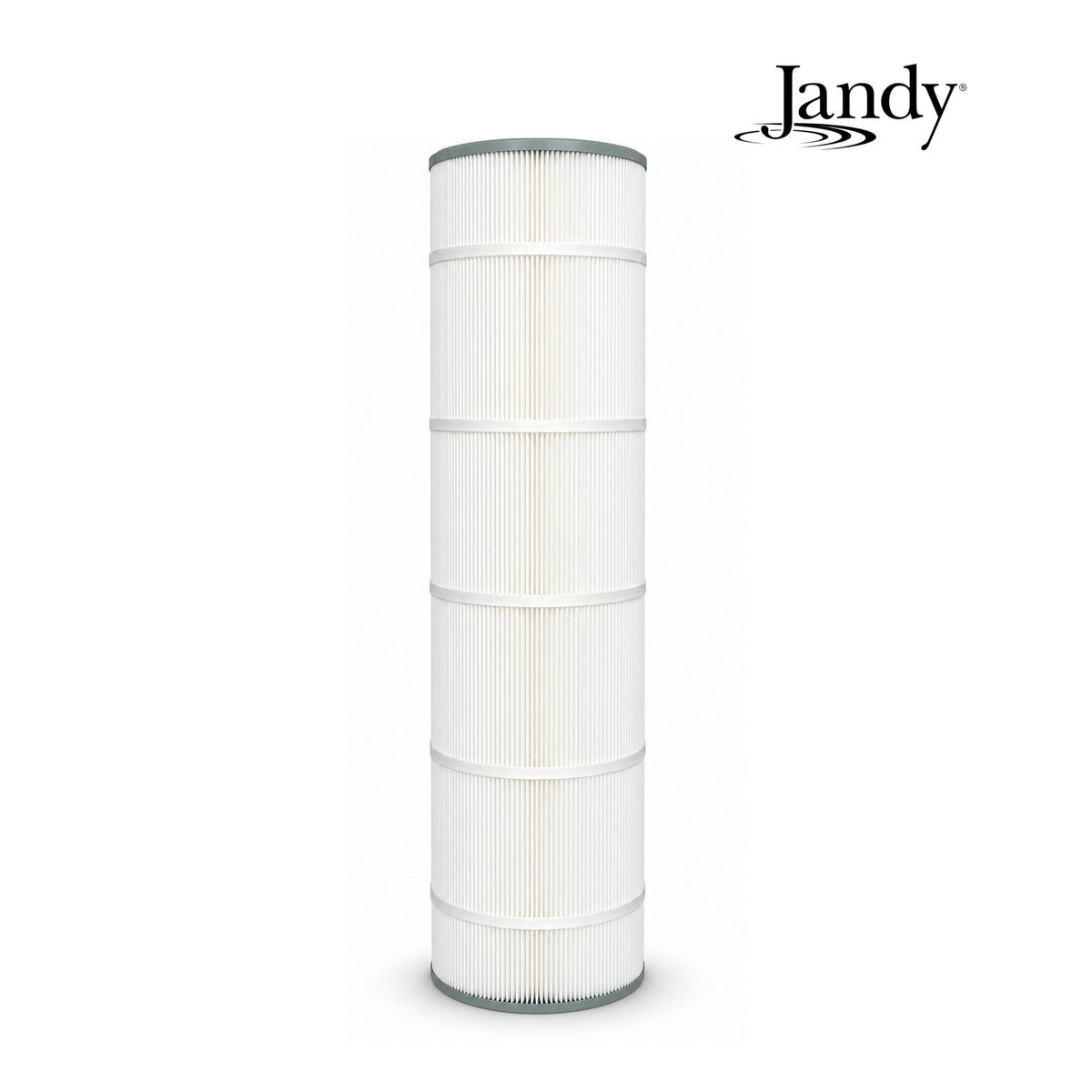

Fresh media for crystal-clear water. The Jandy R0462400 is the replacement filter cartridge element for the Jandy CS200 cartridge filter - 200 sq ft of pleated media that traps dirt and debris. Genuine Jandy part.
- Replacement 200 sq ft cartridge element for the Jandy CS200 filter.
- Traps fine dirt and debris; rinse to clean and reuse until worn.
- One CS200 cartridge element, 200 sq ft (Jandy R0462400 / PL0127). Also available as a 2-pack.
- Jandy CS200 cartridge filter.
- Cross-references: Unicel C-8418, Pleatco PJANCS-200, Filbur FC-0823.

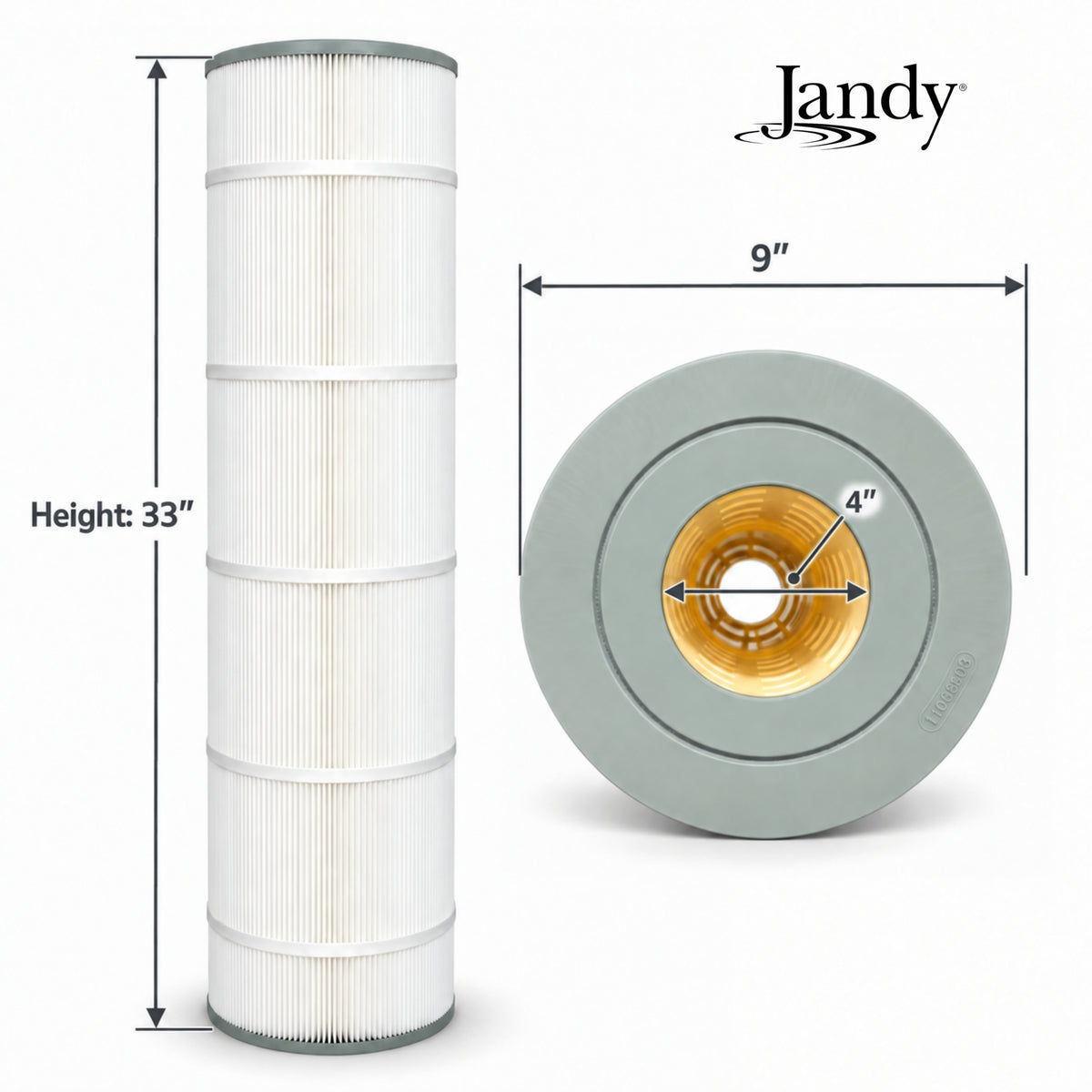

- Dimensions: about 8-15/16 in. diameter x 33-1/8 in. length.
- CS150 Cartridge C-8414, CS250 Cartridge R0462500
- Top Housing R0462000, Bottom Housing Assembly R0462900
- O-Ring Set R0466300, Drain Cap Assembly R0523000
- Turn off the pump, relieve pressure, and open the filter.
- Remove the old cartridge, rinse the tank, and install the new R0462400.
- Reassemble and purge air on startup.
