Pentair SuperFlo Pump Diagram & Part List

Pentair SuperFlo Pump Diagram & Part List

  1. Pentair Cam and Ramp Clamp For Superflo Pump
    350090In stock
    $31.99
  2. Pentair Pump Lid For Superflo and SuperMax Pump
    350091In stock
    $24.99
  3. Pentair SuperFlo Pump Lid O-Ring
    357255In stock
    $11.20
  4. Aladdin Lid O-Ring For Pentair SuperMax and SuperFlo Pumps | 357255
    O-150Sold out
    $9.10Notify me
  5. Pentair Basket for SuperMax and SuperFlo Pumps
    355667In stock
    $29.40
  6. Pentair Union O-Ring For SuperMax and SuperFlo Pumps
    6020018Sold out
    $7.99Notify me
  7. Pentair Nut For SuperFlo Pumps | Black
    270141Sold out
    $18.20Notify me
  8. Pentair Union Adapter For SuperMax and SuperFlo
    350093Sold out
    $16.99Notify me
  9. Swimables Union For Pentair SuperFlo and SuperMax Pumps | 1.5" - 2" | 350157
    SW-21-350In stock
    $21.99
  10. Pentair Housing Volute For SuperFlo VST Pumps
    350089Sold out
    $209.99Notify me
  11. Aladdin O-Ring For Pentair Pump Drain Plug | 5/8" x 1/16" | 192115
    O-130In stock
    $6.99
  12. Pentair Drain Plug For Whisperflo And Intelliflo Pumps | 3/8" | Almond
    071131In stock
    $9.99
  13. Aladdin Seal Plate O-Ring For Pentair SuperMax and SuperFlo Pumps | 355619
    O-465Sold out
    $9.99Notify me
  14. Pentair Seal Plate O-Ring For SuperMax & SuperFlo Pumps
    355619Only 3 left
    $14.99
  15. Pentair SuperFlo Pool Pump Base
    350094Sold out
    $84.99Notify me
  16. Pentair Seal Plate For Pinnacle and Superflo Pumps | Almond
    356012In stock
    $79.99
  17. US Seal Premium Pump Shaft Seal Assembly
    PS-200Sold out
    $11.99Notify me
  18. Pentair Impeller Assembly For SuperMax and SuperFlo Pumps | 0.5 - 0.75 HP
    355043In stock
    $44.99
  19. Pentair Impeller Assembly For SuperMax and SuperFlo Pumps | 1 HP
    355067Only 2 left
    $46.99
  20. Pentair Impeller Assembly For SuperMax and SuperFlo Pumps | 1.5 HP
    355074Only 2 left
    $56.99
  21. Pentair Impeller Assembly For SuperMax and SuperFlo Pumps | 2 HP
    355086Only 2 left
    $59.99
  22. Pentair Diffuser for SuperMax and SuperFlo Pumps | 0.5 - 1 HP
    355617Sold out
    $79.99Notify me
  23. Pentair Diffuser for SuperMax and SuperFlo Pumps | 1.5 - 2 HP
    355618Sold out
    $74.99Notify me
  24. Pentair Impeller Locking Screw For SuperMax and SuperFlo Pumps
    355389Sold out
    $10.08Notify me
  25. Aladdin Diffuser O-Ring for SuperMax and SuperFlo Pumps | 355030
    O-395Sold out
    $11.20Notify me
26 products

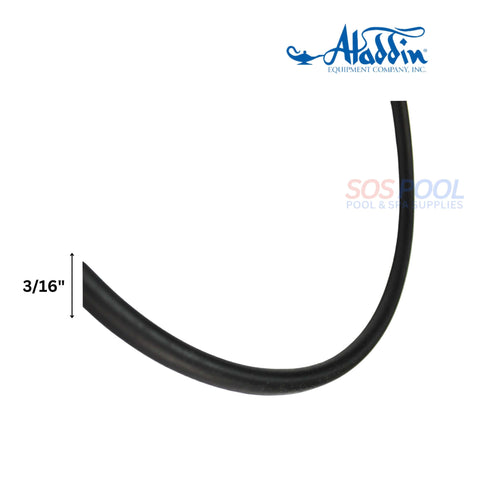

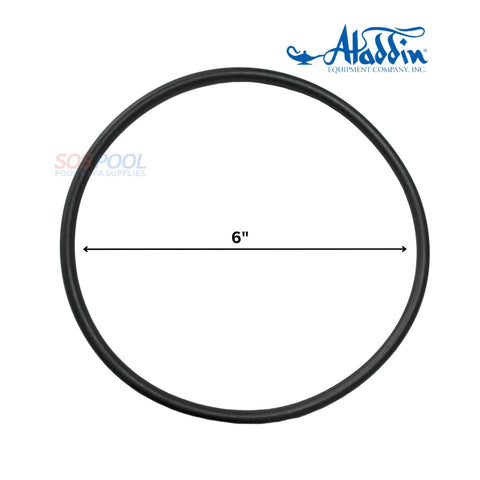

Aladdin Aladdin Lid O-Ring For Pentair SuperMax and SuperFlo Pumps | 357255 | O-150O-150
$9.10$9.99
Sold out
Notify me

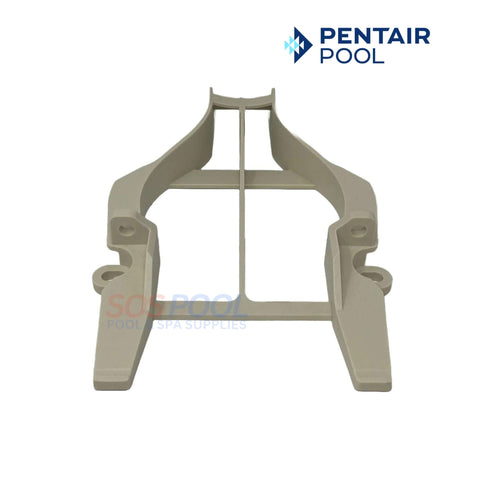

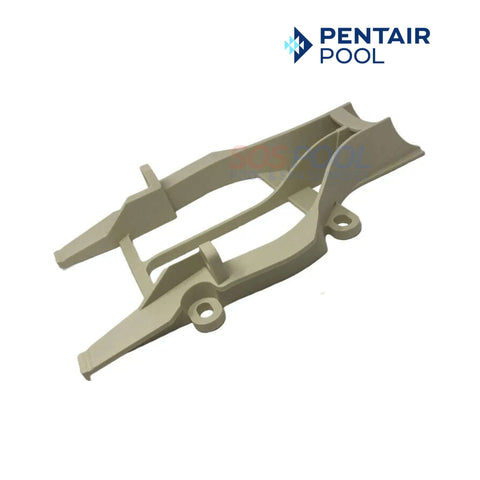

Pentair Pentair SuperFlo Pool Pump Base | 350094350094
$84.99$99.99
Sold out
Notify me

View another parts diagram

‎

‎

Pentair SuperFlo Pump Diagram & Part List with Breakdown of Seal Plates, Diffusers, Lids, and More Components

Use the detailed parts diagram above to help identify which SuperFlo pump parts you need, then explore each item below for specs and fast shipping with best online prices.

The 353010 Volute Assembly helps restore suction and housing integrity on your SuperFlo pump system.

Secure your pump lid with the 350090 Cam and Ramp Clamp, designed for a tight and easy-to-service fit.

The 356012 Seal Plate creates a reliable motor seal for almond-colored SuperFlo and Pinnacle units.

Top off your housing with the 350091 Clear Lid, a genuine fit for both SuperFlo and SuperMax pump models.

All SuperFlo pump parts—including lids, clamps, impellers, drain plugs, and more—are shown above in the diagram and available with free shipping.
