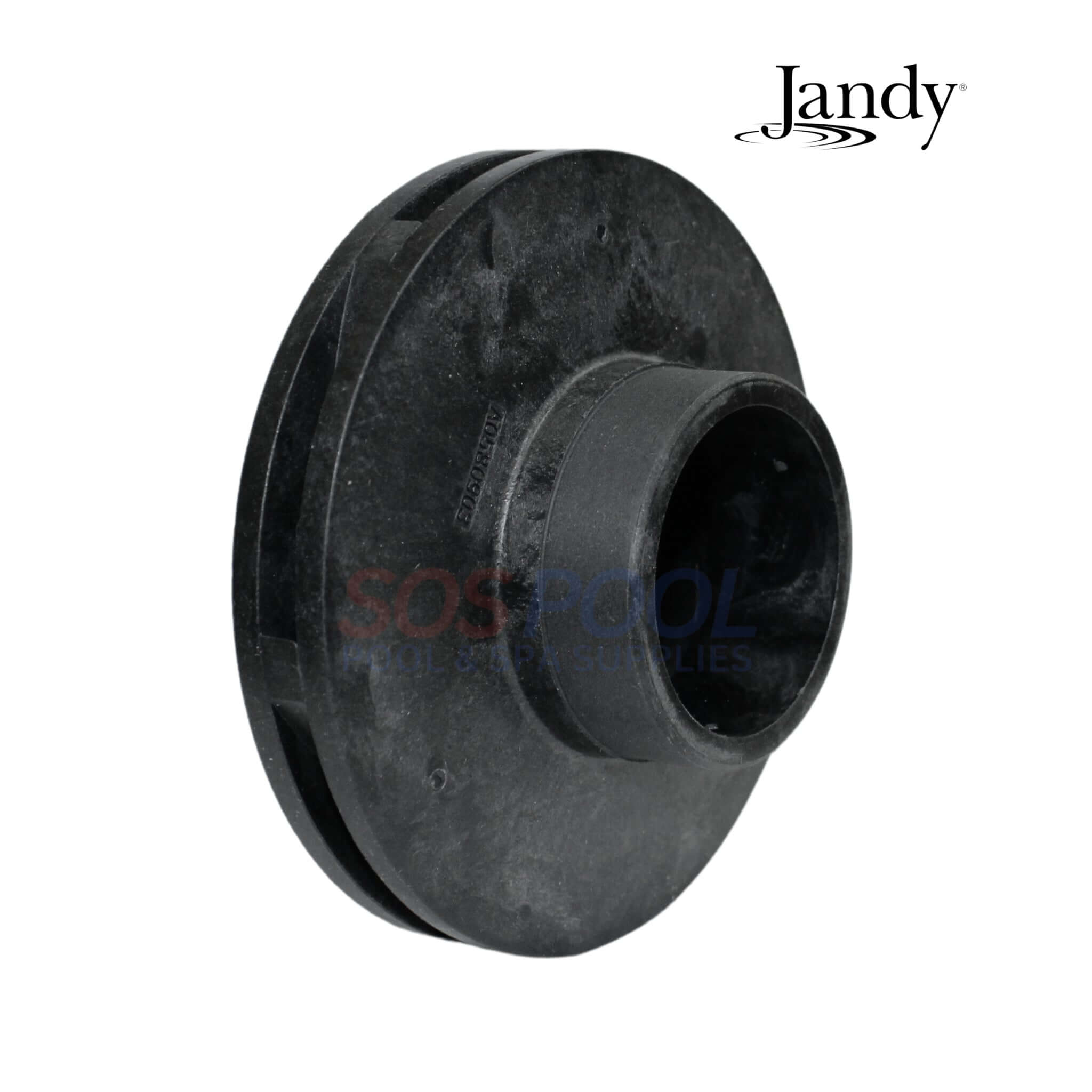

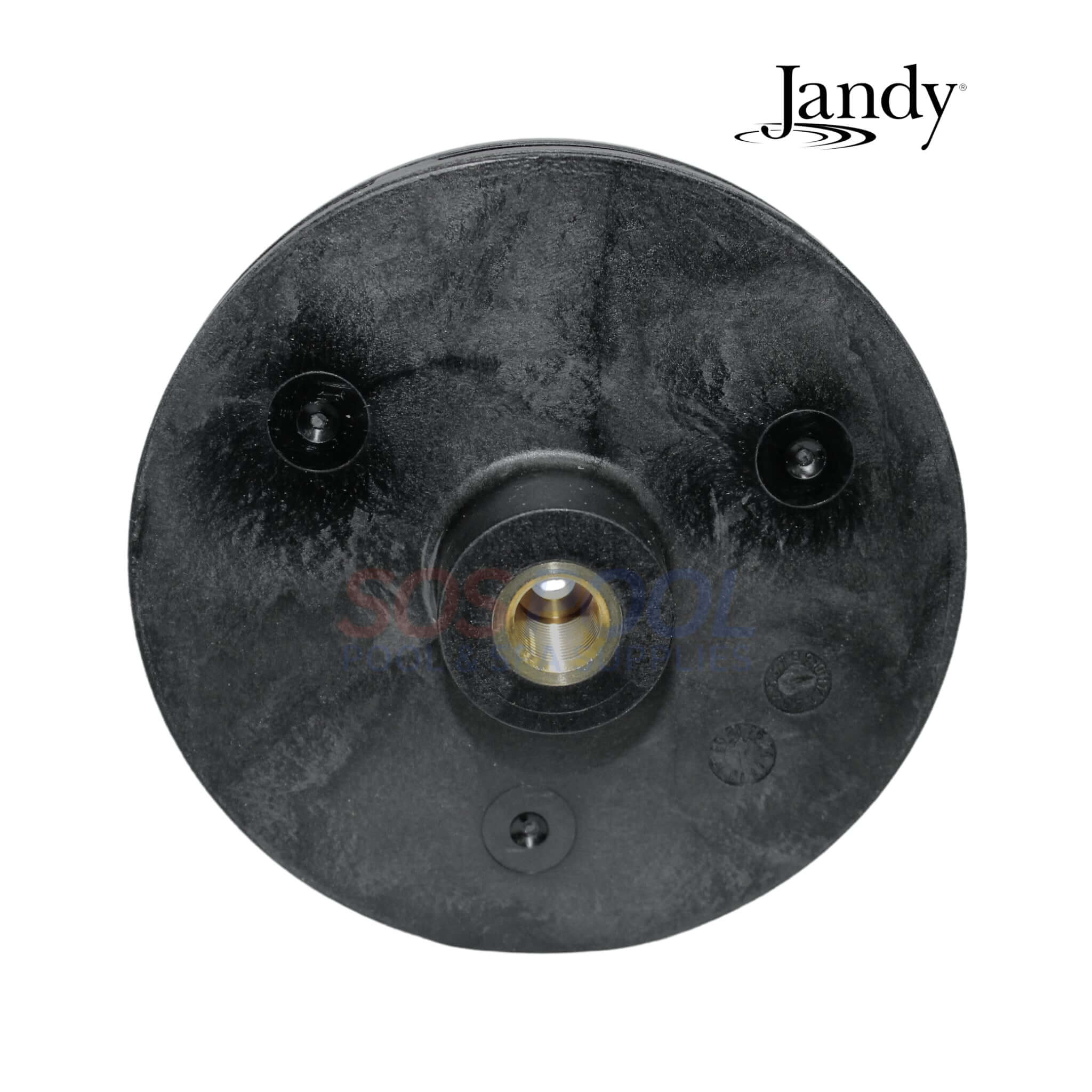

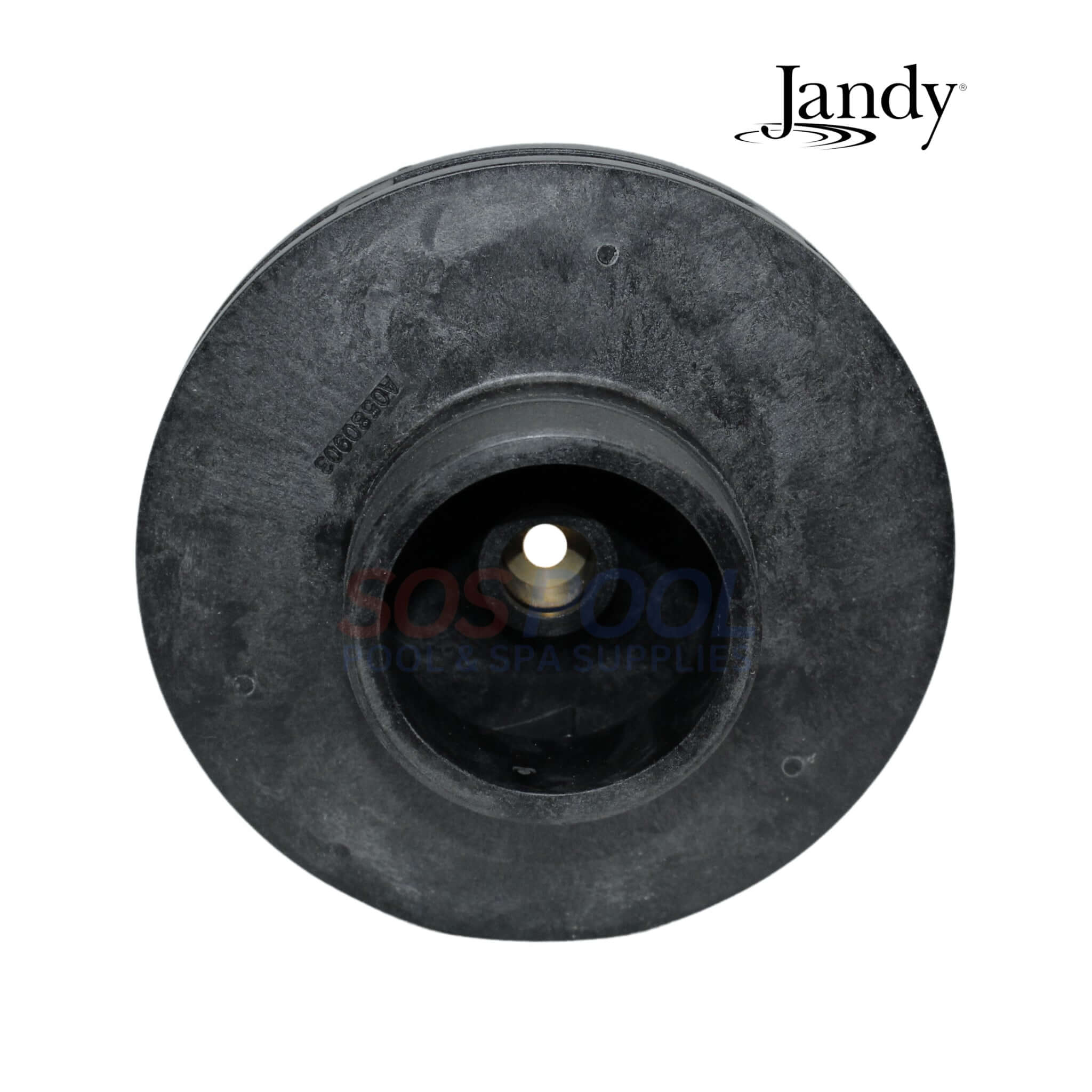

The OEM Jandy Impeller Kit R0807202 is a replacement kit designed for 1 HP full-rate and 1.5 HP up-rated pumps. It is compatible with both Jandy Stealth (SHPF/SHPM) and PlusHP (PHPF/PHPM) series pumps, ensuring efficient water flow and pump performance. This kit includes the impeller and necessary components such as the screw and O-ring for a proper fit, helping maintain your pump's efficiency and prolonging its lifespan.
-
Designed for Jandy Stealth and PlusHP Pumps: The Jandy Impeller Kit R0807202 is compatible with 1 HP full-rate and 1.5 HP up-rated Jandy Stealth (SHPF/SHPM) and PlusHP (PHPF/PHPM) series pumps, ensuring optimal performance.
-
Ensures Efficient Water Flow: This replacement impeller kit helps maintain efficient water flow and pump performance, contributing to the overall effectiveness of your pool's circulation system.
-

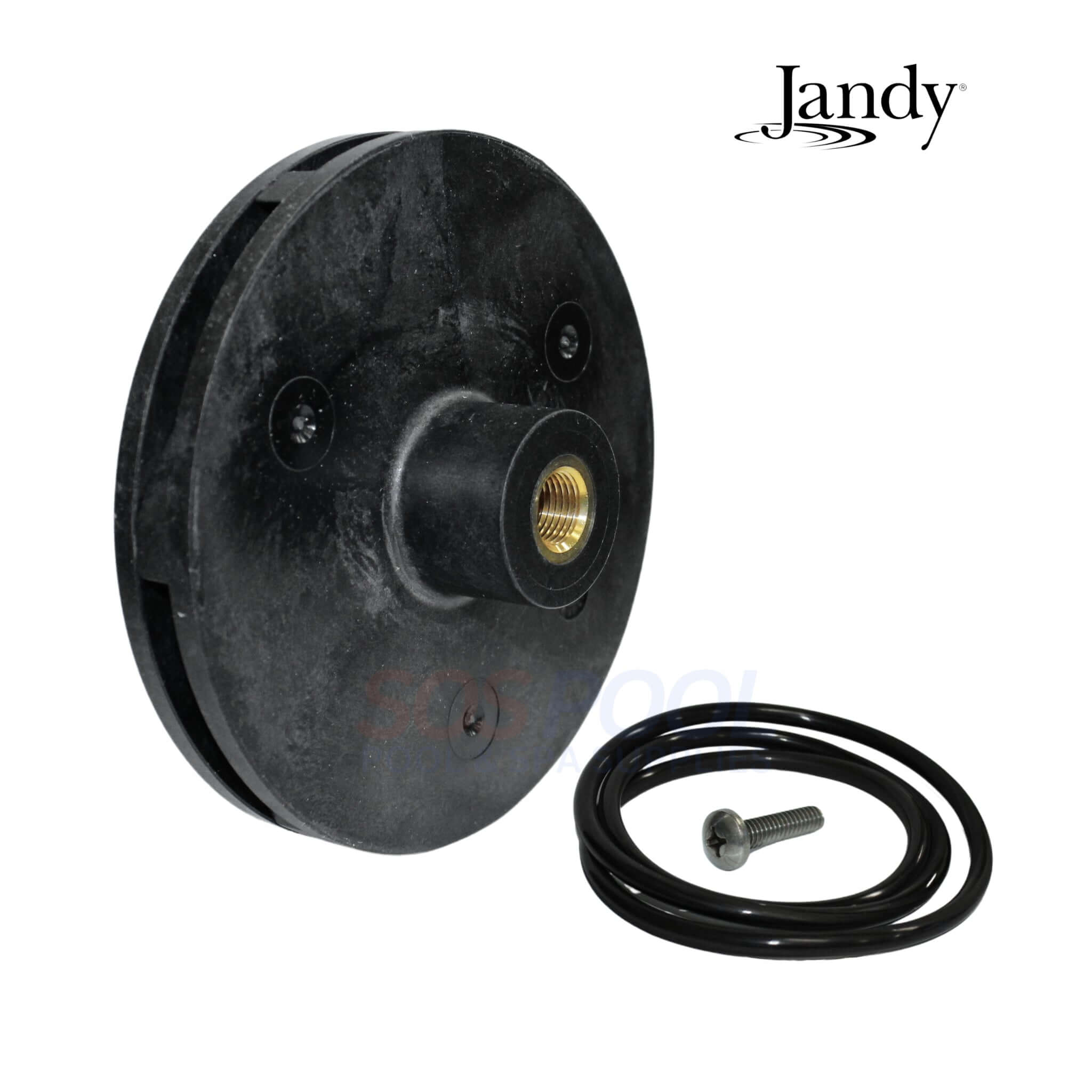

Complete Kit with Necessary Components: The kit includes the impeller, screw, and O-ring, providing all the necessary parts for a secure fit and easy installation, helping to restore your pump’s efficiency.
-
Prolongs Pump Lifespan: By maintaining proper water flow and preventing wear, this impeller kit helps extend the lifespan of your pump, ensuring long-term reliability and performance.
- (1) Impeller

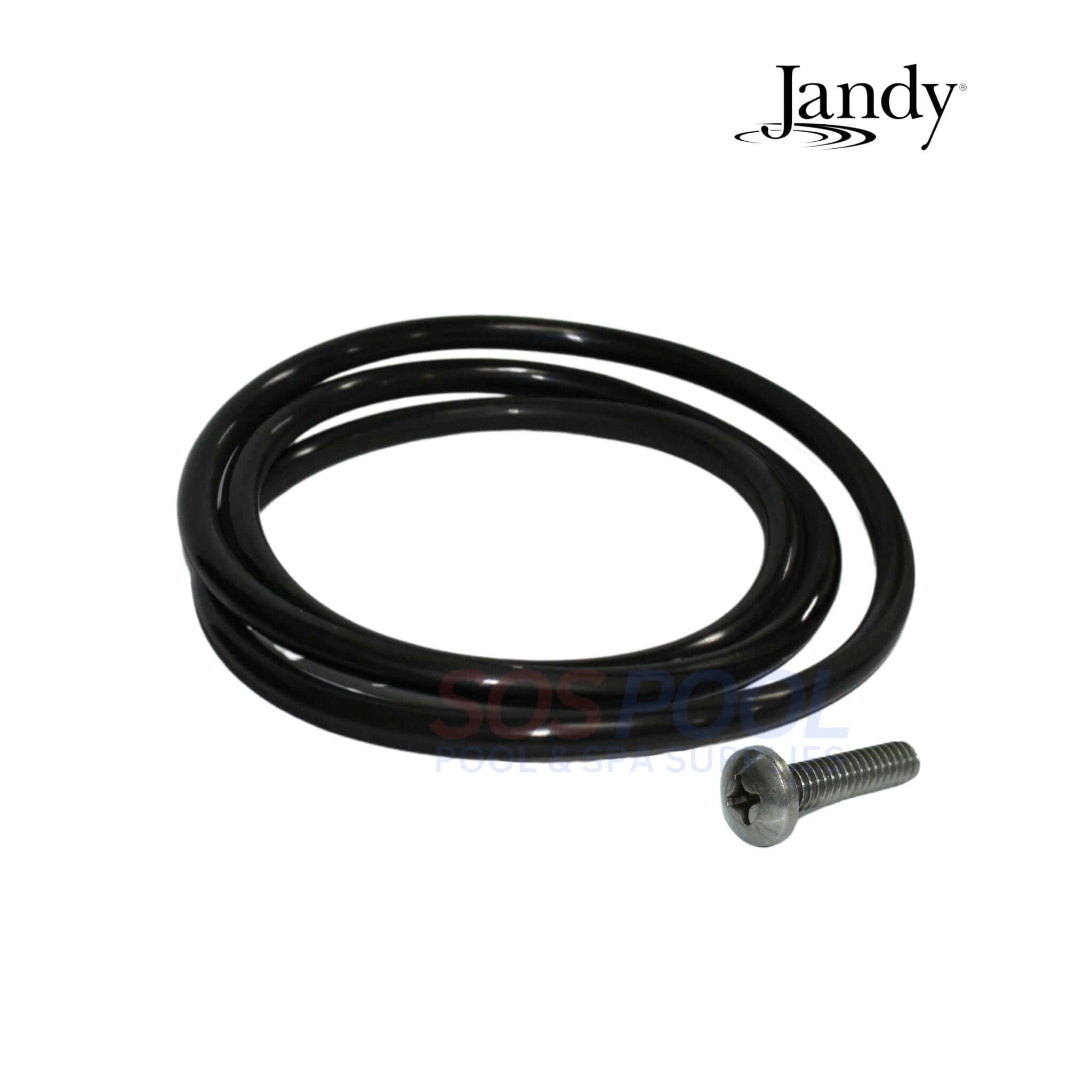

- (1) O-Ring
- (1) Screw
- Jandy Stealth SHPF Series Pumps
- Jandy Stealth SHPM Series Pumps
- Jandy PlusHP PHPF Series Pumps
- Jandy PlusHP PHPM Series Pumps
