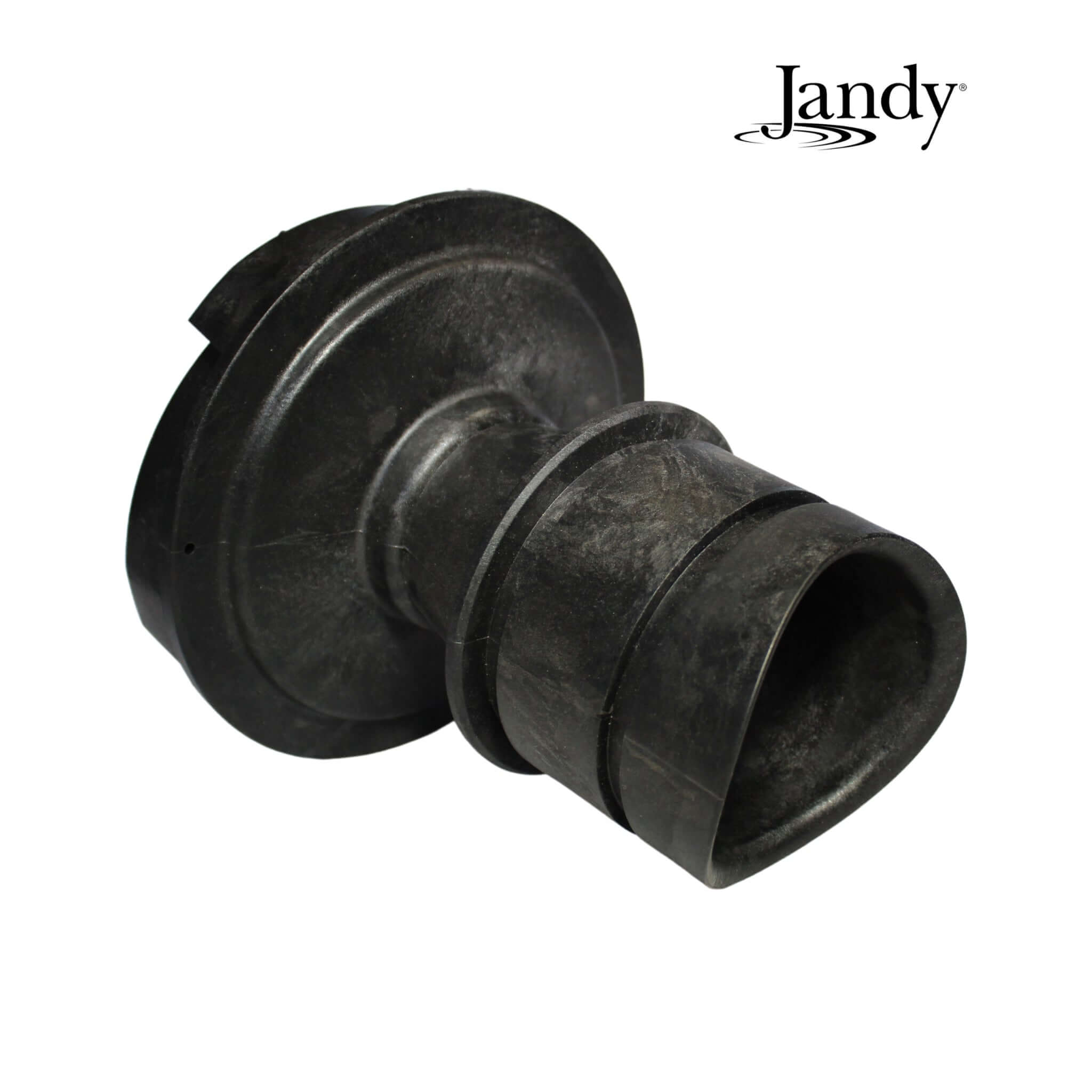

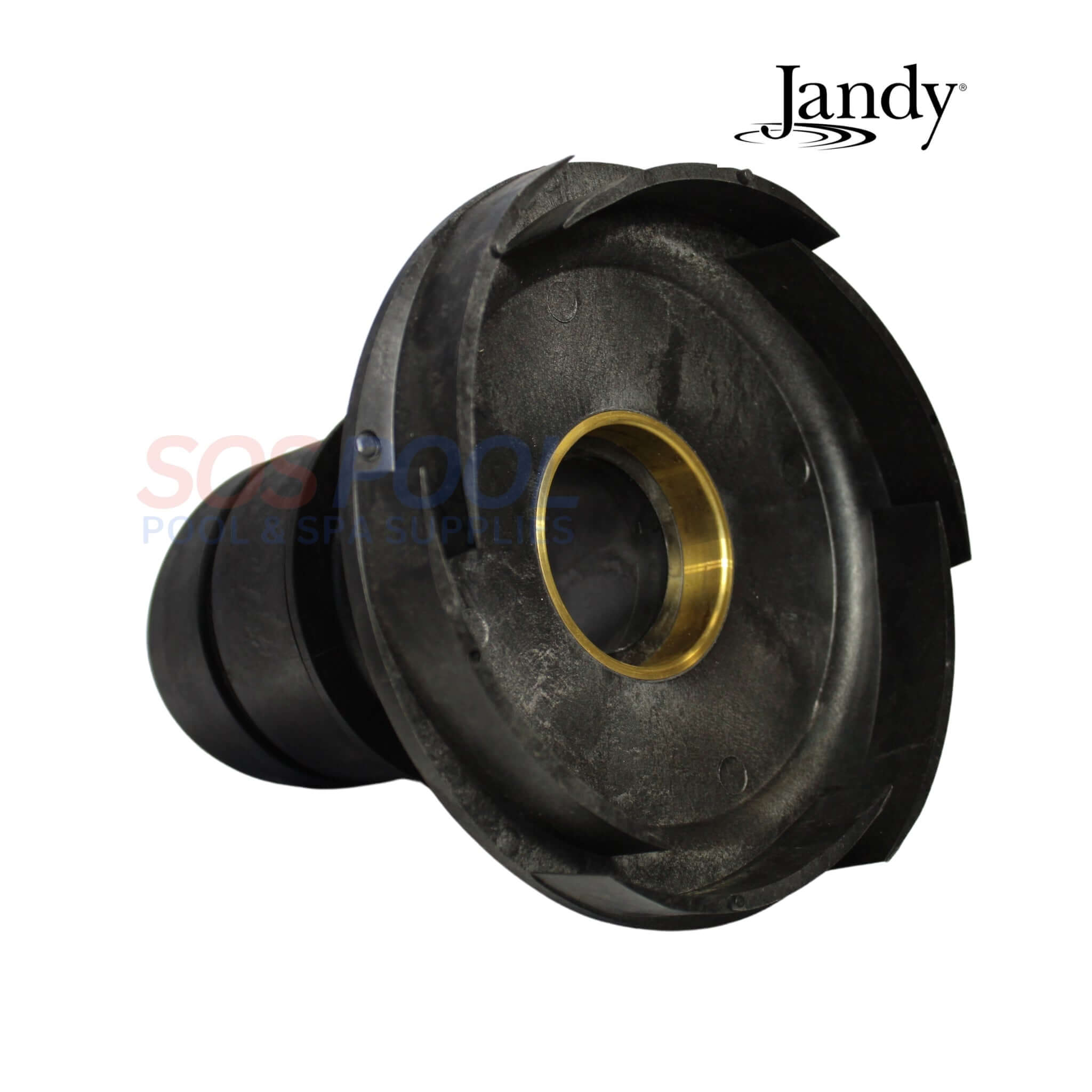

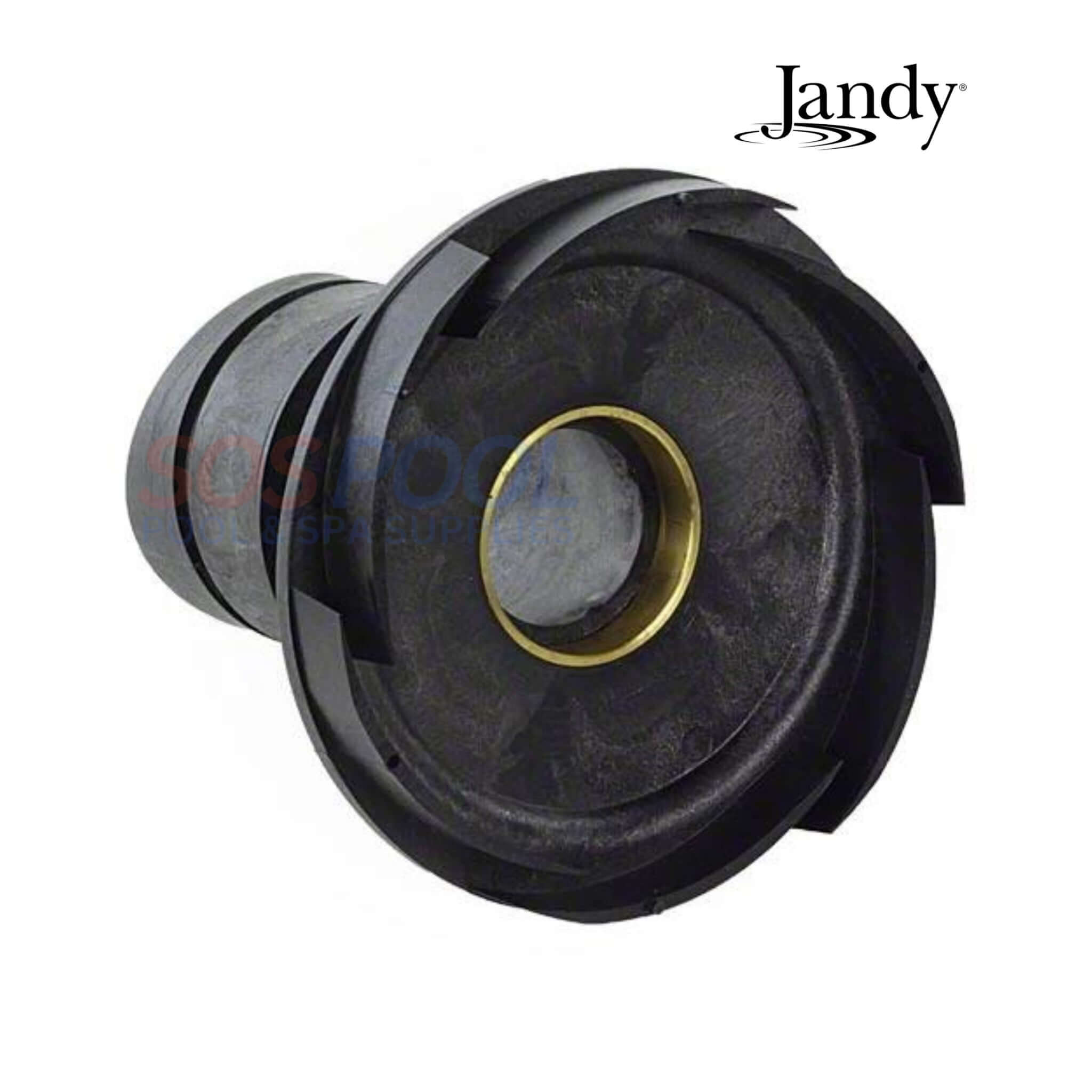

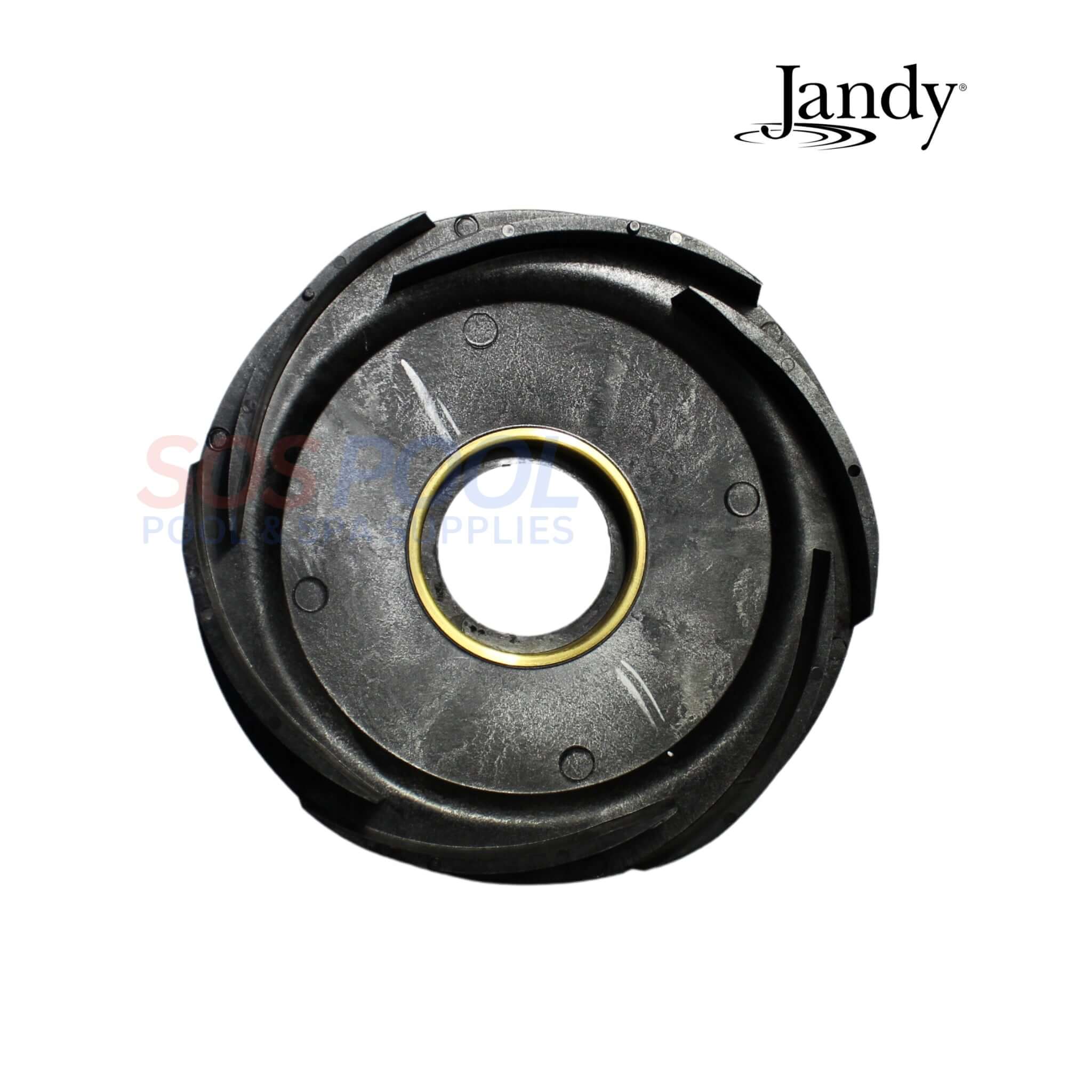

Jandy Pump Diffuser For SHPF and SHPM with O-Ring and Hardware Kit | R0445400

Keep your pool's circulation at its peak with the Jandy Pump Diffuser. Tailored for SHPF and SHPM models, this essential part, including O-Ring and hardware kit, model R0445400, ensures your pump operates smoothly, with an optimal water flow. Quick to install and built to last, it's the smart choice for a well-maintained pool pump.

Highlights

• Optimized Circulation: The Jandy Pump Diffuser is specifically designed for SHPF and SHPM models to maintain peak water flow, ensuring your pool's circulation system runs at its best.

• Complete Kit: This crucial part comes with an O-Ring and hardware kit (model R0445400), guaranteeing a seamless fit and function for your Jandy pump models.

• Durability and Ease of Installation: With its straightforward installation process and robust construction, the Jandy Pump Diffuser is the go-to for enduring pool pump maintenance.

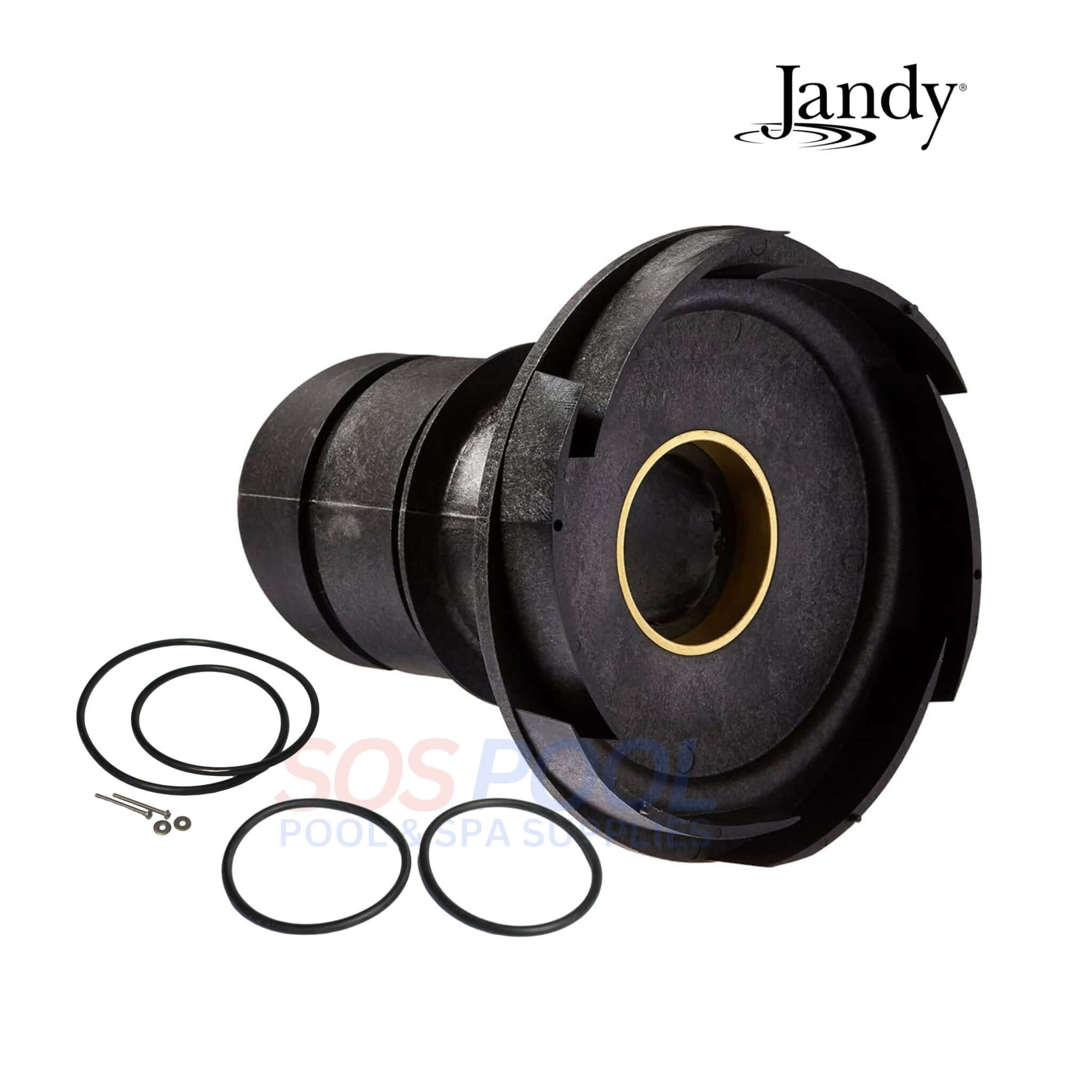

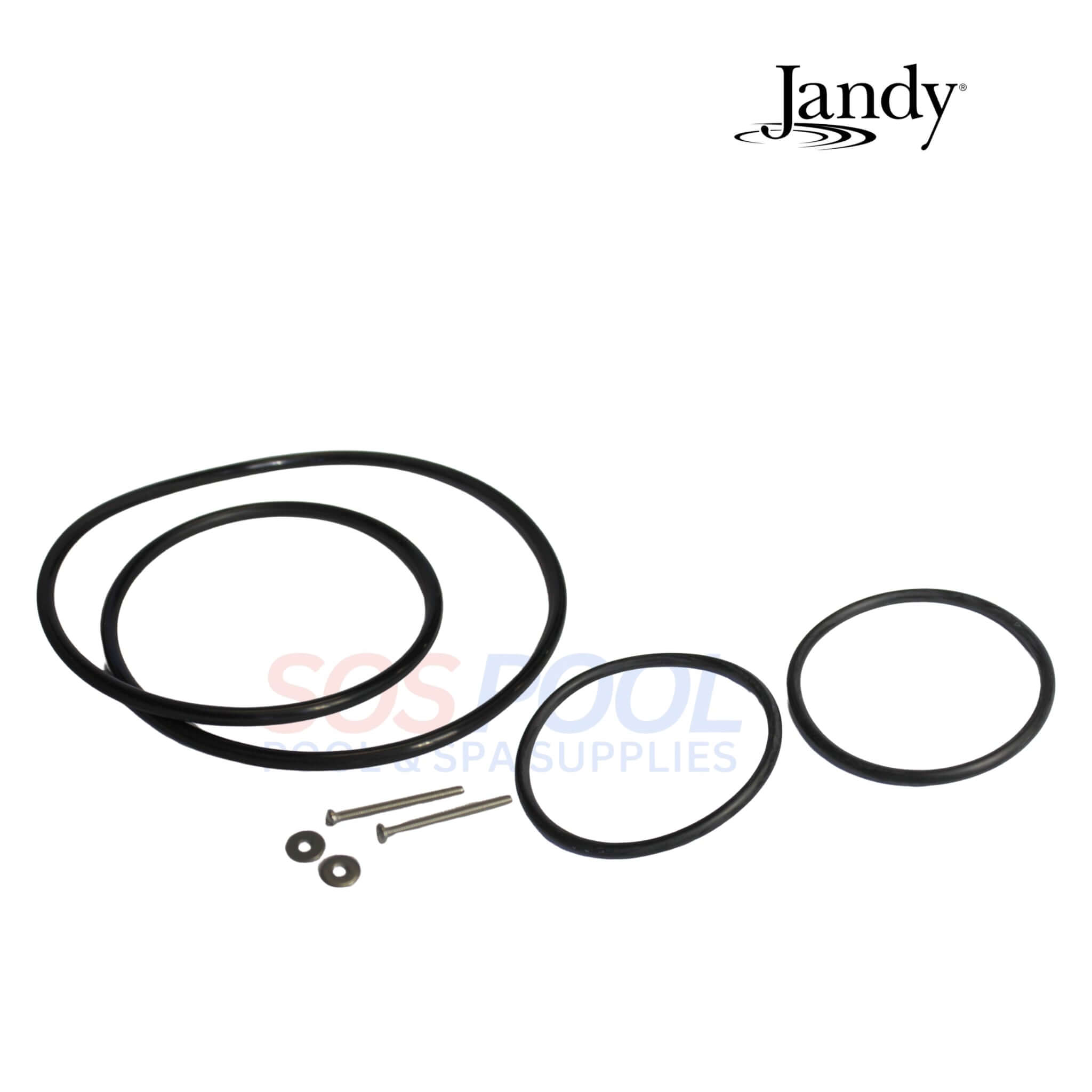

Includes

• (1) Pump Diffuser
• (2) Bolt
• (2) Washer
• (1) Backplate O-Ring
• (2) Diffuser O-Rings

Replacement Instructions

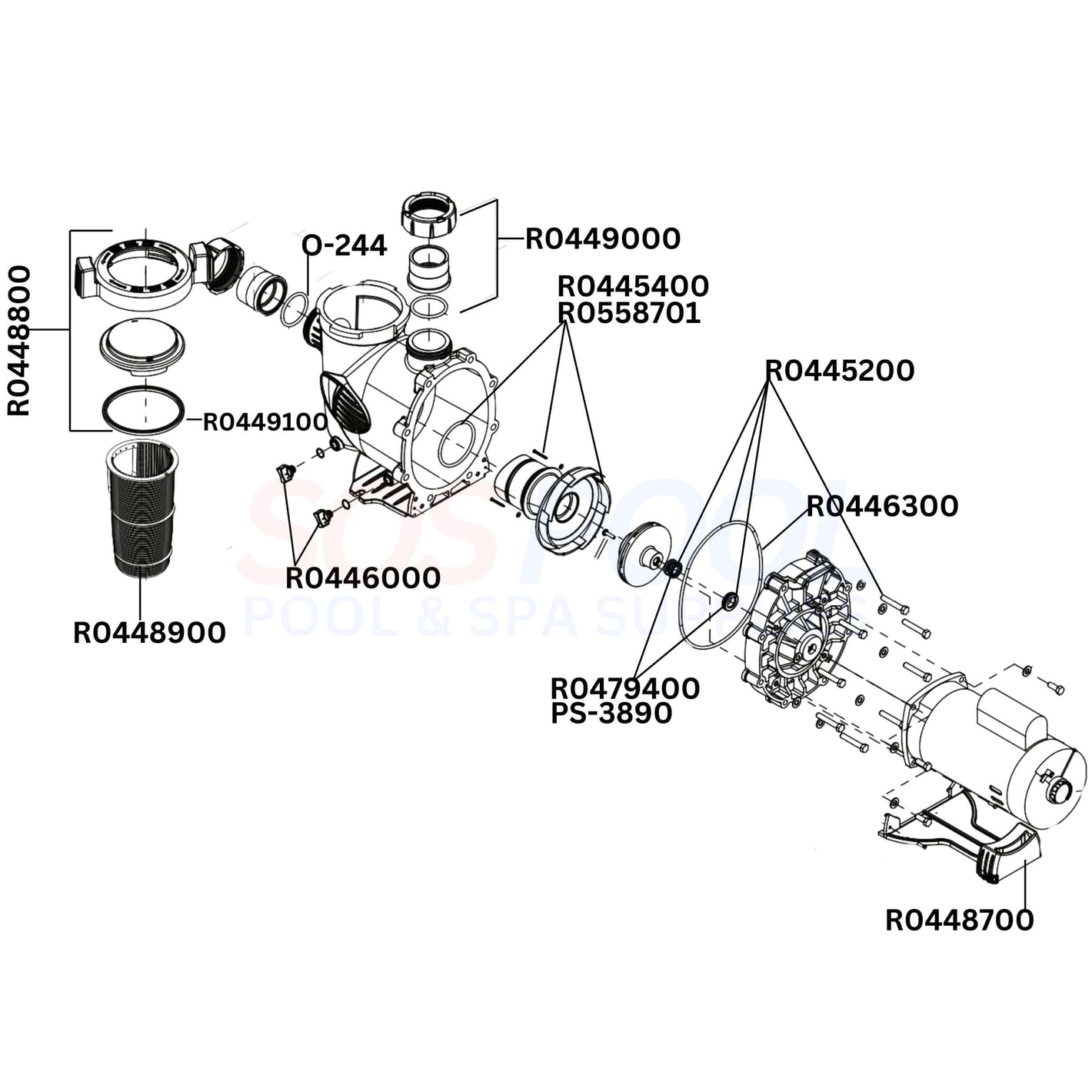

• Refer to Figure 2 and the associated parts list to identify the parts included in each replacement kit.

• Using a No. 1 Phillips screwdriver, remove the two (2) screws attaching the diffuser to the backplate. Carefully remove the diffuser from the backplate. See Figure 3.

• Remove any debris from the inlet and outlet of the impeller.

• Remove the motor shaft cover on the back of the motor by twisting the hex-head screw with an adjustable wrench. The motor shaft will be exposed.

• Hold the exposed motor shaft with a ½" wrench while removing the impeller center screw. Use a No. 2 Phillips screwdriver. Turn the left-handthreaded screw clockwise to loosen it.

• While holding the motor shaft with a ½" wrench, thread the new impeller onto the motor shaft. Hand-tighten the impeller until it is secure.

• Using a No. 2 Phillips screwdriver, tighten the impeller’s center screw into the center of the impeller. Turn the left-hand-threaded screw counter-clockwise to tighten it. Do not overtighten.

• Replace the motor shaft cover by inserting the cover tabs into the slots and rotating the cover 90º clockwise.

• Install the new diffuser over the impeller. Make sure you insert the alignment pins into the correct holes. The molded-in arrow must align with the molded-in arrow on the backplate. See Figure 3.

• Install the two (2) Phillips-head screws. Tighten the screws to draw the diffuser against the backplate.

• To avoid a leak, make sure the diffuser o-rings, o-ring grooves, and o-ring seal area are clean and free of debris. If grease is used to retain the o-rings, it must be silicone based. Do not use petroleum-based grease, because it will destroy the o-rings.

• If you are not installing another replacement kit, skip to Section 6, Pump Assembly.

Compatibility

This diffuser kit is compatible with the following Jandy pumps

• Jandy PlusHP PHPM & PHPF Series Pump (2006-Current)
• Jandy MaxHP MHPM Series Pump (2006-2010)
• Jandy Stealth SHPF & SHPM Series Pump (2008 - Current)
• Jandy Water Features Pump, WTFR Models
• Jandy ePump Variable Speed Pump (2008-Present)
• Jandy ePump + SVRS Variable-Speed Pump (2013-Present)
• Jandy ePump 2.2HP Pumps
• Jandy ePump 2.7HP Pumps

• Jandy PlusHP 2.7 HP VS Series Pump (2014-Present)

Note: This diffuser may be compatible with your pump please check owners manual to ensure compatibility

Additional Info

Order R0445400 Online For Jandy Diffuser Replacement

buy R0445400 online for SHPF, SHPM, and ePump diffuser repair

kit includes bolts, washers, o-rings, and OEM molded diffuser

ships fast – restores suction and flow in 2.7 HP Jandy pump systems

compatible with VS and SVRS ePump models from 2008–present

ensures correct spacing between impeller and backplate

R0445400 Complete Kit For ePump, Stealth, and PlusHP Pumps

online order includes everything to replace worn or cracked diffuser

fits MaxHP, PHPF, WTFR, and all Jandy ePump variants

used to fix cavitation, loud operation, or poor prime in circulation pumps

kit includes backplate o-ring and diffuser o-rings for leak-free seal

order R0445400 online for full pump flow recovery

Free Shipping On Jandy R0445400 Pump Diffuser Kit

R0445400 ships free – includes diffuser, seals, and mounting parts

compatible with full Jandy high-performance pump line

install in Stealth, ePump, and WaterFall systems for smooth operation

OEM part ensures accurate impeller clearance and water pressure

order online to restore efficient and quiet pool circulation
