On the Jandy PlusHP PHPF/PHPM Single Speed Pump diagram
Open the full interactive diagram →
Other parts on the same Jandy PlusHP PHPF/PHPM Single Speed Pump

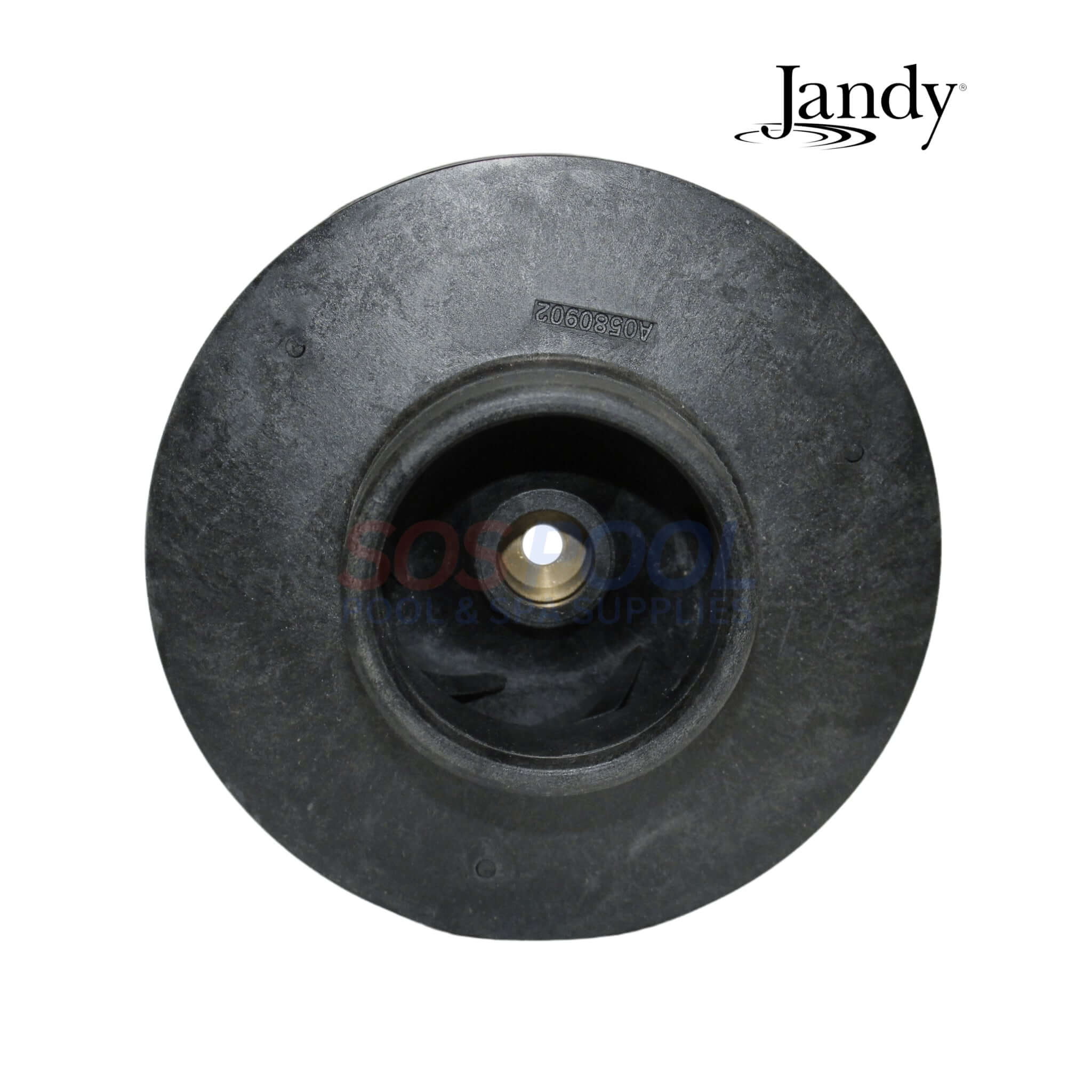

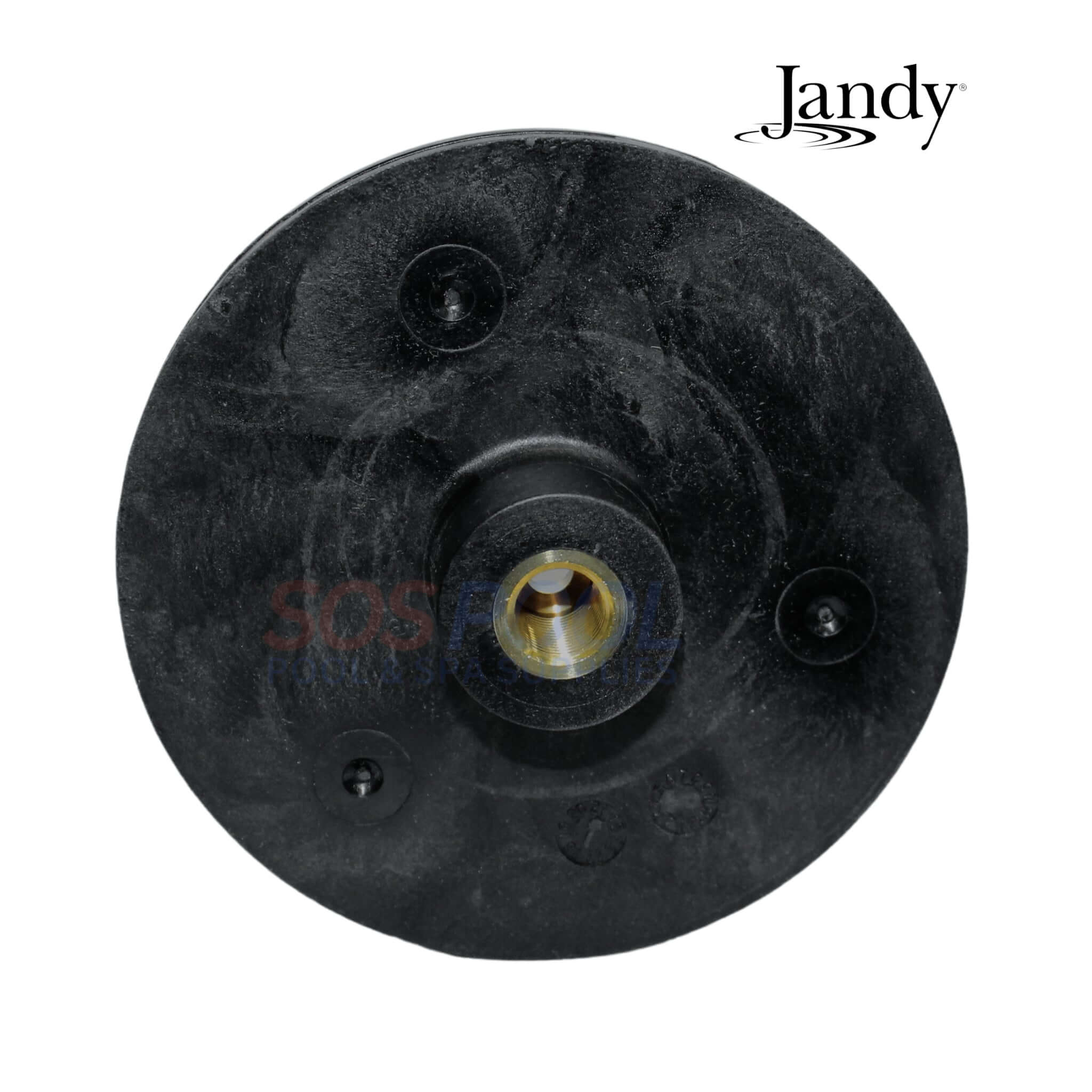

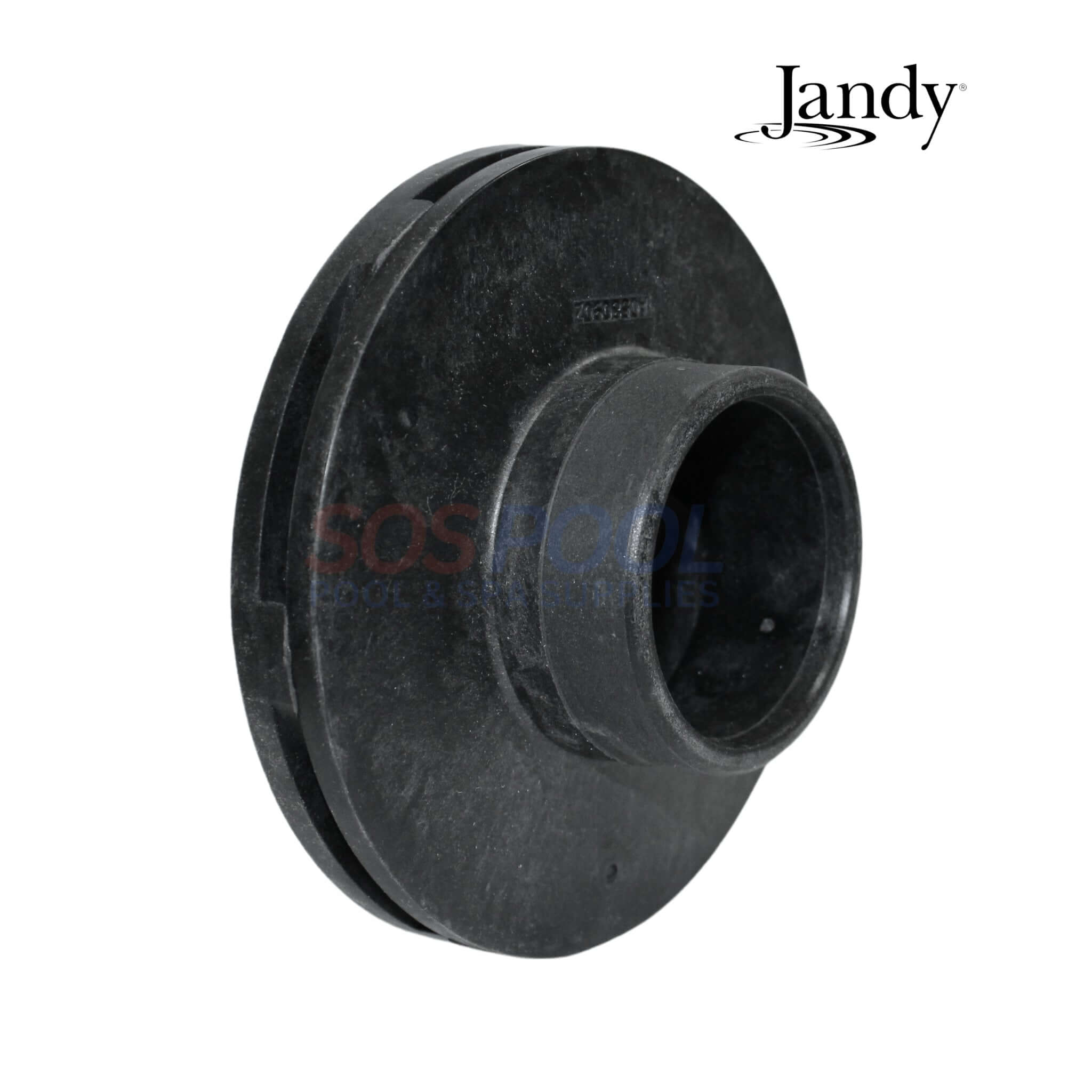

The OEM Jandy Impeller Kit R0807203 is designed for use with 0.75 HP to 1.0 HP pumps in both the Jandy Stealth (SHPF/SHPM) and PlusHP (PHPF/PHPM) series. This kit includes the impeller, screw, and backplate O-ring, which are essential components for maintaining or replacing parts in these specific pump models. It is crucial for ensuring optimal water flow and pump efficiency, helping extend the lifespan of your pump.
-
Designed for 0.75 HP to 1.0 HP Pumps: The Jandy Impeller Kit R0807203 is specifically made for use with 0.75 HP to 1.0 HP pumps in the Jandy Stealth (SHPF/SHPM) and PlusHP (PHPF/PHPM) series, ensuring a perfect fit.
-
Complete Kit for Easy Maintenance: This kit includes the impeller, screw, and backplate O-ring, providing all the essential components needed for maintaining or replacing parts in your pump system.
-
Optimizes Water Flow and Efficiency: The impeller is designed to maintain optimal water flow, improving pump efficiency and ensuring smooth operation for consistent pool circulation.
-
Prolongs Pump Lifespan: By keeping the pump running efficiently and preventing wear, this impeller kit helps extend the life of your pump, making it a reliable choice for long-term pool maintenance.

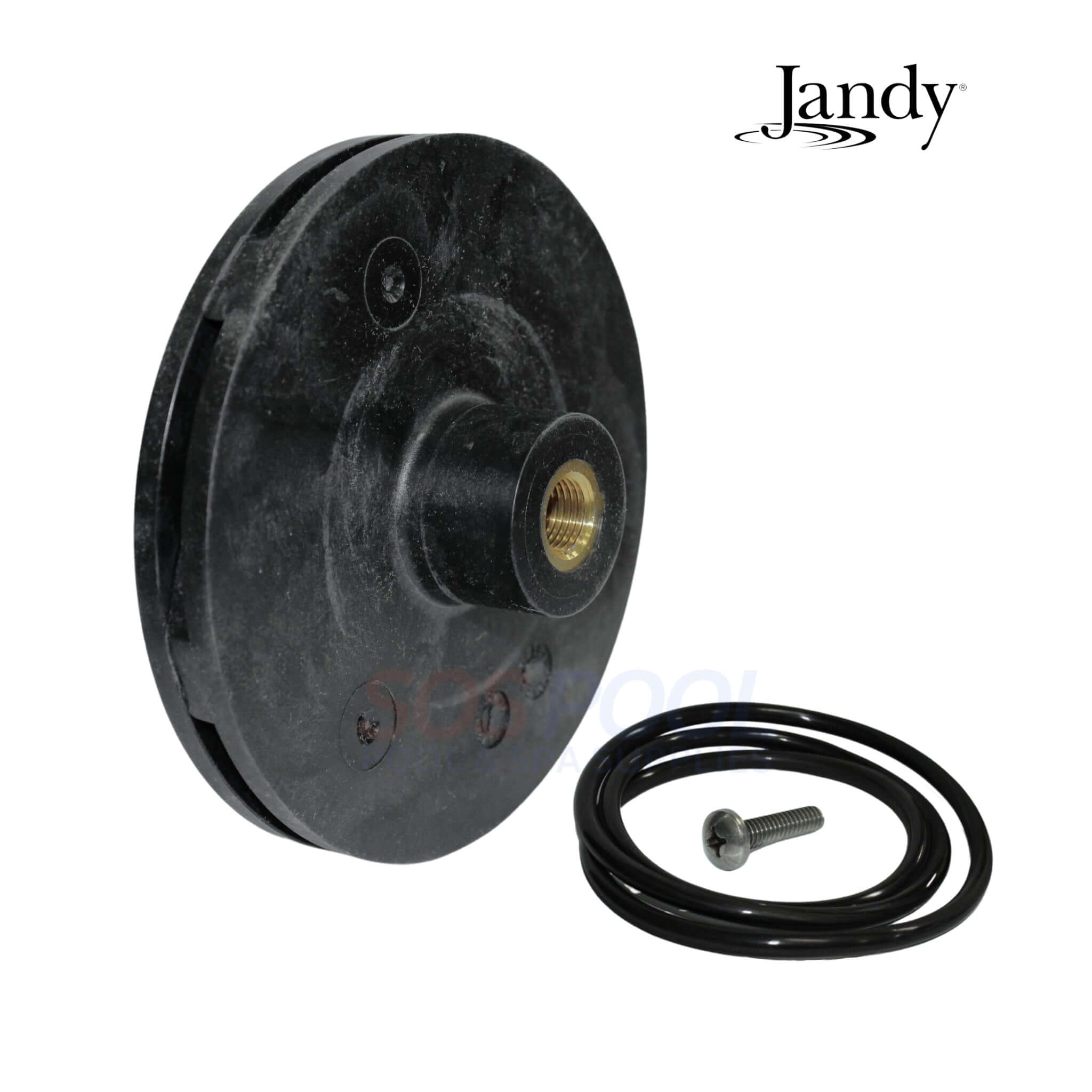

- (1) Impeller
- (1) O-Ring
- (1) Screw
- Jandy Stealth SHPF Series Pumps
- Jandy Stealth SHPM Series Pumps
- Jandy PlusHP PHPF Series Pumps
- Jandy PlusHP PHPM Series Pumps
