Hayward 2" Top Mount Vari-Flo Multiport Valve | SP071620T

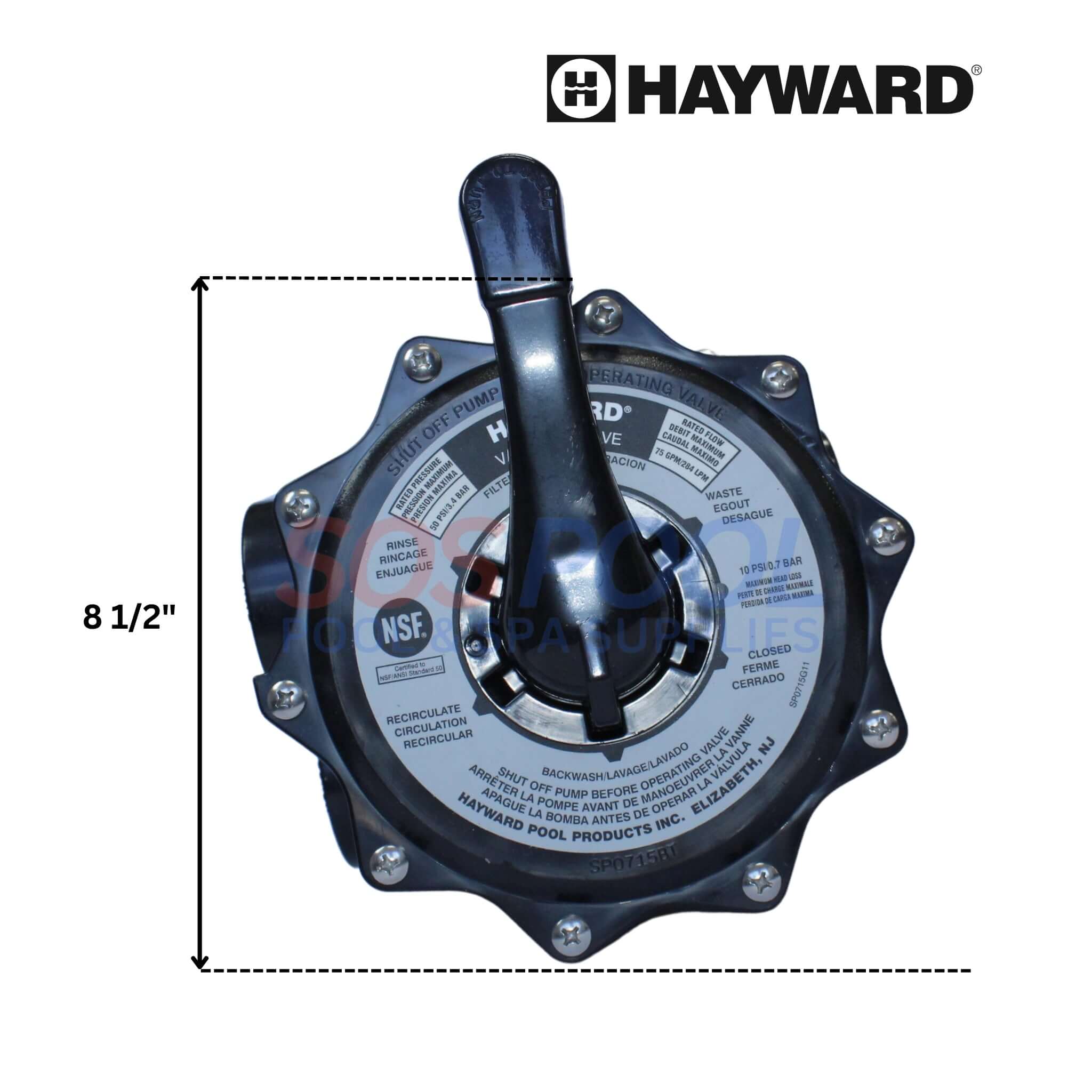

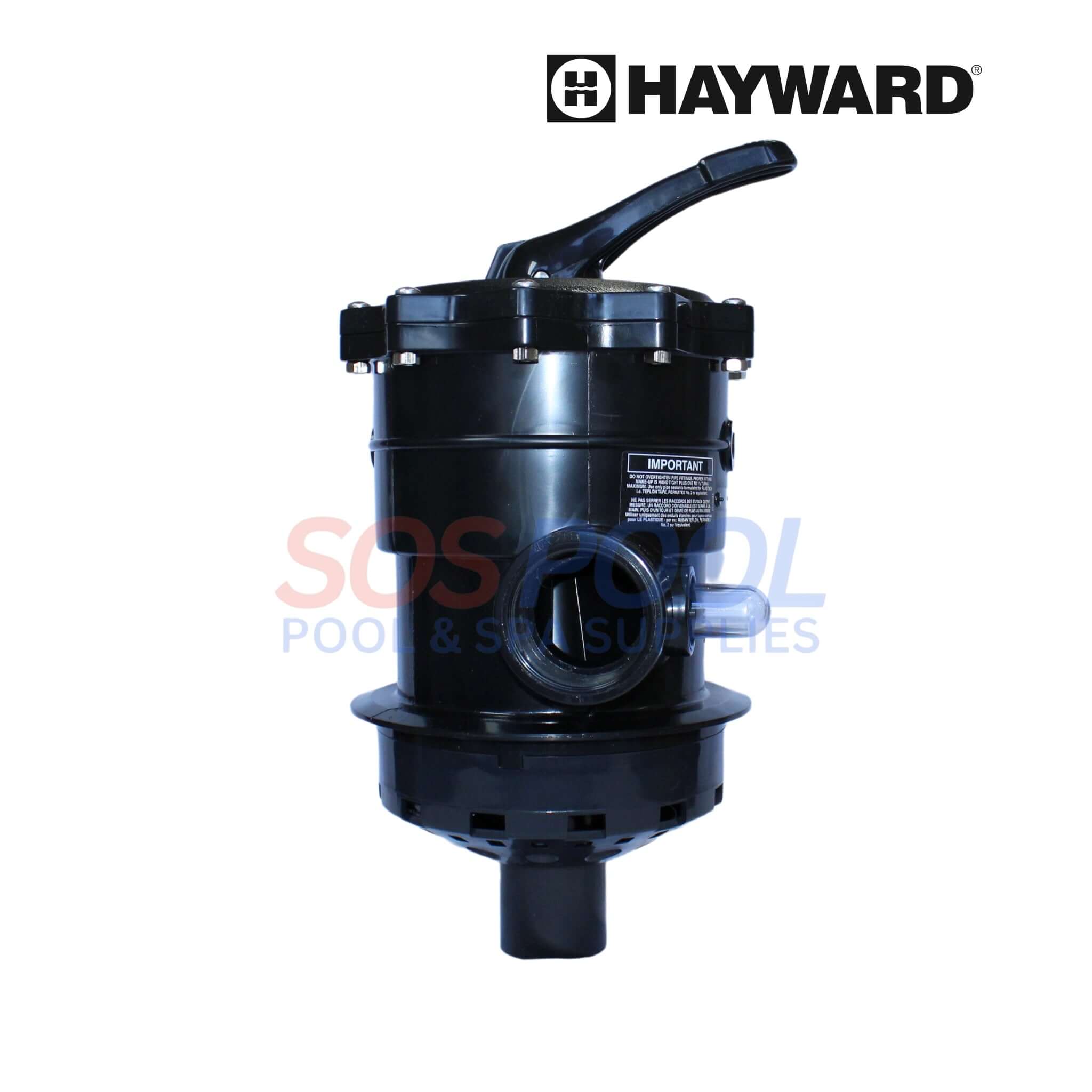

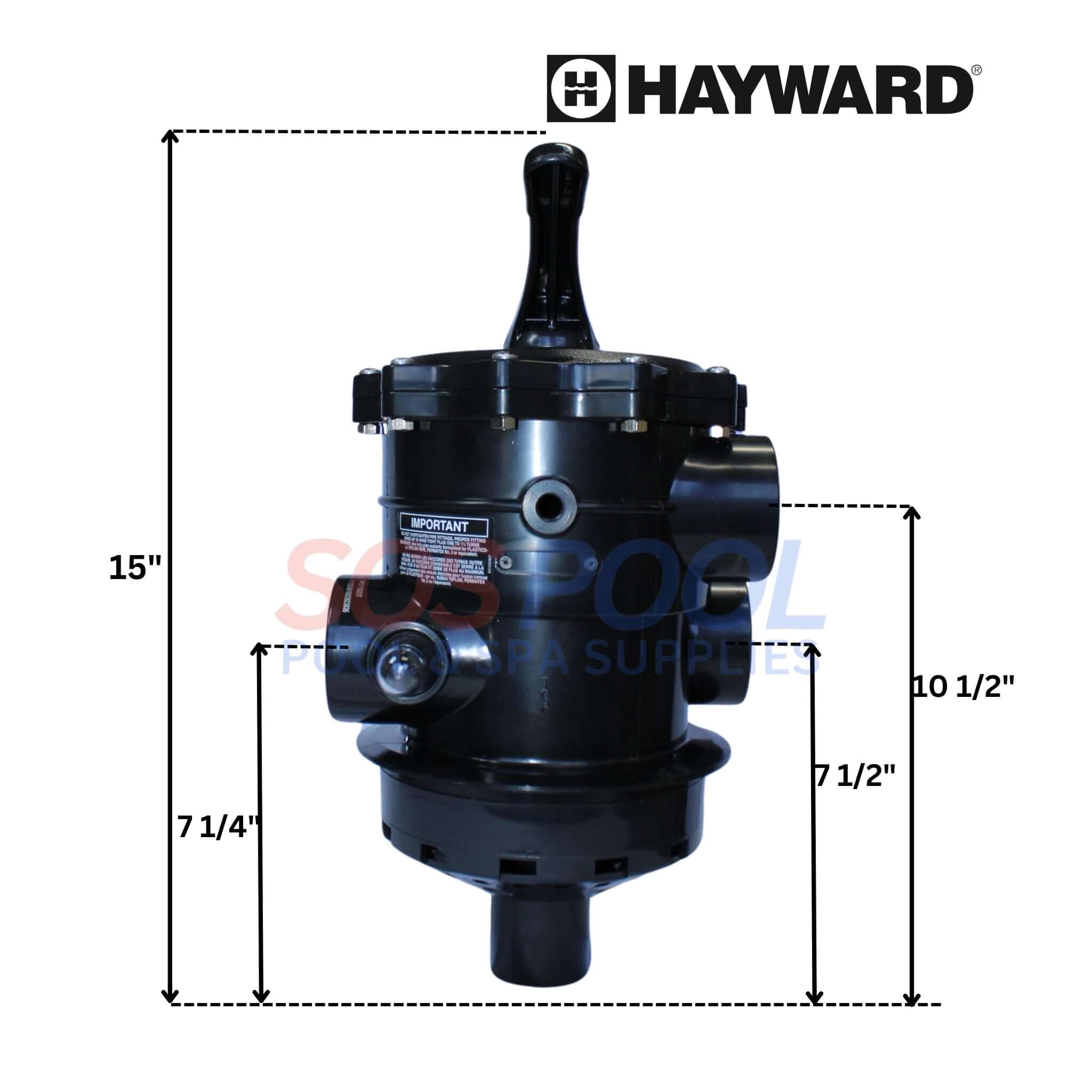

The OEM Hayward SP071620T Vari-Flo XL Multiport Valve is a top-mount, 2-inch control valve designed for Hayward Pro Series sand filters. It offers six valve/filter functions—filter, backwash, rinse, waste, recirculate, and closed—accessible via an easy-to-use lever handle. Constructed from reinforced thermoplastic, this valve ensures durability and corrosion resistance. It includes a built-in sight glass for monitoring backwash cycles and comes complete with a clamp and O-ring for secure installation. Engineered for maximum flow efficiency, the SP071620T supports flow rates up to 150 GPM, making it suitable for high-capacity pool systems.

Highlights

• Designed for Pro Series Sand Filters: Compatible with Hayward Pro Series systems, offering reliable top-mount control for pool filtration.

• Six-Position Operation: Easily switch between filter, backwash, rinse, waste, recirculate, and closed functions using the intuitive lever handle.

• Built for High-Flow Systems: Supports flow rates up to 150 GPM, making it ideal for large residential or commercial pool applications.

• Durable Thermoplastic Construction: Made from reinforced, corrosion-resistant materials to withstand harsh pool chemicals and environments.

• Includes Sight Glass and Clamp Kit: Comes complete with a sight glass for backwash visibility, plus a clamp and O-ring for secure, leak-free installation.

Includes

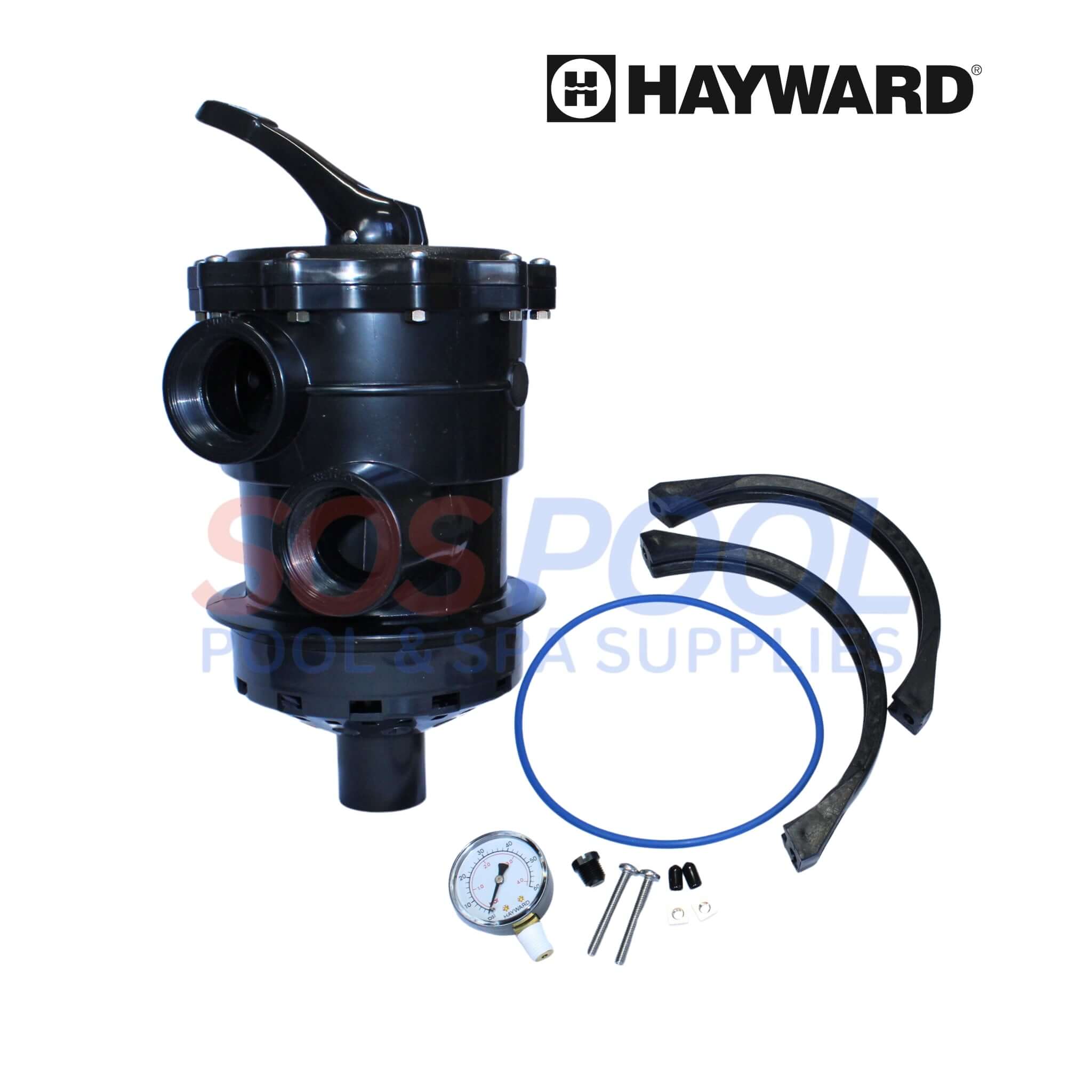

This complete multiport assembly comes pre assembled and ready to install

• (1) Complete Assembled Top Mount Vari-Flo Multiport Valve

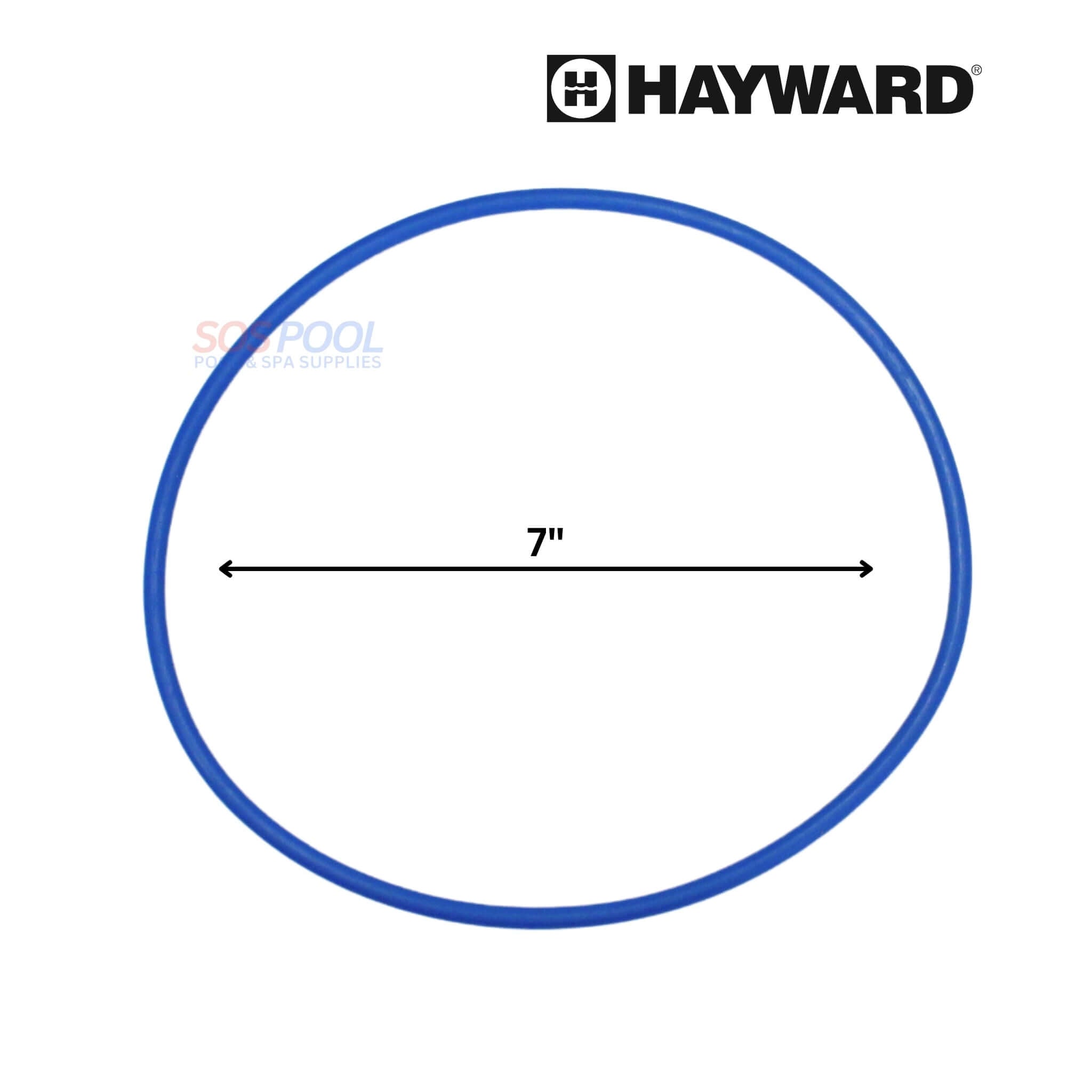

• (1) O-Ring

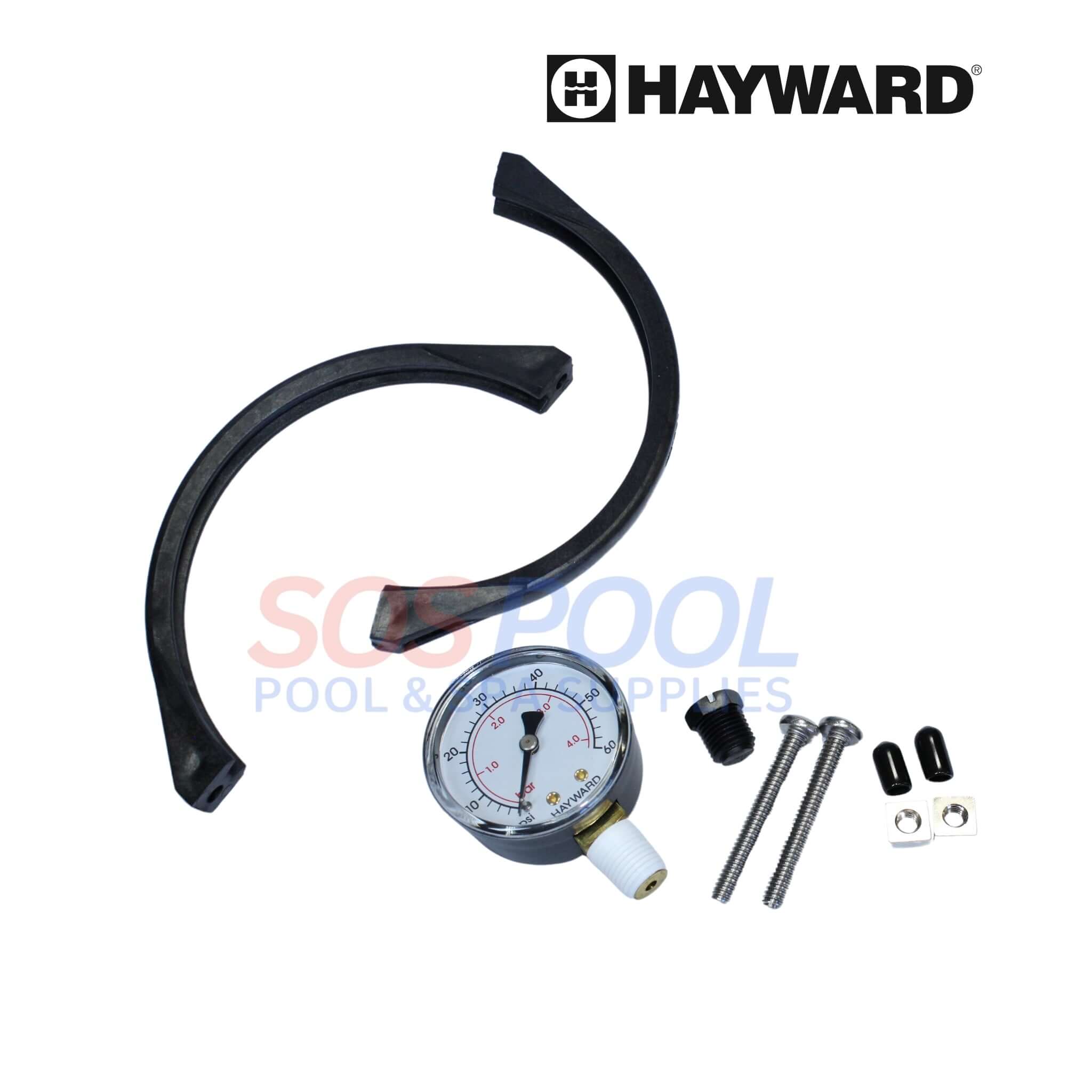

• (1) Pressure Gauge
• (1) Clamps

*Other parts and hardware shown in picture above

Compatibility

• Hayward S270T2 Pro Series Sand Filters
• Hayward S310T2 Pro Series Sand Filters
• Hayward S360T2 Pro Series Sand Filters

Note: This top mount valve may be compatible with your 2 inch filter, please refer to your systems owners manual to ensure compatibility.

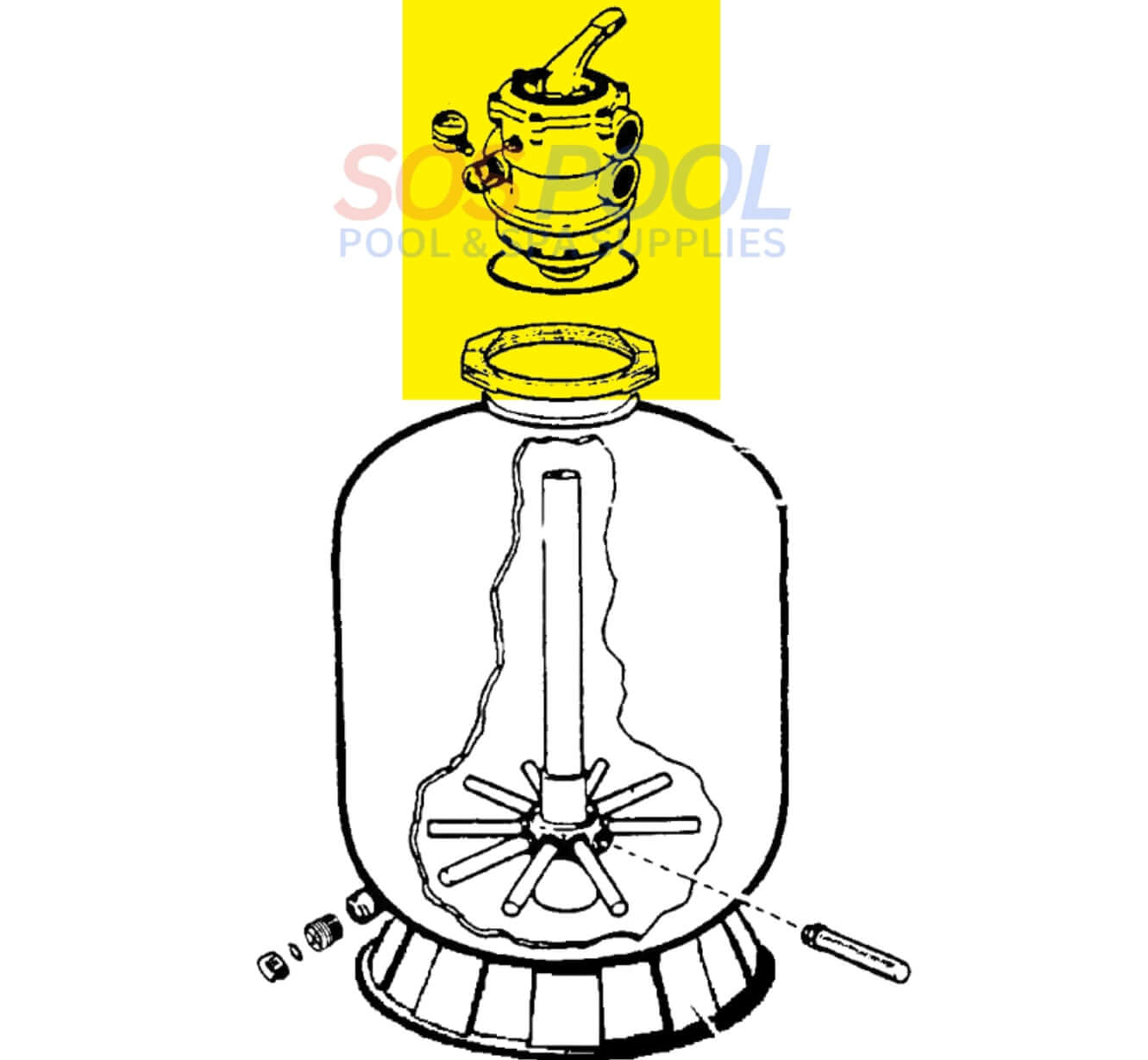

Diagram
