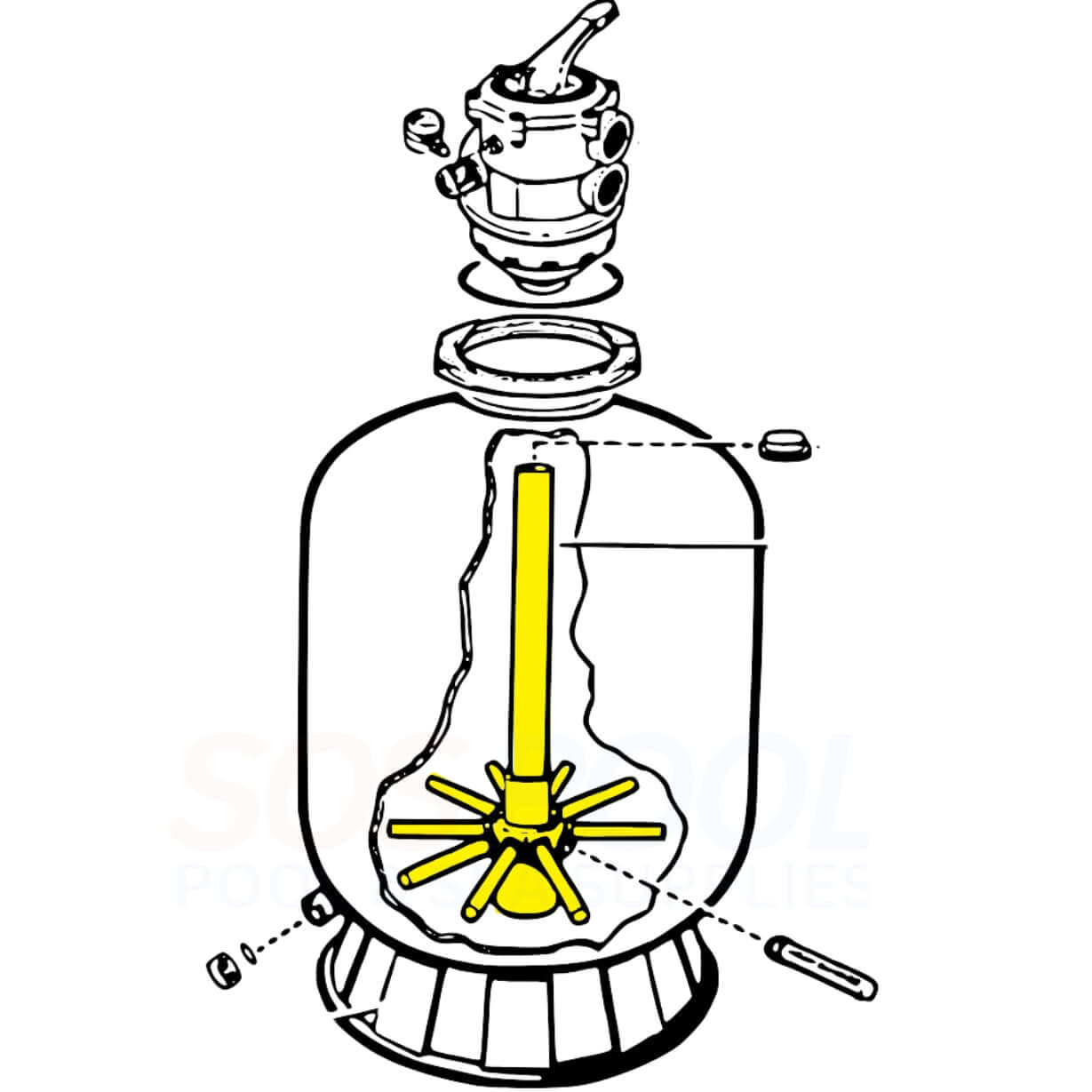

On the Hayward Pro Series Sand Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Pro Series Sand Filter

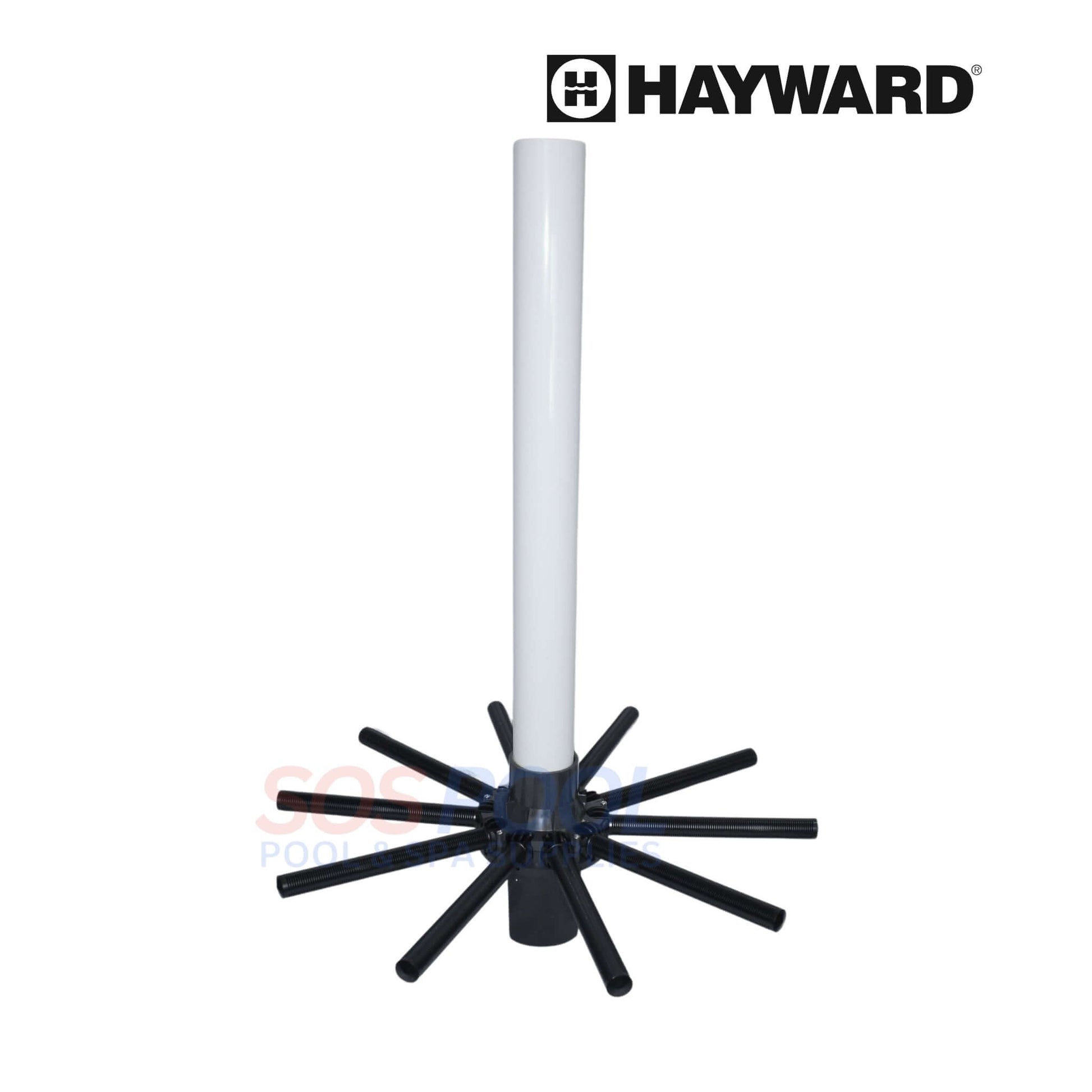

The OEM Hayward SX310DA2 Lateral Assembly with Center Pipe is a crucial component for Hayward Pro Series sand filters, including models S310T. This 31-inch folding umbrella-style lateral assembly ensures even water distribution within the filter, enhancing filtration efficiency by removing debris and contaminants. The assembly comes complete with the center pipe, hub, and 10 swivel-style laterals, making it easy to install and maintain. Built from durable materials, it's designed to withstand long-term use, ensuring your pool’s water remains clean and clear for years.
-
Designed for Hayward Pro Series Sand Filters – The OEM Hayward SX310DA2 Lateral Assembly with Center Pipe is a key component for Hayward Pro Series sand filters, including model S310T, ensuring proper functionality and performance.
-
Enhanced Filtration Efficiency – This 31-inch folding umbrella-style lateral assembly ensures even water distribution, helping to maximize filtration efficiency by effectively removing debris and contaminants from your pool water.
-
Complete Assembly for Easy Installation – The assembly comes with the center pipe, hub, and 10 swivel-style laterals, providing a convenient and easy-to-install solution for maintaining your filter system.
-
Durable and Long-Lasting Construction – Made from high-quality, durable materials, this lateral assembly is built to withstand long-term use, ensuring clean and clear pool water for years to come.
- (1) Hayward SX310DA2 Lateral Assembly
- Hayward Pro Series S310T Filters
