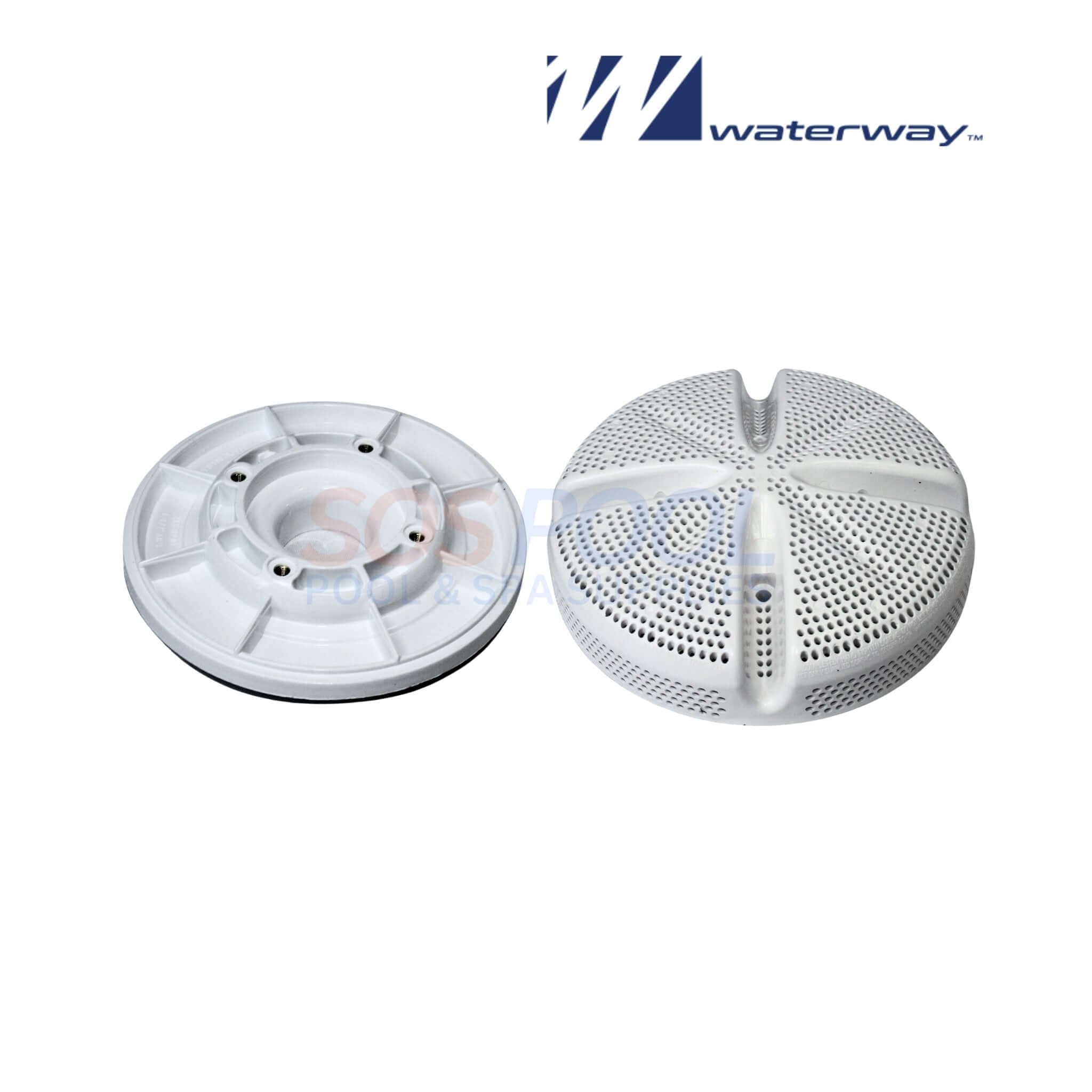

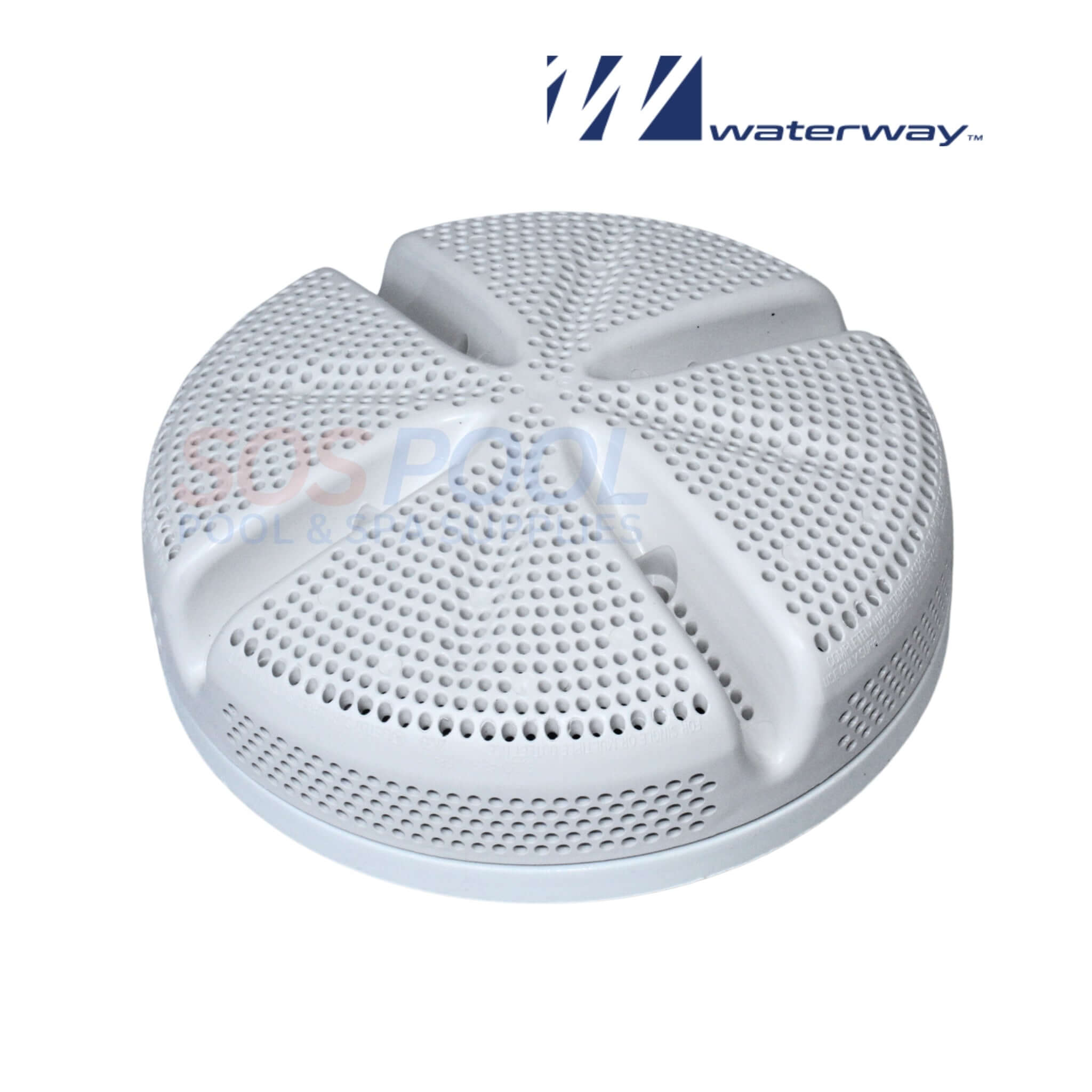

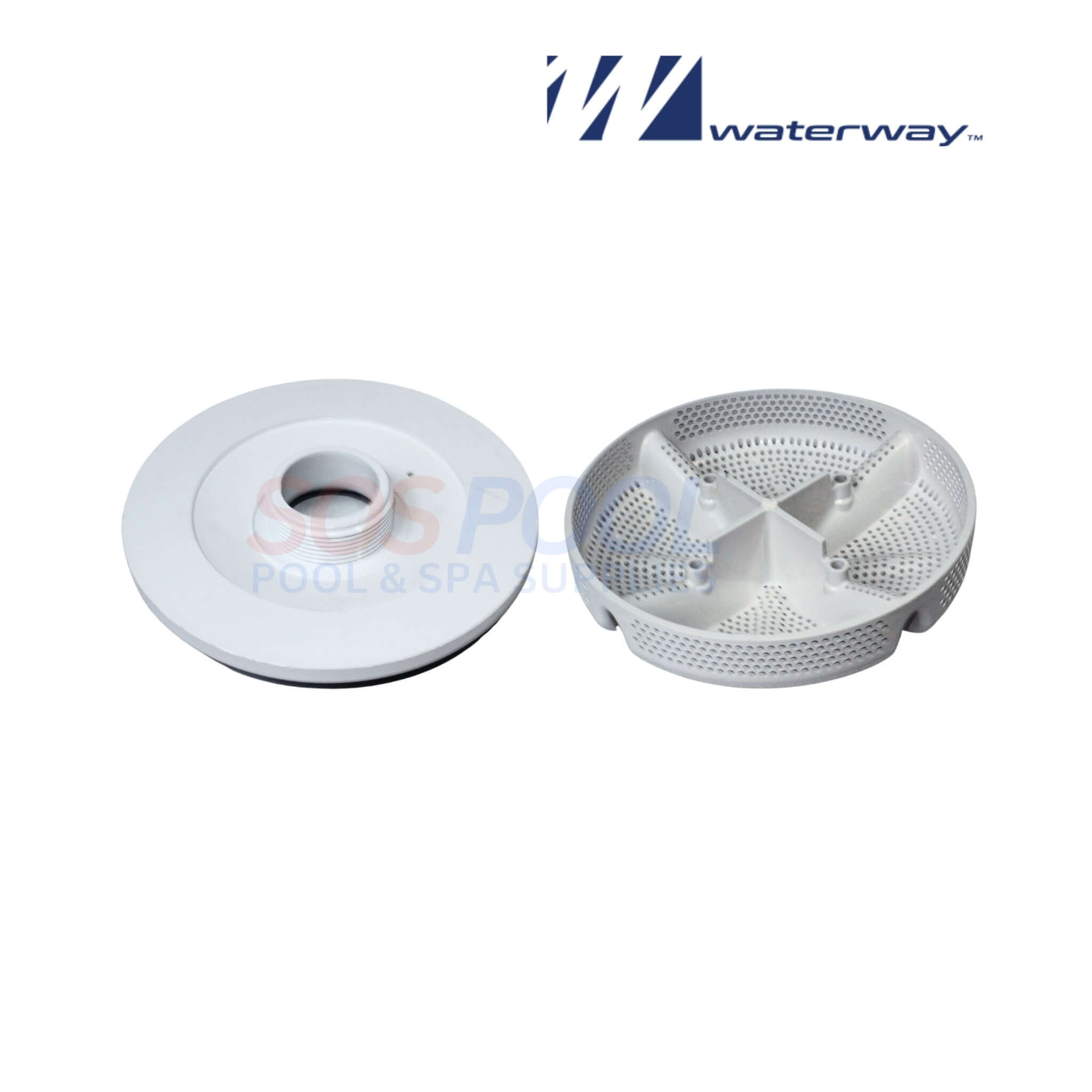

The Waterway Ultra Suction 6" Wall Fitting with a 1.5" threaded connection 640-8240V is designed for versatile use in a variety of pool and spa applications, including Gunite, Fiberglass, Vinyl, Tile, and Steel pools and spas. Its sumpless design eliminates the need for a sump body, making it a highly adaptable and straightforward solution. Made from NSF-rated PVC, it ensures durability and compatibility with standard PVC cements.
-
Versatile Use: The Waterway Ultra Suction 6" Wall Fitting 640-8240V is designed for a variety of pool and spa applications, including Gunite, Fiberglass, Vinyl, Tile, and Steel pools and spas, offering broad compatibility.
-
Sumpless Design: Its innovative sumpless design eliminates the need for a sump body, making it a highly adaptable and straightforward solution for various installation needs.
-
Durable Construction: Made from NSF-rated PVC, this wall fitting ensures long-lasting durability and reliability, withstanding the rigors of pool and spa environments.
-
Easy Installation: The 1.5" threaded connection is compatible with standard PVC cements, ensuring a secure fit and making the installation process simple and efficient.
-
Enhanced Compatibility: Designed to work seamlessly with standard PVC cements, this wall fitting ensures a strong and secure connection, enhancing the overall performance and safety of your pool or spa system.
- Total Open Area: 10.2 sq. in.
- Floor Flow Rate: N/A
- Wall Flow Rate: 191 GPM @ 6.02 ft/sec with 215-8200 & 215-8230
- Wall Flow Rate: 136 GPM @ 4.30 ft/sec with 215-8220 & 215-8210
- Wall Flow Rate: 77 GPM @ 2.43 ft/sec with 215-8240 & 215-8250
- Flow Rate @ 1.5 ft/sec: 47 GPM
