Waterway 1.5HP Executive Spa Pump 115V | 3420610-1A

The Waterway Executive 48 Pump 3420610-1A delivers strong, dependable two-speed performance for spas that require both high-flow turnover and quiet, low-energy circulation. Its one-point-five horsepower, one hundred fifteen volt motor provides powerful water movement on high while operating at approximately four-point-one amps on low for efficient daily circulation. Built on a 48-Frame through-bolt platform with two inch suction and discharge unions, the pump fits most standard spa plumbing configurations. The rotatable six-and-a-half inch wet end allows installers to reposition the discharge in ninety-degree increments for alignment flexibility. Constructed with corrosion-resistant components and full thermal protection, the 3420610-1A is engineered to handle the chemical, heat, and pressure demands of residential or commercial spa systems.

Highlights

• Two-Speed One-Point-Five Horsepower Motor: Provides high-speed power near thirteen-point-three amps and a quieter, efficient low-speed mode around four-point-one amps.

• 48-Frame with Two Inch Unions: Standard suction and discharge ports support wide compatibility with most spa equipment setups and plumbing runs.

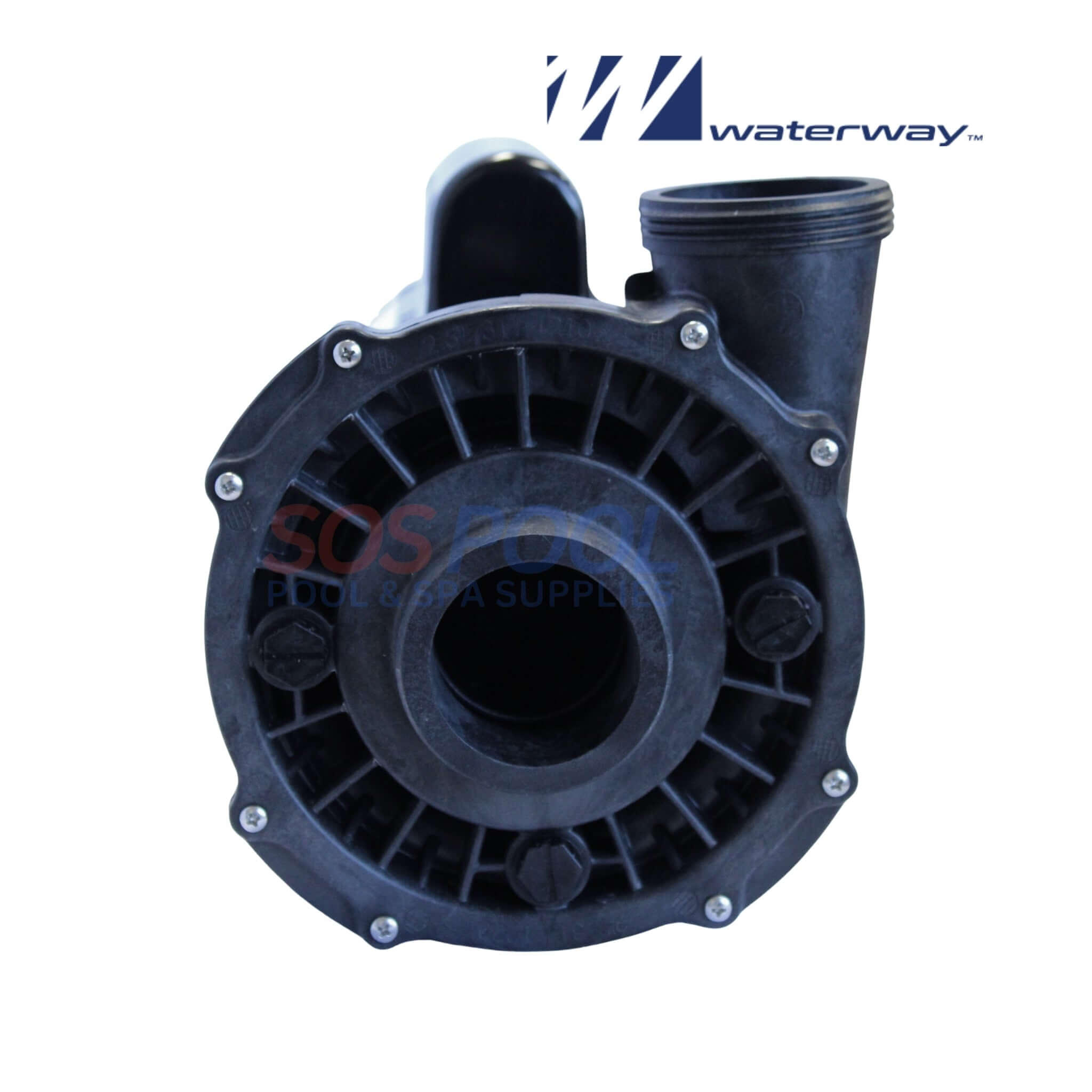

• Adjustable Wet End Orientation: Six-and-a-half inch wet end rotates in ninety-degree increments to accommodate varied installation layouts.

• Thermally and Chemically Resilient: Built for spa use with materials designed to handle heat, sanitizer exposure, and extended duty cycles.

• High-Pressure Spa Flow Performance: Provides reliable movement for heating circuits, jet manifolds, and filtration loops under elevated head pressure.

Additional Info

This section helps online shoppers verify electrical needs, plumbing compatibility and installation planning for the Waterway Executive 48 (3420610-1A). It also explains what to inspect when the pump arrives from SOSPool.com.

Fitment Confirmation, Power Requirements & Plumbing Size

The Executive 48 fits standard 2″ plumbing and uses a 115 V, 48-Frame two-speed motor. These answers help online buyers confirm the correct model before ordering.

How do I verify that this pump matches my old one?

Check your current pump’s label for 1.5 HP, 115 V, 48-Frame, and two-speed capability. Matching these specs ensures correct replacement.

Will the 2″ suction and discharge ports match my existing unions?

Yes — this model uses the same standard 2″ union dimensions found on most modern spas.

Can the wet end be rotated for easier installation?

Yes — it rotates in 90° increments to accommodate different plumbing directions.

Two-Speed Function, Flow Behavior & Operating Expectations

These questions explain what to expect once the pump is installed.

What is low-speed used for?

Low speed supports heating, filtration and quiet circulation at approximately 4.1 amps.

What is high-speed used for?

High speed produces strong jet pressure and rapid water movement at about 13.3 amps.

Is the pump thermally protected?

Yes — built-in thermal overload protection helps prevent motor damage during heavy use.

Shipping, Arrival Inspection & Setup Preparation

These answers help customers prepare for installation after receiving their pump.

How is the pump packaged for online shipping?

It ships in protective foam and reinforced boxing to safeguard the motor, wet end and unions.

What should I inspect when the pump arrives?

Check for cracks on the wet end, verify union threads, inspect the motor shell and make sure the housing has no shipping damage.

Is it ready to install right away?

Yes — once wiring and unions are connected per manufacturer guidelines, the pump can be placed into operation.
