Swimables Thermal Regulator Kit For Pentair MasterTemp and Max-E-Therm Heaters | 77707-0010 | SW-41-010
Fits these models (9)
+5 more models
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

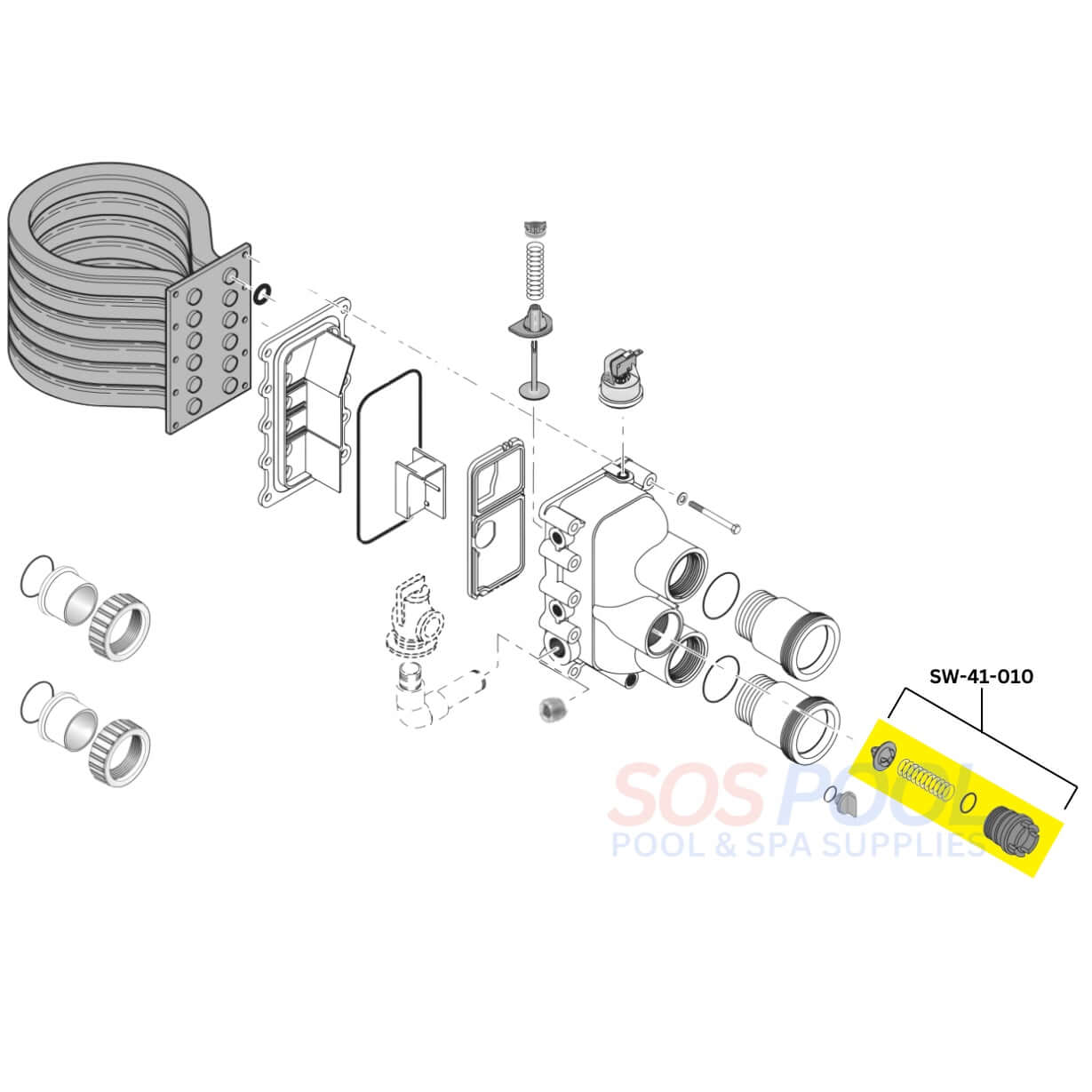

On the Pentair MasterTemp 125 461059 Heater diagram
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 125 461059 Heater
A thermal regulator and an internal bypass regulate the water flow through the heat exchanger to maintain the correct outlet temperature. The heater operator control panel board assembly is located on top of the heater. The thermal regulator kit is specifically crafted for use with Pentair Sta-Rite Max-E-Therm pool and spa heaters, offering compatibility with Pentair MasterTemp pool and spa heaters as well. The kit includes a spring clip and other necessary components. It serves as a reliable thermal regulator replacement kit.
- Efficient Water Flow Regulation: The thermal regulator and internal bypass work together to regulate water flow through the heat exchanger, maintaining the correct outlet temperature for optimal performance.
- Control Panel Integration: The heater operator control panel board assembly is conveniently located on top of the heater, allowing for easy access and operation.
- Precision Designed: Specifically crafted to fit Pentair Sta-Rite Max-E-Therm pool and spa heaters, ensuring perfect compatibility and seamless integration with MasterTemp models as well.
- Comprehensive Kit: Includes a spring clip and other necessary components for a complete and reliable thermal regulator replacement, ensuring smooth installation and operation.

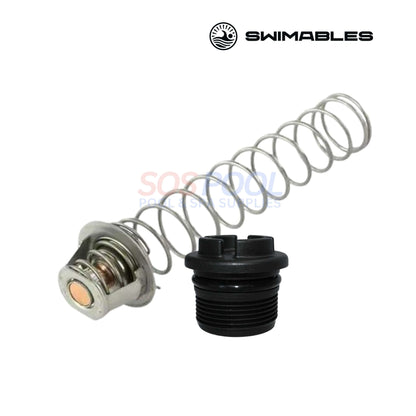

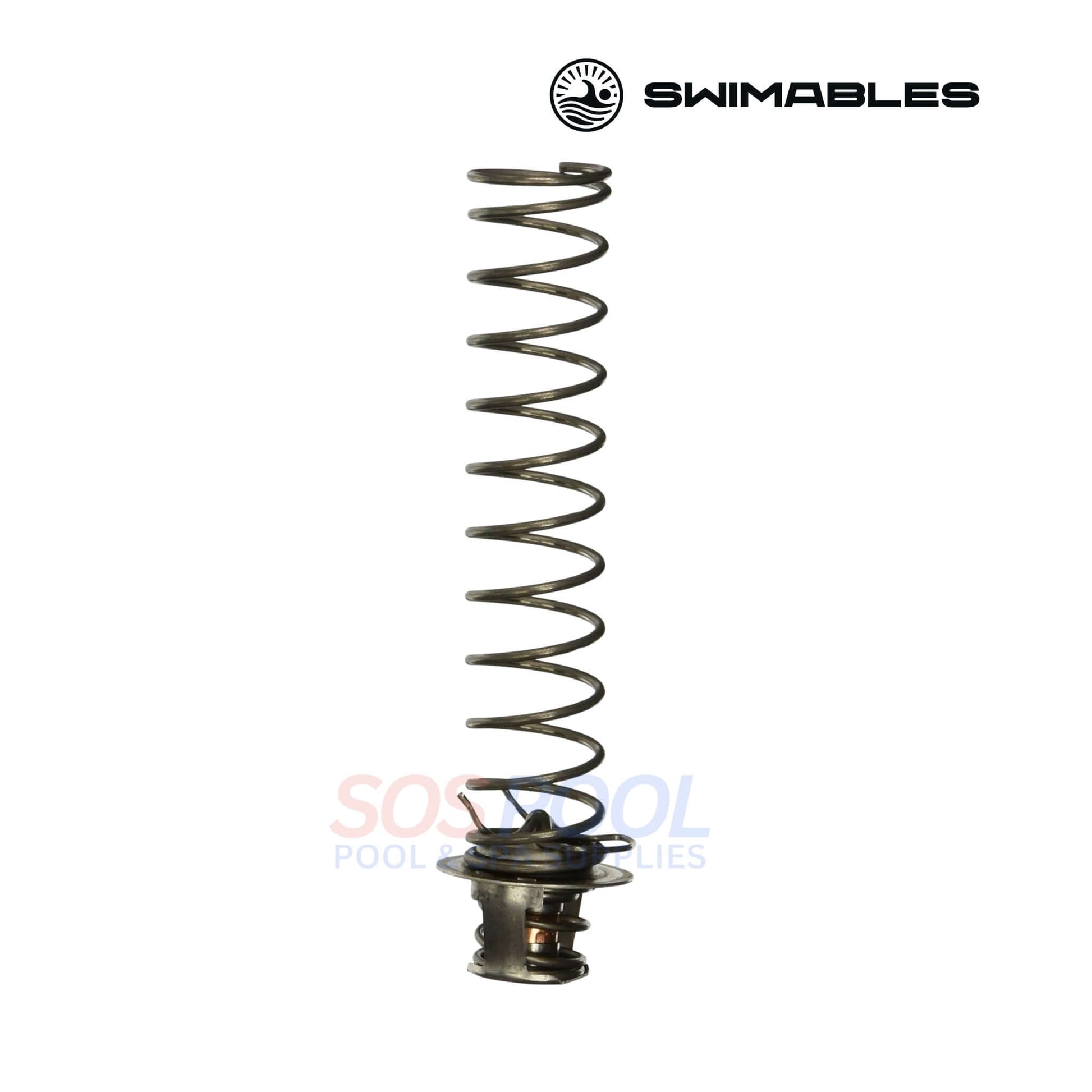

- (1) Swimables Thermal Regulator
- (1) Swimables Thermal Regulator Spring
- (1) Swimables Spring Clip
- (1) Swimables Connector
- Compatible with most Pentair MasterTemp and Max-E-Therm heaters, please refer to your systems owners manual to ensure compatibility.
