Hayward Tristar VS 950 Pump | 2.7HP | SP32950VSP

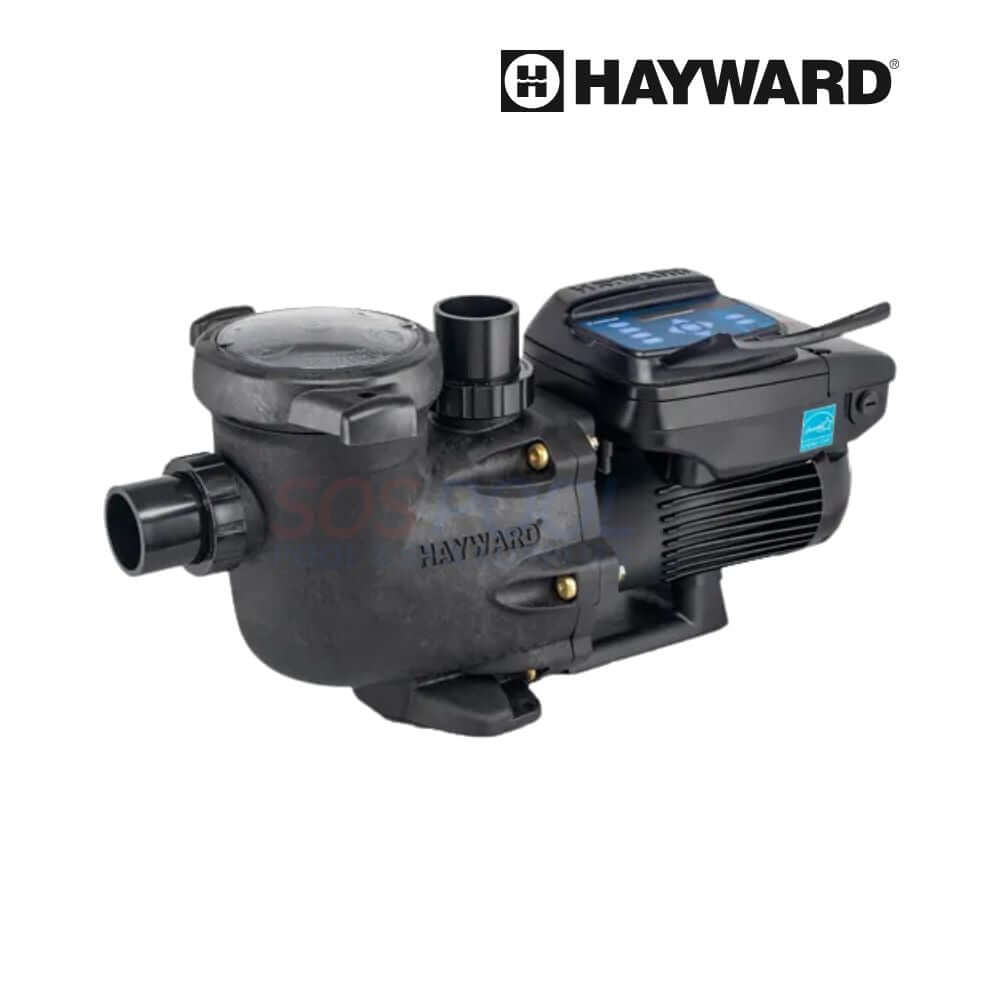

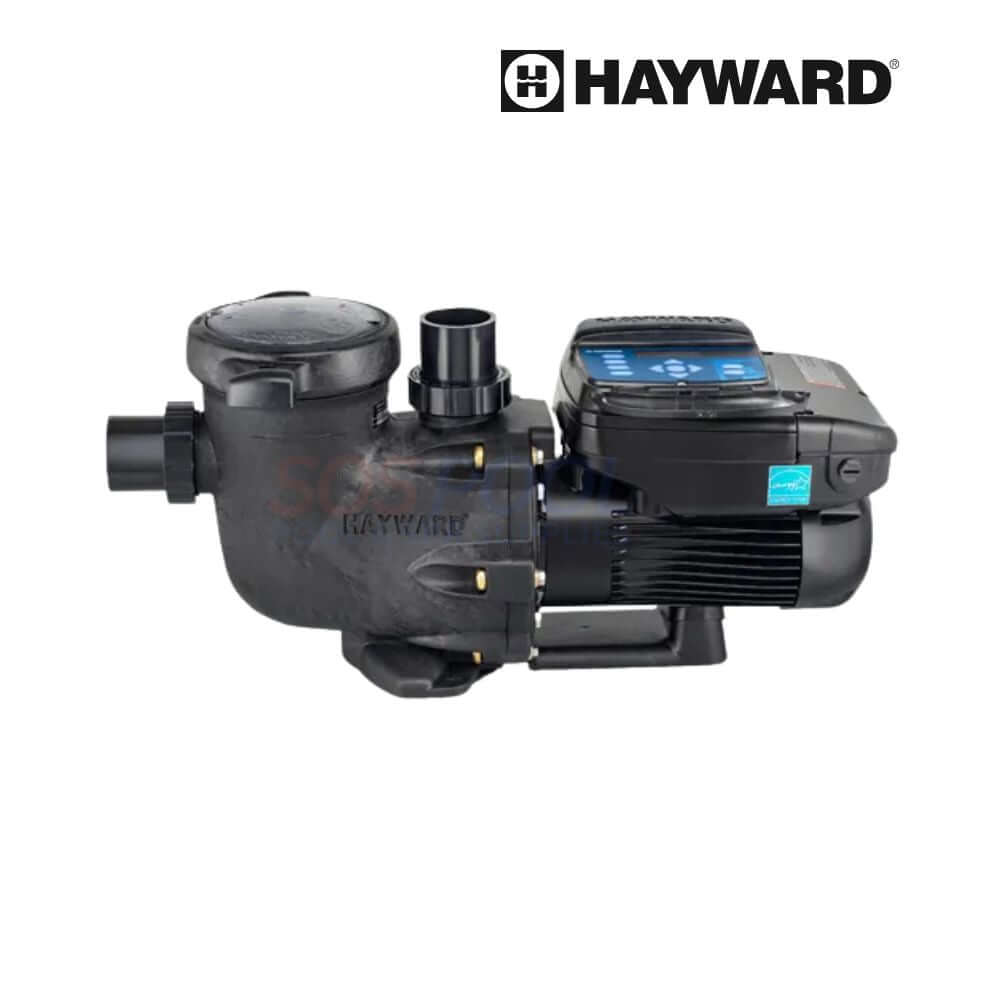

Hayward Tristar VS 950 Variable Speed Pump

The Hayward TriStar VS 950 (SP32950VSP) is optimized for high-efficiency performance, powerful flow, and adaptable installation. Its 2.7 total horsepower permanent magnet motor supports both 115V and 230V connections, delivering excellent circulation while minimizing electricity use. With WEF ratings of 10.1 (115V) and 7.3 (230V), this ENERGY STAR® listed model can lower utility bills by as much as $1,500 per year, making it one of the most cost-effective pumps in the high-performance category.

Easy-Clean Basket with Clear Lid: The no-rib strainer basket and see-through cover make it simple to check for leaves and debris—no need to open unless necessary.

Whisper-Quiet High-Speed Mode: Precision motor enhancements reduce noise by up to 30%, creating a more peaceful backyard environment.

High-Output Hydraulic Design: Delivers powerful flow performance suitable for replacing pumps up to 3 HP, with improved energy efficiency.

Adjustable Wall Controller: Mountable touchpad rotates in four directions for flexible access and convenient operation.

Universal Voltage Access: Rear and side conduit entries support both low and high voltage setups, simplifying the installation process.

Long-Life Motor Engineering: The permanent magnet motor in a sealed TEFC enclosure offers exceptional efficiency and reliability year after year.

This model is designed for seamless fitment in both new and existing setups. It comes with 2” x 2.5” CPVC unions, two pump base styles, and both side and rear conduit ports for easy wiring. Unlike other large horsepower pumps that often require electrical modifications, the dual-voltage setup allows for straightforward retrofitting without upgrading the breaker or panel.

The VS 950’s hydraulic engineering delivers strong, consistent water movement and easily matches the output of traditional 3.0 HP pumps. The strainer basket has no internal ribs and includes a clear cover for easy visibility, allowing fast and clean debris removal. A Viton® seal provides strong chemical resistance, helping to extend operational life even under tough water chemistry conditions.

Its TEFC motor design ensures smooth, quiet running during all programmed speeds. The digital control pad can be rotated or mounted on a wall, giving users flexible access to programming and monitoring. You can set custom speeds, adjust runtime schedules, and track energy usage in real time. It can run on its own or connect to Hayward’s automation platforms for smart system integration.

Supported by a 3-year extended warranty, the Hayward TriStar VS 950 provides long-term performance, top-tier energy savings, and installation versatility for large pools or setups with high-flow demands.

Key Features

Industry-Leading Efficiency That Pays for Itself

The TriStar® VS 950 sets the standard for energy-smart pool performance, cutting energy bills by up to $1,500 per year. Its ENERGY STAR® certification means more potential savings through utility rebates—making it an investment that keeps on giving.

Built Tough for Long-Term Use

Featuring a corrosion-resistant Viton® seal and backed by a robust 3-year extended warranty, the VS 950 is designed to handle harsh pool environments while delivering consistent, worry-free performance season after season.

Plug-and-Play Compatibility

Designed with the installer in mind, the VS 950 includes dual-voltage operation, adjustable bases, and 2” x 2.5” CPVC unions. Whether you're upgrading an old pump or starting fresh, setup is smooth—no expensive electrical work needed.

Energy-Efficient Motor with Dual Voltage Support
Featuring a 2.7 Total HP TEFC motor and ENERGY STAR® credentials, the VS 950 achieves WEF scores of 10.1 (115V) and 7.3 (230V), cutting energy use and saving up to $1,500 per year—all without requiring electrical service upgrades due to its dual-voltage compatibility.

• Built for High-Capacity Circulation Systems
  Perfect for replacing older pumps rated up to 3.0 HP, this unit’s advanced hydraulic build ensures dependable water movement in pools with extra features like waterfalls, attached spas, or large pipe systems.

• Versatile Setup for New Builds or Retrofits
  Comes with 2” x 2.5” CPVC unions and dual base options to accommodate varied plumbing configurations. Side, rear, and top electrical access points simplify wiring during upgrades or new installations for both voltage types.

• Quiet and Protected for Harsh Conditions
  The fan-cooled motor keeps noise to a minimum while operating efficiently. A Viton® shaft seal resists damage from salt, chlorine, and other pool chemicals, offering durability in high-use or saltwater systems.

• Programmable Control with Automation Ready Design

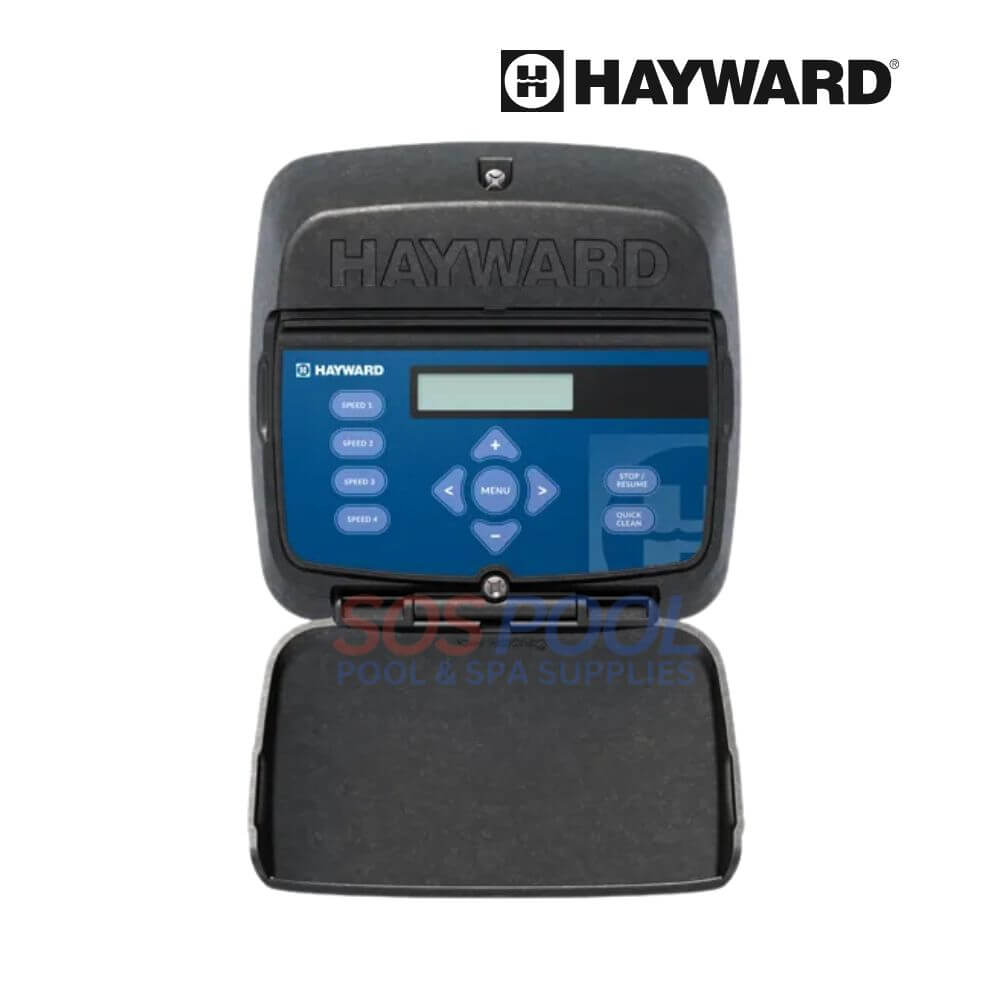

  Includes a flexible digital display that can be wall-mounted or rotated for convenience. Offers multiple speed options, scheduled run times, and live energy feedback, with support for automation systems like Hayward OmniLogic® and OmniHub™—or use it as a standalone pump.

Hayward Tristar VS 950 Specification

• Model Number: SP32950VSP

• Total HP: 2.70

• Voltage: 115/230V

• Weighted Energy Factor (WEF): 10.1/7.3

• Union Connections: 2" x 2.5"

• Warranty: 3 years
