Hayward Tristar VS 900 Pump | 1.85HP | SP32900VSP

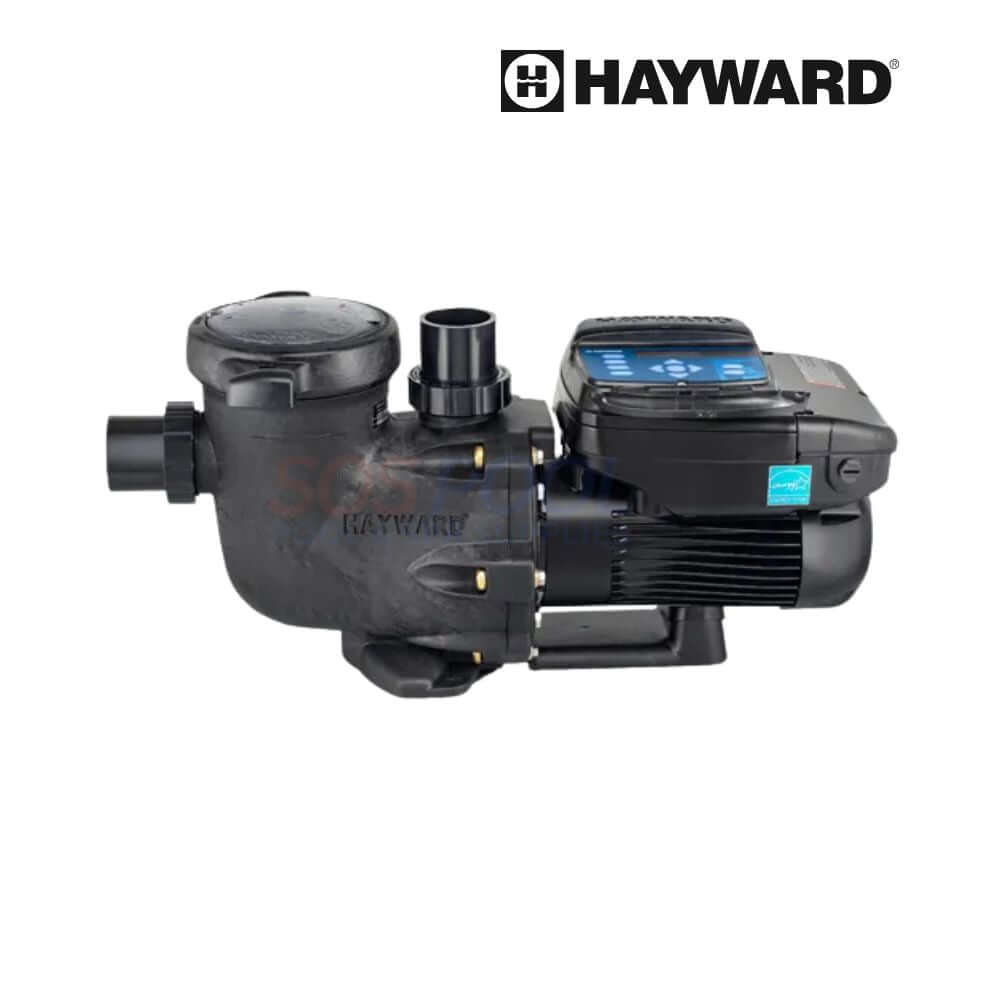

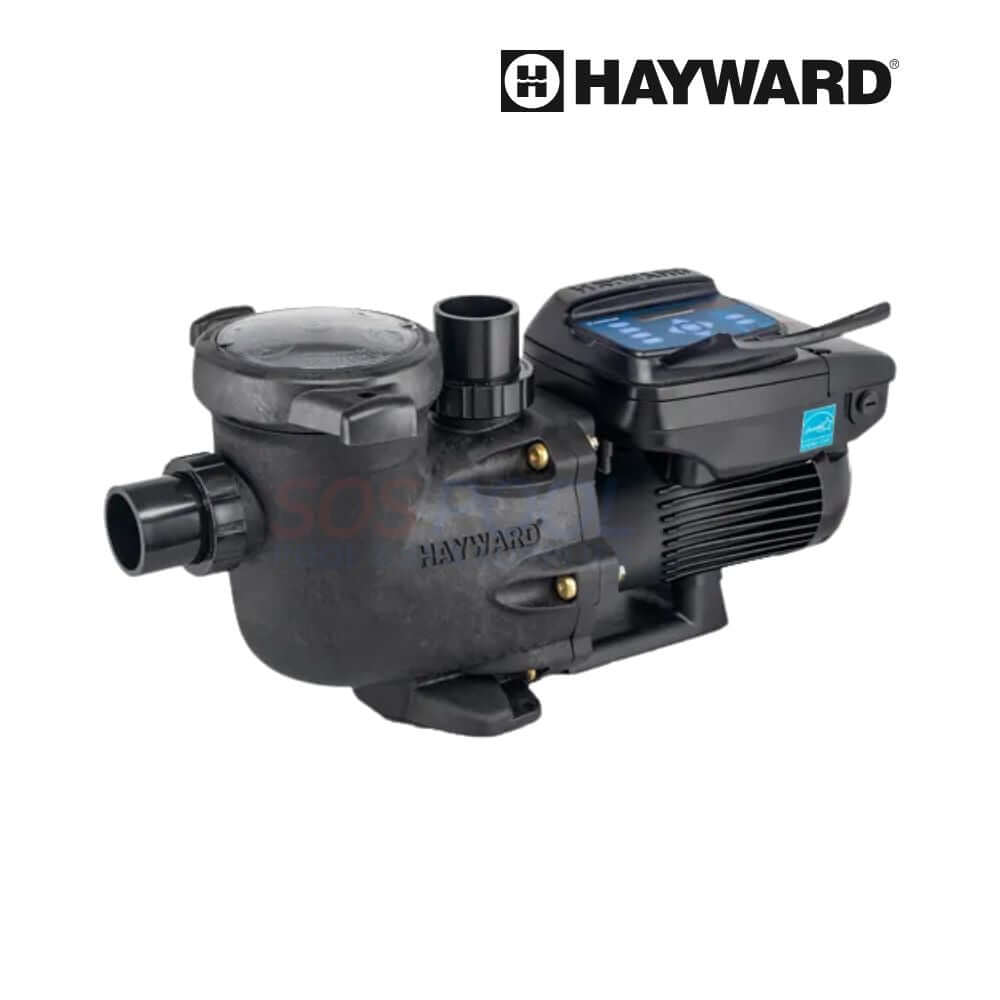

Hayward Tristar VS 900 Variable Speed Pump

The Hayward TriStar VS 900 (SP32900VSP) is a premium ENERGY STAR® rated variable-speed pool pump designed for homeowners seeking maximum energy savings without sacrificing performance. Its 1.85 total horsepower dual-voltage TEFC motor (115/230V) makes it ideal for replacing older pumps rated up to 1.5 full-rate or 2.0 max-rate HP. With leading Weighted Energy Factor scores of 12.9 at 115V and 8.3 at 230V, it can help reduce annual energy costs by as much as $1,500, depending on pool size, run time, and utility pricing.

• Easy Basket Maintenance: A rib-free debris basket with a see-through lid makes cleaning fast and hassle-free—no guesswork, no tools.
• Efficient, Quiet Motor Design: The enclosed, fan-cooled permanent magnet motor runs more efficiently and lasts longer than traditional options.
• High-Capacity Hydraulic Output: Optimized water flow delivers the power to replace pumps up to 1.5 HP full-rate or 2.0 HP max-rate models with ease.

• Mountable, Multi-Angle Control Panel: The included touchpad can be mounted to the wall and rotated four ways for comfortable access.
• Flexible Electrical Installation: Dual conduit entries at the rear and side support both high- and low-voltage hookups for streamlined setup.
• 30% Quieter at High Speed: Upgraded motor drive design significantly reduces sound at high speeds—ideal for noise-sensitive areas.

Durability and water-moving power are key strengths of the VS 900. It uses a Viton® chemical-resistant seal, precision hydraulic design, and strong flow dynamics to ensure consistent circulation in pools of varying designs. A clear lid and smooth, rib-free basket simplify cleaning by making debris removal easy. At higher speeds, the permanent magnet motor operates up to 30% quieter than similar models for a noticeably more comfortable backyard environment.

Its installation flexibility allows it to fit a variety of pad layouts. This model includes standard 2” x 2.5” CPVC unions, a choice of two pump bases, and conduit openings on both the side and rear to accommodate low- or high-voltage setups. The top-mounted wiring option further speeds up the retrofit process, whether replacing a Hayward or other brand pump.

Top-Tier Efficiency That Saves: The TriStar® VS 900 is part of Hayward’s ultra-efficient pump lineup, offering ENERGY STAR® certified performance that can cut energy costs by up to $1,500 annually. Bonus: online shoppers may qualify for local utility rebates.

Rugged & Long-Lasting Design: Engineered with a corrosion-resistant Viton® seal and backed by a 3-year warranty, this pump is built to last. Its durable build resists harsh pool chemicals for worry-free operation season after season.

Upgrade Made Easy: Whether you’re upgrading or installing new, the TriStar VS 900 fits in easily thanks to its 2" x 2.5" union connections, adjustable pump base, and convenient top-mounted wiring access—making retrofits a breeze.

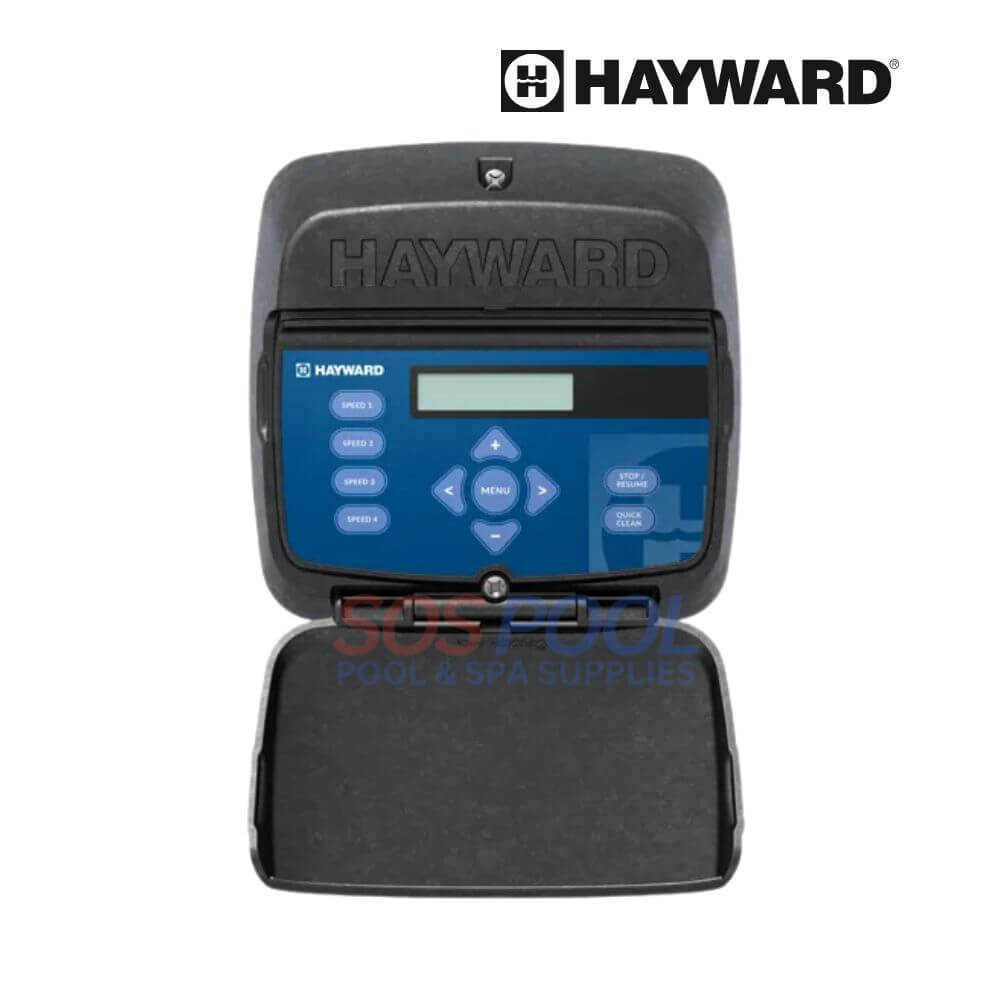

The digital control pad rotates to four positions and can also be mounted on a wall, giving users versatile access. It features programmable speed control, timer settings, and live energy-use monitoring. Integration is smooth with Hayward automation systems such as OmniLogic® and OmniPL™, and it can work with third-party systems via relay, or run independently.

With Hayward’s 3-year extended warranty included, the TriStar VS 900 offers exceptional efficiency, quiet operation, and easy maintenance. For pool owners upgrading for cost savings, convenience, or durability, this pump sets the bar for variable-speed performance.

Key Features

• High WEF for Lower Energy Costs
  Delivers 12.9 WEF at 115V and 8.3 WEF at 230V, helping pool owners save up to $1,500 annually depending on their specific operating schedule and energy rates.

• Versatile Dual-Voltage Motor
  Equipped with a 1.85 Total HP TEFC permanent magnet motor that runs on 115V or 230V, making it an ideal fit for most 1.5 full-rate or 2.0 max-rate HP pump replacements.

• Quiet Yet Powerful Circulation
  Features advanced hydraulics with a high-speed motor that operates 30% quieter than comparable pumps, ensuring strong water movement with minimal noise.

• Advanced Digital User Interface
  Includes a rotatable control pad with four viewing positions, programmable speeds, and timers, plus live energy monitoring. Works with Hayward OmniLogic® and OmniPL™ or other automation via relay.

• Easy Retrofit Capability
  Comes ready with 2” x 2.5” CPVC unions, two pump base options, and side/rear conduit entries with top wiring access, allowing quick installation on most pool pads without major changes.

Hayward Tristar VS 900 Specification

• Model Number: SP32900VSP

• Total HP: 1.85

• Voltage: 115/230V

• Weighted Energy Factor (WEF): 12.9 / 8.3

• Union Connections: 2" x 2.5"

• Warranty: 3 years
