Pour-A-Lid Float Valve | 1/2ATF
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 3 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

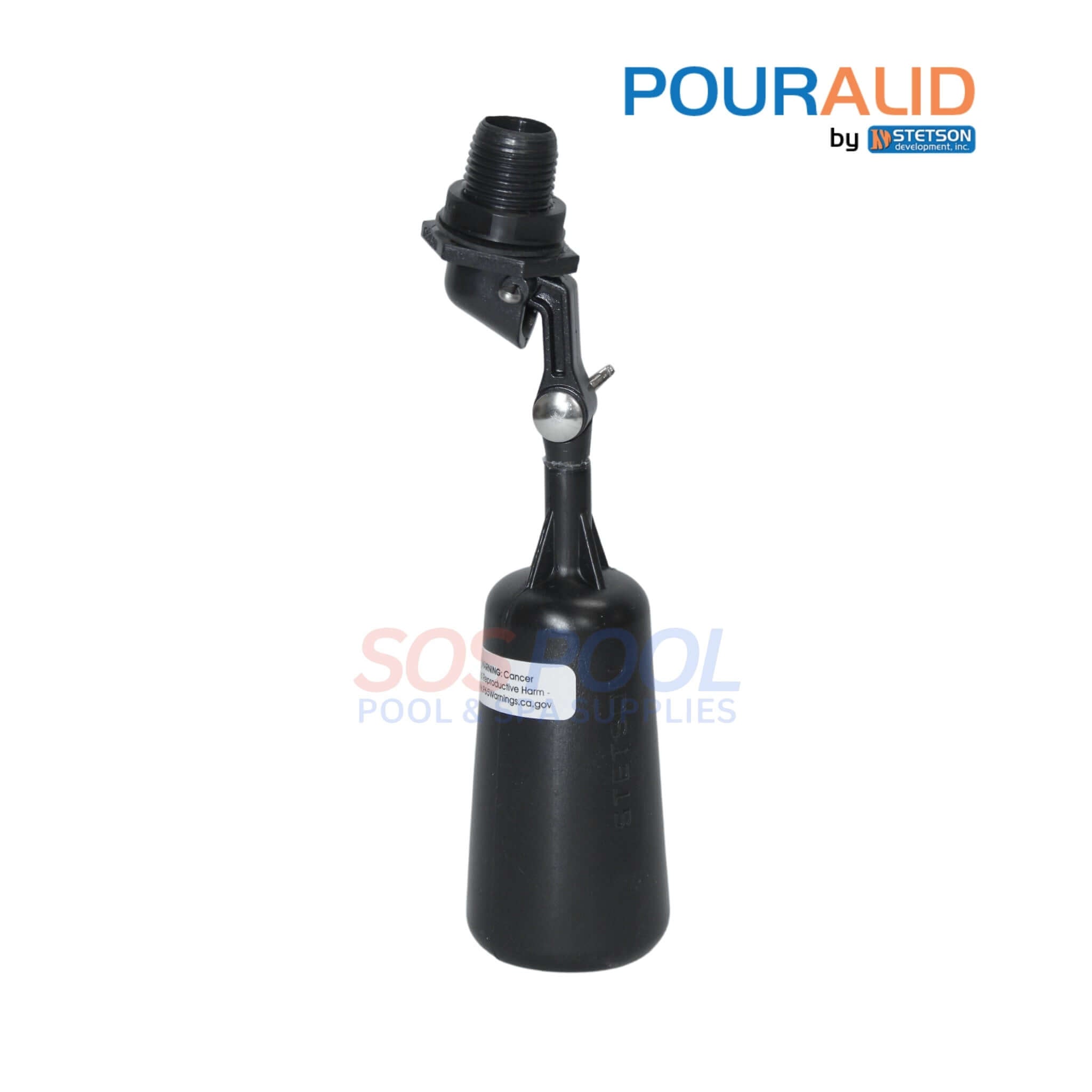

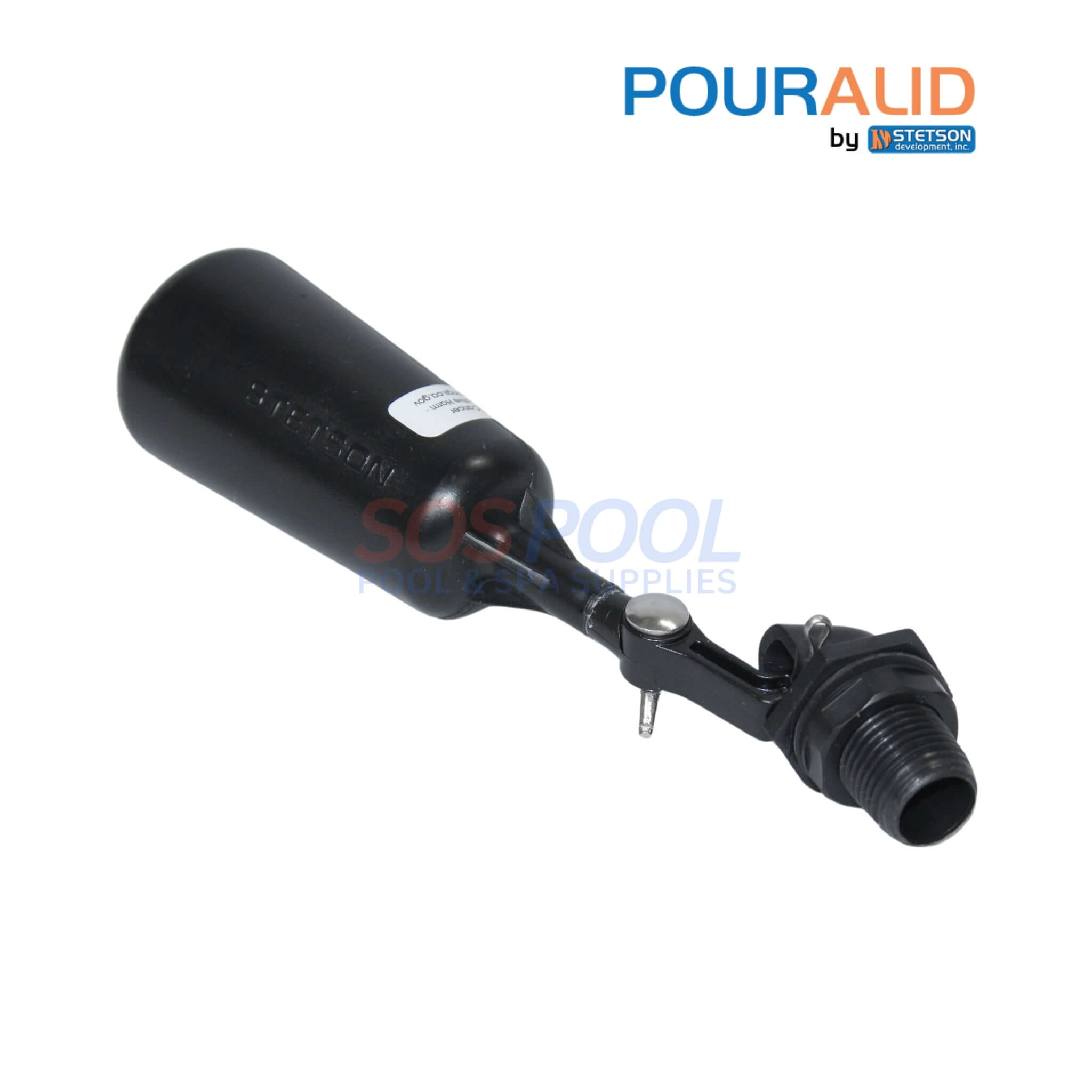

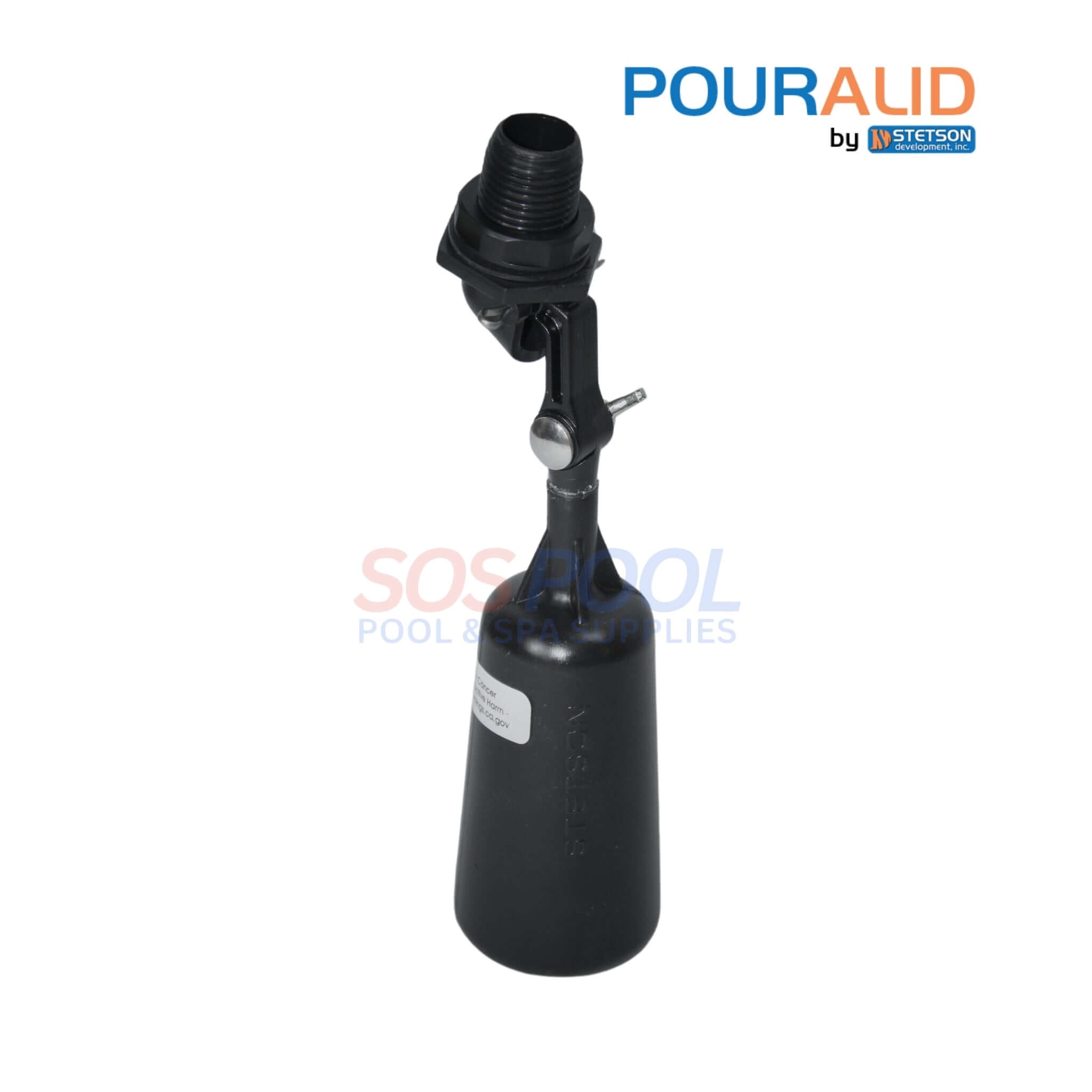

The Pour-A-Lid 1/2ATF Float Valve is designed to maintain optimal water levels in pools, ponds, and water features. It features a 1/2-inch MPT threaded inlet and a free-flow outlet, delivering an estimated flow rate of 1.5 gallons per minute at 40 PSI through a 0.093-inch orifice. Constructed with durable ABS and a PVC float, the valve has an overall length of approximately 7.5 inches, and the float measures 2 inches in diameter.
-
Efficient Water Level Control: Designed to maintain optimal water levels, this float valve ensures steady water management in various aquatic environments, reducing the need for manual adjustments.
-
1/2-Inch MPT Threaded Inlet: Features a 1/2-inch MPT threaded inlet and a free-flow outlet, delivering a flow rate of 1.5 GPM at 40 PSI through a 0.093-inch orifice, supporting effective water regulation.
-
Durable ABS and PVC Construction: Constructed with robust ABS and a PVC float, the valve is built for long-lasting performance, providing durability in demanding conditions.
-
Compact and Versatile Design: With an overall length of approximately 7.5 inches and a 2-inch float diameter, this valve offers a compact, versatile solution for various water maintenance setups.
- (1) Float Valve
Stetson Float Valves are easy to use when installing into Pouralid Water Level Systems or other water features. You always want to use Teflon tape on the threads and wrap the tape around the threaded nipple 5 to 6 times, then the float will thread into the water feature. To tighten it up, you can wrap it up in a rag and tighten. The hood scoop on the valve should face down with the float arm coming out and up. Loosen the wing nut by using your finger to lift the float arm up into the off position and set the float bottle to the 8:00 or 9:00 o’clock position. After filling stops, you may need to lower or raise the float to the desired water level and tighten the wing nut.
