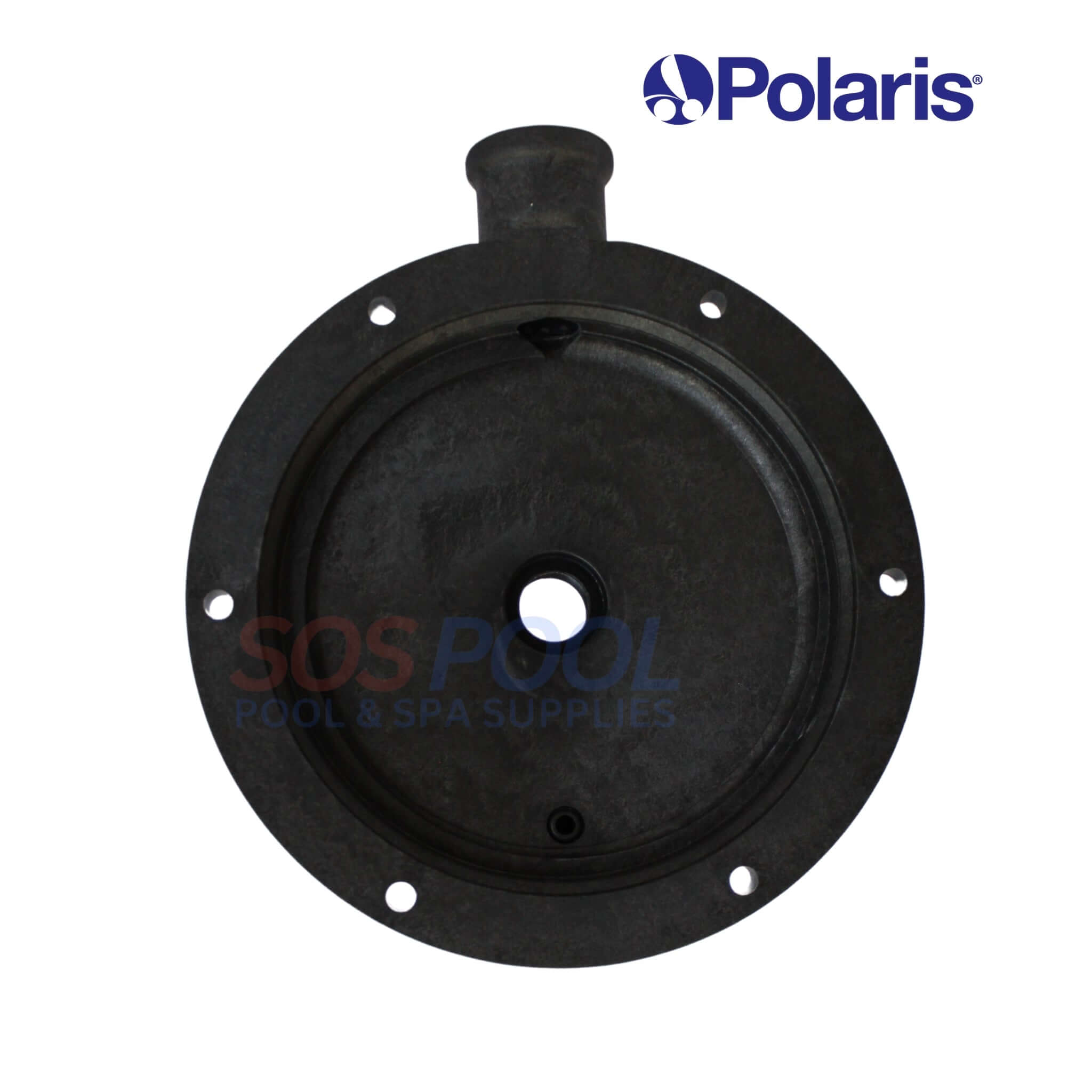

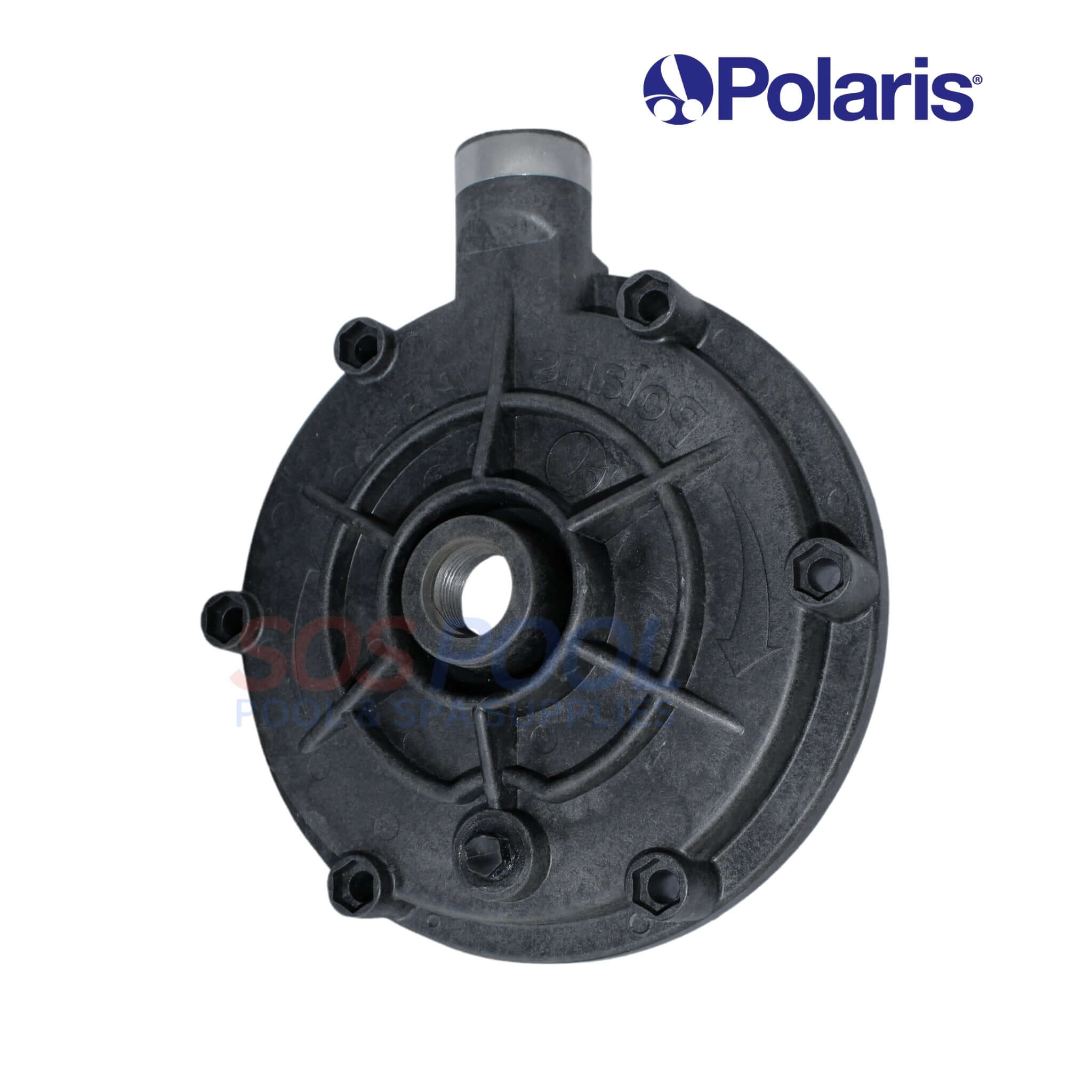

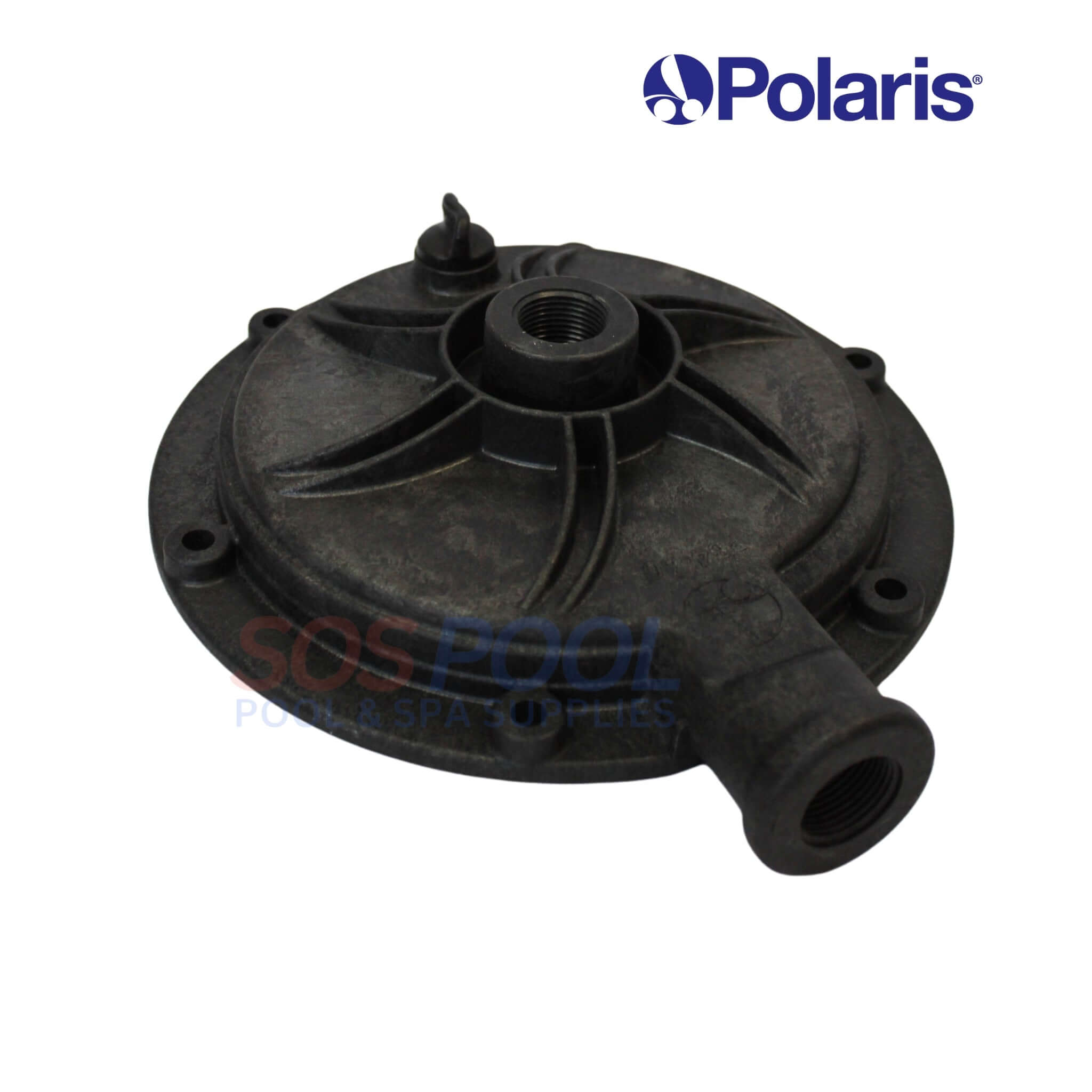

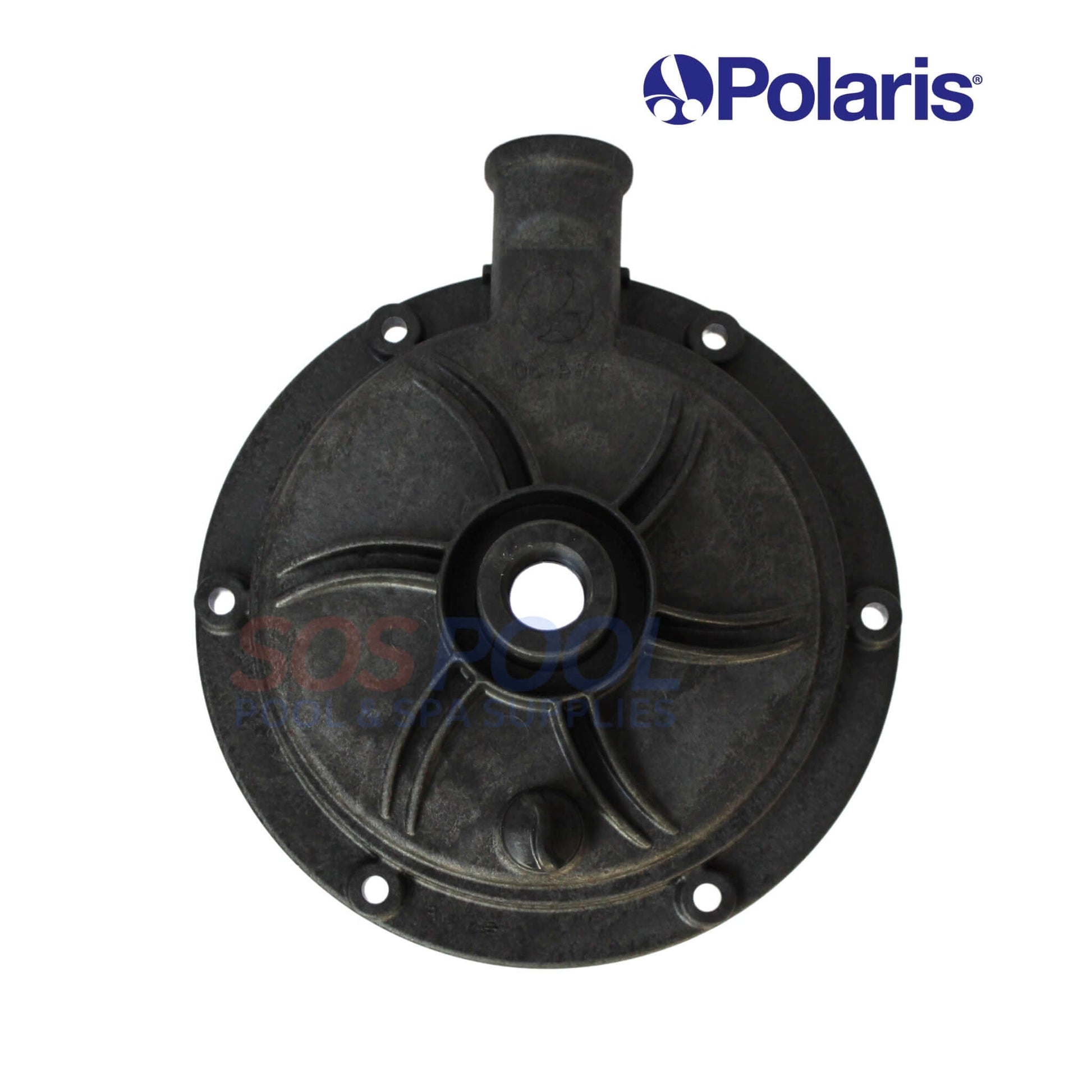

Polaris Volute For New Style PB4-60 Booster Pumps | R0536300

The Polaris Volute, model R0536300, is designed for the new style PB4-60 booster pumps. This integral part encases the impeller, effectively directing water flow to ensure the pump operates efficiently. Crafted from durable, high-quality materials, the R0536300 volute offers exceptional longevity and performance. Replacing a worn or damaged volute with this updated model helps maintain optimal pump functionality and ensures your pool cleaning system continues to keep your pool water clean and clear.

Highlights

• New Style Design: Specifically crafted for the new style PB4-60 booster pumps, ensuring perfect compatibility and optimal performance.
• Efficient Water Flow: Encases the impeller and effectively directs water flow to ensure the pump operates efficiently, which is crucial for pool cleanliness.
• Durable and Long-Lasting: Made from high-quality, durable materials, the R0536300 volute offers exceptional longevity and reliable performance under regular use.
• Maintains Pump Functionality: Replacing a worn or damaged volute with this updated model helps maintain optimal pump functionality, avoiding disruptions in your pool cleaning system.
• Ensures Clean Pool Water: Ensures that your pool cleaning system continues to operate efficiently, keeping your pool water clean and clear.

Installation

1. Remove quick connect fittings and flexible hose. (R0617100), (R0621000), (P19)

Loosen quick Connector nut,  pull hose free from barbed fitting, loosen barbed fitting and remove from the inlet or outlet port of the pump.
2. Install quick connect fittings and flexible hose. (R0617100), (R0621000), (P19)
• Apply 4 to 6 wraps of PTFE (Teflon®) tape to the tapered thread of the connector barb.

• Thread and tighten the tapered thread of the connector barb into the inlet or outlet port on the pump body.

• Trim the reinforced hose to the required length. Make sure the cut is clean and square. Avoid unnecessary loops or bends in the hose.

• Slide connector nut onto the trimmed end of the hose with threaded end toward the cut end of the hose.

• Apply water to connector barb to help hose slide over barbs. Push trimmed edge of hose fully onto the connector barb.

• Slide/Rotate the connector nut to the barb to engage threads correctly, do not cross thread connector nut. Tighten the connector nut until threads are no longer visible (gap about 1/8” or just less than the width of two dimes), or until it touches the barb face.

Compatibility

• Polaris Newest Style PB4-60 Booster Pumps (Manufactured after serial PB120111001 or 2011)

Additional Info

OEM Volute for Polaris PB4-60 Booster

buy r0536300 volute for pb4-60 booster pump

polaris volute housing part for pool booster

online volute replacement for impeller flow

oem volute fits pb4-60 manufactured post 2011

booster pump housing part available online

Keeps Water Flow Efficient and Controlled

restore booster flow with new volute housing

fix worn volute in polaris booster setup

direct water properly with oem pump part

online volute improves booster pressure flow

ships free for pb4-60 volute replacement

Durable Housing for Long-Term Use

high-quality volute part for booster pumps

oem polaris r0536300 long-life pump housing

volute housing for consistent pool performance

online booster part improves cleaner results

built to last booster housing ships fast

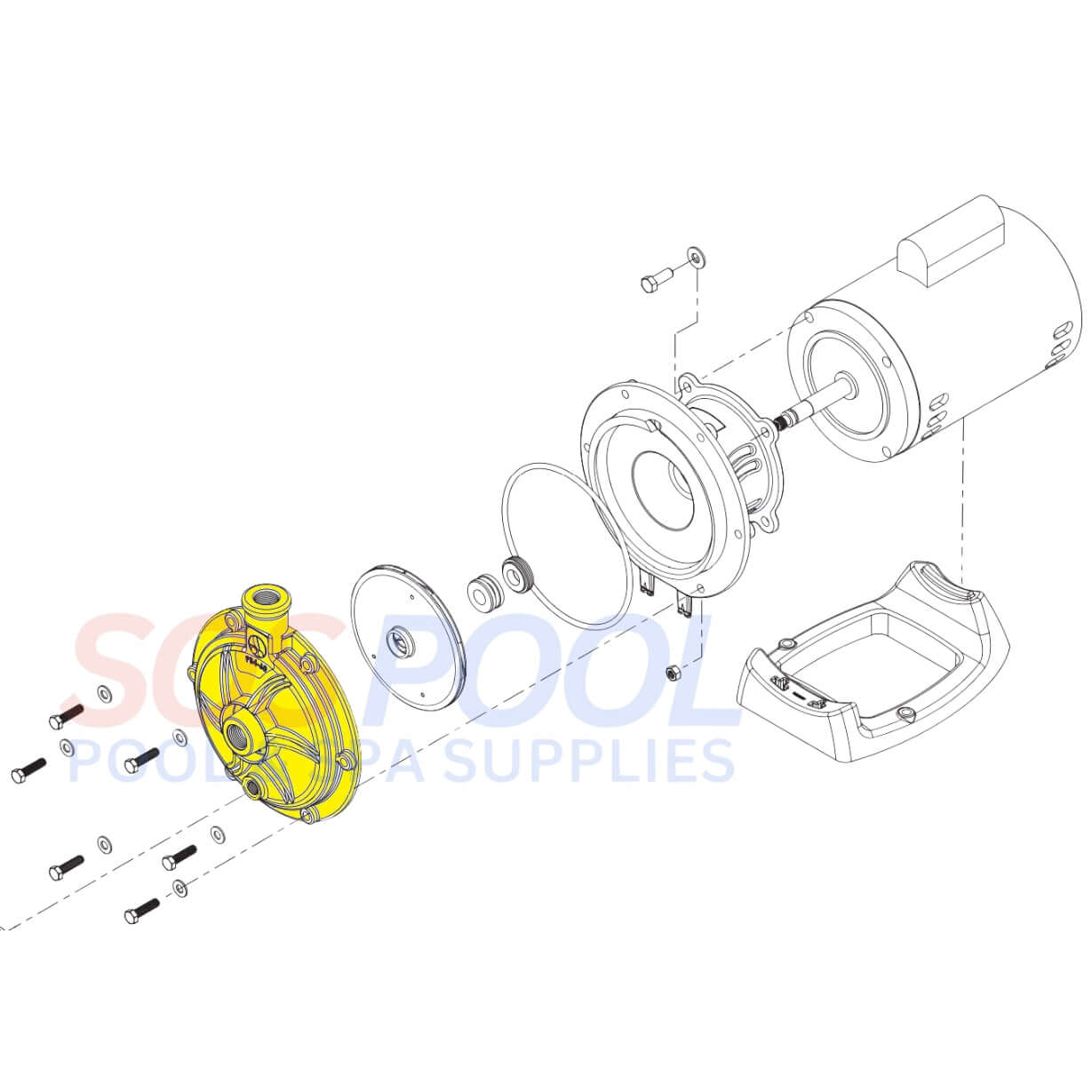

Diagram
