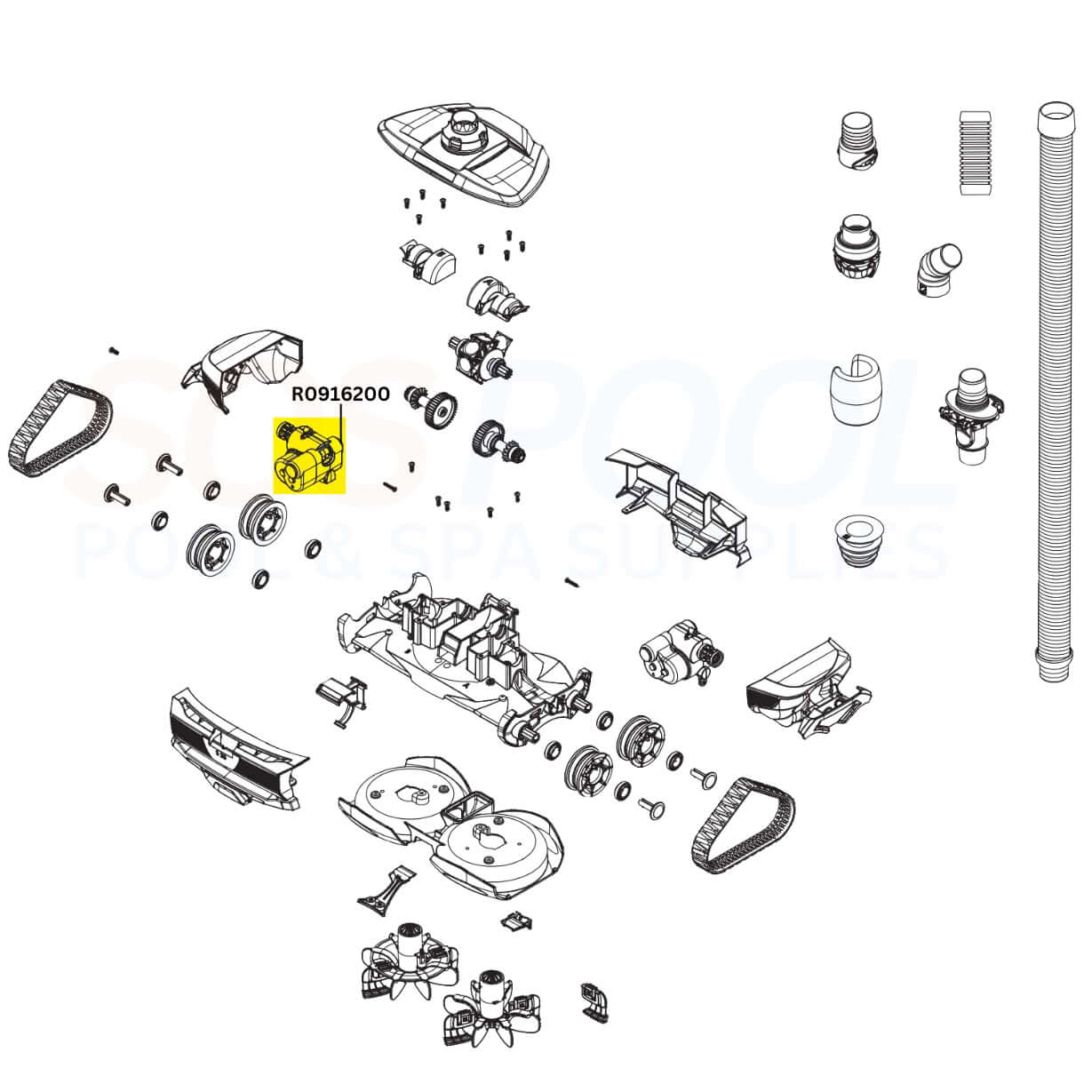

On the Polaris Atlas Suction Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Polaris Atlas Suction Cleaner

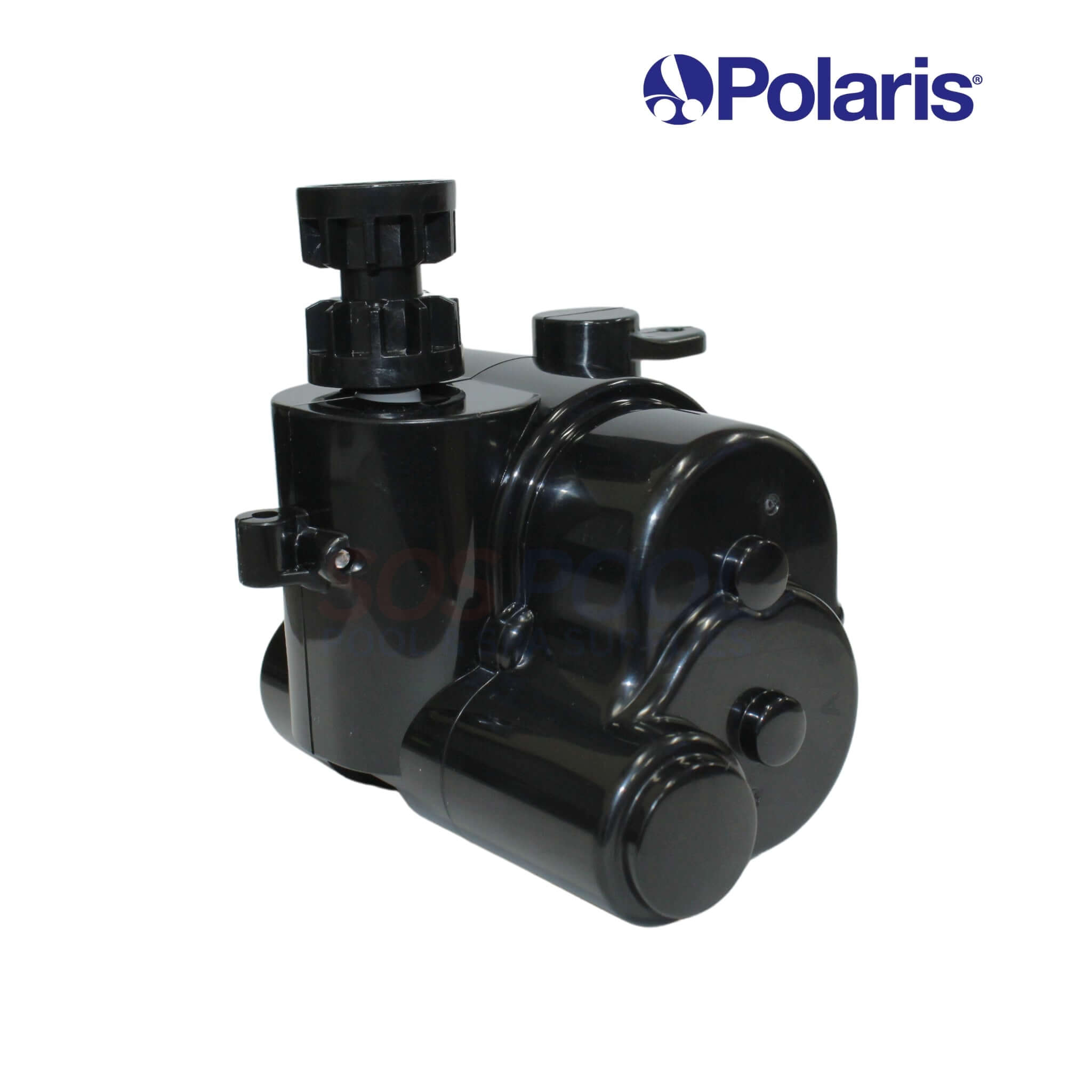

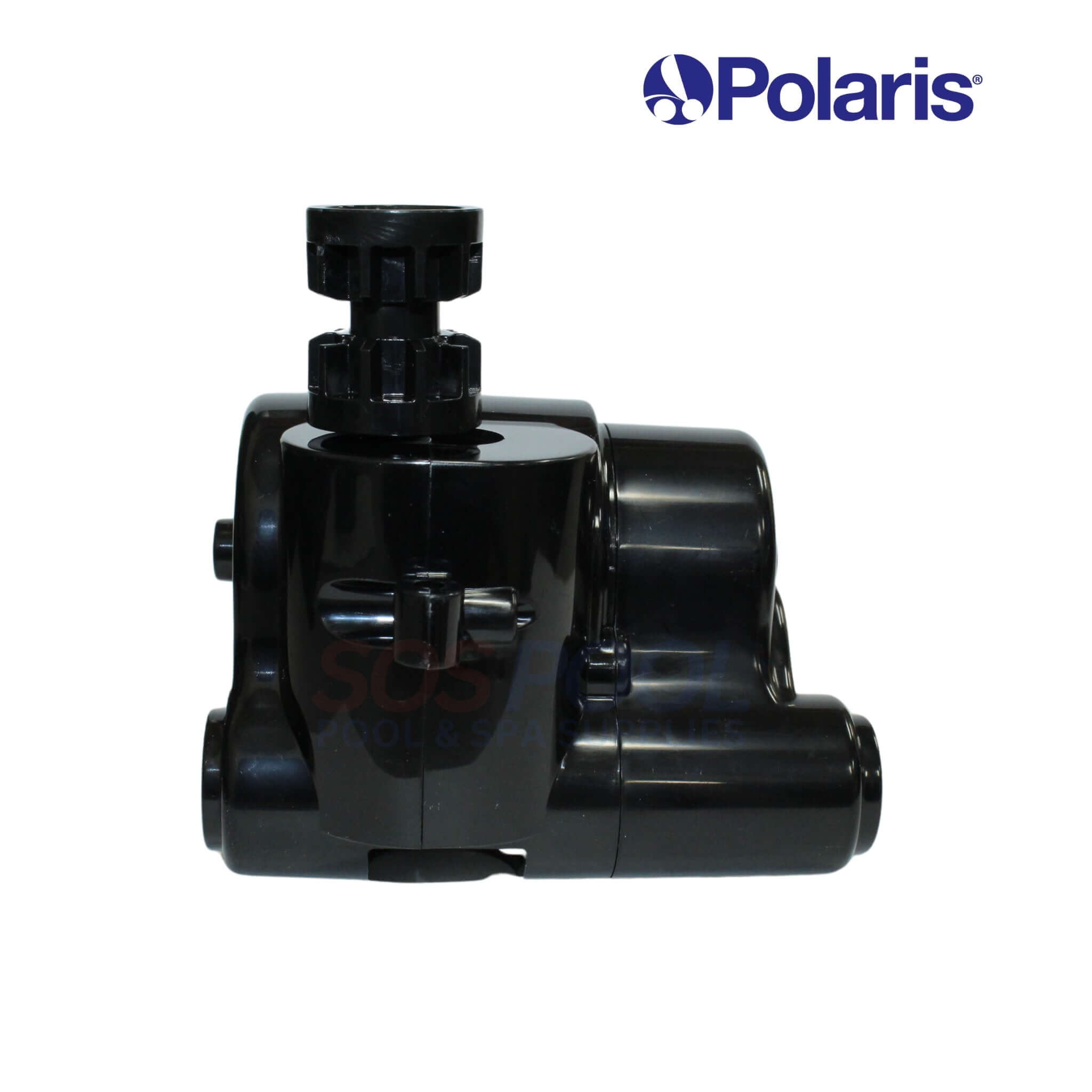

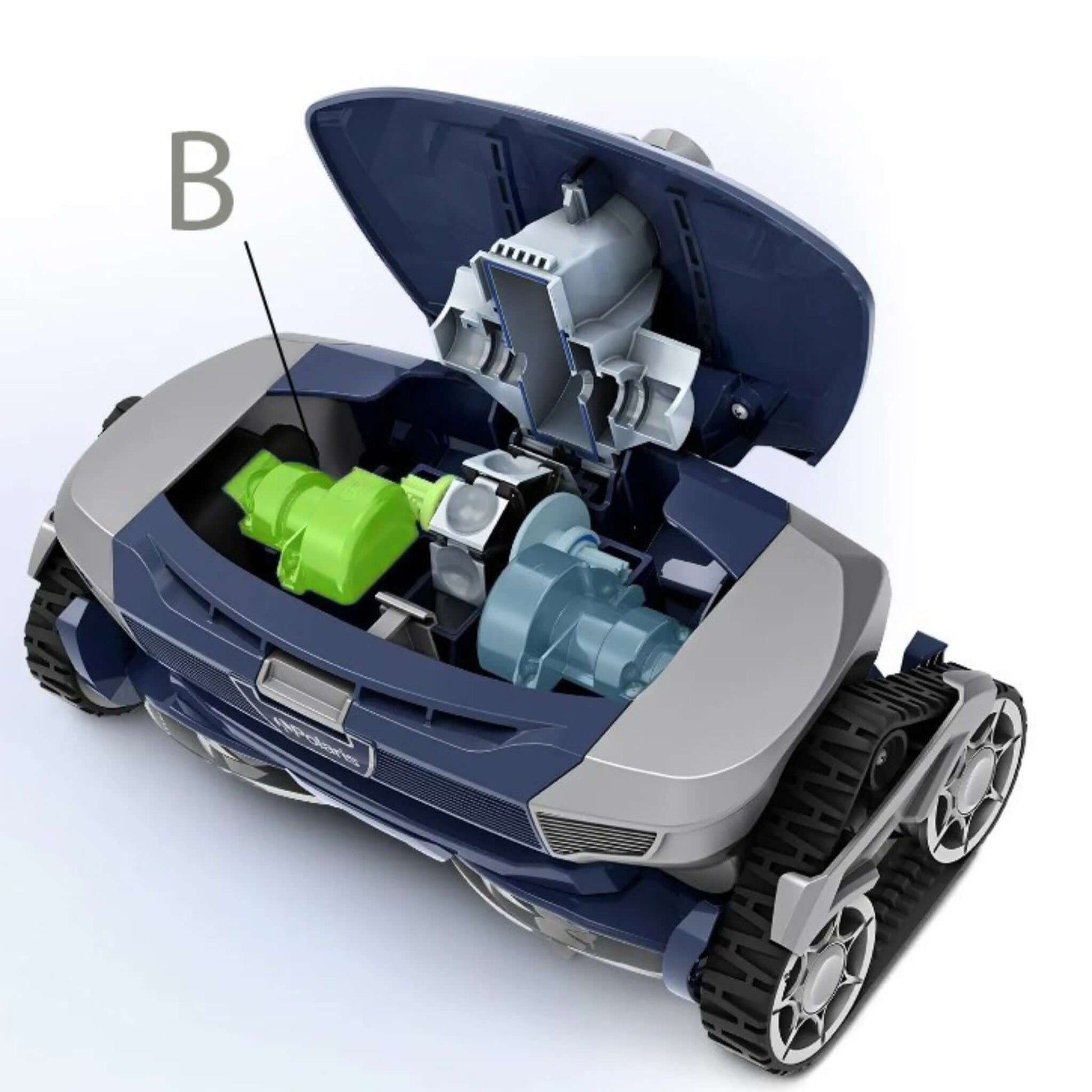

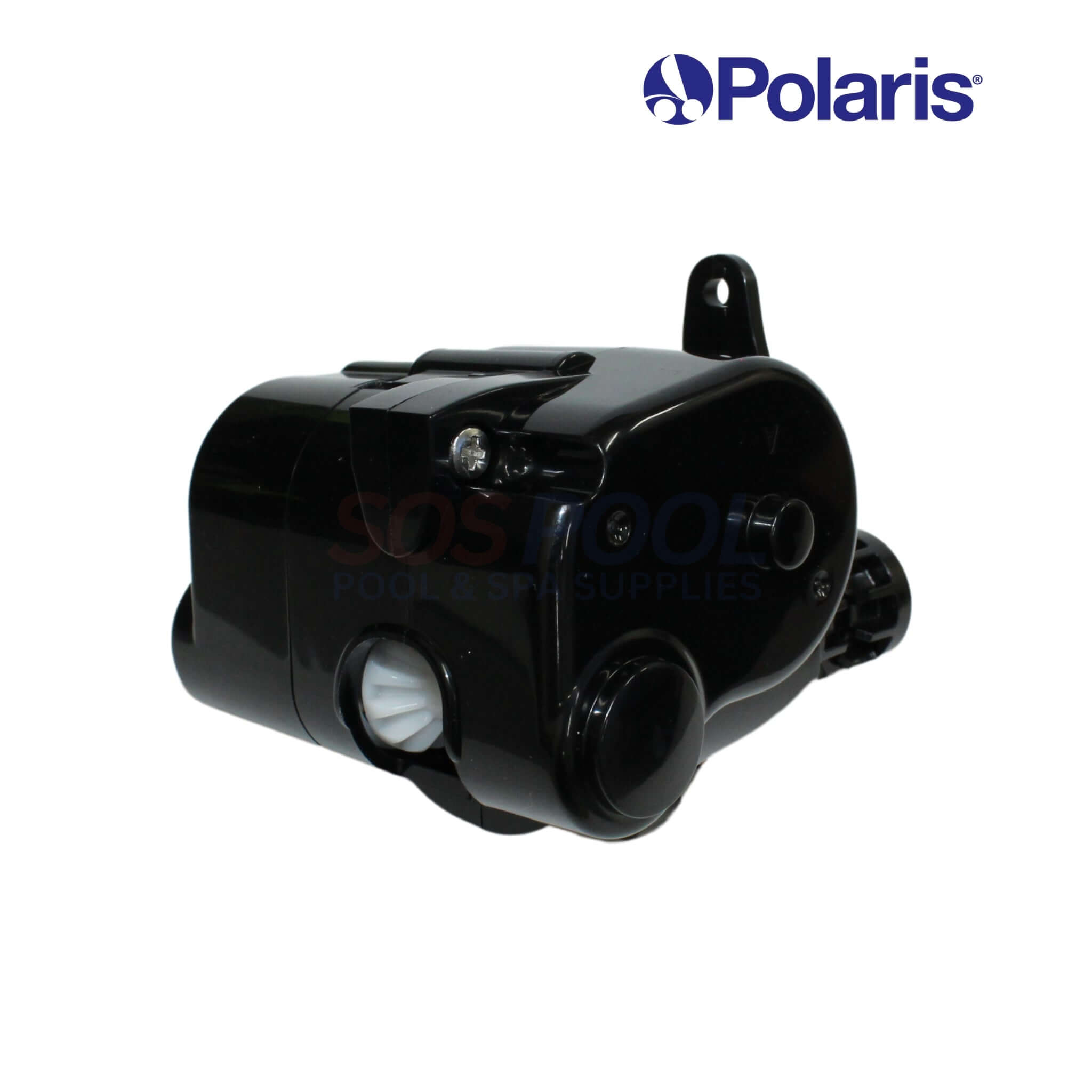

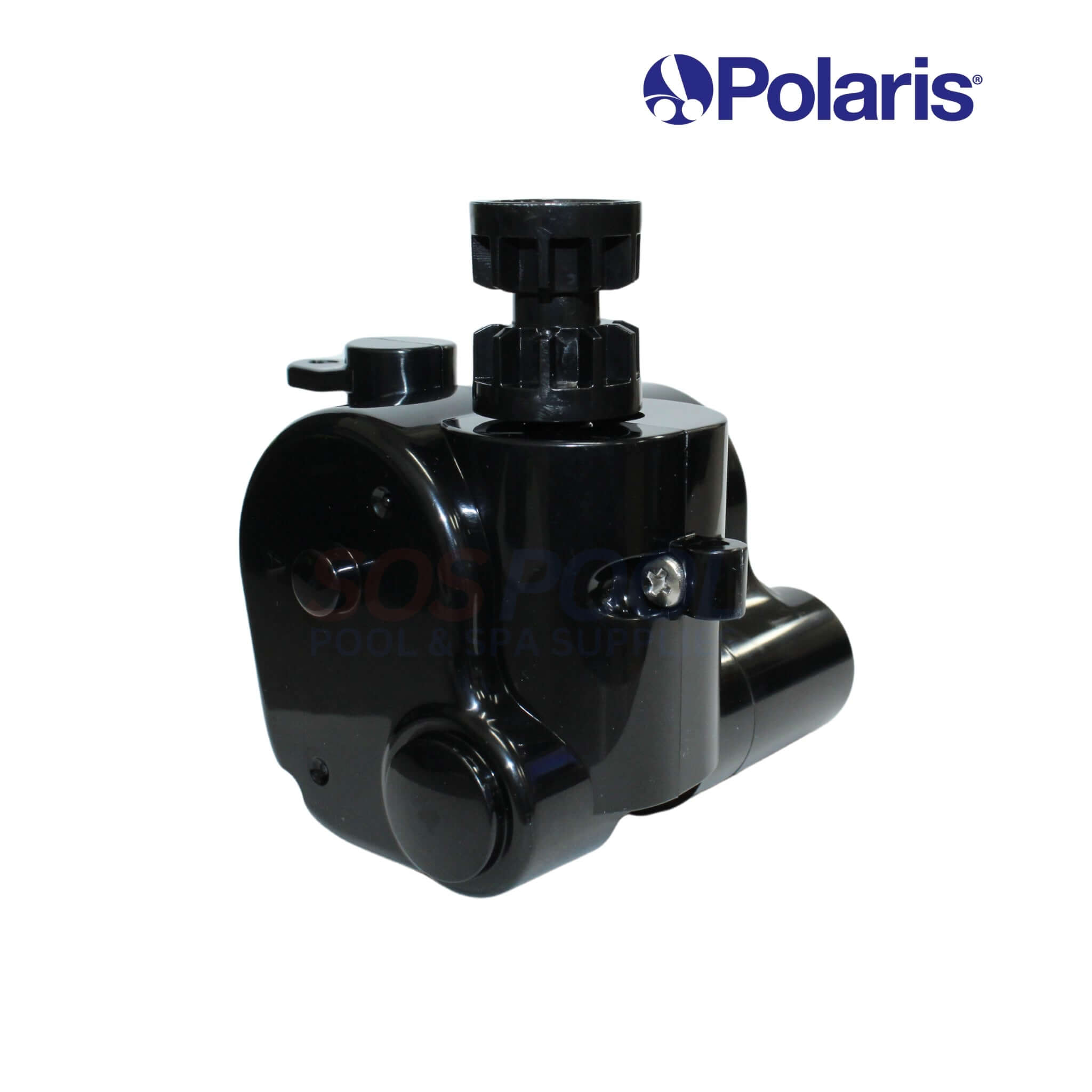

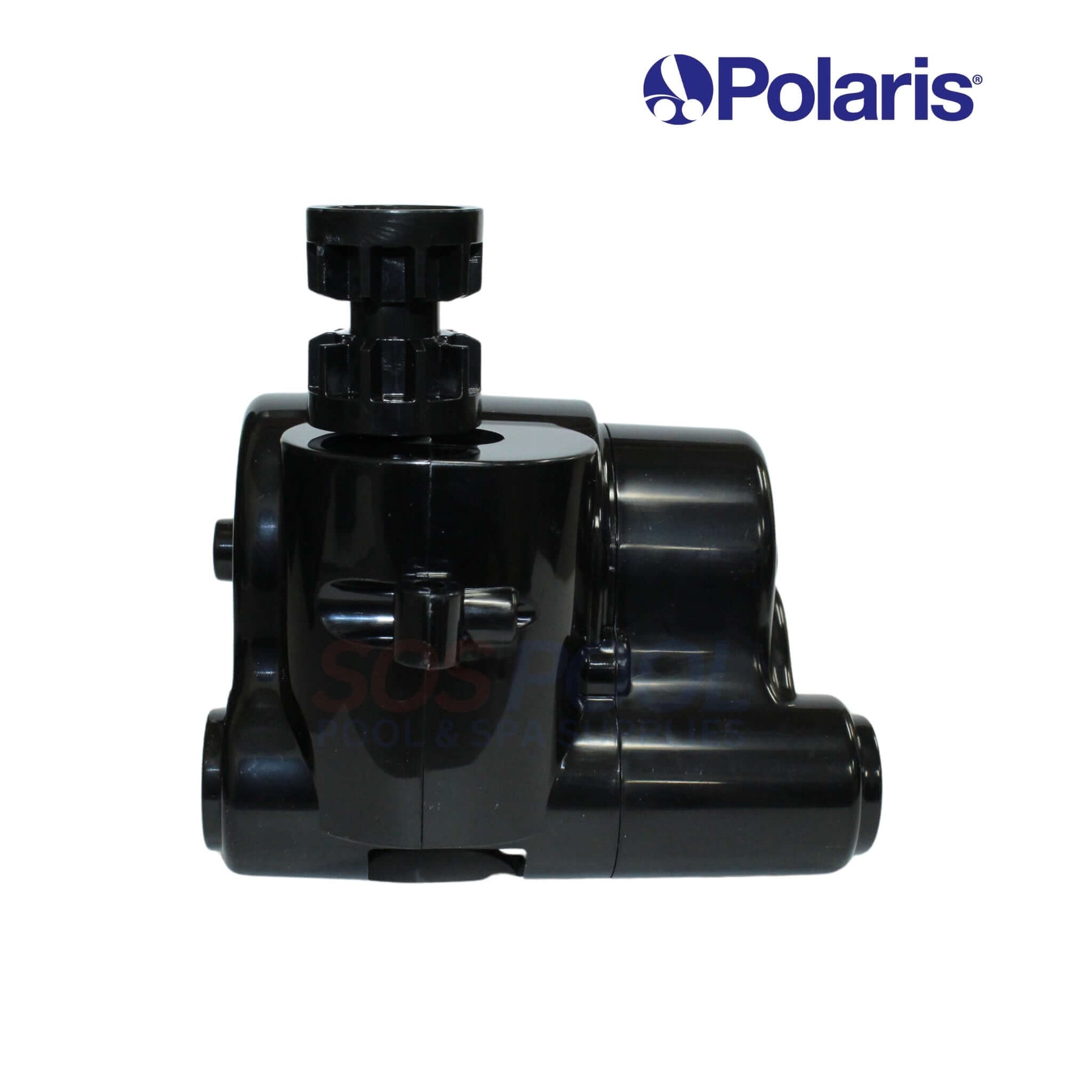

The OEM Polaris Direction Control Device R0916200 for Atlas and Atlas XT pool cleaners is a genuine replacement part designed to ensure optimal performance and precise navigation. This Side B control device is essential for maintaining the cleaner's directional capabilities, allowing it to effectively clean your pool by steering it accurately across the pool surfaces. Made from high-quality materials, it guarantees durability and reliable operation.
- Genuine Replacement Part: Specifically designed for Polaris Atlas and Atlas XT pool cleaners, ensuring perfect compatibility and optimal performance.
- Precise Navigation: Essential for maintaining the cleaner's directional capabilities, allowing it to effectively clean your pool by steering accurately across the pool surfaces.
- Durable Construction: Made from high-quality materials, providing long-lasting durability and reliable operation.
- Enhanced Cleaning Efficiency: Ensures the pool cleaner navigates precisely, covering all areas of your pool for thorough and efficient cleaning.
- Optimal Performance: Helps maintain the overall functionality and effectiveness of your pool cleaner, ensuring your pool remains clean and debris-free.
If you experience a problem with your cleaner, please follow the troubleshooting steps below to restore performance
1. If Cleaner pattern does not cover entire pool , observe cleaner for more than five (5) minutes and ensure that each drive track is periodically reversing direction.
- If not reversing direction then your Cleaner Direction Control Device not working correctly.
2. Cleaner does not move or moves slowly, check to see if any interior teeth of the tracks are worn.
- If Yes then you mast to change the Direction Control Device.
- Polaris Atlas, Atlas XT, and MAXX Cleaners
