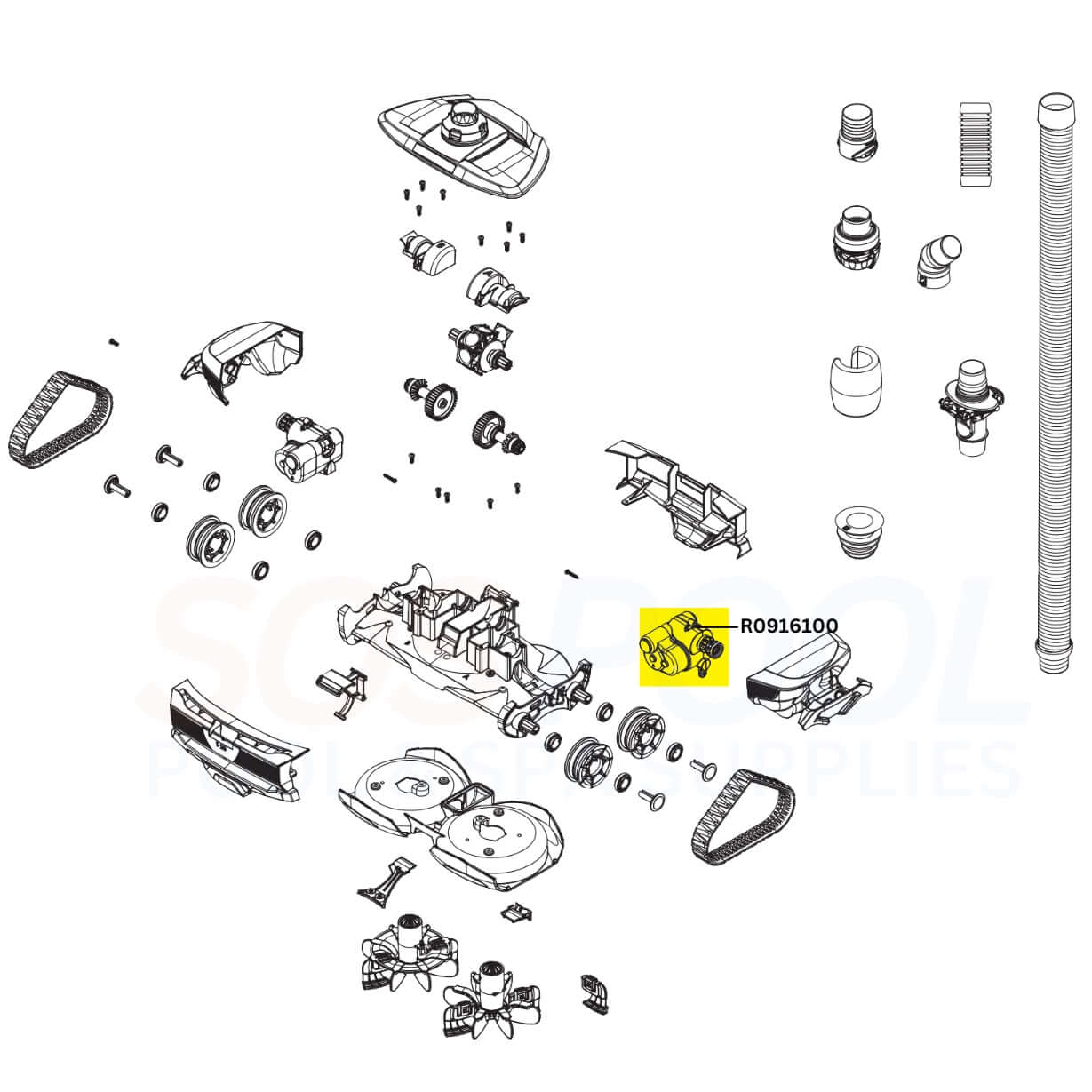

On the Polaris Atlas Suction Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Polaris Atlas Suction Cleaner

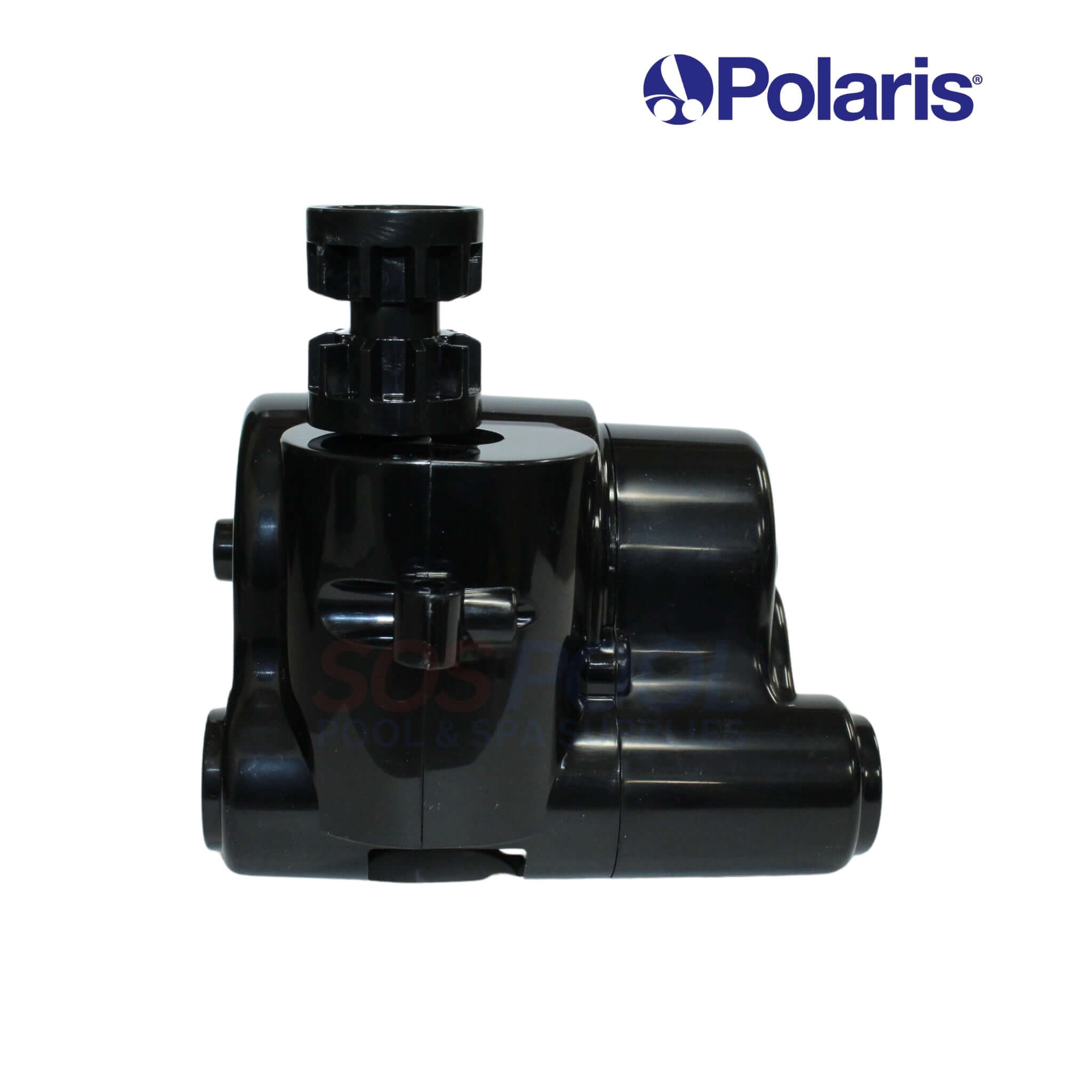

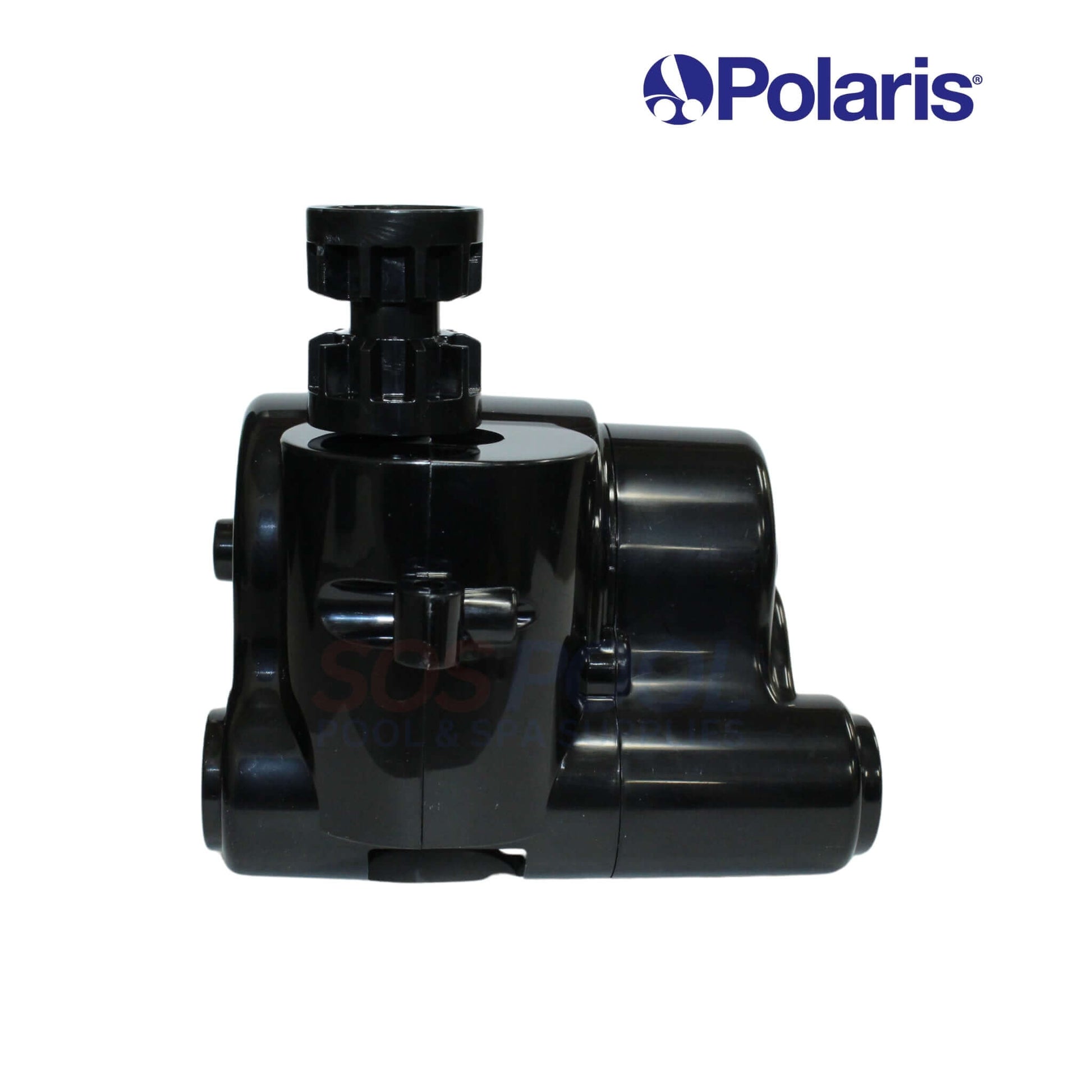

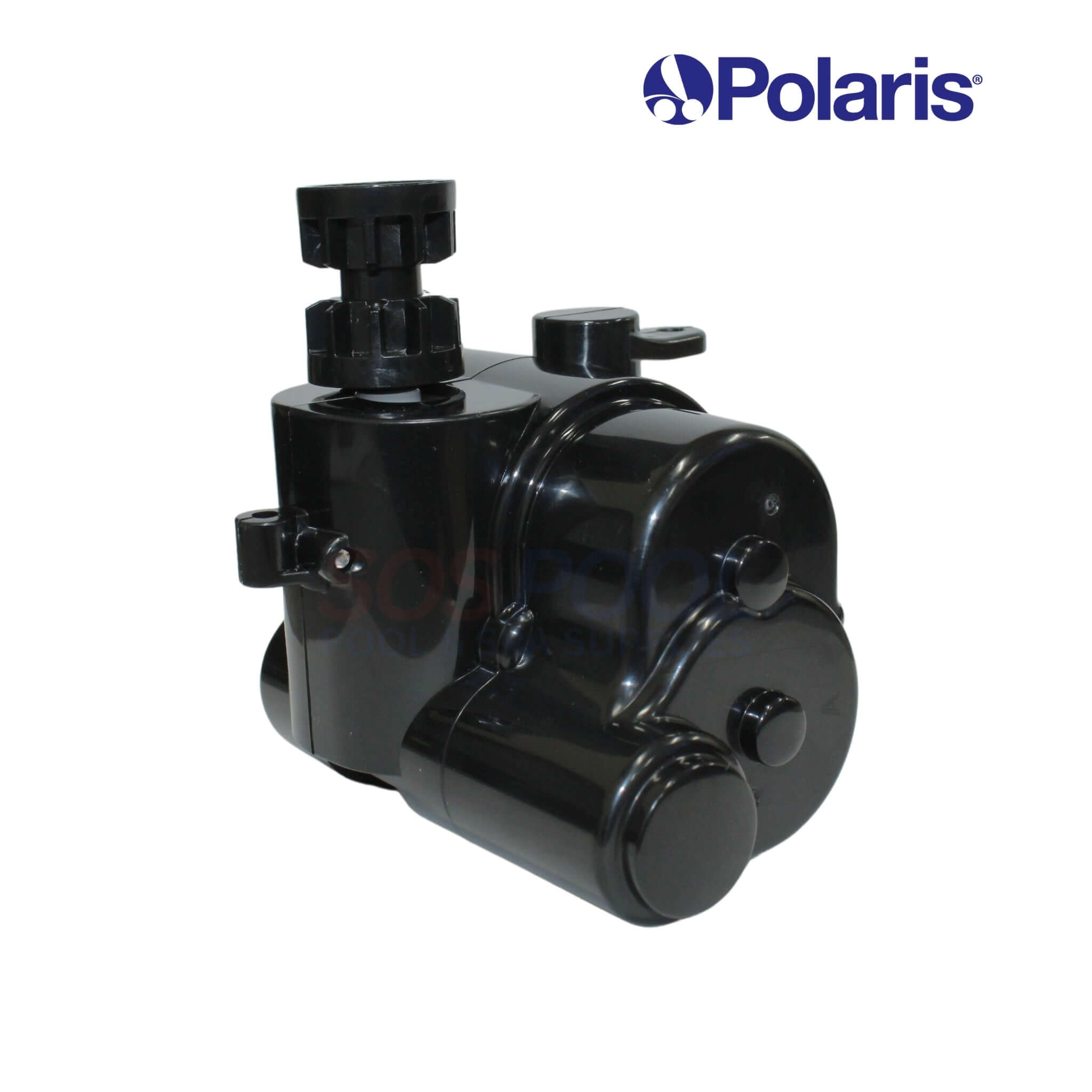

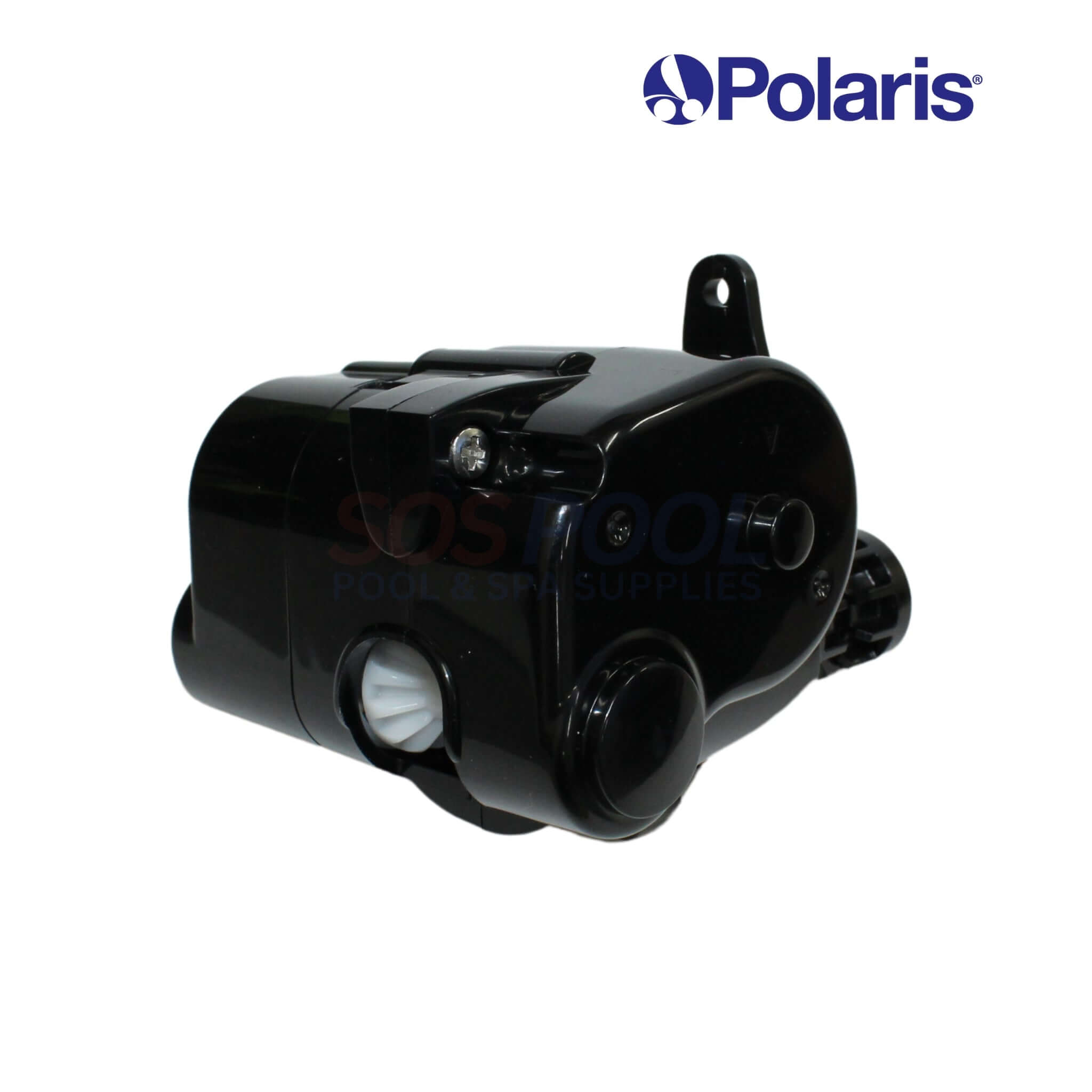

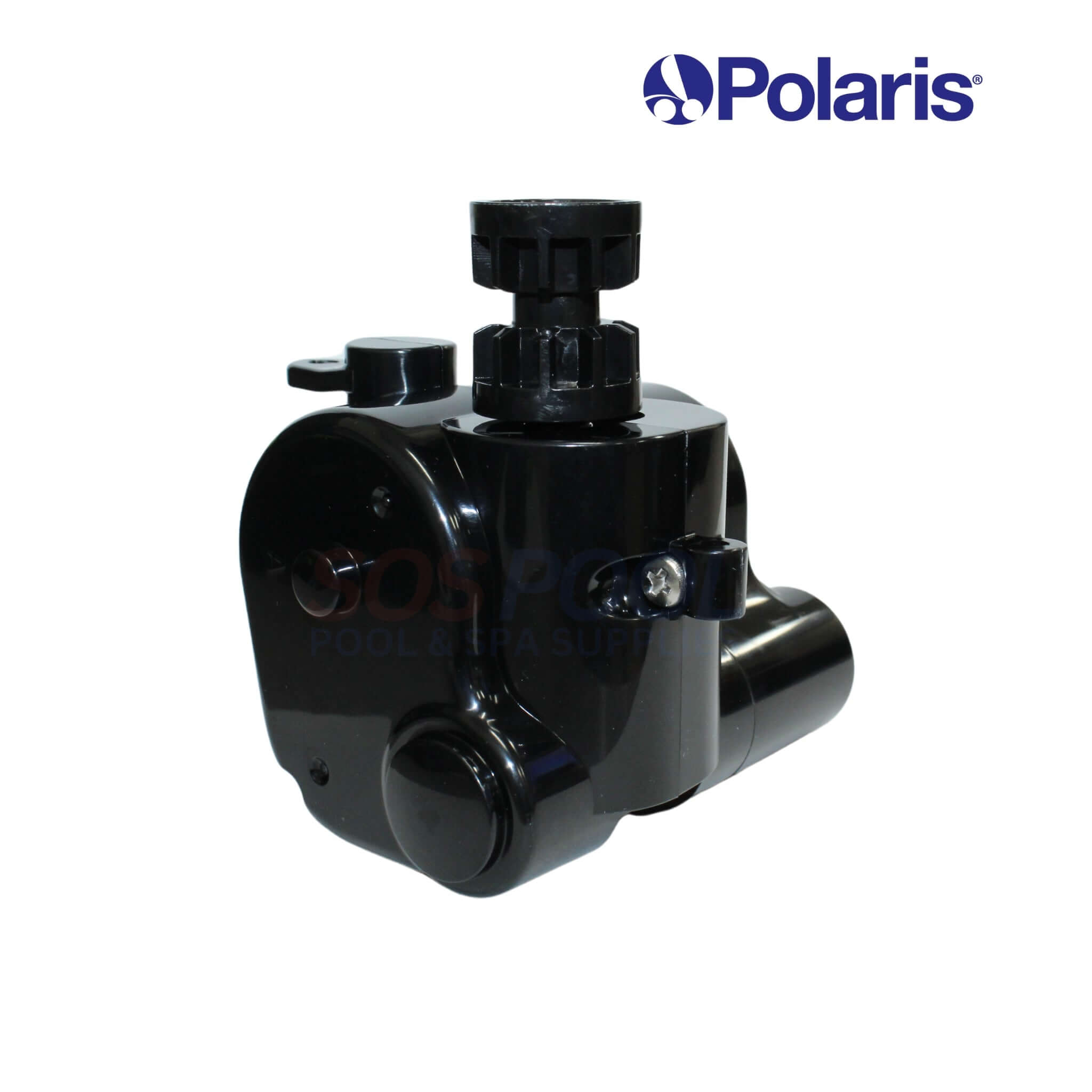

The OEM Polaris Direction Control Device for Atlas Cleaners Side A, model R0916100, is an essential replacement part designed to maintain the optimal performance of Polaris Atlas and Atlas XT suction-side pool cleaners. This device ensures that the cleaner navigates effectively around the pool, providing thorough cleaning by controlling the direction of movement. Made from high-quality materials, it offers durability and reliable functionality. Easy to install, this genuine Polaris part helps keep your pool cleaner running smoothly.
- Essential Replacement Part: Designed to maintain the optimal performance of Polaris Atlas and Atlas XT suction-side pool cleaners, ensuring effective navigation.
- Thorough Cleaning: Controls the direction of the cleaner's movement, allowing for thorough and efficient cleaning of the entire pool.
- Durable Construction: Made from high-quality materials, providing long-lasting durability and reliable functionality.
- Easy Installation: Simple to install, making it a convenient solution for keeping your pool cleaner running smoothly.
- Genuine Polaris Part: Ensures perfect compatibility and maintains the performance integrity of your Polaris pool cleaner.
If you experience a problem with your cleaner, please follow the troubleshooting steps below to restore performance
1. If Cleaner pattern does not cover entire pool , observe cleaner for more than five (5) minutes and ensure that each drive track is periodically reversing direction.
- If not reversing direction then your Cleaner Direction Control Device not working correctly.
2. Cleaner does not move or moves slowly, check to see if any interior teeth of the tracks are worn.
- If Yes then you mast to change the Direction Control Device.
- Polaris Atlas, Atlas XT, and MAXX Cleaners
