Pentair Tube Sheet Coil Assembly For MasterTemp and Max-E-Therm 300 Heaters | 77707-0233
Fits these models (4)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 1 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
On the Pentair MasterTemp 300 460734 Heater diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 300 460734 Heater
The Tube Sheet Coil Assembly Replacement Kit is a versatile solution designed for several Pentair heater models. Compatible with Pentair MasterTemp pool and spa heater models 300NA, 300LP, 300NA, and 300LP1, as well as Pentair Sta-Rite Max-E-Therm NA and LP series pool/spa heater model 300, this kit ensures a proper fit for various setups. It includes a coil sealing o-ring kit for added convenience. The assembly measures 18-1/2 inches in length, 10-1/2 inches in height, and 18-1/2 inches in width, making it a comprehensive replacement solution for your heater needs.
- Versatile Compatibility: Designed for multiple Pentair heater models including MasterTemp 300NA, 300LP, and Sta-Rite Max-E-Therm NA/LP series model 300, offering flexibility for different setups.
- Comprehensive Kit: Includes a coil sealing o-ring kit for added convenience, ensuring all necessary components are included for a seamless replacement.
- Precise Measurements: Assembly measures 18-1/2 inches in length, 10-1/2 inches in height, and 18-1/2 inches in width, guaranteeing a proper fit for your heater.
- Reliable Performance: Crafted with quality materials to withstand the demands of heating systems, ensuring long-lasting and efficient operation.
- Convenient Solution: Provides a hassle-free replacement option, simplifying maintenance tasks for your pool or spa heater.

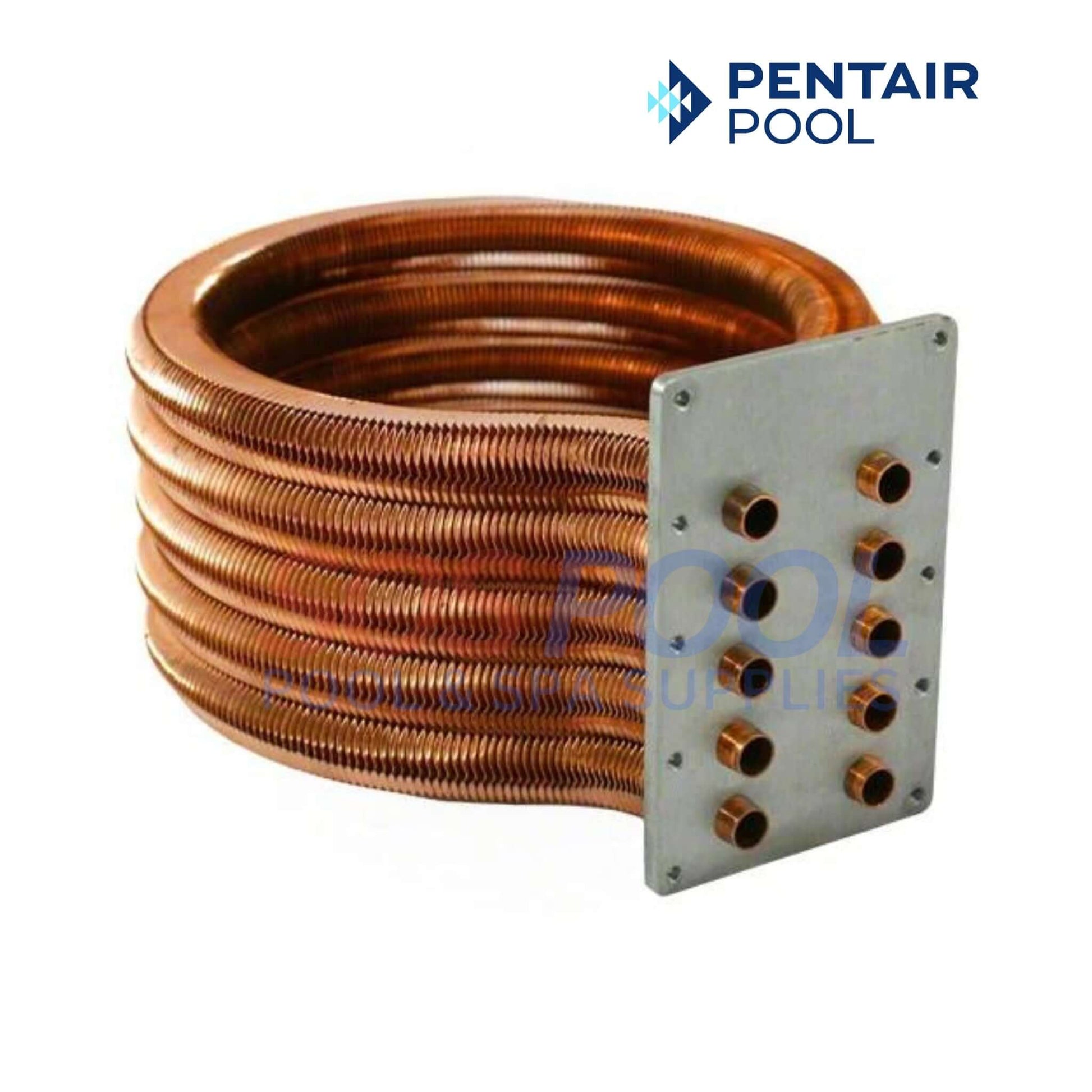

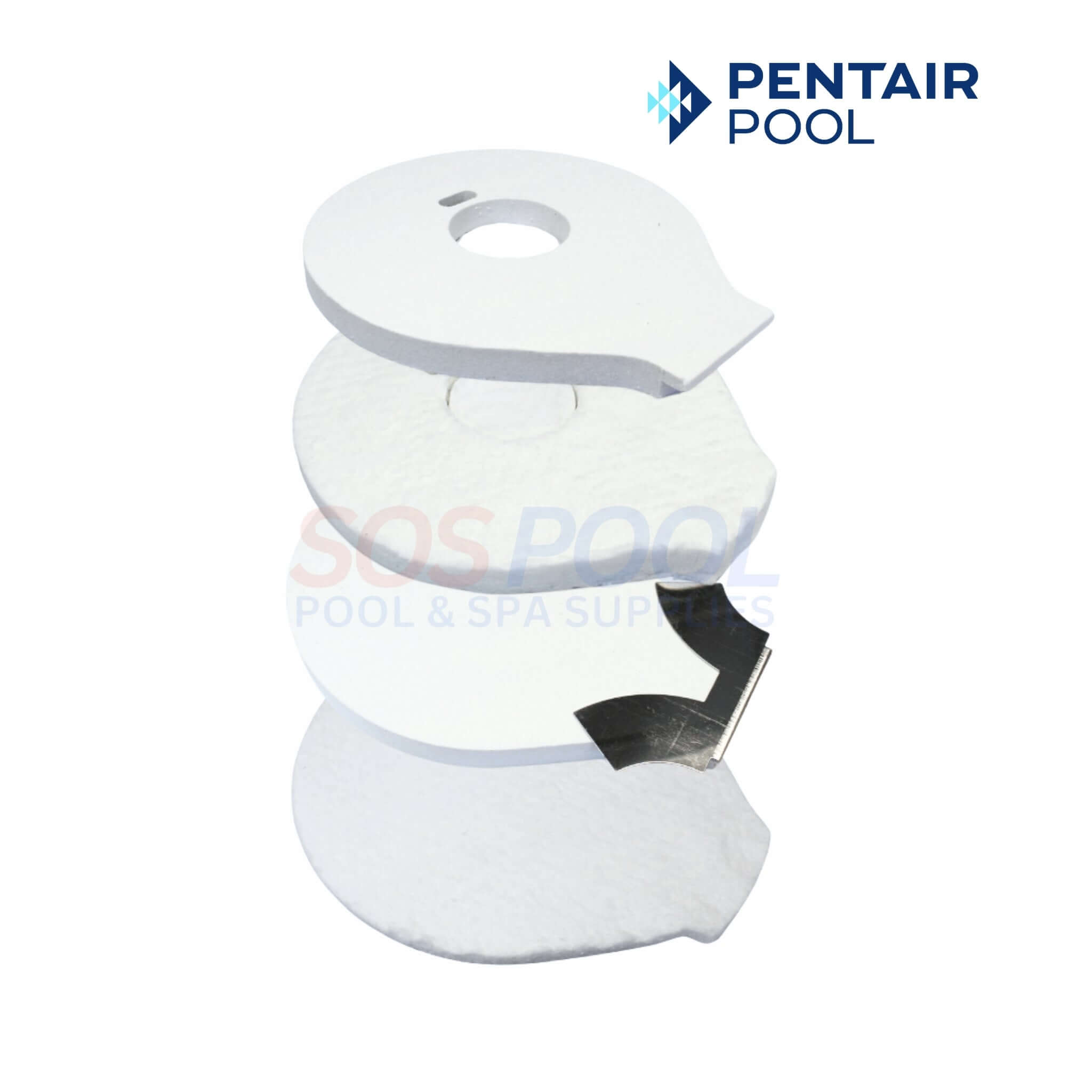

- (1) Pentair Tube Sheet Coil

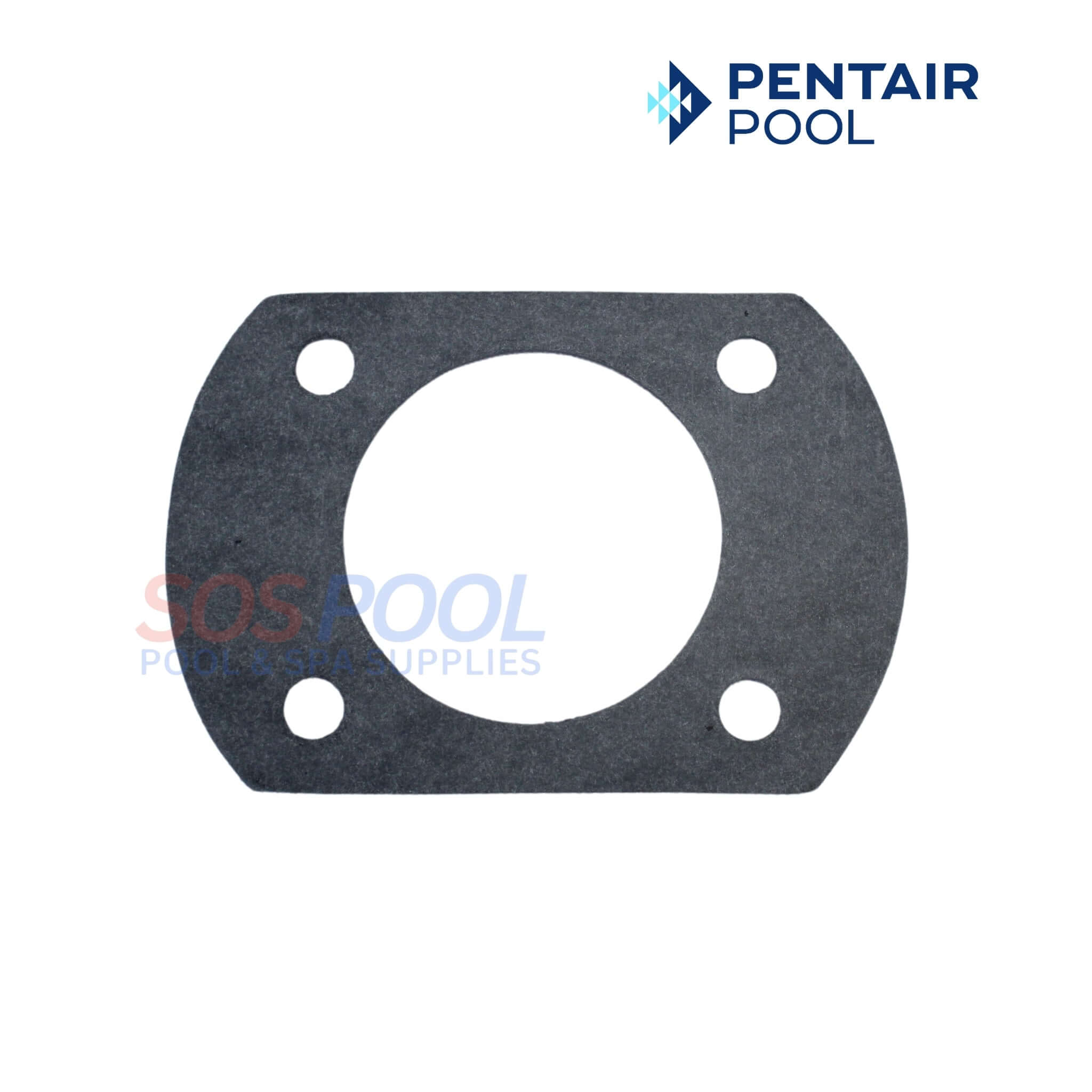

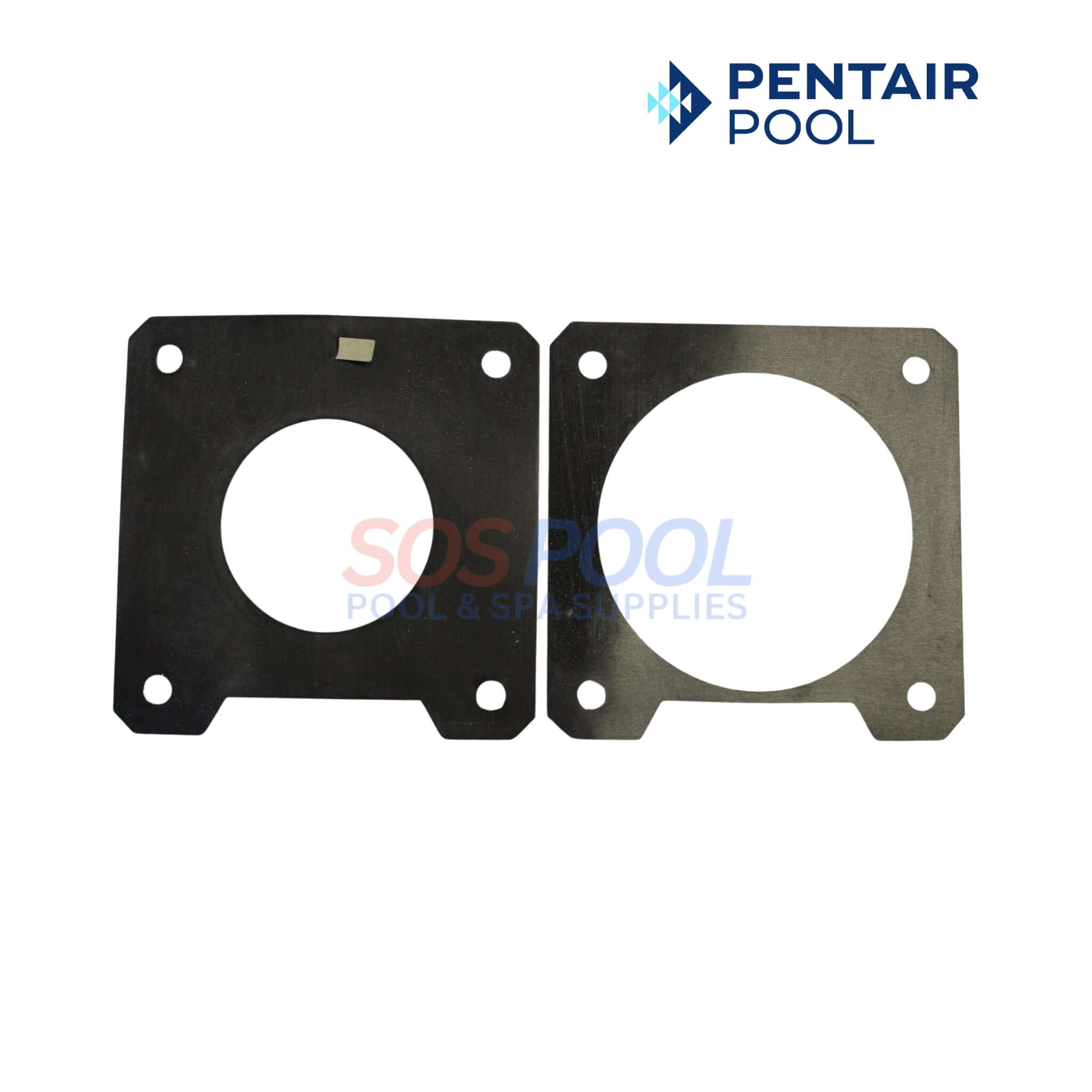

- (1) Pentair 77707-0011 Blower Adapter Plate Gasket Kit
-

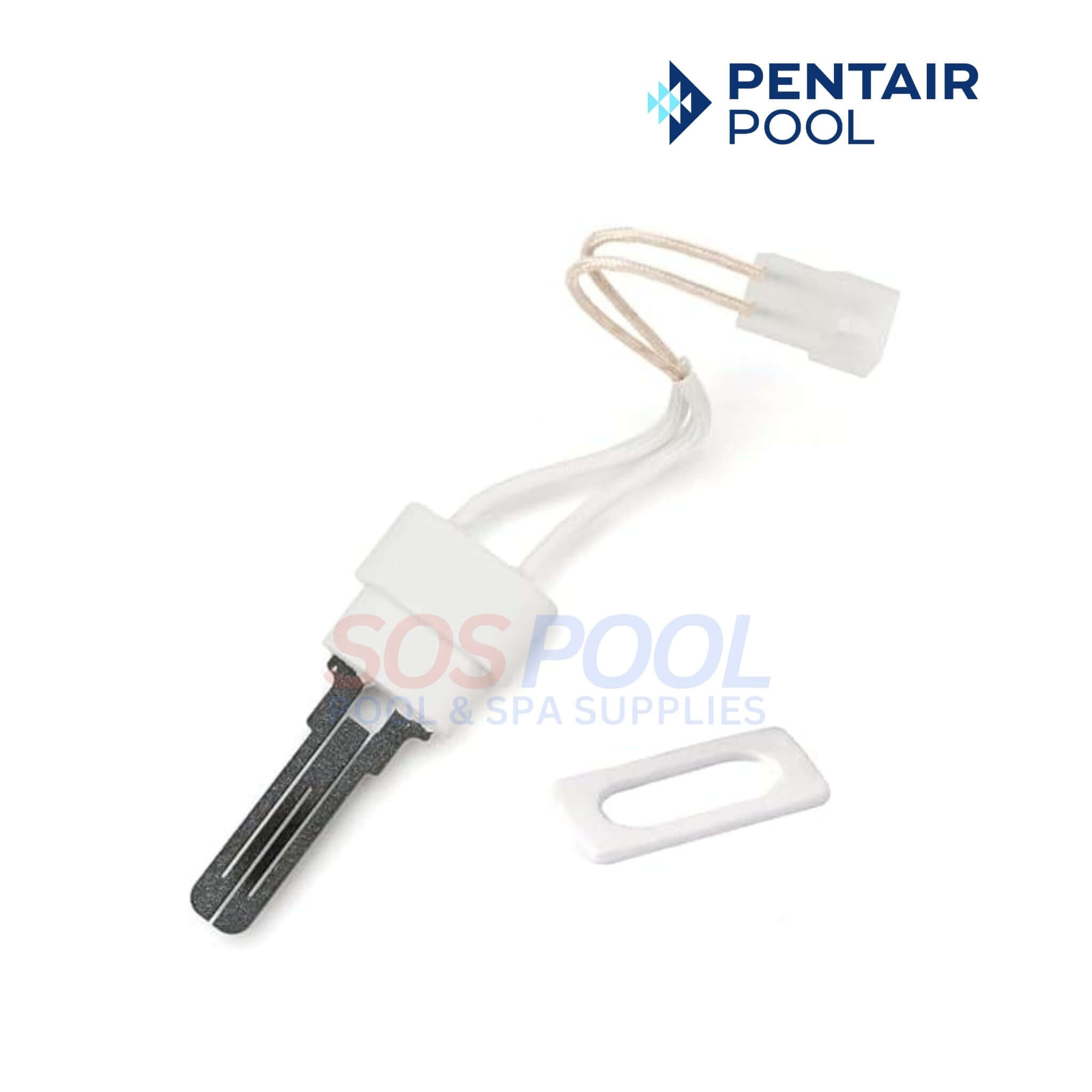

(1) Pentair 77707-0054 Igniter and Gasket Kit

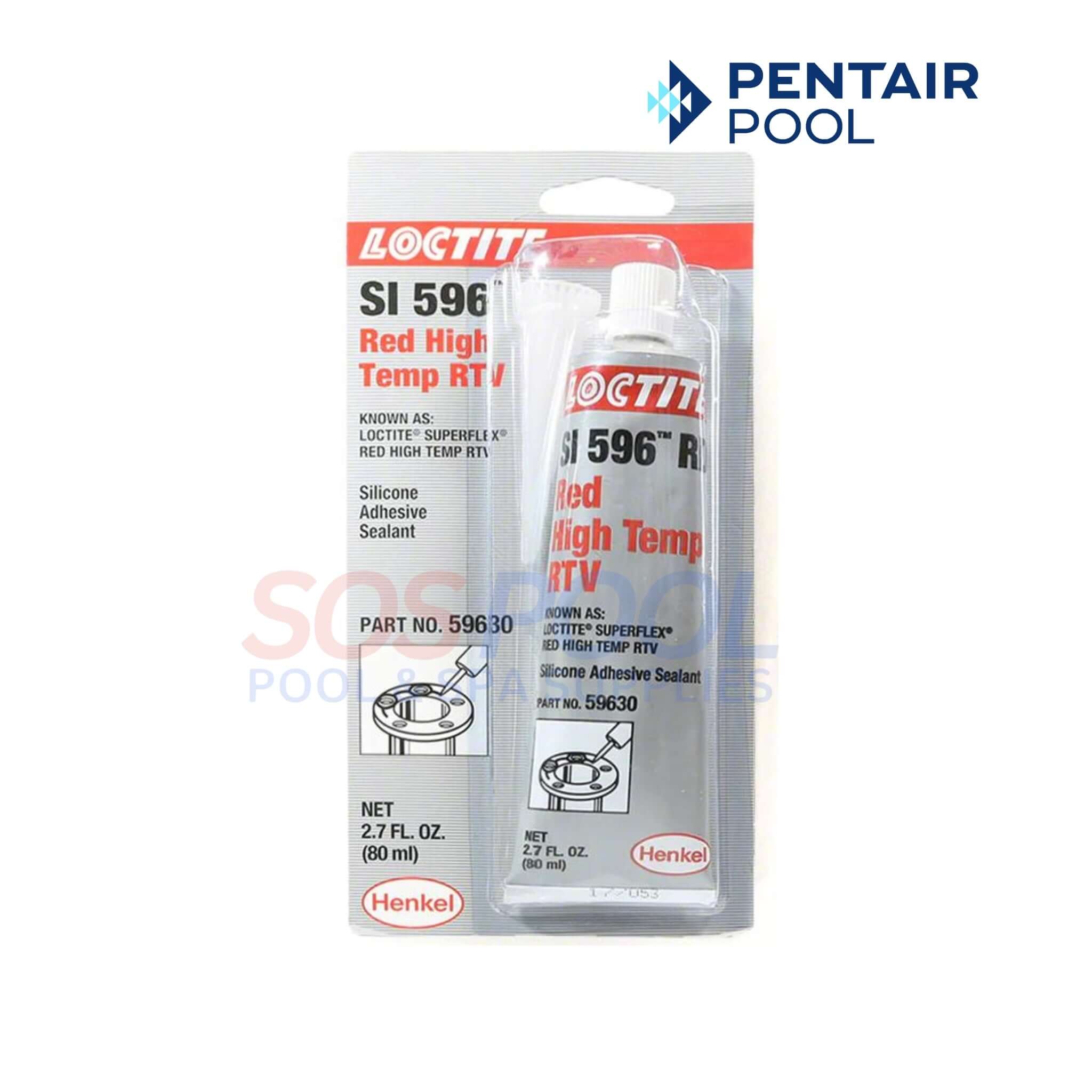

- (1) Pentair 474201 RTV Silicone

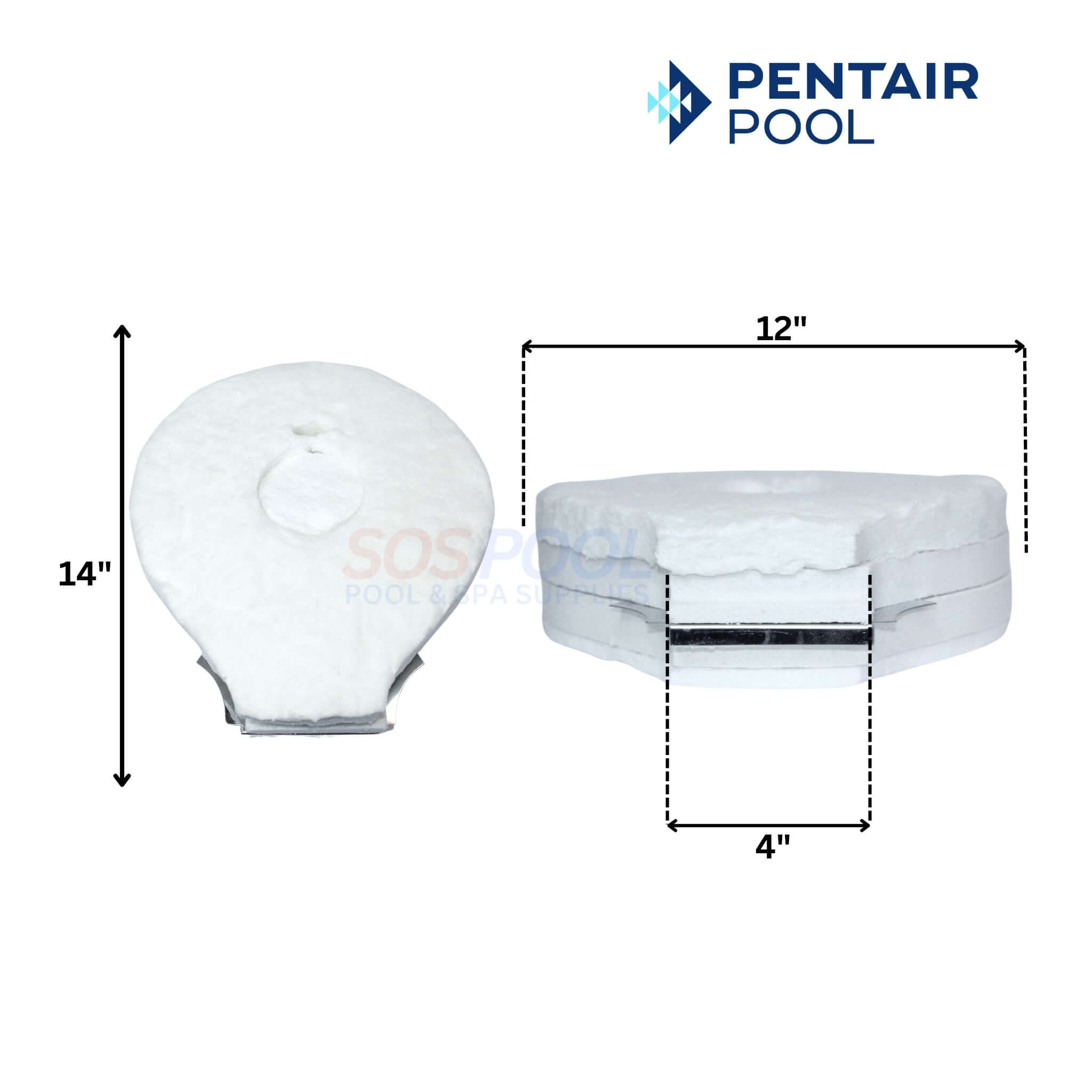

- (1) Pentair 77707-0008 Insulation Kit

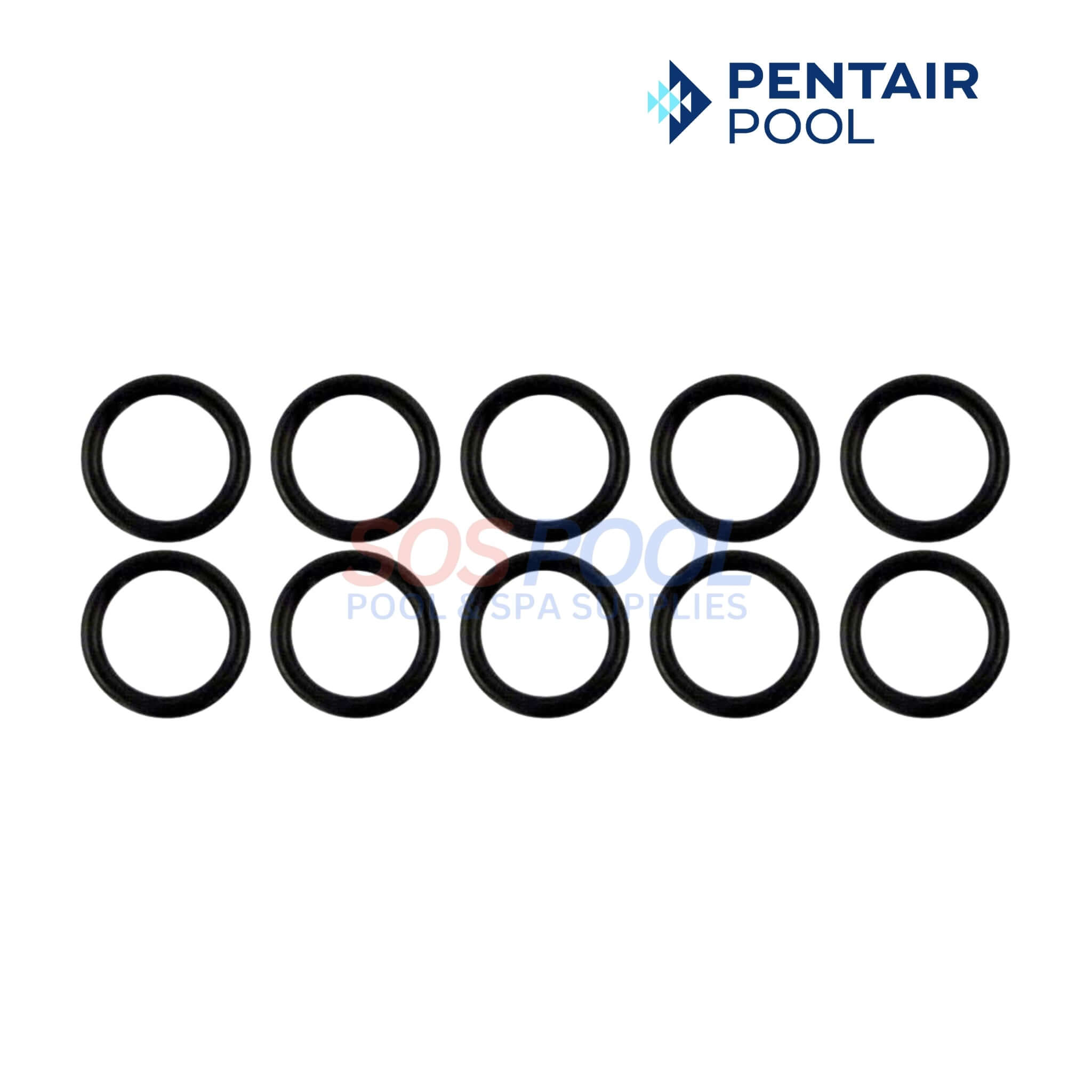

- (10) O-Rings
- Pentair MasterTemp Heaters Models: 300NA, 300LP
- Pentair Sta-Rite Max-E-Therm Heater Model: 300, 333
