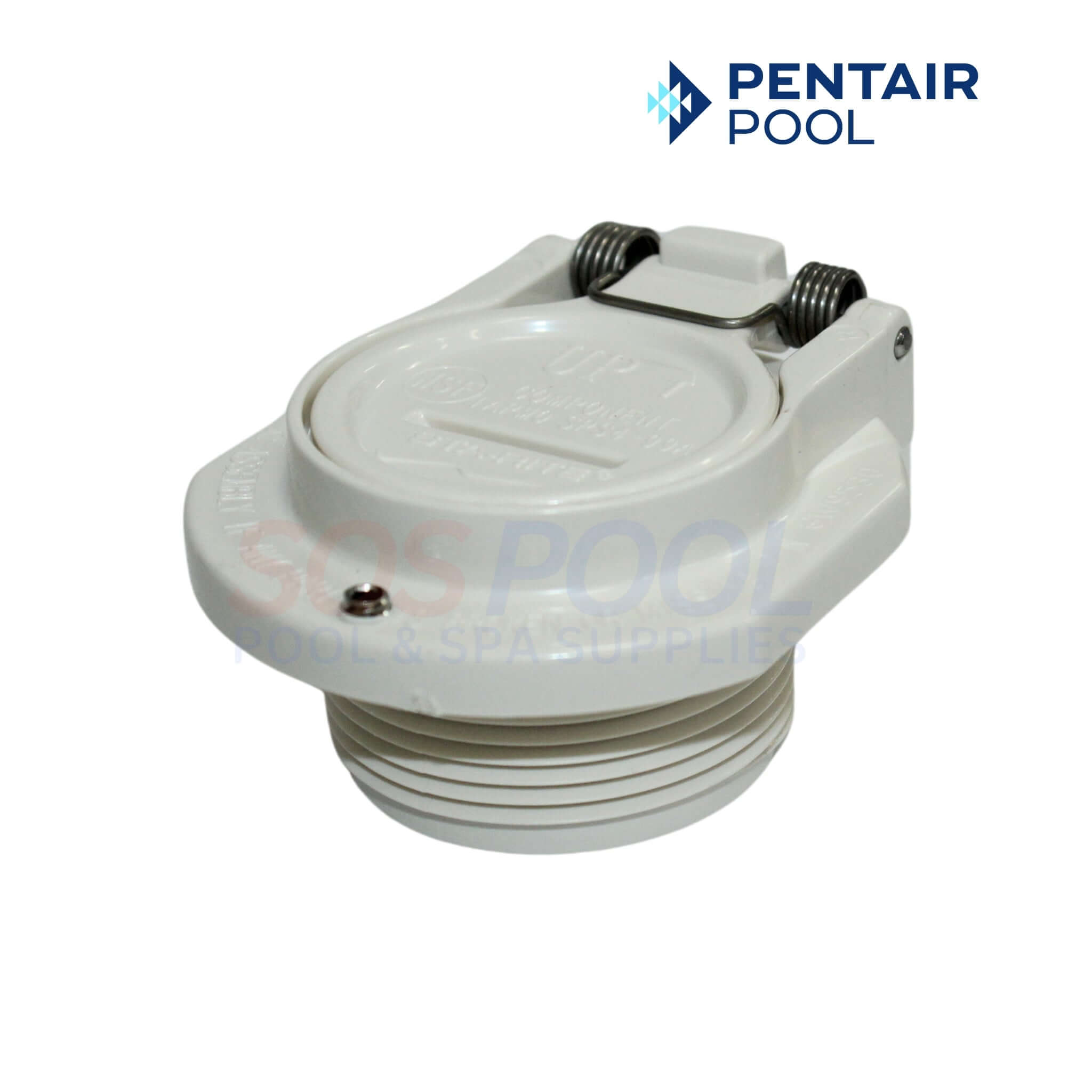

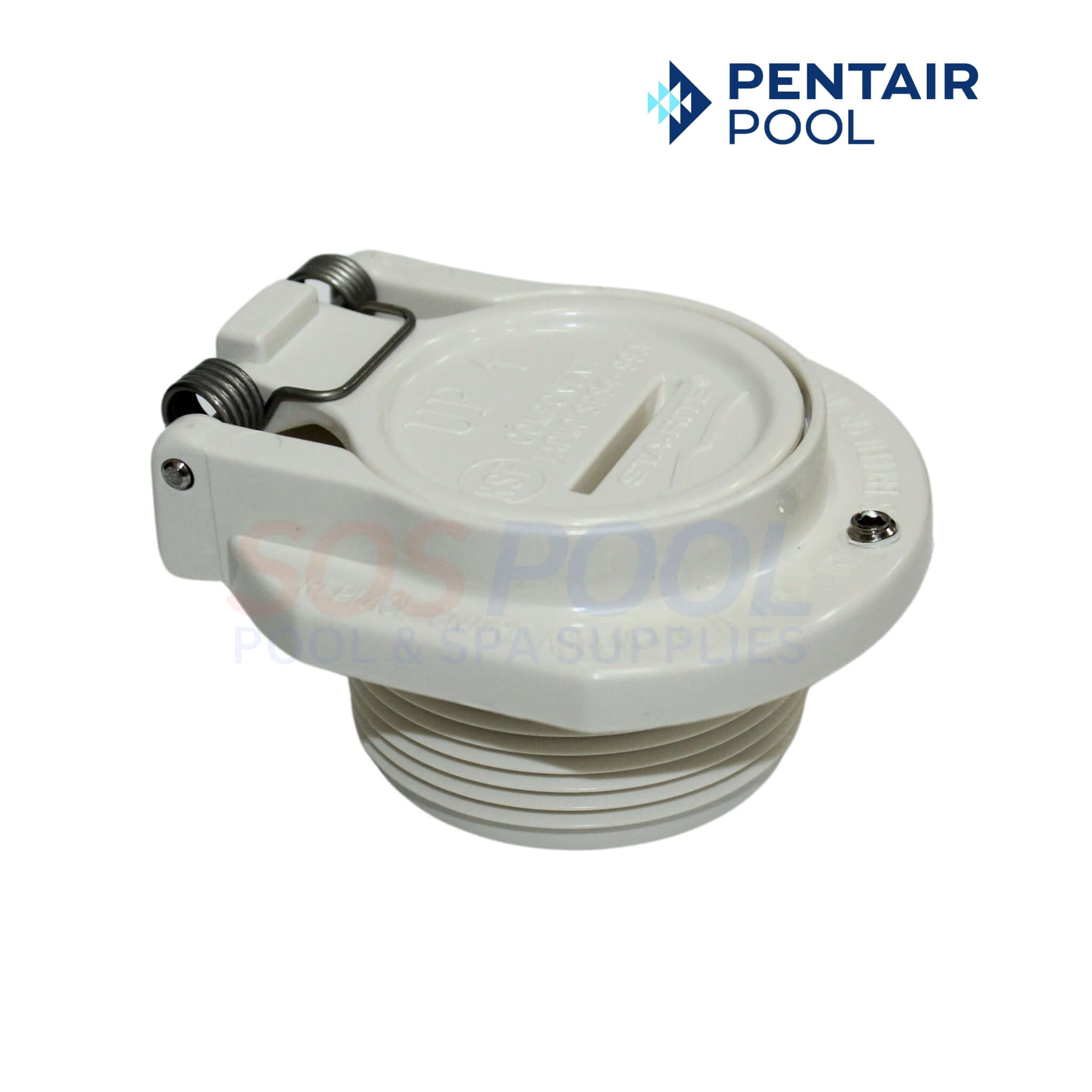

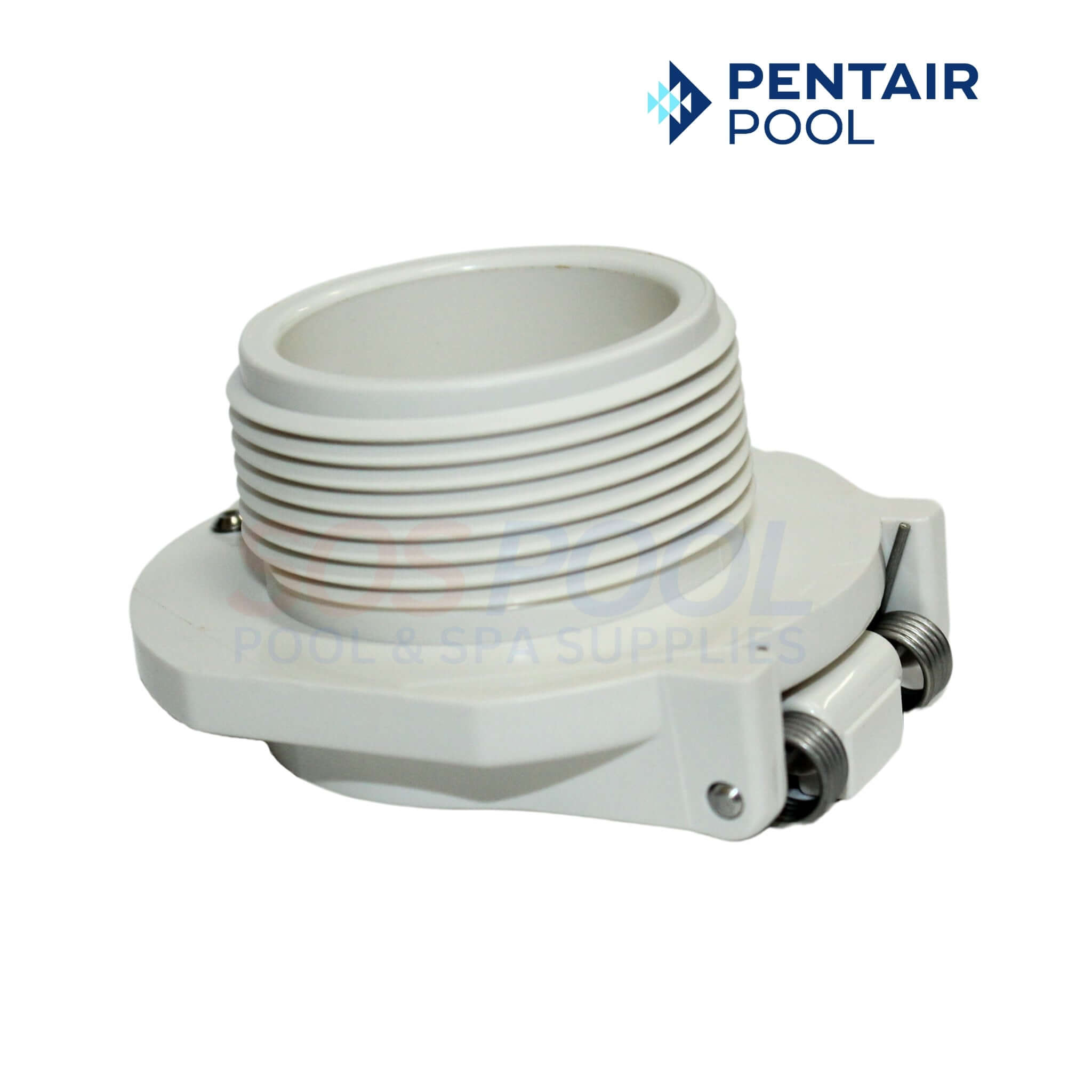

Pentair Snap Lock Wall Fitting For Kreepy Krauly Kruiser Cleaners | K12500
Fits these models
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 8 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

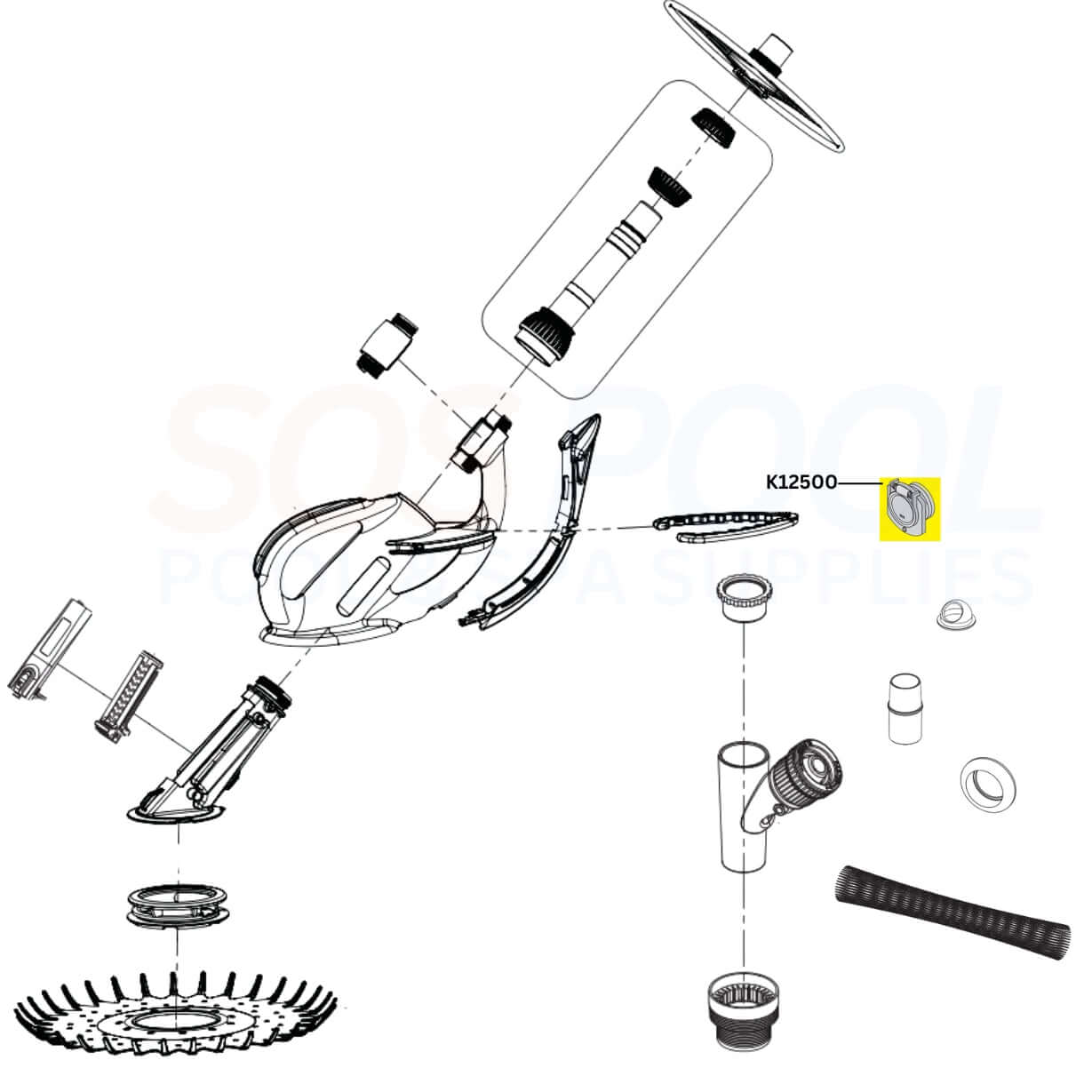

On the Pentair Kreepy Krauly Kruiser Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Kreepy Krauly Kruiser Cleaner
See every part on the Pentair Kreepy Krauly Kruiser Cleaner diagram.
The OEM Pentair Snap Lock Wall Fitting for Kreepy Krauly Kruiser Cleaners K12500 is a critical component designed to connect your pool cleaner to the pool’s vacuum system securely and efficiently. This fitting ensures a tight and reliable connection, facilitating optimal suction and cleaning performance. Made from durable, high-quality materials, this genuine OEM part is built to last, maintaining the effectiveness of your Kreepy Krauly Kruiser cleaner over time.
-
Secure Connection: Designed to connect your pool cleaner to the pool’s vacuum system securely, ensuring optimal suction and cleaning performance.
-
High Durability: Made from durable, high-quality materials, this fitting offers long-lasting reliability and performance in demanding pool environments.
-
Optimal Cleaning Performance: Facilitates a tight and reliable connection, maintaining the effectiveness of your Kreepy Krauly Kruiser cleaner over time.
-
Genuine OEM Part: Ensures perfect compatibility and seamless integration with Kreepy Krauly Kruiser cleaners, guaranteeing dependable operation.
-
Essential Component: Critical for the efficient and effective operation of your pool cleaner, enhancing overall pool maintenance and cleanliness.
Installation
1. Thread the fitting into a 1-1/2" NPT suction port in the pool wall. Make sure that you end with the cover spring as close to 12 o'clock as possible .
NOTE: This fitting is designed for a threaded pipe connection only. Do not attempt to bond the fitting in place.
2. When the fitting is tight and the spring in the 12 o'clock position, tighten the set screw to hold it in place.
3. Open the door with a key or coin. Insert the hose so that the grooves in the hose interlock with the tab on the vac-port door . This will prevent the hose from squirting out of the fitting when the pump is stopped.
NOTE the following:
• Only open the door when the pump/filter system is off. A key or coin is required. You will not be able to open the door when the pump/filter system is operating.
• The pump may cavitate (causing damage to the pump) if the hose is removed and the vac-port is allowed to shut with no other suction sources open. Do not remove the hose from the vac-port unless another source of suction is open.
It is good practice to remove the vac-port and plug the open port in the pool wall when closing the pool for the season.
• This fitting is NSF Listed to the IAPMO 4-99A Special Use
Suction Fitting Standard
- Pentair Kreepy Krauly Kruiser Cleaners
