Pentair Quad DE 60 Sq. Ft. Cartridge Pool Filter | EC-188592

Pentair Quad DE 60 Cartridge Style Pool Filter | EC-188592

The Pentair Quad DE 60 EC-188592 Cartridge Style Filter delivers the superior water clarity of diatomaceous earth (DE) filtration with the easy-clean convenience of a cartridge system. With 60 sq. ft. of effective filter area, it is ideally suited for medium-sized residential pools and spas, combining outstanding particle removal with reduced maintenance. By using four DE-style cartridge elements, it offers maximum surface area and captures even the smallest debris for sparkling water clarity.

This innovative design eliminates the need for traditional backwashing. Instead, pool owners simply remove and rinse the cartridges with a garden hose, saving time, conserving water, and simplifying upkeep. The EC-188592 features a heavy-duty fiberglass-reinforced polypropylene tank for superior durability, along with a clamp-ring system that allows quick, tool-free access to the cartridges. Engineered for hydraulic efficiency, it supports strong water flow and reliable circulation across a range of pool systems.

With its proven durability, ease of maintenance, and advanced filtration capability, the Pentair Quad DE 60 is a trusted solution for pool owners who want professional-grade clarity paired with user-friendly service.

Key Features of the Pentair Quad DE 60 EC-188592 Filter

• 60 Sq. Ft. Effective Filter Area: Compact yet powerful filtration capacity ideal for medium-sized residential pools and spas, delivering consistently clean water.

• Hybrid Cartridge-Style DE Design: Uses four DE cartridge elements that combine the strength and convenience of cartridges with the fine clarity of diatomaceous earth.

• Exceptional Particle Capture: DE media filters out the smallest impurities, producing visibly clearer water than sand or standard cartridge systems.

• Maintenance Without Backwashing: Cartridges can be easily removed, rinsed, and reinstalled, saving water and reducing service time.

• Fiberglass-Reinforced Polypropylene Tank: Strong, corrosion-resistant construction ensures reliable performance in outdoor pool environments.

• Service-Friendly Clamp Ring: Clamp-ring design makes it easy to remove the tank top quickly, without tools, for straightforward cartridge access.

• Hydraulic Efficiency: Optimized for smooth water circulation with minimal resistance, enhancing overall system performance.

• Pentair Reliability: Built by Pentair, a leader in pool equipment known for manufacturing durable, service-friendly, and long-lasting filtration systems.

Specifications

• Model Number: EC-188592
• Filtration Area: 60 square feet
• Dimensions: 21.5 inches in diameter and 43 inches in height
• Weight: Approximately 70 pounds when empty
• Flow Rate: Maximum flow rate of 120 gallons per minute (GPM)
• DE Required: Uses about 6 pounds of diatomaceous earth (DE)
• Material: Chemical-resistant, fiberglass-reinforced polypropylene tank

Compatibility

Compatible with the following valve models *all sold separately

• 1.5" MPV (Multiport Valve): 261173
• 2" PVC Slide Valve: 263079
• 2" HiFlow Valve with no plumbing required: 261049
• 2" HiFlow Valve with plumbing: 261050
• 2" MPV (Multiport Valve): 261055
• Push Pull Valve, 7.5" Center: 263064

 Includes

• (1) Pentair EC-188592 Quad DE 60 sq. ft.
• (4) D.E. Filter Cartridges

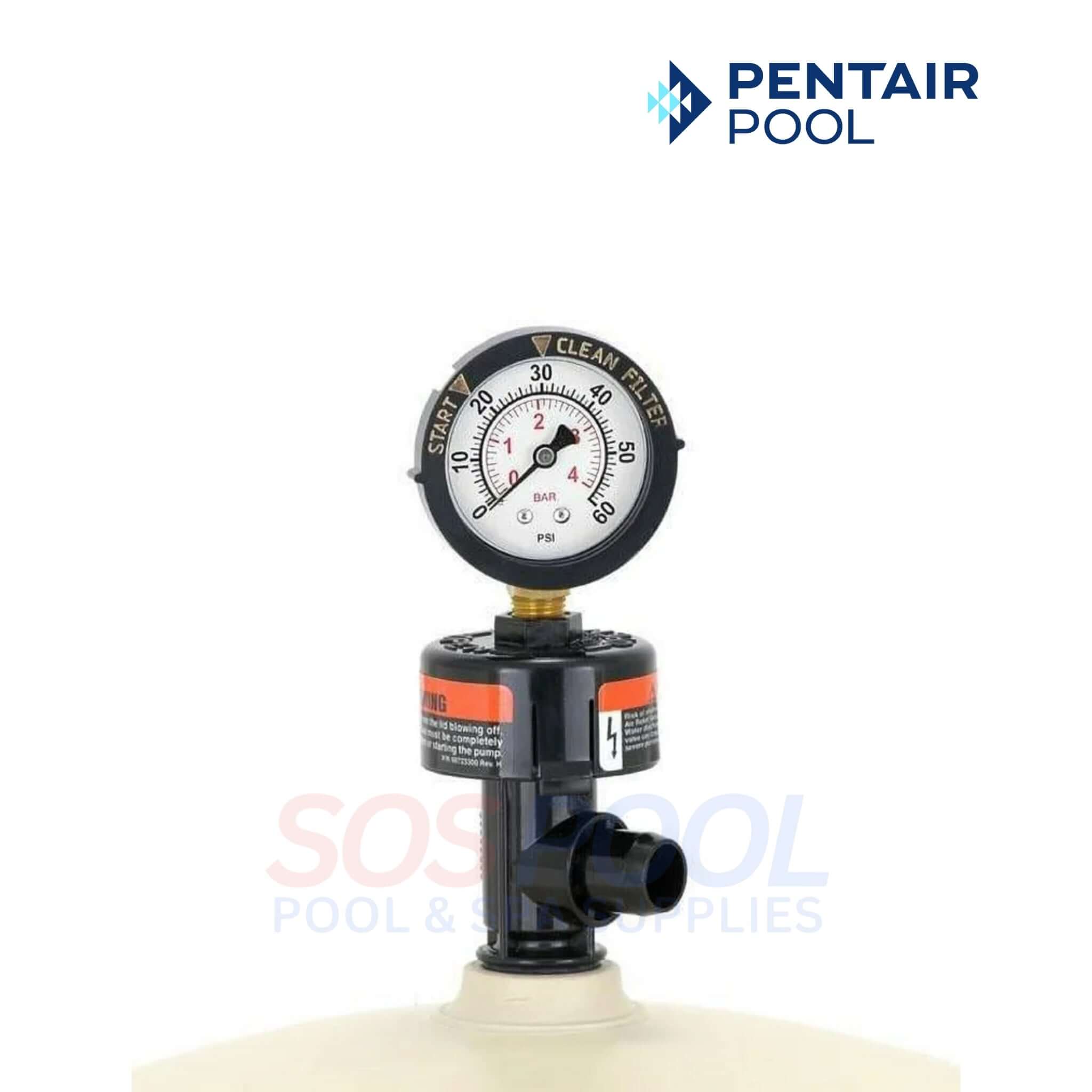

• (1) Pressure Gauge
• (1) Manual Air Relief Valve
• (1) Drain and Waste Port
