On the Pentair MasterTemp 125 461059 Heater diagram
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 125 461059 Heater

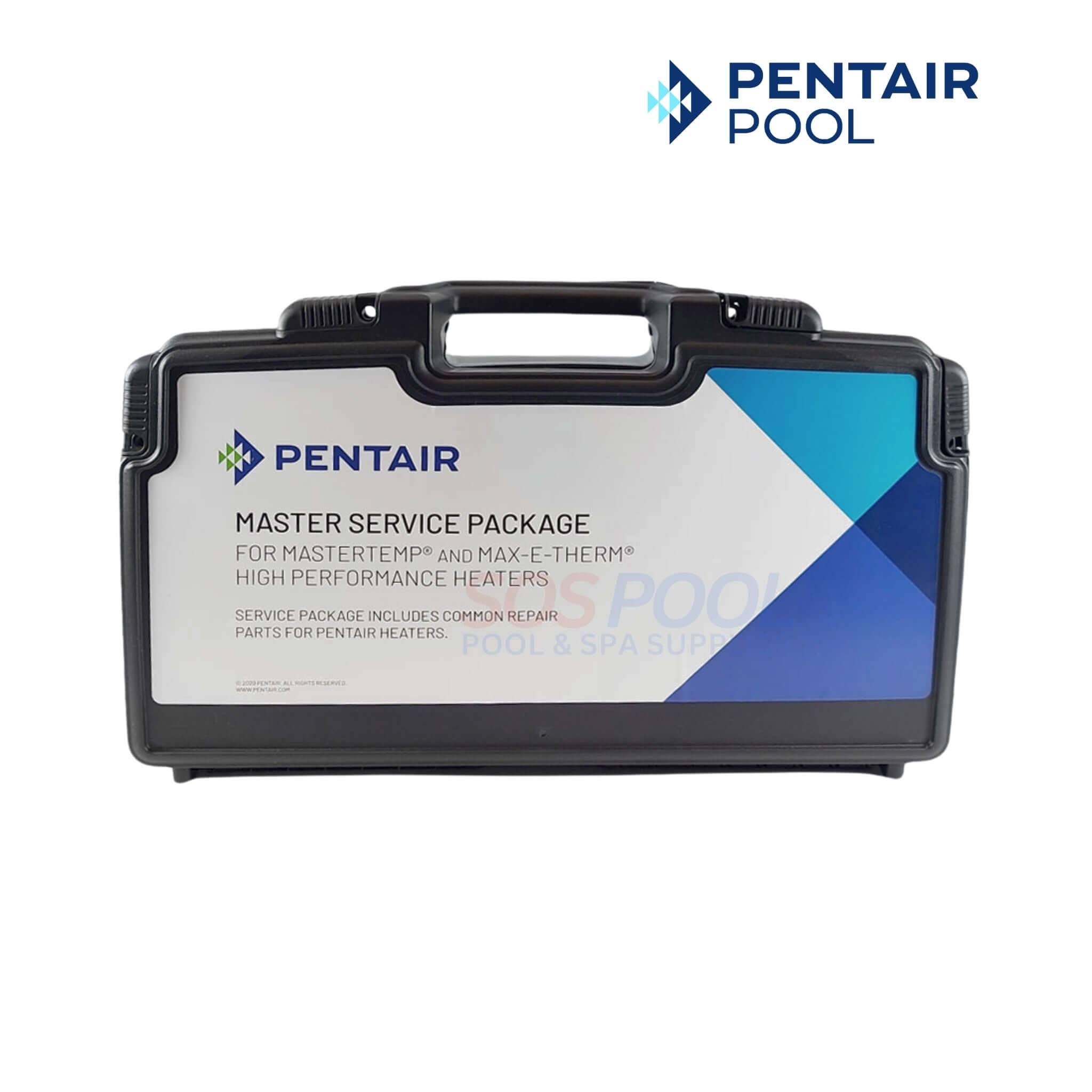

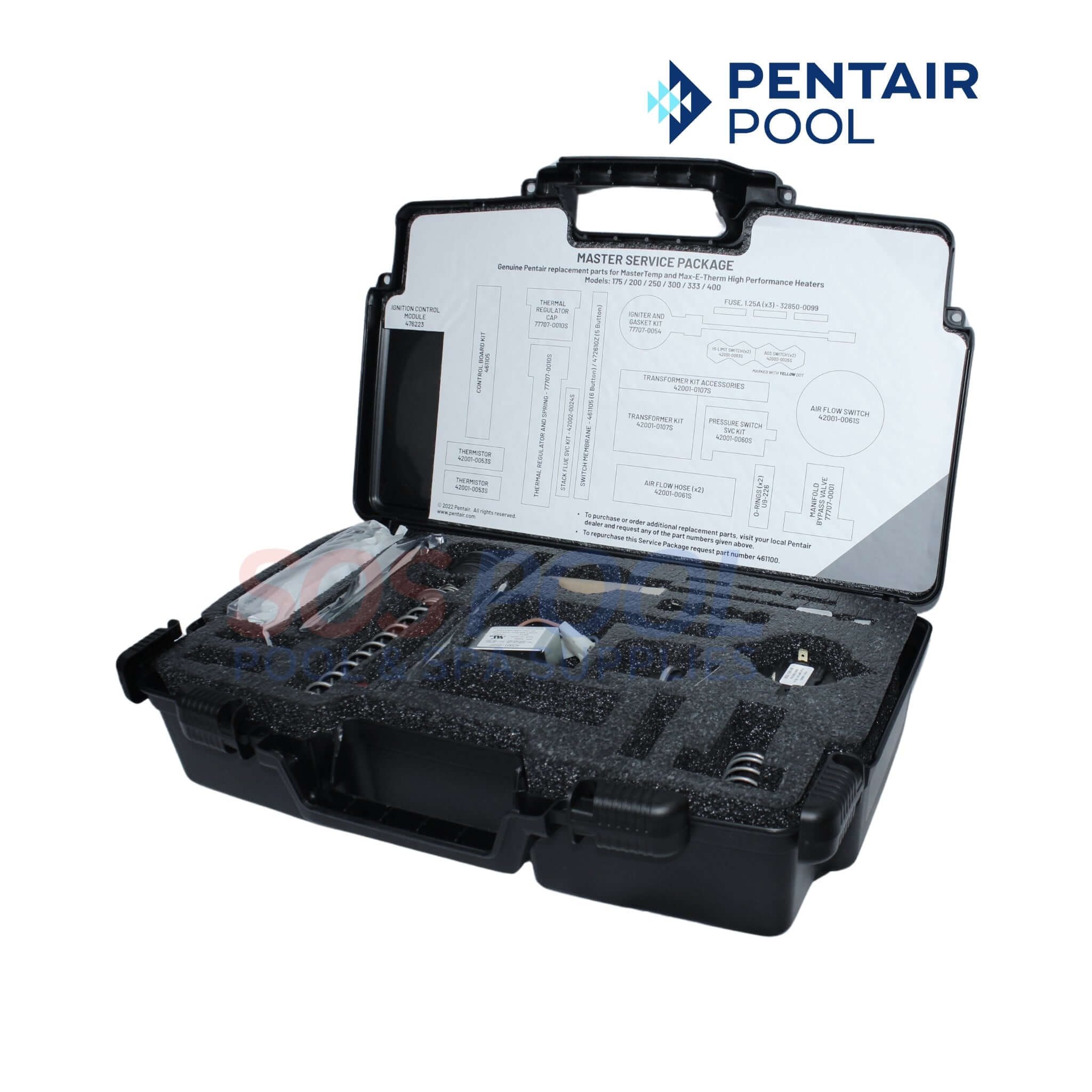

The OEM Pentair Master Service Package Repair Kit 461100 is a comprehensive kit designed for maintaining and repairing MasterTemp and Max-E-Therm pool heaters. This kit includes essential components for both the water and electrical systems, such as the ignition control module, thermistors, high-limit switches, water pressure switch, airflow switch, transformer, control board, stack flue sensor, automatic gas shutoff switches, and a manifold bypass valve kit. This all-in-one package ensures that your pool heater operates efficiently and safely, addressing common issues that can arise over time. This kit is ideal for pool professionals or homeowners looking to perform a thorough tune-up or repair on their Pentair heaters, providing the necessary parts to keep the system running smoothly.
- Comprehensive Repair Kit: The Pentair Master Service Package Repair Kit 461100 is an all-inclusive kit designed to maintain and repair both MasterTemp and Max-E-Therm pool heaters, covering essential components for comprehensive care.
- Includes Essential Components: This kit contains critical parts for both the water and electrical systems, including the ignition control module, thermistors, high-limit switches, water pressure switch, airflow switch, transformer, control board, stack flue sensor, automatic gas shutoff switches, and a manifold bypass valve kit.
- Ensures Efficient and Safe Operation: By addressing common issues with key components, this package helps ensure that your pool heater operates efficiently and safely, preventing potential problems and maintaining optimal performance.
- Ideal for Professional and DIY Use: Perfect for pool professionals and homeowners alike, this repair kit provides everything needed for a thorough tune-up or repair, making it easy to restore and maintain your Pentair heater.
- Keeps Heater Running Smoothly: With all necessary parts included, the kit offers a practical solution for keeping your pool heater running smoothly, ensuring long-term reliability and consistent performance.

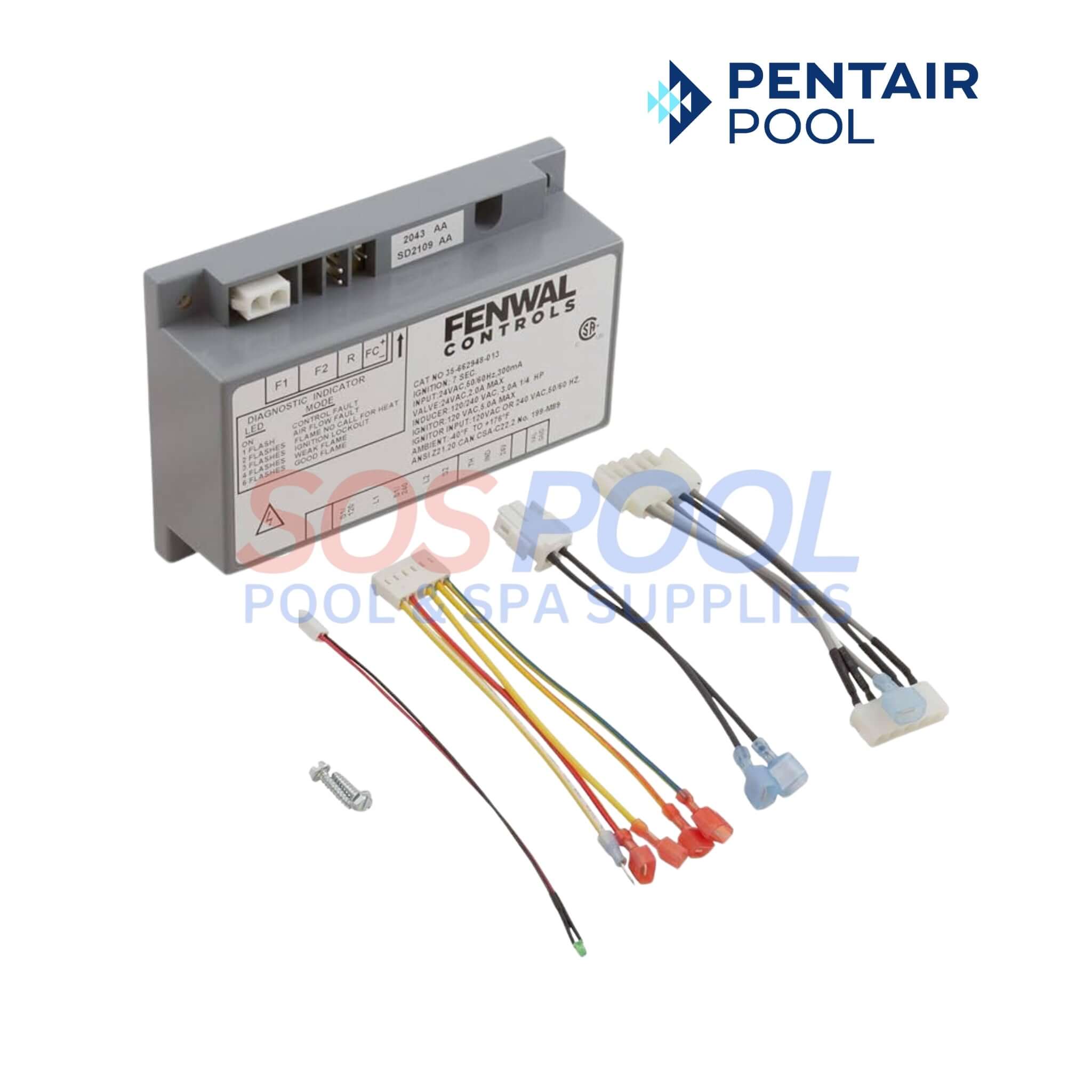

- (1) 476223- Ignition Control Module

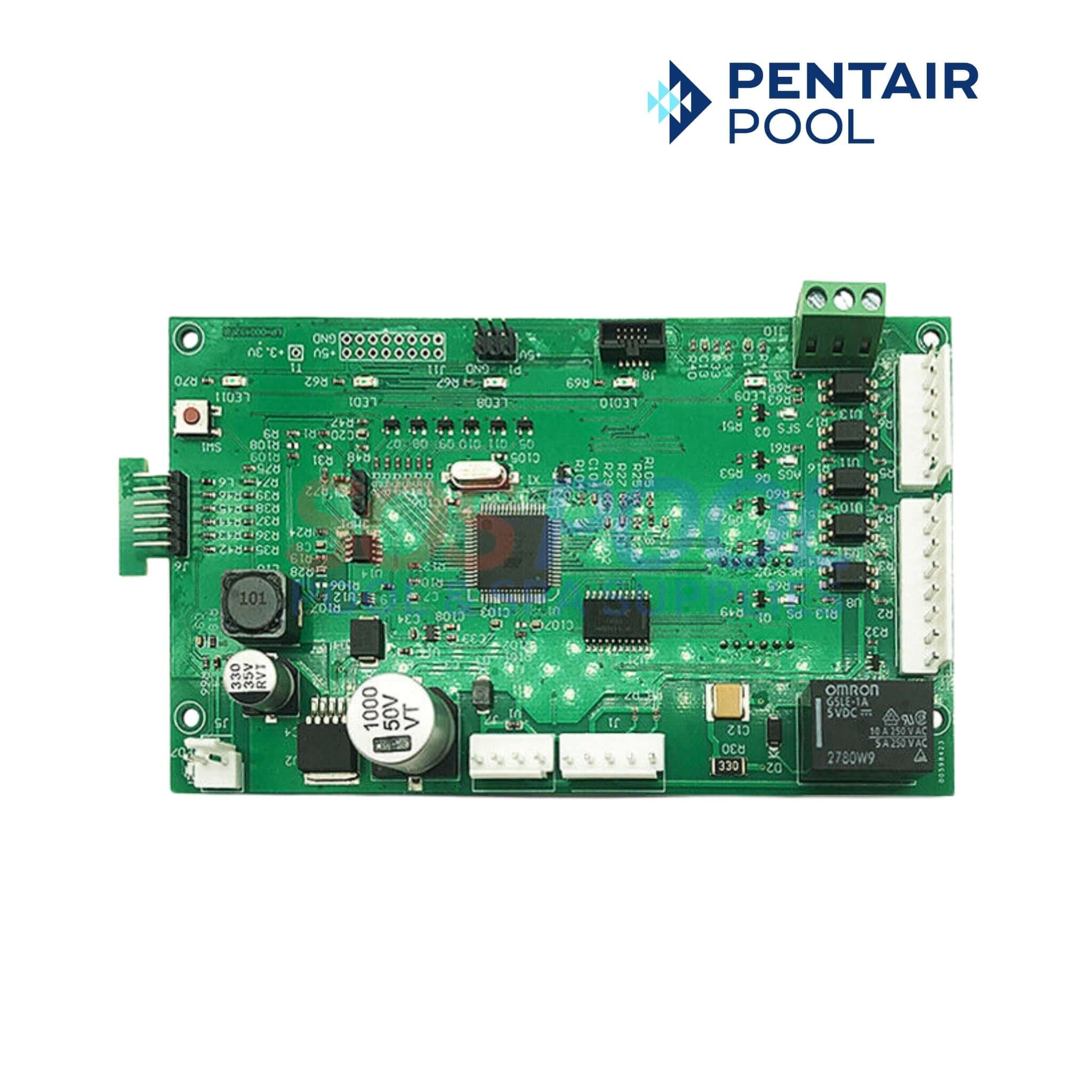

- (1) 461105- Control Board Kit

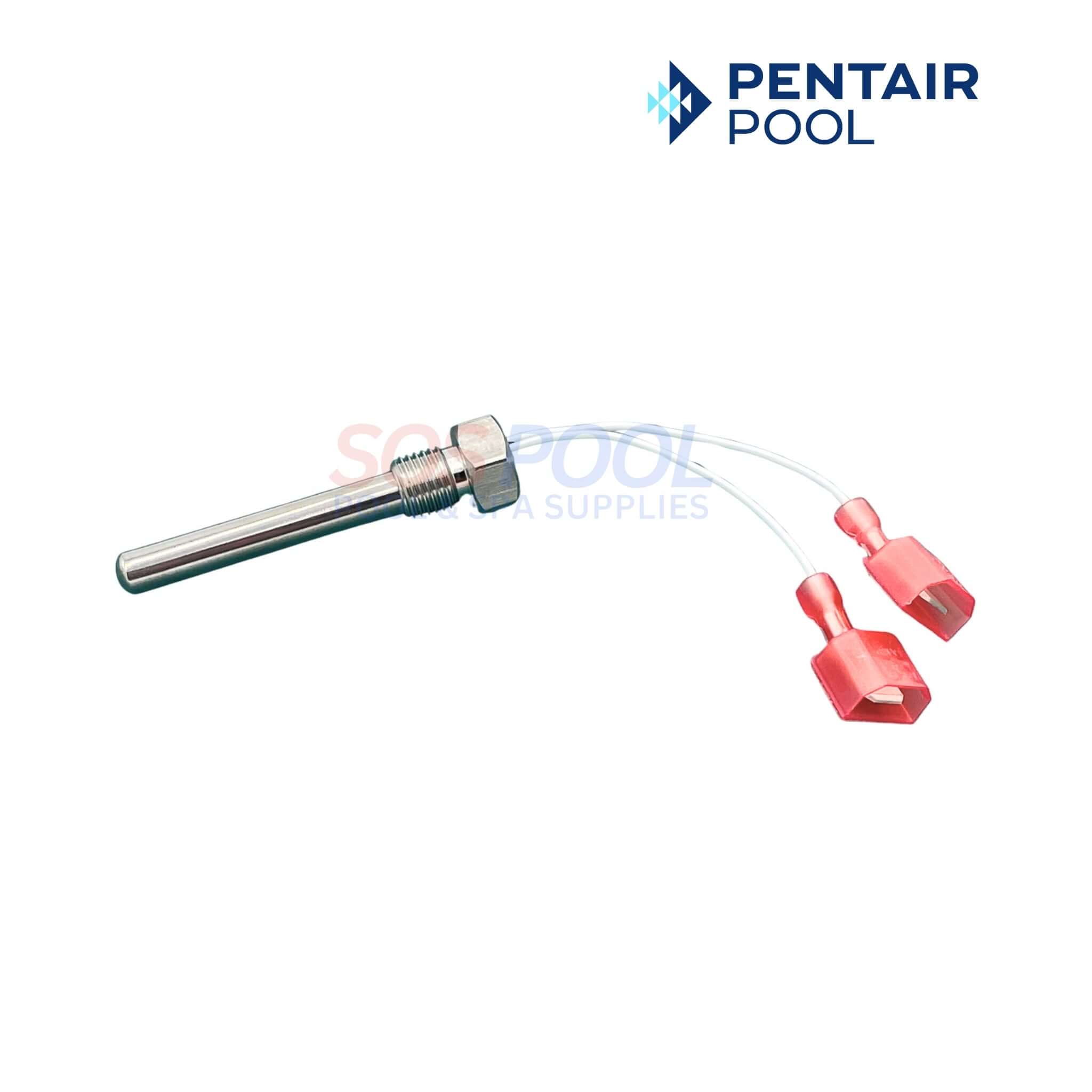

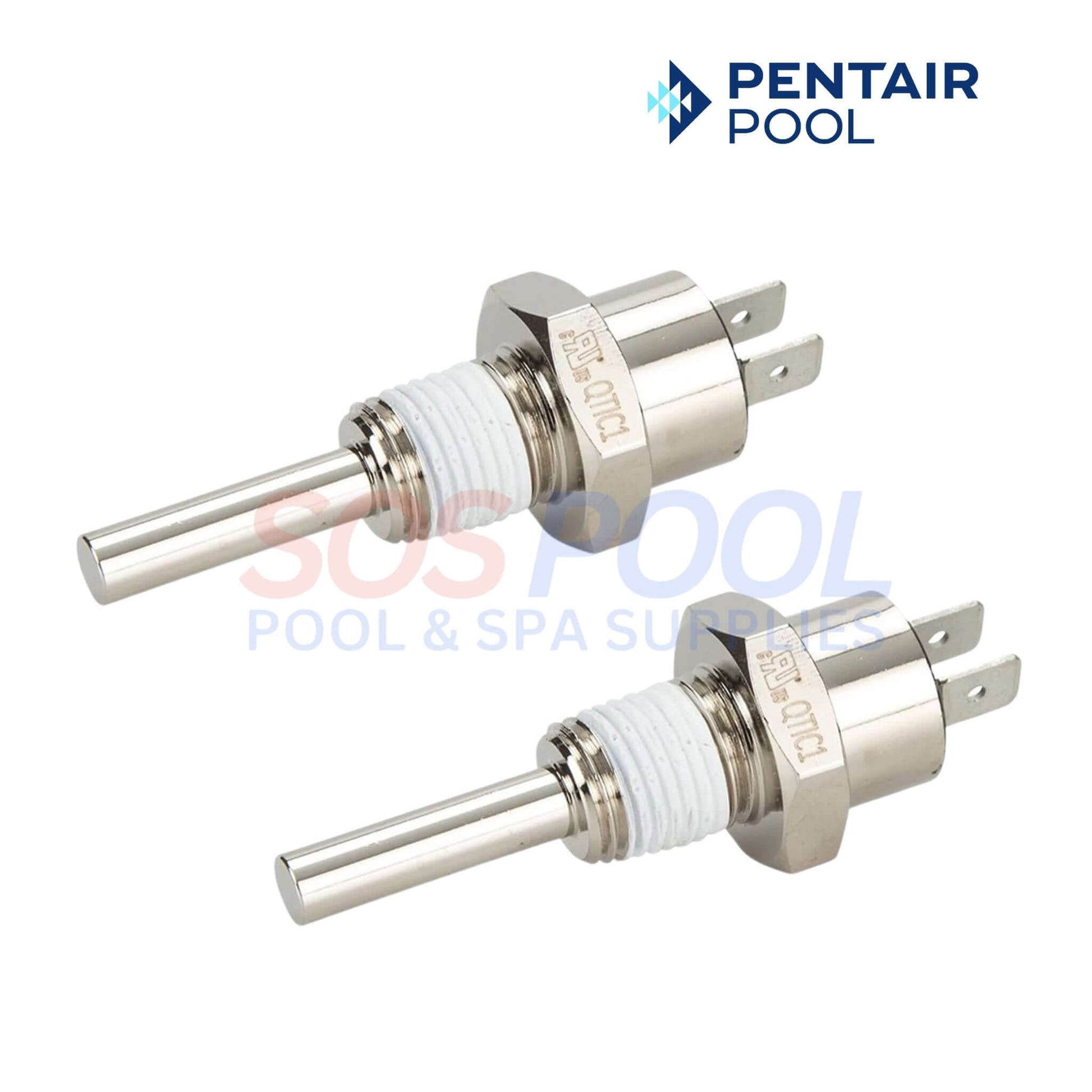

- (2) 42001-0053S- Thermistor
- (1) 77707-0010S- Thermal Regulator Cap

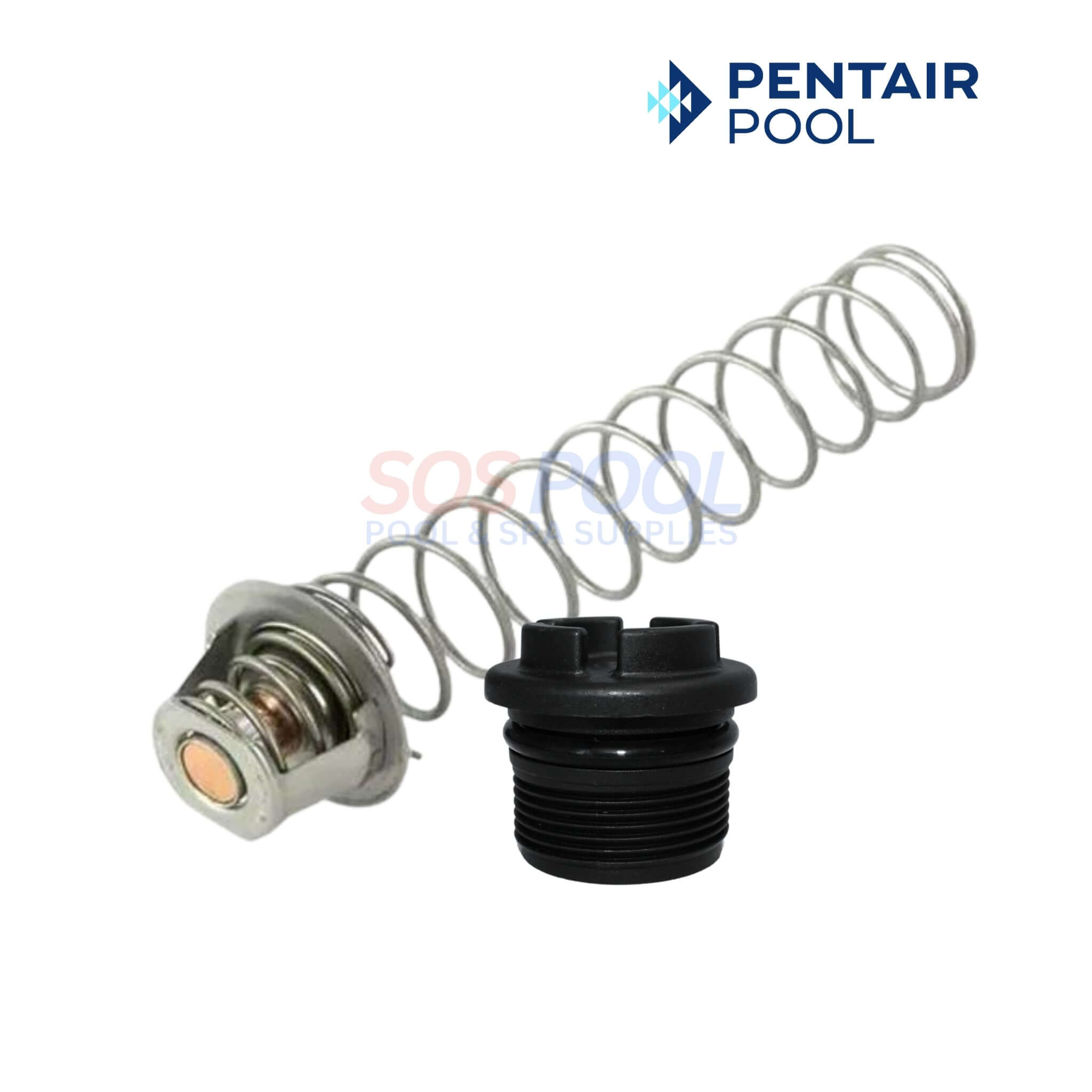

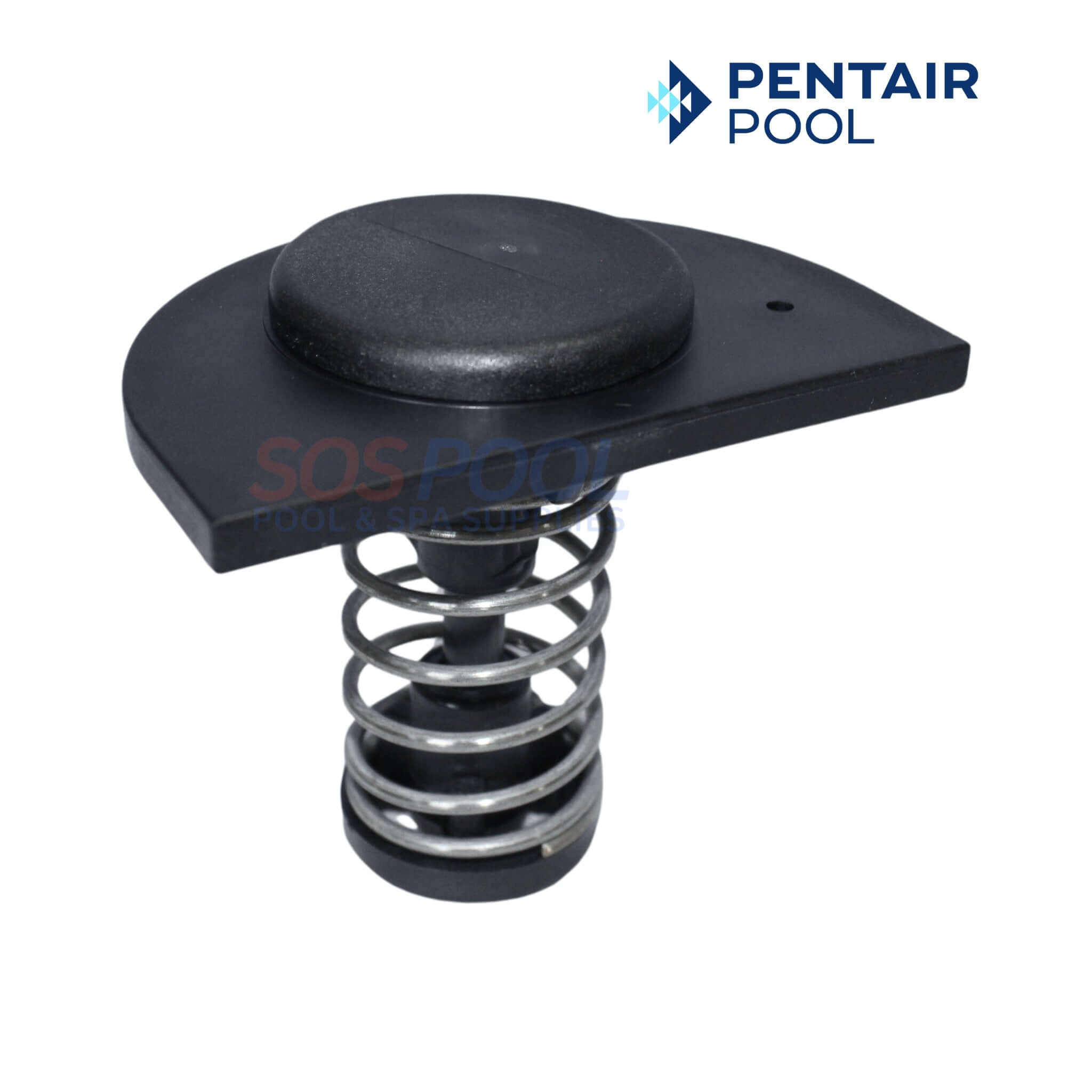

- (1) 77707-0010S- Thermal Regulator And Spring
- (1) 42002-0024S- Stack Flue SVC Kit

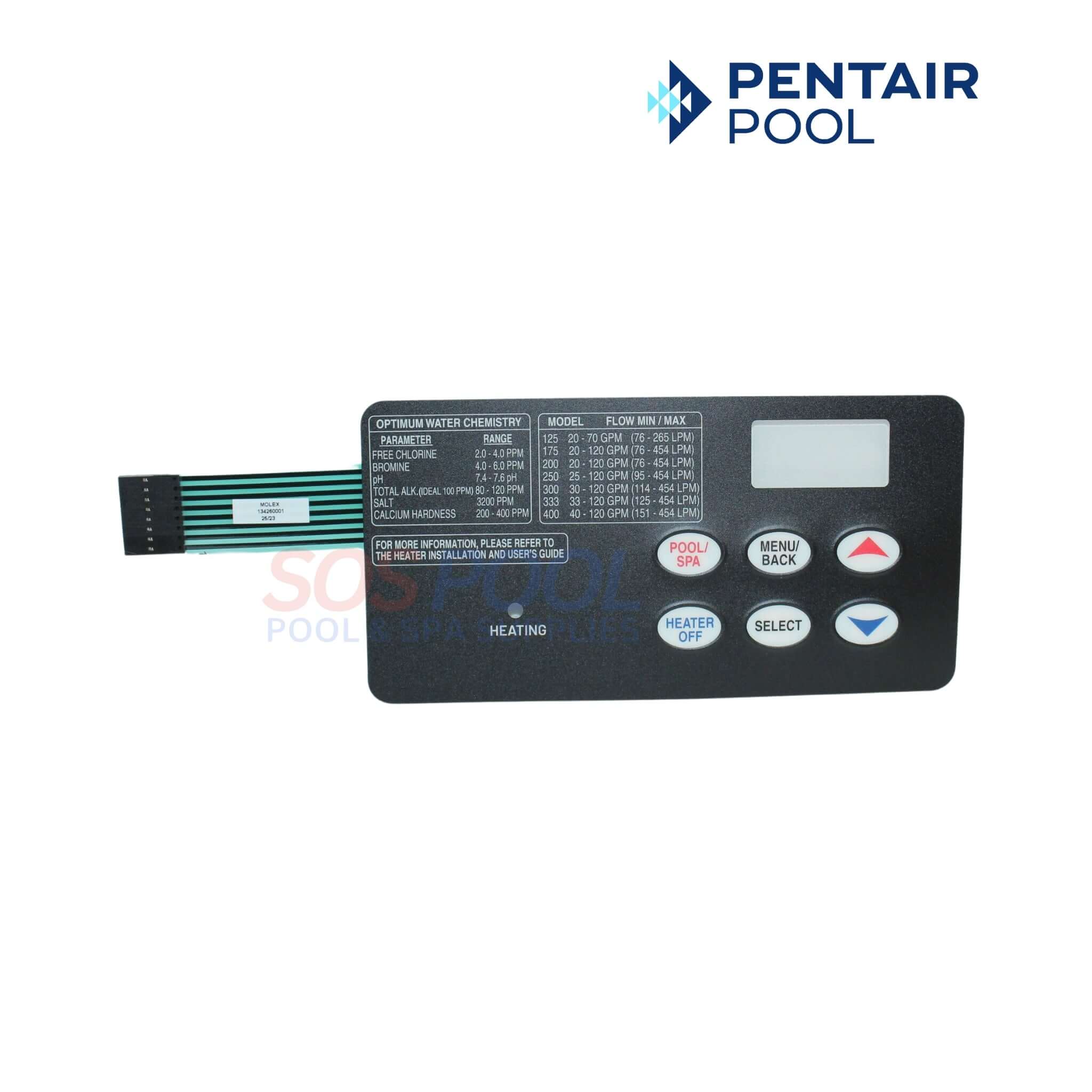

- (1) 461105- Switch Membrane (6 Button) / 472610Z (5 Button)

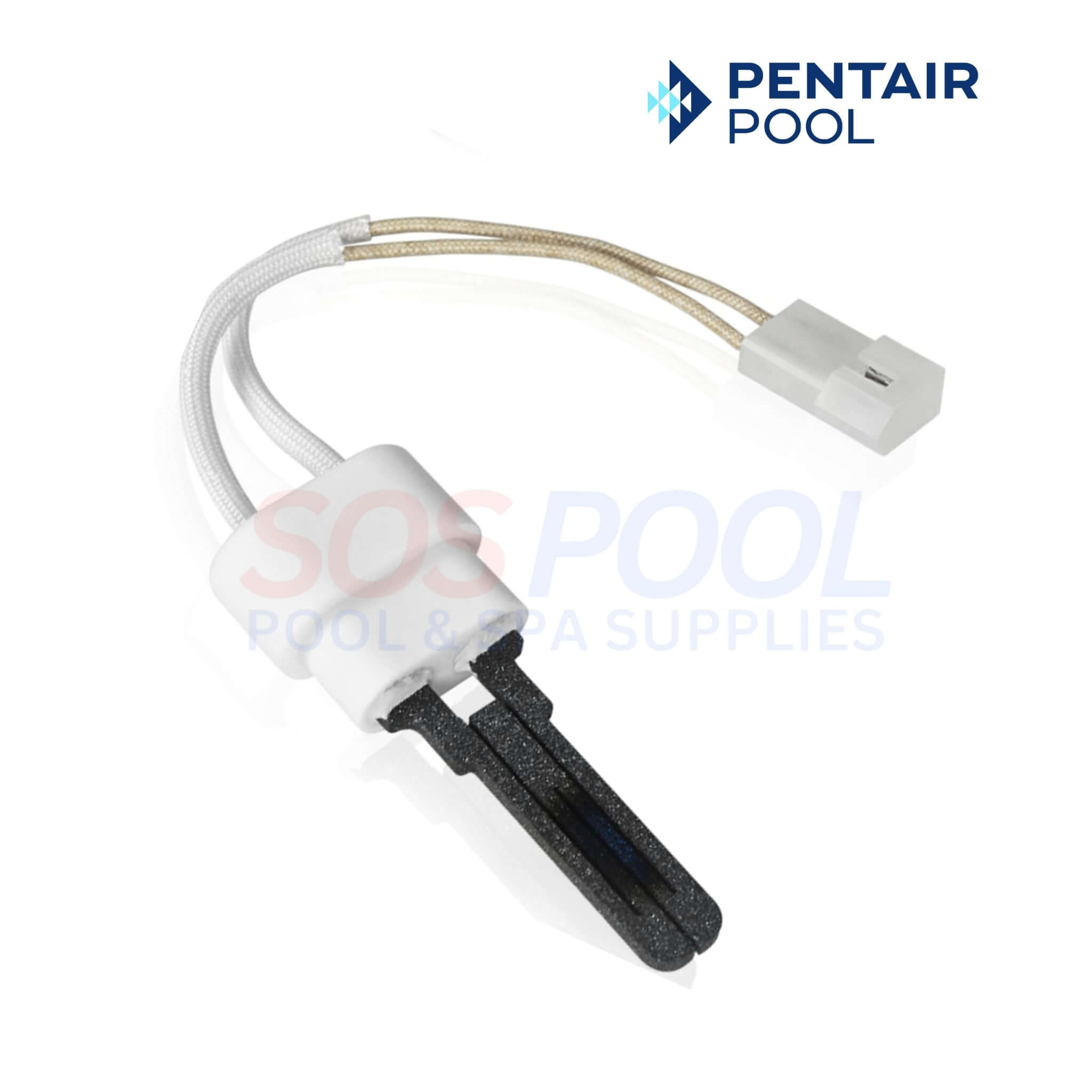

- (1) 77707-0054- Igniter and Gasket Kit

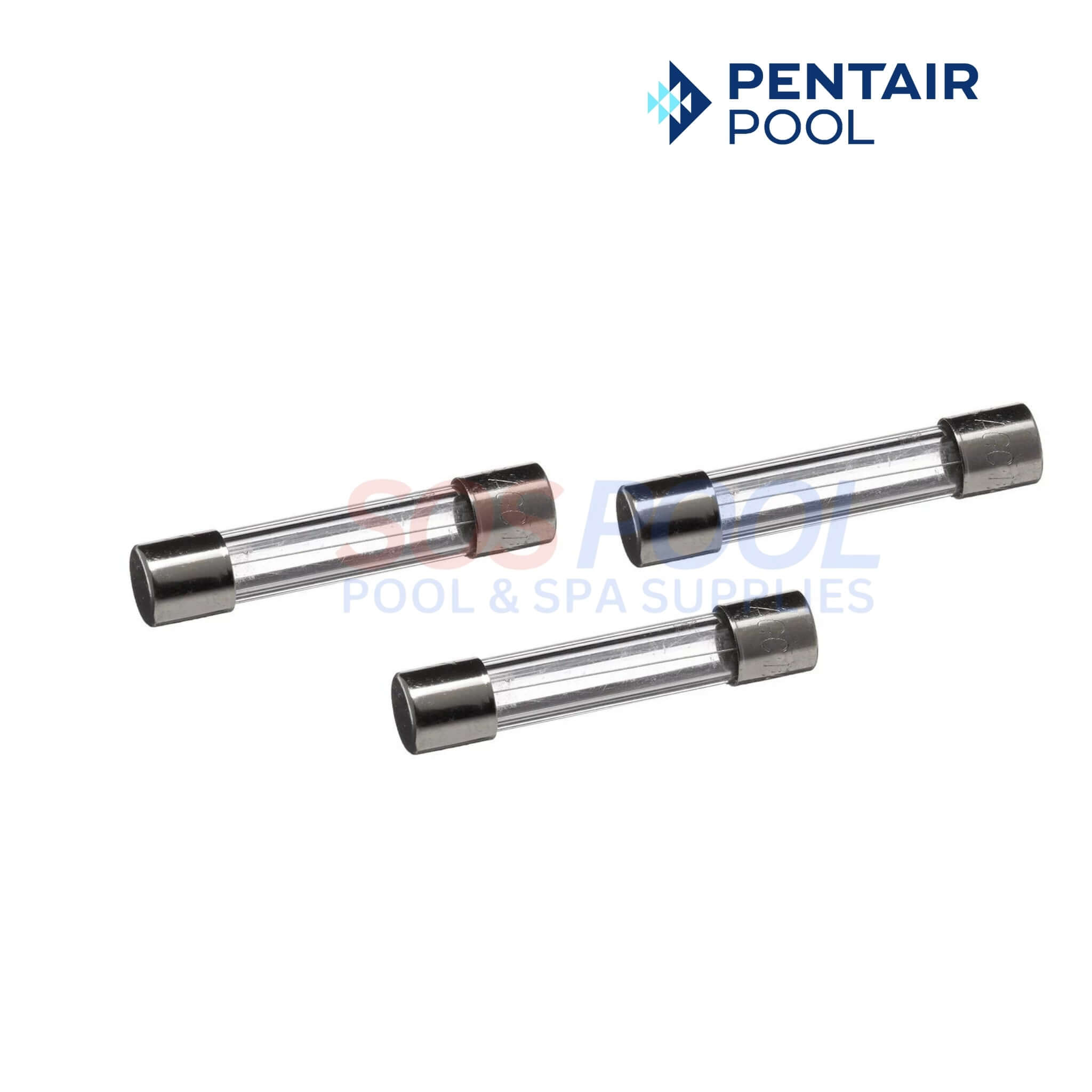

- (3) 32850-0099- Fuse 1.25A

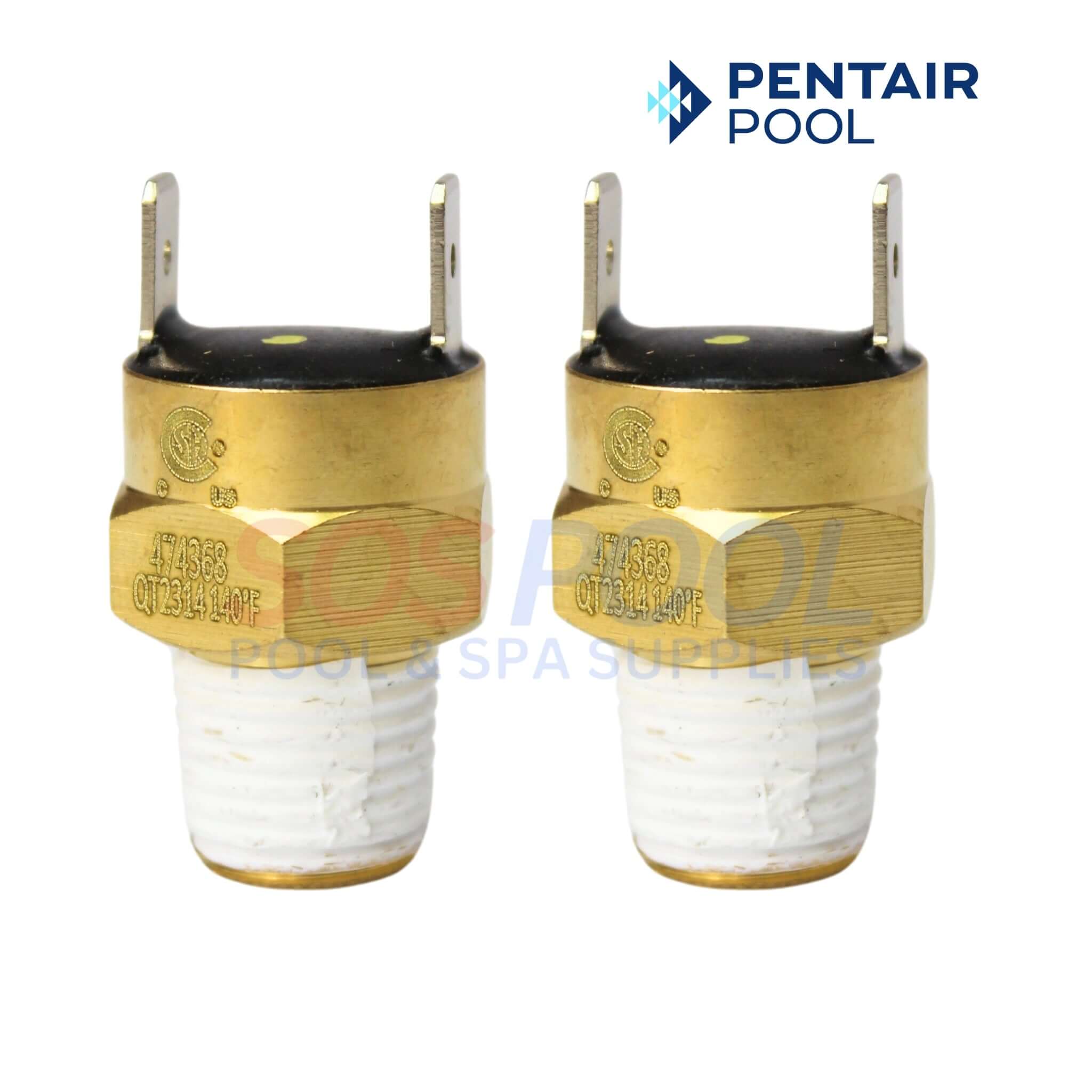

- (2) 42001-0063S- Hi-Limit Switch

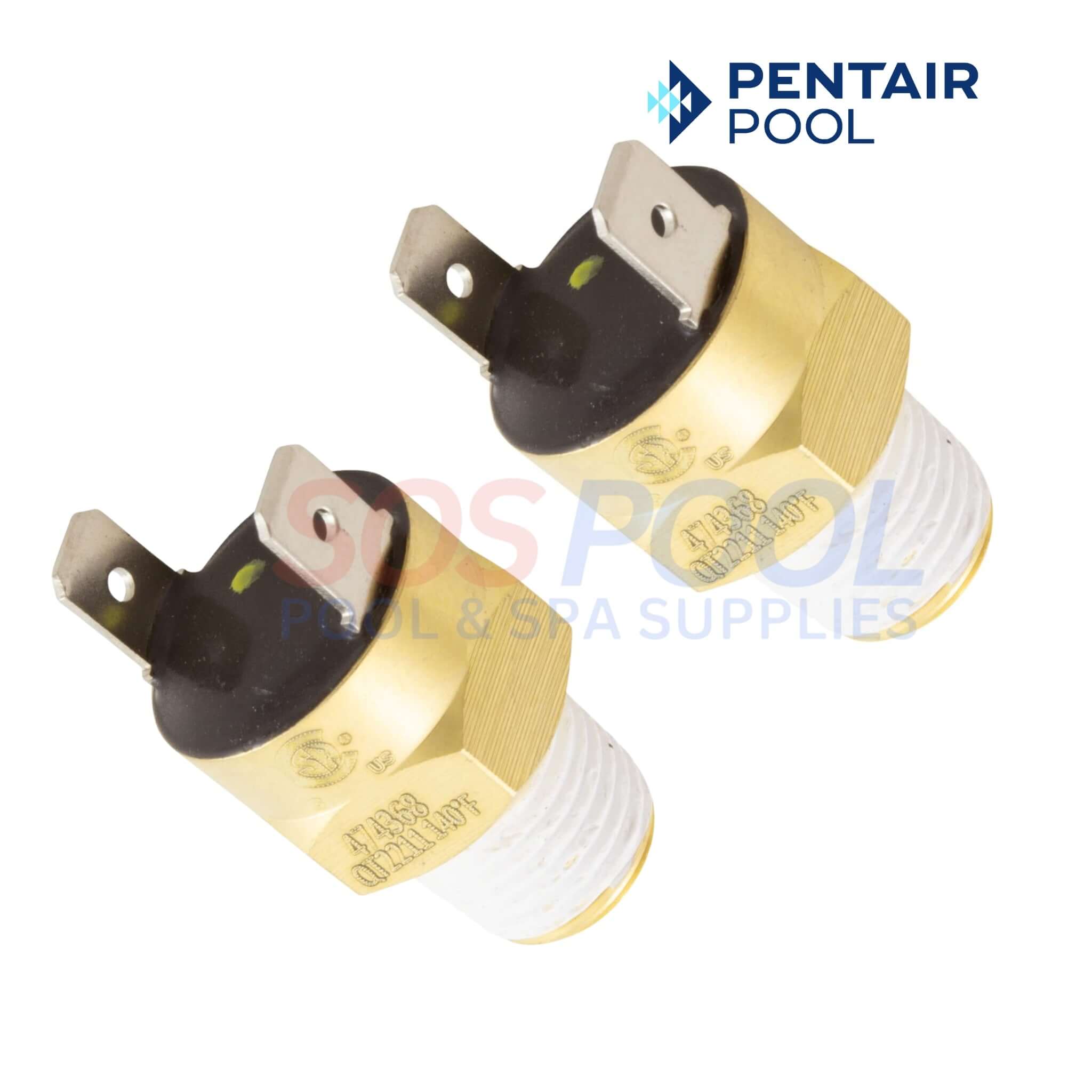

- (2) 42002-0025S- AGS Switch
- (1) 42001-0107S- Transformer Kit Accessories

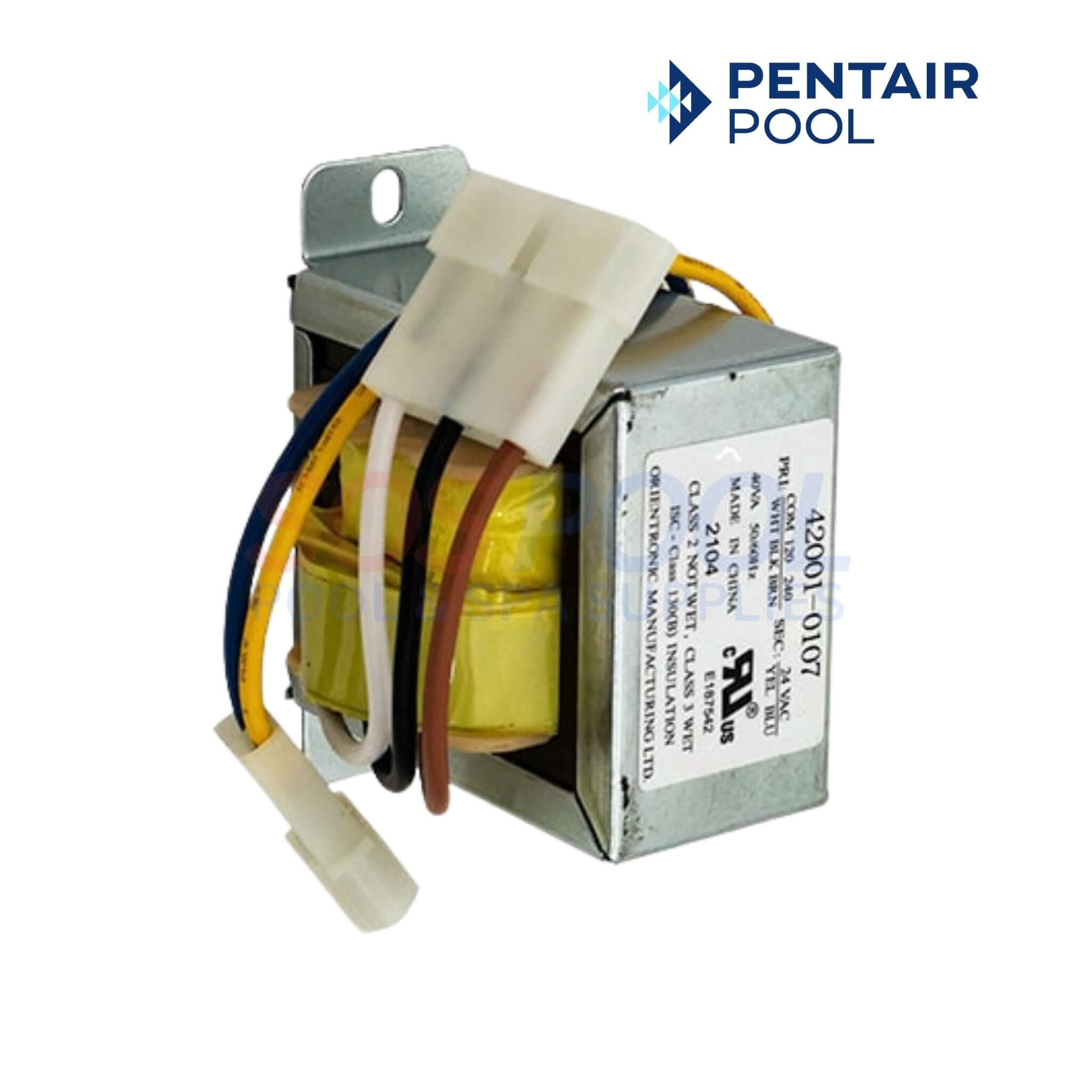

- (1) 42001-0107S- Transformer Kit

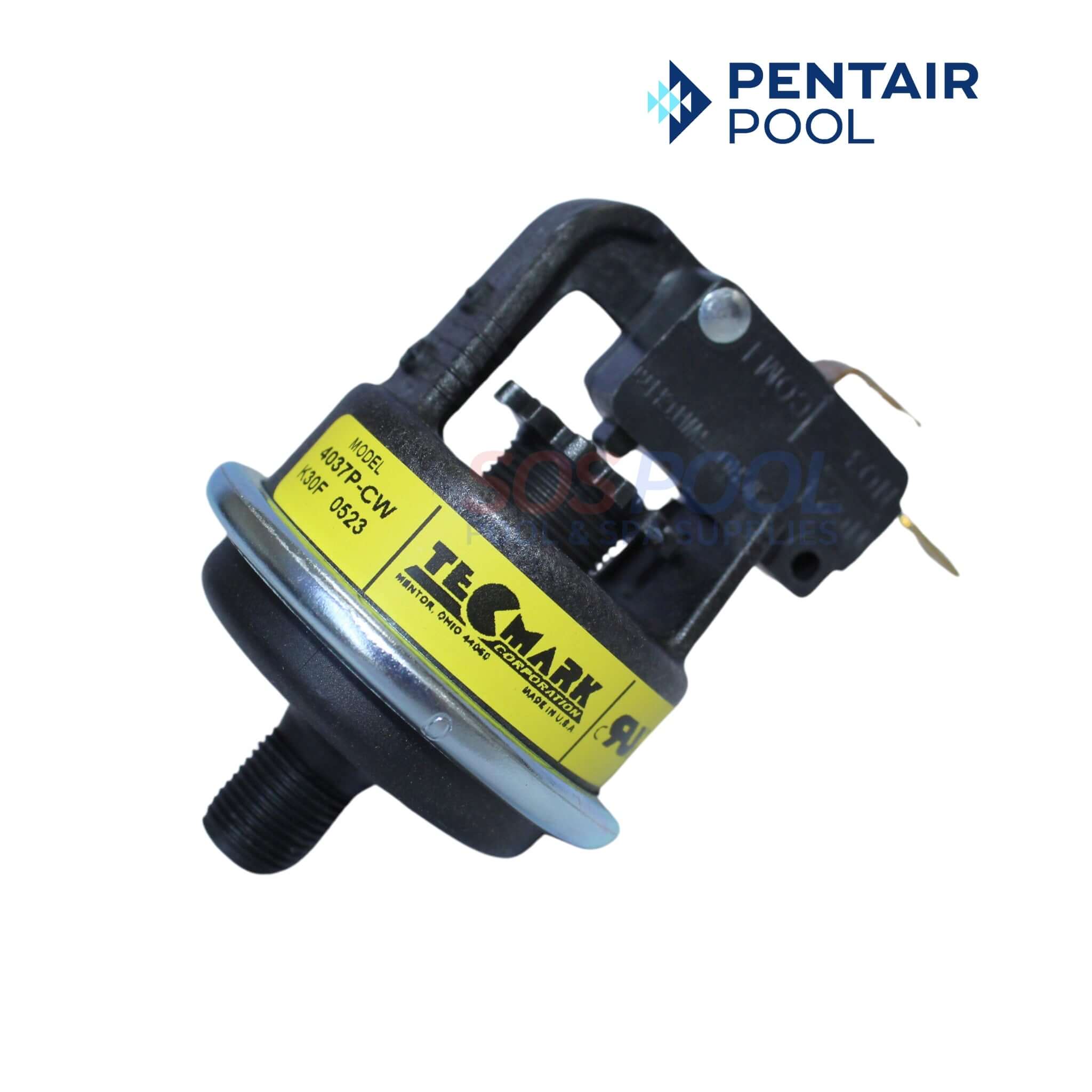

- (1) 42001-0060S- Pressure Switch SVC Kit

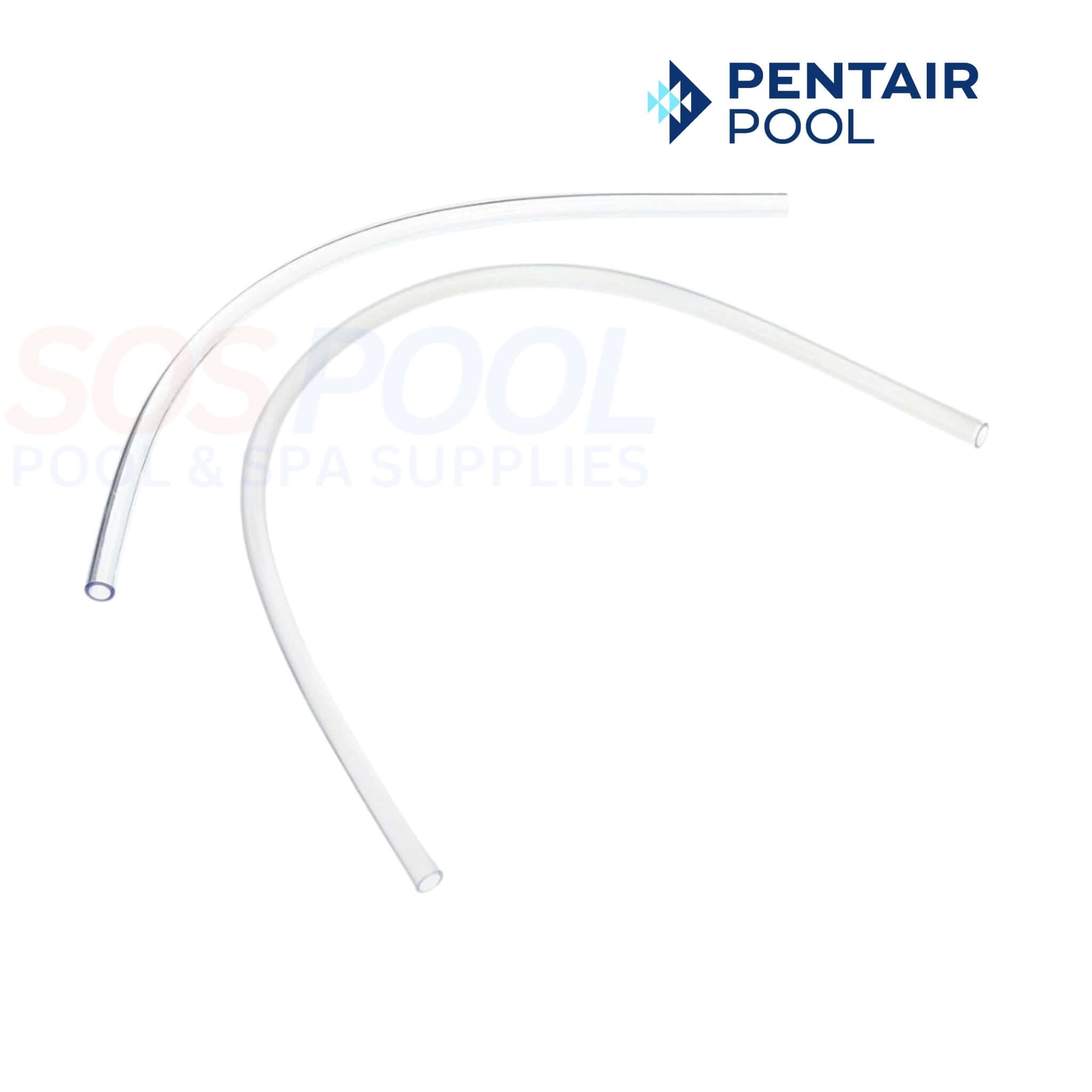

- (2) 42001-0061S- Air Flow Hose

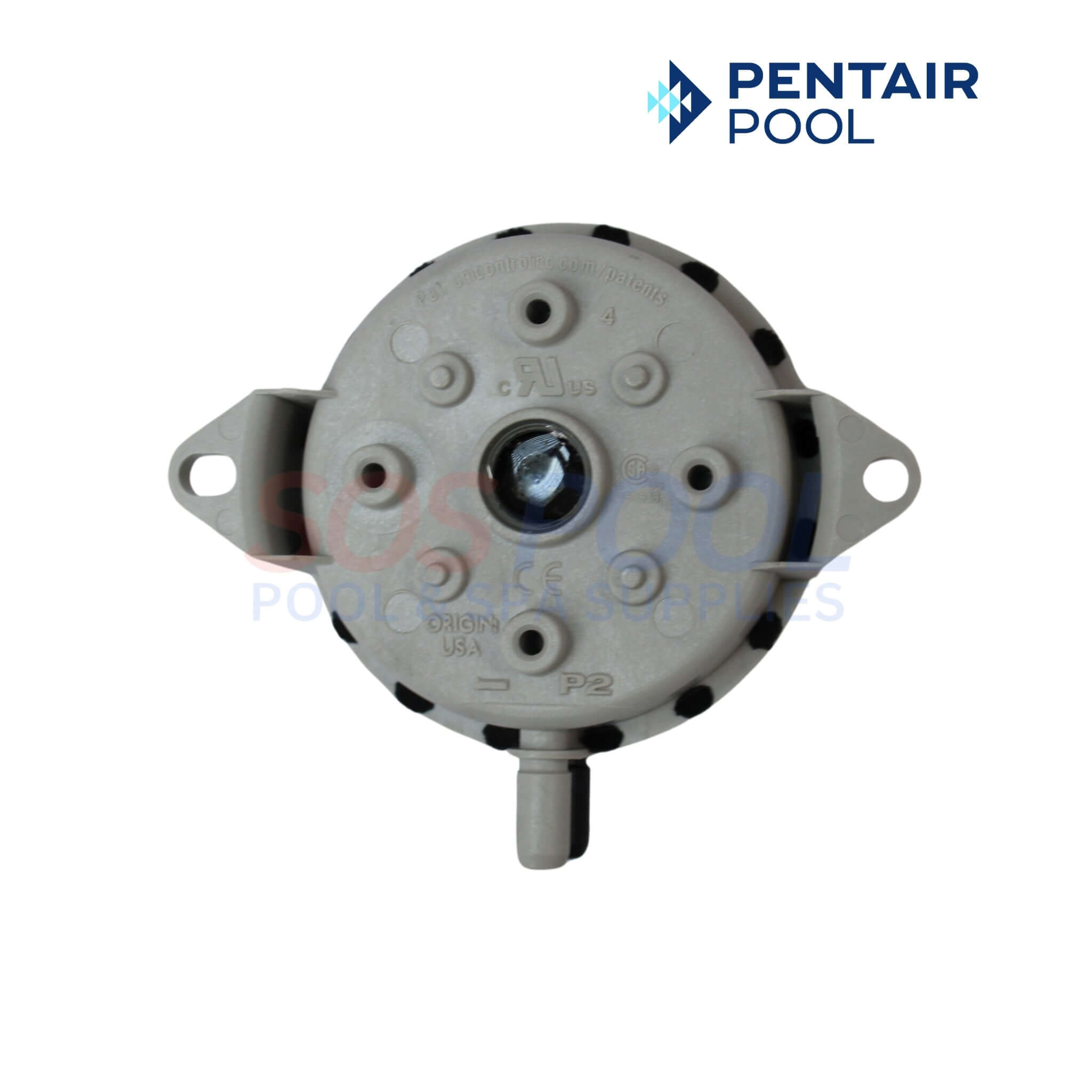

- (1) 42001-0061S- Air Flow Switch
- (1) 77707-0001- Manifold Bypass Valve

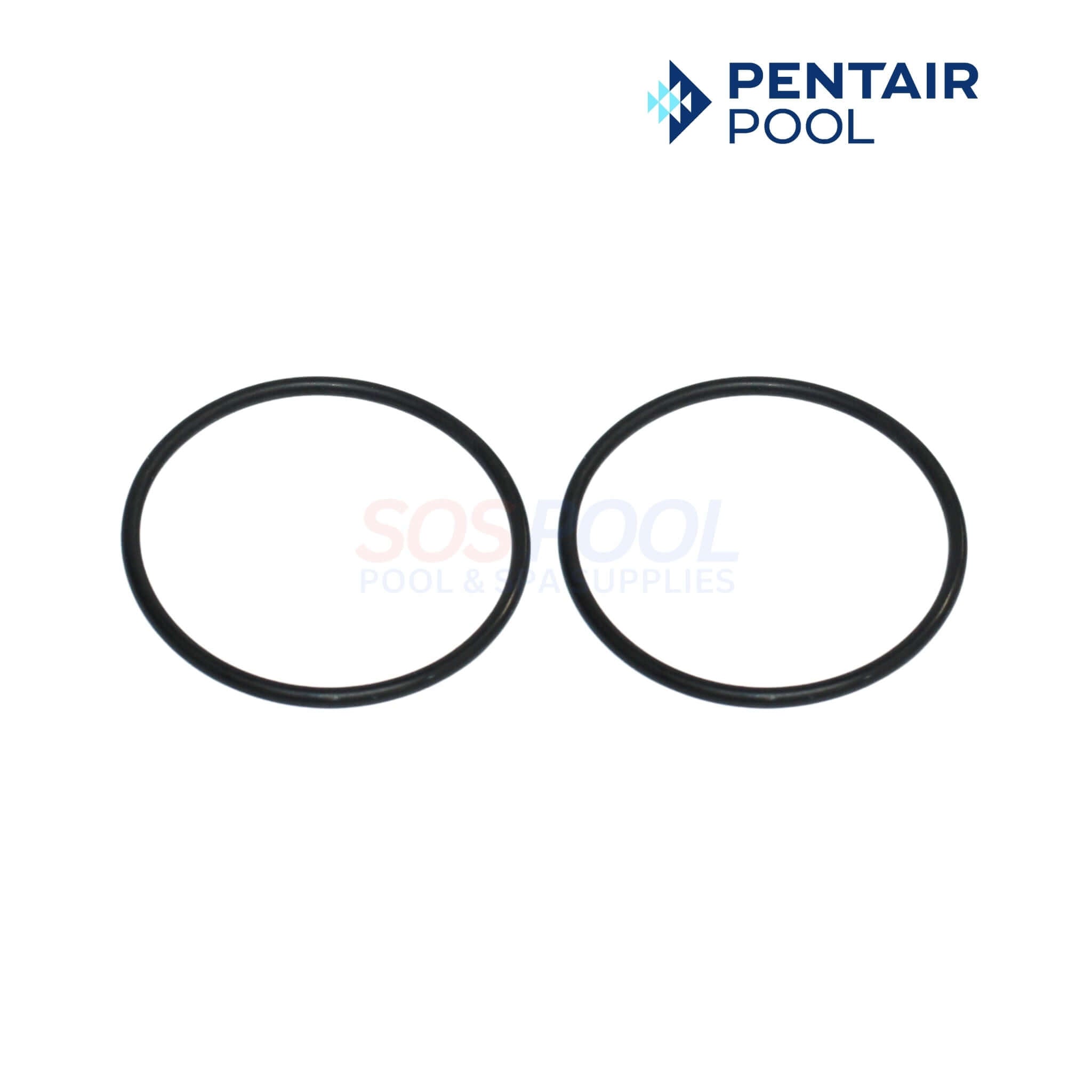

- (2) U9-226- O-Rings
- Pentair MasterTemp Heaters
- Pentair Max-E-Therm Heaters
