Pentair Manifold Kit For MasterTemp and Max-E-Therm 300 Heaters | 77707-0015

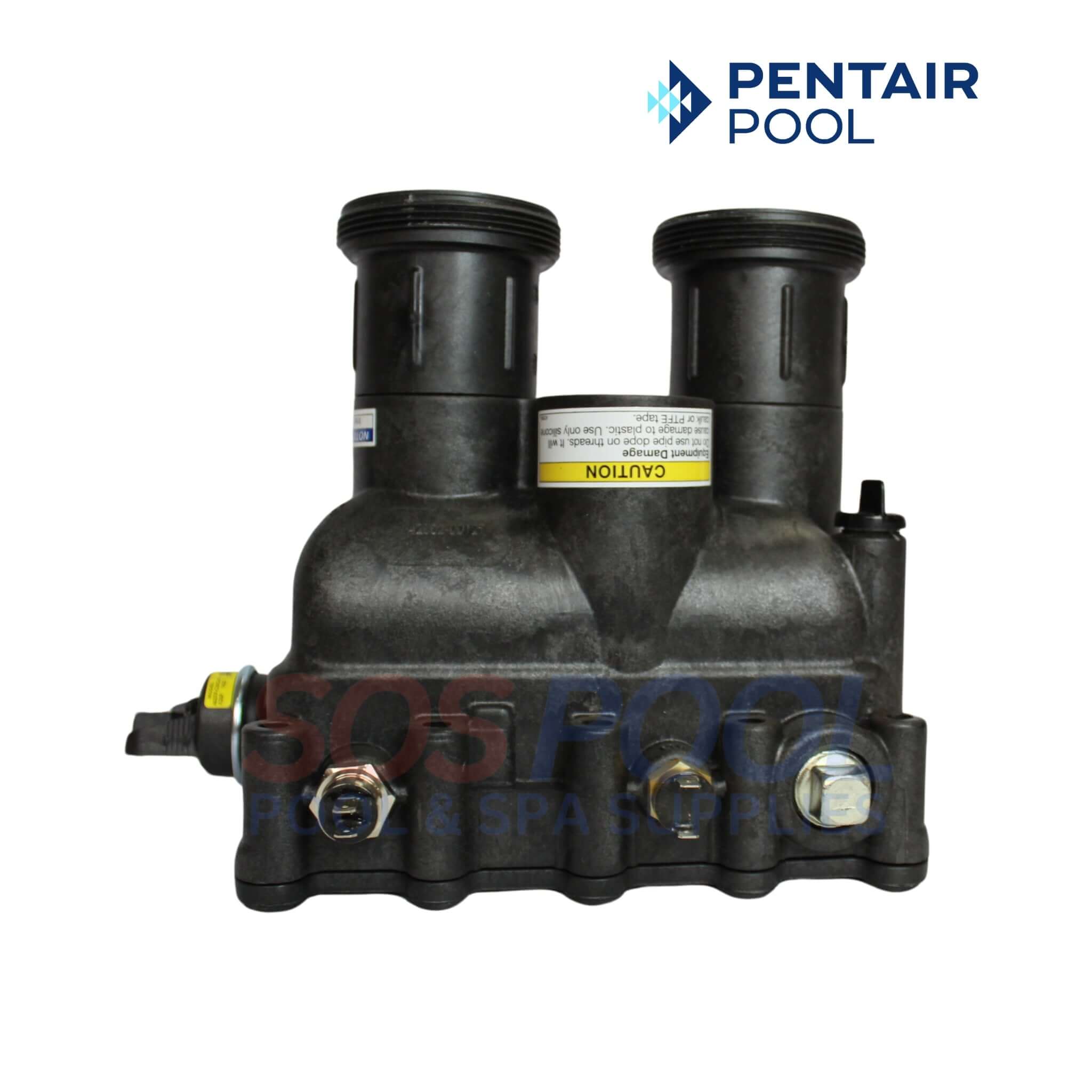

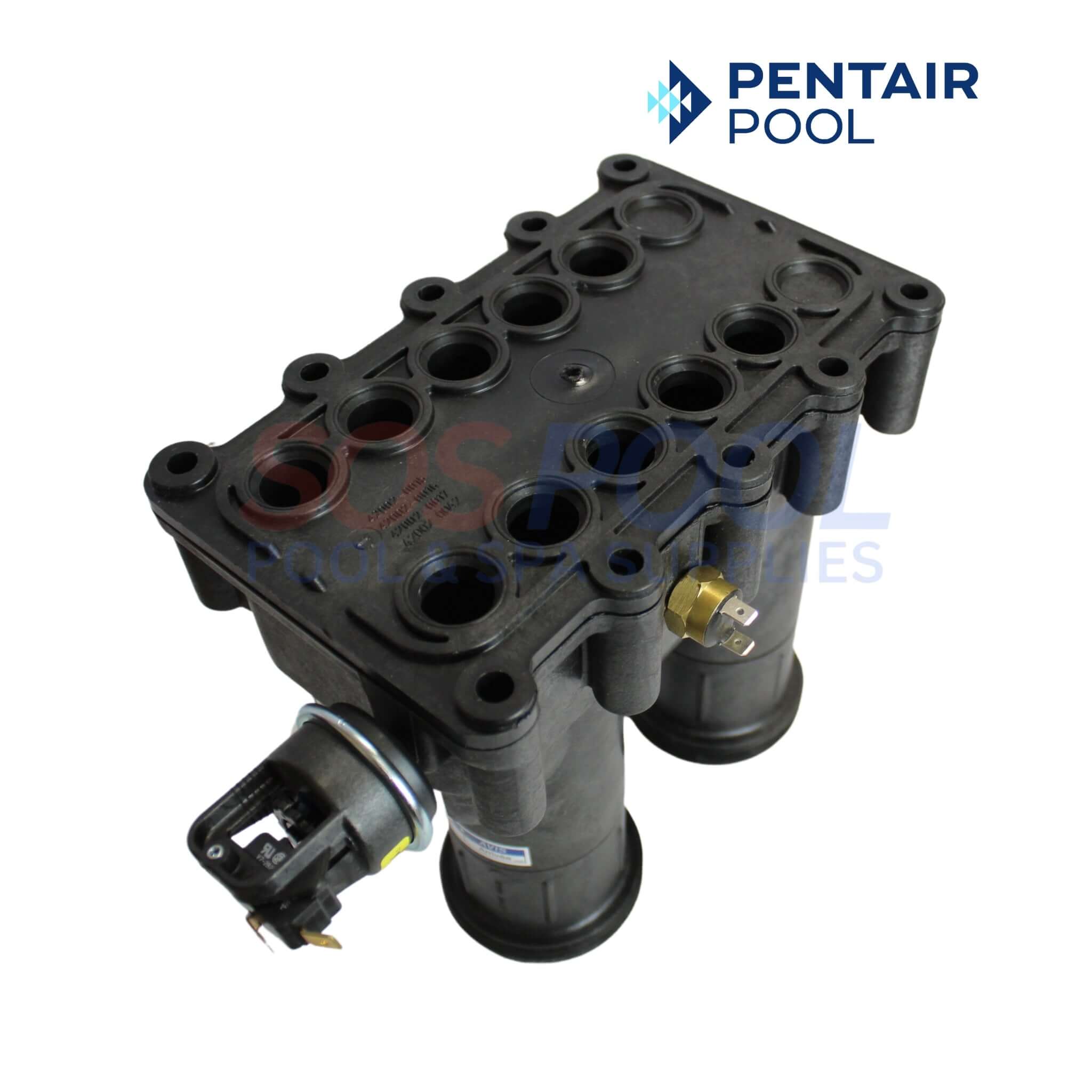

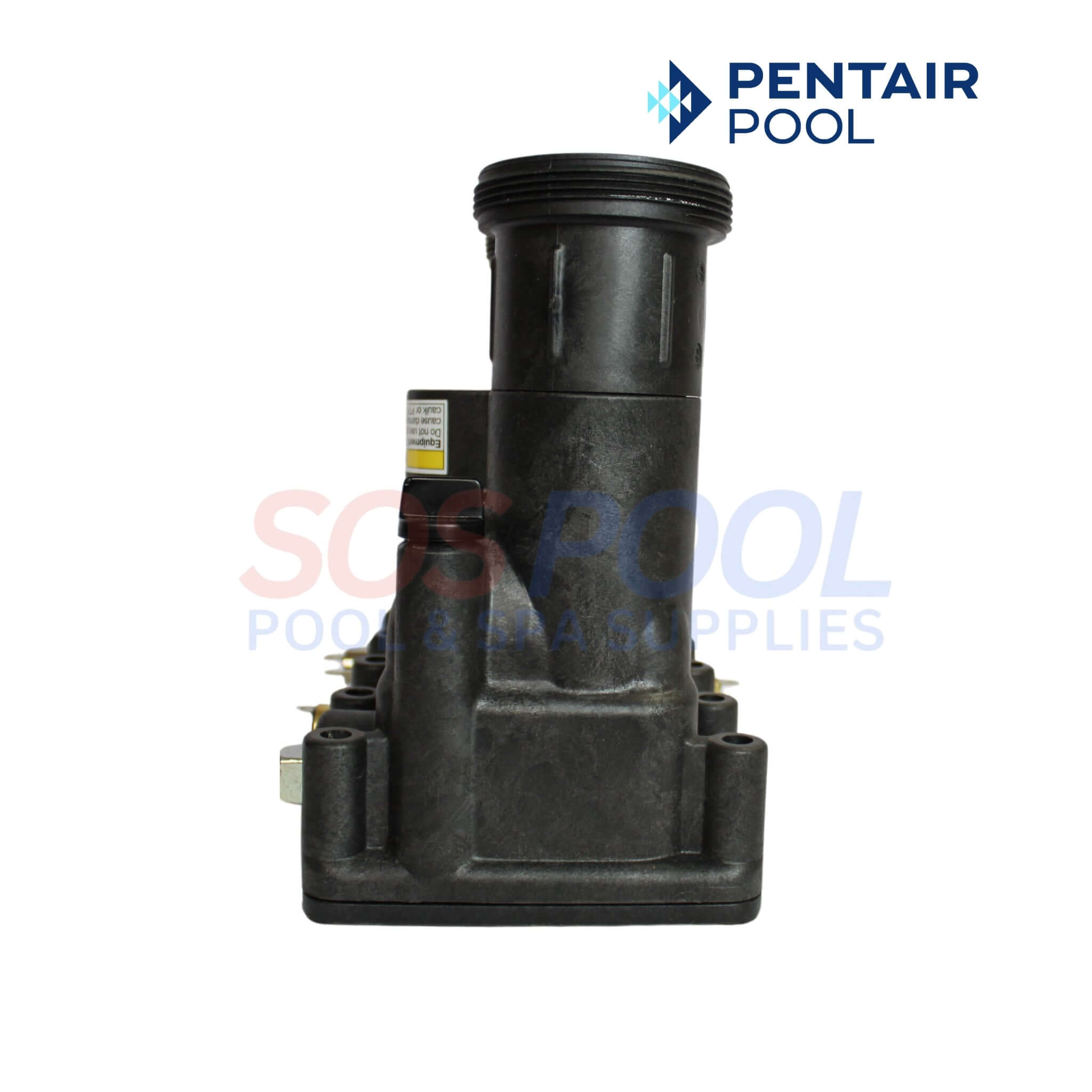

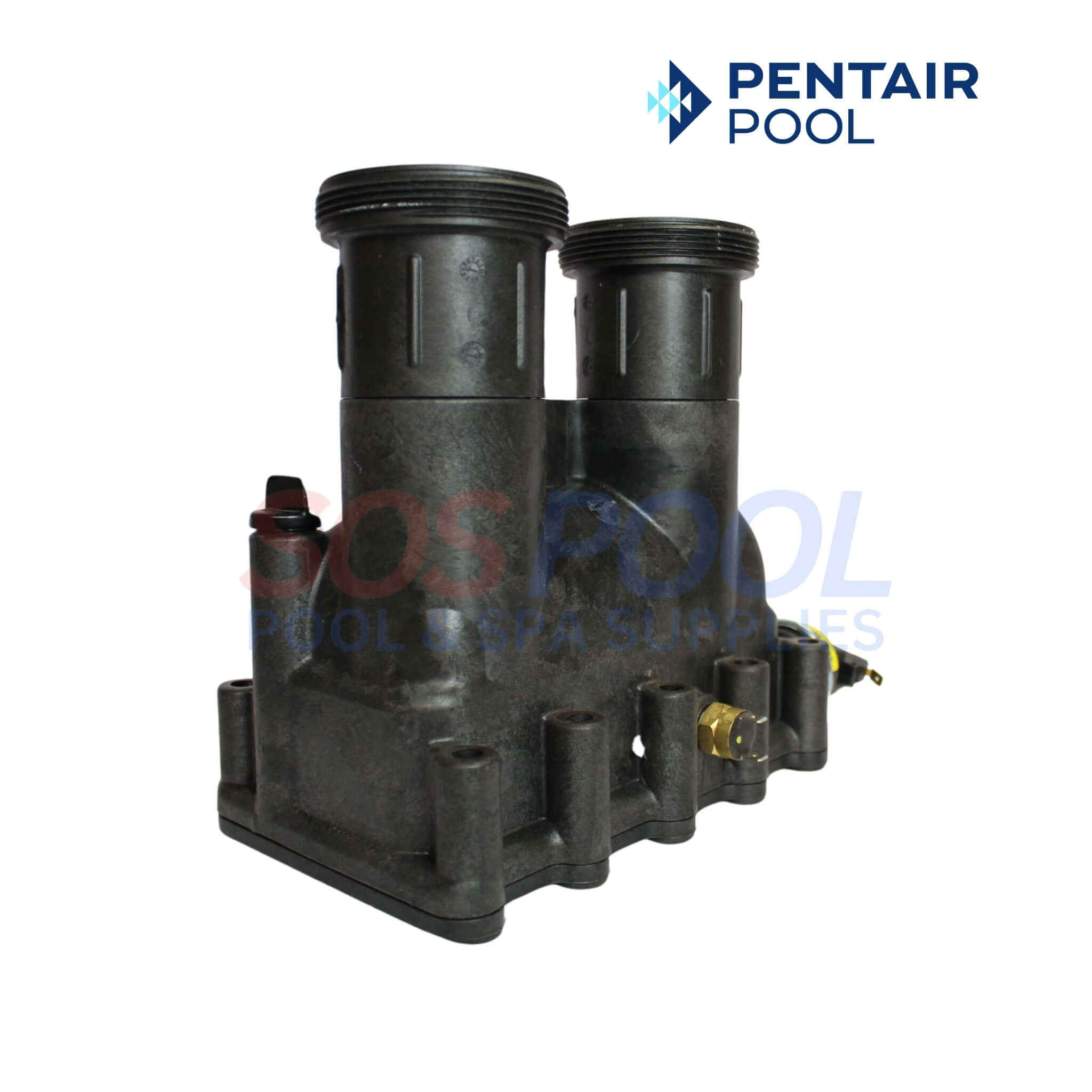

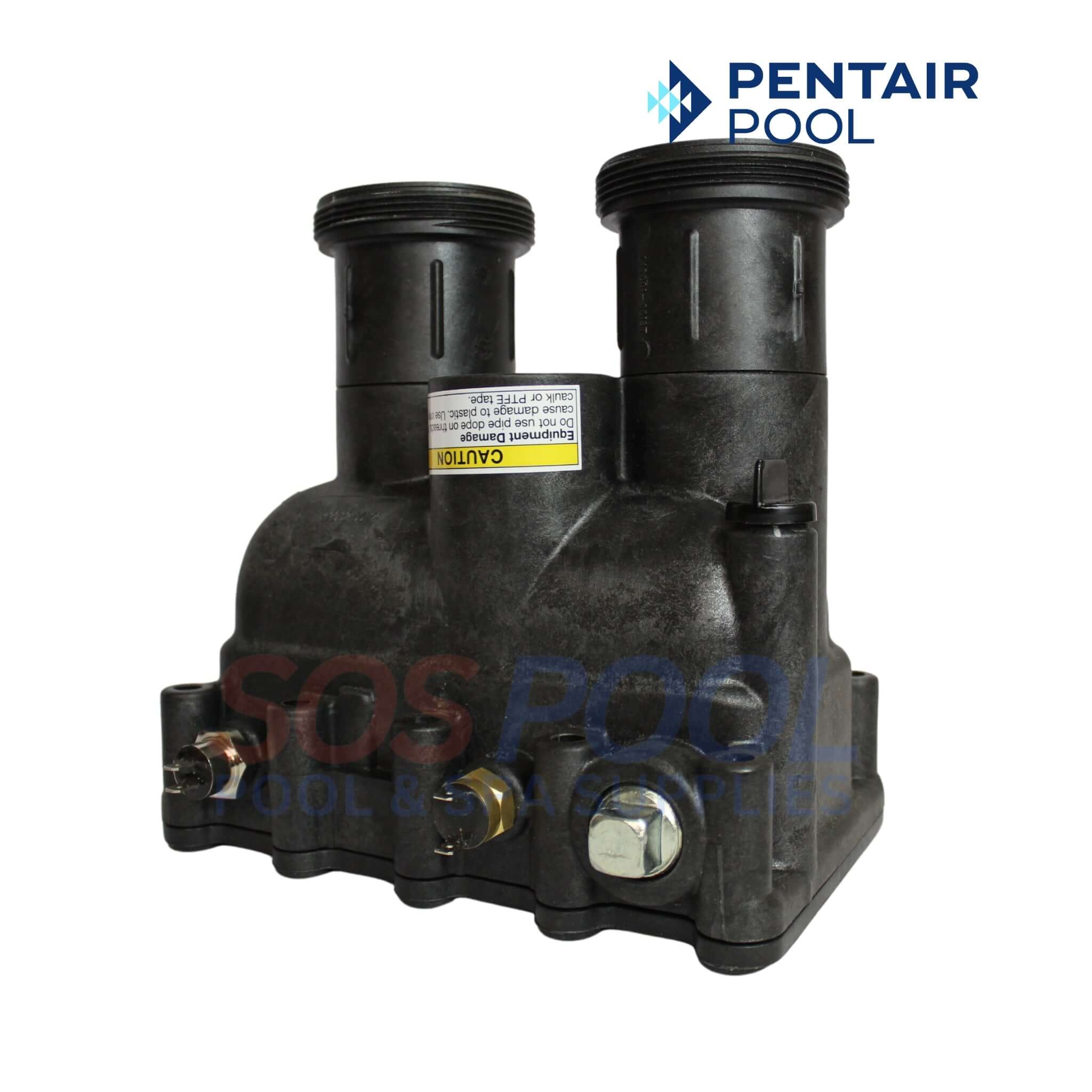

This manifold is a crucial component bolted to the side of the combustion chamber. It serves as a hub for inlet and outlet water connections and houses various important features, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.

Highlights

• Crucial Connectivity Hub: Serves as a vital hub for both inlet and outlet water connections, facilitating efficient water circulation within the system.
• Integrated Functionalities: Houses several key components, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve, ensuring comprehensive control and safety.
• Enhanced System Efficiency: Plays a pivotal role in enhancing the efficiency and reliability of the combustion chamber by managing and regulating critical parameters.
• Secure Installation: Bolted firmly to the side of the combustion chamber, providing a stable and accessible platform for essential features and maintenance.
• Safety and Protection: Incorporates multiple safety devices like the hi-limit switch and psi relief valve to protect the system from overpressure and overheating, ensuring safe operation.

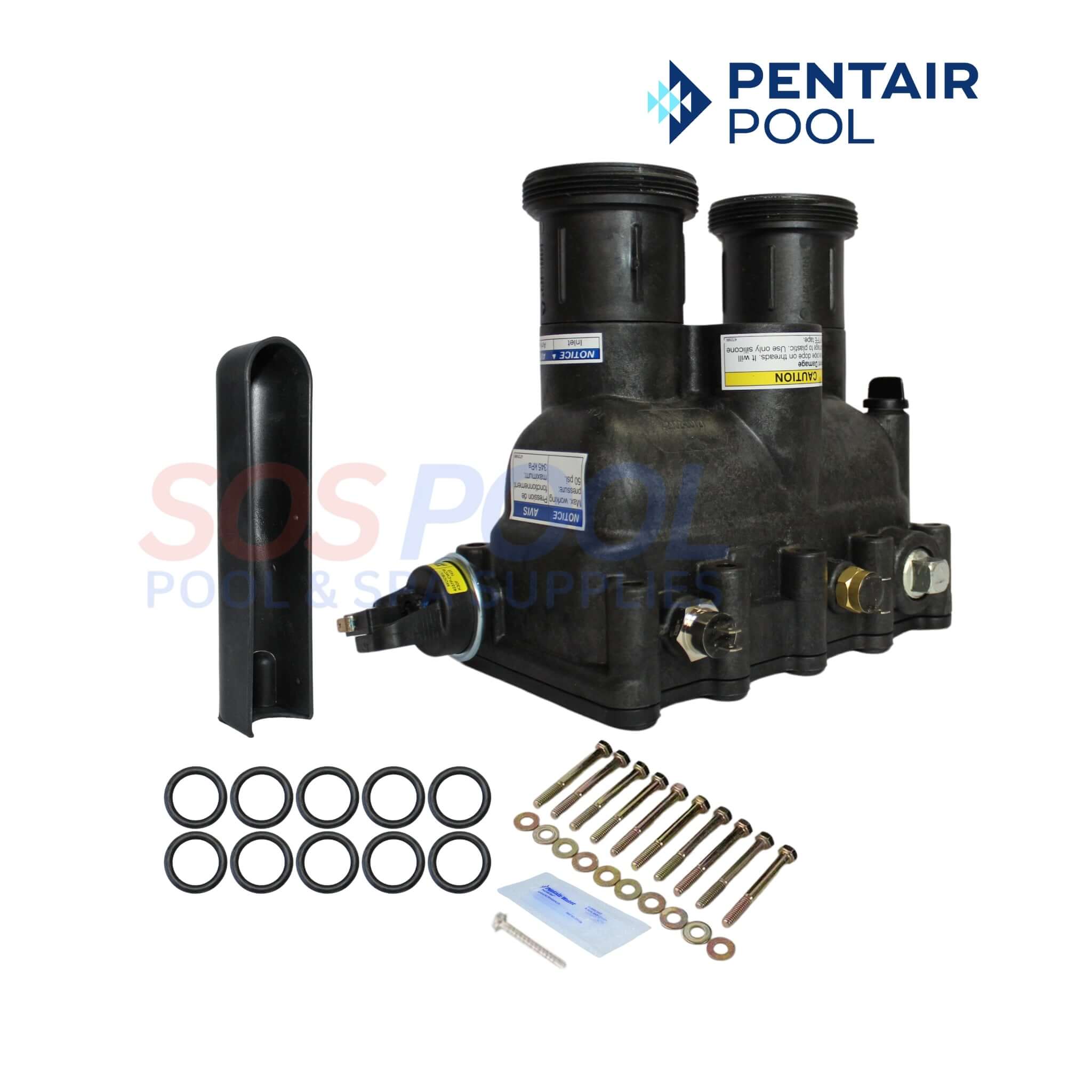

Includes

• (1) Pentair Manifold Kit
• (1) Pentair Small Lube and Sealant Package
• (1) Pentair Water Pressure Switch
• (1) Screw
• (10) Pentair Tube Sheet Coil O-Rings
• (10) Bolts
• (10) Washers

Compatibility

• Pentair MasterTemp Heaters Models: 175NA, 175LP, 200NA, and 200LP1
• Pentair Sta-Rite Max-E-Therm Heater Model: 200

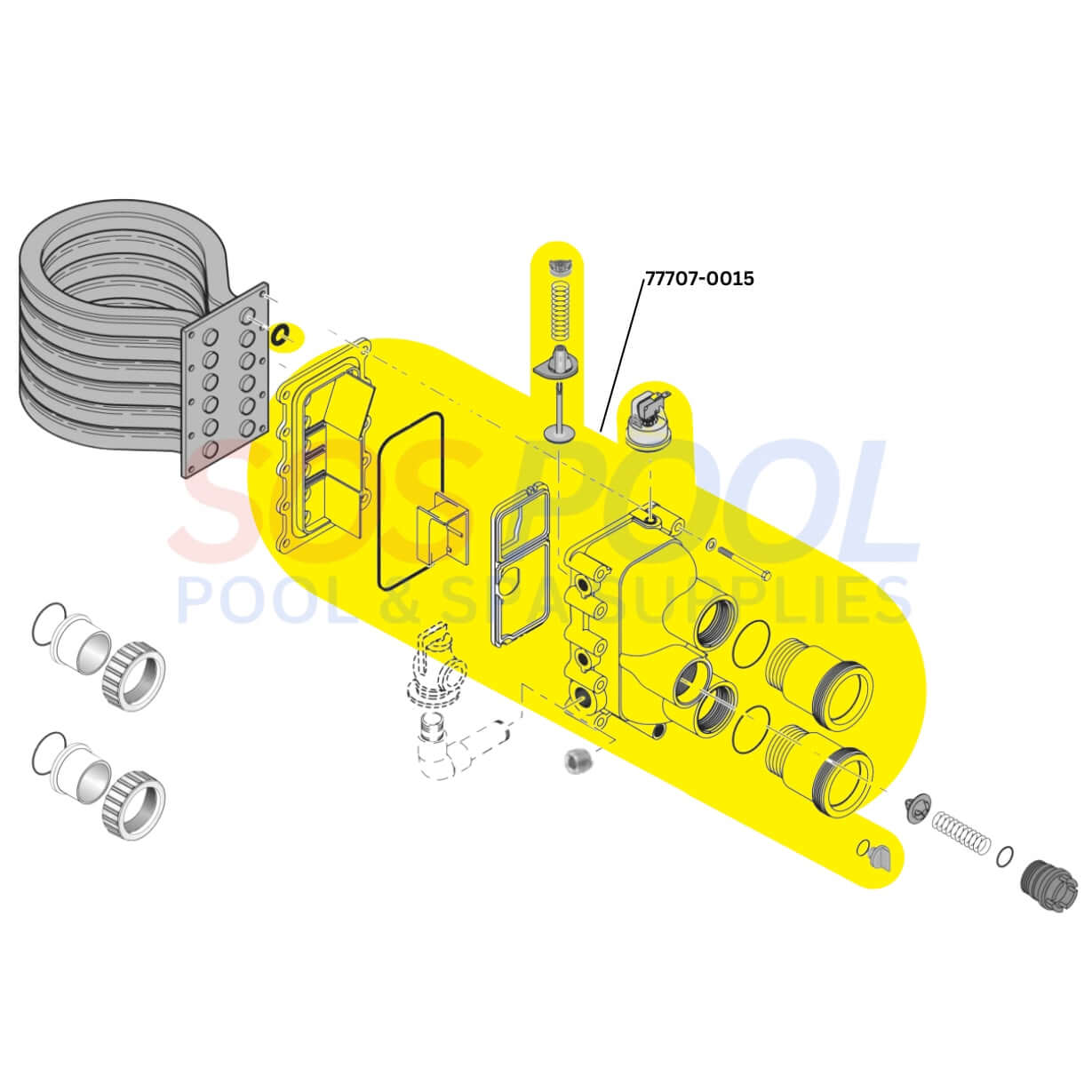

Diagram
