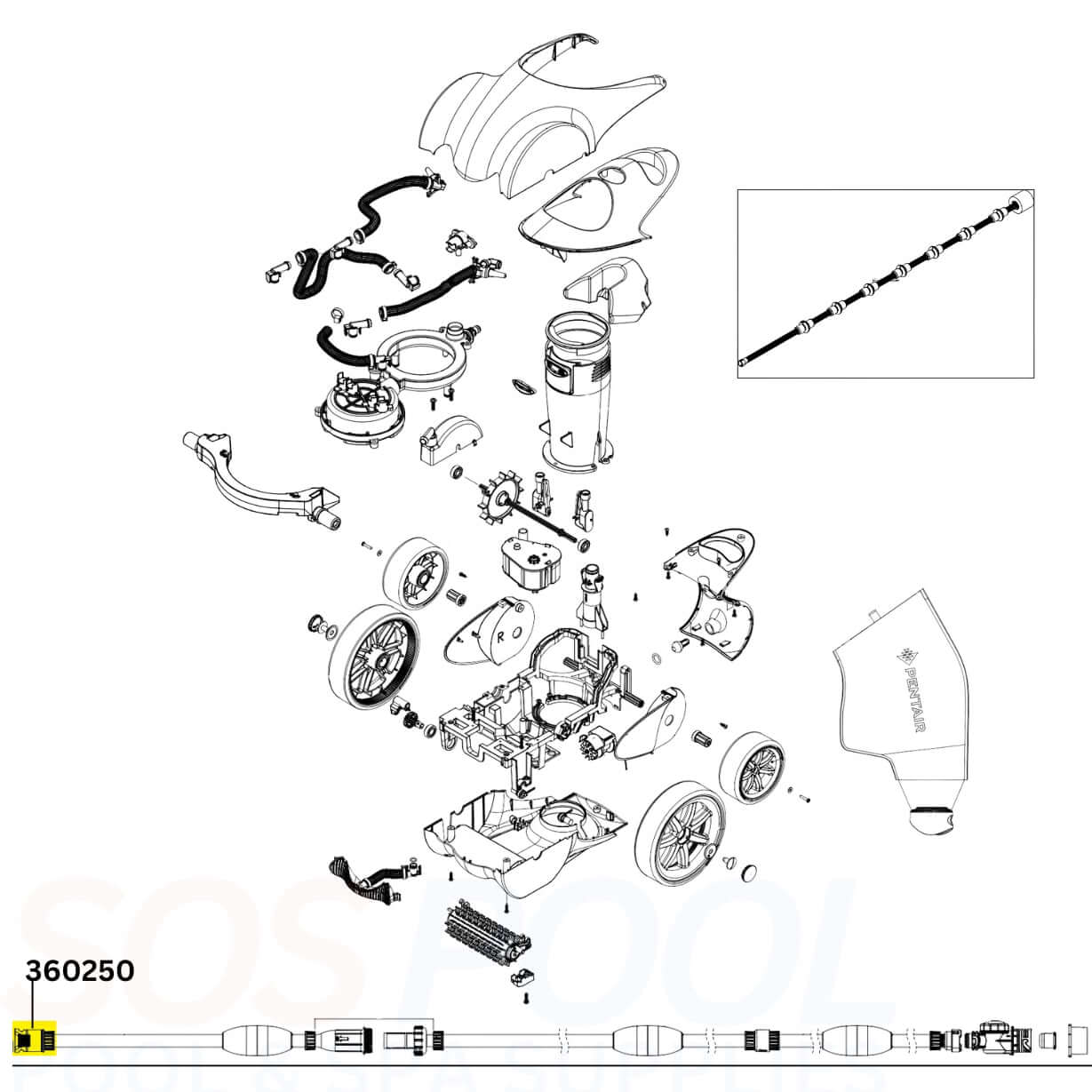

On the Pentair Racer LS Pressure Side Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Racer LS Pressure Side Cleaner

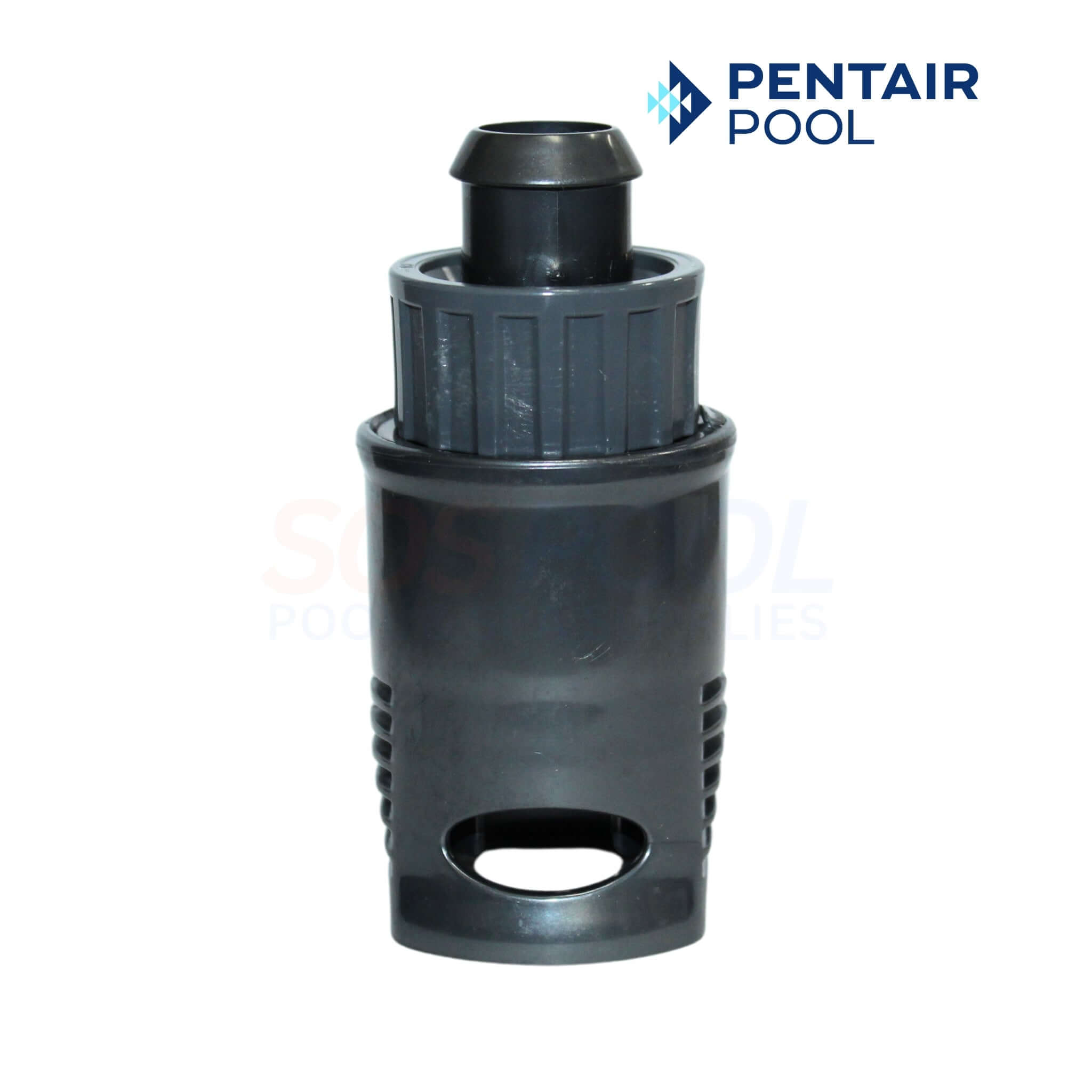

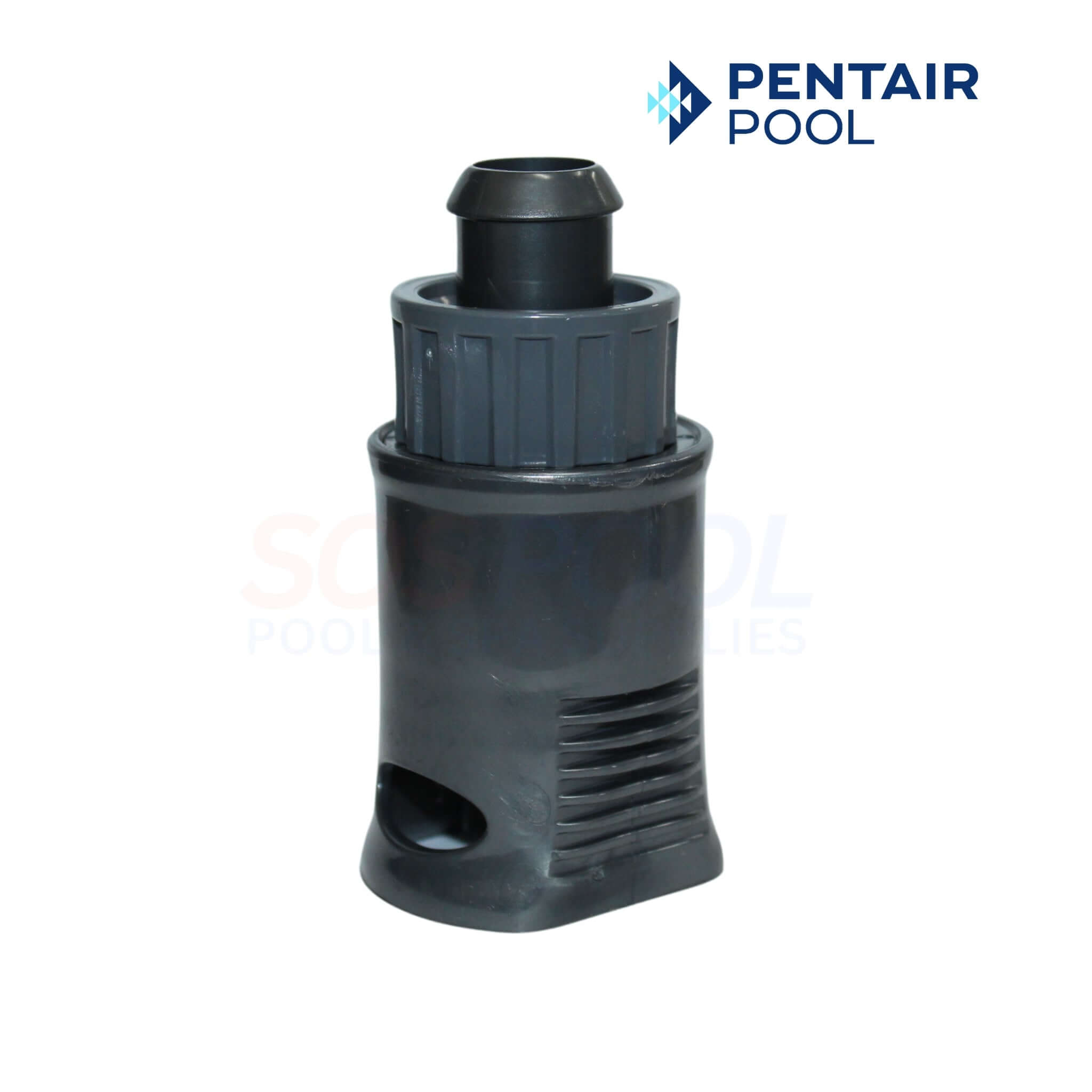

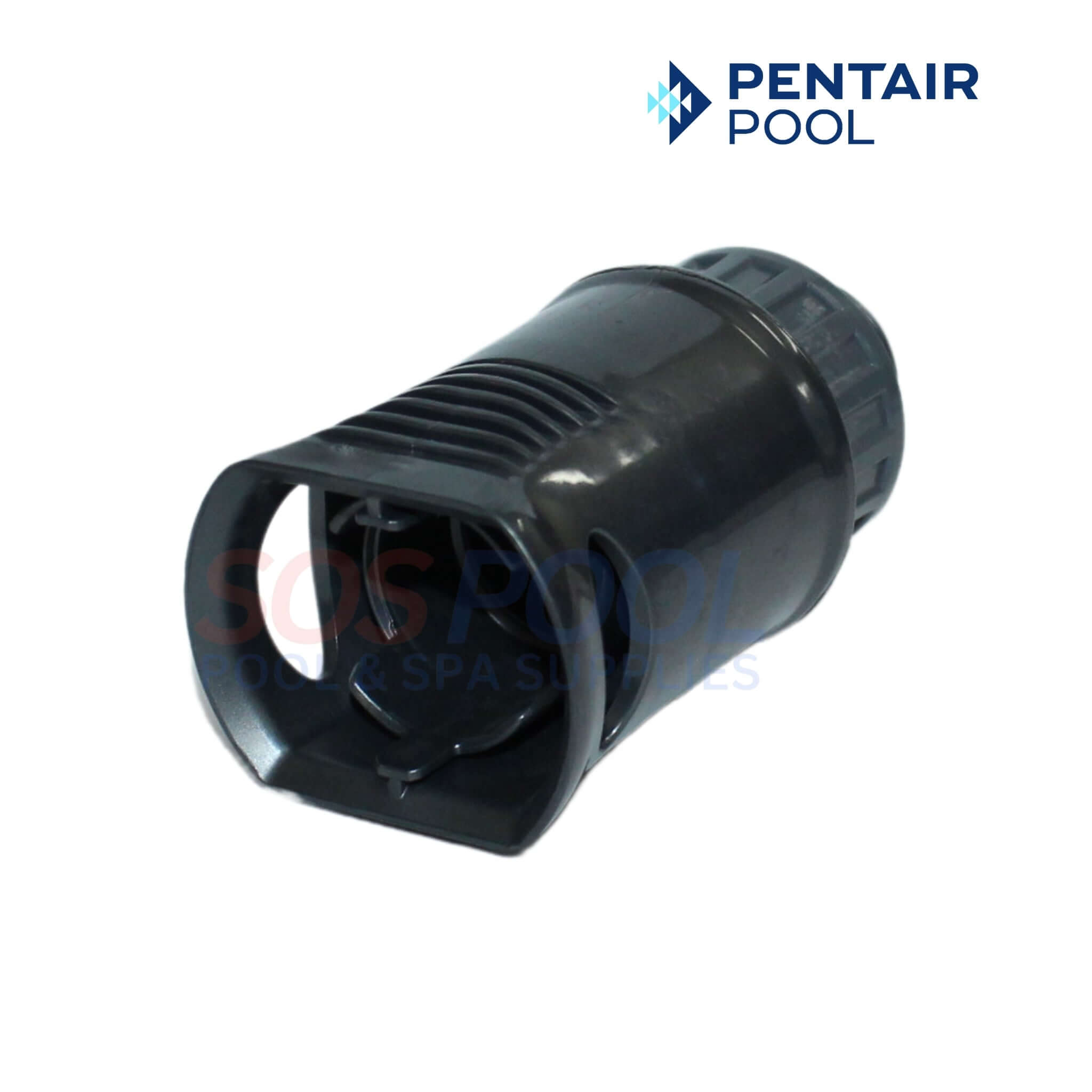

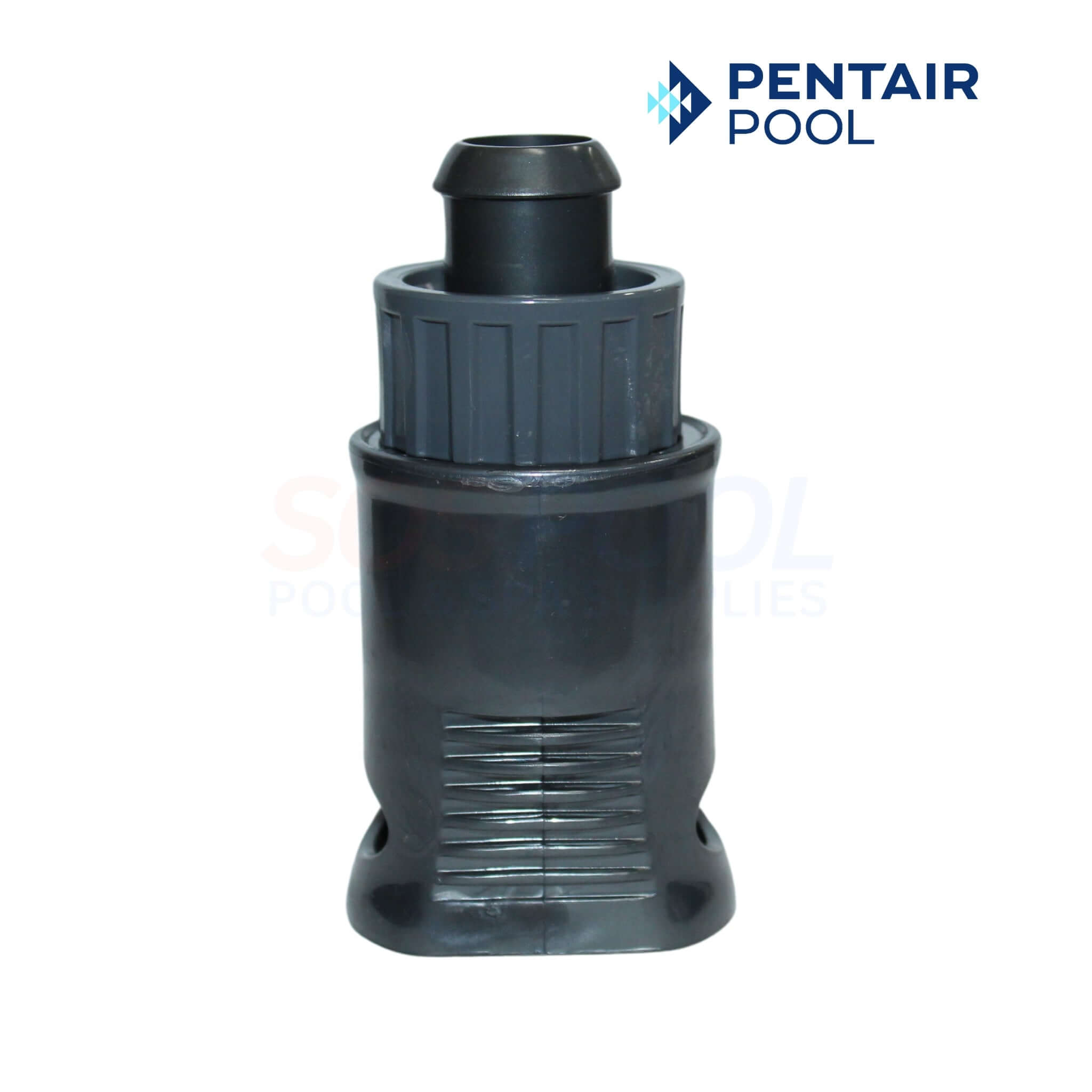

The OEM Pentair Feedline Quick Connector Kit for Racer Cleaners, model 360250, is an essential replacement part designed to streamline the connection process of your pool cleaner's feedline hose. This kit includes a quick connect fitting and mender nut, ensuring a secure and efficient connection between the feedline and the cleaner. It is specifically crafted for use with Pentair Racer and Racer LS pressure-side pool cleaners, making it a genuine OEM part that guarantees compatibility and reliable performance. The quick connector kit facilitates easy assembly and disassembly, simplifying repairs, maintenance, and storage. Made from durable materials, it ensures long-lasting use and helps maintain the optimal performance of your pool cleaner
-
Streamlined Connection: Designed to simplify the connection process of your pool cleaner's feedline hose, ensuring a secure and efficient attachment.
-
Comprehensive Kit: Includes a quick connect fitting and mender nut, providing all necessary components for a reliable connection.
-
Easy Assembly: Facilitates easy assembly and disassembly, simplifying repairs, maintenance, and storage of your pool cleaner.
-
Durable Construction: Made from high-quality materials, this genuine OEM part ensures long-lasting use and dependable performance.
-
Perfect Compatibility: Specifically crafted for use with Pentair Racer and Racer LS pressure-side pool cleaners, guaranteeing seamless integration and optimal performance.
- (1) Pentair 360250 Quick Connect Kit
- Pentair Racer and Racer LS Cleaners
