Pentair Diverter Assembly Retro Kit For Quad DE Filters | 196024S
Fits these models (4)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
On the Pentair Quad DE 100 188594 Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Quad DE 100 188594 Filter

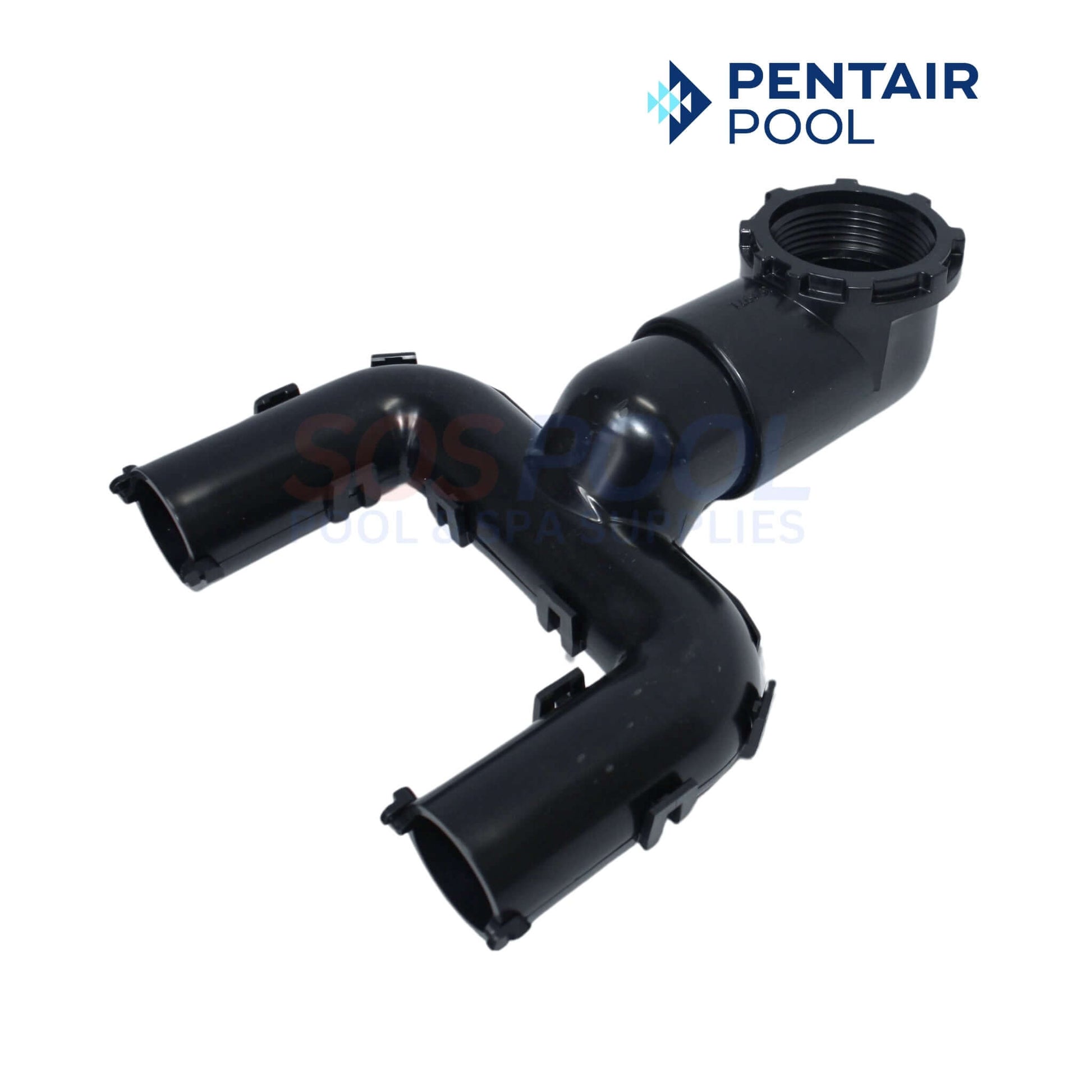

The OEM Pentair Diverter Assembly Retro Kit for Quad DE Filters, part number 196024S, is designed to enhance the efficiency of your pool filtration system by improving the distribution of diatomaceous earth (D.E.) on the filter cartridges. The diverter assembly reroutes the water flow to the bottom of the filter, preventing the accumulation of D.E. at the base and ensuring even coverage on the filter cartridges. This installation replaces the existing baffle assembly on the inlet side of the filter and faces downward to effectively manage water flow and debris distribution. This improvement results in better filtration performance and cleaner pool water.
- Efficiency Enhancement: The Pentair Diverter Assembly Retro Kit for Quad DE Filters, part number 196024S, is designed to improve your pool filtration system's efficiency.
- Even D.E. Distribution: Reroutes water flow to the bottom of the filter, preventing D.E. accumulation at the base and ensuring even coverage on the filter cartridges.
- Improved Filtration: Results in better filtration performance and cleaner pool water by effectively managing water flow and debris distribution.
- Easy Replacement: Replaces the existing baffle assembly on the inlet side of the filter, facing downward for optimal operation.
- Reliable Performance: Enhances the overall function of your filtration system, contributing to the maintenance of a clean and healthy pool environment.
- Pentair Quad DE Filters
