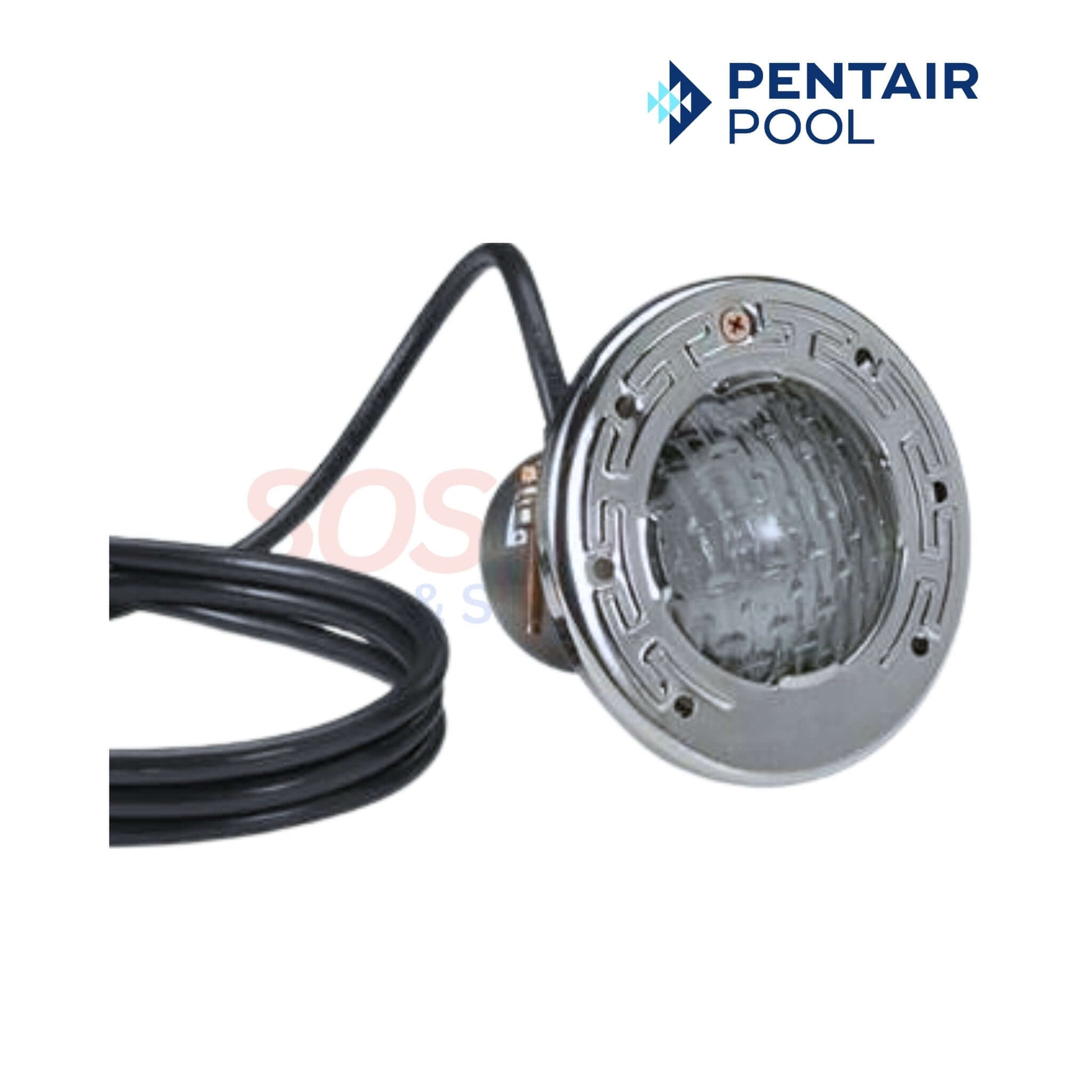

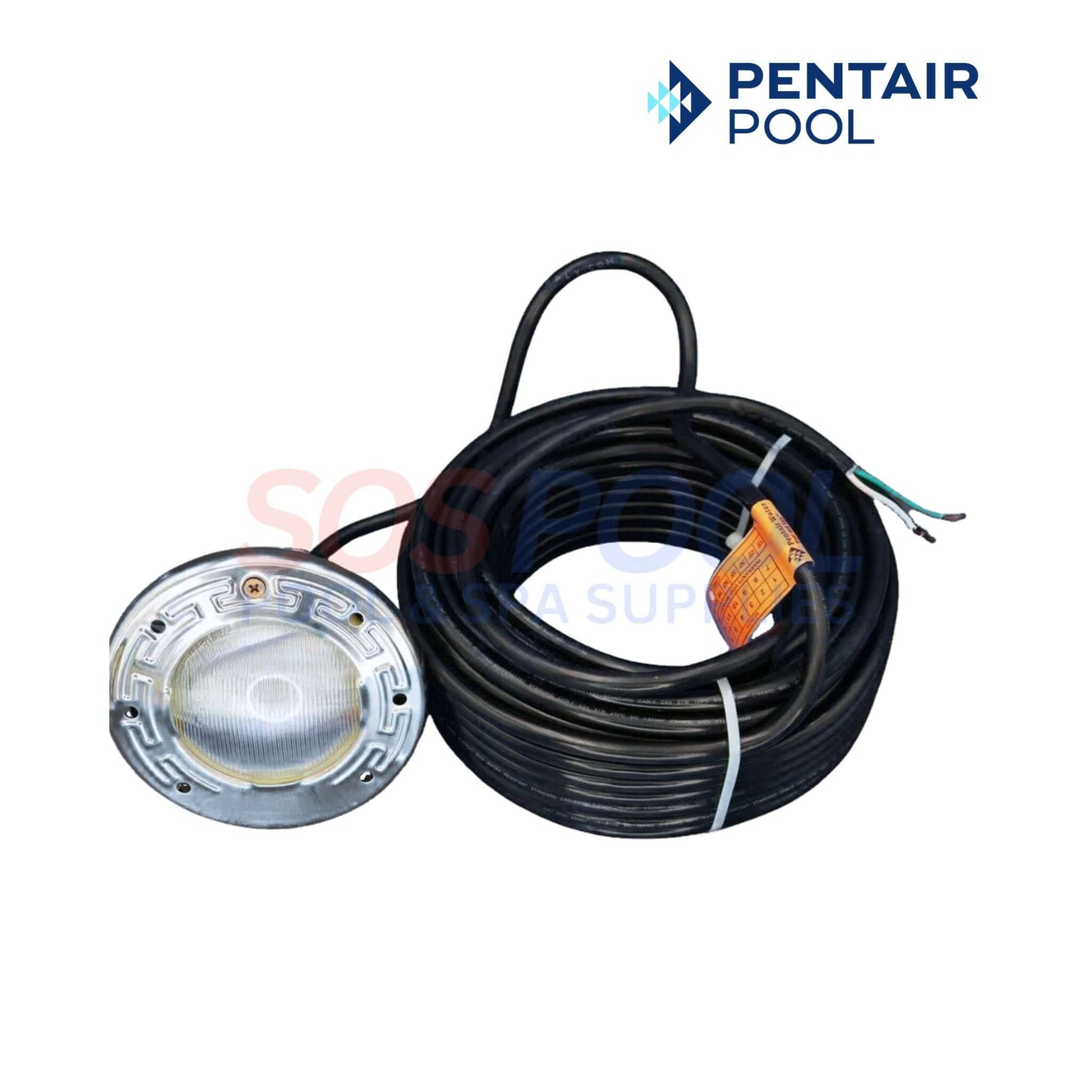

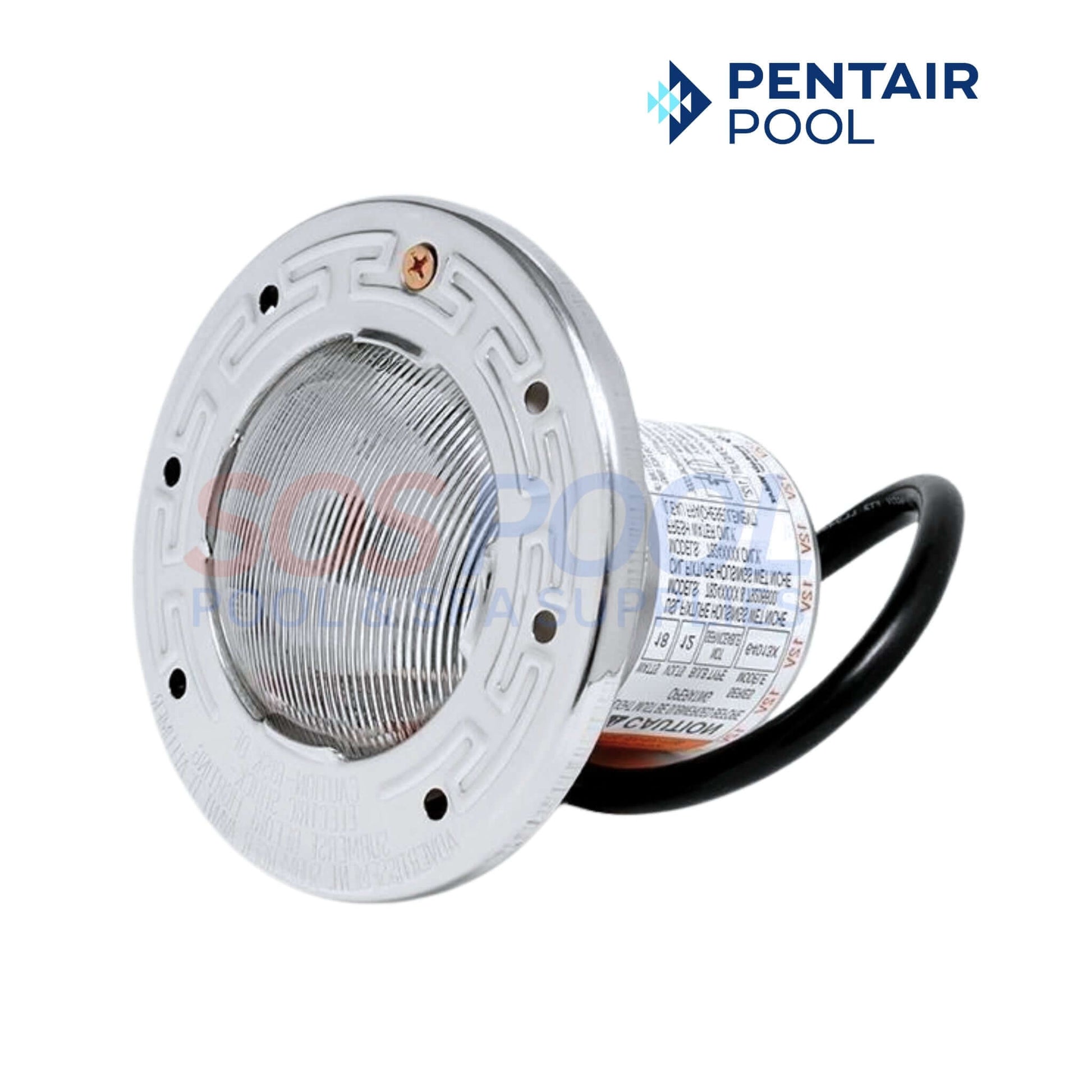

Pentair Color LED Small Spa Light 5G IntelliBrite 400W Equivalent | 120V | 28W | 100' Cord | EC-602122

The Pentair IntelliBrite 5G Color LED Pool Light 120V 602122 is an exceptional lighting solution that brings vibrant and captivating colors to your pool. With advanced LED technology, this pool light offers a dazzling array of colors, allowing you to create stunning lighting effects and transform the ambiance of your pool. The IntelliBrite 5G Color LED Pool Light is energy-efficient, providing impressive color displays while saving on energy consumption. It features a 100 ft cord for flexible installation options. Designed for durability and reliability, this LED pool light is built to withstand the elements and deliver long-lasting performance. Illuminate your pool with an array of brilliant colors using the Pentair IntelliBrite 5G Color LED Pool Light 602122 and elevate your pool experiences.

Highlights

• Exceptional Lighting Solution: The Pentair IntelliBrite 5G Color LED Pool Light EC-602122 sets a new standard in pool illumination, offering vibrant and captivating colors that transform your pool's ambiance.
• Advanced LED Technology: Utilizing cutting-edge LED technology, this pool light delivers a diverse wide and narrow range of stunning colors and dynamic lighting effects, elevating your pool experience to new heights.
• Energy-Efficient Performance: Experience impressive color displays while minimizing energy consumption, thanks to the energy-efficient design of the IntelliBrite 5G Color LED Pool Light.
• Convenient Installation: Featuring a lengthy 100 ft cord, installation options are made convenient, allowing for flexible placement around your pool area.

Compatibility

Compatible with most automation systems by Pentair and Jandy

• IntelliTouch Control System
• EasyTouch 8 Function EC520545 Control System Without Salt System
• EasyTouch 8 Function EC520545 Control System With IC 40 Salt System

To ensure this light is compatible with your automation system please check owners manual.

Recommended Parts

All Sold Separately

Transformers

• TPX100
• TPX300

GFCI Circuit Breakers

• QF220- 240V
• QF120- 120V

Controls

• IntelliBrite Controller 600054 / 618031
• EasyTouch EC-522104 iPhone controller

Specifications

• Cord Length: 100 ft.
• Volts: 120 V
• Power: 28 W
• Incandescent Power Equivalent: 400W
• Light Color: 5 vibrant pre determined colors (blue, green, magenta, white, and red) and 7 pre-programmed light shows
• Type: LED
• Range: Rotatable to 180 degrees wide beam or narrow beam
• Consumption: About 50% less energy consumption

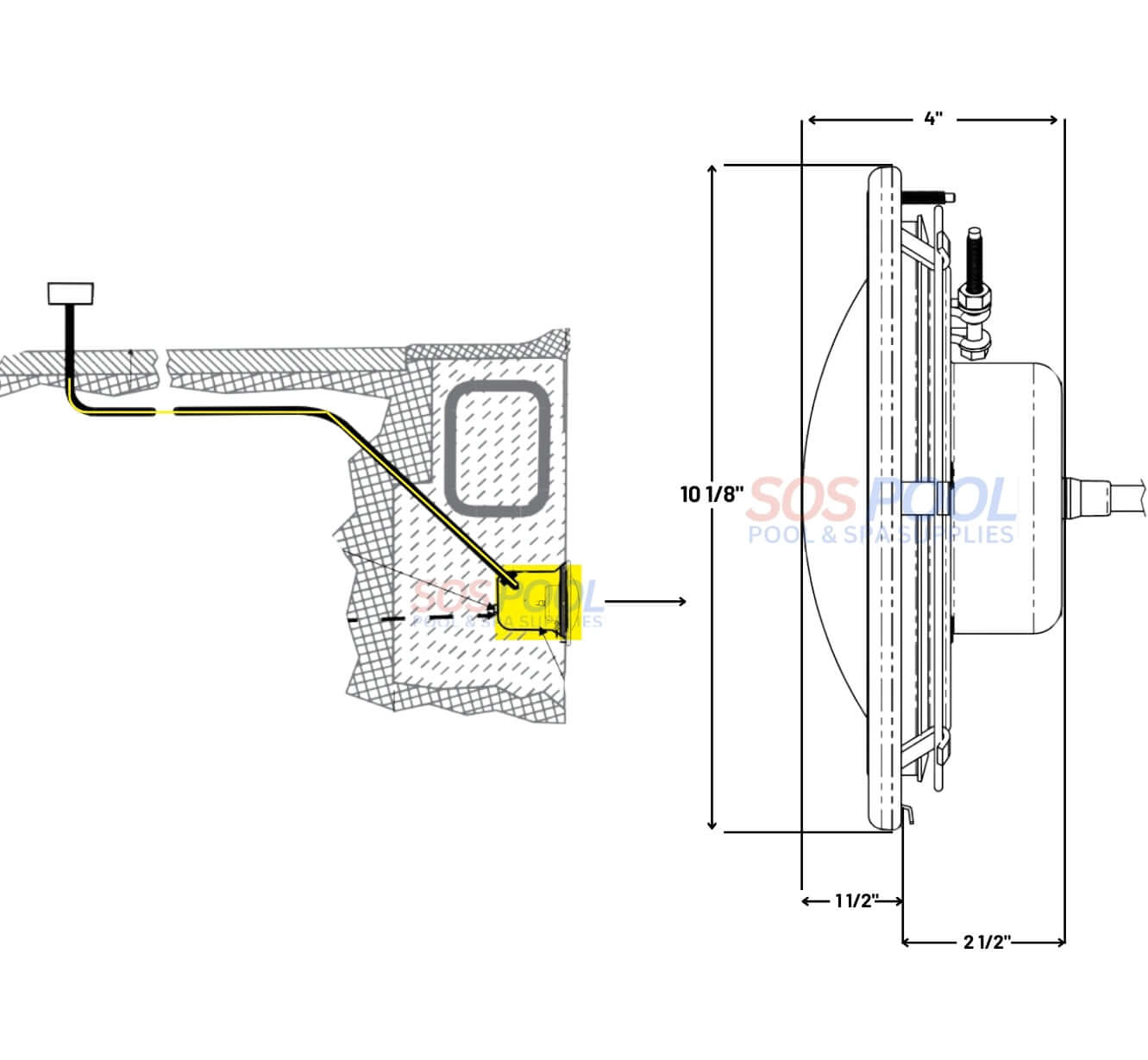

Diagram
