Pentair Brass Light Junction Box | 3/4" | 3 Port | 78310600

The Pentair 78310600 Brass Light Junction Box is designed to protect electrical connections for pool and spa lighting by providing a secure, corrosion-resistant enclosure. Manufactured to Pentair OEM specifications, its solid brass construction withstands moisture exposure and demanding outdoor conditions around pool equipment. The three-port configuration allows flexible conduit routing while maintaining safe wiring transitions and proper grounding. Compatible with standard 3/4 inch conduit, this junction box is well suited for both new lighting installations and replacement of deteriorated enclosures in existing systems.

Highlights

• OEM-Spec Brass Construction: Built to Pentair standards to deliver long-lasting resistance to corrosion and moisture in pool environments.

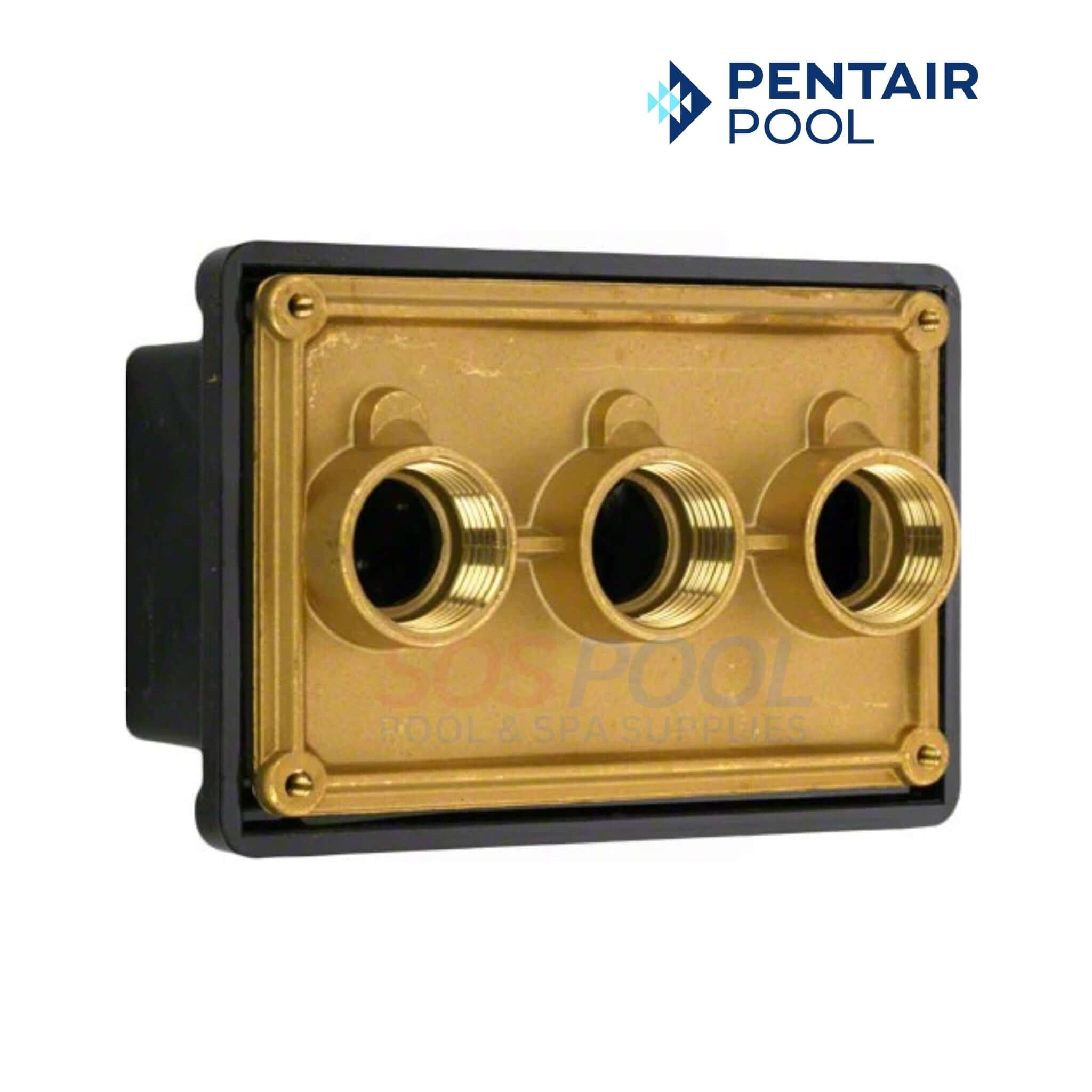

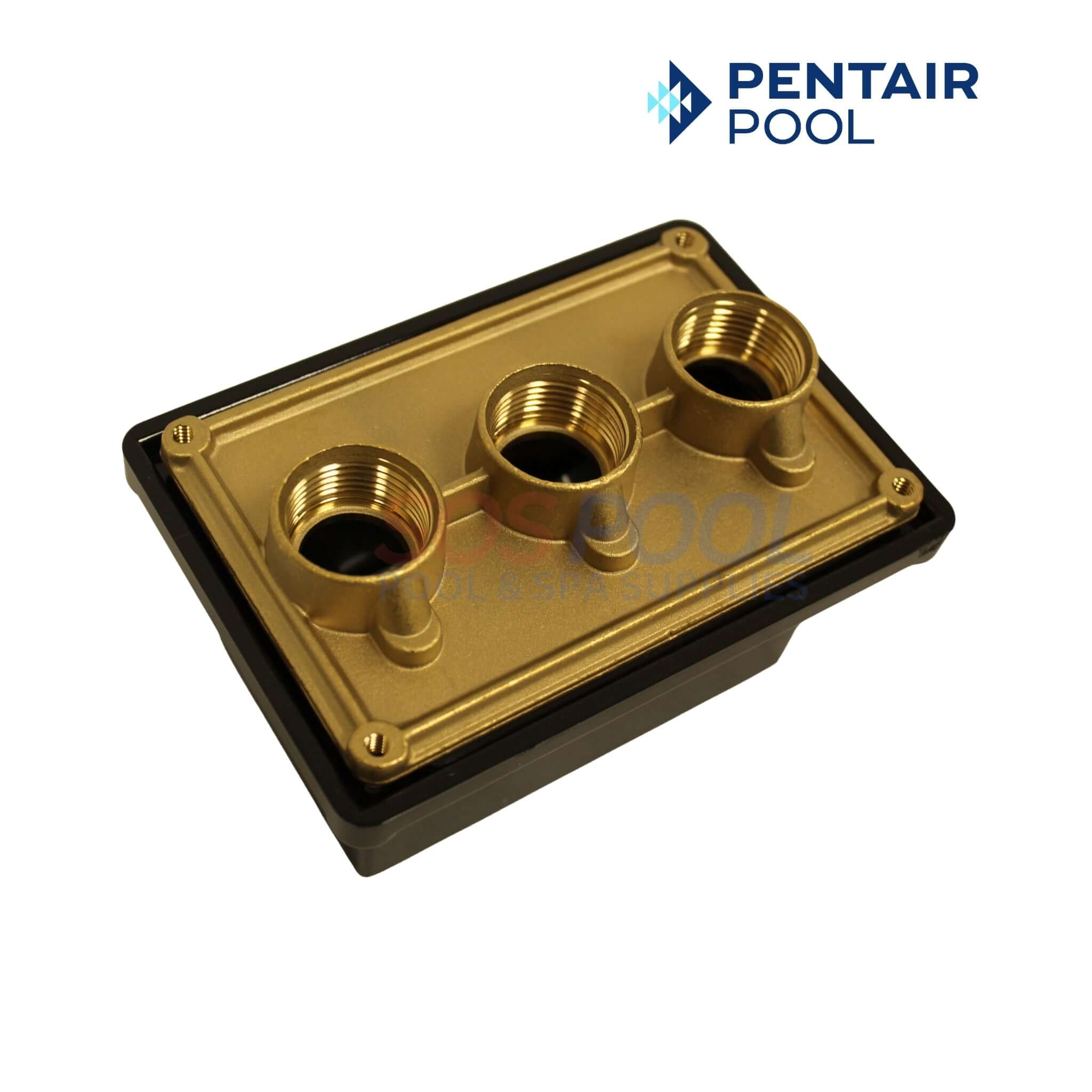

• Three-Port Wiring Layout: Supports multiple conduit connections for versatile electrical routing.

• Fits 3/4 Inch Conduit: Designed to integrate seamlessly with standard pool and spa lighting conduit sizes.

• Protects Electrical Connections: Helps safeguard wiring splices while supporting grounding and electrical safety requirements.

• Reliable Installation Component: Commonly used for maintaining safe, organized wiring in underwater lighting systems.

Includes

• (1) Pentair 78310600 Brass Junction Box

Compatibility

• Pentair Pool and Spa Lights

Instructions

A. THE FOLLOWING PREPARATORY STEPS MUST BE COMPLETED BY THE CERTIFIED ELECTRICIAN BEFORE LIGHT IS INSTALLED
1. Ensure that the electrical system of your pool conforms with all requirements of the National Electrical Code (NEC),
and all local codes and ordinances. A licensed or certified electrician must install the electrical system to meet or
exceed those requirements before the Junction Box is installed. Some of the NEC requirements are listed below.
2. To be certain that the pool’s electrical system meets all applicable requirements, the electrician should
also consult the local building department.
3. Position Junction Box to meet National Electrical Code (NEC) requirements and to prevent hazard to personnel.

4. The center conduit hub is provided with a strain relief for a cord size up to a 10/3 AWG cord. Use underwater lights
with water resistant cord only.

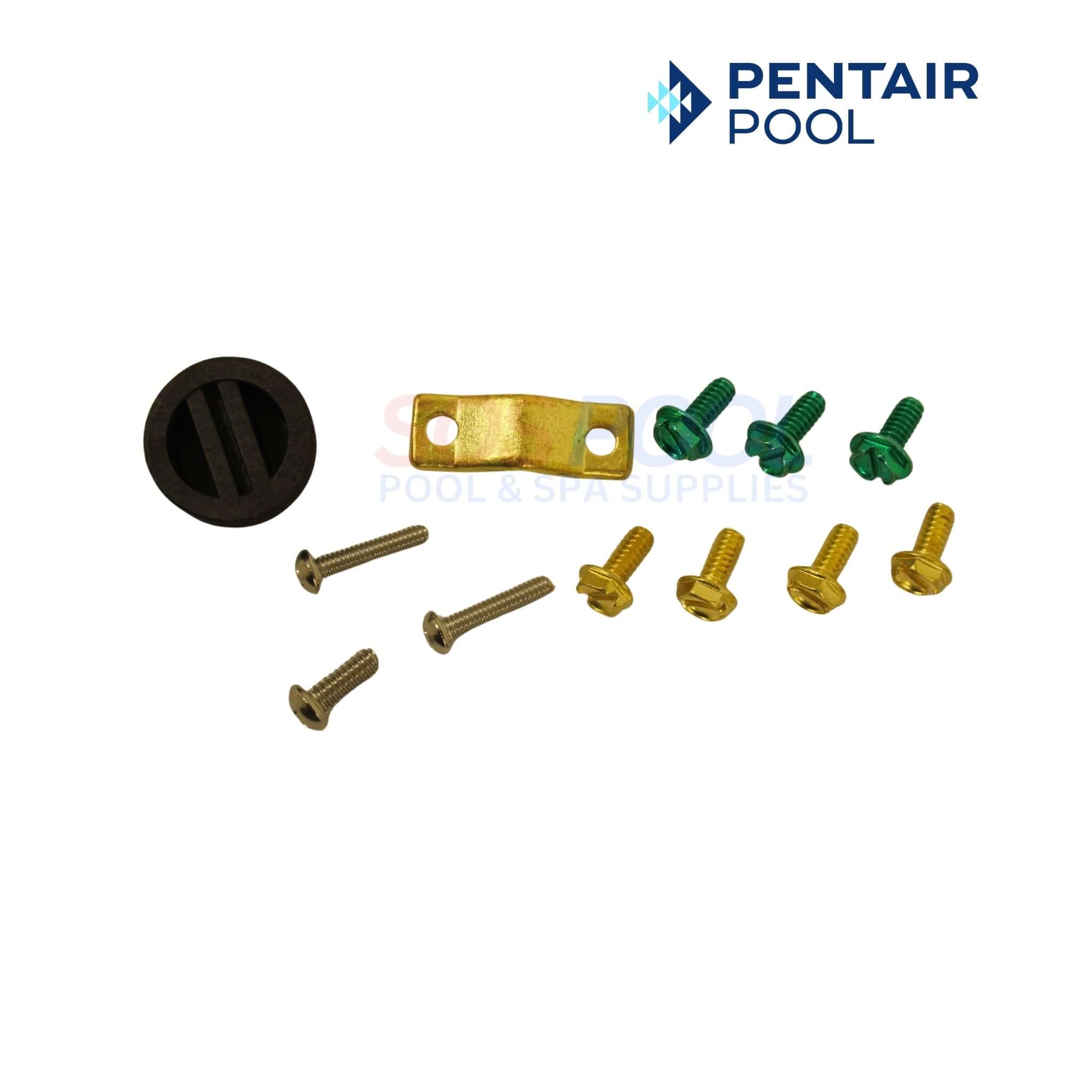

5. Three equipment grounding terminals are provided for internal grounding suitable for #16 AWG to #10 AWG wire.
One pressure wire grounding terminal is provided for a #8 AWG insulated copper bonding wire.

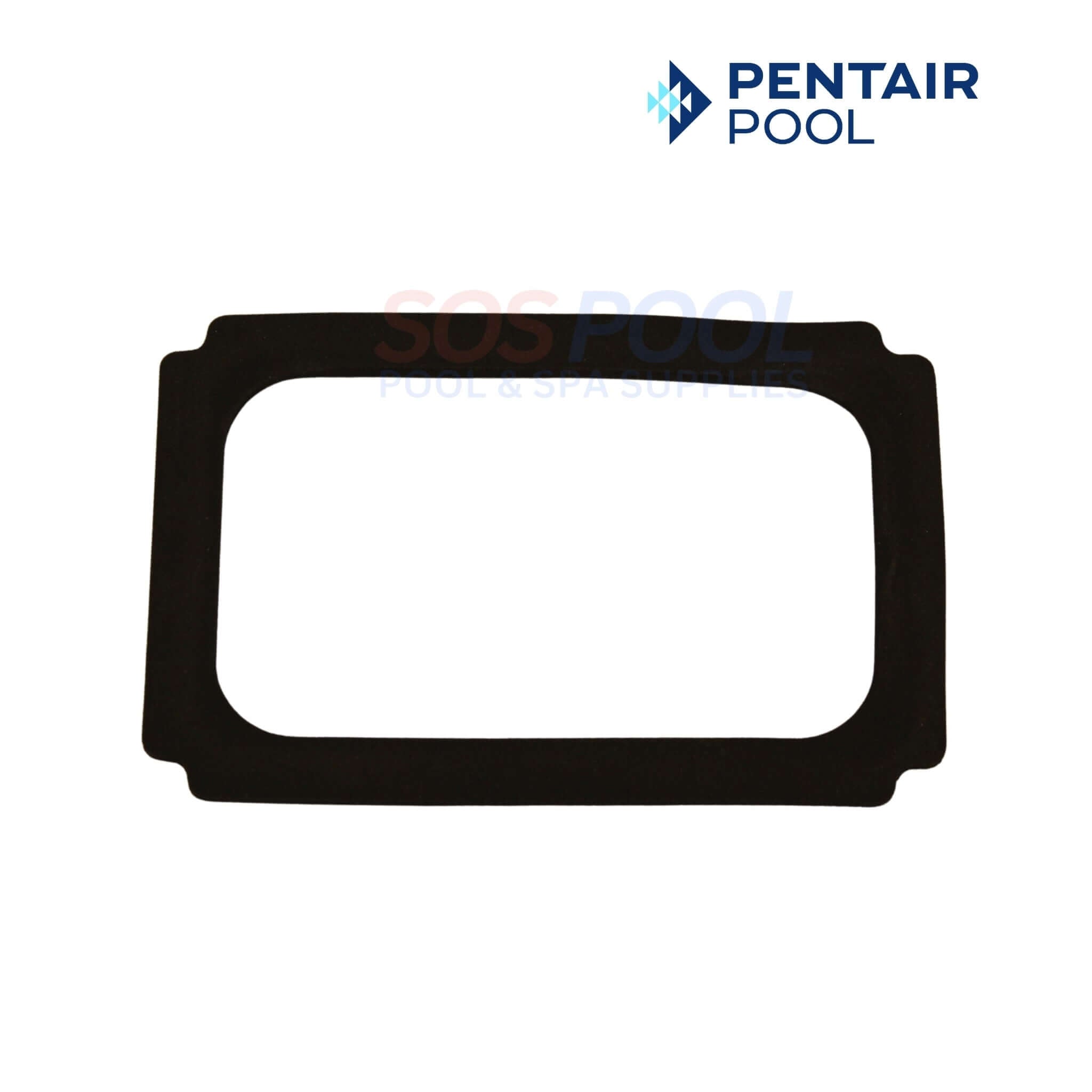

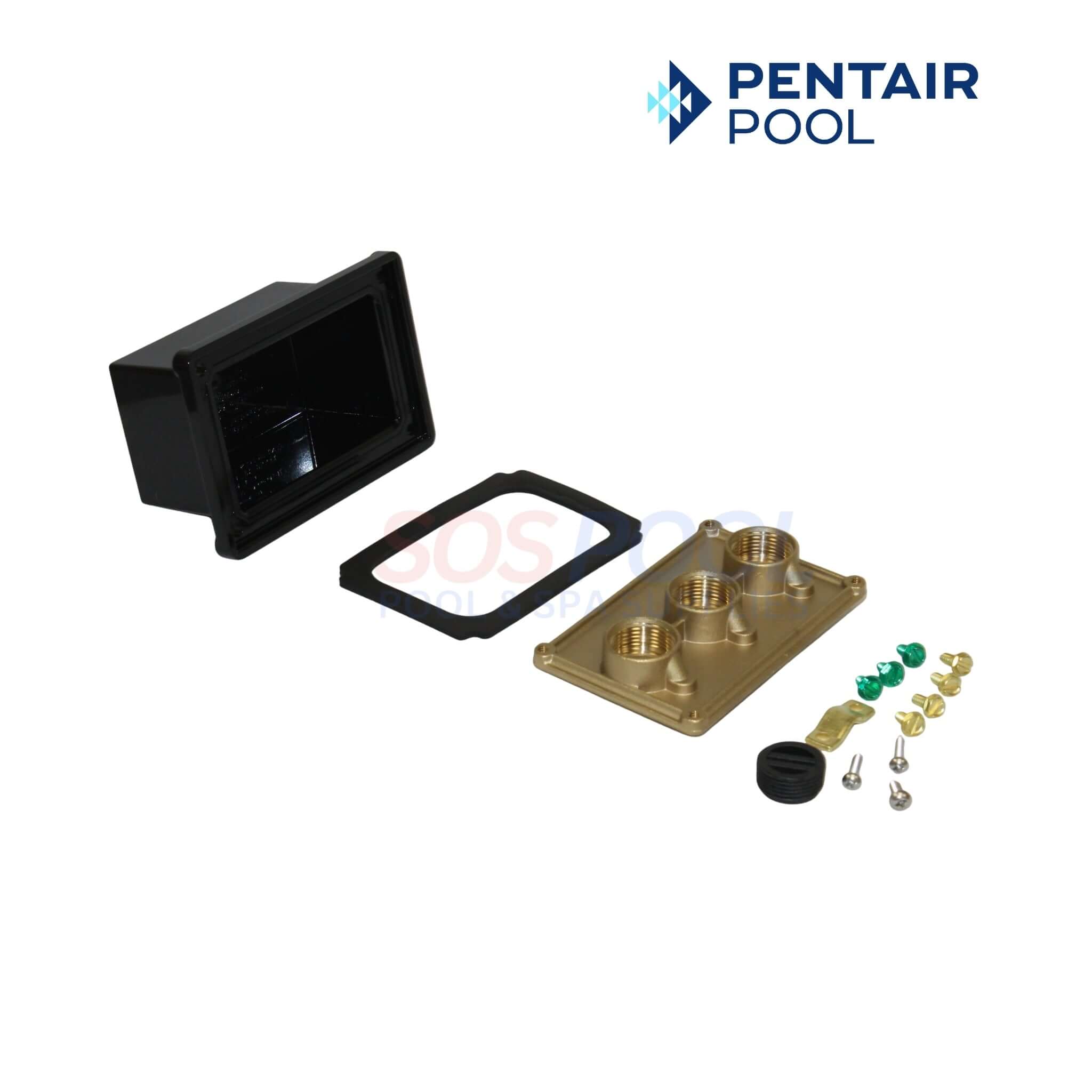

6. Install the Junction Box gasket between the Junction Box base and cover. Replace gasket if worn or damaged (P/N
79300600).
7. Plug any unused conduit hubs with the conduit plugs provided.

Additional Info

The Pentair 78310600 Brass Light Junction Box is used to protect electrical connections for pool and spa lighting systems. This section helps SOSPool.com customers confirm compatibility before ordering, understand why junction box replacement is important, and prepare for installation after delivery. These FAQs support online buyers through fitment and safety planning.

Compatibility Confirmation Before Ordering

Online customers often verify conduit size and application.

How do I know the 78310600 junction box fits my lighting setup?

If your pool or spa lighting uses 3/4 inch conduit for wiring transitions, this junction box is designed to match that configuration.

Can this junction box be used for replacing damaged light enclosures?

Yes, it is commonly used to replace cracked, corroded, or leaking junction boxes near pool equipment.

Will this work for both new and existing lighting installations?

Yes, it is suitable for both new installs and retrofit replacements when conduit size matches.

Installation and Setup After Delivery

These FAQs help customers once the junction box arrives.

Is installing a brass junction box difficult?

Installation is straightforward when conduit and wiring are properly prepared and aligned.

Why is moisture protection critical for pool light wiring?

Water intrusion can lead to corrosion, shorts, and unsafe electrical conditions.

What should I inspect after installing the junction box?

Ensure all ports are sealed, wiring is dry, and grounding connections are secure.

Shipping, Delivery, and Online Support

These questions help customers understand the ordering experience.

How quickly does the Pentair 78310600 ship?

Most orders ship promptly, with delivery estimates shown at checkout and tracking provided.

What should I inspect when the junction box arrives?

Check that the brass housing is intact and that all ports are clean and undamaged.

Do customers often order other lighting parts together?

Yes, many order conduit fittings, gaskets, or replacement light cords at the same time.
