Pentair Basket for WhisperfloXF and IntellifloXF Pumps | 400007Z
Fits these models (6)
+2 more models
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 6 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

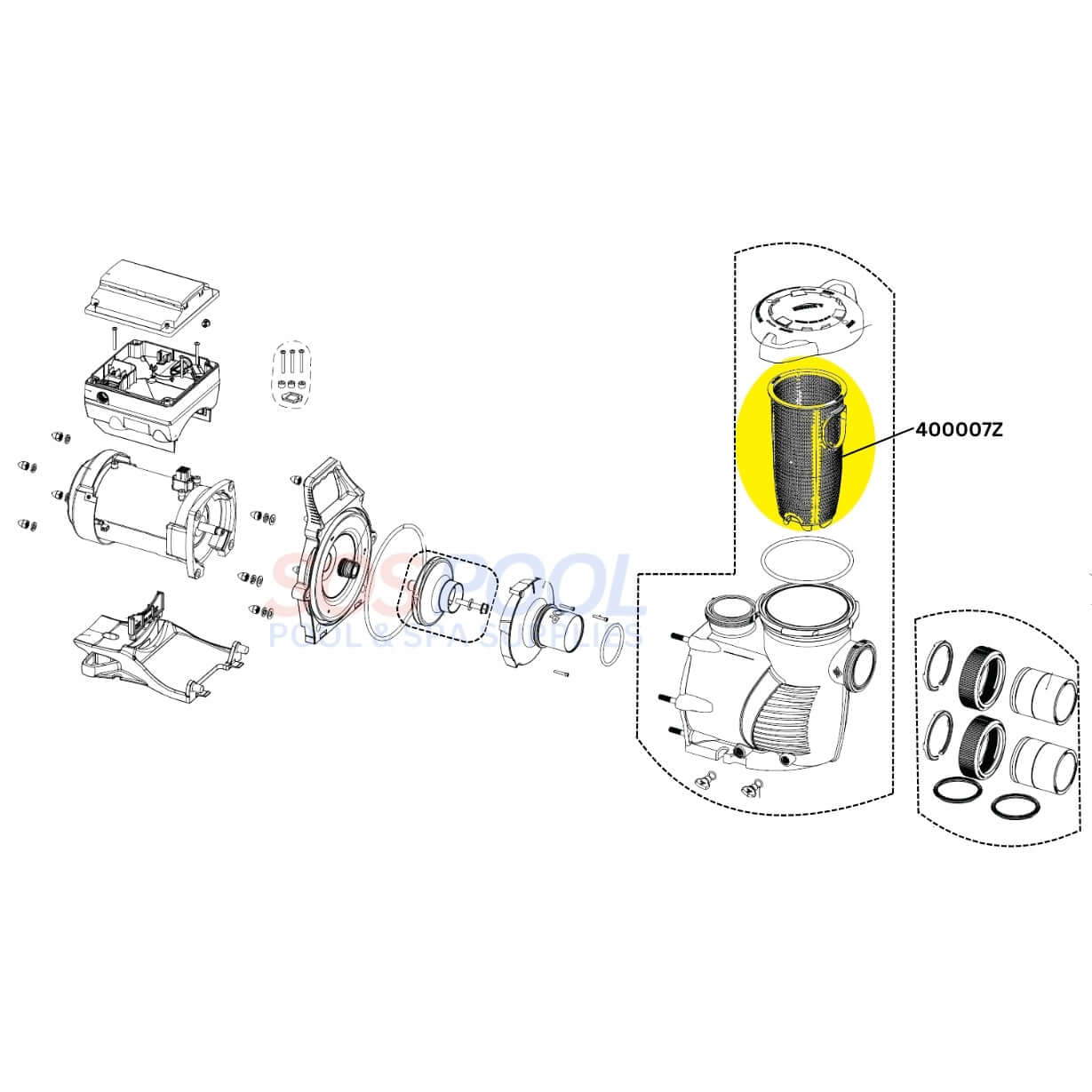

On the Pentair IntelliFlo3 VSF Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFlo3 VSF Pump

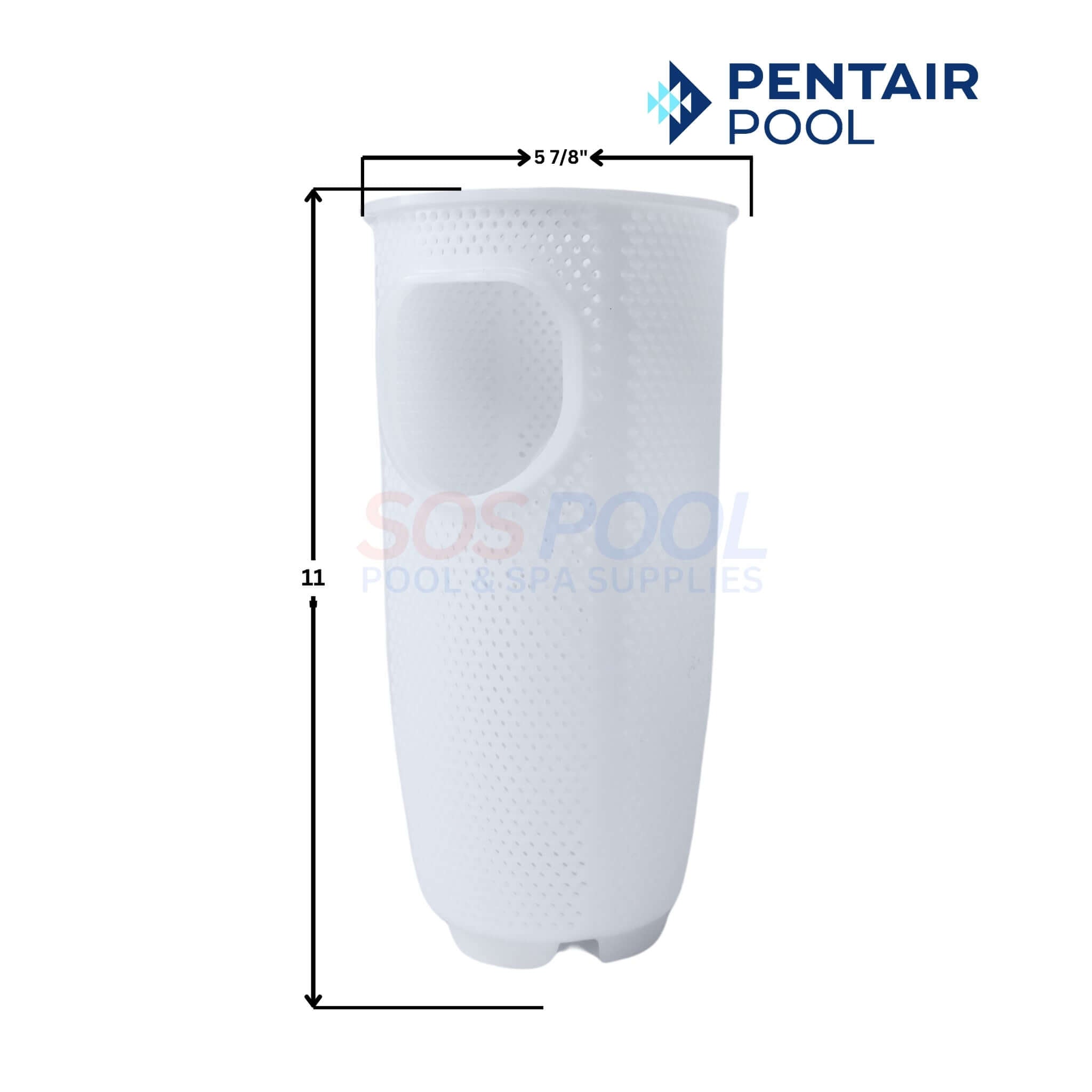

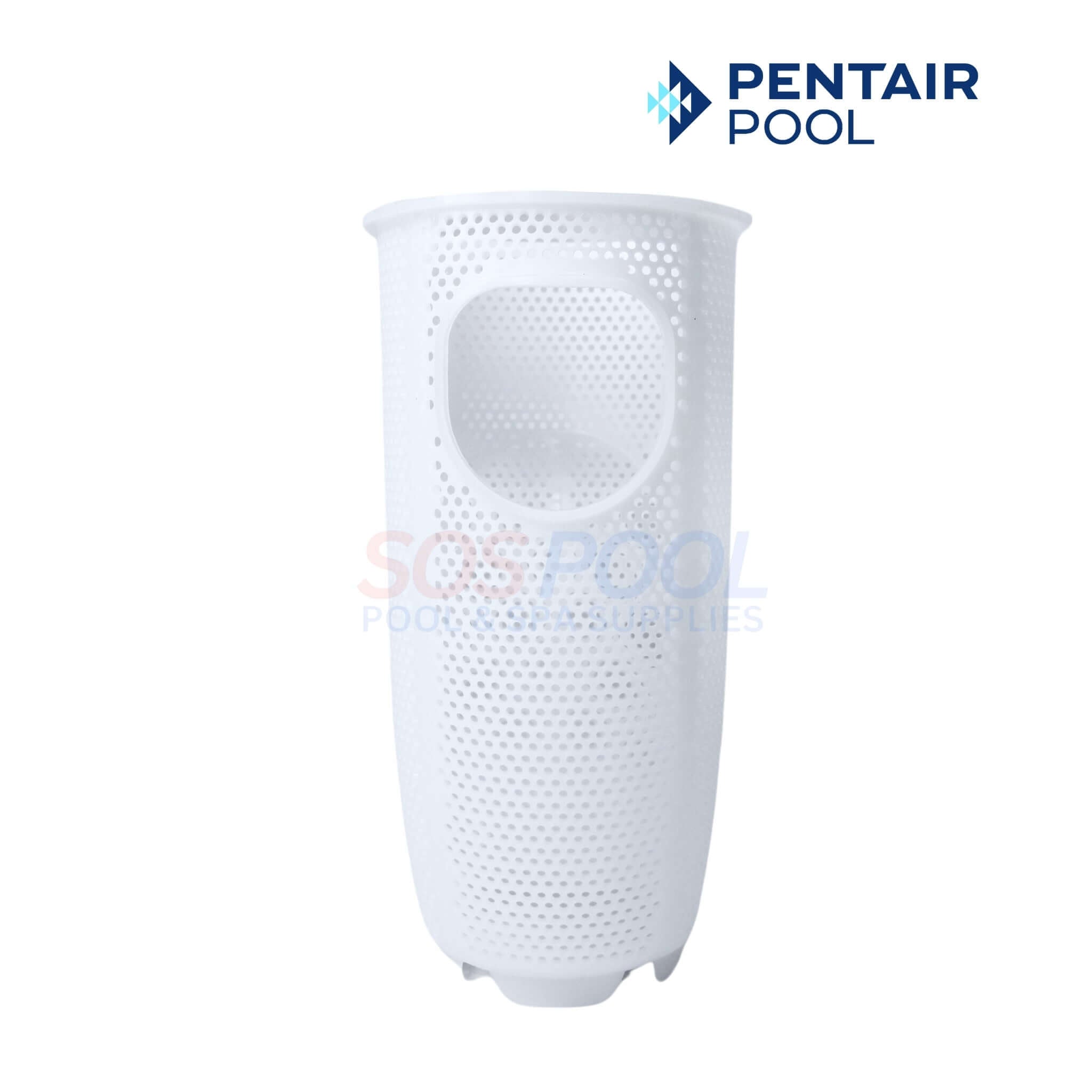

The Pentair Basket, model 400007Z, is specifically designed for WhisperfloXF and IntellifloXF pumps. This basket effectively traps debris before it can reach the pump, ensuring smooth operation and prolonging the life of your pump system. Constructed with high-quality, durable materials, it provides excellent resistance to wear and tear, making it an essential component for maintaining the efficiency and longevity of your pool pump.
- Effective Debris Trapping: Specifically designed for WhisperfloXF and IntellifloXF pumps, this basket effectively traps debris before it can reach the pump.
- Prolongs Pump Life: Ensures smooth operation by preventing debris from causing damage, thus prolonging the life of your pump system.
- High-Quality Construction: Made with high-quality, durable materials that provide excellent resistance to wear and tear.
- Essential Component: An essential part for maintaining the efficiency and longevity of your pool pump system.
- Durable and Reliable: Offers reliable performance in capturing debris, contributing to the overall durability and functionality of your pump.
1. Press Start/Stop button on the pump and turn off the pump at the circuit breaker. Disconnect communication cable from pump.
2. Relieve pressure in the system.
3. Turn the lid and locking ring counter-clockwise and remove from the pump.
4. Remove debris and rinse out the basket. Replace the basket if it is cracked.
5. Put the basket back into the housing. Be sure to align the rib on the basket with the notch in the volute.
6. Fill the pump pot and volute up to the inlet port with water.
7. Clean the lid and locking ring, O-ring, and sealing surface of the pump pot.
Note: It is important to keep the lid O-ring clean and well lubricated.
8. Reinstall the lid by placing the locking ring and lid on the pot. Be sure the lid O-ring is properly placed. Seat the locking ring and lid on the pump then turn clockwise until the locking ring handles are horizontal.
Note: Ensure that the side of the lid/locking ring marked “Front” is positioned at the front of the pump.
9. Turn the power “ON” at the circuit breaker. Reconnect communication cable from pump.
10. Open the manual air relief valve on the top of the filter. Stand clear of the filter.
11. Wait until all pressure is relieved. Start the pump.
12. Bleed air from the filter until a steady stream of water comes out of the filter air relief valve. Close the manual air relief valve.
Compatible with the following Pentair pumps
- Pentair IntelliFlo XF VSF Pumps
- Pentair WhisperFlo XF Pumps
- Pentair IntelliPro XF VSF Pumps
- Pentair Intelliflo3 VSF 1.5HP Pumps
- Pentair Intelliflo3 VSF 3HP HP Pumps
- Pentair Sta-Rite Max-E-ProXF Pumps
Note: This may be compatible with your pumps, please check owners manual to ensure compatibility.
