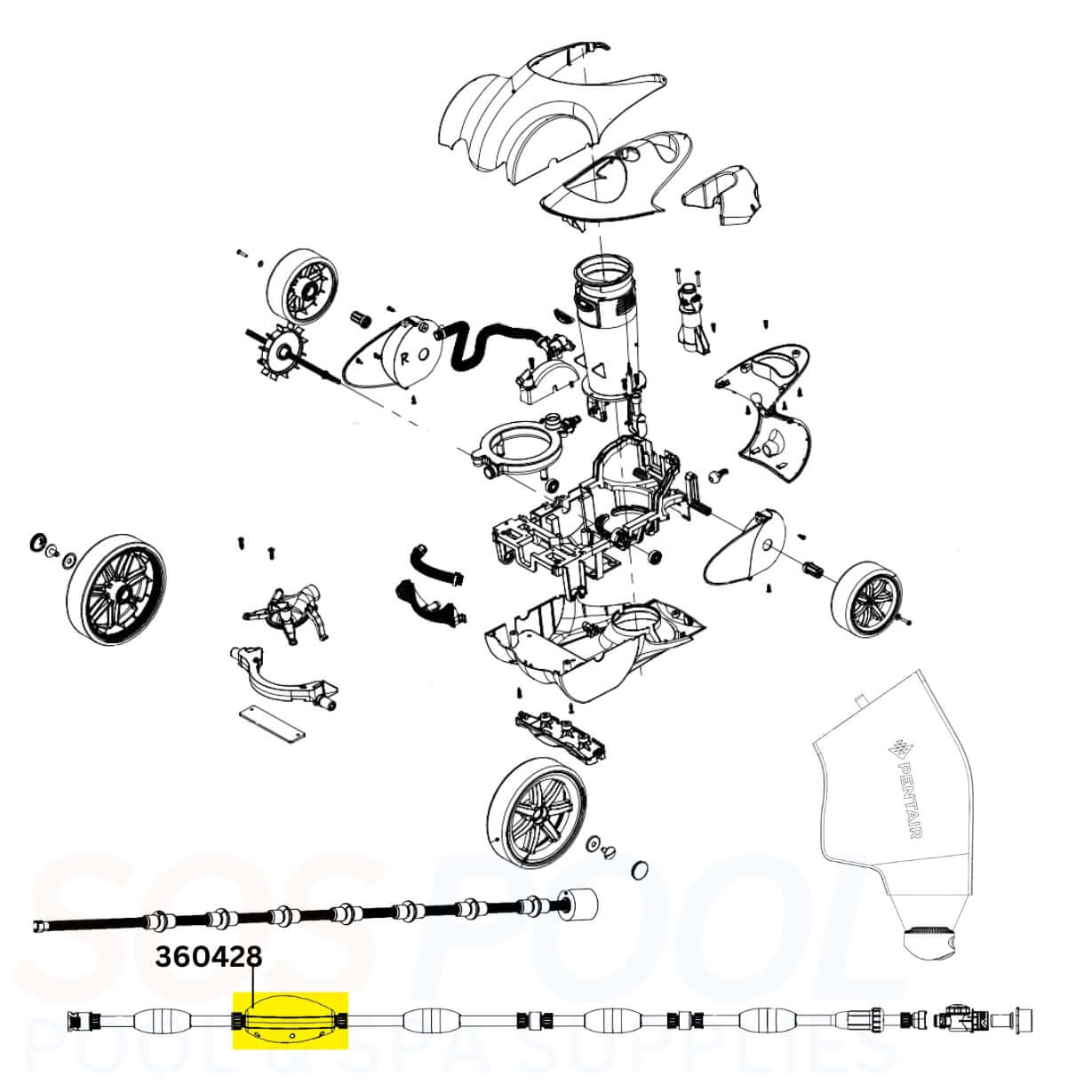

On the Pentair Racer LS Pressure Side Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Racer LS Pressure Side Cleaner

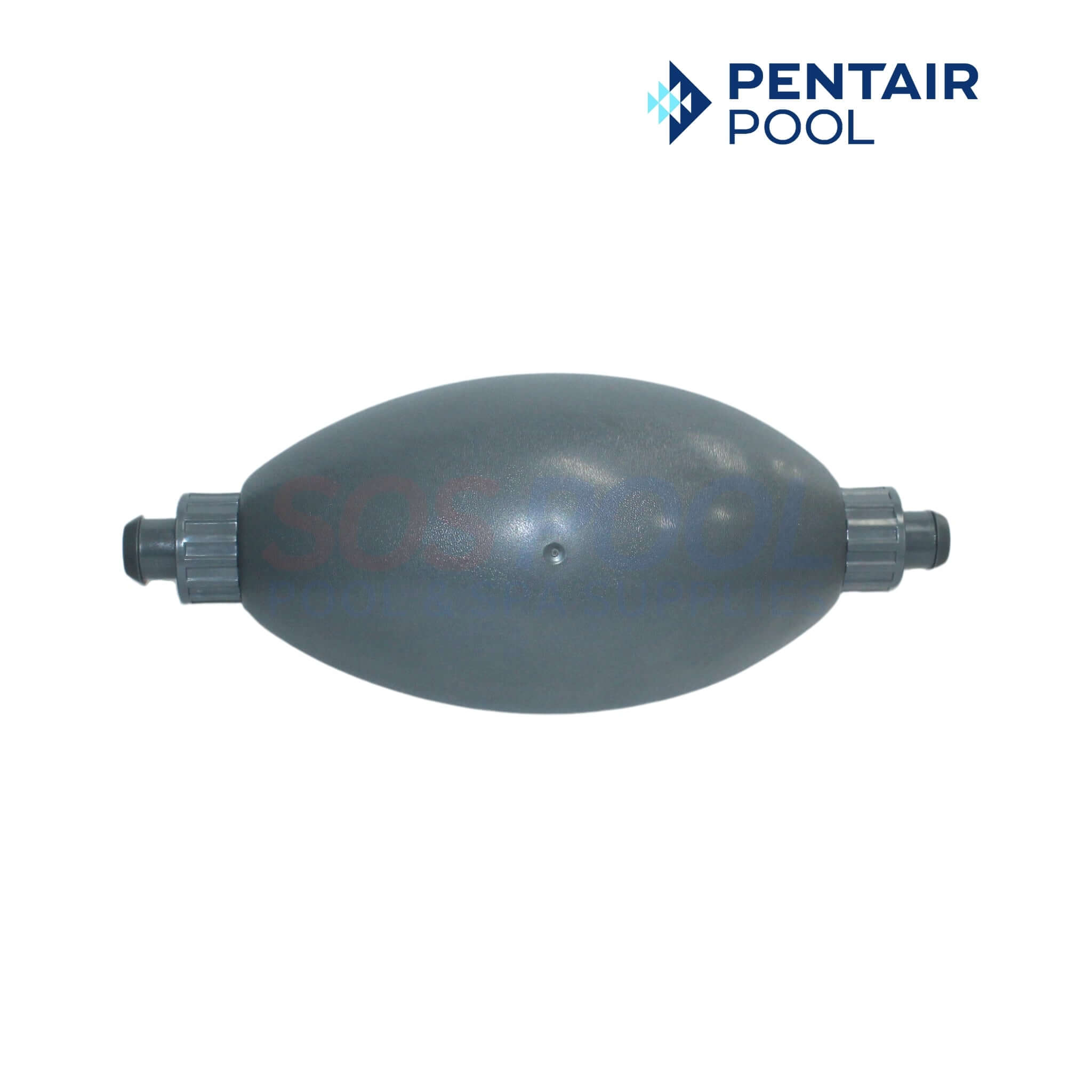

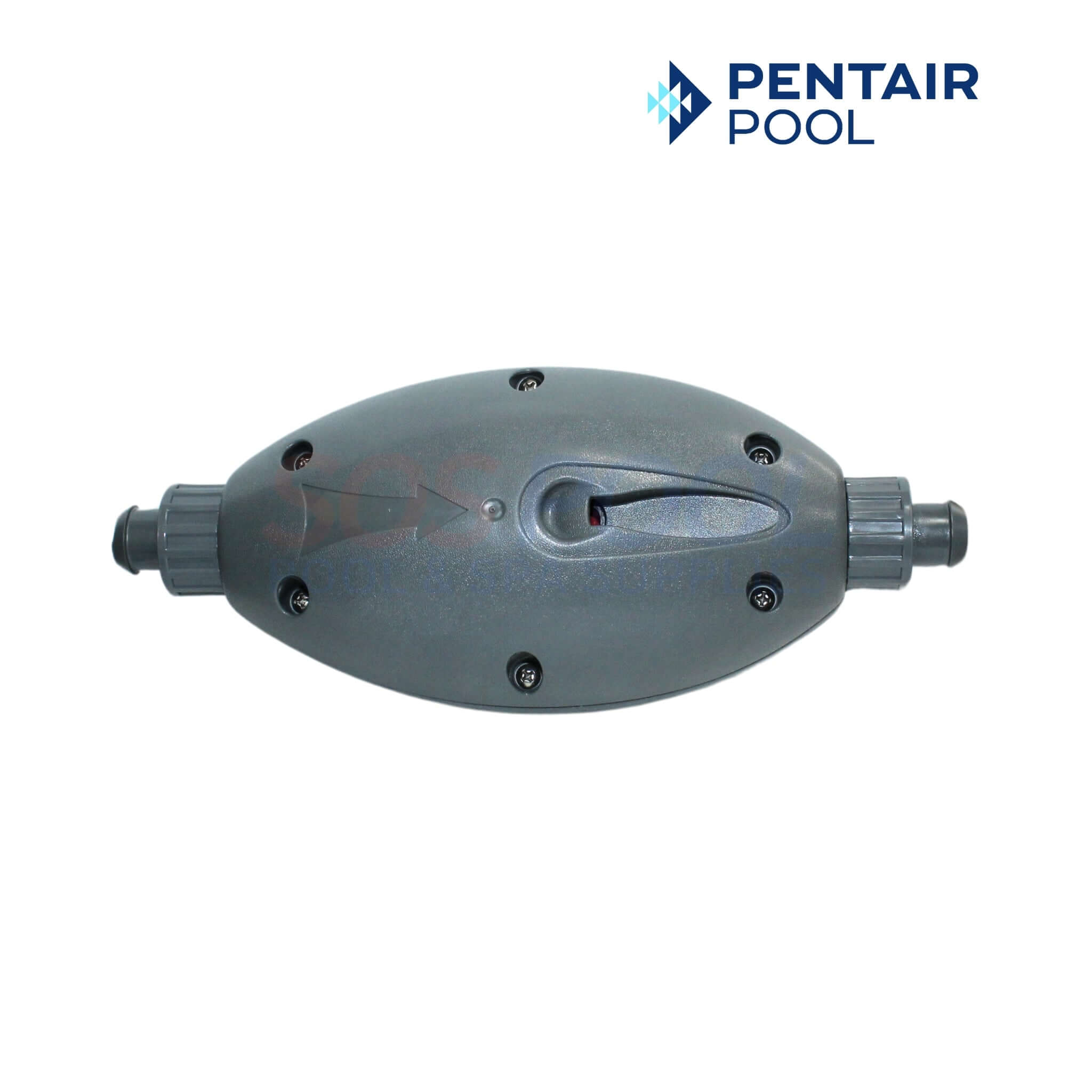

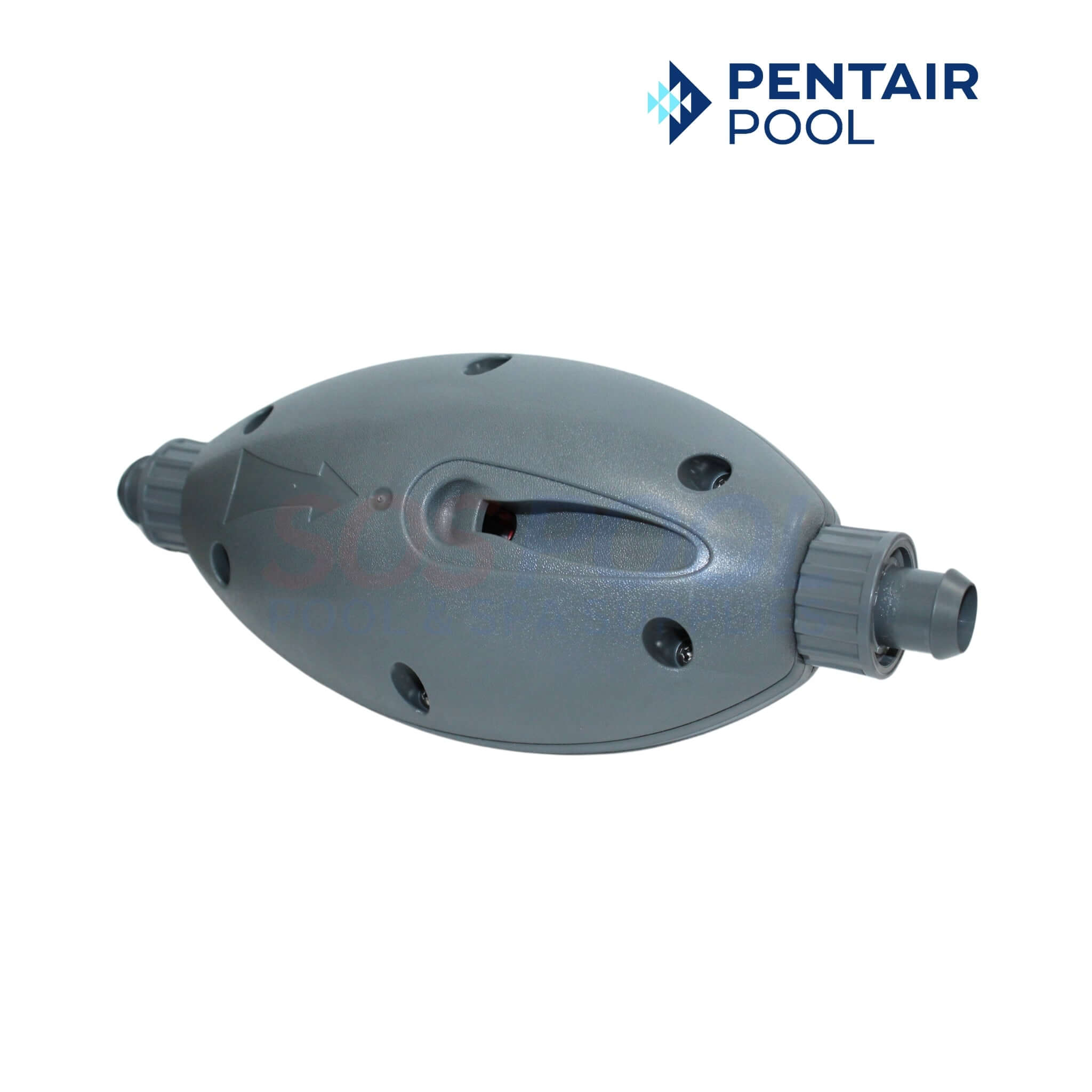

The OEM Pentair Back-Up Valve Kit for Racer LS Cleaners, part number 360428, is an essential component designed to enhance the efficiency and functionality of your pool cleaning system. This genuine OEM part ensures that the cleaner can back out of corners, edges, and steps, preventing it from getting stuck and allowing for continuous cleaning. Positioned approximately 30 inches from the cleaner's head, the valve activates for about 3 minutes to help navigate the cleaner out of tight spots. Its durable construction and precise engineering ensure long-lasting performance and reliability, making it a crucial part for maintaining optimal pool cleanliness.
- Essential Component: The Pentair Back-Up Valve Kit for Racer LS Cleaners, part number 360428, enhances the efficiency and functionality of your pool cleaning system.
- Prevents Sticking: Ensures the cleaner can back out of corners, edges, and steps, allowing for continuous cleaning without getting stuck.
- Strategic Positioning: Positioned approximately 30 inches from the cleaner's head, it activates for about 3 minutes to navigate out of tight spots.
- Durable Construction: Built with durable materials and precise engineering for long-lasting performance and reliability.
- Genuine OEM Part: A crucial component for maintaining optimal pool cleanliness and ensuring the effective operation of your pool cleaner.
- (1) Back Up Valve
- (2) Mender Nuts
- Pentair Racer LS Cleaners
