  3. Moov MP3AI 2.7 HP Variable Speed Inverter Pool Pump - Wi-Fi App, 43 dB
By Moov

Moov MP3AI 2.7 HP Variable Speed Inverter Pool Pump - Wi-Fi App, 43 dB

$1,789.99
$1,999.99 $1,789.99
-$210.00
Shipping calculated at checkout.
Brand: Moov
Availability: Low stock: 1 left
SKU: MP3AI

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Moov Ai pump, Moov MP3AI, 2.7 HP variable speed pool pump, inverter pool pump, quietest pool pump, pool pump with Wi-Fi app, constant flow pool pump, energy efficient pool pump California, 185 GPM pool pump, replacement for 3 HP pool pump, RS485 pool pump automation, MOV-10-1000
Moov Ai MP3AI 2.7 HP Inverter Variable Speed Pool Pump with Wi-Fi
Moov Ai · MP3AI · 2.7 HP Inverter Set the Flow You Want.
It Holds It. Quietly. A 2.7 HP inverter pump that reads the pressure in your plumbing and adjusts itself to hit the flow you asked for, dirty filter or clean. 43 dB. Wi-Fi app. Up to 50% less power than single speed.
35 to 185 GPM 43 dB Wi-Fi App
Why a Variable Speed Pump Is Not Enough Most Variable Speed Pumps Set a Speed. This One Sets a Flow. A normal variable speed pump runs at whatever RPM you pick. As the filter loads up, pressure rises and flow drops, so your salt cell, heater, and cleaner get less water than they need until you notice. The Moov Ai measures the resistance in the line and changes speed on its own to keep the flow where you set it.
◆
Auto Inverter ModeSet a flow in GPM. The pump watches pressure and adjusts speed to keep it there.
◑
30% to 120%Manual mode runs from 30% for quiet overnight turnover up to 120% to push through a dirty filter or a long run.
▶
43 dBQuieter than most refrigerators. Run it at night next to a bedroom window.

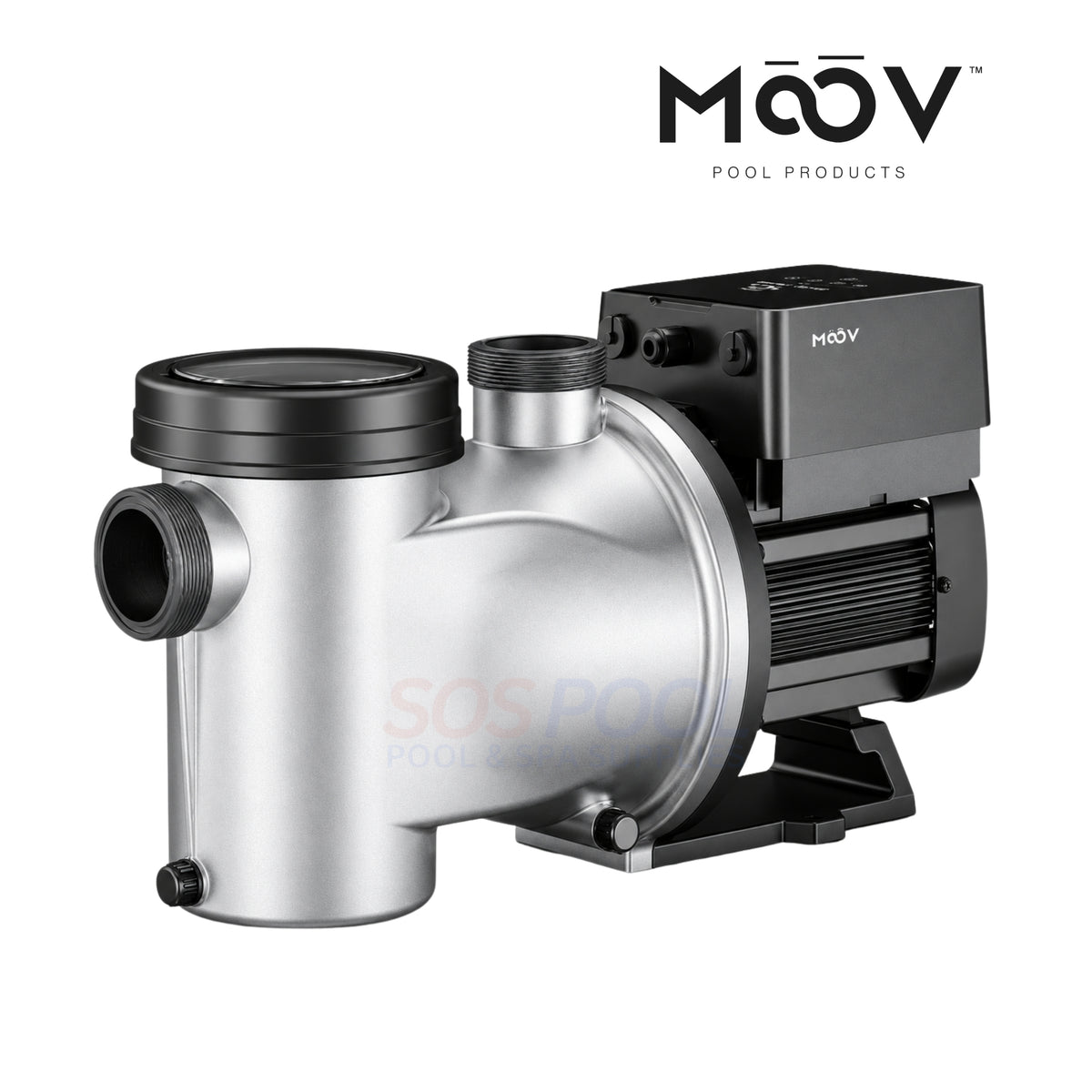

Moov Ai MP3AI 2.7 HP inverter variable speed pool pump
50%Less EnergyAverage seasonal savings versus a single-speed pump, per Moov.
Family at the pool
Skimmer
ModeBursts to full speed on a schedule to pull surface debris, then drops back down.

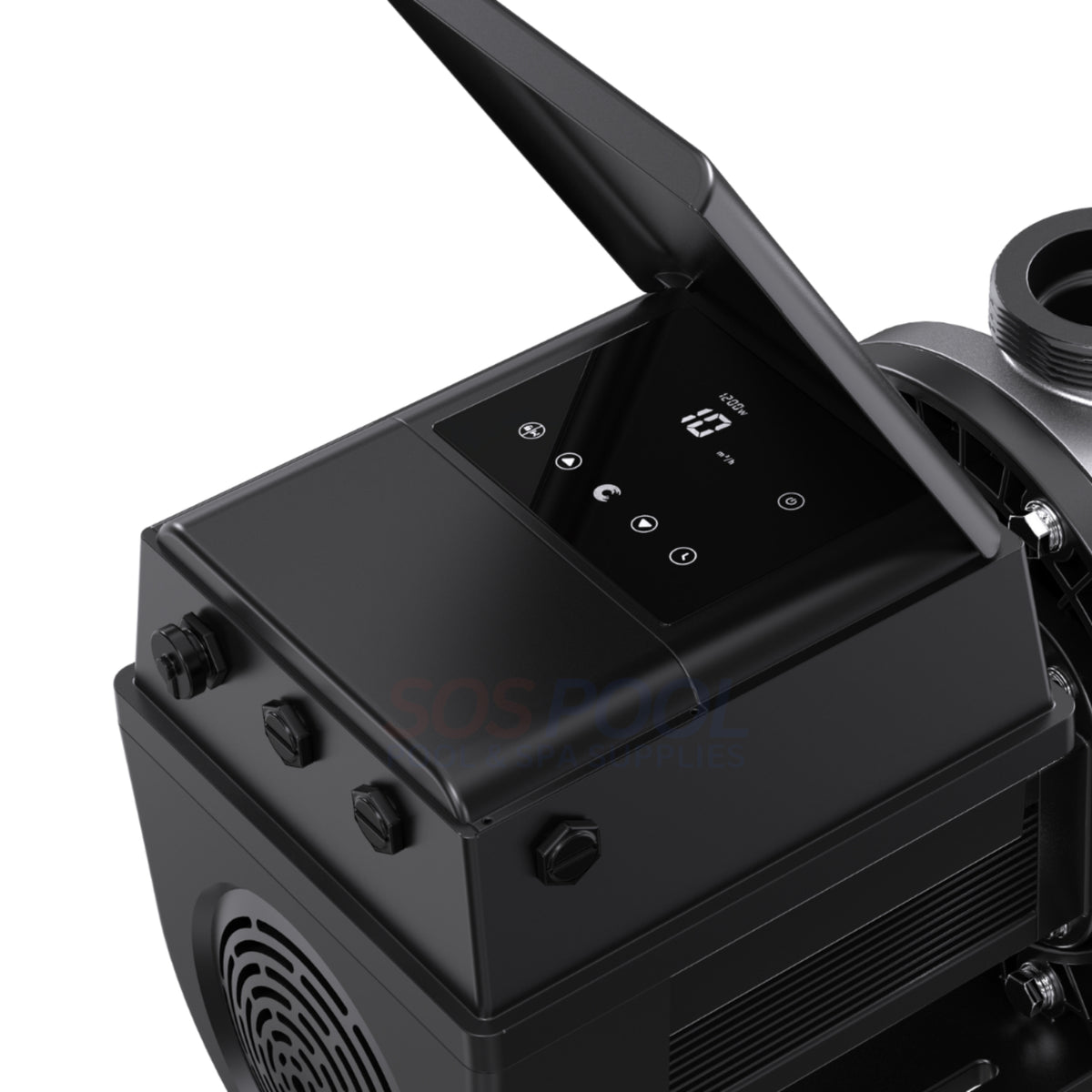

Moov Ai MP3AI pump control panel
2.5 inUnions2 in and 2.5 in imperial or metric union kits.
185 GPMMax Adjustable Flow
43 dBNoise Level
82 ftMax Head
20 ABreaker, 240V
Clear pool water
Constant Flow Control Your Heater, Salt Cell, and Cleaner
Get the Water They Were Sized For. Every piece of equipment on your pad has a flow it needs. A heater wants enough water to fire. A salt cell needs flow to make chlorine. A pressure cleaner needs pressure. When the pump speed is fixed and the filter clogs, all of them drift low at once. In Auto Inverter mode you pick a GPM between 35 and 185 and the pump changes its speed to hold that number. Clean filter, dirty filter, valve half closed, it compensates.
  • Set flow in 5 GPM steps, 35 to 185 GPM
  • Pressure-sensing speed adjustment, no flow meter to install
  • Speed or flow cap so you never overpressure a sand filter
  • Four daily timer periods, each with its own speed or flow
Pool at dusk

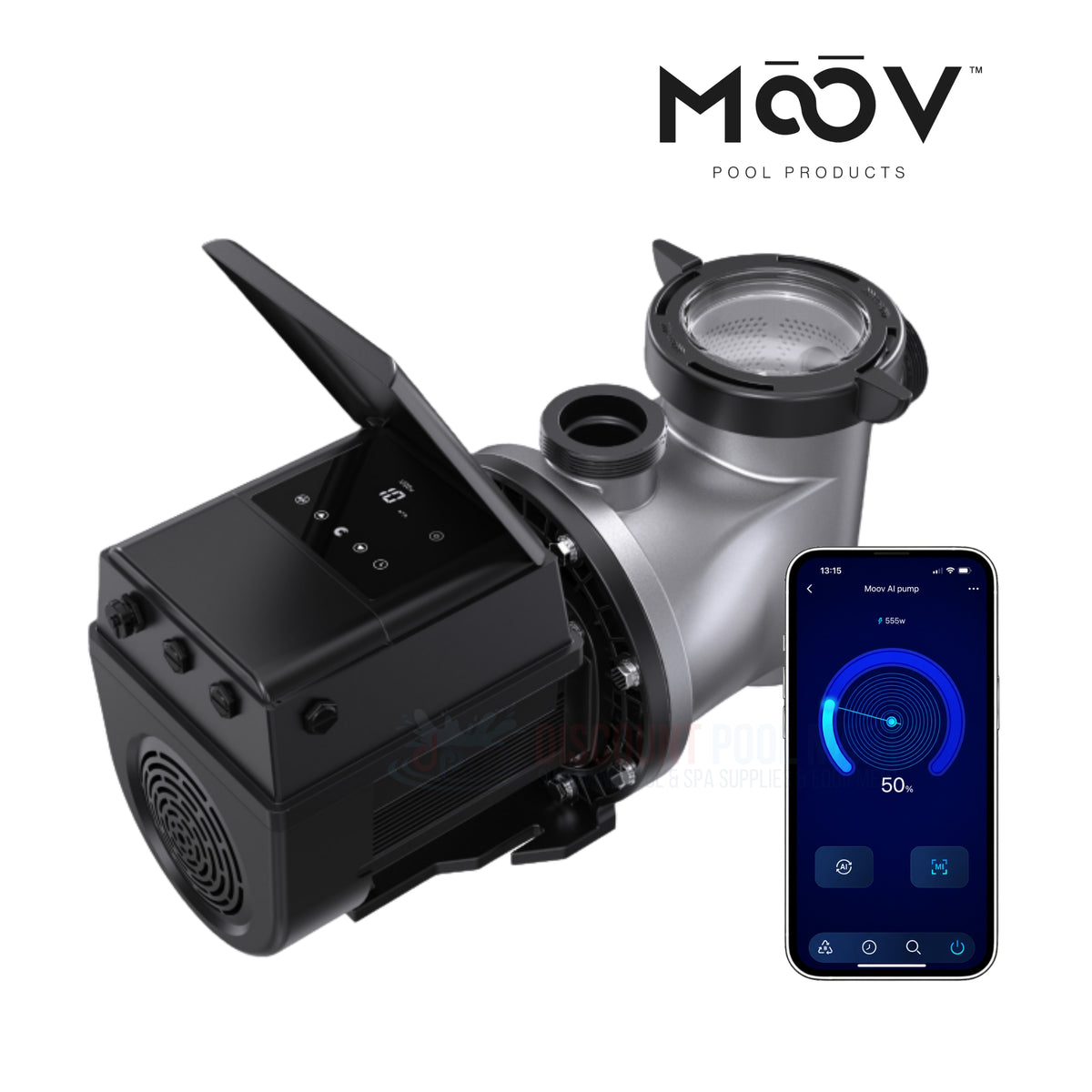

Moov Pool Ai App Change It From the Couch.
Or Let the Automation Do It. Built-in Wi-Fi and Bluetooth pair the pump to the Moov Pool Ai app. Switch modes, dial in a flow, set the four timers, run a backwash, and watch real-time power draw and a running consumption history. Share access with the rest of the household. For a full automation system, the RS-485 Modbus port and three digital speed inputs let the controller take over.
  • Wi-Fi (2.4 GHz) and Bluetooth, app control and scheduling
  • Live watts and kWh history in the app
  • RS-485 Modbus plus 3 digital inputs (40 / 80 / 100% presets)
  • Two onboard relays (5 A and 16 A) to switch other equipment
Key Features
◆
Self-Priming and Self-CheckingPrimes on every start with a 25-minute window, then re-checks for 30 seconds before settling into your program. Disable priming in settings if your suction is flooded.
▶
Freeze ProtectionSet a trigger temperature between 40 and 50°F. When the pump is off and air drops below it, the pump runs for an hour at the speed you chose.
○
Backwash ButtonOne press runs the pump at 100% for 3 minutes (adjustable to 25) for a sand or DE backwash, then returns to whatever it was doing.
⚙
Smart Junction Box1/2 in and 3/4 in NPT conduit ports, integrated relays, and a 7-pin connector for control wiring. No external relay box to buy.
How It Works
1
Plumb It2.5 in pipe recommended. Union kit included, fits 2 in or 2.5 in. Keep elbows 5 pipe diameters off the inlet.
2
Wire It220-240V single phase on a 20 A GFCI breaker, 14 AWG. Bond with 8 AWG copper. Licensed electrician required for warranty.
3
Pair the AppHold the Wi-Fi button 5 seconds until it beeps. Add device in Moov Pool Ai. Two minutes.
4
Set Flow and TimersPick Auto mode and a GPM, or Manual mode and a percentage. Set up to four daily periods. Done.
Specifications Moov · MP3AI
Brand
Moov
Model / SKU
MP3AI
Horsepower
2.7 THP, Inverter Variable Speed
Electrical
220-240V, 50/60 Hz, 10.9 A, 20 A Breaker
Flow
189 GPM Max, 35 to 185 GPM Adjustable
Max Head
82 ft
Speed Range
30% to 120% in 5% Steps
Noise
Approx. 43 dB
Unions
2 in or 2.5 in Imperial, 60.3 or 73 mm Metric (Kit Included)
Connectivity
Wi-Fi 2.4 GHz, Bluetooth, RS-485 Modbus, 3 Digital Inputs, 2 Relays
Modes
Manual, Auto Flow, Timer (4), Skimmer, Backwash, Freeze Protect
Protection
IP55, Class F Insulation
Salt Water
Rated to 3.5% Salinity
Install Limits
Max 6.5 ft Above Water Level, Water to 122°F
Warranty
3 Years Parts and Labor
Got Questions?Frequently Asked

The MP3AI is Moov’s largest Ai pump at 2.7 total HP and up to 189 GPM. It replaces 2.5 to 3 HP single-speed or variable-speed pumps on larger residential pools, pools with attached spas, and pools with water features that need real flow. If you are replacing a 1.5 to 2 HP pump on a standard pool, look at the MP2AI or MP165AIDV instead. Oversizing wastes the inverter savings.

Manual sets a percentage of full speed, 30% to 120%, and holds that speed. Auto sets a flow in GPM, 35 to 185, and the pump changes its speed to keep that flow as filter pressure changes. Use Auto if you have a heater, salt cell, or in-floor cleaning system that needs a specific flow. Use Manual if you just want quiet turnover.

A 20 A breaker on a 220-240V circuit, and Moov requires GFCI protection. The manual calls for 14 AWG supply wire and an 8 AWG copper bond to the pool structure. Have a licensed electrician do the hookup. Moov voids the warranty on units not installed by a qualified technician.

Yes, two ways. RS-485 Modbus for systems that speak it, or three digital inputs that force preset speeds (40%, 80%, 100% by default, all adjustable) when a controller closes the contact. Digital input overrides RS-485, which overrides the panel. The pump also has two dry-contact relays rated 5 A and 16 A to switch other loads.

Moov rates the Ai pumps at an average 50% seasonal reduction versus a single-speed pump. The savings come from running most of the day at 30% to 50% speed, where an inverter motor draws a small fraction of full power, and only ramping up for skimming, cleaning, or heating. The app shows live watts and a history so you can see it for your own pool.

Yes, for permanently installed spas and hot tubs with water under 122°F. It is not for storable or inflatable pools, and it must not be installed under a spa skirt or inside an enclosure.

◆
2.7 HP189 GPM max
▶
43 dBRefrigerator quiet
○
Wi-Fi AppMoov Pool Ai
⚙
Auto FlowHolds 35 to 185 GPM
★
3-YearParts and labor
