Madimack EcoSpin Centrifugal Pre-Filtration System for Swimming Pools

ecoSPIN Pool Pre-Filter – Protecting Your Filtration System from the Start

The ecoSPIN Pre-Filter is engineered to capture sediment before it ever reaches your main pool filter. Installed at the front end of the plumbing system, it removes up to 80% of incoming dirt and debris before it can load sand, cartridge, or DE media. By reducing the amount of sediment circulating through your equipment, ecoSPIN improves water clarity and decreases stress on your filtration system.

Powered by centrifugal separation technology, ecoSPIN helps protect pumps, heaters, and filtration media from premature buildup. This proactive filtration approach leads to longer cleaning cycles, fewer backwash events, and reduced maintenance requirements. The result is improved efficiency and lower long-term operating costs.

Hydro-Cyclone Centrifugal Separation

At the core of ecoSPIN are 16 hydro-cyclones that generate centrifugal force to separate sediment from flowing water. As water enters the chamber, debris is spun outward and captured before it can travel downstream toward the primary filter.

Because ecoSPIN operates without moving parts or disposable media, it offers exceptional durability and minimal service requirements. Its simple yet effective design makes it suitable for both residential and commercial pool systems.

Commercial-Ready Construction

Constructed from reinforced thermoplastic, ecoSPIN is built to perform under high-pressure and high-flow conditions. With a maximum pressure rating of 690 kPa (100 psi), it maintains reliable operation in demanding environments.

NSF approval confirms that ecoSPIN meets strict health and safety standards, making it appropriate for commercial installations, public pools, and high-demand residential systems.

Flexible Installation Options

ecoSPIN integrates easily into a variety of pool setups, including:

• New pool builds
• Equipment upgrades
• Retrofit installations on existing systems

Equipped with standard 2-inch quick-connect unions, the unit allows for straightforward plumbing installation without extensive reconfiguration.

Key Advantages

• Captures up to 80% of sediment before it reaches the main filter
• Decreases backwashing frequency and cartridge maintenance
• Prolongs the life of filtration media
• No consumable filter media required
• No moving components to wear out
• Compatible with new construction and retrofit applications
• Rated for operation up to 100 psi
• Covered by a 2-year manufacturer warranty

The Benefit of Pre-Filtration

By intercepting debris before it reaches your sand, cartridge, or DE filter, ecoSPIN enhances hydraulic efficiency, reduces water waste from backwashing, and supports consistently clearer pool water. Serving as the first line of filtration defense, it protects downstream equipment and helps lower overall maintenance expenses.

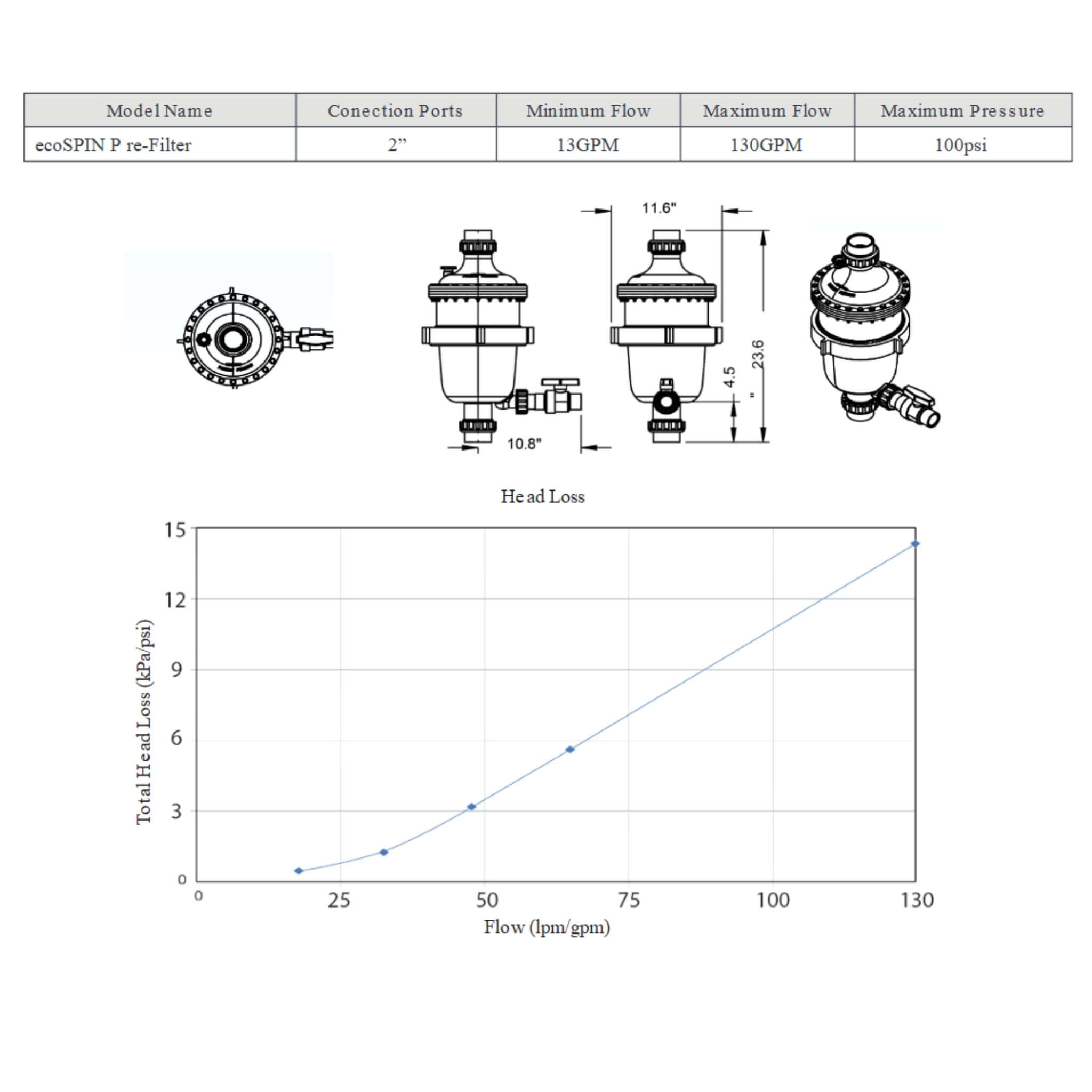

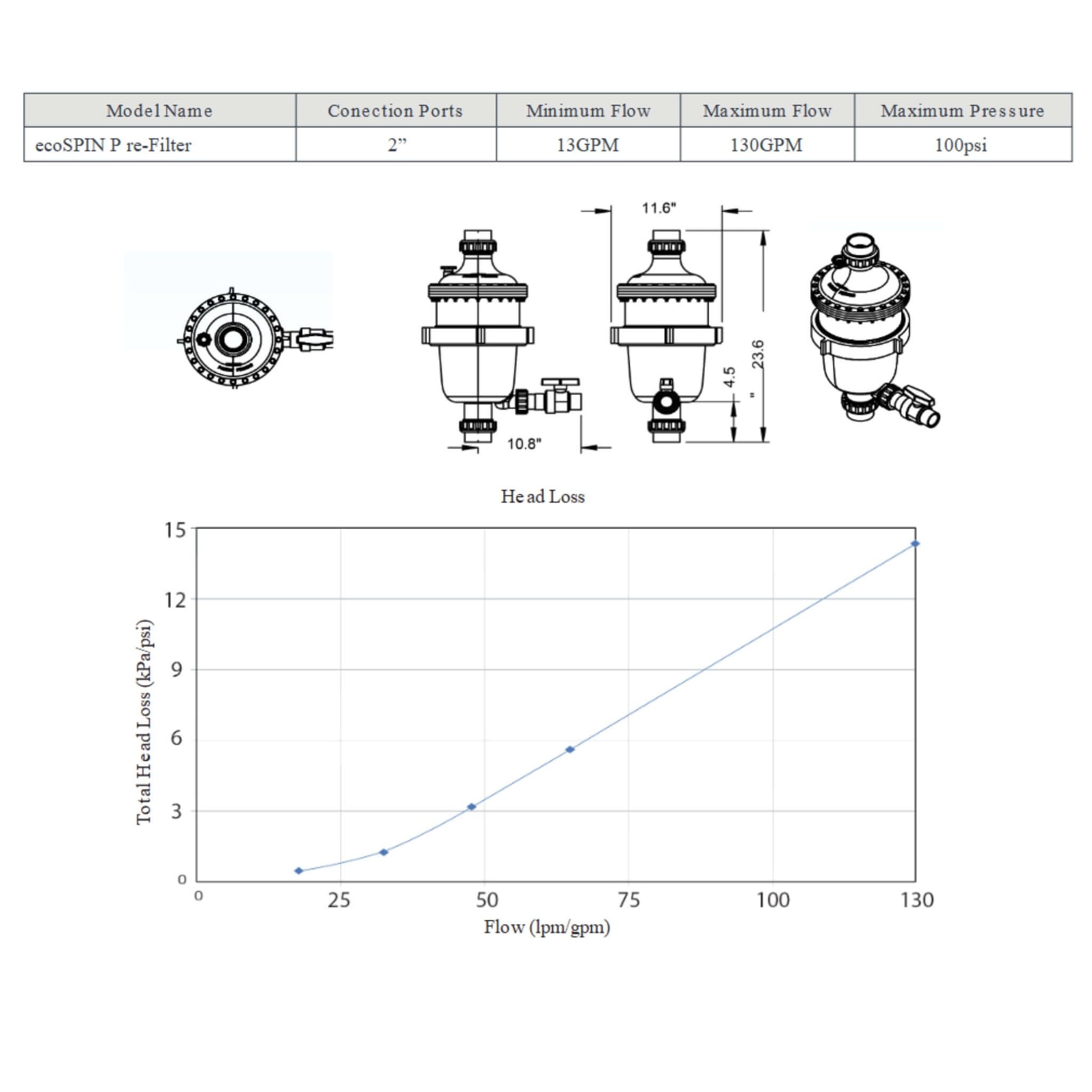

Specifications

• 2" Connection Ports
• 13 GPM Minimum Flow
• 130 GPM GPM Maximum Flow
• 100 PSI Maximum Pressure
