Jandy Universal Controller User Interface | R3008800

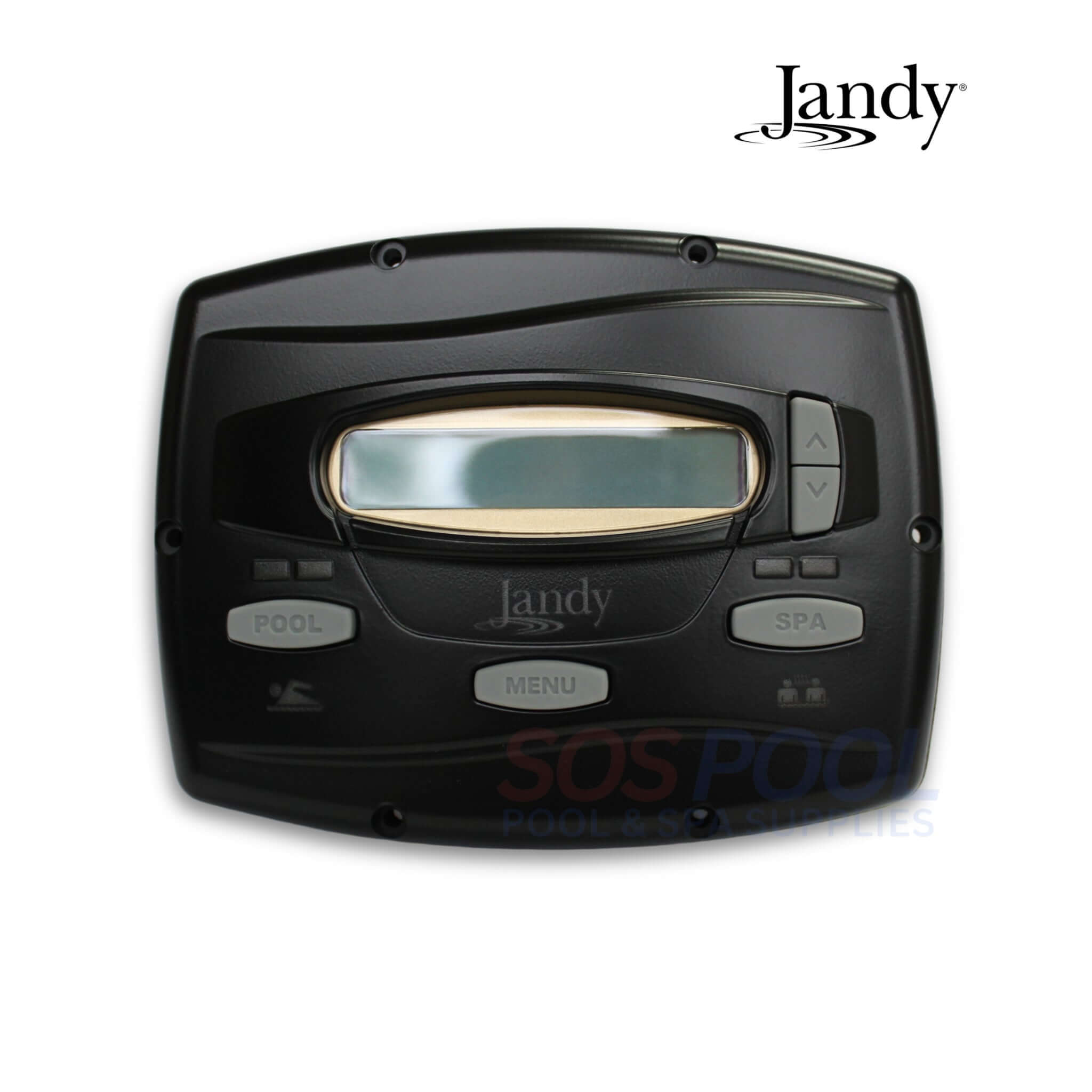

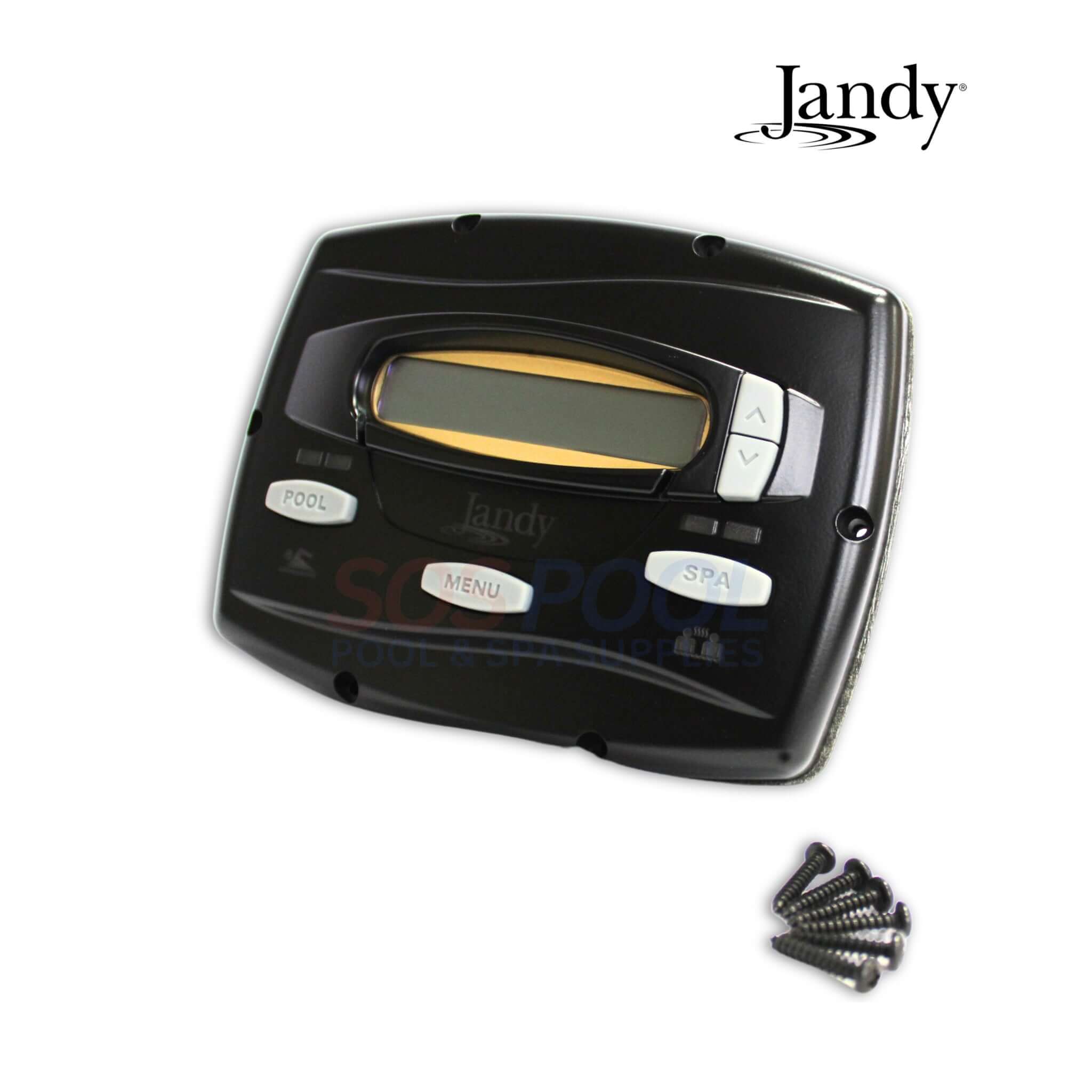

The Jandy Universal Controller User Interface R3008800 offers seamless control over pool and spa systems with its intuitive interface. Compatible with Jandy's Aqualink RS and PDA systems, this user-friendly device allows for effortless management of pool temperature, lighting, and filtration schedules. With its sleek design and easy-to-navigate menus, users can customize settings and monitor pool functions with precision, ensuring a hassle-free and enjoyable aquatic experience.

Note: This Jandy Universal Controller User Interface Part# R3008800 does NOT include a cover. The corresponding cover, Jandy Control AE-TI Control Cover Part# R3000601, is sold separately. However, it has been discontinued by Jandy and is no longer being manufactured.

Highlights

• Compatibility: Designed to work seamlessly with Jandy's Aqualink RS and PDA systems, ensuring integration with existing pool and spa setups.
• Intuitive Interface: Features a user-friendly interface with easy-to-navigate menus for effortless control over pool temperature, lighting, and filtration schedules.
• Customizable Settings: Allows users to customize settings according to their preferences, providing flexibility in managing pool functions.
• Remote Access: Enables remote access and control of pool and spa systems via compatible mobile devices, offering convenience and flexibility.
• Sleek Design: Boasts a sleek and modern design that enhances the aesthetics of any pool area while providing practical functionality.
• Compatibility with Accessories: Supports integration with a wide range of accessories, such as pool heaters, pumps, and lighting systems, for comprehensive pool management.
• Diagnostic Capabilities: Provides diagnostic capabilities to identify and troubleshoot any issues with pool equipment quickly, ensuring optimal performance and reliability.
• Easy Installation: Designed for easy installation and setup, allowing for hassle-free integration into existing pool and spa setups.
• Energy Efficiency: Incorporates energy-efficient features to help minimize energy consumption and reduce operating costs over time.
• Enhanced User Experience: Enhances the overall user experience by streamlining pool management tasks and providing intuitive control over essential functions.

User Instructions

Connection to a Secondary User Interface

1. Turn off the power to the heat pump.

2. Remove the four (4) screws that attach the service access panel to the heat pump and remove the cover to the junction box. See Figure 11.

3. Run four (4) 22 AWG solid copper wires into the conduit labeled “Low Voltage Connection” located on the lower right hand side of the heat pump. See Figure 11. The wires may be up to 300 feet (91.4 m) in length.

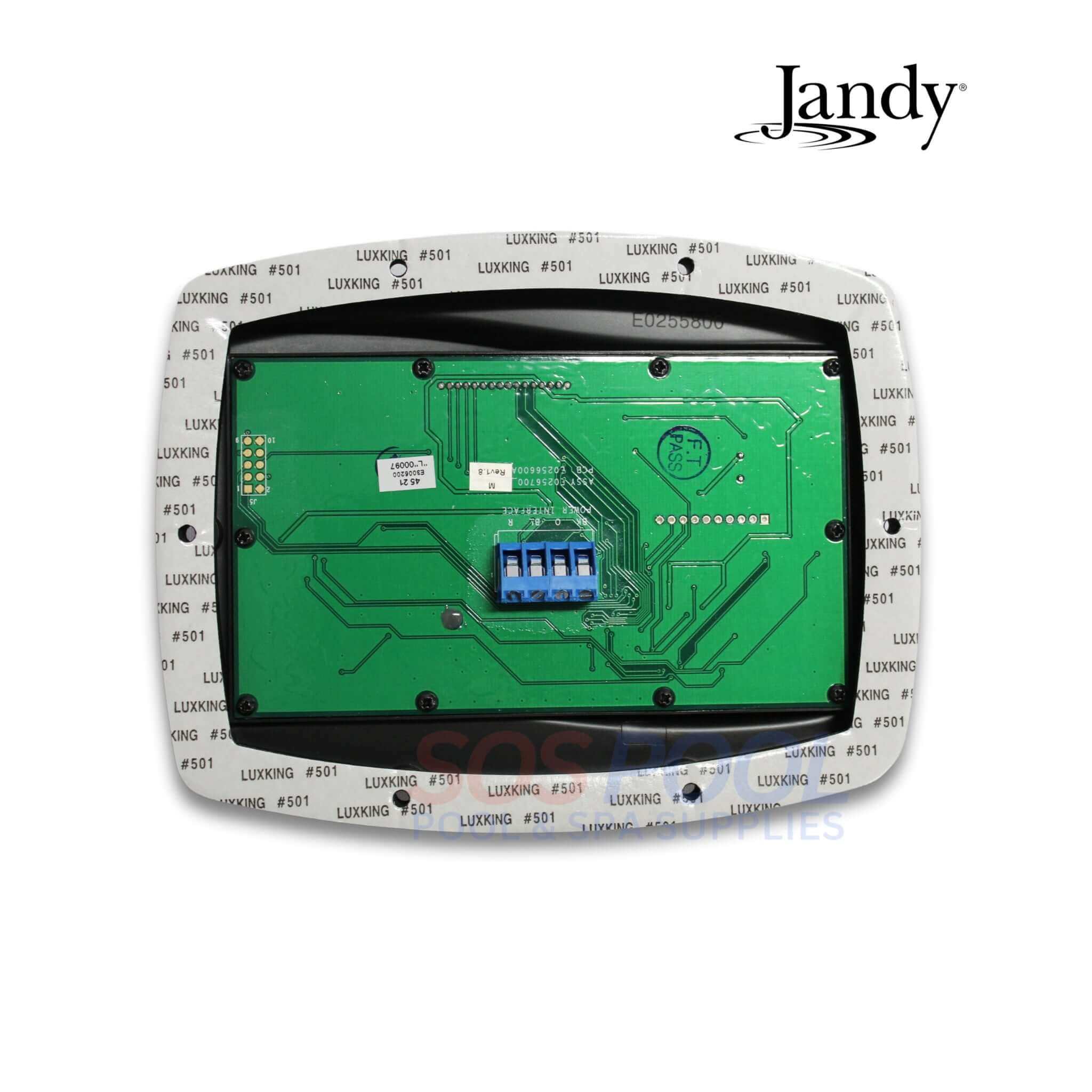

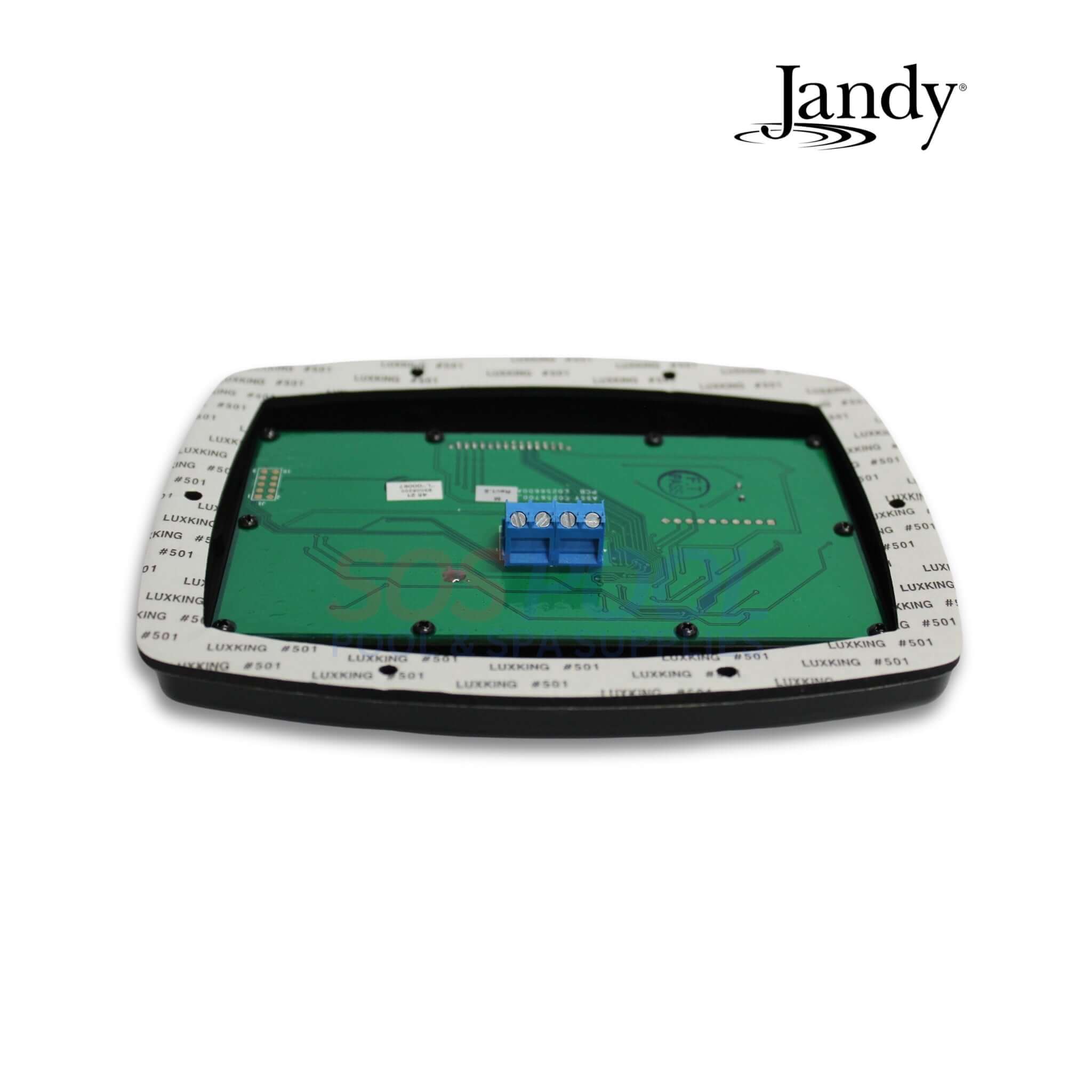

4. Connect the wires to the 4 position terminal on the upper left hand corner of the Power Interface PC Board, labeled “User Interface1”. The wires will be added to the existing wiring to the User Interface installed on the heat pump.

5. Ensure the wiring is consistent when connecting the wires to the second User Interface. For example, BK goes to BK, O goes to O, etc.

6. Re-install the junction box cover and service access panel and restore power to the heat pump

Operating the Controller

• Your new EE-Ti heat pump is controlled by an advanced microprocessor based controller that provides a sophisticated yet simple interface to operate your heat pump for maximum efficiency and enjoyment of your pool. To locate the control buttons, see Figure 15.
• 5.2.1 Off Mode When the control panel is turned off, the screen displays HEAT PUMP is OFF PRESS Pool or Spa.
• 5.2.2 Pool Mode - (Normal Heat) To enable the pool mode, press POOL. The associated left green LED indicator will light and the unit will display SET:xxx° on the screen.

Spa Mode - (Normal Heat)

• To enable the spa mode, press SPA. The  associated left green LED indicator will light and the unit will display SET:xxx° on the screen

Note:

• XXX on the screen represents the current temperature setting on the control. The default setting for pool temperature is 80°F (26°C). You can change the temperature set point by pressing the Up or Down button. Repeatedly press  the Up or Down button until you reach the desired  temperature set point. After 5 seconds of inactivity, the  new set point is stored in memory. When the water temperature falls to 1 degree  below the temperature setting and after a 5 minute delay, the control will start the heat pump and the associated right LED will light RED.

Note:

• XXX on the screen represents the current temperature setting on the control. The default setting for spa temperature is 102°F (38°C). You can change the temperature set point by  pressing the Up or Down button. Repeatedly press the Up or Down button until you reach the desired  temperature set point. After 5 seconds of inactivity, the new set point is stored in memory. When the water temperature falls to 1 degree below the temperature setting and after a 5 minute delay, the control will start the heat pump and the associated right LED will light RED.

Compatibility

• This is compatible with Jandy's Aqualink RS and PDA systems. These systems are designed to control various aspects of pool and spa operation, including temperature, lighting, filtration, and more. Additionally, the controller may be compatible with a range of accessories such as pool heaters, pumps, and lighting systems, depending on the specific configurations and requirements of the user's pool setup.
