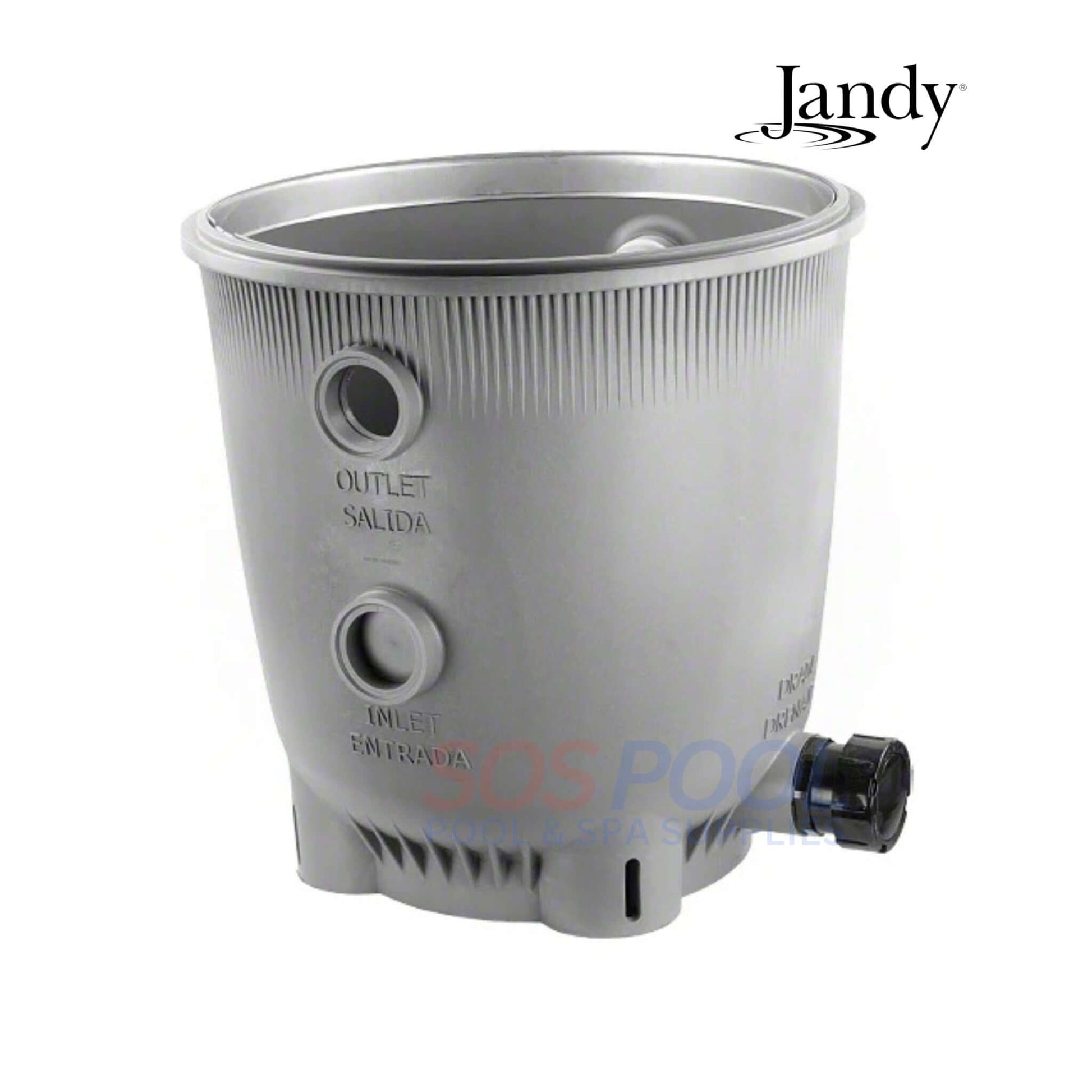

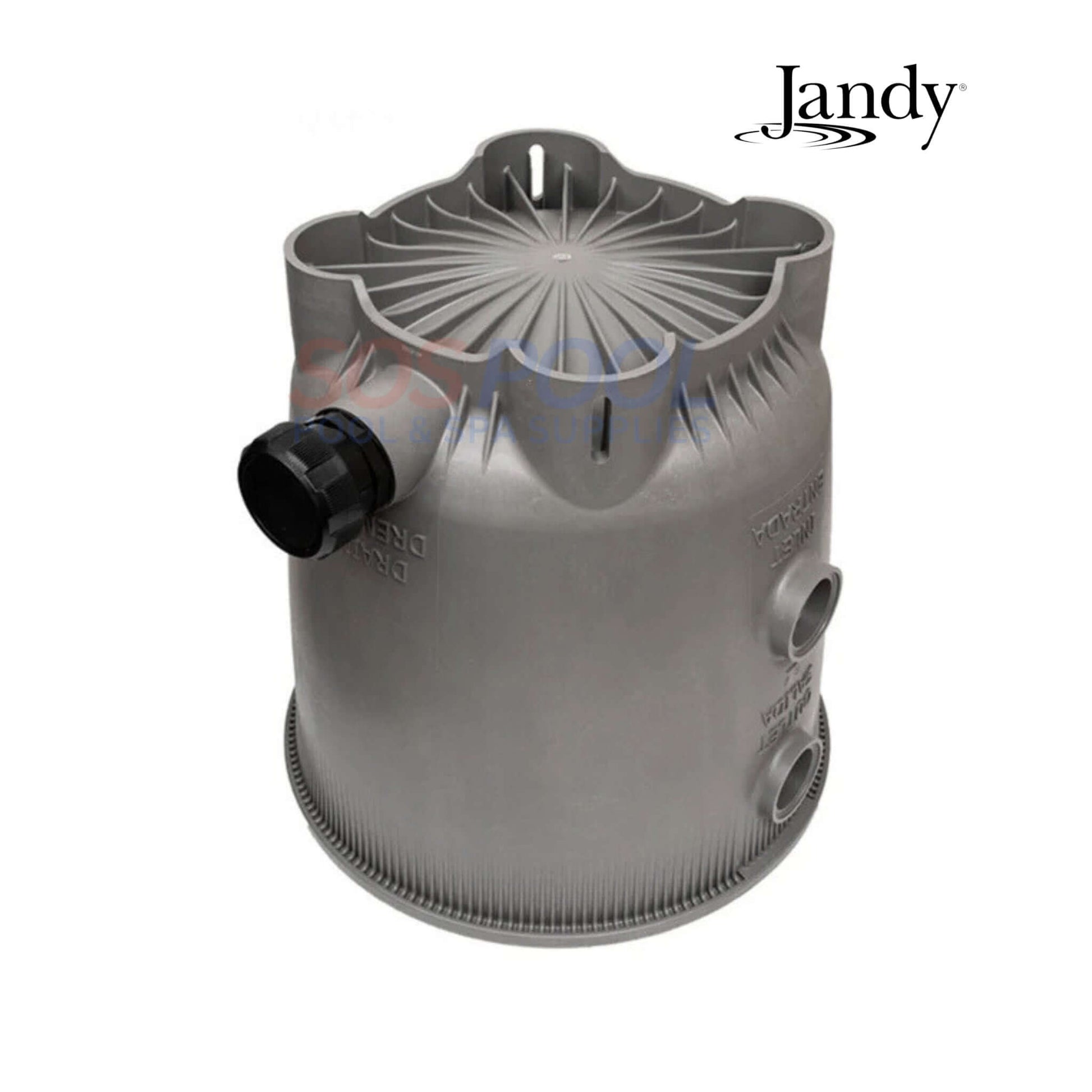

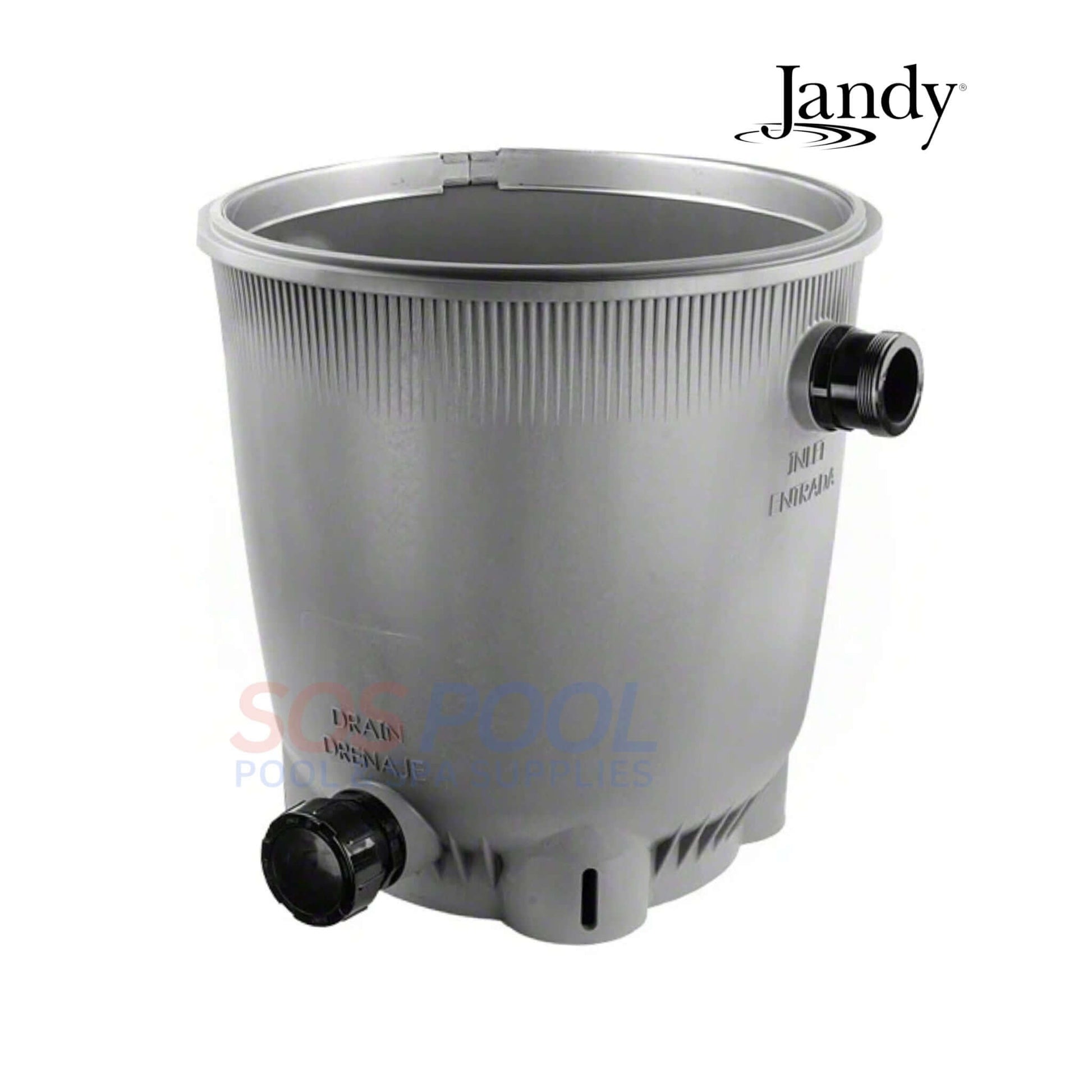

The Jandy R0465400 Tank Bottom Assembly is a comprehensive lower-body replacement designed to restore stability and sealing performance in Jandy CV-series cartridge filters such as the CV340, CV460, and CV580. Built to original Jandy specifications, it includes the lower tank shell, bulkheads with O-rings, inlet elbow, drain cap, tank O-ring, retaining ring, and union pieces to rebuild the base section fully. Its reinforced polymer composition withstands continuous chemical exposure and pressure variations common to pool filtration systems. Designed for the CV series side-inlet and side-outlet configuration, the assembly reinstates proper hydraulics while offering a cost-effective alternative to replacing the entire filter tank.
-
Complete Lower Tank Kit: Contains the tank base, bulkheads with sealing components, inlet elbow, drain cap, tank O-ring, retaining ring, and unions for a full rebuild.
-
Direct Fit for CV Filters: Compatible with Jandy CV340, CV460, and CV580 units, ensuring correct structural and hydraulic alignment when replacing worn bases.
-
High-Strength Construction: Resistant polymer materials handle chemical exposure, outdoor conditions, and ongoing filtration pressure cycles.
-
Correct CV Flow Pattern: Supports the side-inlet and side-outlet layout of the CV series, ensuring restored flow performance after installation.
-
Efficient Repair Option: Lets installers replace only the damaged base section, reducing labor time and preventing full-tank replacement expenses.
- (1) Jandy Filter Tank Bottom

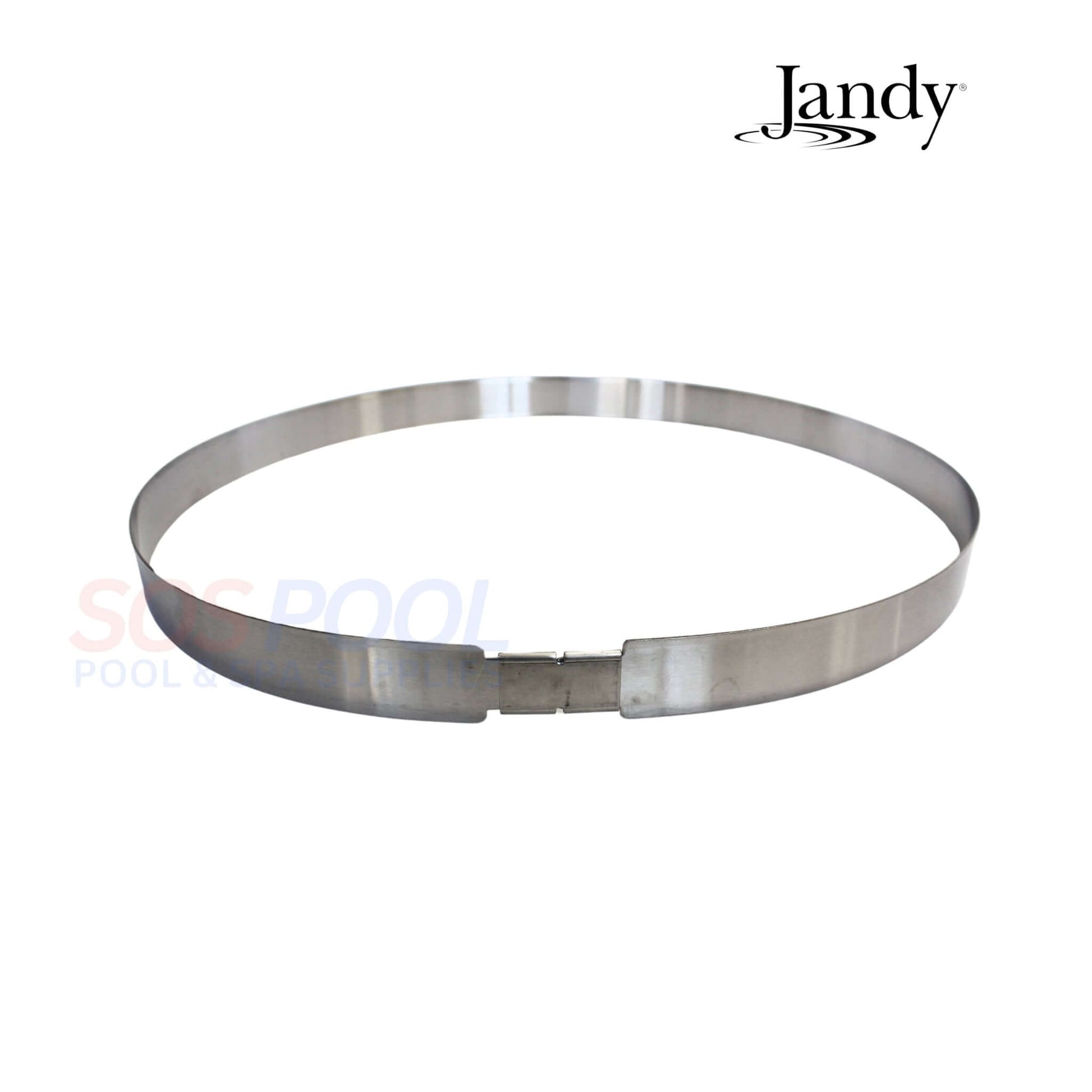

- (1) Retaining Ring R0405200

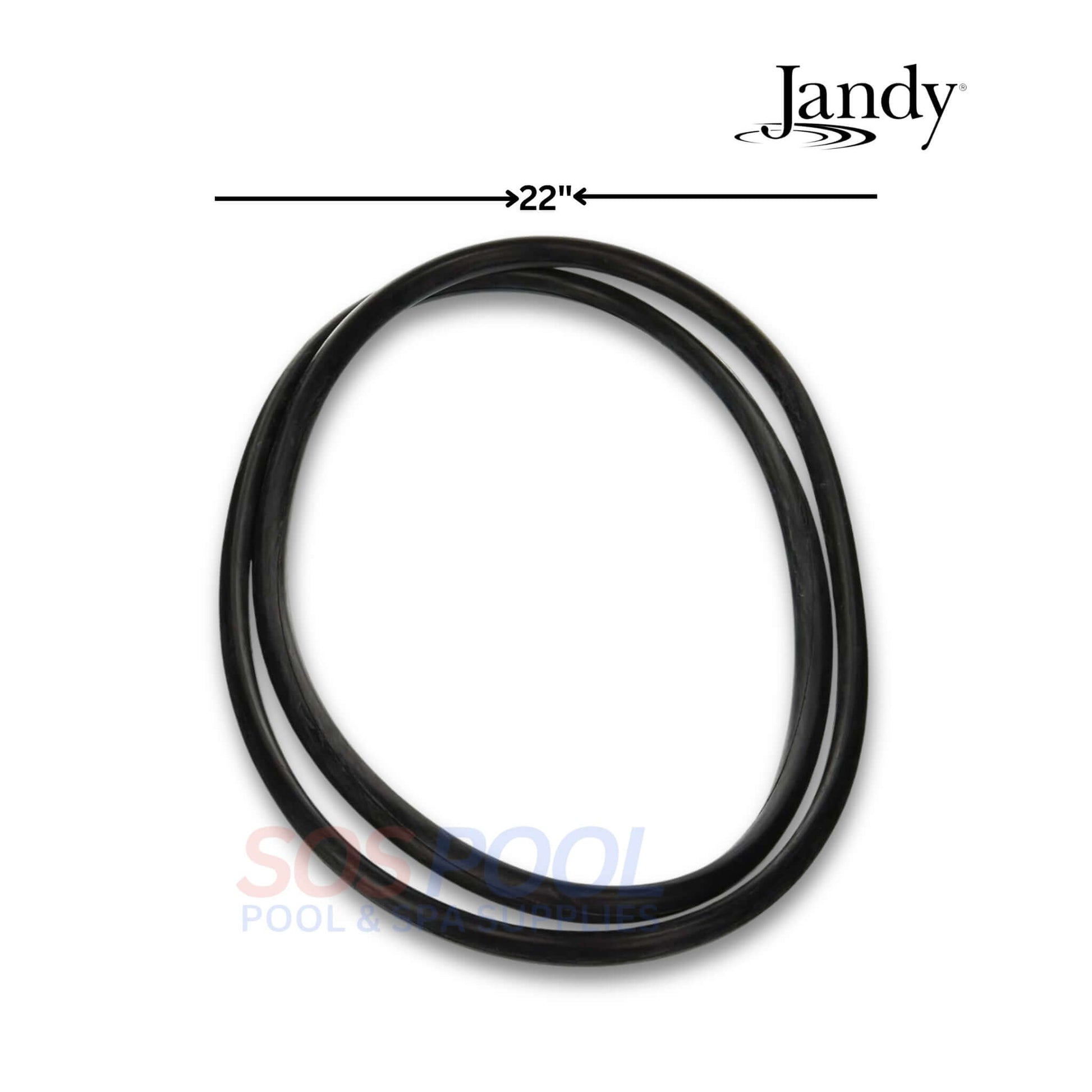

- (1) Tank O-Ring R0357800
- (1) Drain Cap Assembly R0523000
- (3) BulkHead Assembly With O-Rings R0465600

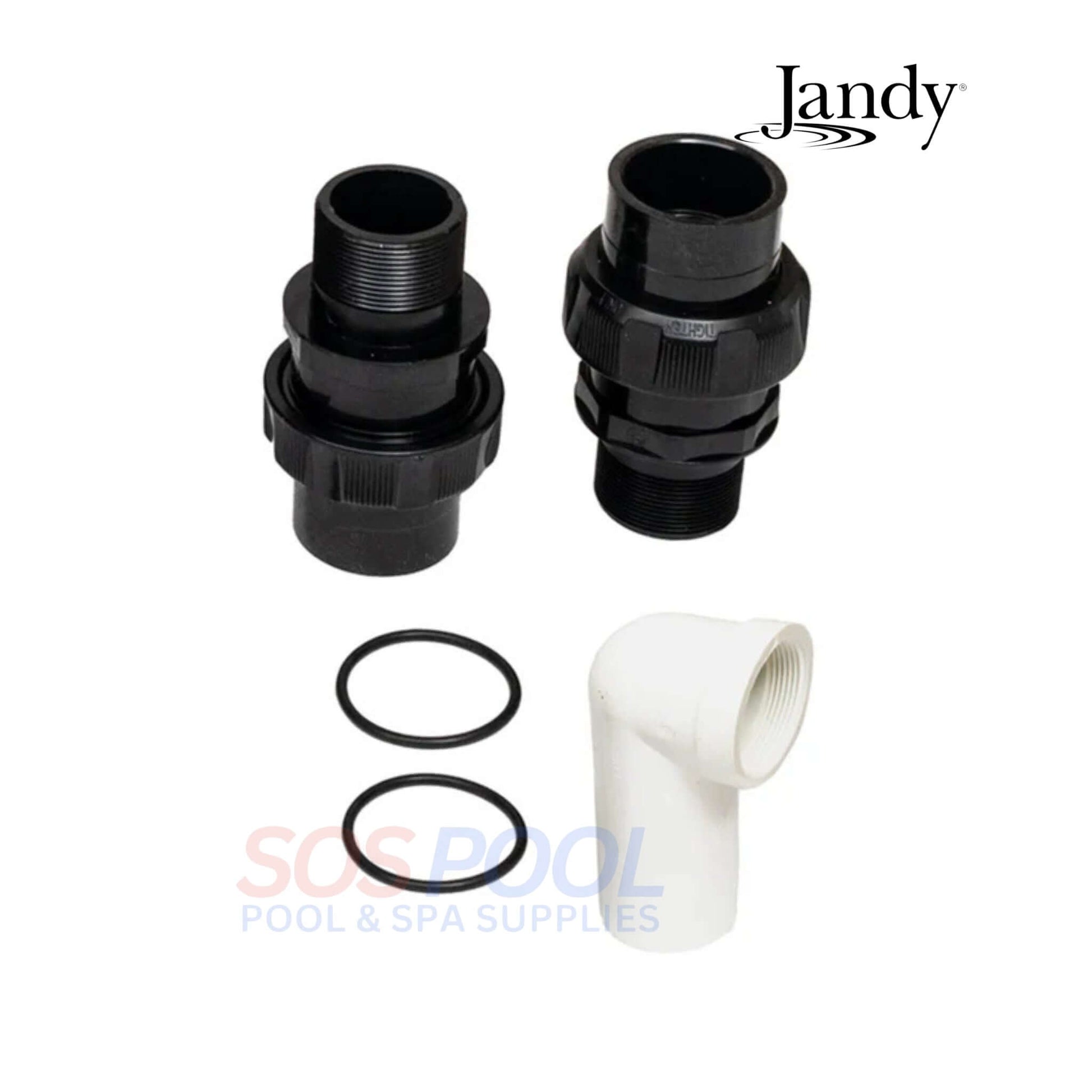

- (2) Universal Union Set R0522900 and R0461800
- (1) Inlet Elbow with O-Ring R0358400
- Jandy CV series cartridge pool and spa filter models: CV340, CV460, CV580
