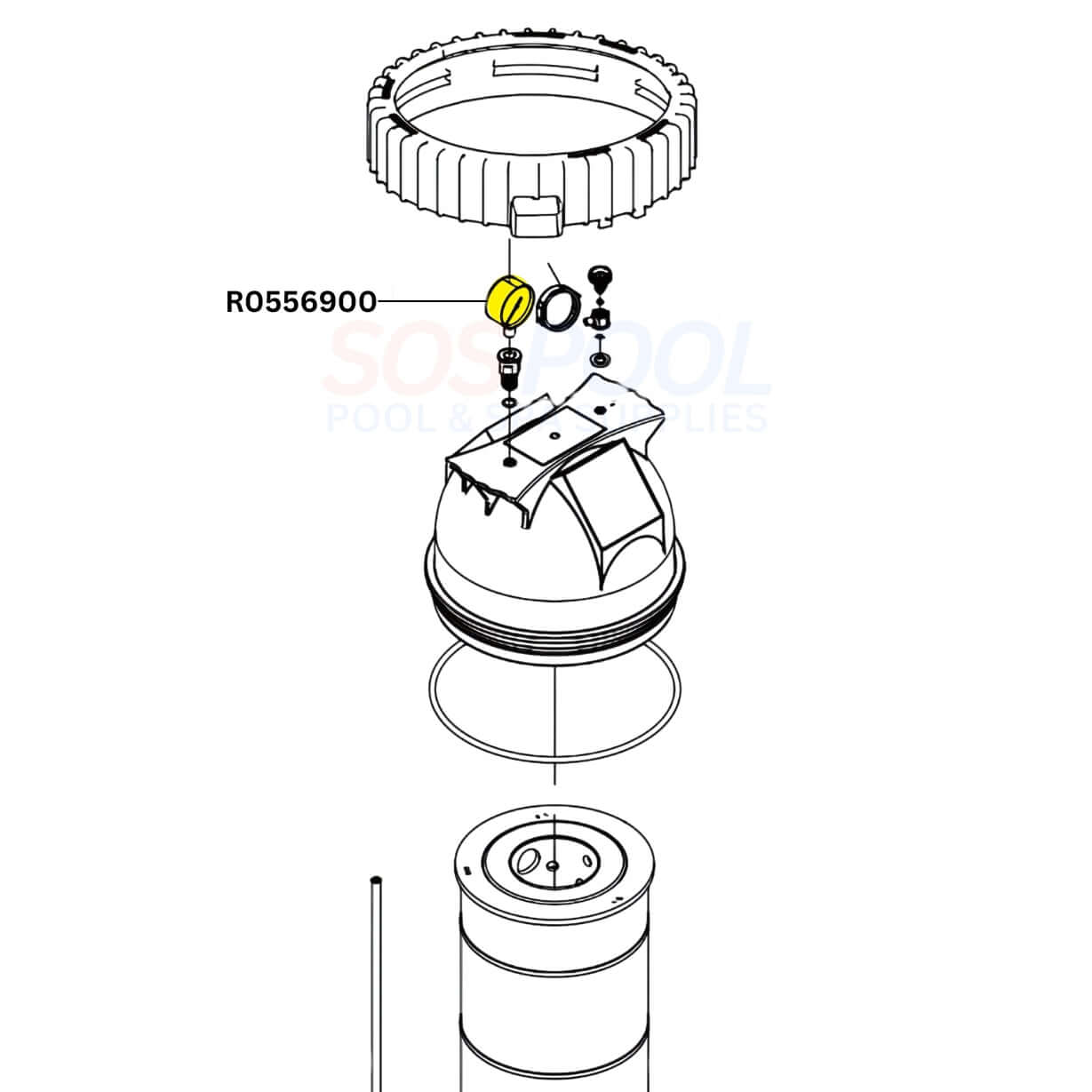

On the Jandy CS Series Cartridge Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy CS Series Cartridge Filter

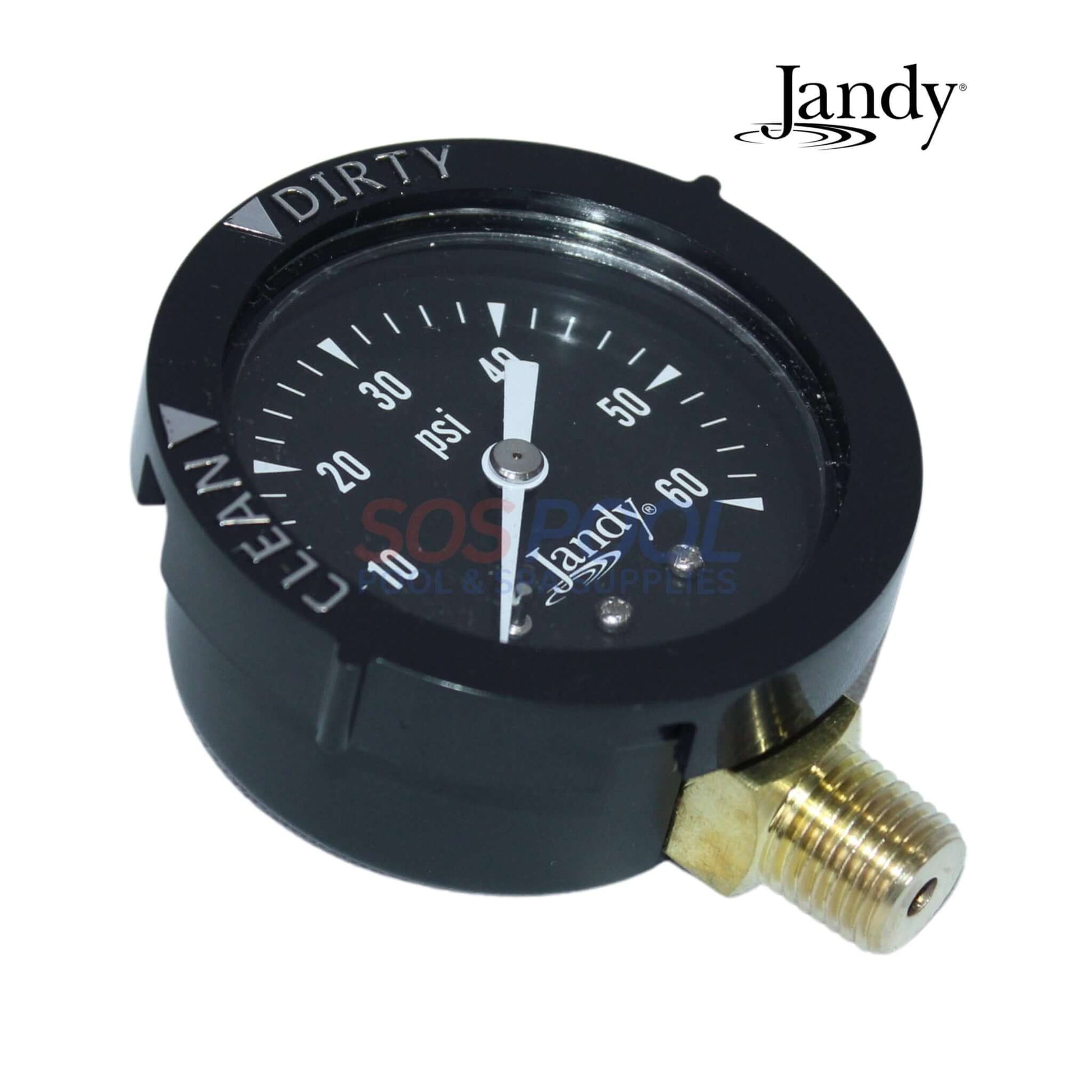

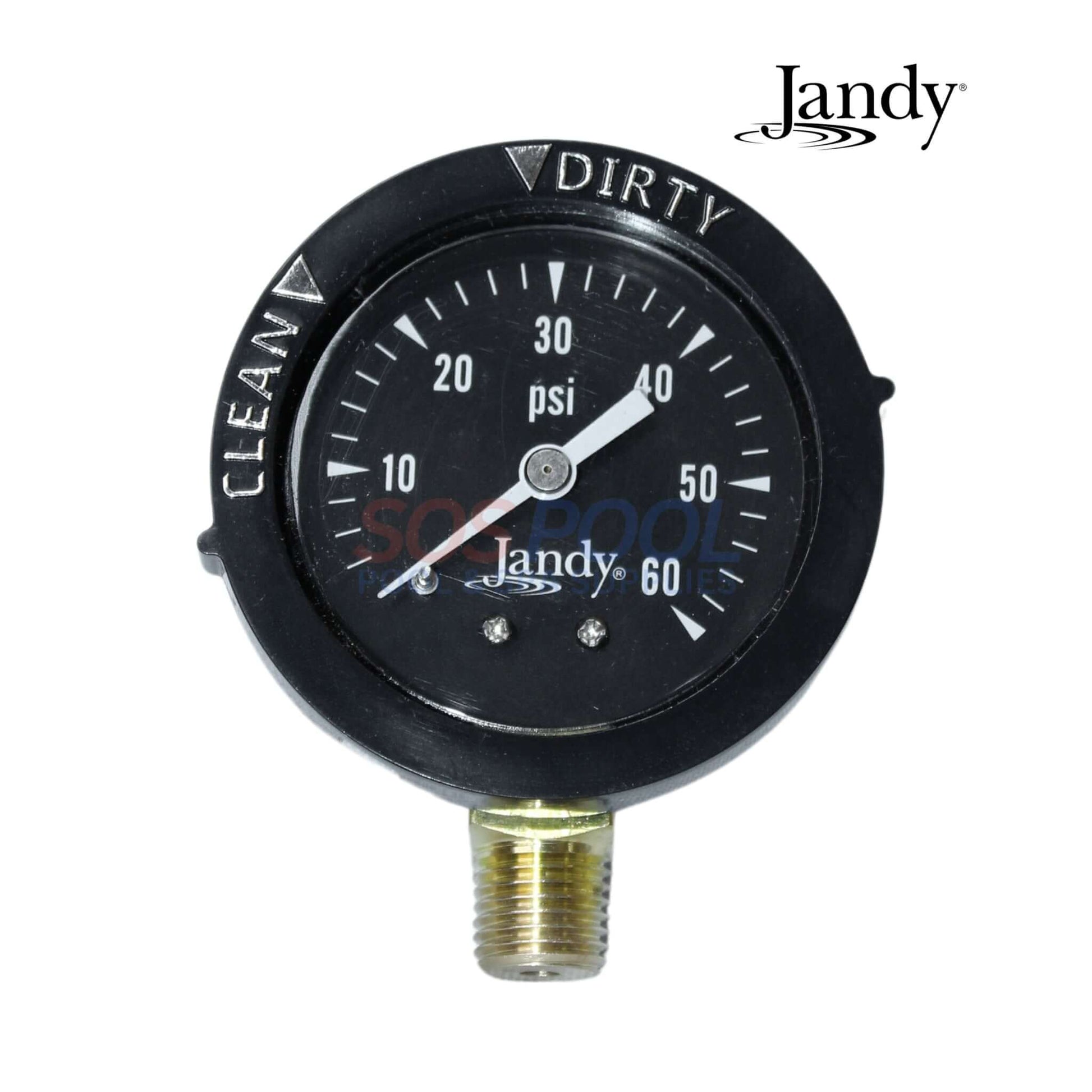

The OEM Jandy Pressure Gauge R0556900 is a replacement component designed for Jandy CS and CJ Series cartridge filters, including models CS100, CS150, CS200, CS250, CJ200, and CJ250. This bottom-mount gauge accurately measures filter pressure from 0 to 60 PSI, enabling pool owners to monitor system performance and identify when filter maintenance is necessary. Utilizing genuine Jandy replacement parts like the R0556900 ensures compatibility and optimal functionality within the filtration system.
-
Accurate Pressure Monitoring: The OEM Jandy Pressure Gauge R0556900 provides precise readings from 0 to 60 PSI, helping pool owners monitor system performance and determine when filter maintenance is needed.
-
Reliable Compatibility: Specifically designed for Jandy CS and CJ Series cartridge filters, including models CS100, CS150, CS200, CS250, CJ200, and CJ250, ensuring seamless integration and operation.
-
Bottom-Mount Design: Featuring a bottom-mount configuration, this gauge offers a secure fit and easy installation within the filtration system for hassle-free use.
-
Genuine Replacement Part: Utilizing authentic Jandy components guarantees optimal functionality, durability, and long-term reliability within your pool’s filtration system.
-

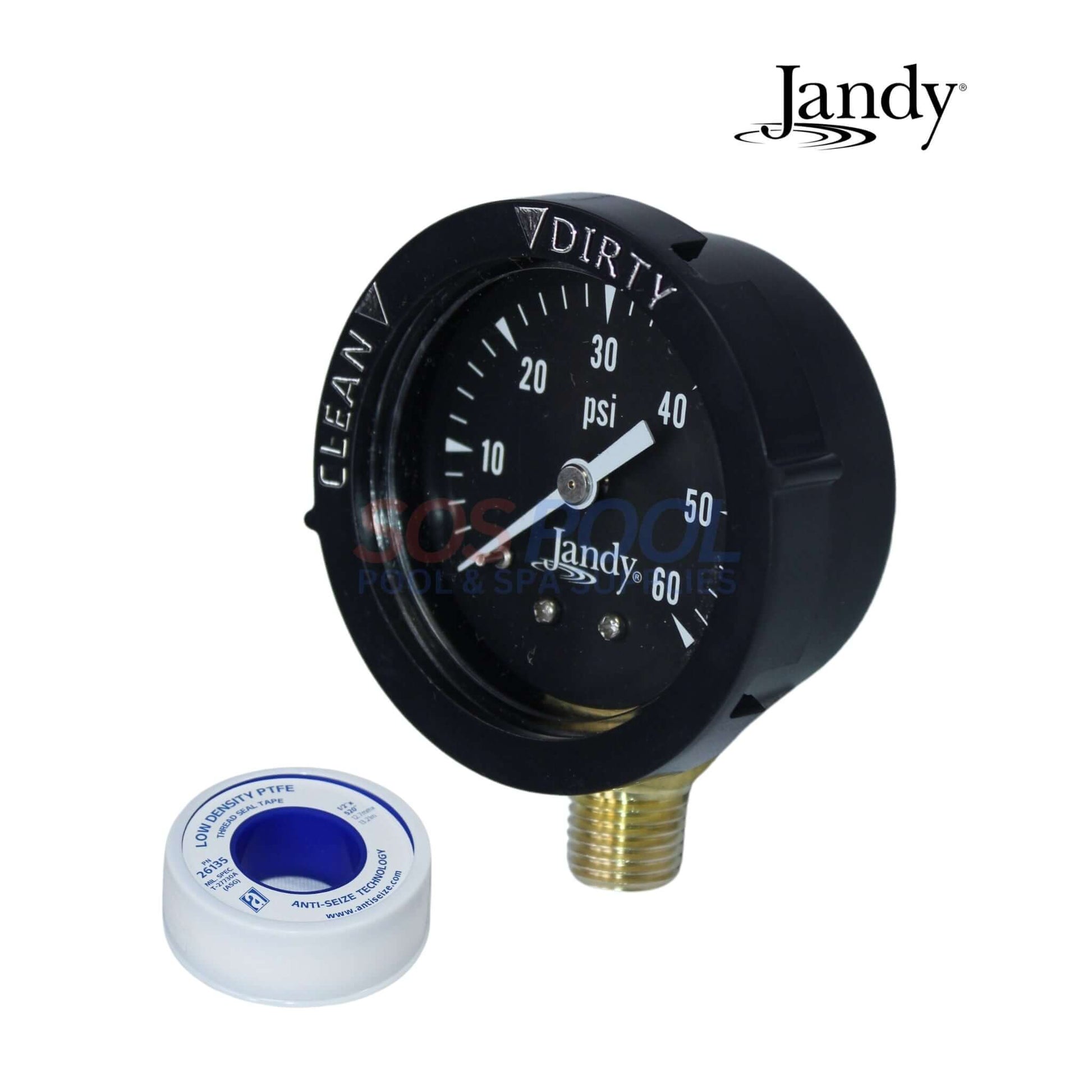

(1) Pressure Gauge
- (1) PTFE Sealing Tape
- Jandy CS Series Filter Models: CS100, CS150, CS200, CS250
-
Jandy CJ Series Filter Models: CJ200, CJ250
