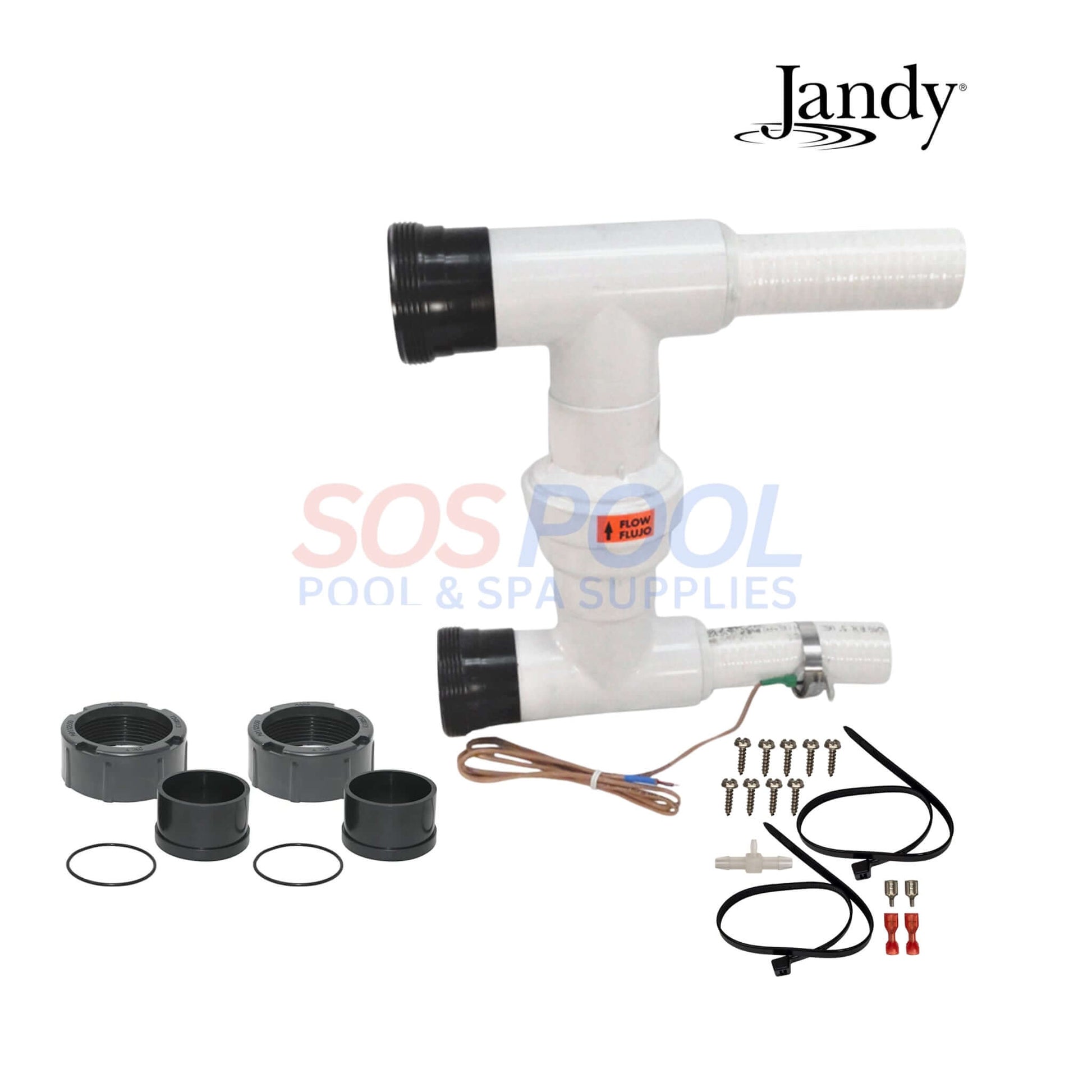

The OEM Jandy Plumbing Bypass Assembly R3001900 is a key component designed for use with Jandy AE-Ti and EE-Ti heat pumps, including models AE1500, AE2000, AE2500, and AE3000. This assembly helps regulate water flow through the heat pump, optimizing performance and protecting the system from potential damage caused by fluctuating water pressure. The bypass assembly includes essential parts like universal unions, connectors, and a water sensor, making it a comprehensive solution for maintaining your pool's heating efficiency.
-
Optimizes Water Flow for Heat Pumps: The Jandy Plumbing Bypass Assembly is designed to regulate water flow through Jandy AE-Ti and EE-Ti heat pumps, enhancing performance and ensuring consistent pool heating.
-
Compatible with Multiple Models: This assembly works with various Jandy heat pump models, including AE1500, AE2000, AE2500, and AE3000, offering versatility and reliability for different pool setups.
-
Comprehensive Bypass System: The assembly includes essential components such as universal unions, connectors, and a water sensor, providing a complete solution for managing water pressure and safeguarding the heat pump.
-
Protects Against Fluctuating Water Pressure: By effectively regulating water pressure, the bypass assembly helps prevent potential damage to the heat pump, ensuring long-lasting performance and maintaining heating efficiency.
- Jandy AE-Ti Series Heat Pumps
- Jandy EE-Ti Heat Pumps
