On the Jandy Stealth SHPF/SHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy Stealth SHPF/SHPM Single Speed Pump

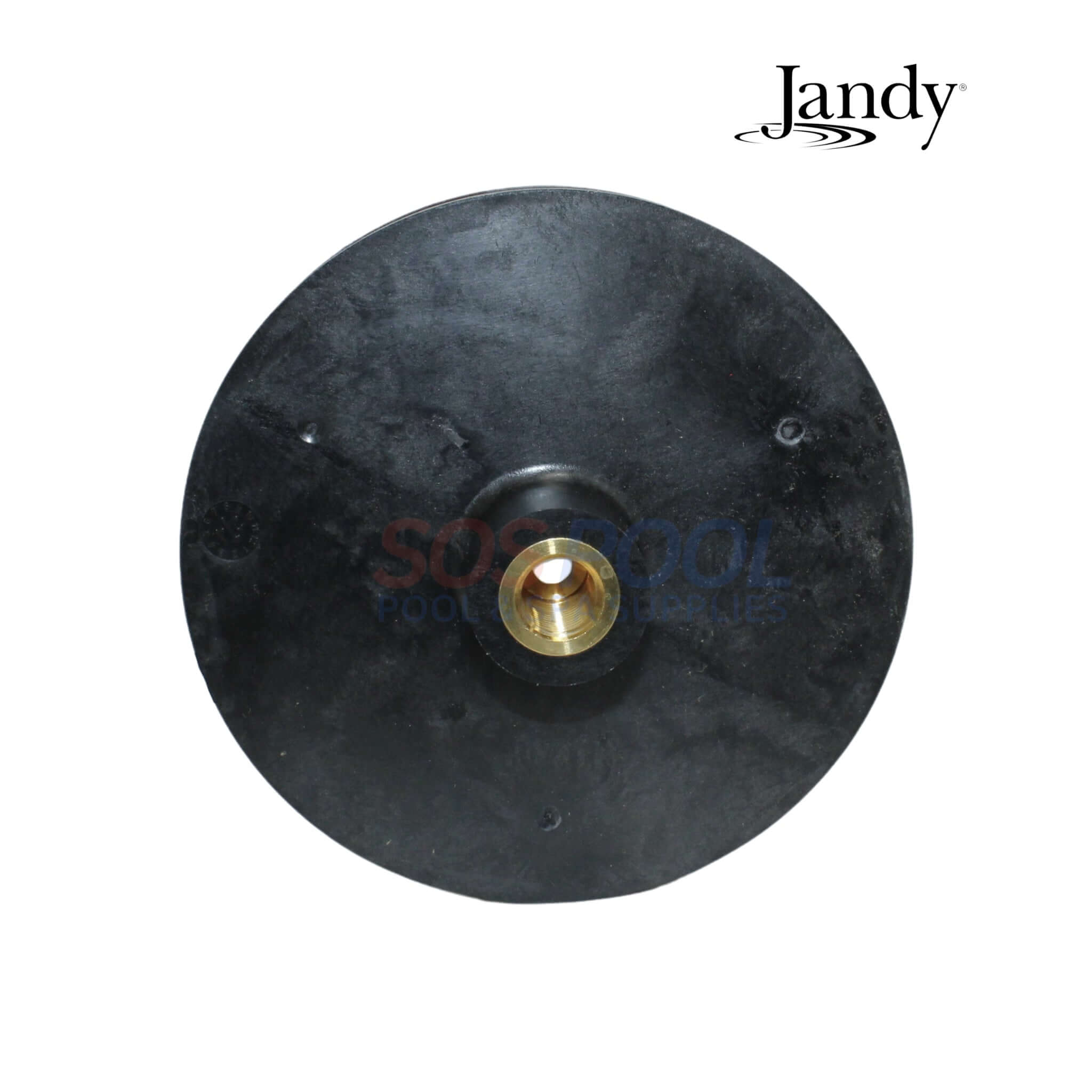

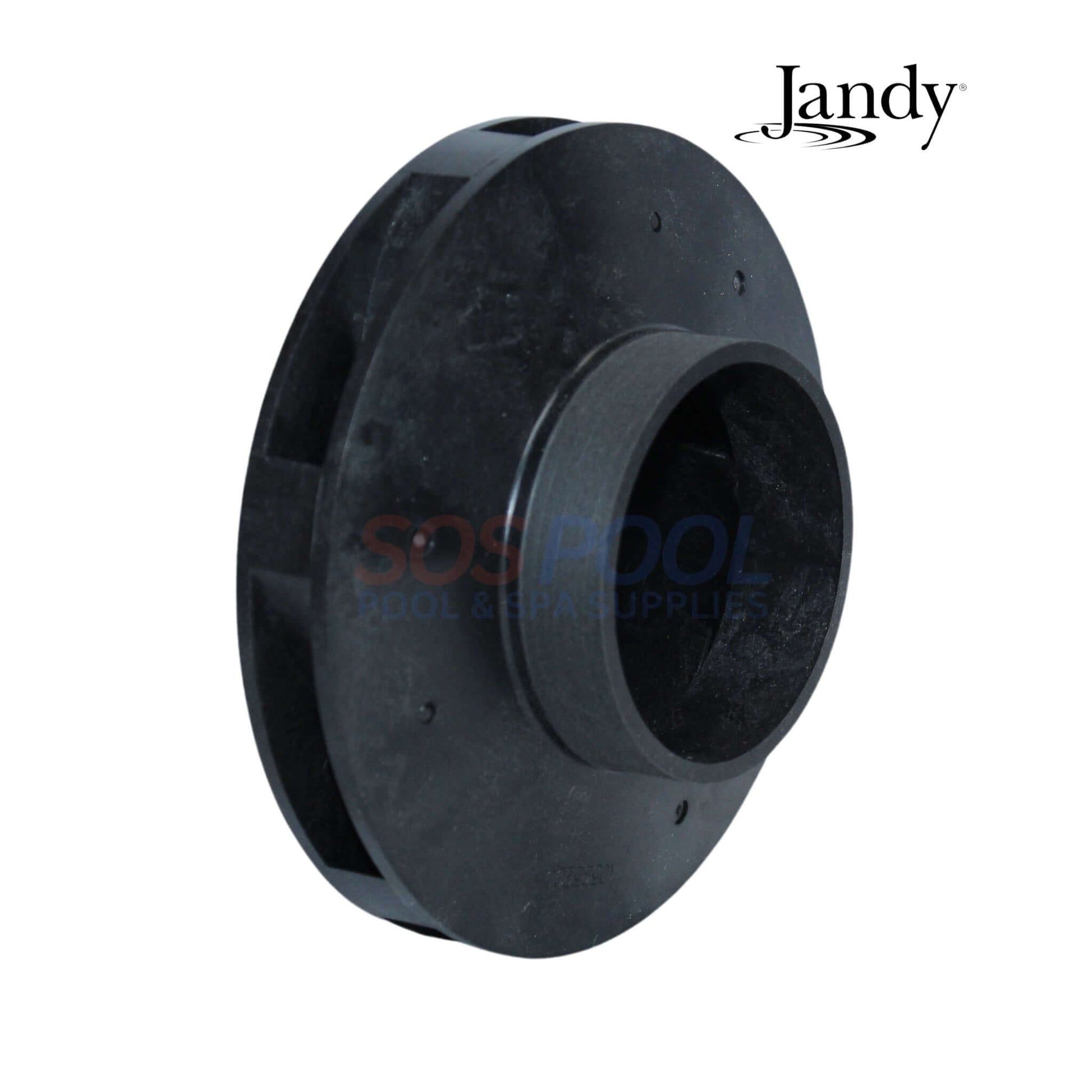

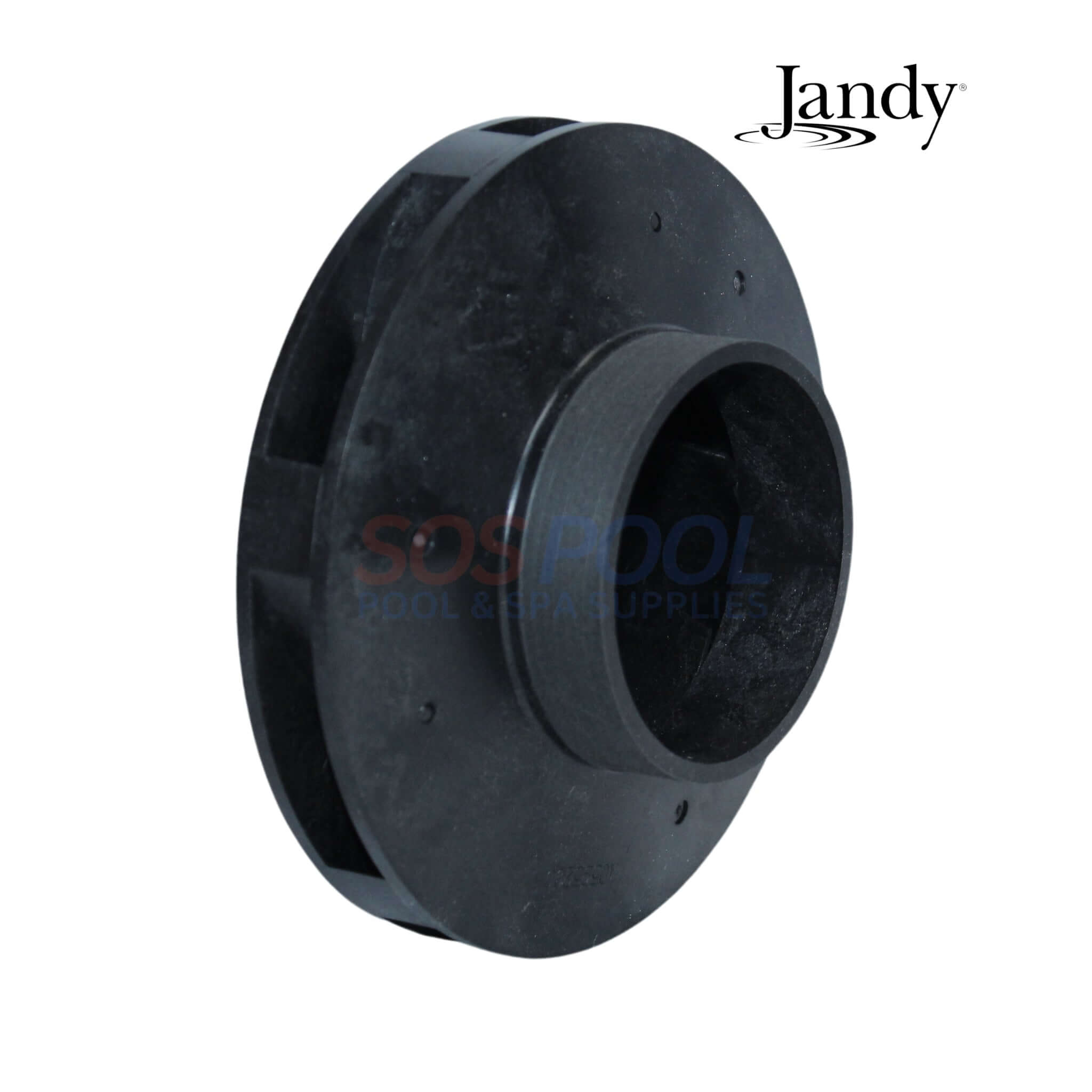

The OEM Jandy Impeller Kit R0807207 is designed for use with both the Jandy SWF125 0.75HP and SHPF 5.0HP pumps. This kit includes an impeller, screw, and backplate O-ring, making it essential for maintaining the pump's performance by ensuring proper water flow and circulation. The impeller is a closed-face type, suitable for high-powered applications like those found in both commercial and residential pools. This kit is critical for optimizing the efficiency of your pool’s circulation system.
-
Compatible with Jandy SWF125 and SHPF Pumps: The Jandy Impeller Kit R0807207 is specifically designed for use with the Jandy SWF125 0.75HP and SHPF 5.0HP pumps, ensuring compatibility and optimal performance.
-

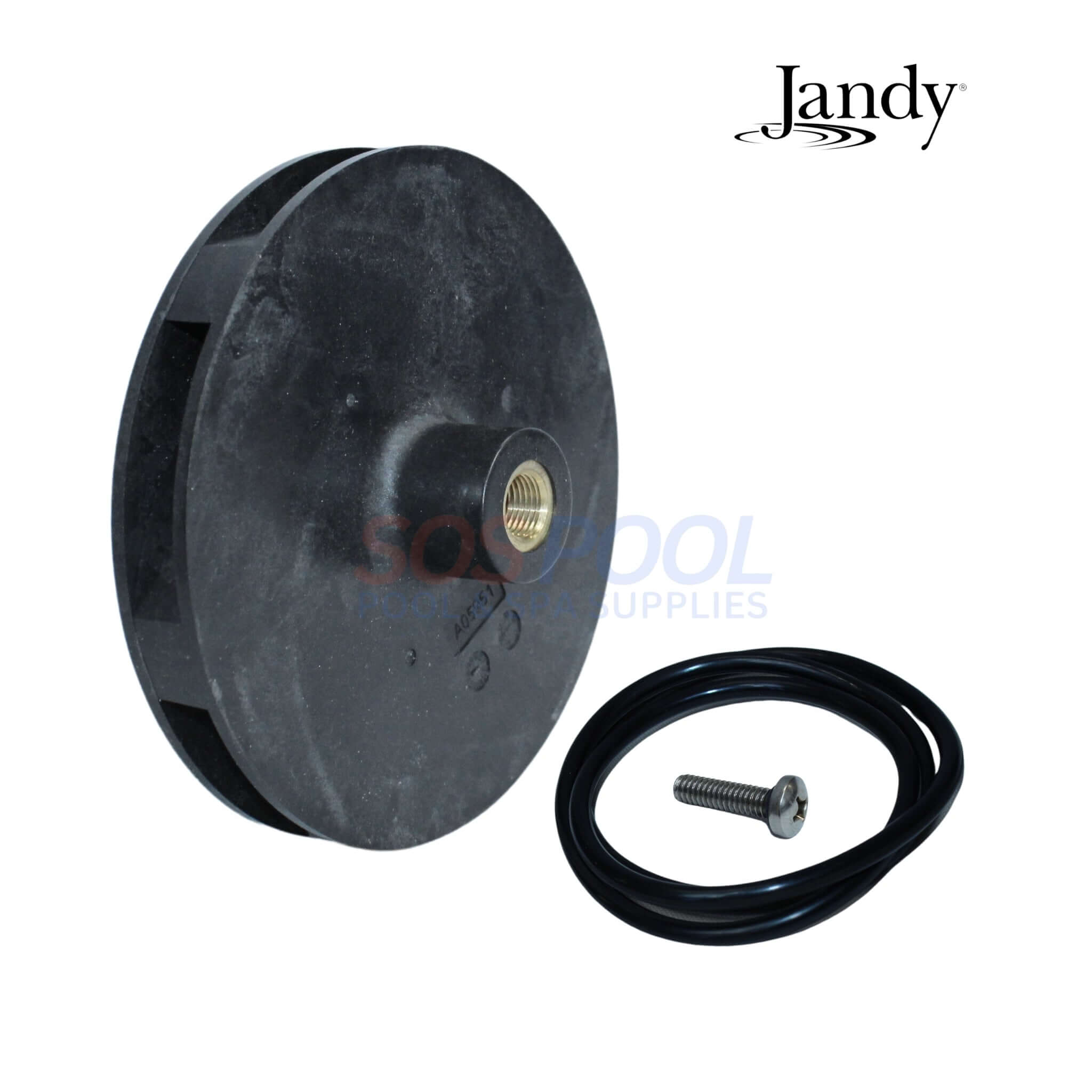

Includes Essential Components: This kit contains an impeller, screw, and backplate O-ring, all of which are crucial for maintaining the pump’s performance and ensuring proper water flow and circulation.
-

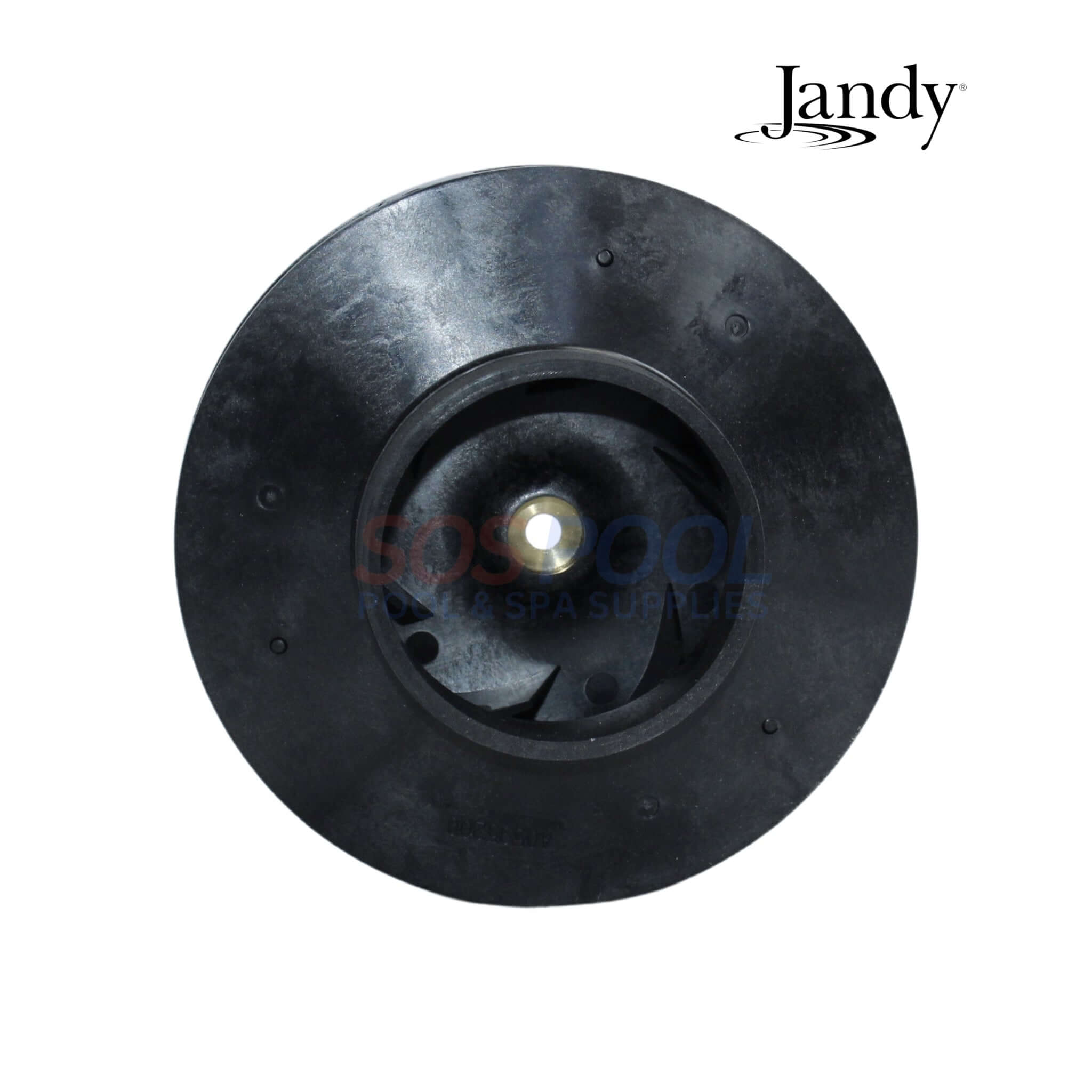

Closed-Face Impeller for High-Powered Applications: The impeller features a closed-face design, making it suitable for high-powered applications in both commercial and residential pool settings, enhancing efficiency and effectiveness.
-
Optimizes Pool Circulation Efficiency: This impeller kit is essential for optimizing the efficiency of your pool’s circulation system, helping to maintain clean and well-circulated water for a healthier swimming environment.
- (1) Impeller
- (1) O-Ring
- (1) Screw
- Jandy Stealth SHPF 5 Horsepower Pumps
- Jandy SWF125 0.75 Horsepower Pumps
