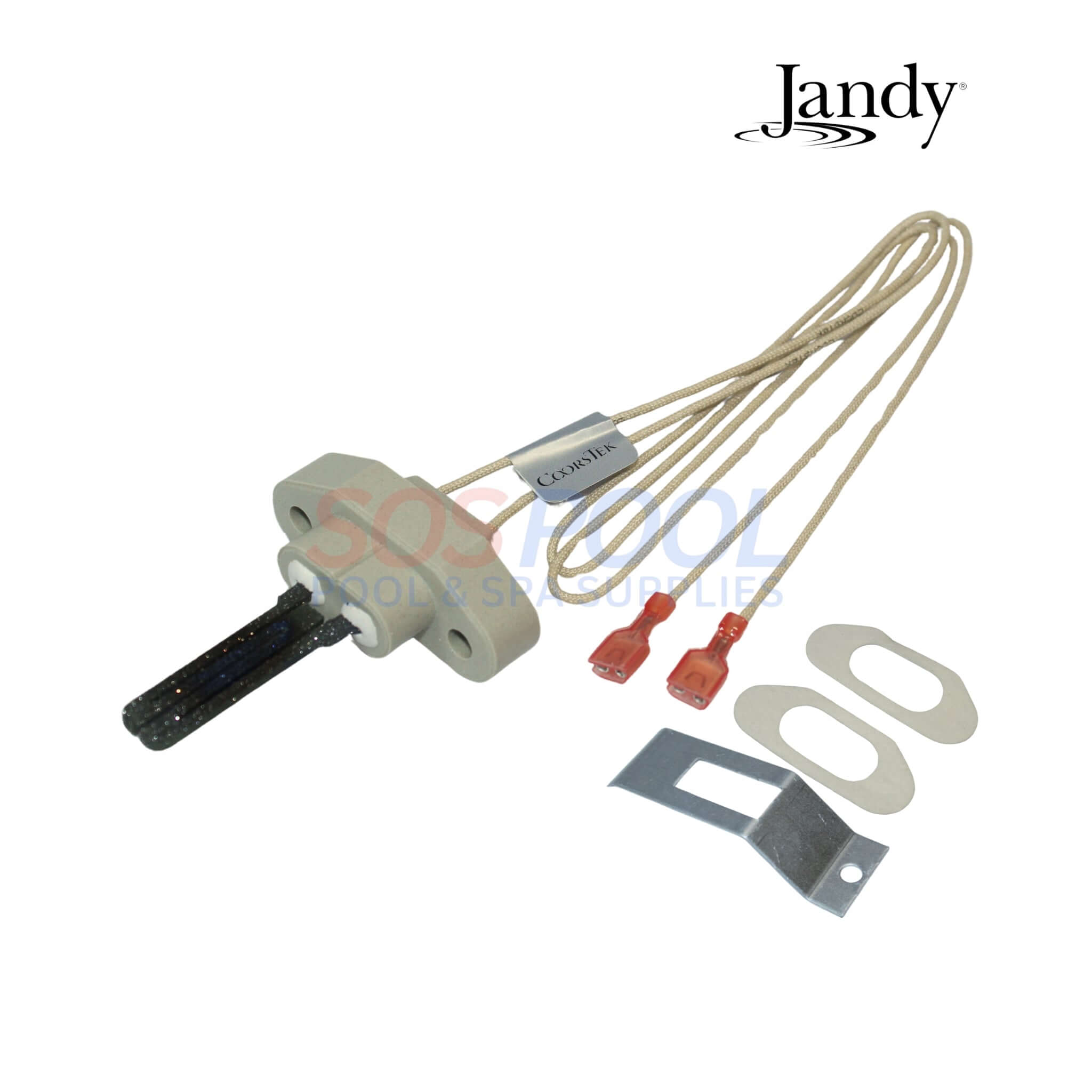

The OEM Jandy Ignitor R0317200 is a crucial component designed for use in Jandy Lite2 LD pool and spa heaters. This hot surface ignitor is made from durable silicon carbide and is responsible for igniting the heater whenever there is a call for heat. The ignitor is compatible with various Lite2 LD heater models, including those with BTU ratings of 125, 175, 250, 325, and 400. It is known for its reliability and efficiency, ensuring that your heater operates smoothly and consistently. When replacing the ignitor, it is recommended to also replace the ignitor gasket to maintain a proper seal and ensure safe operation.
- Essential Ignition Component: The Jandy Ignitor R0317200 is a critical part for Jandy Lite2 LD pool and spa heaters, responsible for igniting the heater whenever there is a call for heat, ensuring smooth and consistent operation.
- Durable Silicon Carbide Construction: Made from robust silicon carbide, this hot surface ignitor is built to withstand the high temperatures and demanding conditions within the heater, offering long-lasting reliability and efficiency.
- Compatible with Multiple BTU Models: This ignitor is compatible with various Lite2 LD heater models, including those with BTU ratings of 125, 175, 250, 325, and 400, making it a versatile replacement option for a range of systems.
- Ensures Safe Operation: For optimal performance and safety, it is recommended to replace the ignitor gasket along with the ignitor itself, ensuring a proper seal and preventing potential issues related to heat and combustion.

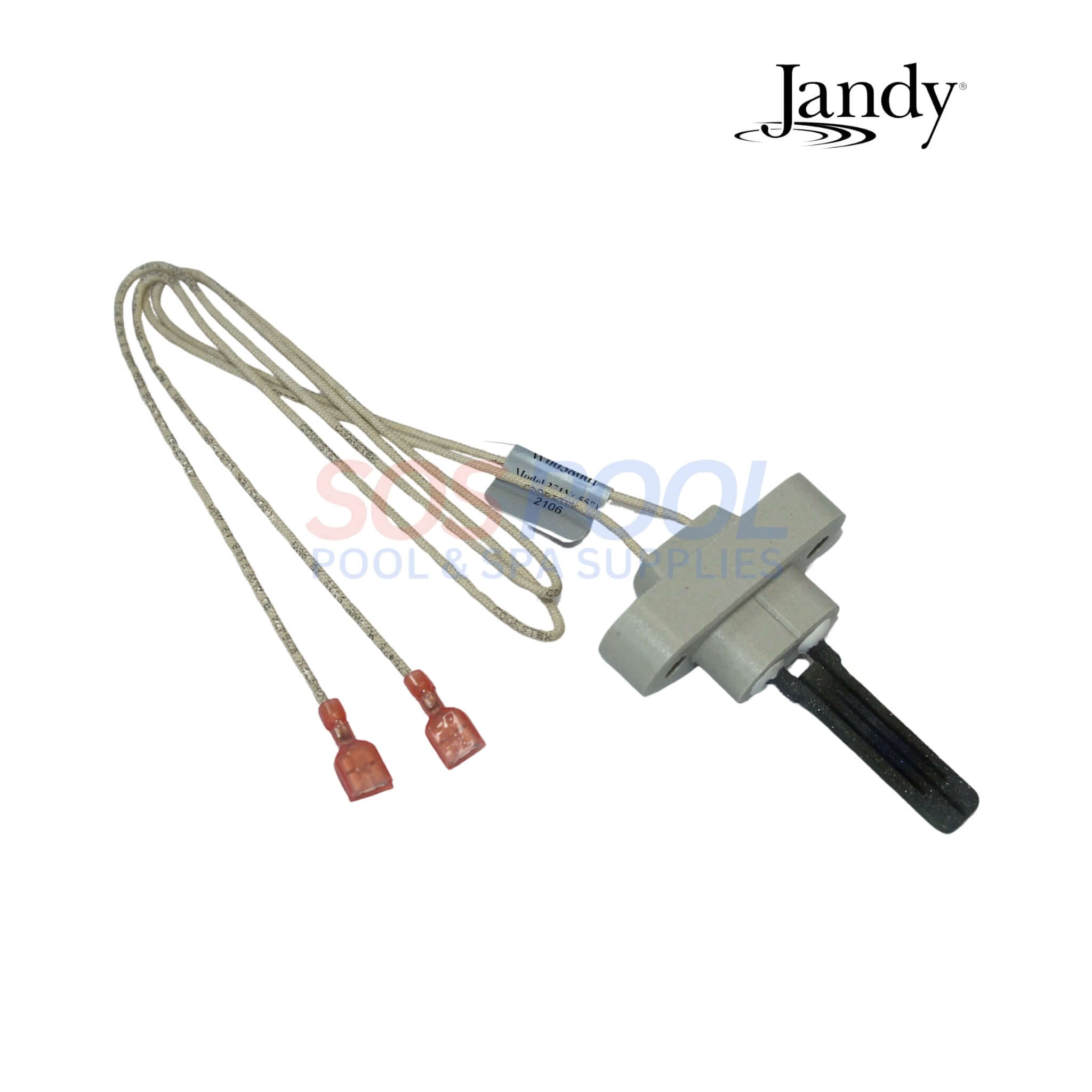

- (1) Ignitor

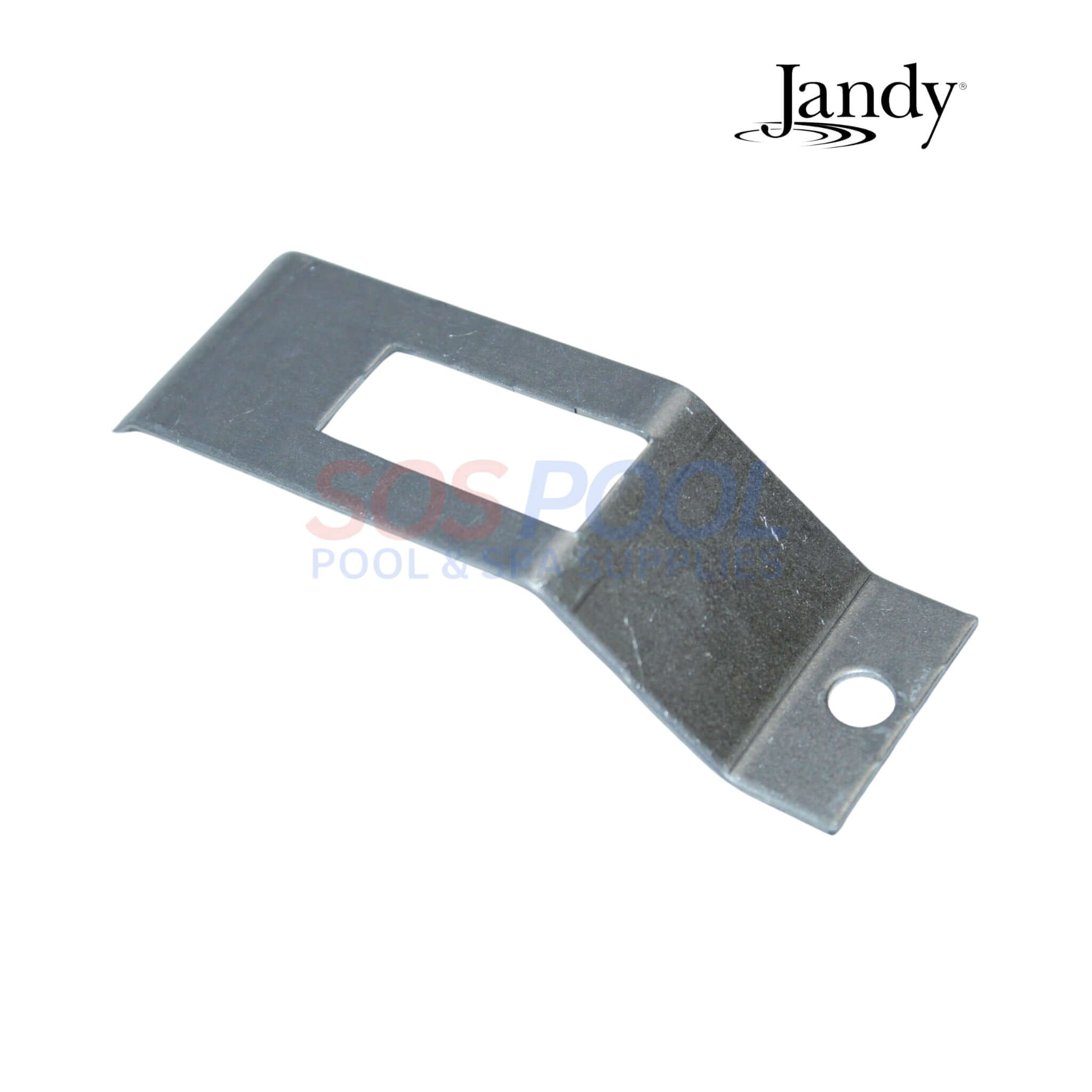

- (1) Bracket

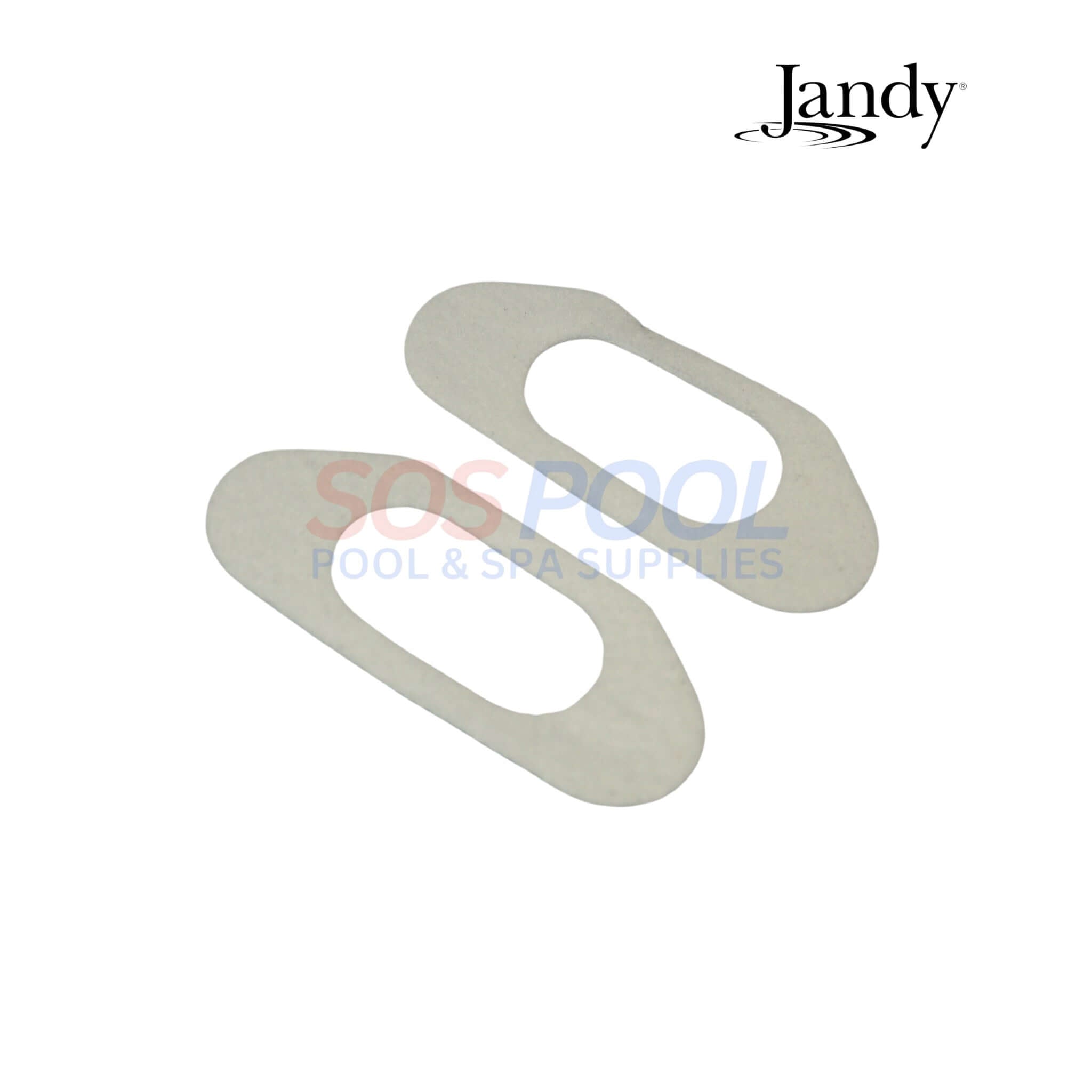

- (2) Gaskets
-
Jandy Lite2 LD Heater Models: LD125, LD175, LD250, LD325, LD400
