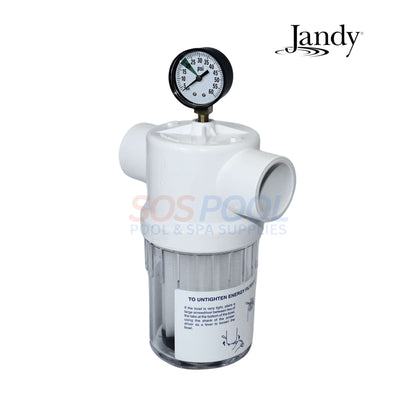

Jandy Energy Filter With Gauge For Ray-Vac Pro Series | 2888

The OEM Jandy Energy Filter with Gauge, part number 2888, is a comprehensive filtration solution designed for use with Ray-Vac Pro Series pressure-side pool cleaners that operate without a booster pump. This filter assembly includes a filter top, filter bottom, filter cartridge, O-ring, and pressure gauge, providing everything needed for effective filtration and maintenance of your pool’s water quality. This filter can be plumbed for either 1.5” or 2” pipe, offering versatility in installation. It is particularly well-suited for protecting your water filtration system from sand and debris, making it ideal for use in systems connected to waterfalls, fountains, or other water features where such contaminants may be prevalent. The Jandy Energy Filter ensures that your pool cleaner operates efficiently by preventing debris from entering and potentially damaging the cleaner or the pool’s filtration system. The included pressure gauge allows for easy monitoring of the system's performance, ensuring timely maintenance and optimal operation.

Highlights

• Comprehensive Filtration Solution: The Jandy Energy Filter 2888 is designed for Ray-Vac Pro Series pressure-side pool cleaners that operate without a booster pump, providing a complete assembly including a filter top, filter bottom, filter cartridge, O-ring, and pressure gauge.

• Versatile Installation: This filter can be plumbed for either 1.5” or 2” pipe, offering flexibility in installation to suit various pool setups and ensuring compatibility with different plumbing configurations.

• Protection Against Debris: Ideal for use in systems connected to waterfalls, fountains, or other water features, this filter effectively prevents sand and debris from entering the pool cleaner and filtration system, safeguarding against potential damage and maintaining water quality.

• Efficient Performance Monitoring: The included pressure gauge allows for easy and accurate monitoring of the system’s performance, ensuring that maintenance is performed on time and that the pool cleaner operates at optimal efficiency.

Includes

• (1) Filter Top
• (1) Filter Bottom
• (1) Filter/Cartridge
• (1) O-Ring
• (1) Gauge

Instructions

The Energy Filter is plumbed in the pool cleaner return line between the Jandy Valve and the pool. The Energy Filter ports are marked IN and OUT. Plumb the outlet port toward the pool RAY-VAC line. Before gluing remove the clear bowl from the bottom of the filter. After gluing, clean any glue which might have dripped onto the filter top threads before reattaching the clear bowl.

After the Jandy Valve and Energy Filter have been plumbed, install the Pressure Gauge in top of Energy Filter. Use the teflon tape and hand tighten.

Additional Info

Online Jandy Filter 2888 – For Ray-Vac Pro Energy Systems

buy Jandy 2888 energy filter with gauge online now

filter 2888 includes full top, bottom, cartridge, and pressure gauge

free shipping available on Jandy 2888 filter system orders

ships fast – Jandy 2888 filter unit for Ray-Vac Pro series

2888 helps protect pool plumbing and cleaning components

Jandy 2888 Pressure Filter Assembly – Dual Plumbing Fit

filter 2888 works with both 1.5 and 2 inch plumbing setups

perfect for Ray-Vac cleaner lines tied to pool water features

Jandy 2888 stops debris from reaching internal pool system parts

monitor flow and pressure in real-time with 2888 gauge

2888 replacement filter improves flow and cleaning performance

Pool Cleaner Debris Filter 2888 – Jandy OEM Part With Gauge

part 2888 filters out sand and grit before entering cleaner line

replace worn Ray-Vac filter with Jandy 2888 complete kit

pressure cleaner acting sluggish? Check 2888 filter condition

2888 includes cartridge and O-ring for full system reseal

online customers use 2888 for DIY Ray-Vac filter maintenance

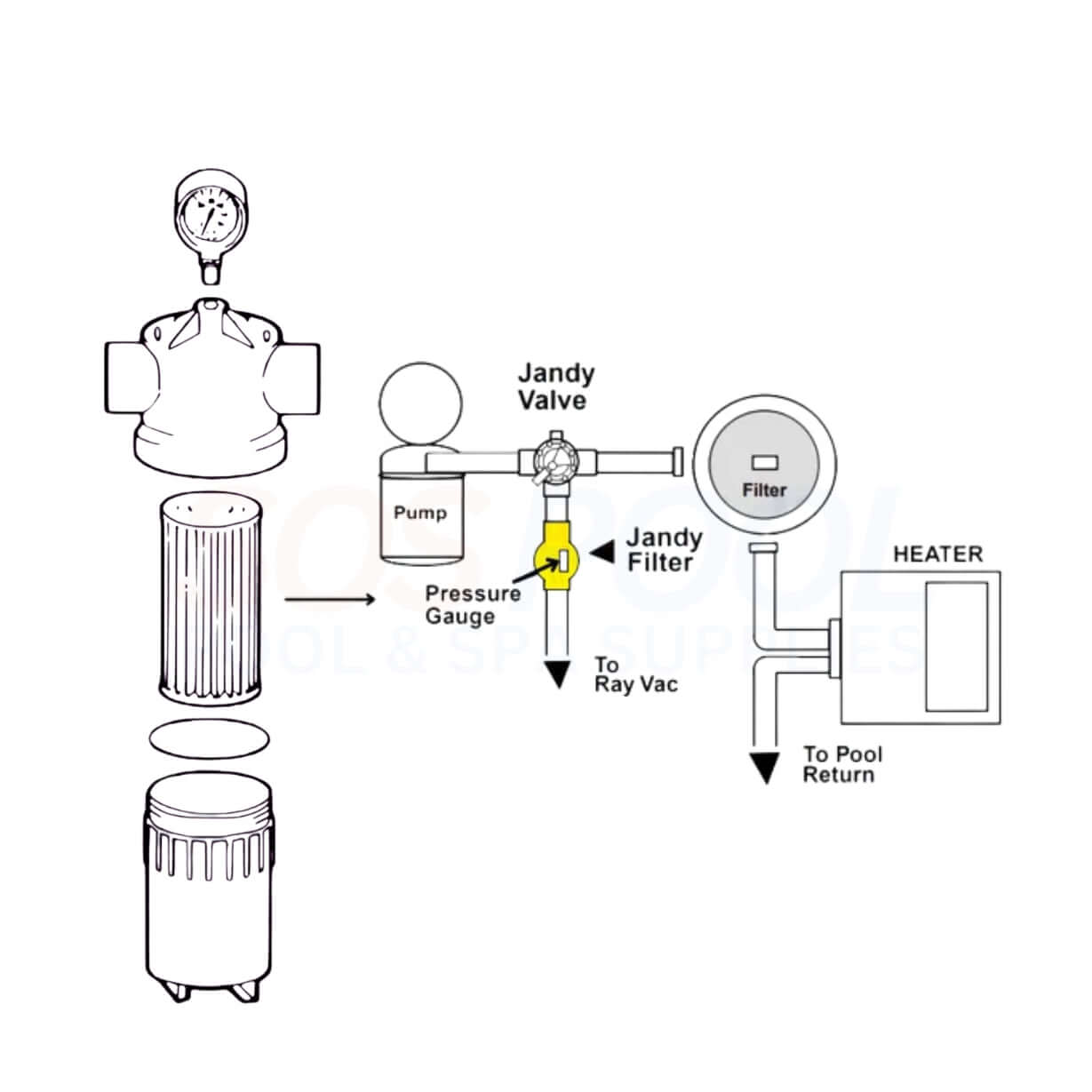

Diagram
