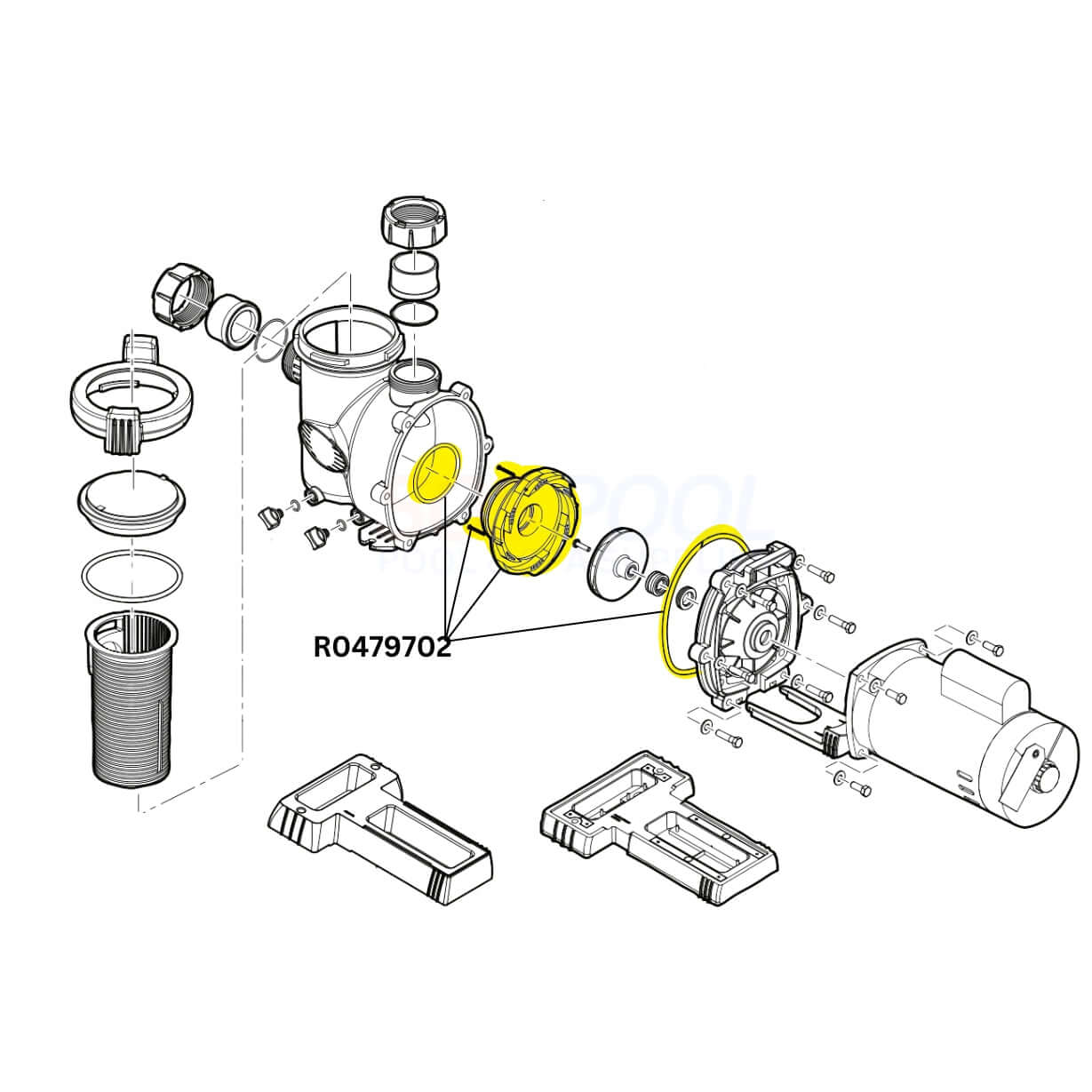

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

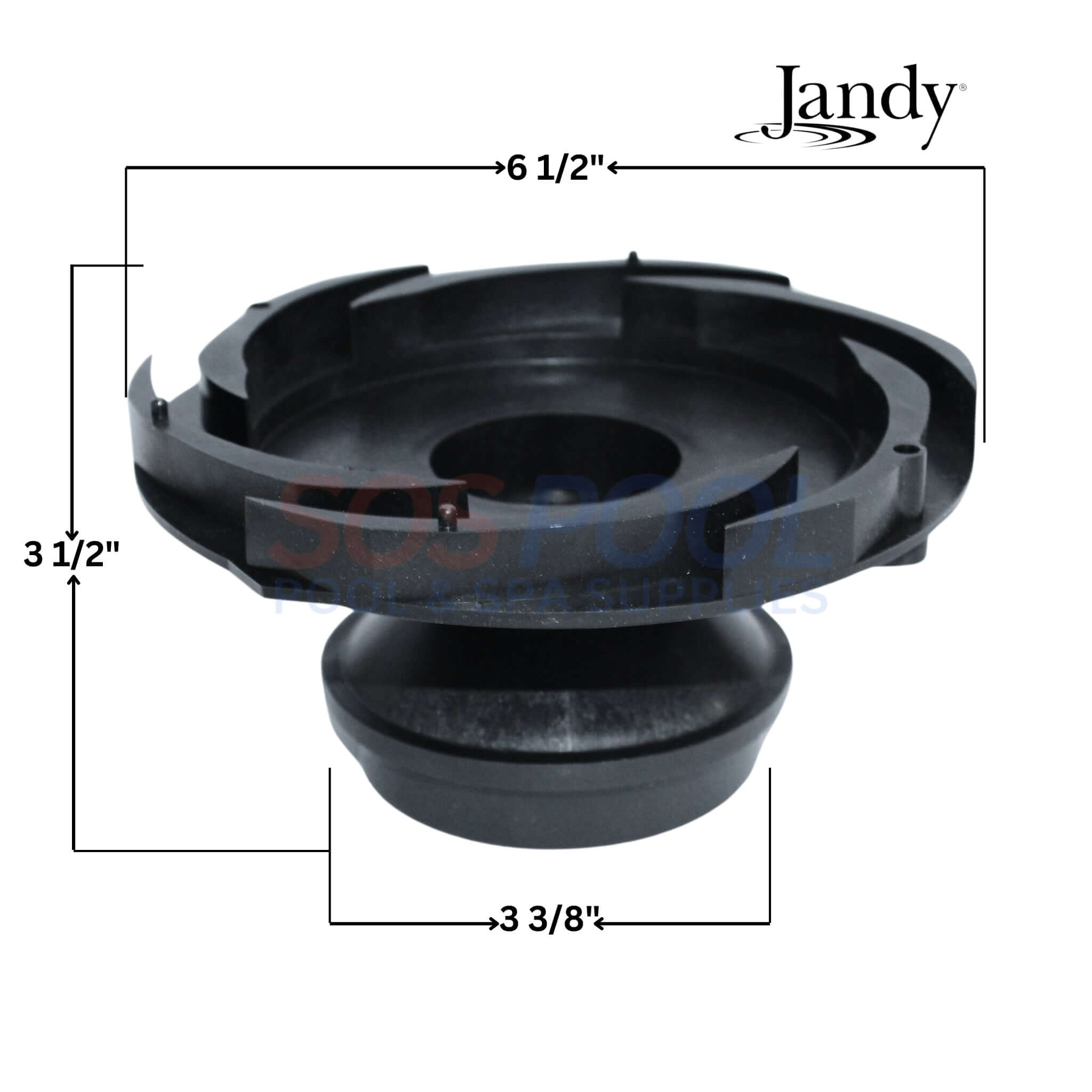

The OEM Jandy Diffuser with O-Ring and Screw for FloPro Pumps 0.75HP - 1HP, part number R0479702, is a vital replacement component designed to ensure optimal performance and efficiency of Jandy FloPro FHPM series pumps. This kit includes the diffuser, a diffuser O-ring, a backplate o-ring and a 2 screws, which work together to maintain the pump's integrity by preventing leaks and ensuring a tight seal. Compatible with various FloPro models, this genuine Jandy replacement part helps extend the life of your pump by promoting proper water flow and minimizing wear and tear. It's an essential part for routine maintenance and repair, ensuring your pool system operates smoothly and efficiently.
-
Optimal Performance: The Jandy Diffuser with O-Ring and Screw for FloPro Pumps (0.75HP - 1HP), part number R0479702, ensures optimal performance and efficiency of Jandy FloPro FHPM series pumps by maintaining proper water flow.
-
Comprehensive Kit: This replacement kit includes the diffuser, a diffuser O-ring, a backplate O-ring, and two screws, providing all necessary components to maintain the pump's integrity and prevent leaks.
-
Enhanced Durability: By ensuring a tight seal and preventing leaks, this genuine Jandy replacement part helps extend the life of your pump, reducing wear and tear and promoting long-lasting reliability.
-
Wide Compatibility: Designed to be compatible with various FloPro models, this diffuser kit ensures a perfect fit and seamless integration, making it an essential part for routine maintenance and repair.
-
Smooth Operation: By maintaining the pump's integrity and ensuring efficient operation, this replacement kit helps keep your pool system running smoothly and efficiently, ensuring clean and clear water.

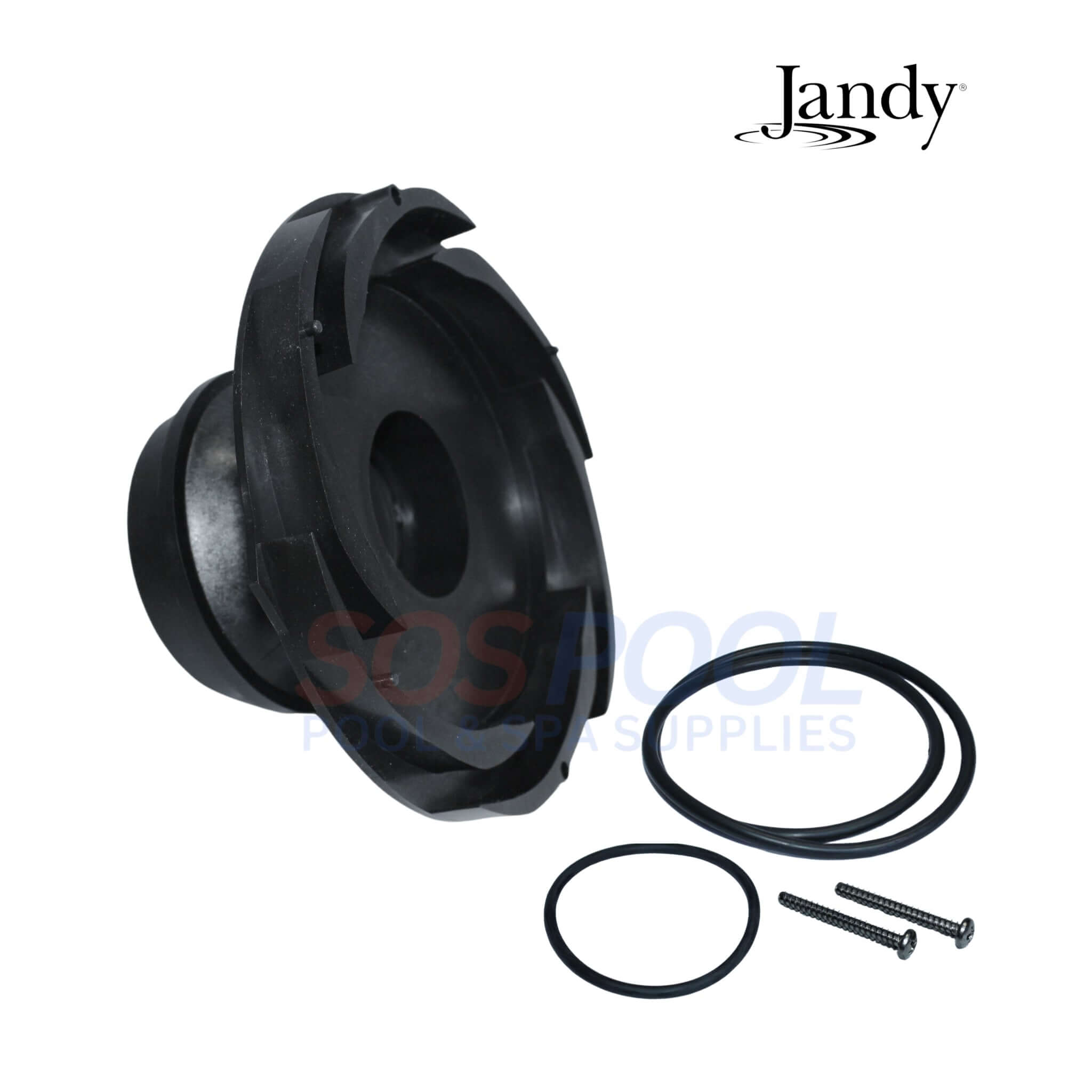

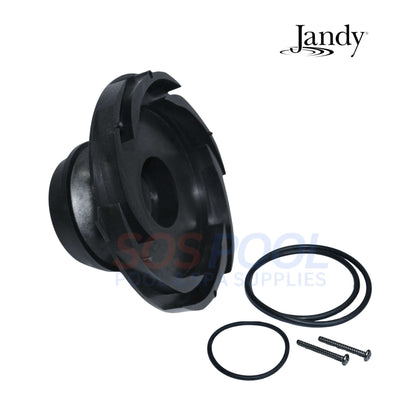

- (1) Diffuser
- (1) Backplate O-Ring
- (1) Diffuser O-ring
- (2) Screws
- Jandy FloPro FHPM 0.75HP Pumps
- Jandy FloPro FHPM 1HP Pumps
