The OEM Jandy Diffuser and Impeller Hardware and O-Ring Kit for FloPro Pumps (R0480400) is a comprehensive replacement kit designed for maintaining the efficiency and performance of Jandy FloPro series pumps. This kit includes essential components such as the diffuser o-ring, backplate O-ring, and 2 diffuser screws and impeller screw with O-ring to ensure secure and leak-free assembly. It is compatible with various models within the Jandy FloPro and VS FloPro series, including FHPM and VS-FHP1.0 pumps. This kit is ideal for regular maintenance and repair, helping to prevent leaks and maintain optimal pump performance.
-
Comprehensive Replacement Kit: The OEM Jandy Diffuser and Impeller Hardware and O-Ring Kit for FloPro Pumps (R0480400) includes all essential components for maintaining the efficiency and performance of your Jandy FloPro series pumps.
-
Essential Components: The kit includes a diffuser O-ring, backplate O-ring, two diffuser screws, and an impeller screw with O-ring, ensuring a secure and leak-free assembly.
-
Wide Compatibility: Compatible with various models within the Jandy FloPro and VS FloPro series, including FHPM and VS-FHP1.0 pumps, providing versatile application.
-
Prevents Leaks: This kit is designed to help prevent leaks and ensure optimal pump performance, contributing to the overall reliability and longevity of your pool's filtration system.
-
Ideal for Maintenance: Perfect for regular maintenance and repair, this comprehensive kit helps keep your pump operating efficiently and effectively, ensuring clean and clear pool water.

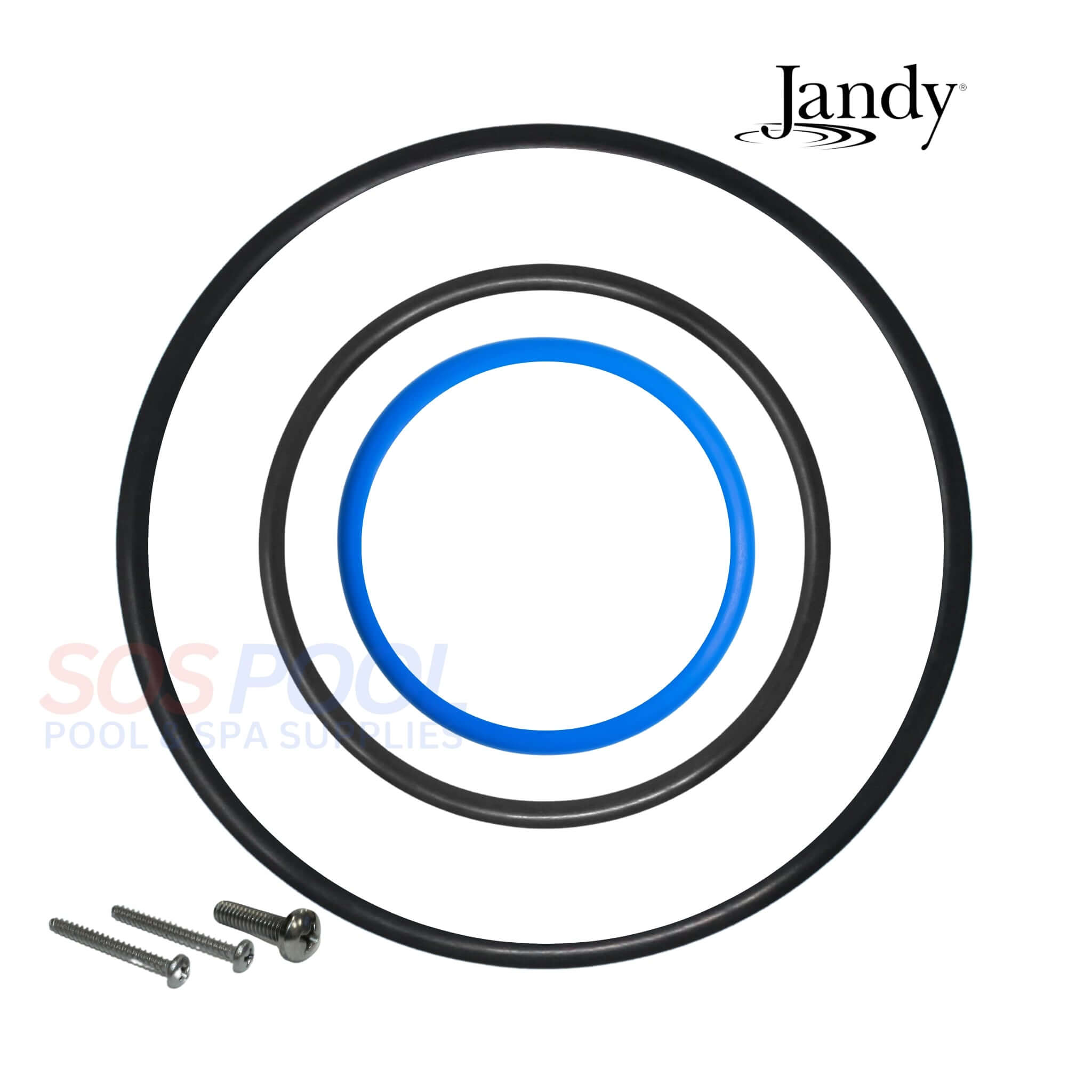

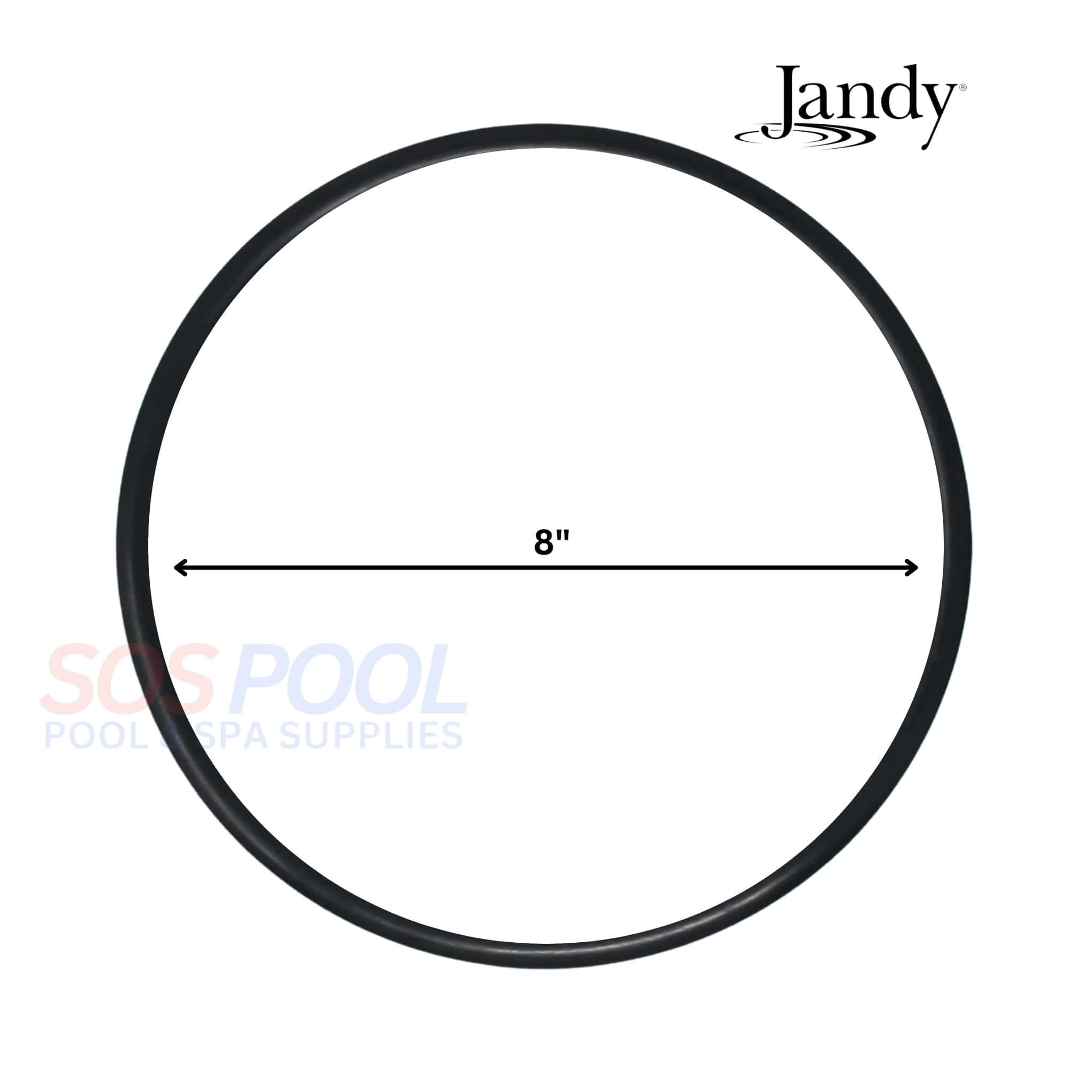

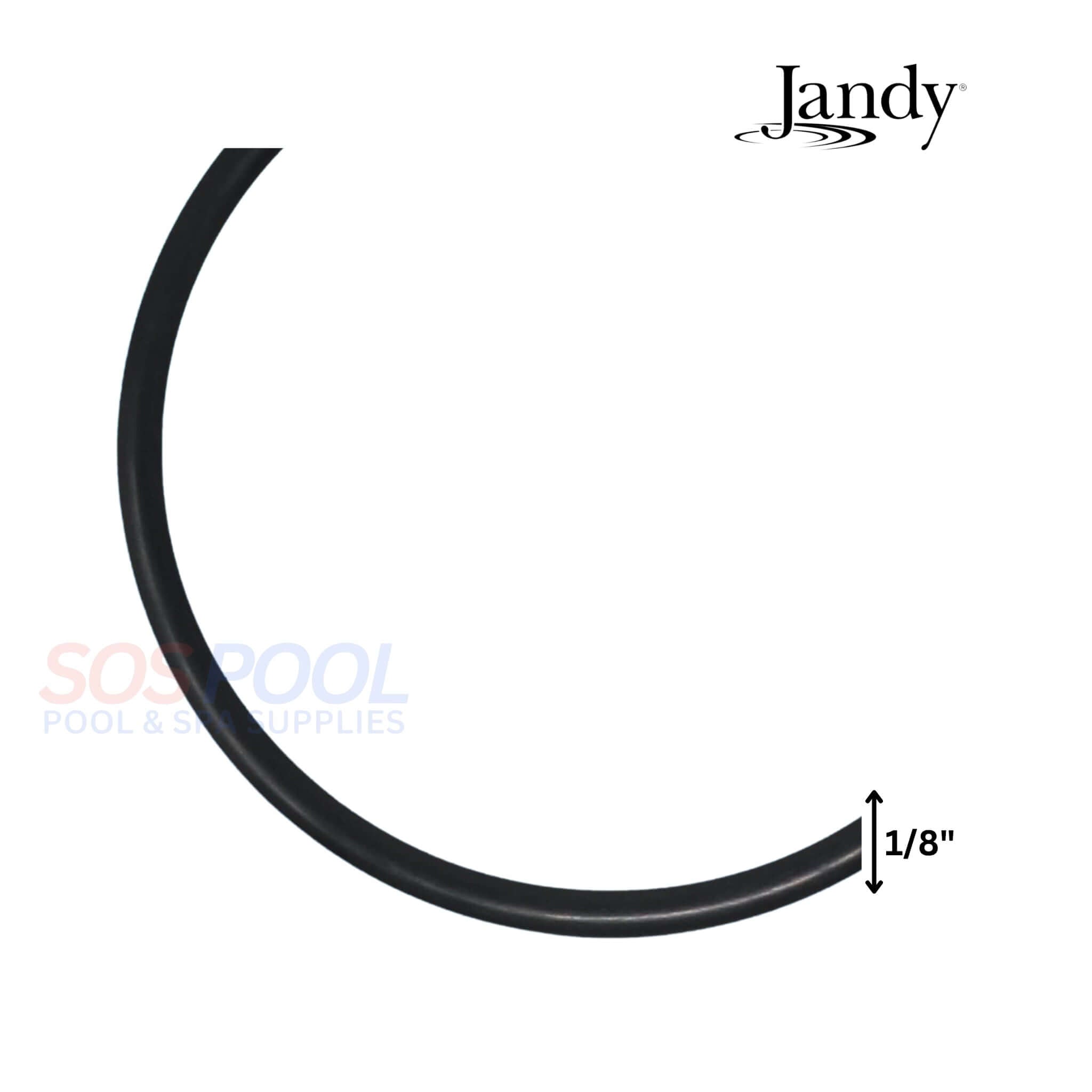

- (1) Backplate O-Ring

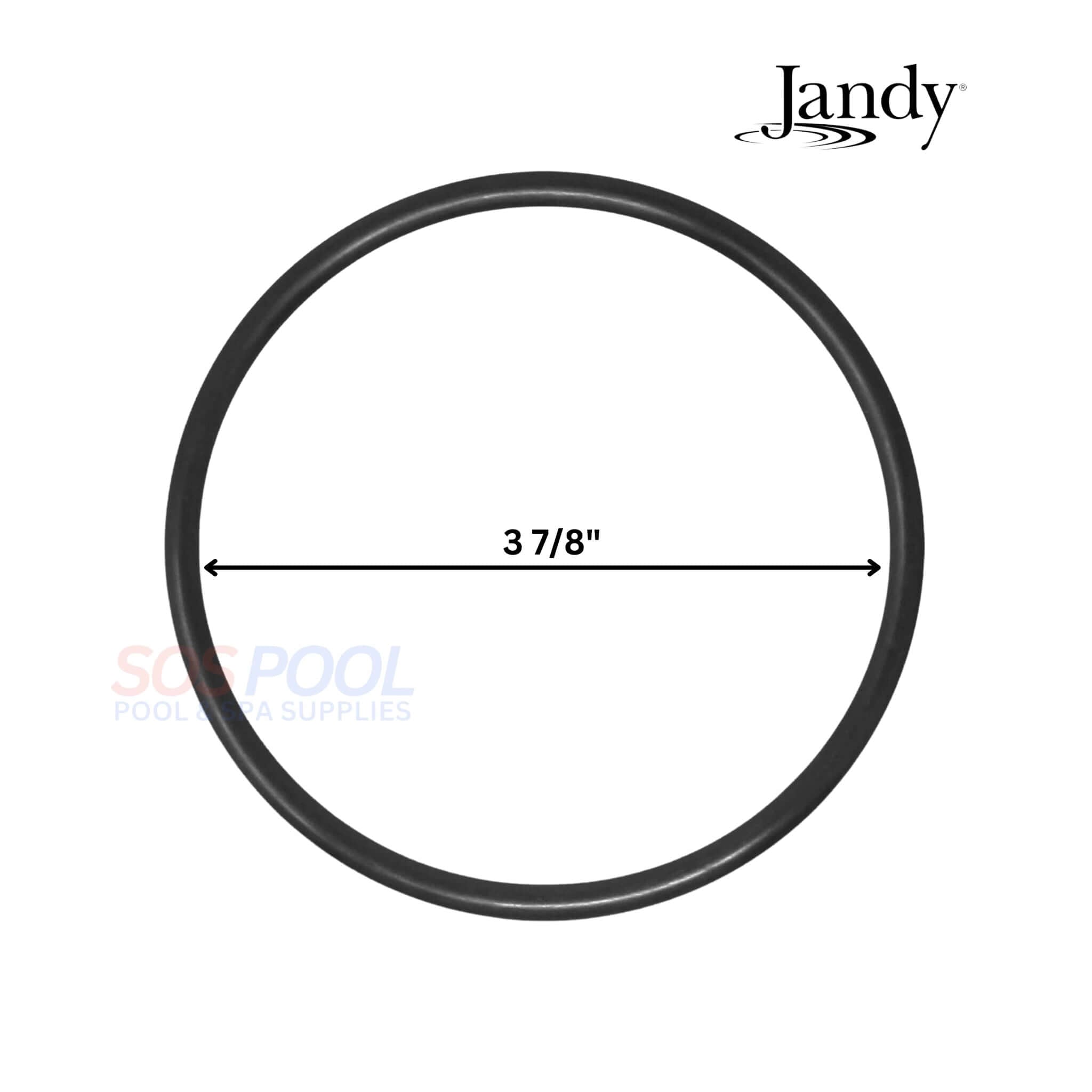

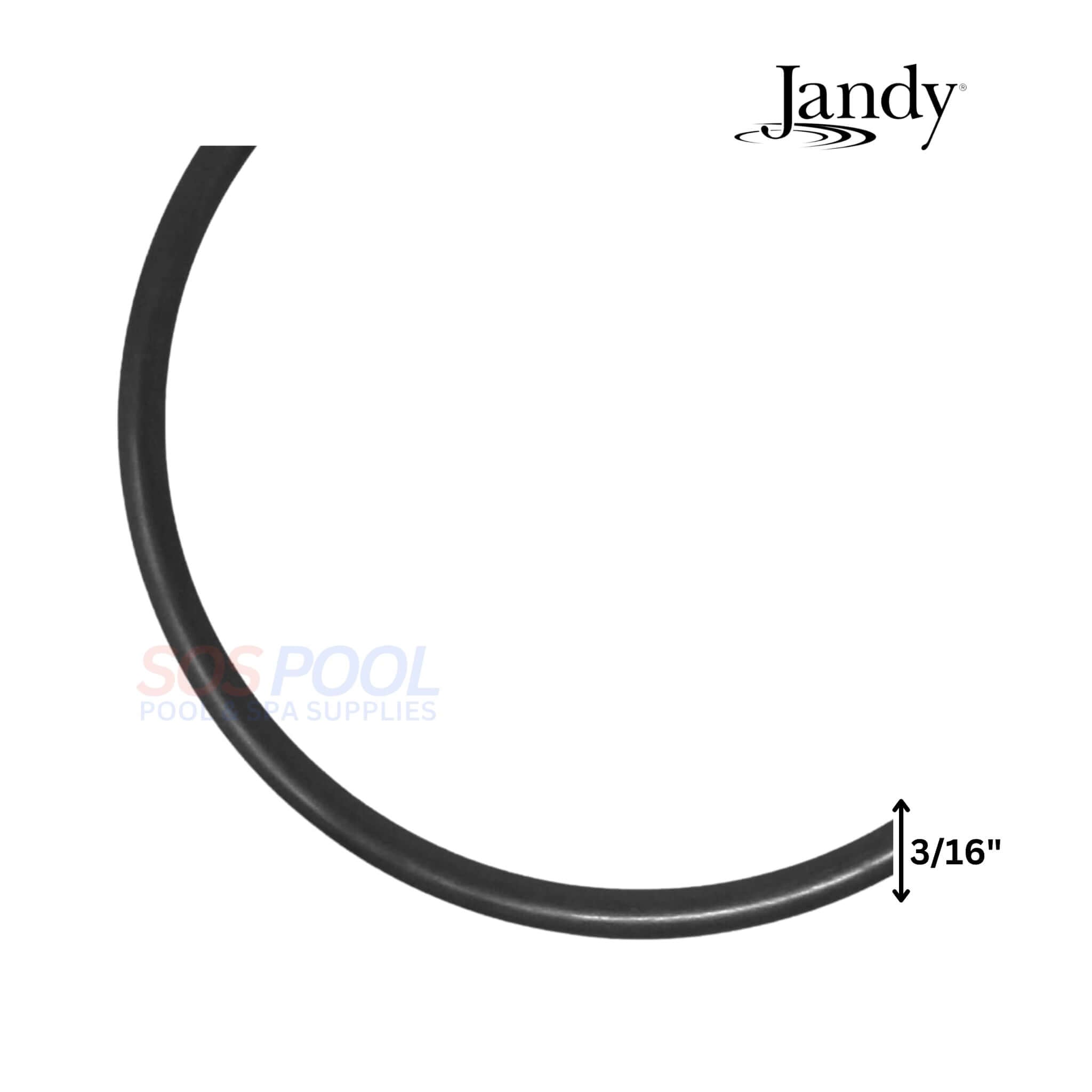

- (1) Diffuser O-Ring

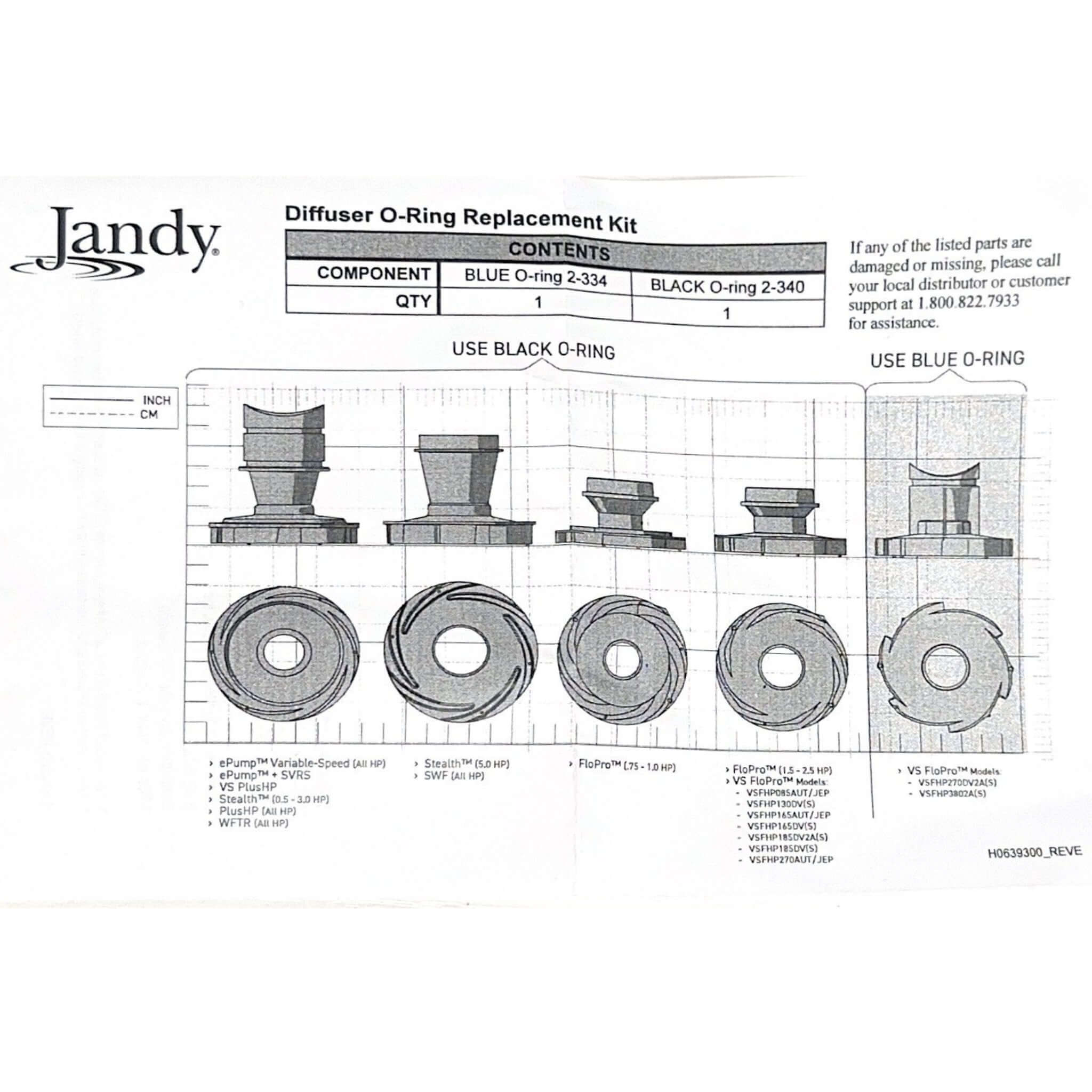

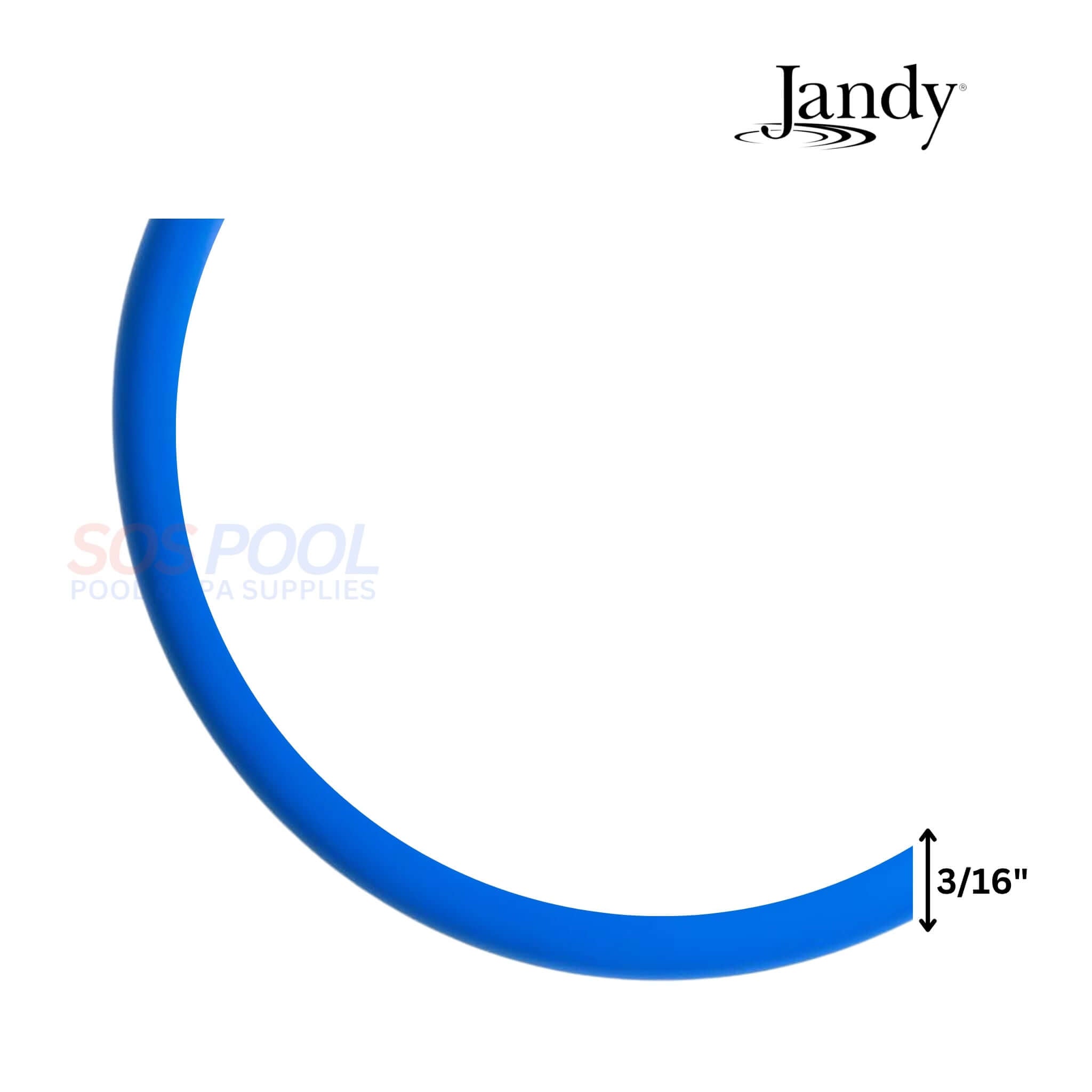

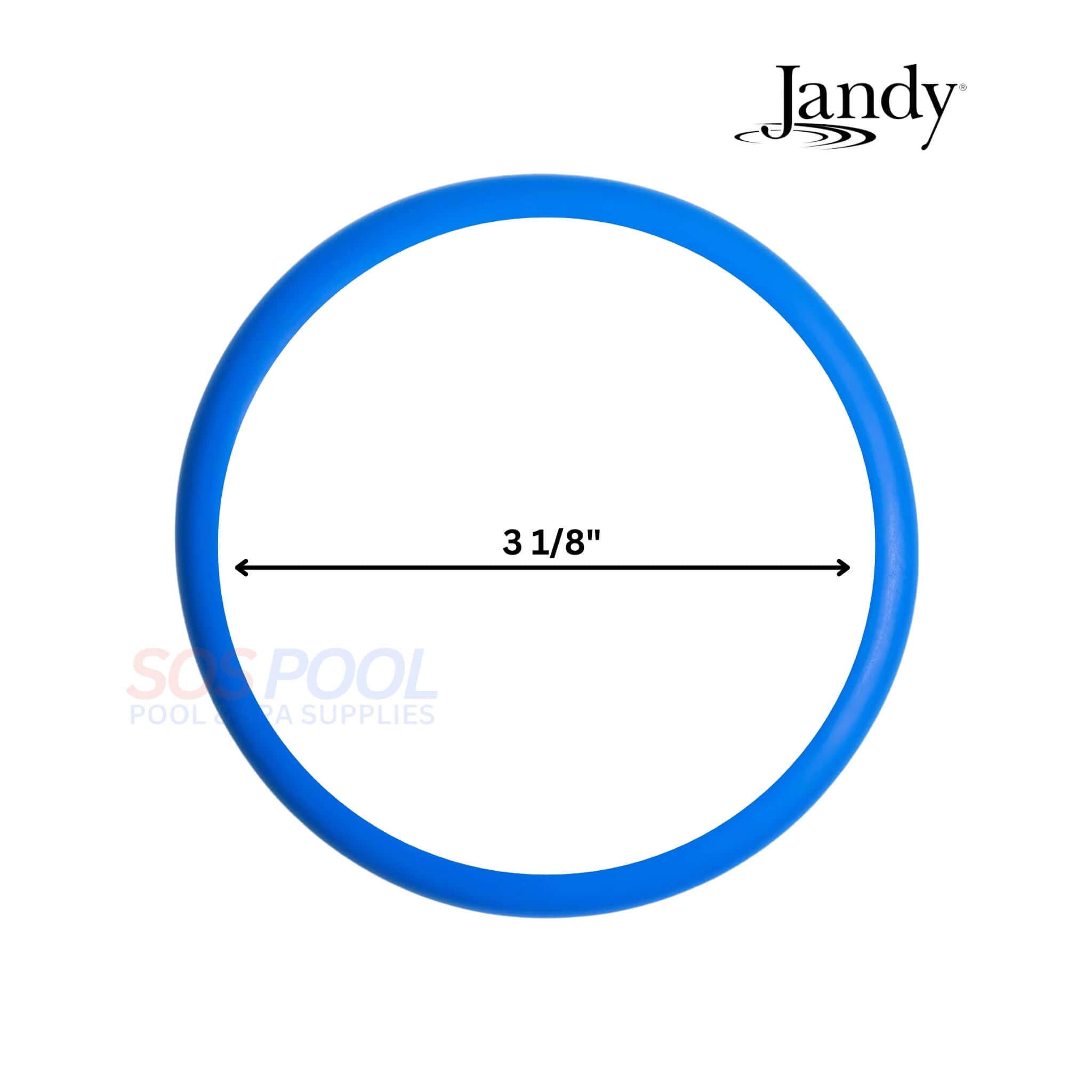

- (1) Blue Diffuser O-Ring (For VS FloPro Models VSFHP270DV2A and VSFHP3802A, please see attached chart)
- (1) Impeller Bolt
- (2) Diffuser Bolts

- Jandy FloPro FHPM Series Pumps
- Kamdu FloPro VS Pumps
