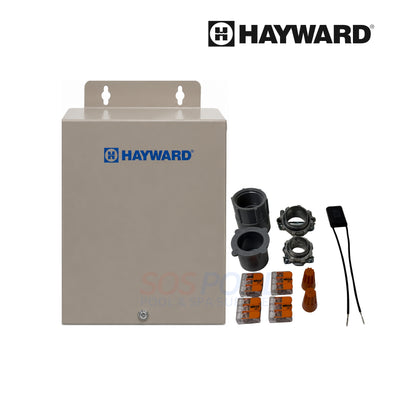

Hayward Wall Mount Transformer 300W | LTBUY11300

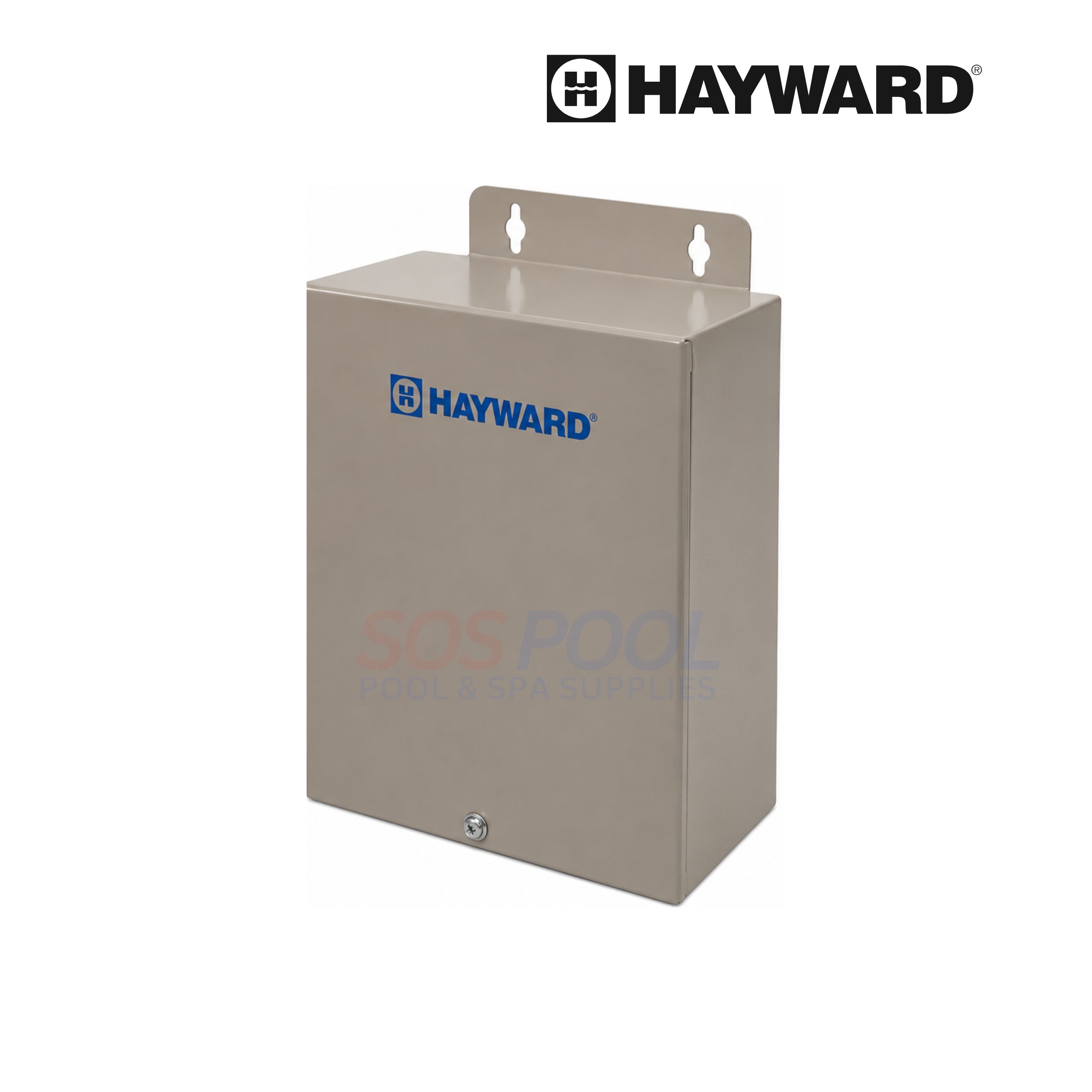

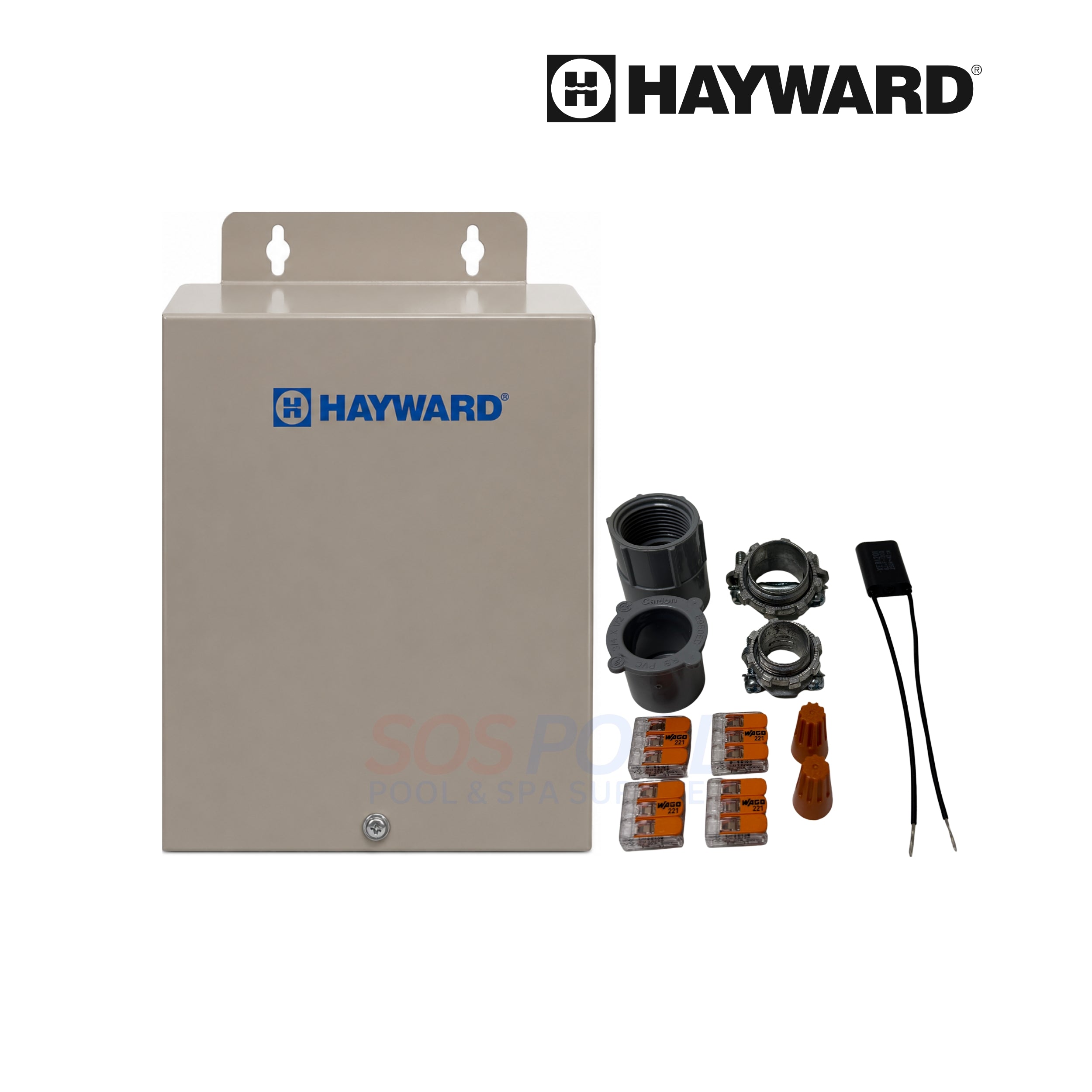

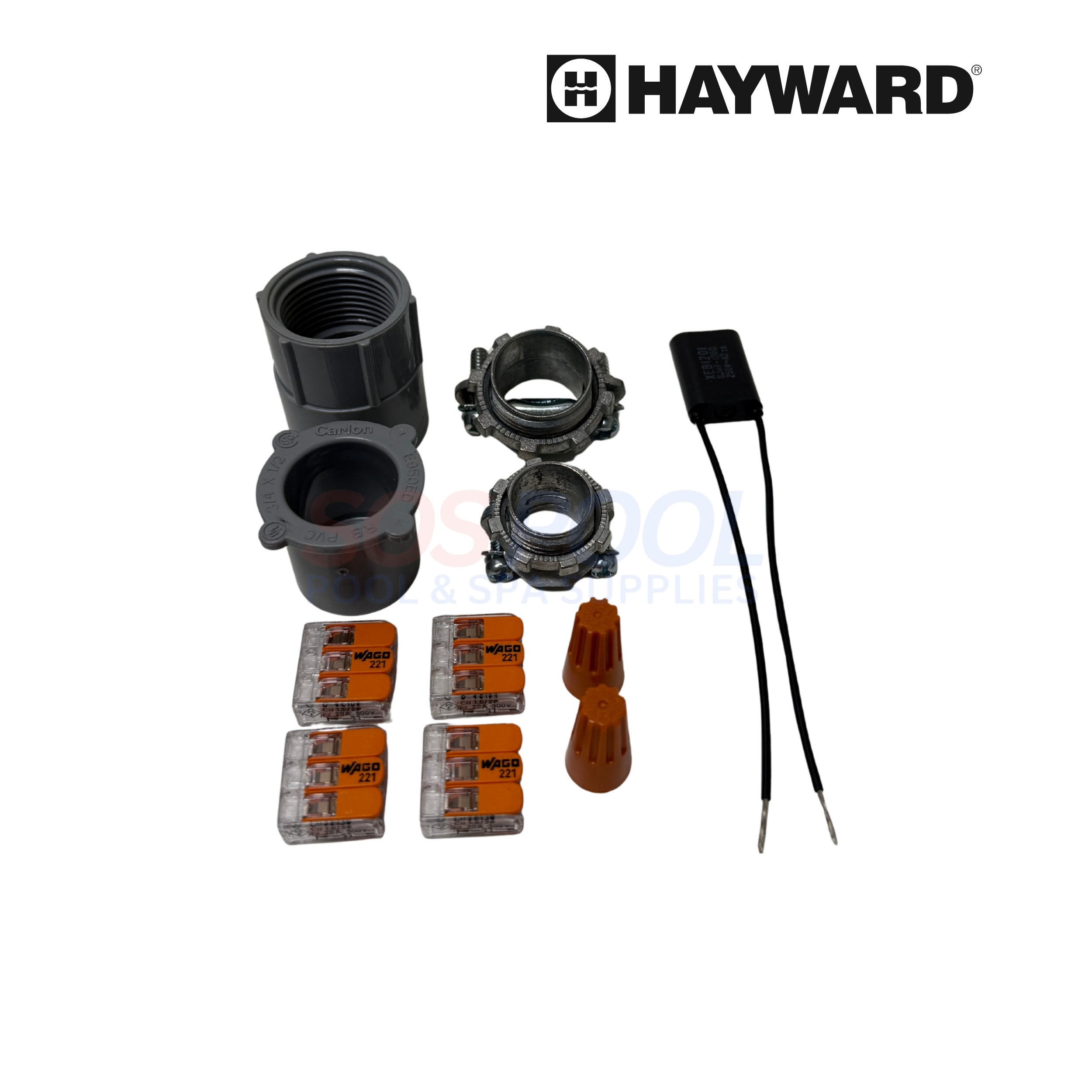

Engineered for new pool and spa construction lighting installations and 120V to low-voltage system conversions, the Hayward LTBUY11300 is an OEM 300-watt wall-mount low-voltage transformer compatible with Hayward's Universal CrystaLogic and ColorLogic LED lighting systems. The transformer steps down 120V input power to one of three selectable output voltages — 12V, 13V, or 14V — giving installers a way to fine-tune output based on the specific light type, cable run length, and brightness requirements of the installation. The compact, corrosion-resistant steel enclosure measures 7-1/4 inches high by 5-1/4 inches wide by 4-1/2 inches deep, includes top and bottom mounting brackets, and provides ten combination knockouts for flexible conduit entry from multiple directions. Built-in split-bobbin circuit protection paired with the included Snubber Capacitor arc suppressor automatically disconnects power in the event of an overload or defect, supporting safe, reliable operation in demanding pool and spa environments. The LTBUY11300 pairs seamlessly with Hayward junction boxes for multi-light new construction installations and ships with a direct connection kit for pool and spa lights, and the unit is UL listed.

Highlights

• Three-Tap 12V, 13V, 14V Output: The LTBUY11300 offers three low-voltage taps — 12V, 13V, and 14V — to accommodate different Hayward pool and spa light models, varying cable run lengths, and specific brightness goals, allowing installers to dial in consistent light output across the entire Universal CrystaLogic and ColorLogic system.
• 300-Watt Power Budget: Rated for a 300-watt maximum load, the transformer supplies sufficient capacity for multi-light new construction projects, working alongside Hayward junction boxes to drive multiple Universal CrystaLogic and ColorLogic LED fixtures from a single centralized transformer location.
• Safety-First Split-Bobbin Design and Snubber Capacitor: A patented split-bobbin construction separates the primary and secondary windings for enhanced electrical safety, and the included Snubber Capacitor arc suppressor automatically interrupts power if a defect or overload condition develops, protecting both the transformer and the LED lights connected downstream.

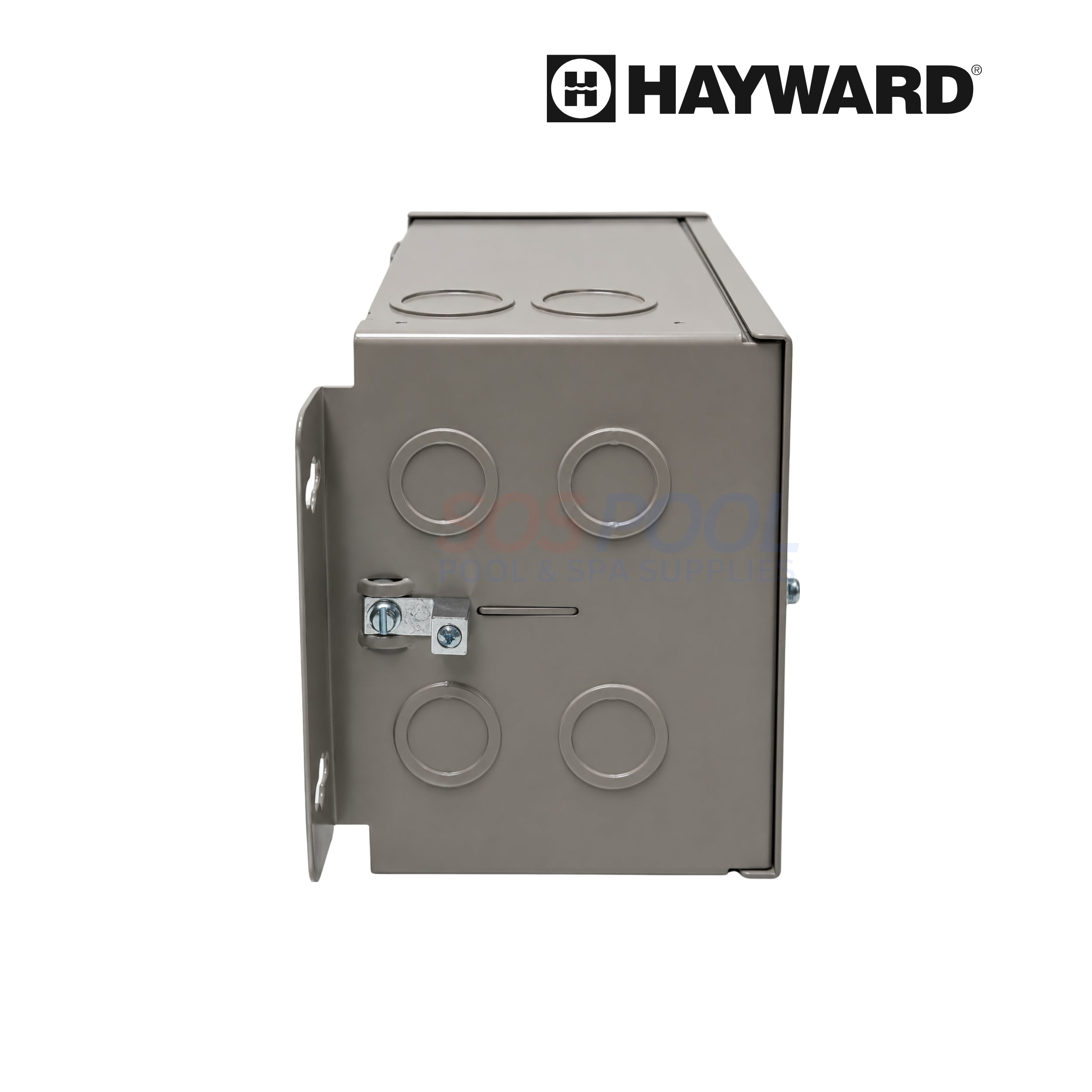

• Steel Enclosure Built for Pool Pad Conditions: The compact 7-1/4 by 5-1/4 by 4-1/2 inch steel enclosure carries an electrostatically applied white coating that resists corrosion in damp pool equipment areas, and ten 1/2 inch to 3/4 inch combination knockouts plus top and bottom mounting brackets allow the unit to be installed and wired flexibly on virtually any pad layout.

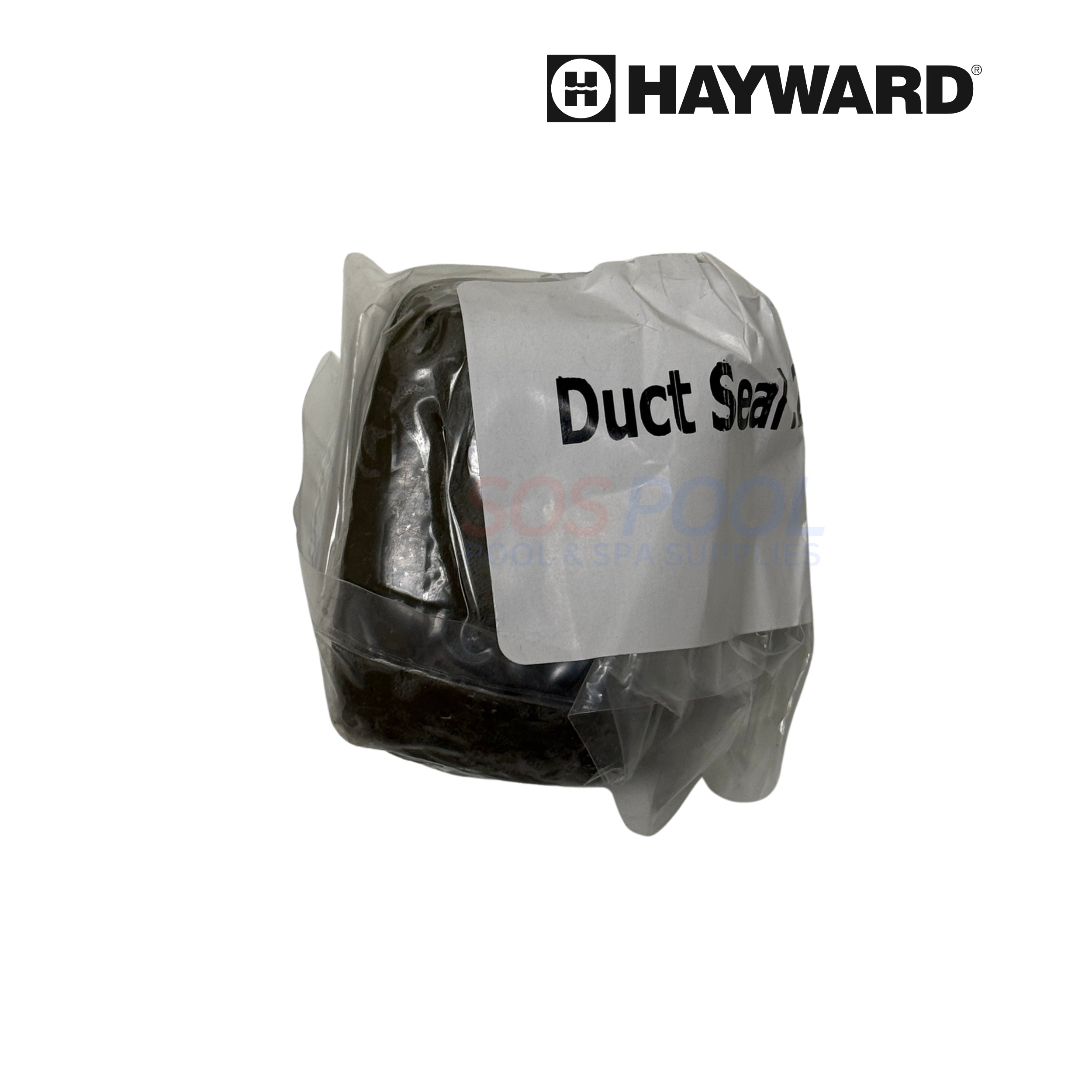

• UL Listed for Direct Pool and Spa Light Connection: Fully UL listed and engineered for direct connection to underwater pool and spa lights when used with the included adapter, clamp, and duct seal, meeting the stringent safety requirements that apply to low-voltage aquatic lighting installations on both residential and commercial pool projects.
