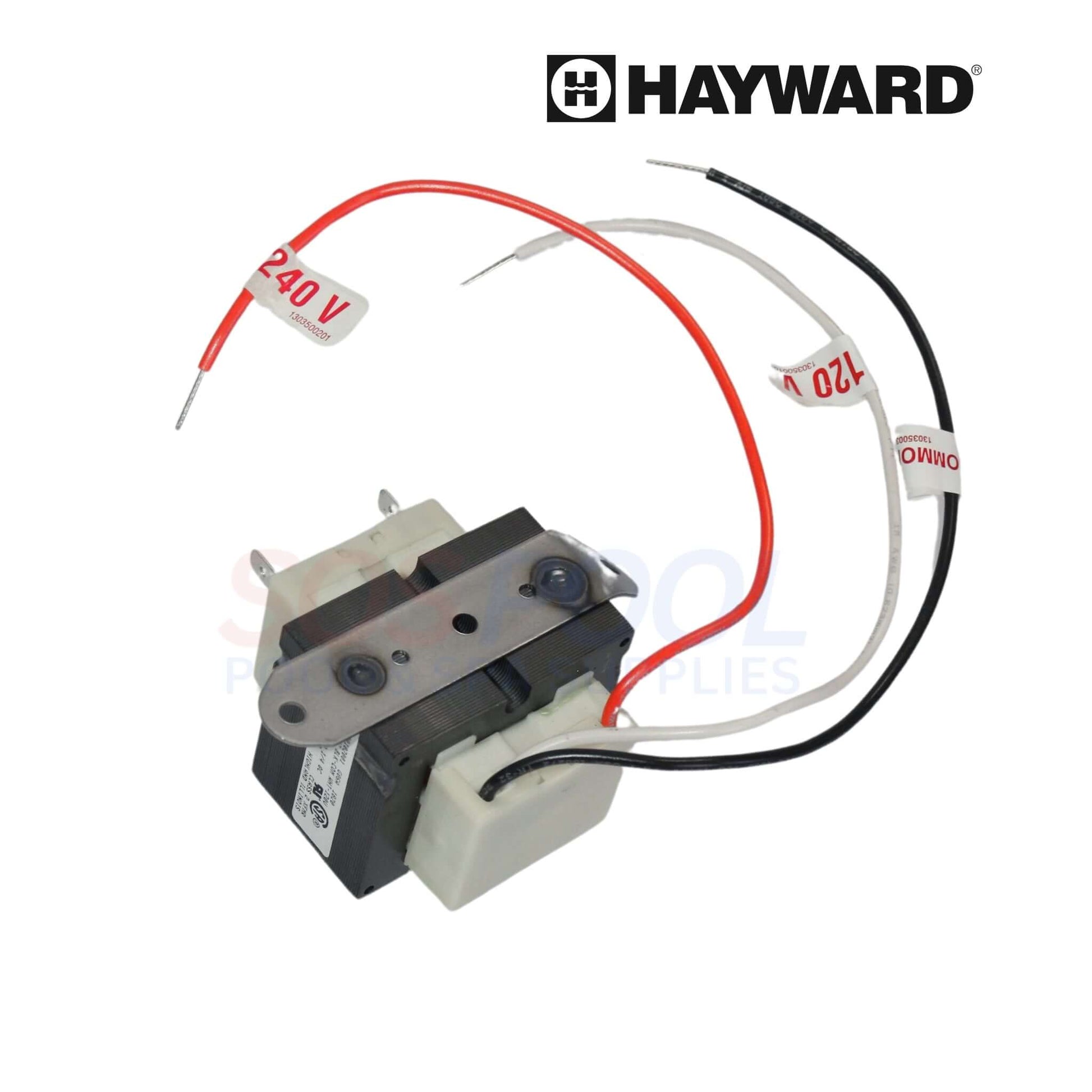

The Hayward Dual Voltage Transformer (CHXTRF1930) is a genuine replacement component designed for compatibility with various Hayward pool heaters, including the CZ, H-Series ED1, ED2, and HeatMaster2 models. This transformer is manufactured by Zettler Controls and is engineered to convert electrical input to the appropriate voltage required for optimal heater operation. Constructed from durable materials, it ensures reliable performance and longevity. Regular inspection and timely replacement of the transformer are essential to maintain the efficiency and safety of your pool heating system.
- Compatible with Multiple Hayward Heaters: Designed for CZ, H-Series ED1, ED2, and HeatMaster2 models.
- Reliable Voltage Conversion: Converts input power to the correct voltage for safe and efficient heater operation.
- OEM Replacement Part: Manufactured by Zettler Controls for trusted performance and durability.
- Enhances Heater Efficiency: Ensures consistent and optimal functionality of your Hayward pool heater.
- Long-Lasting Construction: Built from high-quality materials to withstand demanding pool environments.
- Hayward H-Series ED1 heaters
- Hayward H-Series ED2 heaters
- Hayward HeatMaster2 heaters
- Hayward CZ heaters
