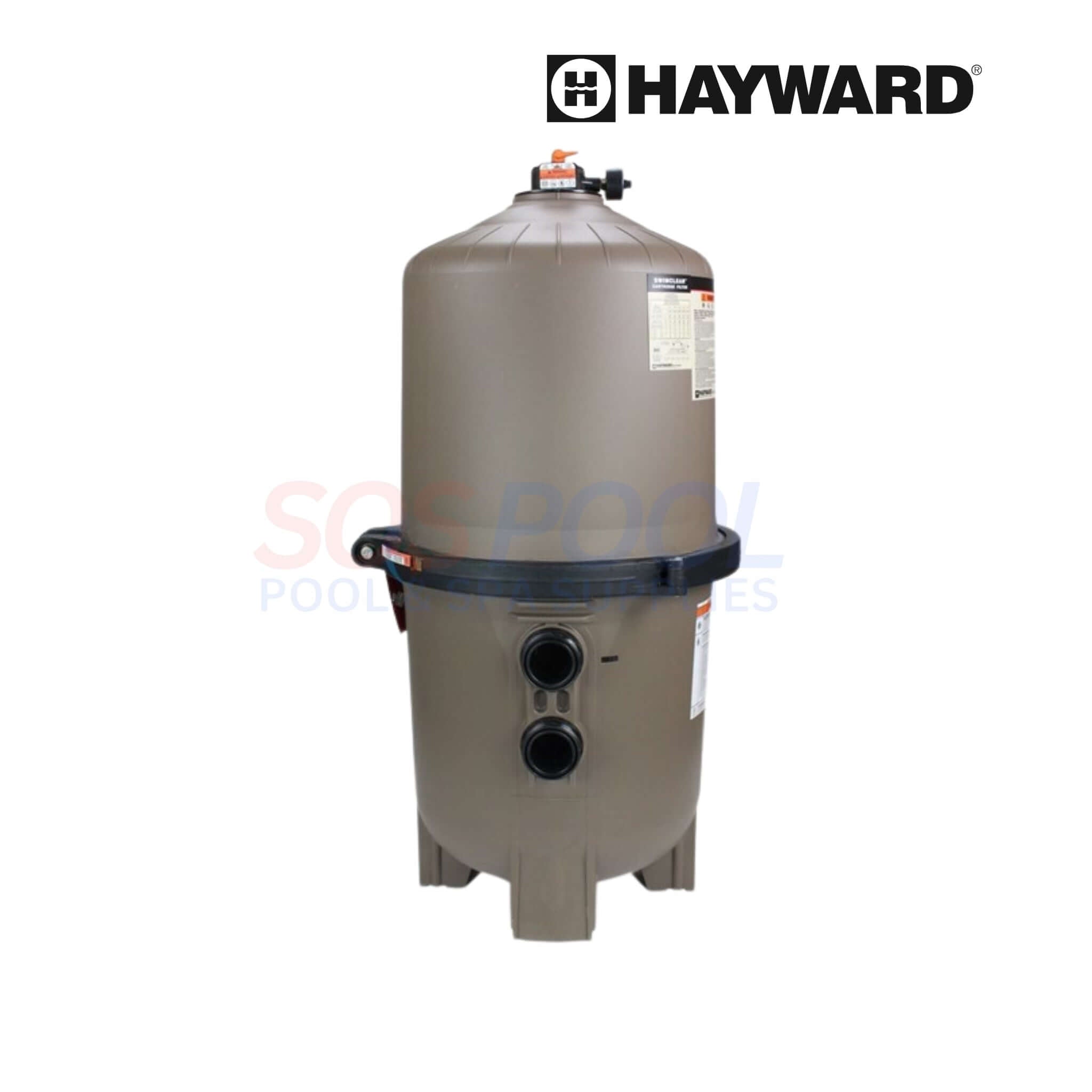

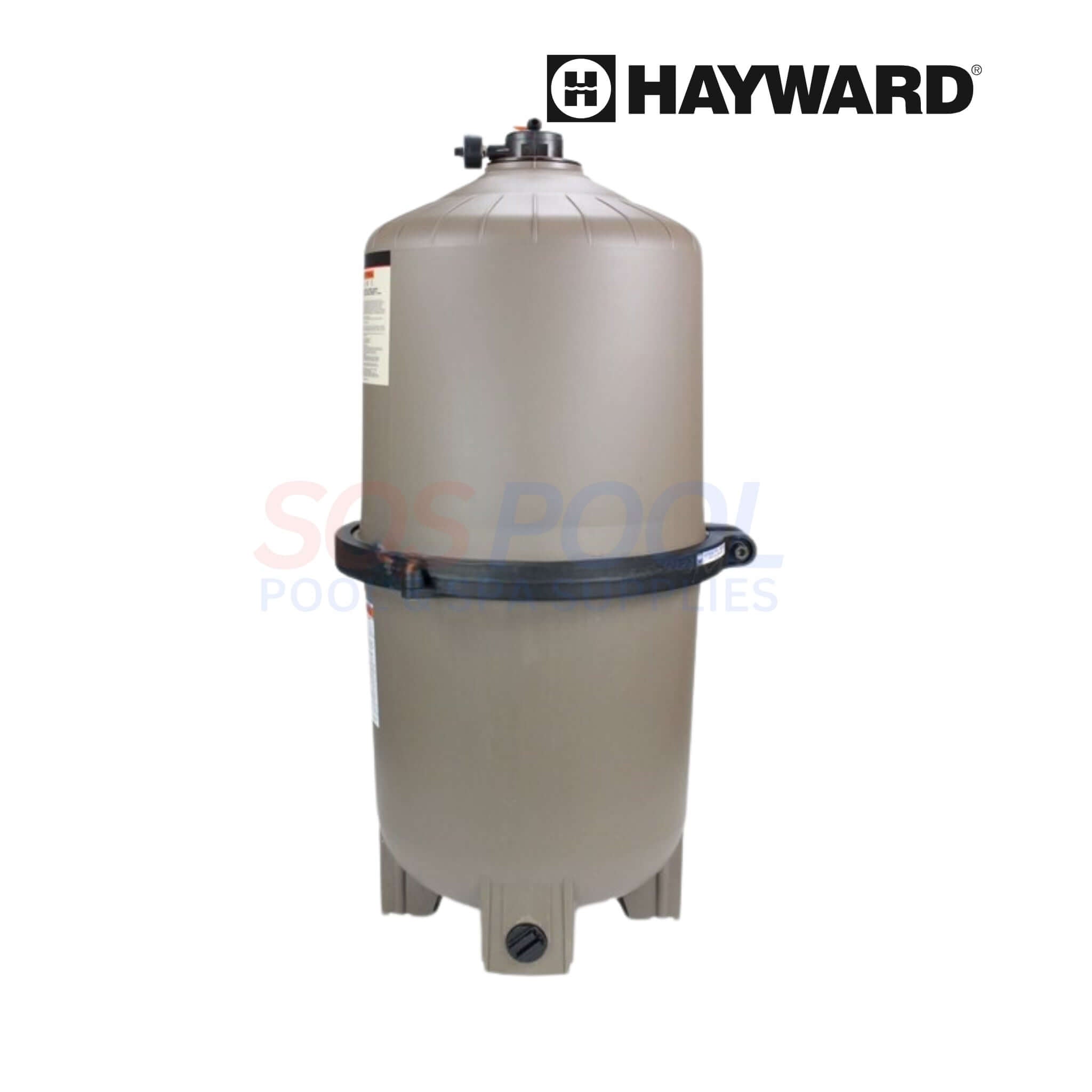

Hayward SwimClear 525 Sq Ft Cartridge Pool Filter | W3C5030

Hayward SwimClear 525 Sq. Ft. Cartridge Pool Filter | W3C5030

The Hayward SwimClear 525 Sq. Ft. Multi-Element Cartridge Filter | W3C5030 delivers powerful, high-capacity filtration for large residential and commercial pools. With an expansive 525-square-foot surface area, it ensures superior dirt-holding capacity and outstanding water clarity—often going an entire season between cleanings. Designed for maximum hydraulic efficiency, the SwimClear reduces head loss and energy consumption while maintaining exceptional flow rates. Its rugged, glass-reinforced co-polymer tank withstands demanding pool environments, providing years of dependable performance with minimal maintenance.

Engineered for serviceability, the SwimClear filter features a tamper-proof clamp for quick access to the Quad-Cluster™ cartridge elements, along with a high-capacity air relief valve for fast air release. The non-corrosive top manifold and one-piece design guarantee stability and prevent unfiltered water bypass. Easy to clean and built to last, the Hayward W3C5030 stands out as a top-tier filtration solution that combines durability, efficiency, and water purity for the clearest swim possible.

Key Features of the Hayward SwimClear 525 Sq. Ft. Cartridge Pool Filter

• Massive Filtration Surface Area: Offers an impressive 525 sq. ft. of filter area using Quad-Cluster™ cartridges, ensuring long cleaning cycles and consistently clear pool water.

• Durable Glass-Reinforced Construction: Built from high-strength co-polymer material that resists corrosion and environmental wear for long-term reliability.

• Energy-Efficient Hydraulic Design: Features 2” full-flow internal piping that minimizes resistance and reduces pump strain for lower energy costs.

• Easy Maintenance Access: Heavy-duty clamp allows fast access to cartridge elements without disturbing plumbing, simplifying cleaning and servicing.

• Precision Air Relief System: High-capacity manual air relief valve releases trapped air quickly with a quarter-turn lever for smoother operation.

• Superior Filtration Performance: Quad-Cluster™ element configuration maximizes dirt-holding capacity for longer filter cycles and reduced maintenance frequency.

• Non-Corrosive Manifold Plate: Prevents cartridge lift and ensures consistent filtration by eliminating unfiltered water bypass.

• Versatile Plumbing Compatibility: Accepts both 2” and 2.5” PVC union connections for flexible installation options and optimized flow.

• Quick Drainage Port: Integrated 1.5” drain makes tank flushing and winterization simple and efficient.

• Extended Cleaning Intervals: Capable of operating an entire pool season without requiring cartridge removal or washing under normal conditions.

Specifications

• Maximum Filtration Size: Filters out particulates as small as 30 microns
• Filtration Area: 525 square feet

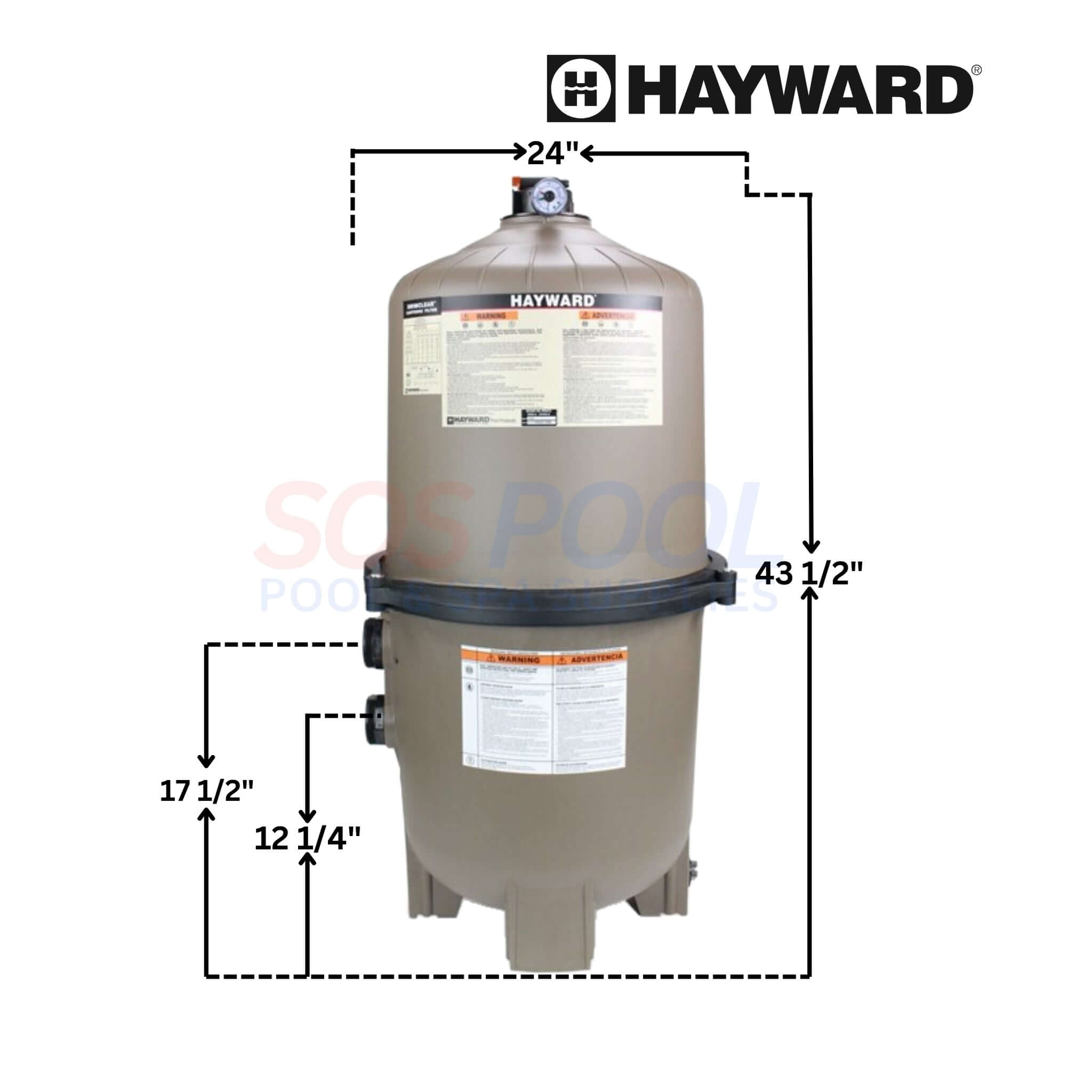

• Dimensions: 24" inches in diameter and 43.5" inches in height
• Vertical Clearance: 68.5"
• Cartridge: 4 Required (Included)
• Weight: Approximately 92 pounds
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)

Includes

• (1) Hayward W3C5030 SwimClear Cartridge Filter
• (4) Cartridge- CX1280XRE or C-7494
• (1) Manual Air Relief Valve- CCX1000V
• (1) Pressure Gauge- ECX2712B1
• (1) Clamp- DEX2421JKIT

*See manual page 10 for complete list
