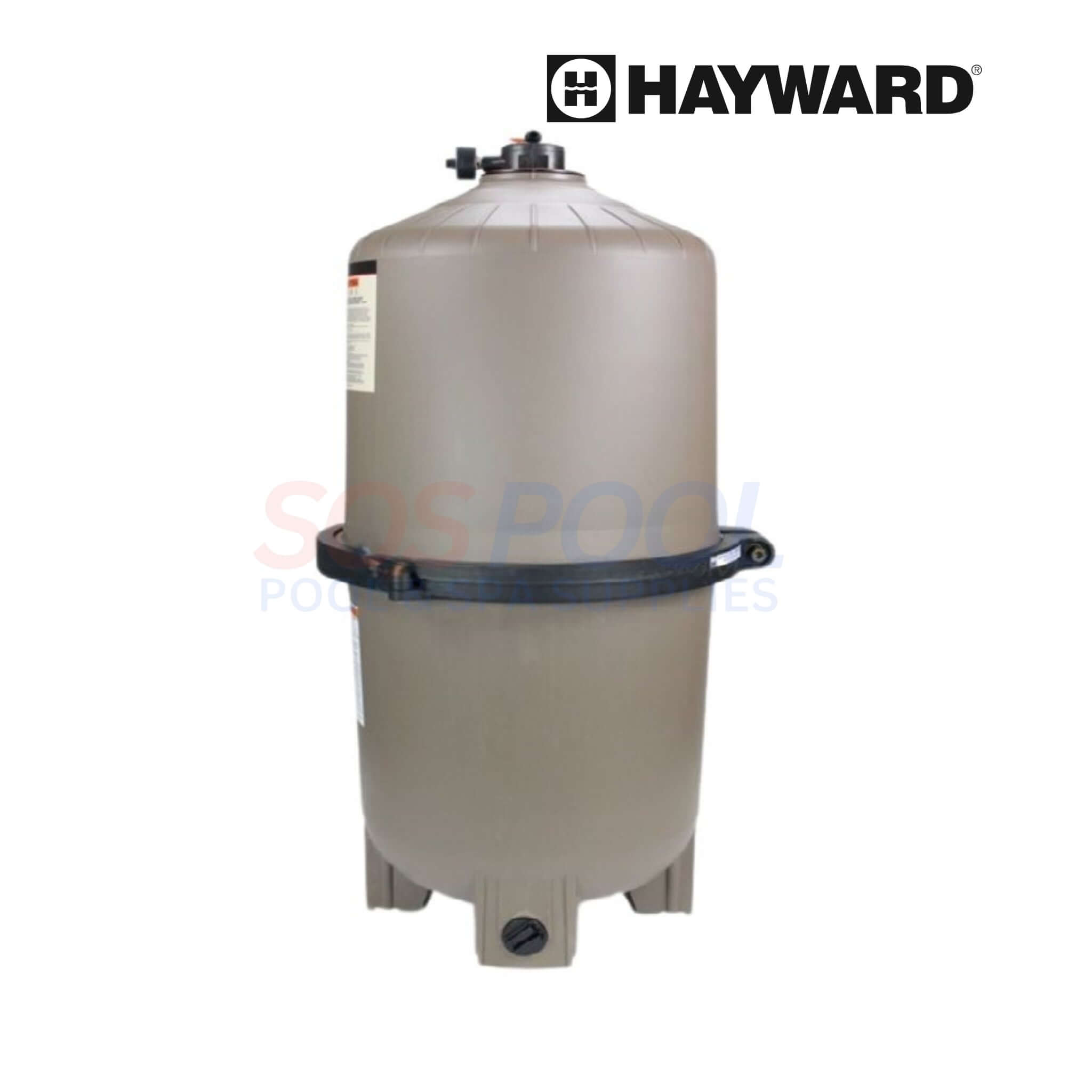

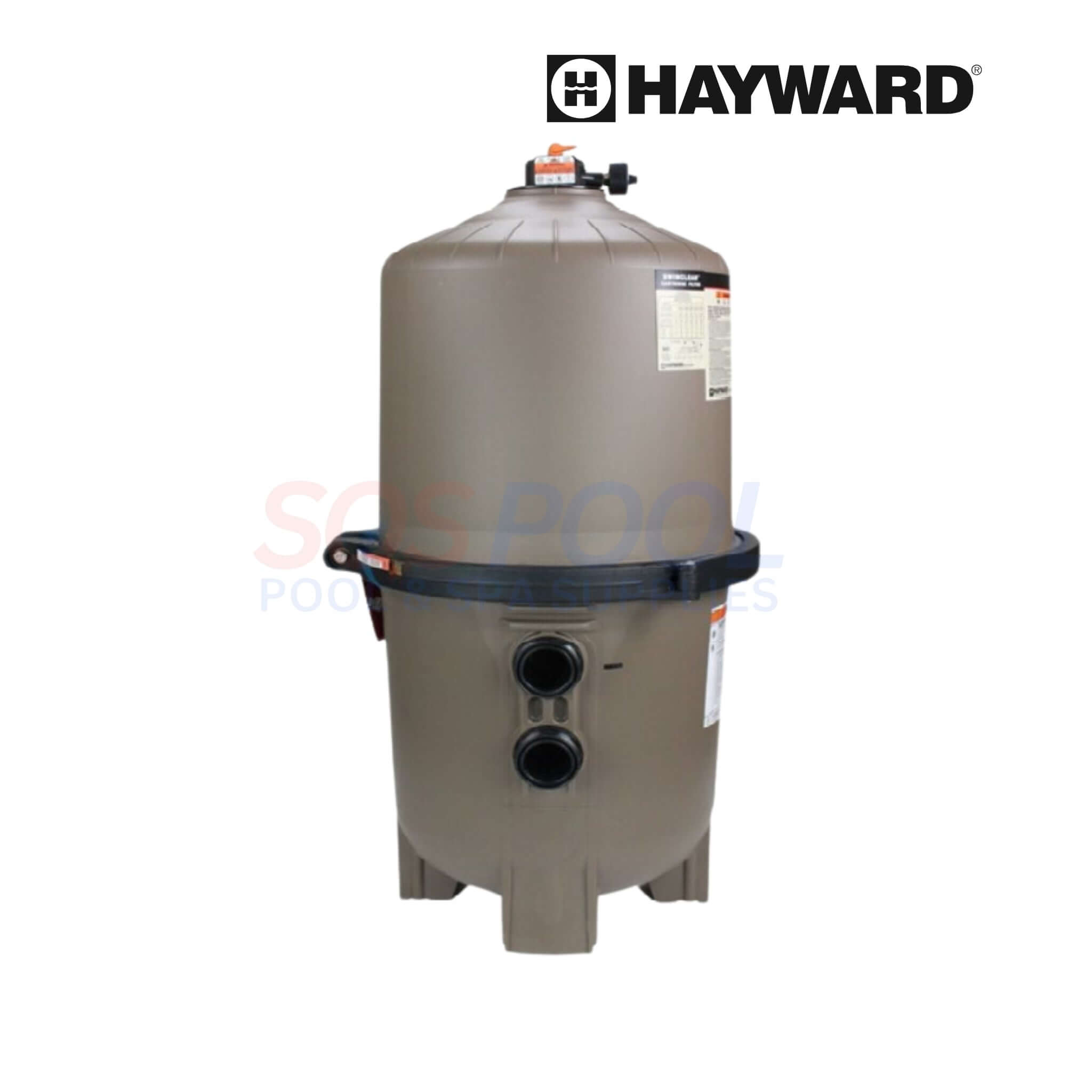

Hayward SwimClear 425 Sq Ft Cartridge Pool Filter | W3C4030

Hayward SwimClear Cartridge Filter | 425 Sq. Ft. | W3C4030

The Hayward SwimClear 425 Sq. Ft. Multi-Element Cartridge Filter | W3C4030 provides powerful, efficient filtration for in-ground pools of varying sizes. With its expansive 425-square-foot filtration area, this system delivers superior dirt-holding capacity and extended cleaning cycles—often lasting an entire swim season without requiring backwashing. The durable, glass-reinforced co-polymer tank construction ensures long-term strength, corrosion resistance, and reliable performance in harsh pool environments.

Designed for low maintenance, the SwimClear W3C4030 features a simple one-piece tamper-proof clamp for quick access to the Quad-Cluster™ cartridge elements, making cleaning and servicing fast and convenient. The top manifold design enhances hydraulic flow and prevents unfiltered water bypass, maintaining consistent clarity and performance. Whether installed in residential or commercial pools, this filter provides dependable, crystal-clear water with minimal upkeep, making it a smart investment for serious pool owners.

Key Features of the Hayward SwimClear 425 Sq. Ft. Cartridge Pool Filter

• High-Capacity Filtration: Offers 425 sq. ft. of surface area with Quad-Cluster™ cartridges for superior dirt retention and cleaner water over longer cycles.

• Durable Tank Construction: Made from heavy-duty, glass-reinforced co-polymer for corrosion-free, long-lasting performance even under high pressure.

• Energy-Efficient Hydraulic Flow: Internal plumbing design reduces resistance, lowering energy consumption while maintaining powerful water circulation.

• Quick-Access Clamp Assembly: Heavy-duty clamp allows easy cartridge removal and reinstallation without disconnecting plumbing.

• Efficient Air Relief Valve: High-capacity manual air relief system releases trapped air quickly with a simple quarter-turn operation.

• Consistent Water Quality: Precision-engineered manifold prevents unfiltered water bypass, ensuring continuous, clear filtration.

• Flexible Plumbing Connections: Accepts both 2” and 2.5” PVC unions for broad installation compatibility.

• Large 1.5” Drain Port: Allows fast tank drainage for easy cleaning, maintenance, and winterization.

• Extended Filter Cycles: Operates through long service intervals with minimal maintenance, often an entire season without cartridge cleaning.

• Proven Hayward Reliability: Built with trusted engineering for quiet, efficient performance that keeps your pool water sparkling clean.

Specifications

• Maximum Filtration Size: Filters out particulates as small as 30 microns
• Filtration Area: 425 square feet
• Dimensions: 24" inches in diameter and 40.5" inches in height
• Vertical Clearance: 58.5"
• Cartridge: 4 Required (Included)
• Weight: Approximately 82 pounds
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)

Includes

• (1) Hayward W3C4030 SwimClear Cartridge Filter
• (4) Cartridge- CX880XRE
• (1) Manual Air Relief Valve- CCX1000V
• (1) Pressure Gauge- ECX2712B1
• (1) Clamp- DEX2421JKIT

*See manual page 10 for complete list
