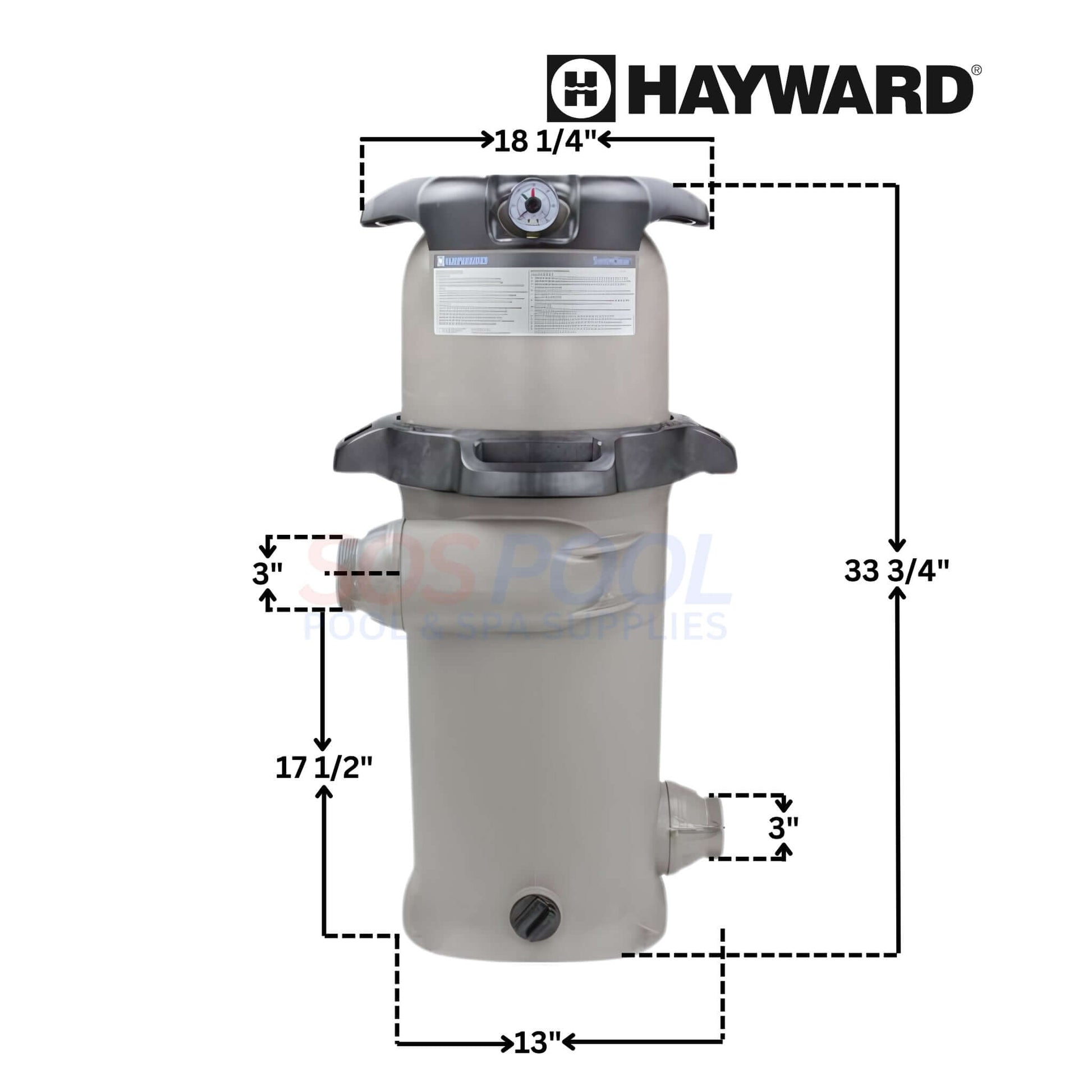

Hayward SwimClear 150 Sq Ft Single Cartridge Filter | W3C150S

Hayward SwimClear 150 Sq. Ft. Single Cartridge Pool Filter | W3C150S

The Hayward SwimClear 150 Sq. Ft. Single Cartridge Filter | W3C150S combines advanced engineering with effortless maintenance to deliver unmatched filtration performance for residential pools and spas. As the most efficient single-element cartridge filter in its class, the SwimClear 150 captures fine debris for superior water clarity while maintaining exceptionally low head loss for optimal hydraulic efficiency. This design allows your pump to run at lower speeds, reducing energy costs without compromising water quality.

Engineered for service simplicity, it features Hayward’s Easy-Lok™ ring design, ergonomic comfort-grip handles, and the lowest lift height in its category—making cleaning and element replacement quick and hassle-free. The recessed pressure gauge and manual air relief provide protection and easy access during maintenance. With durable construction, tool-free servicing, and high-capacity performance, the SwimClear W3C150S ensures crystal-clear water and long-lasting reliability for any pool system.

Key Features of the Hayward SwimClear 150 Sq. Ft. Cartridge Pool Filter

• Superior Single-Element Filtration: Provides 150 sq. ft. of filtration area, capturing fine debris for exceptionally clear water without the need for backwashing or added media.

• Energy-Efficient Hydraulic Design: Industry-leading low head loss allows pumps to operate at lower speeds or shorter cycles, maximizing energy savings and reducing utility costs.

• Quick-Service Easy-Lok™ Ring: Twist-lock design enables tool-free access to the internal cartridge, simplifying maintenance and reassembly.

• Ergonomic Comfort Handles: Strategically placed grips provide easy handling during installation and servicing without direct fiberglass contact.

• Compact Low-Profile Housing: Shortest body height in its class for effortless cartridge removal, cleaning, and replacement in tight equipment spaces.

• Recessed Pressure Gauge & Air Relief: Protects the seal from contamination and allows clean, easy upside-down head placement during service.

• Durable, Corrosion-Resistant Build: Constructed from glass-reinforced co-polymer for long-term strength and resistance to harsh pool environments.

• NSF Certified: Meets NSF/ANSI standards for safety, performance, and water quality compliance across multiple jurisdictions.

• Universal Plumbing Fit: Includes 2” x 2.5” union connections for fast, secure, and flexible installation.

• Long Filter Cycles: High-capacity element design extends the time between cleanings, keeping your pool water crystal clear with less maintenance.

Specifications

• Maximum Filtration Size: Filters out particulates as small as 30 microns
• Filtration Area: 150 square feet
• Cartridge: 1 Required (Included)
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 120 gallons per minute (GPM)

Includes

• (1) Hayward W3C150S SwimClear Cartridge Filter
• (1) Cartridge- CX150XRE
